Introduction Contents

Thank you for choosing the Yale Wireless Alarm System.

This simple to install system has been designed with the

user in mind.

All the components are self contained and no connections

are needed between the units. There is no need to

damage the home decor, lift carpets or run cables.

You can install up to 20 devices in this system. As well as

extra door/window contacts, PIRs and smoke detectors,

you can add keyfob remote controls and keypads for

added control convenience.

There is no need to wire into the mains supply or seek

the services of a qualiﬁed electrician. The control unit is

are powered by battery (all batteries included).

Batteries will operate for 2 years or more before they need

changing. Regular testing and battery changes (when

notiﬁed by the system) will ensure reliability and peace of

mind.

The security detectors, control panel and external siren

are ‘tamper’ protected. Any unauthorised tampering with

these items will result in an alarm. This feature can be

turned off by the user when a battery change is required.

Display extreme caution when using ladders or steps,

please follow manufacturer’s instructions.

Be careful when using hand and power tools and follow

the manufacturer’s guidelines when using them. Take care

that the correct tools are used. Wear goggles or protective

clothing where required.

The external Siren is extremely loud, please ensure you

replace the cover and retreat to a safe distance before

testing.

The dialling/SMS facilities must only be used with persons

who have consented to being contacted by the system.

The system is not to be used to make 999 emergency

calls directly. Yale do not hold responsibility for any actions

taken by emergency services for incorrect use of the

dialling/SMS facility.

Special Notes on Compatibility:

This alarm system is NOT compatible with SmartHome

Alarm and Easy Fit alarm accessories. Please note the

preﬁx “HSA” on the front of the model number to indicate

compatibility. Information and illustrations are subject to change within this

document. Yale reserves the right to alter the speciﬁcation and

product design at anytime without notice. Yale® is a registered

Contents

1 Location planning 2

2 Unpack all the parts 4

3 First Time Easy Install 6

4 Mounting alarm devices 8

5 Control Panel Menu System in Detail 11

6 Using the System 17

Adding and using Accessories 20

Changing the batteries 22

Troubleshooting 24

Sensor response table 27

Speciﬁcations 28

Remote SMS control 30

Recommended Installation Sequence

We recommend you follow the simple install

sequence, headings numbered 1-6.

Y a le

ale

Text Display

ale

789

Location planning

Home and Away Mode Planning

The home arming mode allows the premises to be

part armed so that no one can get inside without

warning the occupier, yet the person already inside

the house can move freely without triggering the

alarm. For example the downstairs of a house can

be armed while upstairs can be disarmed allowing

the user to go to bed without causing an alarm.

If this feature is to be used, then it should be

planned now, before installation.

Decide what areas can be occupied when in home

arming mode, the sensors for these areas should be

ignored using the “Home-arm set” option (see page

11); and the sensors activated on the path to access

the control unit should be set to either Entry or Away

Entry as explained in Chapter 5.

Operating Range

All devices must be within 30 metres of the control

unit and must not be mounted on or near large

metal objects. Avoid obvious sources of electrical

interference such as fridges and microwave ovens.

Tamper Switches

When mounting devices ensure that any tamper

switches close fully. On uneven surfaces it may be

necessary to place packing behind the switch for

reliable operation.

Extend The System

Extend the system in the future to increase your

security or as your needs change.

For example, add extra PIR detectors and

extra door/window contacts.

Choosing Location

To minimise interference, avoid locating devices

close to metal framework, glass, electrical

appliances (especially wireless devices) and electric

cables.

Please note that the present of high density material

(metal, glass etc) in the transmission path will

signiﬁcantly reduce the wireless transmission range.

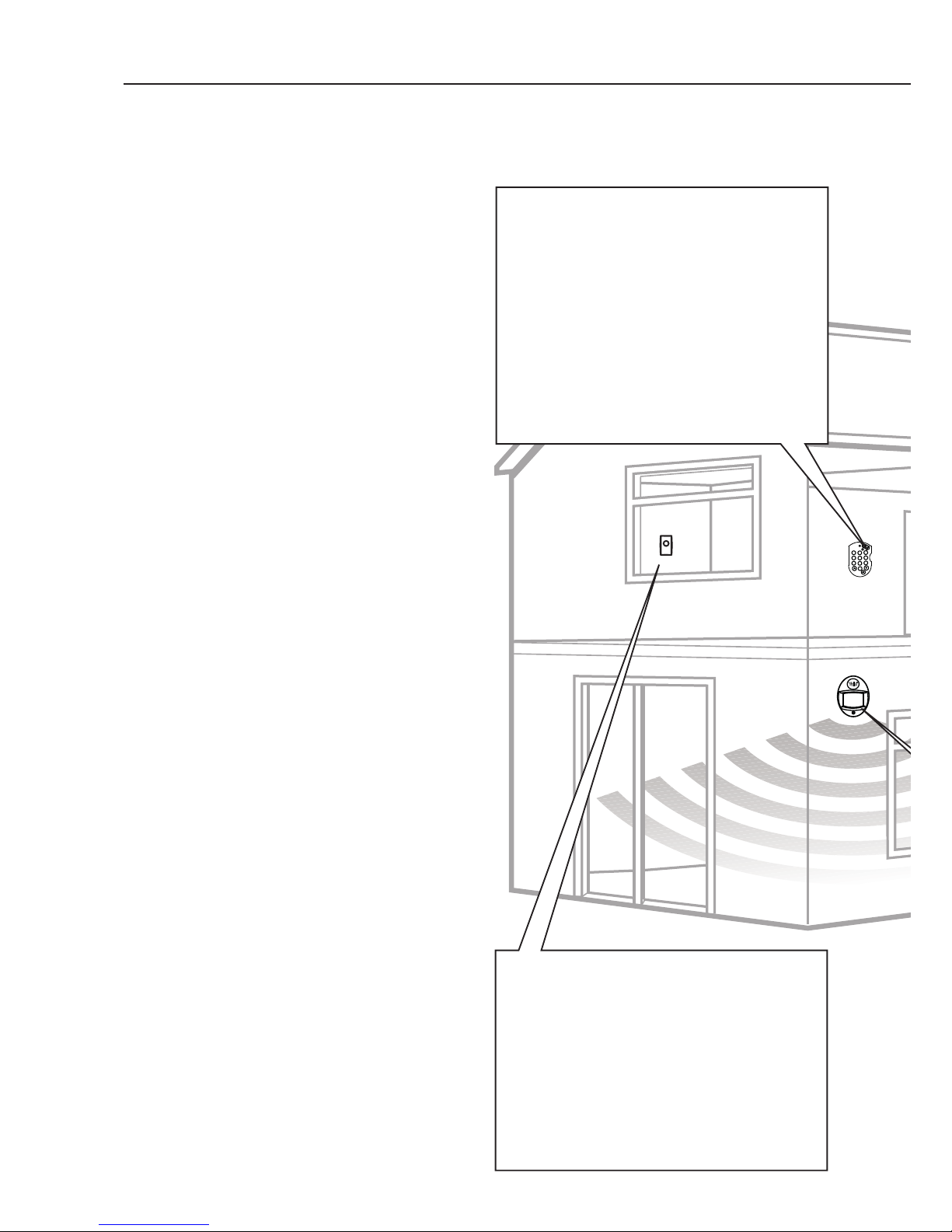

1Work out the best places to locate the devices for maximum protection. Having chosen the

locations do not mount at this stage.

Keypad remote control accessory

When used as second keypad, it is ideal in

bedrooms or at the top of a stairwell so the

ground ﬂoor can be armed when going to bed

for the night. Or, at a side or back door for

alternative entry.

•Mountatchestheightforeaseofuse

•Designedforindooruseonly

•Keypadshouldbeaccessiblefromaprotected

entry/exit point

•Ensurethatthekeypadisnotvisiblefromthe

outside of the premises.

PIR movement detector

•Mountinapositionsuchthatanintruderwould

normally move across the PIRs ﬁeld of view.

•Heightshouldbebetween1.9and2metres

above ﬂoor level.

•Locationinacornerwillensurewiderroom

coverage.

•DonotmountthePIRwhereitseldofviewwill

be obstructed e.g. by curtains, ornaments etc.

•Donotpointdirectlyatsourcesofheate.g.res

or boilers, and do not position directly above

radiators.

•AvoidmountingthePIRdirectlyfacinga

window.

•DonotpointthePIRatadoorprotectedbya

door/window contact.

Help button accessory

The help button provides extra protection for you

and your family. When help is needed the button

can activate your alarm immediately - even when

the system is disarmed.

•Mountonatwallsurface

•Designedforindooruseonly

•Outofreachofchildren

•Hiddenfromviewwhileeasilyaccessible.

Y a le

ale

Text Display

ale

789

Keyfob remote control accessory

Can be used inside or outside the property and

can be kept on your keyring.

Smoke detector

•Mountinthemiddleoftheceilingatthetopof

a stairwell, or on the centre of hallway ceilings

where smoke would most likely be detected.

•Donotmountincornersorabovecooking

appliances and heaters.

•Installadditionaldetectorsifthereareclosed

doors preventing smoke from reaching

detectors.

Door/Window contact

Select a door that will be the main point of entry

and exit, usually your front door.

•Mountashighaspossible

•DonotaimaPIRatthisdoororwindow

PIR movement detector

•Mountinapositionsuchthatanintruderwould

normally move across the PIRs ﬁeld of view.

•Heightshouldbebetween1.9and2metres

above ﬂoor level.

•Locationinacornerwillensurewiderroom

coverage.

•DonotmountthePIRwhereitseldofviewwill

be obstructed e.g. by curtains, ornaments etc.

•Donotpointdirectlyatsourcesofheate.g.res

or boilers, and do not position directly above

radiators.

•AvoidmountingthePIRdirectlyfacinga

window.

•DonotpointthePIRatadoorprotectedbya

door/window contact.

Control unit

•Ensureitishiddenfromviewwhileaccessible.

•Accesstomainssocket.

Siren

Choose a position on an external wall where the

siren would be most prominent. Mount as high as

possible, out of easy reach.

Unpack all the parts

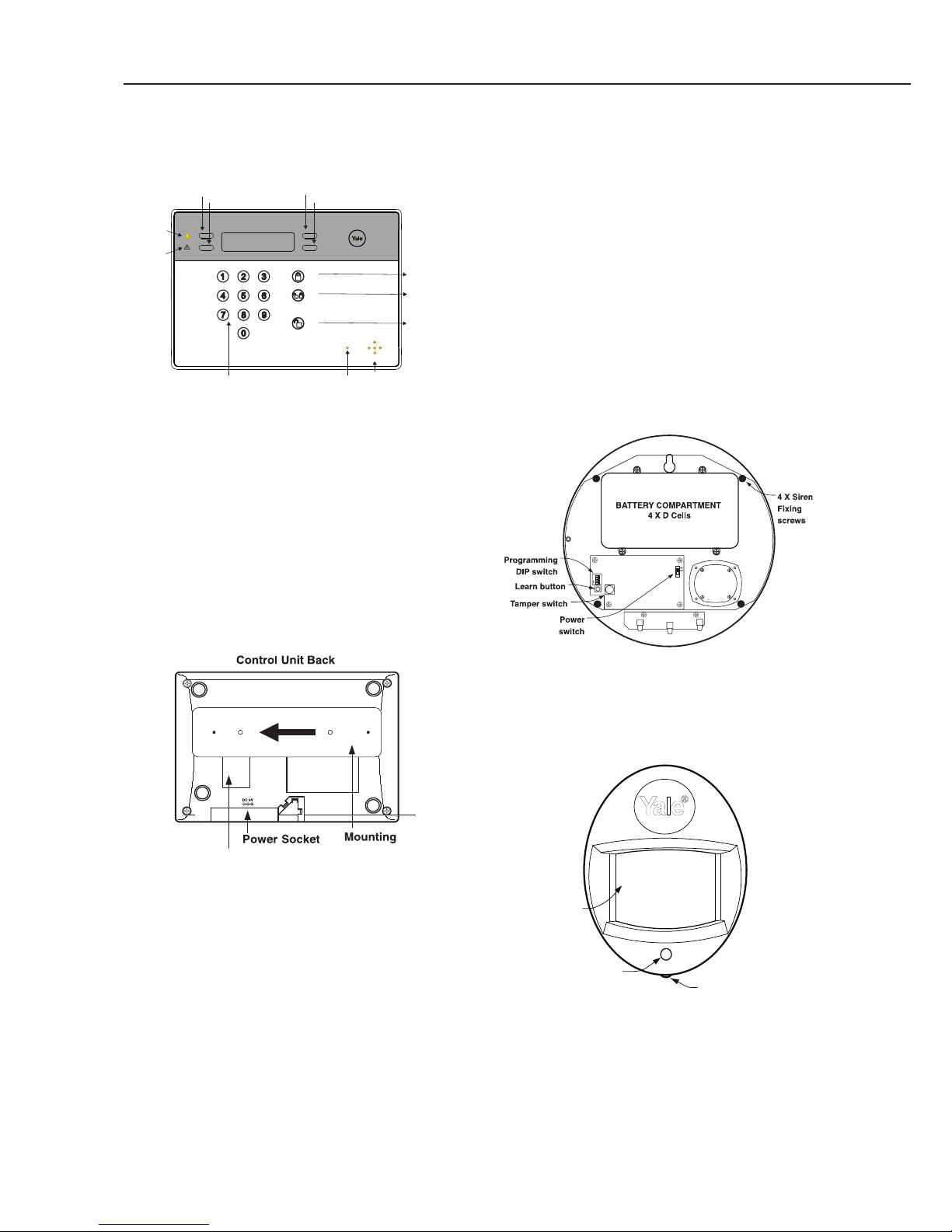

Control unit

Unpack the kit content on a table. Remove the

mounting plate (if ﬁtted) from the control unit by

sliding plate downwards. A power adaptor is

supplied that plugs into the main wall socket and

control unit. Do not plug in at this stage, this will be

done at Section 3.

•Inadditiontotheadapter,thereisarechargeable

battery inside the control unit that serves as a

backup in case of a power failure. A fully charged

battery can provide backup power for a period of

10 hours. It takes approximately 72 hours to fully

charge the battery. The control unit is equipped

with a backlit LCD display and keypad for easy

operation in the dark. To conserve backup battery

duration the backlights will be switched off during

mains power failure.

•Removethe“Simcard&Powerswitch”coverand

switch the internal battery to “on”.

•InsertastandardsizeGSMsimcard(not

provided), and replace the back cover. Please

ensure the sim card is not pin protected.

Siren

WARNING

The siren is very loud, be prepared! Take care not to

activate the siren tamper switch unnecessarily.

1The siren comes in two shapes, rectangle or round

depending on the kit purchased. Remove the

cover by unscrewing the single screw located on

the lid.

2Power switch to ON position.

PIR movement detectors

1Pull out the plastic pull tab on the back of the PIR.

This will activate the batteries.

Siren

Microphone

Power LED

Fault LED

Home Arm

Numeric

keys

Disarm

Arm

Text Display

Down

Backspace/Return

Plate

SIM CARD & POWER SWITCH

Cover screw

Learn/Test

Button

Status

LED

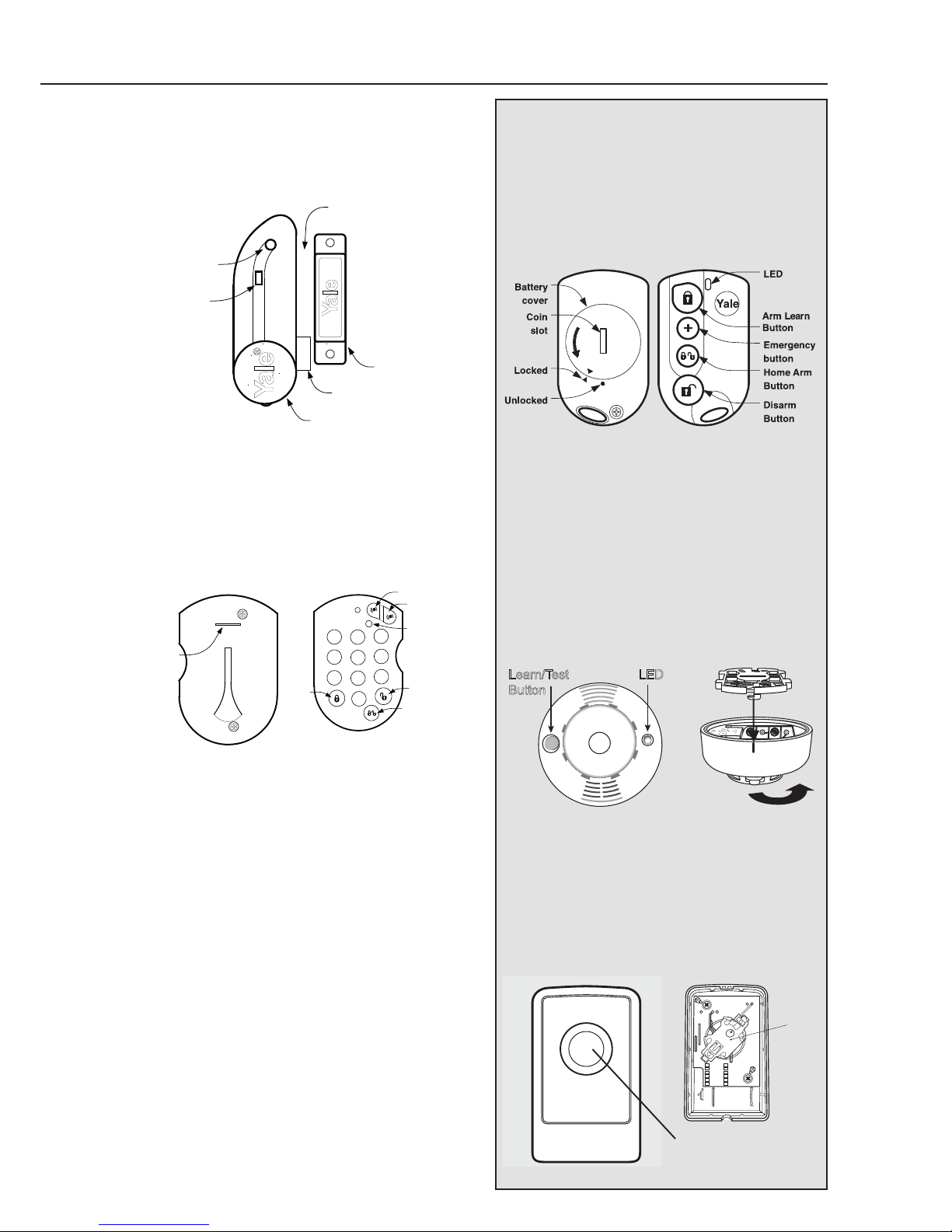

Door/window contacts

1Pull out the battery saver tab on the side to activate

the battery.

Keyfob remote control accessory

1Open the battery compartment using a coin by

turning cover in the direction of the big arrow so

the cover small arrow is next to round dot.

2Insert CR2032 battery and replace cover.

Smoke detector accessory

1Remove the cover and insert three AA batteries

2The Smoke detector will now enter into self-

calibration mode for 15-20 minutes. It will

resume normal operation after this period.

Help button accessory

Remove the cover by loosening the ﬁxing screw

and insert the CR2032 battery (supplied) as

shown (1). Please ensure you observe battery

polarity.

Door/window contacts

1Remove the cover of each door/window contact

by loosening the fixing screw.

2Insert two AAA batteries into each detector as

shown.The indicator LED will flash briefly.

Keypad remote control

Remove the cover and insert the 3 AAA alkaline

batteries as shown.The ‘Tx’ LED will flash briefly

while components initialise.

Please note, the Home button on the operating

panel and the jumper switch inside (do not move)

have no function on this model.

Smoke detector accessory

Remove the cover and insert the four AAA

batteries as shown.

Keyfob remote control accessory

Slide off the battery cover, insert the

23A/MN21 battery as shown, and replace

battery cover. Switch to ‘on’.

Help button accessory

Remove the cover by loosening the fixing

screw and insert the 12V battery (supplied) as

shown. Please ensure you observe battery

polarity.

Tamper

switch

Jumper

switch

Tamper

switch

Jumper

switch

Magnet

Extension terminals

Learn/Test button

Learn/Test

button

On/Off switch

Keypad remote control accessory

1 Pull out the plastic battery saver tab at the back of

the remote keypad. This will activate the batteries.

Learn/Test

Button

LED

ale

Panic/Learn

button

Battery

saver tab

Gap no more

than 8mm

Magnet

Sensor

Learn/Test

button

LED

Battery

saver tab

ale

789

Disarm

Home

Arm

LED

First Time Easy Set-up

  •Anyomissionsormistakescanberectied 

later. Once the ﬁrst time install has been

successfully completed it will not be shown

again.

  •Moreadvancedprogrammingcanbedone 

at a later stage including adding and naming

sensors and changing various settings.

Connect the mains power adaptor to the control

panel (in the intended location). After the welcome

screen, the display will show:

3 Steps easy

setup (ok?)

Press OK (3) to continue. You are 3 steps away

from completing the initial set-up.

3The installation guide will provide you with prompts to easily set-up the system.

1. Set Time/Date

Set date/time

(ok?)

Press OK (3) to continue.

Set date,press

ok when done(ok)

Press OK (3) to continue.

date setting

01 jan (pqOK)

Set the current month using the p/qkey.

Press OK (3) to conﬁrm setting. Set the day

using the p/qkey. Press OK (3) to conﬁrm

setting. After setting the day, it will now

prompt you to set the time.

Set the current time using the p/qkey. Press

OK (3) to conﬁrm the hour, follow by setting

the minutes.

2. Set the phone number to alert

Set 1 phone num

for alert (ok?)

Enter a phone number to be alerted in the

event of an alarm.

Press “Up arrow” key for +key or enter

numbers.

Press OK (3) to continue.

Press Return button to clear the entered

number or skip if you do not want any alert

through the phone.

3. Set the Pincode

Set pin code

....

Enter the four digit pincode you would like to

use (e.g. 1234). Press OK (3) to continue.

Next, the screen will display:

.Exit setup

Repeat Setup

Upon selecting “Exit Setup”, you will now be

prompted with:

mount devices,

see Manual

Please leave it on this screen and proceed to

mount all your devices (see Chapter 4).

Note: If a different prompt is shown, please see

section on the right.

Error Condition

(Upon selecting Exit setup)

If there are no device/accessory (accidentally

deleted) in the system and you selected “Exit

Setup”, you will be prompt with “Please add at

least one device”.

Please add at

least one device

If you see this message, please press the test/

learn button on all your accessories (please add

Siren later) one at a time.

Every time a button is pressed, the screen will

prompt the device and you will need to press OK

on the panel to acknowledge/add. It would then

be reverted to the “Exit Setup, Repeat setup”

screen. Please press the learn button on the

next device and repeat the above steps. Please

ensure all the devices are added one by one.

Choose “Exit setup” once everything is added.

Alternatively, should you wish to ﬁnish initial setup

with no device learnt-in, you can force exit by

pressing disarm and then followed by the pincode.

You will now be prompted with:

mount devices,

see Manual

Please leave it on this screen and proceed to

mount all your devices (see Chapter 4).

Post Installation/Mounting Devices

4Note: Tamper is disabled during initial set-up. For details on disabling tamper see Section 6

Control Unit Mounting

Wall Mounting

Using the two holes on the mounting back plate,

mark the position of the holes. Drill two holes and

ﬁx with the screws and plugs provided. Hook the

control panel onto the plate. Ensure that the control

unit is ﬁtted at approximately chest height where

the display can be easily seen and the keypad

convenient to operate.

•The control unit tamper protection will

automatically arm when mounted on the back

plate.

NOTE: At this point, the control panel

screen should be showing:

mount devices,

see manual

Mounting other devices

Find a location where the device is to be mounted,

see section “Location Planning” for suggestions.

Before proceeding to mount the devices physically,

check that the control unit will receive the system

radio transmissions by doing a simple radio range

test.

Please make sure the control unit screen is

displaying:

mount devices,

see manual

Hold the devices in the desired location and press the

Test/Learn button (see below) on the accessories.

•KEYPAD: press arm button.

• ALL OTHER DEVICES: Hold the device in the

desired location and press the learn/test button,

the control unit should respond with a chime.

If the sensor signal reached the control unit, the

screen will brieﬂy display:

dc zone01 b 6

........

*Note: this screen shot is use as example only.

The radio signal strength is shown by a number on

the upper right (6 in this case). this number ranges

from 1 to 9 (strongest). Where possible please ensure

sensor shows 3 or above for optimal performance.

When you are happy that all your devices can

communicatewiththepanel,presstheGreen

“Disarm” button and enter your pincode that you

previously deﬁned. The screen will now show:

Alarm Off

00:00 01 jan

Leave it at this screen and proceed to mounting the

accessories as detailed below. The fault light/beep

maybe activating periodically and you can ignore that

until you ﬁnish mounting.

Mounting the siren

Ensure the tamper switch is fully depressed when

the siren is mounted. If there is a gap, pack with a

suitable spacing material.

Round

Siren

Base

Wall

Spring Guide

Spring compressed

firmly against wall

1 Using the large screws and wall plugs provided,

screw the siren onto the wall through the 4

mounting holes on the siren base.

2 Fix the siren cover with the securing screw.

Mounting the PIR

1 Open the PIR by loosening the bottom screw.

Knock out the relevant holes on the base where

the plastic is thinner. The center two knockout

holes are for ﬂat wall mounting while the 4 side

holes are for corner mounting.

2 Drill holes into the wall using the knockout holes on

the base as a template.

3 Fit wall plugs and secure the PIR base with the

screws provided.

4 Fit the PIR back together and tighten bottom

screw, the PIR installation is complete.

Mounting the Keypad:

1 Drill holes into the wall using the ﬁxing holes as a

template.

2 Fit wall plugs into the wall and ﬁx back cover with

the screws provided. Put the keypad into the

bracket.

Mounting the Door Contact

Frame

Door/Window

Gap no more

than 10mm

Magnet

Sensor

ale

1 Find a location on the door/window where you

would like the device to be mounted. The sensor

should be on the frame while the magnet should

be on the door/window. Once mounted make sure

the tamper switch spring is fully depressed.

The gap between the magnet and sensor should

be no more than 10mm when closed (maybe

shorter depending upon the actual environment).

Simple test to see whether the magnet is in range

of the sensor: hold the magnet and sensor in

place and then pull them apart. If the sensor LED

lights up it implies the two items are within range.

-Mounting using adhesive pads

Clean the mounting surface with a suitable

degreaser agent. Please note that some surface

or environment (i.e. exposure to Sunlight) maybe

unsuitable for this mounting method. Please use

screw mounting in these cases.

-Mounting using screws and wall plugs

Loosen the bottom screw

and open the door/window

contact. Knock out the holes

on the base as shown. Drill

holes into the mounting

surface using the holes in

the knockouts on the base

as template. Fit wall plugs

(if required) and secure with

the screws provided.

Mounting the Help button

1Break through the knockouts (where the plastic is

thinner).

2Using the holes as a template, drill holes in the

surface and insert wall plugs if ﬁxing into plaster or

brick. Screw the rear case to the wall.

3Replace the cover and tighten the screw.

Mounting the Smoke Detector

1The base has two mounting slots. Using the slots

as a template, drill holes and insert the wall plugs if

ﬁxing to plaster. Screw the rear case to the ceiling

using the screws provided.

2Replace the main unit onto the bracket.

Knockouts

Corner fixing

knockouts X 4

Wall fixing

knockouts X 2

Fixing Slots X 2

Keypad

Cradle Open

About your alarm system (default settings)

To set up more telephone numbers (maximum

6 in total), please see Chapter 5, Tel. Settings.

To change, please see Chapter 5, Adv.

Settings, Alarm Length.

To change the exit and entry timer, see Chapter

5, Adv. Settings.

To change the property of individual sensor (i.e.

Burglar attribute where the individual sensor will

instantly alarm when triggered), see Chapter 5,

Devices, Edit Devices.

Home arming is disabled by default. If you need

Home arming function, see Chapter 5, Home-

arm set.

All accessories were pre-set to

“entry” attributes.

When the system is ﬁrst armed, user will have 30

seconds to exit the building. System will ignore any

sensors triggering in this duration.

If the system is already armed, triggering any

sensors will cause an entry countdown to begin.

When the alarm is triggered, the

system will dial out to alert the

owner.

Siren length is set to 3 minutes.

Jamming and interference

detection disabled as default.

If Jamming and interference is of concern,

please see Chapter 5, Adv. Settings, Jamming

Det for option.

Table des matières

Autres manuels Assa Abloy Système de sécurité

Assa Abloy

Assa Abloy MSL mFlipLock check Manuel utilisateur

Assa Abloy

Assa Abloy Yale AC-PB Manuel utilisateur

Assa Abloy

Assa Abloy Yale Smart Home Alarm Manuel utilisateur

Assa Abloy

Assa Abloy EXITalarm Manuel de service

Assa Abloy

Assa Abloy Yale AC-PS Manuel utilisateur

Assa Abloy

Assa Abloy Yale Sync Smart Home Alarm Manuel utilisateur

Assa Abloy

Assa Abloy Securitron M680E Manuel utilisateur

Assa Abloy

Assa Abloy SR-A100-00DC Manuel utilisateur

Assa Abloy

Assa Abloy Yale SR-1200e Manuel utilisateur

Assa Abloy

Assa Abloy Yale Easy Fit EF Series Manuel utilisateur

Assa Abloy

Assa Abloy effeff EXITalarm Manuel de service

Assa Abloy

Assa Abloy MSL mFlipLock drive Manuel utilisateur

Assa Abloy

Assa Abloy Yale EF-KIT2 Manuel utilisateur

Assa Abloy

Assa Abloy Yale SmartHome Alarm Series Manuel utilisateur

Assa Abloy

Assa Abloy Yale Smart Living SR-1100 Manuel utilisateur

Assa Abloy

Assa Abloy Yale SR-A100-PPIR Manuel utilisateur

Assa Abloy

Assa Abloy MSL mFlipLock drive Manuel utilisateur

Assa Abloy

Assa Abloy Yale SV-8C-4ABFX Manuel utilisateur

Assa Abloy

Assa Abloy HSA6010 Manuel utilisateur

Assa Abloy

Assa Abloy Pando S559685084 Manuel utilisateur

Assa Abloy

Assa Abloy Yale SR-A100-00SR Manuel utilisateur

Assa Abloy

Assa Abloy Yale SV-4C-2ABFX Manuel utilisateur

Assa Abloy

Assa Abloy Premium Plus HSA6410 Manuel utilisateur

Assa Abloy

Assa Abloy Yale SR-BX-ZW Manuel utilisateur

Manuels Système de sécurité populaires d'autres marques

Inner Range

Inner Range Concept 2000 Manuel utilisateur

Climax

Climax Mobile Lite R32 Instructions de montage

CADDX

CADDX NX-6 Manuel utilisateur

FBII

FBII XL-31 Series Manuel utilisateur

Johnson Controls

Johnson Controls PENN Connected PC10 Manuel utilisateur

Aeotec

Aeotec Siren Gen5 Manuel utilisateur

Blaupunkt

Blaupunkt SA 2700 Manuel utilisateur

IDEAL

IDEAL Accenta Manuel du propriétaire

AJAX

AJAX DoubleButton Manuel utilisateur

Swann

Swann SW-P-MC2 Manuel utilisateur

Ecolink

Ecolink Siren+Chime Manuel utilisateur

Digital Monitoring Products

Digital Monitoring Products XR150 Manuel utilisateur

EDM

EDM Solution 6+6 Wireless-AE Manuel utilisateur

Highway Safety Group

Highway Safety Group EA401 Manuel utilisateur

Siren

Siren LED GSM Manuel utilisateur

Detection Systems

Detection Systems 7090i Instructions de montage

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manuel utilisateur

Siemens

Siemens FDM273 Manuel utilisateur
