K100-622 Aperio Series

Wireless Cabinet Lock

Installation Instructions

HES, Inc.

Phoenix, AZ

1.800.626.7590

www.hesinnovations.com

NOTE: The wireless hub and hub bracket are included with the K100-622H model.

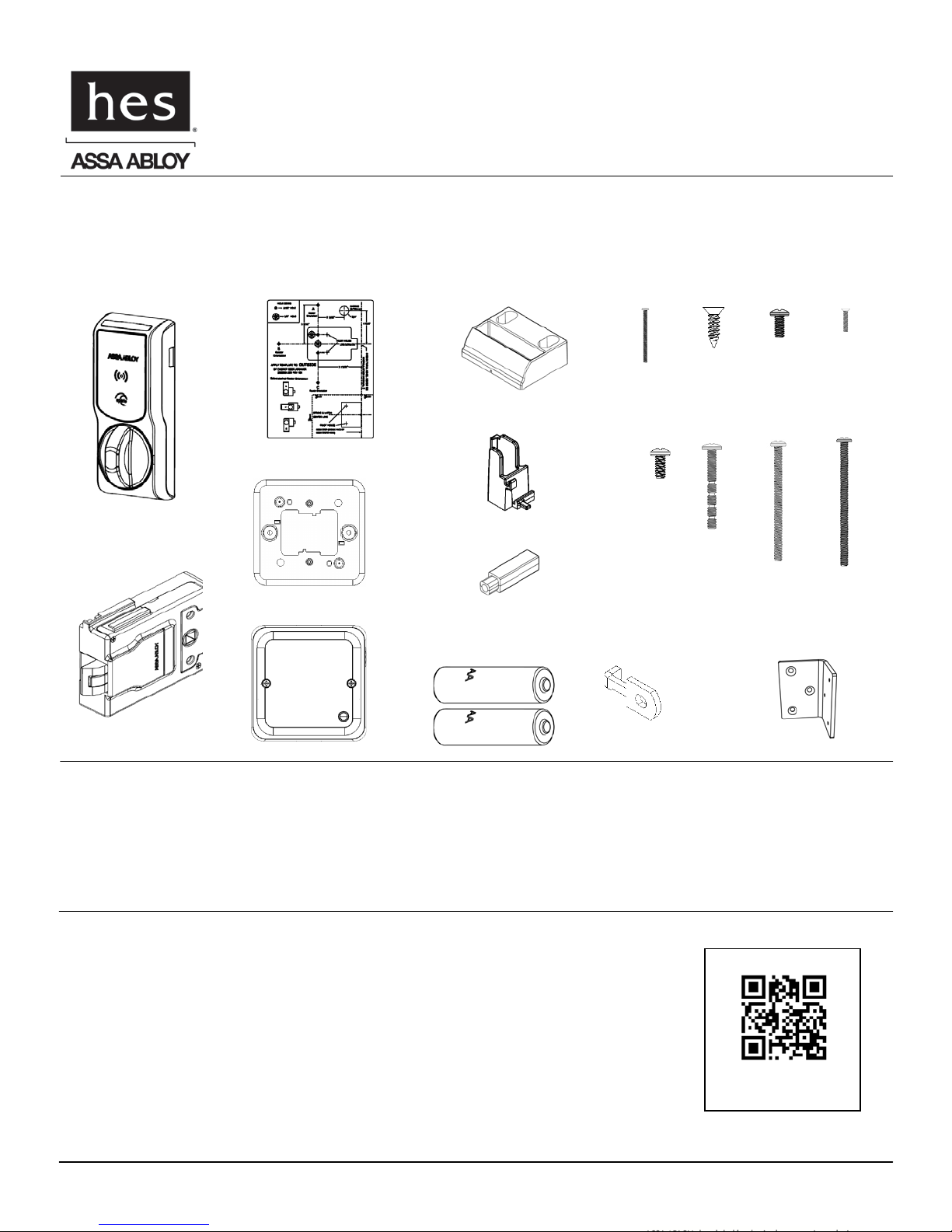

Package Contents

Recommended Tools

Optional Additional Tools:

Gang box to mount hub

Cam Lock for Key Override

Drill, Drill bits: 1/16”, 3/16”, 1/2”

Approved iCLASS or Prox ID

credential.

Flathead drivers 3/32”, 3/16”

Phillips drivers P0, P2

Pencil, Wire Stripper, Level,

Square, Pliers

Wireless Frequency: 2.4 GHz, IEEE 802.15.4, using AES 128-bit encryption

Hub Power Requirement: 8–24 Volts Direct Current (VDC), 250 milliamps (mA)

Lock Battery Type: Lithium AA Cell, 1.5 Volts (V) (Energizer L91 Ultimate Lithium)

Battery Life: 50,000 cycles

Operating Temperature: 32 °F to 122 °F (0 °C to 50 °C)

FCC Part 15 Compliant, IC Compliant

Credentials Supported:(-PA) Low Frequency model: HID PROX, EM PROX

(-SE) High Frequency model: iCLASS, iCLASS SEOS , iCLASS SE, ISO14443B UID,

Mifare, Mifare Plus, Desfire SE, Desfire EV1, NFC

Product Specifications

For technical support please call 1-800-626-7590

QR codes can be scanned

with a smart phone app

K100-622

Tips and Videos

QR Codes

Strike Plate

Shaft Extension

2-56 x 1-1/4”

Energizer L91 Ultimate

Lithium Batteries

Double door bracket

Lock Body

8-32 x 1 1/4”

Breakaway

8-32 x 2 1/2”

8-32 x 2 3/4”

6-32 x 5/16”

6 x 1/2”

2-56 x 7/16”

Key Override

Cam

Key Override Paddle

Template

Screws

Reader

8-32 x 5/16”

Hub Bracket

Wireless Hub

3080076.004, Rev. B 1

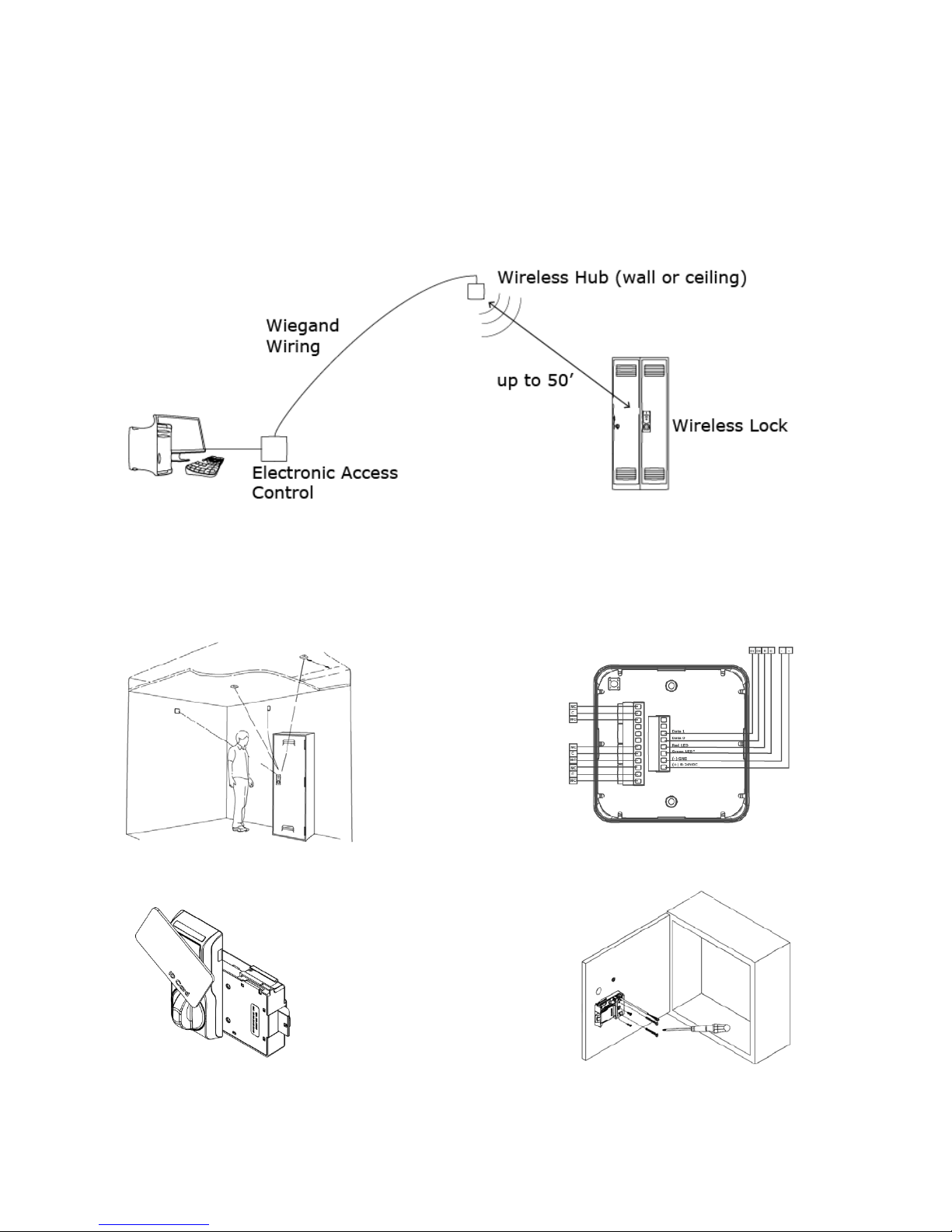

System Overview

The K100-622 series wireless cabinet lock provides

access control to a cabinet or drawer without the complexity and

expense of running wires to the cabinet or drawer. The K100-622 series lock connects to an access control through

a communication hub (included with the K100-622H). The communication hub connects to the access control

system with Wiegand wiring typical of a Wiegand Reader.

When a credential card is presented to the reader on the lock the request for access is sent wirelessly to the

communication hub. The communication hub then communicates through Wiegand wiring to the access control

system where the decision is made to grant or deny access.

Installation Process

Testing the Lock

Connecting the Hub

(K100-622H only)

Mounting the Lock

Locating and Mounting the Hub

(K100-622H only)

3080076.004, Rev. B 2

Choosing the hub location

NOTE: The following applies primarily

to the K100-622H Model with

included hub.

It is recommended that the hub be

mounted near the top of a wall, on the

ceiling or above the ceiling to reduce

potential for interference, and be facing

toward the lock for best performance.

For a stable and reliable radio link, it is

recommended that the hub is located

within fifty (50) feet of the lock. A

maximum of two interior walls

between the hub and lock is

recommended

Recommended locations:

A: Wall Mount

B: Ceiling Mount

C: Wall Mount, Adjacent Room

NOTE: The hub is not rated for use in

plenum air spaces.

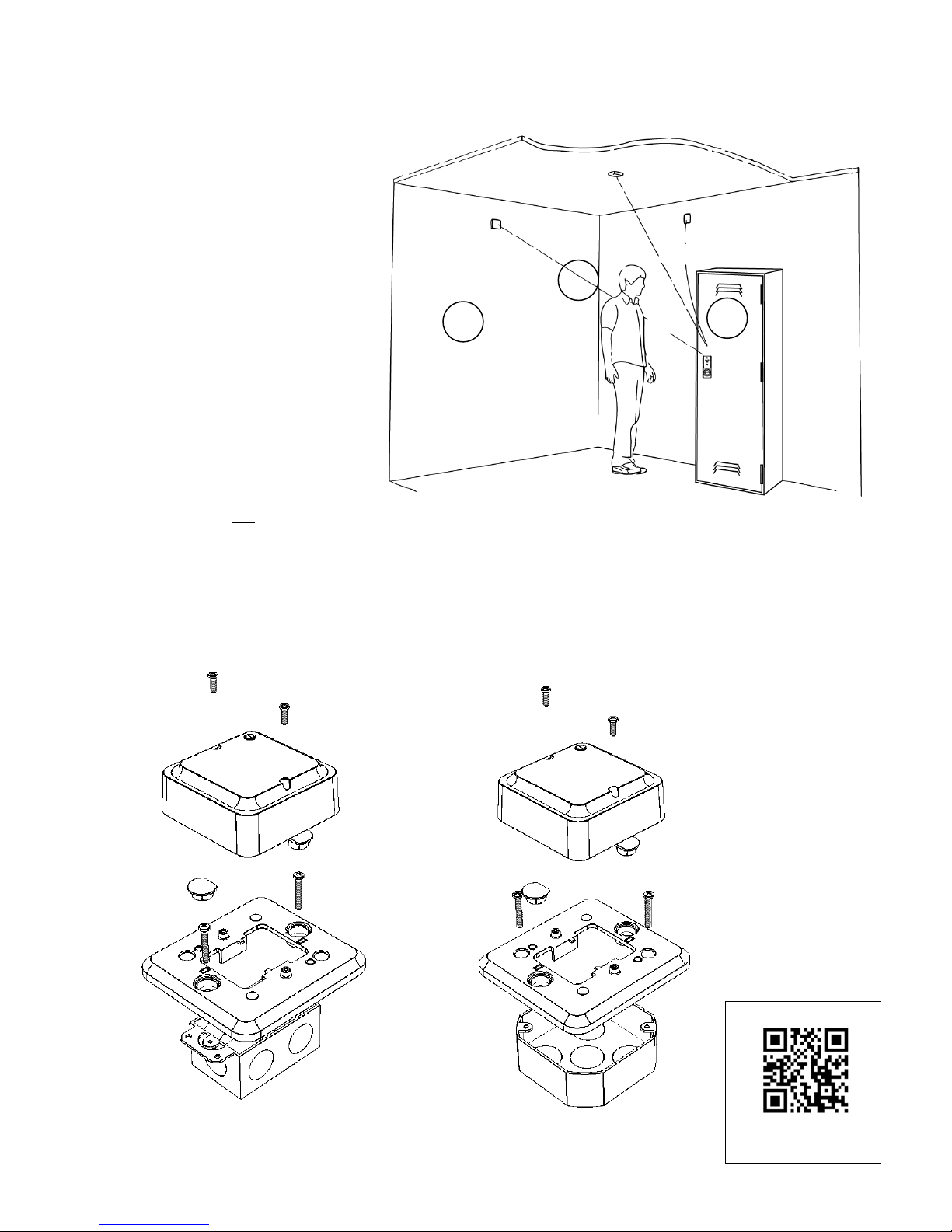

Mounting the Hub

NOTE: The following applies primarily to the K100-622H Model with included hub.

The included adapter plate can be used to mount the hub on a single or double gang box.

Mounting the Hub

3080076.004, Rev. B 3

Connecting the Hub

NOTE: The following applies primarily to the K100-622H Model with included hub.

The Aperio®Hub connects to the Access Control system via Wiegand wiring. The hub requires 8–24 VDC power

(250mA). The hub includes three Form C relays that can be used to transmit latch bolt position status, low

battery signal, and a tamper signal. The hub connects to the cabinet lock wirelessly.

NOTE 1: The Green LED input is used to grant access to the cabinet lock. If the Green LED signal is not available

to indicate approved access, the approval input can be activated by a relay with “NO” attached to Green

LED and “C” to GND.

NOTE 2: The Red LED input is used to indicate access denied.

If the RED LED signal is not connected, the lock will

flash RED three times when a non-approved card is presented indicating loss of connection to the hub

rather than access denied. Any other codes may be reference on the LED reference card.

1. CONNECT the Wiegand D1, D0, red and green LED signals.

3. CONNECT Latchbolt Position, Low

Battery, and Tamper Switch Detection

Form C relays.

2. CONNECT 8–24 VDC and ground (250 mA).

Connecting the hub

3080076.004, Rev. B 4

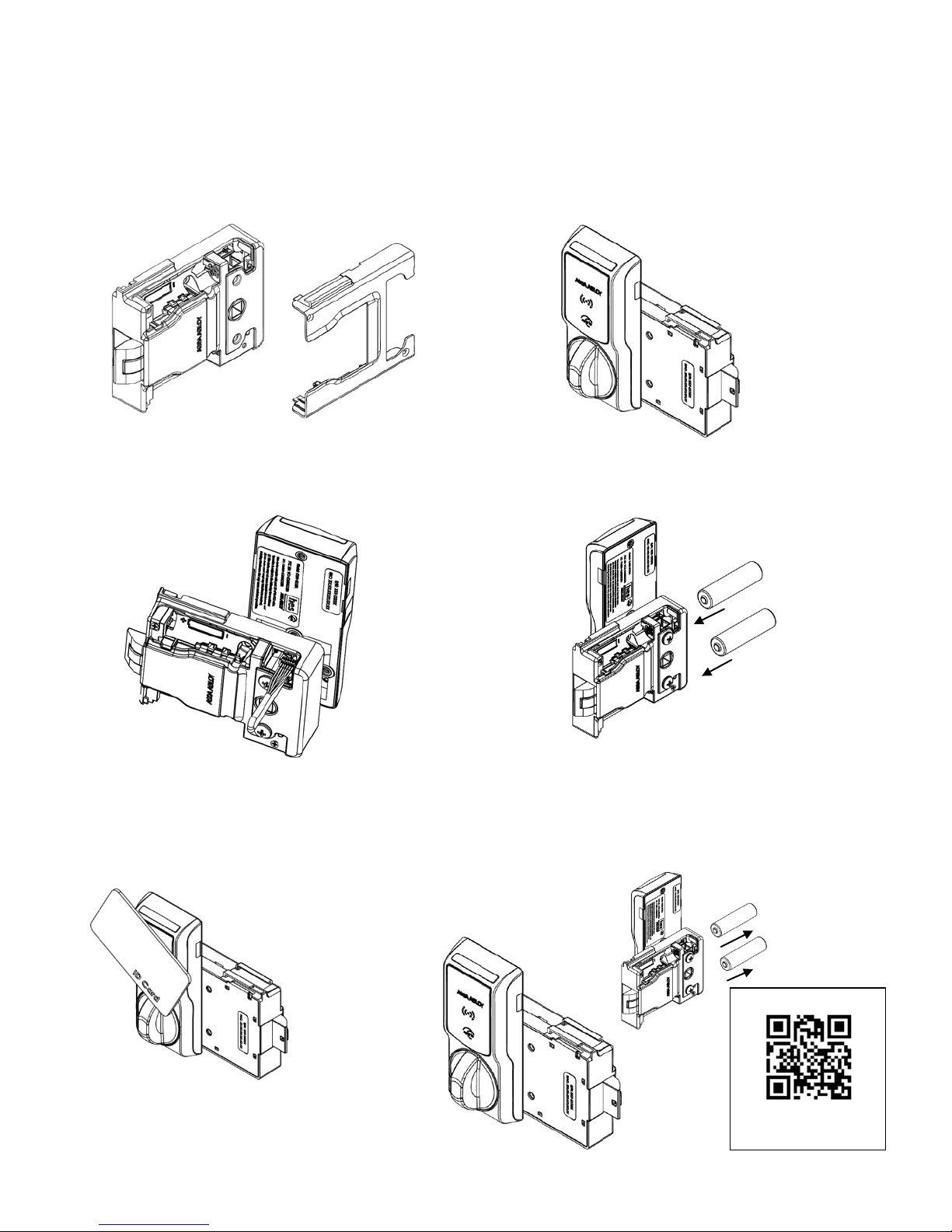

Testing the Lock with the Access Control System

NOTE: With the hub connected to power and the access control system, the lock is tested with a known good

credential to confirm it will open as desired when installed.

1. REMOVE the battery cover from the

lock body.

2. PASS the wire and shaft from the

reader through the lock body.

3. CONNECT the wire (the wire is

keyed) from the reader to the

socket in the lock battery

compartment.

4. INSTALL the batteries and ENSURE

correct orientation; the lock will self

test and beep once.

5. PRESENT a

credential known

to the access

control system.

6. IF a green LED, indicating

access is granted, is lit;

THEN TWIST the knob to

retract the latch.

7. REFER to the LED

reference card for any

other c0des.

8. REMOVE the batteries, UNPLUG

the cable carefully, and

SEPARATE the lock and reader

to prepare for installation.

Testing the lock

3080076.004, Rev. B 5

***CAUTION***

The Installer must ensure the lock can be opened before closing the cabinet at the end of these

installation instructions.

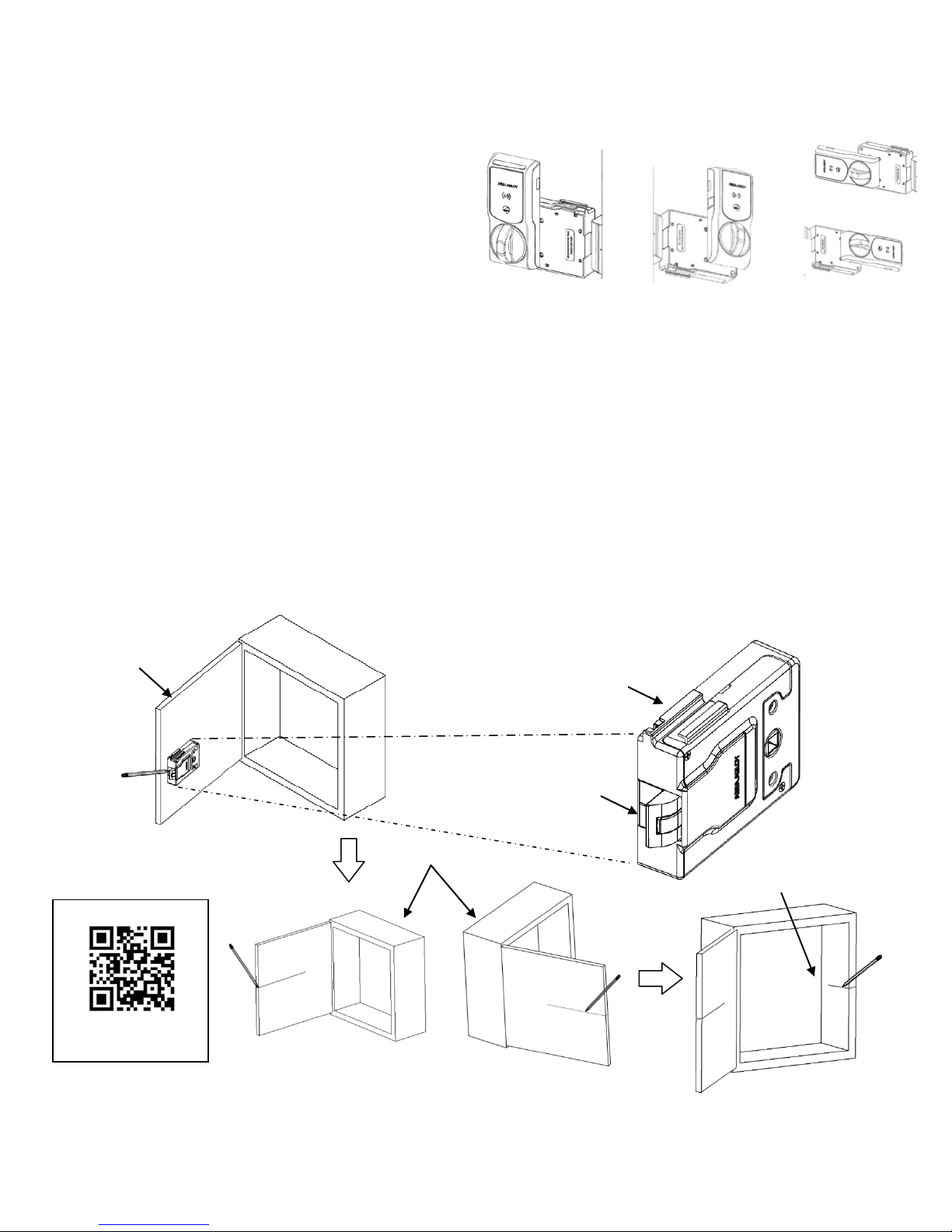

Mounting the Lock

NOTE: The K100-622 reader and lock body can be

oriented in several ways to accommodate

various cabinets and drawers.

1. ESTABLISH the horizontal centerline of the latch.

1a. HOLD the lock body to the inside of the door and POSITION it generally where

you would like it to mount.

1b. LOCATE the lock centerline notch on the latch and MARK this point on the inside

of the cabinet door using a pencil.

1c. DRAW the horizontal latch centerline from this mark on the inside of the cabinet

door and TRANSFER it to the outside of the cabinet door.

1d. TRANSFER this centerline to the inside of the cabinet or the second door on a

double-door cabinet.

1e. RECORD the MAC identification number for transfer to Aperio software.

Latch centerline notch

Mounting the Lock

MAC identification

number on back side

3080076.004, Rev. B 6

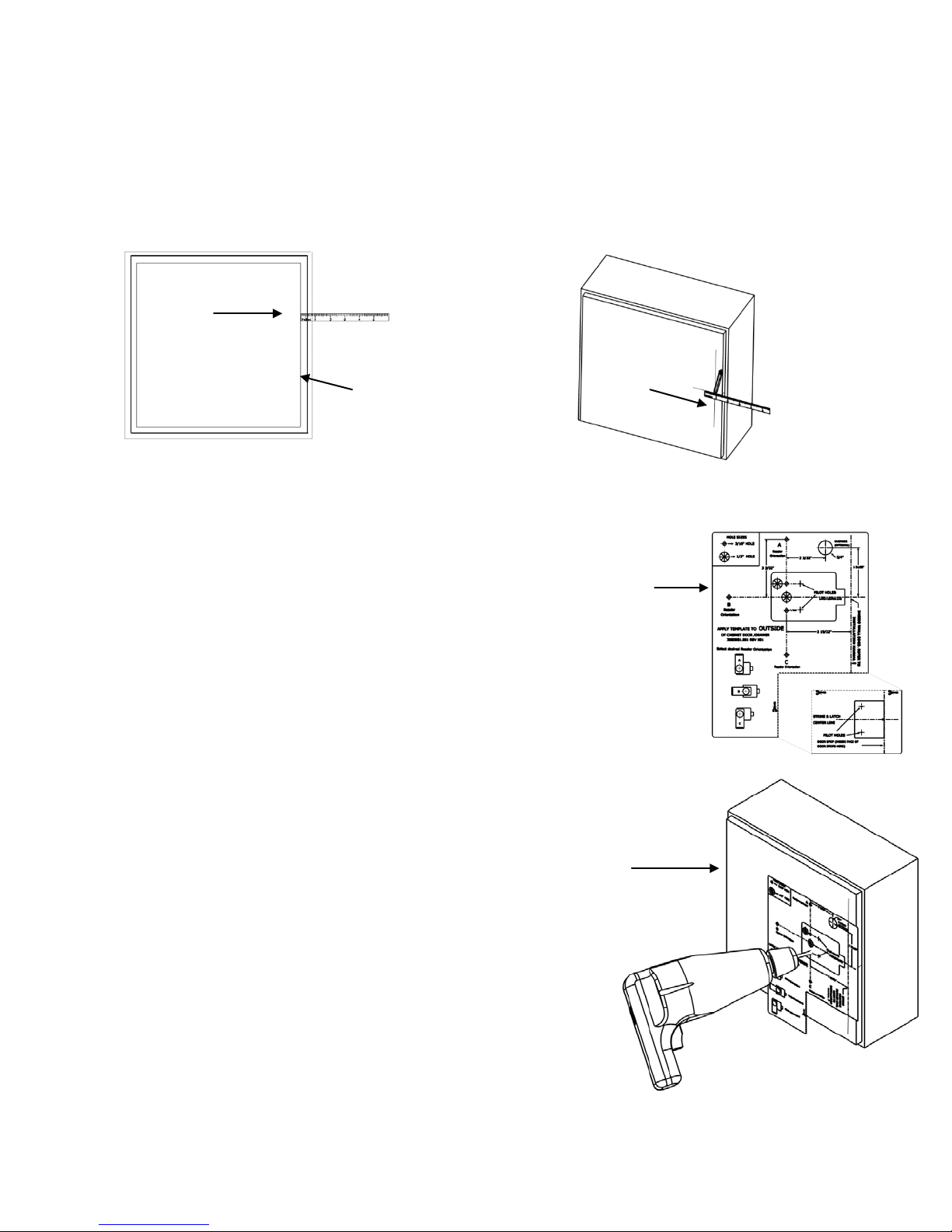

2. TRANSFER the location of the inside wall of the cabinet to the door.

2a. MEASURE the horizontal distance between the inside edge of the cabinet and the door edge.

NOTE: The drawn line depicts the location of the strike mounting surface.

2b. DRAW a line on the outside surface of the door, using the same distance away from the door edge.

3. PLACE and USE the Lock/Reader Template.

NOTE: Orientation will be reversed for a right hand door.

3a. CUT through line to separate the Strike Plate Template.

3b. PEEL OFF the protective layer of the Lock Template, ALIGN it to both the latch

centerline and the line depicting the inside wall of cabinet, and PRESS to

secure.

NOTE: Two of the holes in the following step are 3/16” diameter and two are

1/2” diameter. The two pilot holes are 1/16”.

3c. DRILL four holes and two pilot holes through the cabinet, as shown

in the figure below.

3d. DRILL only one 3/16” hole depending on the desired

Antenna/Reader orientation.

3e. IF the optional Key Override will be installed,

THEN GO TO Step 5.

3f. REMOVE the lock template from the door.

Cabinet/door front view

Door edge

3b, 3c, 3d

3080076.004, Rev. B 7

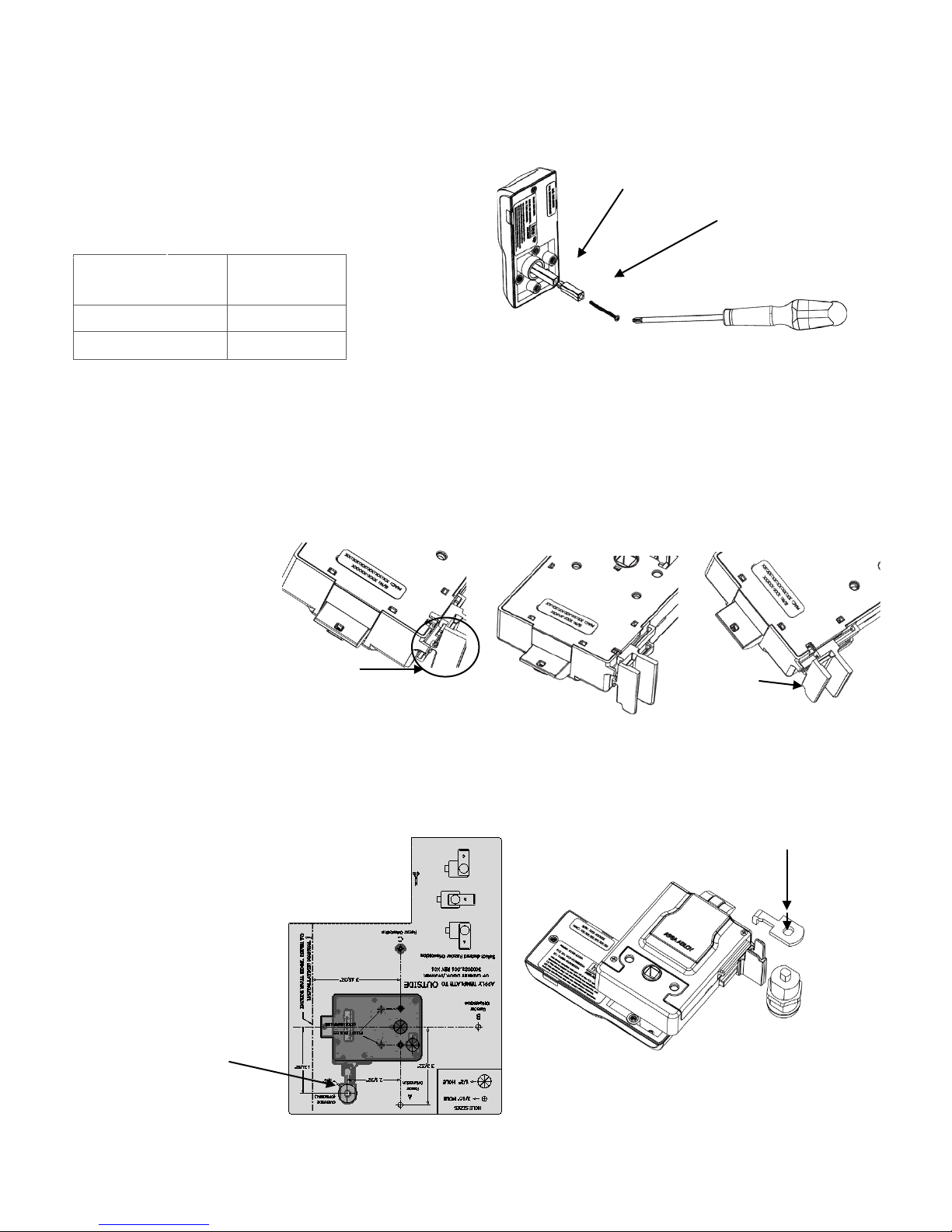

4. INSTALL the Shaft Extension.

4a. IF the cabinet door thickness is greater than ½”,

THEN INSTALL the Shaft Extension to the Antenna/Reader to ensure proper engagement into the lock.

4b. INSTALL the Shaft Extension to the shaft as shown

in the figure and firmly TIGHTEN the screw.

Door

Thickness Extension

Shaft Used?

1/16” – ½” No

> ½” – 1 ½” Yes

5. IF a Cam Lock Key Override will be used, AND the orientation allows for

installation, THEN INSTALL the Key Override Paddle.

5a. INSERT the Paddle’s arm into the opening shown, and ALIGN the rails of the paddle to the ones on the

lock.

5b. SLIDE the paddle

gently until it stops.

6. PREPARE the Key Override Door.

NOTE: The Cam Lock is optional and must

be obtained by others.

6a. IF a Key Override is used,

THEN USE template to mark and drill a

hole for a 3/4” Cam Lock in the door.

Shaft Extension

2-56 X 1-¼” screw

(provided)

Table 1

6b. INSTALL the optional Cam Lock with

the cabinet lock as shown in the

figure.

3080076.004, Rev. B 8

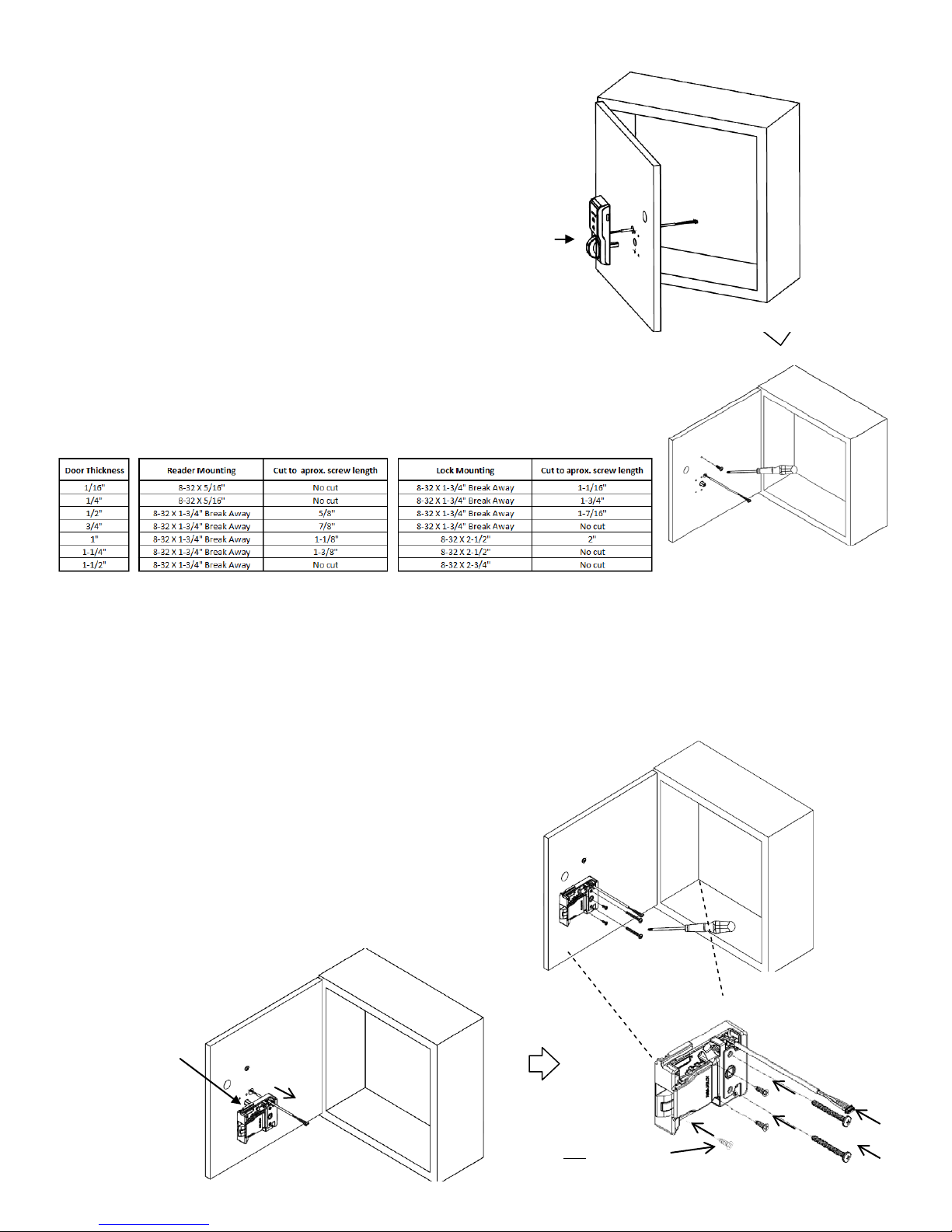

7. INSTALL the Antenna/Reader.

***CAUTION***

Pinching the wires may prevent the Reader and

Lock from properly functioning.

7a. PLACE and HOLD the antenna/reader to the outside

of cabinet, routing the wire through the 1/2” offset

hole, and ENSURE the knob is in the locked position

in the vertical.

NOTE: Using the Table 2 below will help determine the

length of the top mount screw needed, based

on the thickness of the cabinet door.

7b. INSTALL the top mount screw to attach

the antenna/reader to the outside case.

8. INSTALL the lock.

8a. REMOVE the battery cover from lock.

8b. PLACE the lock on the inside of the door, threading the cable through the lock.

8b. ATTACH the lock to the antenna/reader using two 8-32 lock mount screws

(see Table 2 for length), and TIGHTEN the screws.

8c. INSTALL the two #6 self-threading screws and TIGHTEN.

NOTE: The third #6 self-threading screw is important to

achieve maximum holding force for doors greater

than 5/8” thick.

8d. INSTALL the third #6 self-threading screw only if the door

is more than 5/8” thick, using the lock as a guide, and

TIGHTEN.

Reader mounting screw.

Table 2

Cable is threaded

through the hole

in the lock.

Used only for doors less

than 5/8” thick.

3080076.004, Rev. B 9

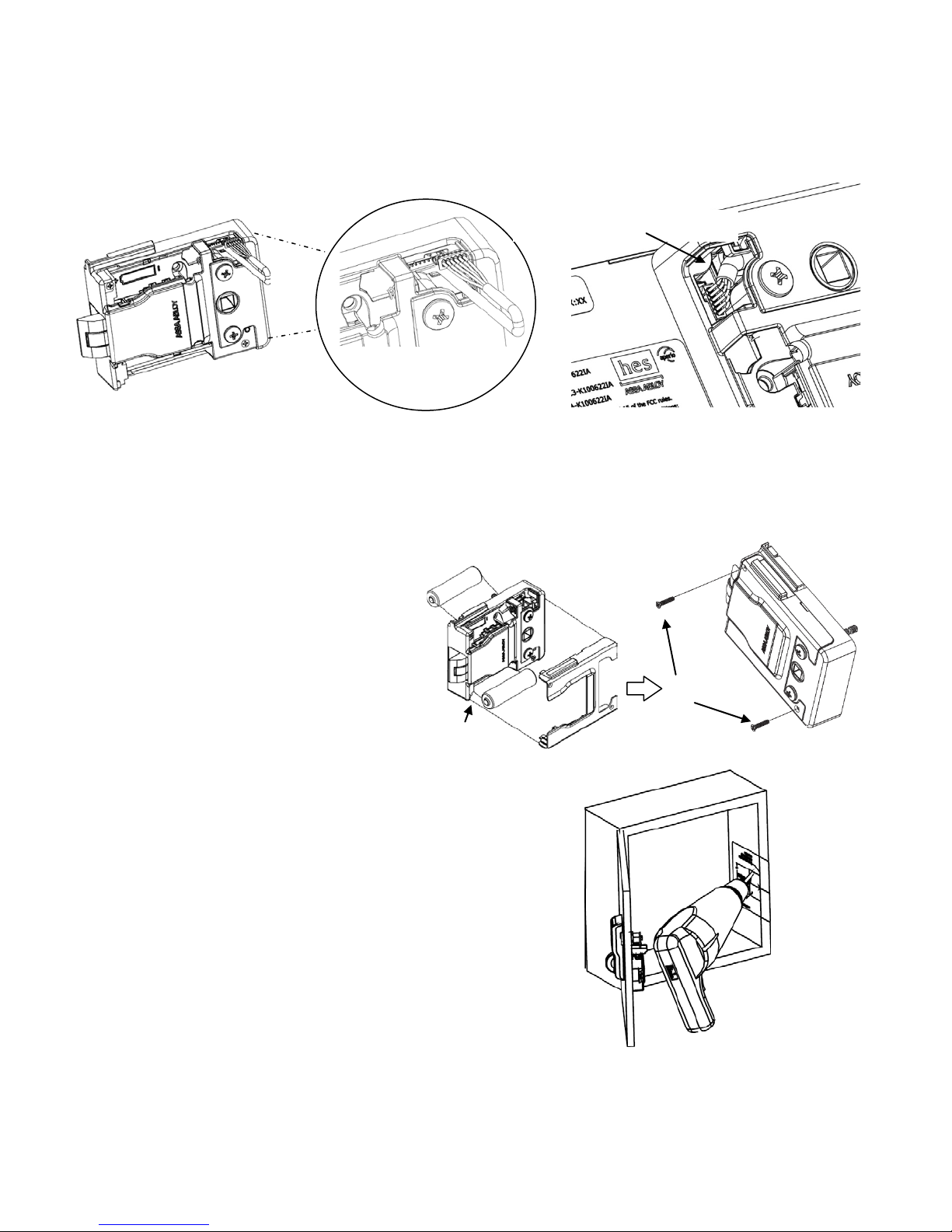

9. Electrically CONNECT the antenna/reader wire to the lock body.

NOTE: The antenna/reader wire connector is keyed to only fit one way.

9a. ENSURE correct orientation of the connector while inserting it.

9b. TUCK excess cable into lock body as shown.

10. INSTALL the Batteries.

NOTE: New batteries should always be used and inserted in the

correct polarity position.

10a. INSTALL the battery and battery cover.

10b. INSTALL and TIGHTEN the screws.

11. PLACE the single-door Strike Plate Template.

11a. PEEL OFF the protective layer of the Strike Plate Template

and ALIGN it to both the latch centerline and the edge of

cabinet.

11b. DRILL two pilot holes as shown on template.

11c. REMOVE the template.

10a

10b

Connector cable tucked in

3080076.004, Rev. B 10

Table des matières

Autres manuels Assa Abloy Verrouillage

Assa Abloy

Assa Abloy Sargent L980S Manuel utilisateur

Assa Abloy

Assa Abloy Yale Real Living Assure Lock SL YRD256 Caractéristiques techniques

Assa Abloy

Assa Abloy OneSystem 819N Manuel utilisateur

Assa Abloy

Assa Abloy Corbin Russwin BLSS ML2000 Series Manuel utilisateur

Assa Abloy

Assa Abloy SECURITRON 32 Series Manuel utilisateur

Assa Abloy

Assa Abloy sFlipLock check 14471 Manuel utilisateur

Assa Abloy

Assa Abloy Yale Smart Latch Manuel utilisateur

Assa Abloy

Assa Abloy Corbin Russwin HPSK Manuel utilisateur

Assa Abloy

Assa Abloy Yale Real Living Assure Lock YRD426 Manuel utilisateur

Assa Abloy

Assa Abloy Corbin Russwin CL3100 Series Manuel utilisateur

Assa Abloy

Assa Abloy HES 5000 Series Manuel utilisateur

Assa Abloy

Assa Abloy SARGENT Delayed Egress 57-80 Series Manuel utilisateur

Assa Abloy

Assa Abloy Corbin Russwin IN100 Manuel utilisateur

Assa Abloy

Assa Abloy Securitron M38 Series Manuel utilisateur

Assa Abloy

Assa Abloy Corbin Russwin FE6800 Series Manuel utilisateur

Assa Abloy

Assa Abloy Yale Real Living Assure Lock YRC216 Caractéristiques techniques

Assa Abloy

Assa Abloy Effeff 843G Manuel utilisateur

Assa Abloy

Assa Abloy Yale Y-LL67AP Manuel utilisateur

Assa Abloy

Assa Abloy HES KS200-640 Manuel utilisateur

Assa Abloy

Assa Abloy Yale 5300LN Series Guide de démarrage rapide

Assa Abloy

Assa Abloy Arrow AL-500 Series Manuel utilisateur

Assa Abloy

Assa Abloy Medeco XT Manuel utilisateur

Assa Abloy

Assa Abloy HES 5000 Series Manuel

Assa Abloy

Assa Abloy LOCWOOD 001TOUCH Manuel utilisateur

Manuels Verrouillage populaires d'autres marques

Magic

Magic 105 Manuel utilisateur

Gantner

Gantner GAT NET.Lock 7020 System Guide rapide

Wittkopp

Wittkopp Insys 7202 Manuel utilisateur

Dorma

Dorma Studio Classic Manuel utilisateur

Securam

Securam ECSL-601 Manuel utilisateur

Sudhaus

Sudhaus 3003 Manuel utilisateur

Safety 1st

Safety 1st 48517 Manuel utilisateur

Pado

Pado FDS-10 Manuel utilisateur

Esco

Esco systeQ Series Manuel utilisateur

COMPX

COMPX National D8951 Manuel utilisateur

secureo

secureo Key Box Manuel utilisateur

Stock Loks

Stock Loks C8713 Manuel utilisateur

COMPX

COMPX 1T-058 Manuel du propriétaire

Auslock

Auslock T11 Manuel utilisateur

ELCOM

ELCOM 7205 Manuel utilisateur

Stealth SAFES

Stealth SAFES ShadowVault Manuel utilisateur

Knox

Knox KeySecure 5 Manuel utilisateur

Kwikset

Kwikset 48334/01 Manuel utilisateur
