Assure Lock for Andersen®Patio and Entry Doors

Installation and Programming Instructions

This manual will walk you through all the required steps to add your

new Yale Assure Lock for Andersen patio and entry doors.

Yale Assure Lock is not fully functional on Andersen 200 and 400 Series

hinged patio doors. The patio door hookbolts must be manually locked before

the Yale Assure lock can lock the patio door's deadbolt.

• Remove Existing Door Hardware

• Prepping your Door

• Install your Assure Lock

• Program your Assure Lock

• Add your Assure Lock to your smart home system or August App

Standard Phillips

Head Screwdriver

FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN DAMAGE TO THE LOCK

P/N YRM276/YRM476-INST-FUL Rev C

Scissors

1/8" 5/16" 3/8"

1/2" 3/4" Drill Bits

Tools needed:

Drill

AW 9184499 BA

P/N YRM276/YRM476-INST-FUL Rev C

Inside

Lock

4 AA Batteries

Optional

Network Module

Battery Cover

Cylinder Magnet

Block Magnet

#8x8 PHM

Handle Kit

Mounting

Plate

Battery

Cover Key

Through Bolts

Touchscreen

Spacers

Decorative Screw

What's In The Box

Door Position

Sensor

P/N YRM276/YRM476-INST-FUL Rev C

Remove Existing Hardware If Any

Prepping Door

Drill hole from both sides

of door; approximately 1"

deep from one side then

completely through from

other side.

Enlarge existing top hole

with 3/8" to 1/2" drill bit

to accommodate cable.

3/8" to 1/2"

P/N YRM276/YRM476-INST-FUL Rev C

3Preparing Inside Lock

Insert battery

removal tool

into hole to

release cover.

A spacer may be required to correctly install lock. There are three (3) options

in your lock kit. See chart to select the correct spacer for your application.

Selecting Correct Spacer

Door Type

Spacer Color

Spacer

A-Series - Outswing Only N/A None

A-Series Inswing.

E-Series 1.75" In and Outswing

E-Series 2.25" Inswing

400 Series 1.75" Inswing

Black

200 Series 1.75" All

E-Series - 2.25" Outswing Only

Gray

White

E-Series - Architect Entrance Door and

Folding Doors Sold Separately. (Provided

when ordering thick door kit part number

AYRM-270-TDK.)

Look for product ID sticker on door. Consult Andersen for assistance.

P/N YRM276/YRM476-INST-FUL Rev C

Spacer Installation

5Insert spacer into hole. Push spacer in for one click.

As you continue installing lock, the spacer will tightened to required position.

Spacer is installed

between door

and mounting

plate gasket.

Do not over tighten.

Do not bend

cables. Insert one

cable through hole

at a time.

Installing Touchscreen

Outside

of Door

When touchscreen

is aligned properly

it will be ﬂush

on door.

Inside

of Door

P/N YRM276/YRM476-INST-FUL Rev C

3. Install mounting bracket

with though bolts. Ensure

bracket is straight and

tighten bolts.

Through Bolts

Inside of Door

Inside

of Door

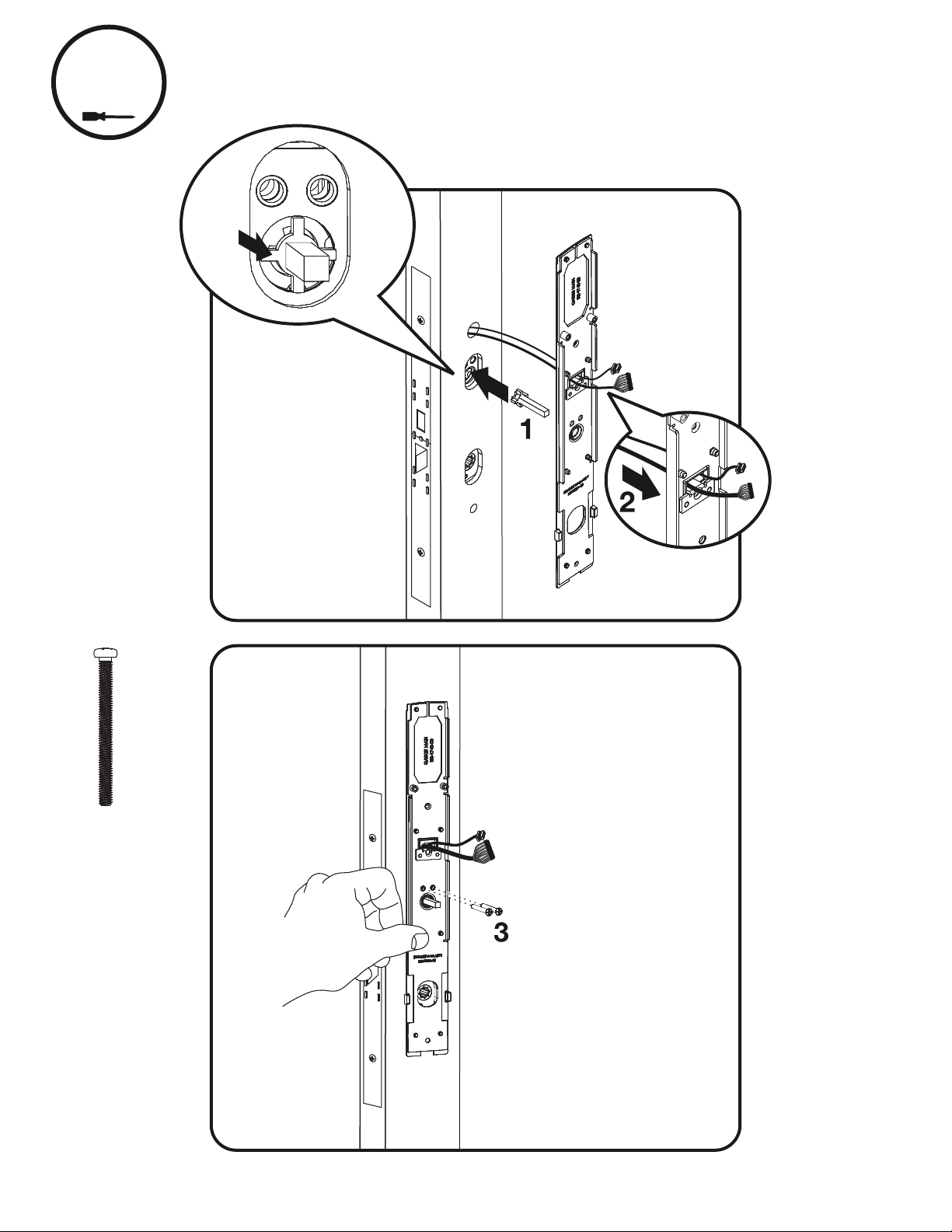

Installing Inside Mounting Plate

1. Place spindle into lock.

2. Pull cables through

mounting bracket.

Spindle

P/N YRM276/YRM476-INST-FUL Rev C

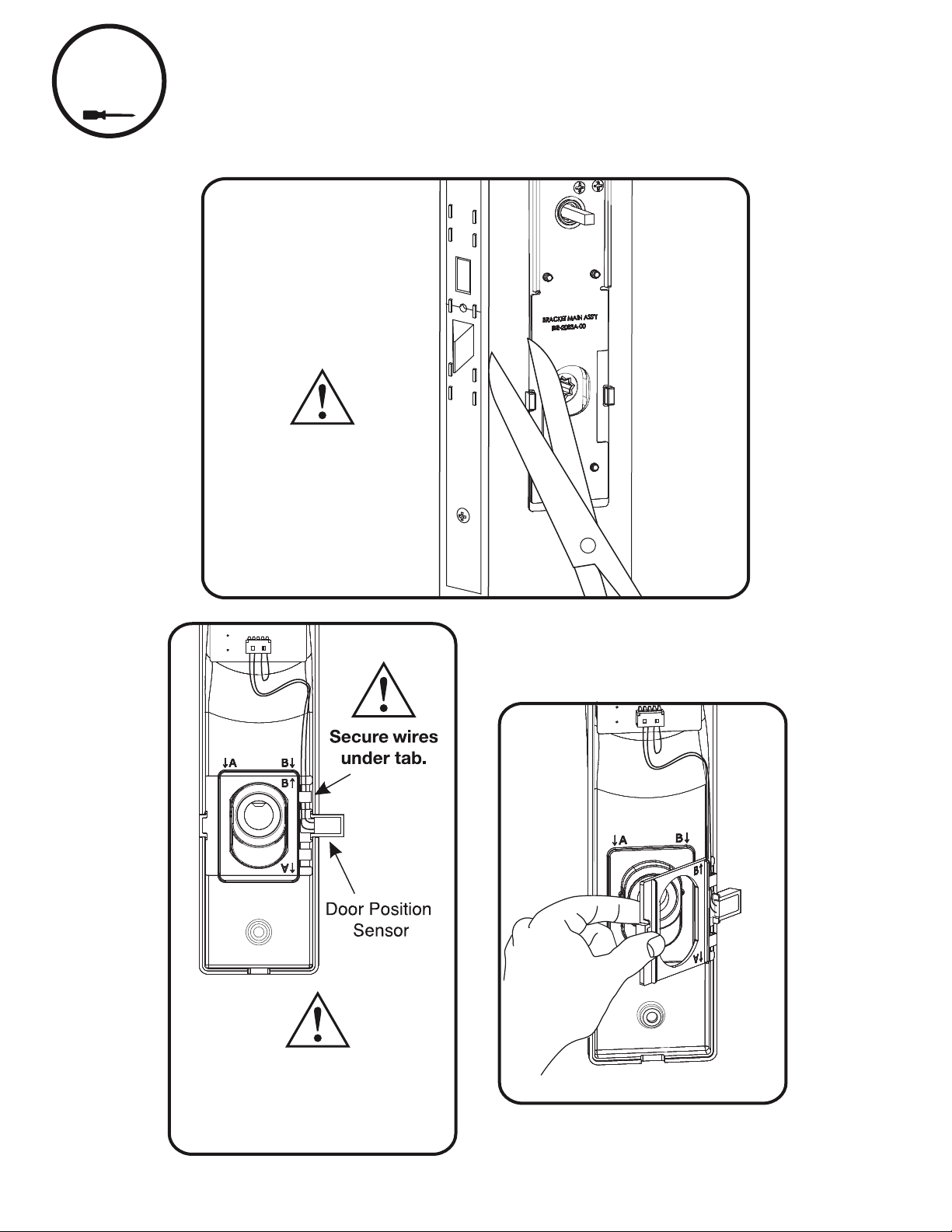

8Installing Optional Door Position Sensor

Attach Door Position

Sensor assembly.

Back of Inside Lock shown

Door Position Sensor is on

latch side of door when

installed correctly.

Remove both tabs from

gasket if installing optional

Door Position Sensor.

Do not remove tabs if

optional Door Position

Sensor is not installed.

This step is optional and only needed when using Door Position Sensor.

P/N YRM276/YRM476-INST-FUL Rev C

9Attaching Cable Assemblies

Inside

of Door

Ensure cables are

securely fastened

into connector

P/N YRM276/YRM476-INST-FUL Rev C

10 Installing Inside Lock

Top of thumbturn must

face away from latch

Decorative Screw

#8x8 PHM

Store excess

cable in interior

lock cavity.

Tighten

P/N YRM276/YRM476-INST-FUL Rev C

Inside

of Door

Testing Operation

Ensure thumbturn

moves freely
