Assa Abloy Sargent AL-PE80 Series Manuel utilisateur
1-800-727-5477 • www.sargentlock.com
Installation Instructions
Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without the express written
permission ofSARGENT Manufacturing Company is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.
WARNING
This product can expose you to
lead which is known to the state of
California to cause cancer and birth
defects or other reproductive harm.
For more information go to www.
P65warnings.ca.gov.
Attention Installer: Improper
installation may result in damage
to the product and void the factory
warranty.
WARNING
A8325-1 05/23
AL-PE80 Series
Alarmed Exit Devices
2
1-800-727-5477 • www.sargentlock.com
Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without
the express written permission ofSARGENT Manufacturing Company is prohibited. Patent pending and/or patent
www.assaabloydss.com/patents.
AL-PE80 Series
Installation Instructions
Alarmed Exit Devices
A8325-1 05/23

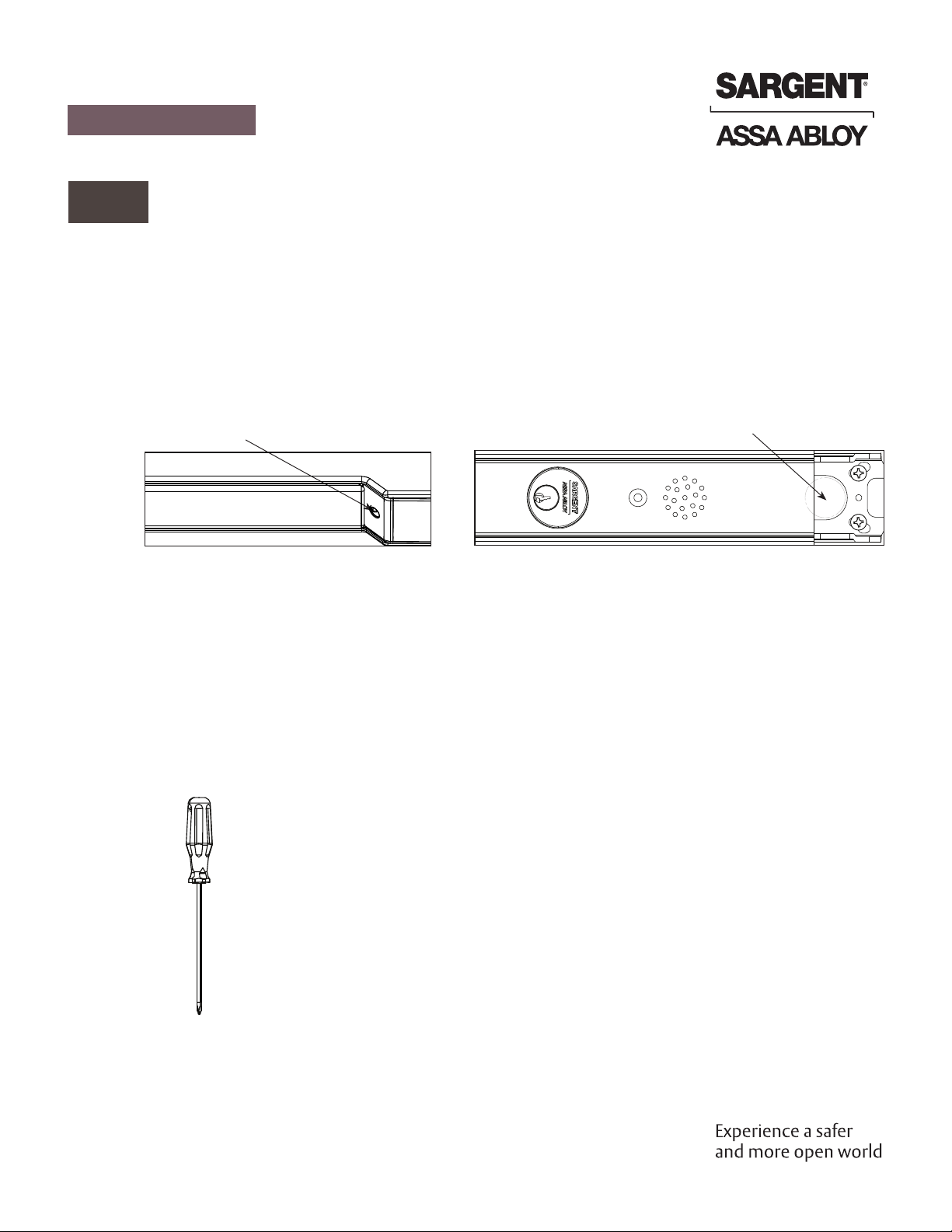

Tools Needed
The SARGENT Alarmed Exit is designed for areas that require an alarm to sound upon exiting. Once
armed, any push rail movement will activate the horn in the push rail. The horn will continue to sound for
two minutes and then shut off automatically. The LED will flash indicating a violation has occurred.
Manual dogging is provided standard on
non fire rated devices.
1” diameter hole(s) required for routing wires
into the door when remote option(s) is used.
• Installation must be performed by a trained service person.
• Basic installation is 9V alkaline battery operated. For hardwired option use 546 Wiring harness -
See instruction sheet included with kit.
• Field cut rail assemblies are not allowed. Exit device must be ordered from the factory for specific door width.
Notes:
General Description
1
3
1-800-727-5477 • www.sargentlock.com
Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without
the express written permission ofSARGENT Manufacturing Company is prohibited. Patent pending and/or patent
www.assaabloydss.com/patents.
AL-PE80 Series
Installation Instructions
Alarmed Exit Devices
A8325-1 05/23

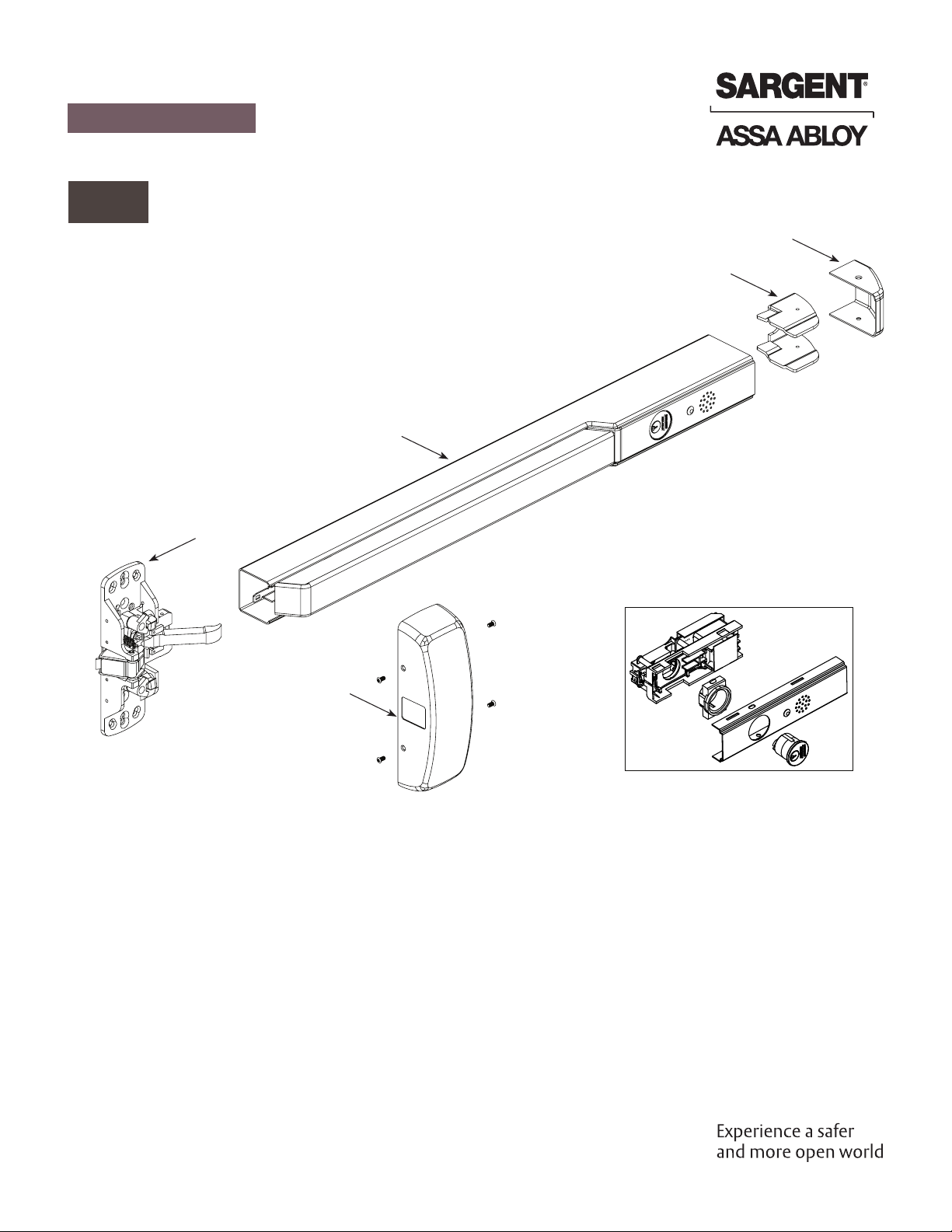

Miscellaneous Parts
2
End Cap
Mounting Plate
Rail Assembly
Alarm Insert Sub-Assembly
Chassis Cover
Chassis
4
1-800-727-5477 • www.sargentlock.com
Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without
the express written permission ofSARGENT Manufacturing Company is prohibited. Patent pending and/or patent
www.assaabloydss.com/patents.
AL-PE80 Series
Installation Instructions
Alarmed Exit Devices
A8325-1 05/23

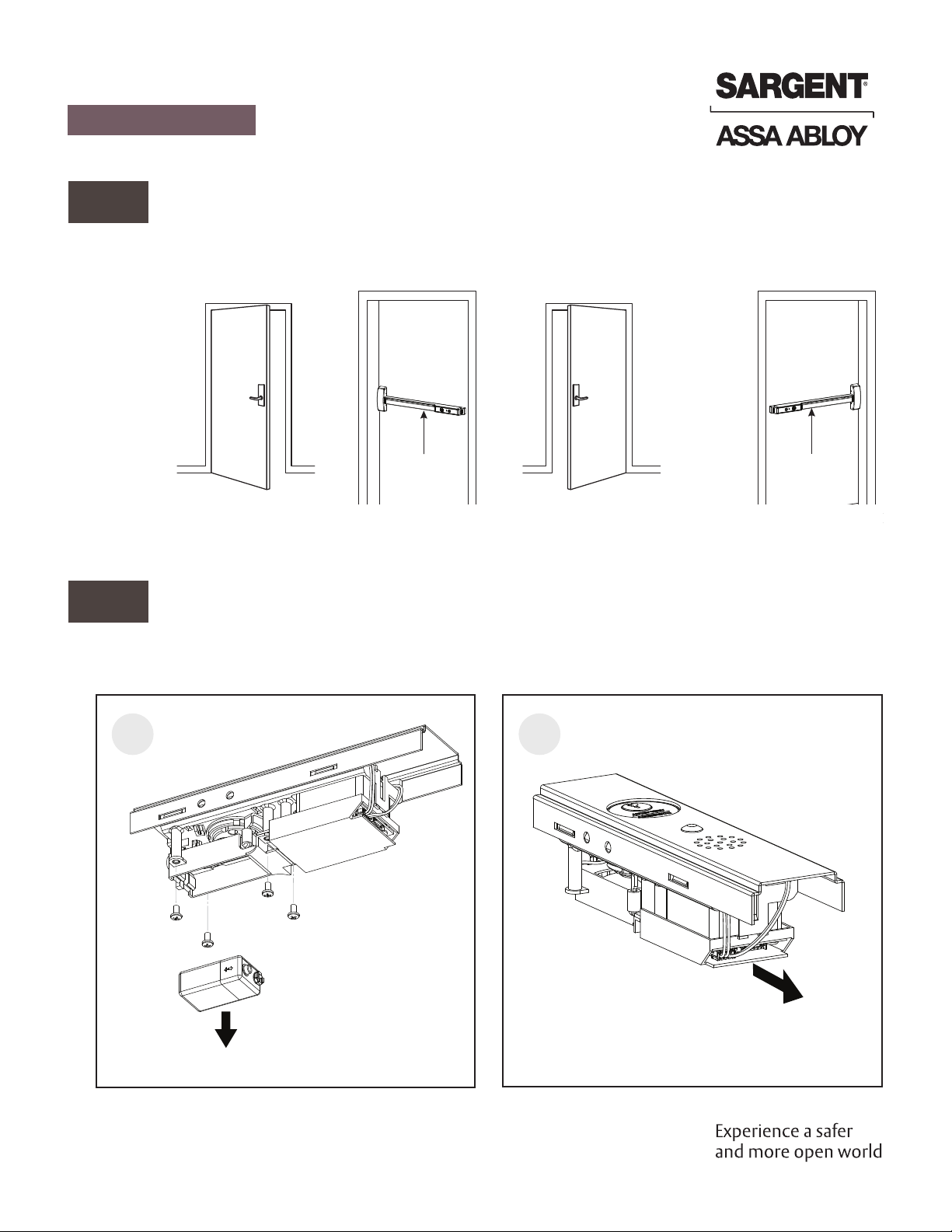

Door Preparation and Handing
3
Verify hand and bevel of door. Exit devices are always reverse bevel and are mounted on the
inside of the door.
AL-PE8800 RHRB
shown
Outside View Outside ViewInside View Inside View
Right Hand
Reverse Bevel
Hinges Right.
Open Outward
RHRB
Left Hand
Reverse Bevel
Hinges Left.
Open Outward
LHRB
AL-PE8800 LHRB
shown
Cylinder Installation or Replacement
4
A
Remove the battery and the battery box screws.
B
Disconnect the wire harness.
If the cylinder is factory installed, go to Step 5 Installation Instructions on page 6.
Note:
5
1-800-727-5477 • www.sargentlock.com
Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without
the express written permission ofSARGENT Manufacturing Company is prohibited. Patent pending and/or patent
www.assaabloydss.com/patents.
AL-PE80 Series
Installation Instructions
Alarmed Exit Devices
A8325-1 05/23

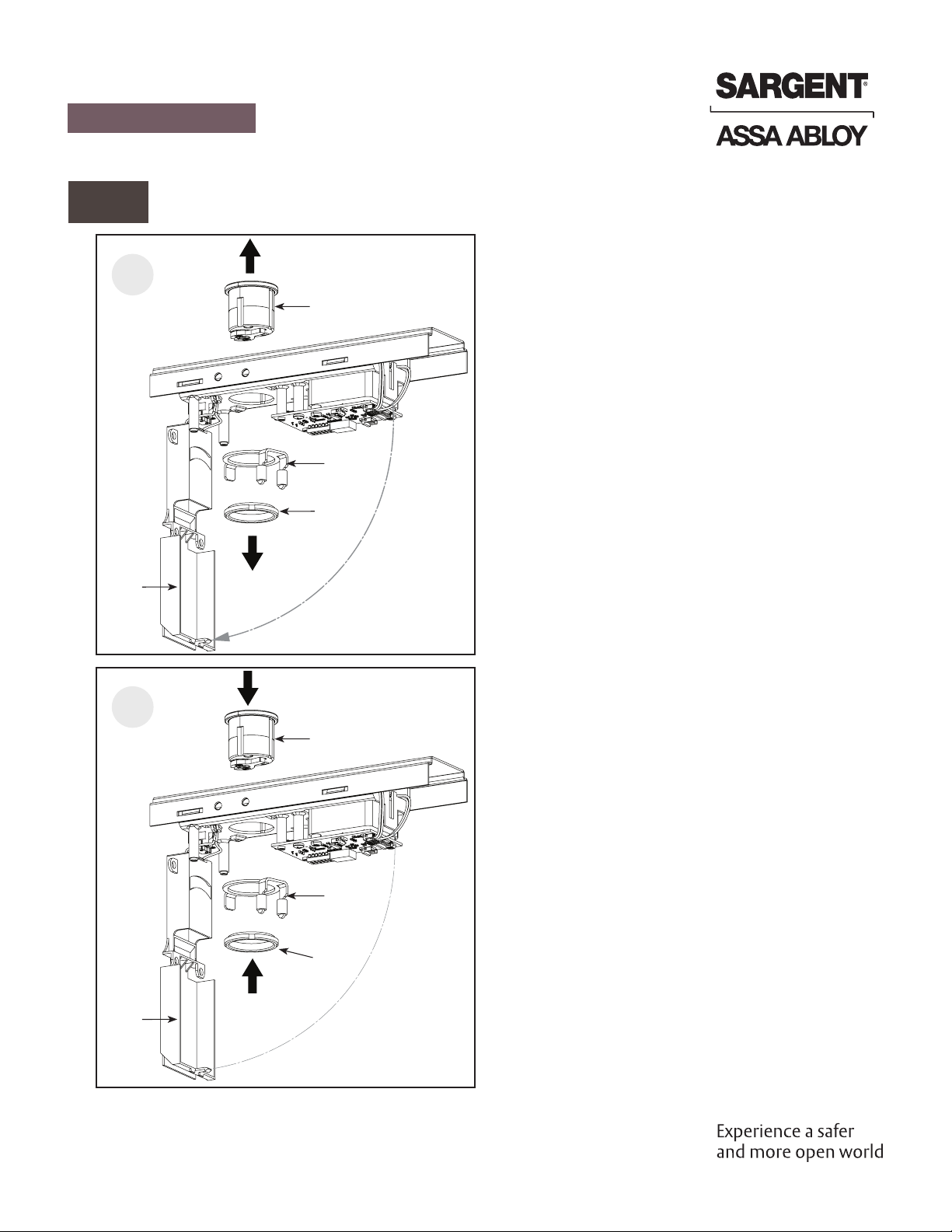

Cylinder Installation or Replacement (continued)
4
C
Remove the original cylinder (or foam plug, if
ordered without the cylinder):
a. Remove the battery box to expose the rear side
of the cylinder side. Use caution not to damage
any wire or switch when opening the battery
box as it is still connected to the assembly with
the battery terminal wires.
b. Remove the cylinder nut and switch actuator.
c. Remove the original cylinder (or foam plug).
a
b
c
Switch
Actuator
Cylinder
Nut
Cylinder (or foam plug)
Battery
Box
Install the new cylinder:
a. Install the new cylinder to the insert sub-
assembly with the keyway closest to the switch
end.
b. Reinstall the switch actuator with its legs on
opposite sides of the toggle switch on the
alarm board.
c. Reinstall the cylinder nut, then tighten.
d. Replace the battery box.
D
c
b
a
Switch
Actuator
Cylinder
Nut
Cylinder
Battery
Box
d
6
1-800-727-5477 • www.sargentlock.com
Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without
the express written permission ofSARGENT Manufacturing Company is prohibited. Patent pending and/or patent
www.assaabloydss.com/patents.
AL-PE80 Series
Installation Instructions
Alarmed Exit Devices
A8325-1 05/23
Installation Instructions (for retrofit kit)
5
E
Connect the wire harness.
F
Reinstall the battery box screws and the battery.
If an AL- prefix was ordered on a full device, refer to those instructions for the device installation.
The following instructions are for alarm setup.
Note:
Cylinder Installation or Replacement (continued)
4
A
Remove the existing rail:
a. Remove chassis cover and end cap.
b. Loosen the chassis mounting screws.
c. Remove the end bracket.
d. Slide the rail assembly from the chassis.
B
Remove the mount rail and standard insert from
the push and carrier sub-assembly.
a
b
c
dMount Rail
Insert
7
1-800-727-5477 • www.sargentlock.com
Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without
the express written permission ofSARGENT Manufacturing Company is prohibited. Patent pending and/or patent
www.assaabloydss.com/patents.
AL-PE80 Series
Installation Instructions
Alarmed Exit Devices
A8325-1 05/23

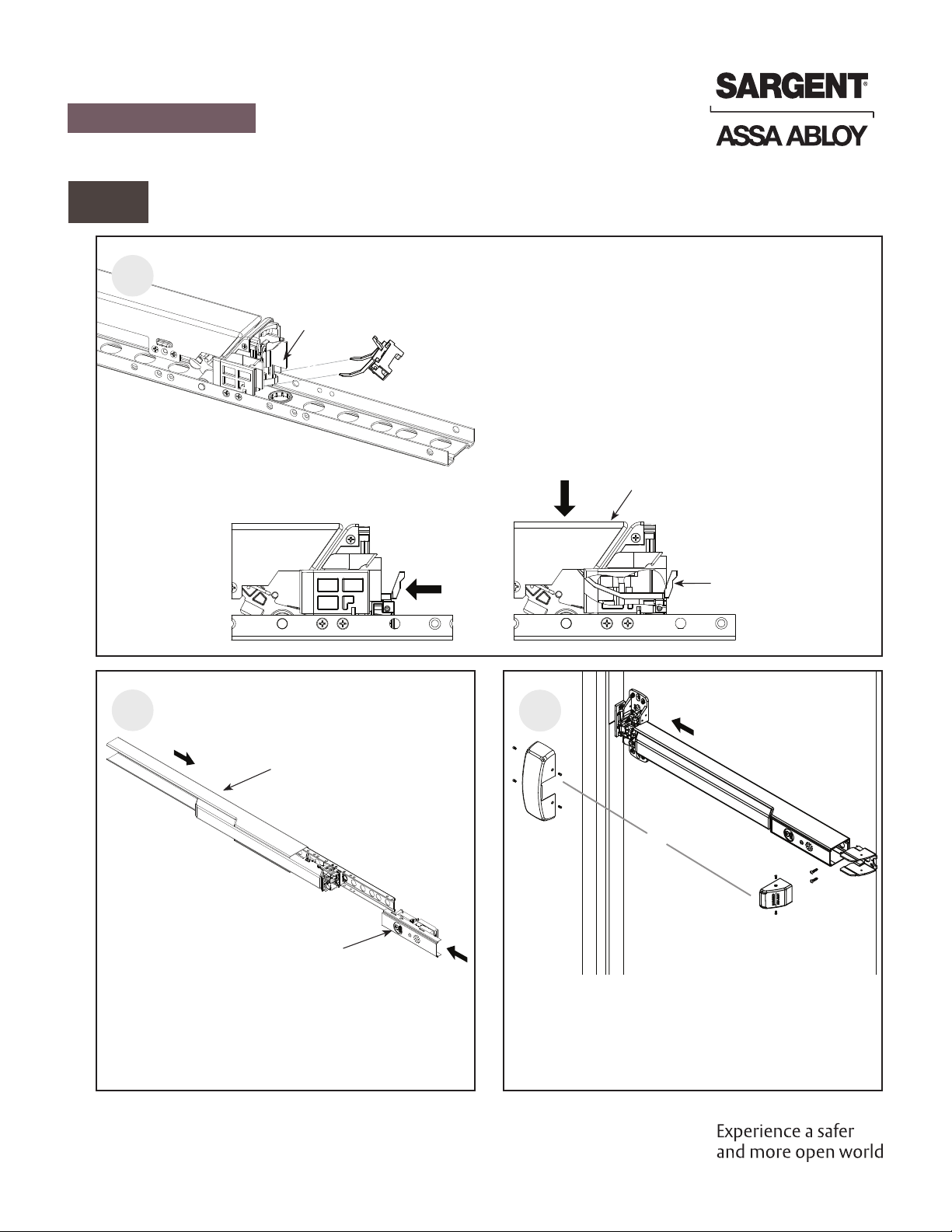

Installation Instructions (for retrofit kit, continued)
5
Ca. Insert the trigger mechanism arms to the gap
on both sides of the dogging cam (if present).
b. Slide the trigger mechanism forward into the
slot at the back of the dogging slope until it
clicks into place.
c. Press and release the push rail to verify that
the trigger is properly installed.
D
Slide the mount rail until it stops on the dogging
slope, then install the alarm insert sub-assembly
with the cylinder close to the push. Make sure
to press the switch firmly against the trigger
mechanism.
Mount Rail
Alarm Insert
Sub-assembly
6
E
Reinstall the rail:
a. Slide the rail assembly to the chassis.
b. Reinstall the end bracket.
c. Tighten the chassis mounting screws.
d. Reinstall the chassis cover and end cap.
d
c
b
a
b
a
Push Rail
c
Trigger Mechanism
Dogging slope
8
1-800-727-5477 • www.sargentlock.com
Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without
the express written permission ofSARGENT Manufacturing Company is prohibited. Patent pending and/or patent
www.assaabloydss.com/patents.
AL-PE80 Series
Installation Instructions
Alarmed Exit Devices
A8325-1 05/23

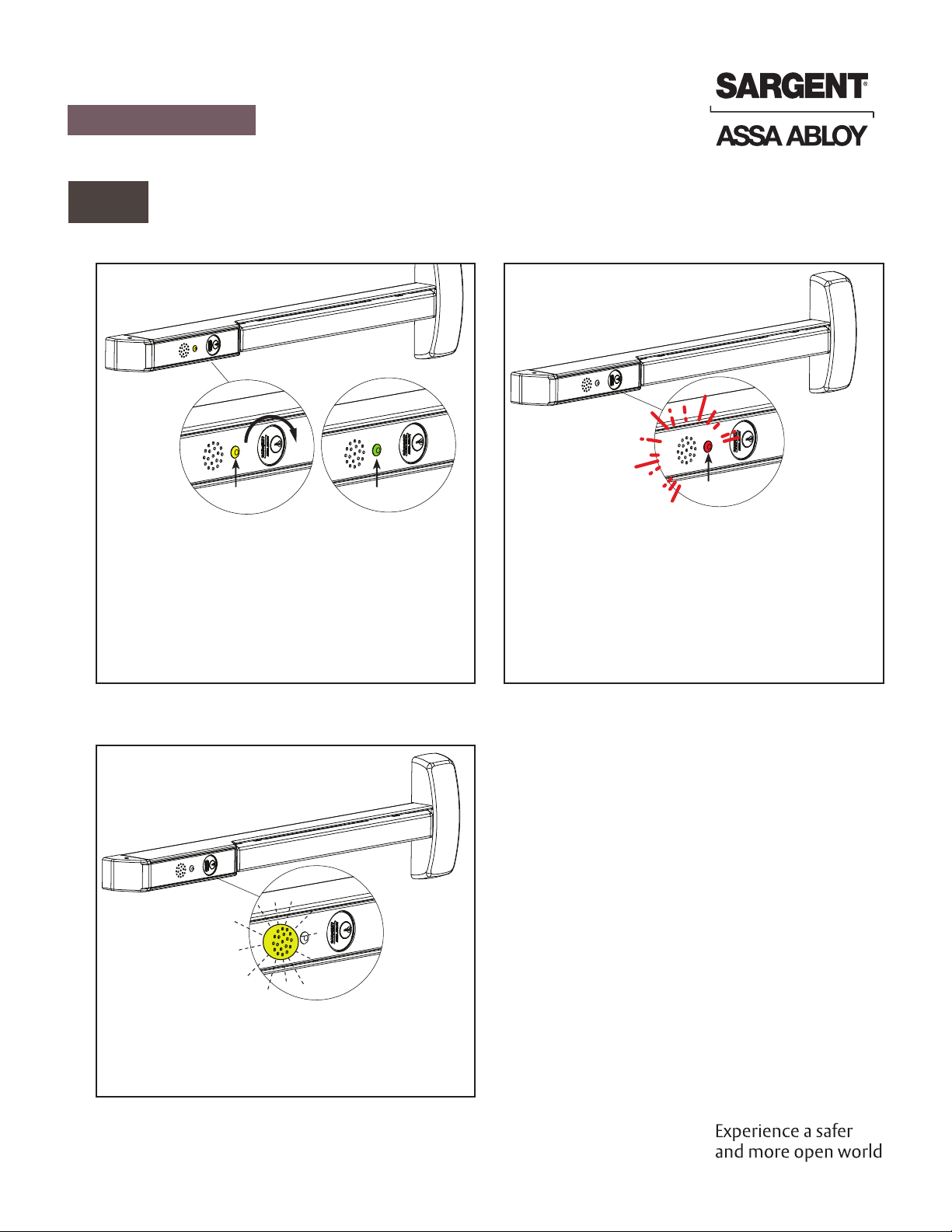

To Arm Device Security / Tamper Violation
Low Battery Alert
Alarmed Exit (AL-) Standard Operating Instructions
6
Turn the key clockwise. The LED will flash yellow
(PASSAGE) for 15 seconds (default). A quick chirp
will sound and the LED will flash green (ARMED)
every 30 seconds. Signal indicates unit is armed.
NOTE: The unit is automatically armed 15 seconds
after the unit is turned on. Field selectable settings
listed on the next page.
Green LED
When ARMED, depressing the push rail will activate
the alarm. The alarm will sound and the LED will flash
red (VIOLATION). The alarm will continue for
2 minutes (default). After 2 minutes, the LED will
flash red every 30 seconds until rearmed using the
key. Turn the key counter clockwise to deactivate the
alarm, then clockwise to rearm.
Red LED
The alarm chirps intermittently to indicate low
battery. Change the battery.
Battery: 9V alkaline
Yellow LED
9
1-800-727-5477 • www.sargentlock.com
Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without
the express written permission ofSARGENT Manufacturing Company is prohibited. Patent pending and/or patent
www.assaabloydss.com/patents.
AL-PE80 Series
Installation Instructions
Alarmed Exit Devices
A8325-1 05/23
Optional Settings
7
DS3 DS4 Timer Reset
OFF OFF 2 minutes
OFF ON 5 minutes
ON OFF 10 minutes
ON ON Continuous*
These field selectable switches can change the following functions:
DS1 DS2 Timer Reset
OFF OFF 7 seconds
OFF ON 10 seconds
ON OFF 15 seconds
ON ON 20 seconds
DS5
ON GREEN/ARMED
RED/VIOLATION
YELLOW/ PASSAGE (DEFAULT)
OFF GREEN/VIOLATION
RED/ARMED
YELLOW PASSAGE
DS6*
ON Monitor relay is enabled (will activate when rail is violated)
*Requires 546 wire harness. See optional 546 wiring instructions for more information.
Auto Alarm Reset Request to Exit/
Passage Time Delay
Recommend 3267 power supply and 546 wiring harness.
10
1-800-727-5477 • www.sargentlock.com
Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without
the express written permission ofSARGENT Manufacturing Company is prohibited. Patent pending and/or patent
www.assaabloydss.com/patents.
AL-PE80 Series
Installation Instructions
Alarmed Exit Devices
A8325-1 05/23
