HES 9400/9500/9600

Electric Strike

Installation Instructions and Frame Preparation

Product Components

A 9400/9500/9600 Strike Body

B 9400/9500/9600 Cover

C 1/4"-20 x 1" Mounting Screws

D #10-32 & 10-24 Lockdown Screws (optional)

E #6-32 x 1/4" Cover Screws

F 5/64" Hex Key

G 12-Volt and 24-Volt Pigtails

Electrical Specifications

Electrical Ratings for Solenoid

Continuous Duty 12 VDC 24 VDC

Resistance in Ohms 24 96

Amps .50 .25

Solenoids are rated at +/- 10% indicated value.

Minimum Wire Gauge

Requirements

(Based on Round Trip)

Solenoid Voltage

12 VDC 24 VDC

200 feet or less 18 gauge 22 gauge

200 – 300 feet 16 gauge 22 gauge

300 – 400 feet 16 gauge 20 gauge

Diagram 1: Product Components

Installation

CAUTION Before connecting any device at the installation site, verify input voltage using a multimeter.

Many power supplies and low voltage transformers operate at higher levels than listed. Any input voltage

exceeding 10% of the solenoid rating may cause severe damage to the unit and will void the warranty.

Preparing the Strike

NOTE: For 12 VDC, the Plug In Connector (pigtail)

marked “12 VDC” should be used; for 24 VDC,

the pigtail marked “24 VDC should be used.

1 SELECT the appropriate pigtail that

matches system power and electrically

CONNECT as illustrated in Diagram 2.

2 IF no connector is present,

THEN CONFIGURE the wires

as shown in Diagram 2.

3 IF using the Latchbolt Monitor (LBM)

or Latchbolt Strike Monitor (LBSM),

THEN REFER to Diagrams 3 and 4

on Page 3 to complete wiring.

NOTE 1: The 9400/9500/9600 ships in

FAIL SECURE OPERATION mode.

NOTE 2: FAIL SAFE OPERATION mode should not

be used in fire or windstorm-rated applications.

4 CONVERT the 9400/9500/9600 to

FAIL SAFE OPERATION, if needed, using

Diagrams 5 and 6 on Page 3 as a guide.

Preparing the Frame

NOTE: When using a Corbin Russwin Series

5000 or Yale 7000 series equipped with an

offset deadlatch, the deadlatch is located just

above the Vertical Alignment line, as shown

on the Installation Template on Page 4.

1 PREPARE the door jamb using

the Installation Template located

on Page 4 (with the exception of

the hole for final lockdown).

Red

Red/green

Black

Violet

Red

Black

Violet

Red/green

(+ 12 VDC)

(-NEG)

(+ 24 VDC)

(-NEG)

Electric

Strike

Electric

Strike

Connect

Together

Connect

Together

Connect

Together

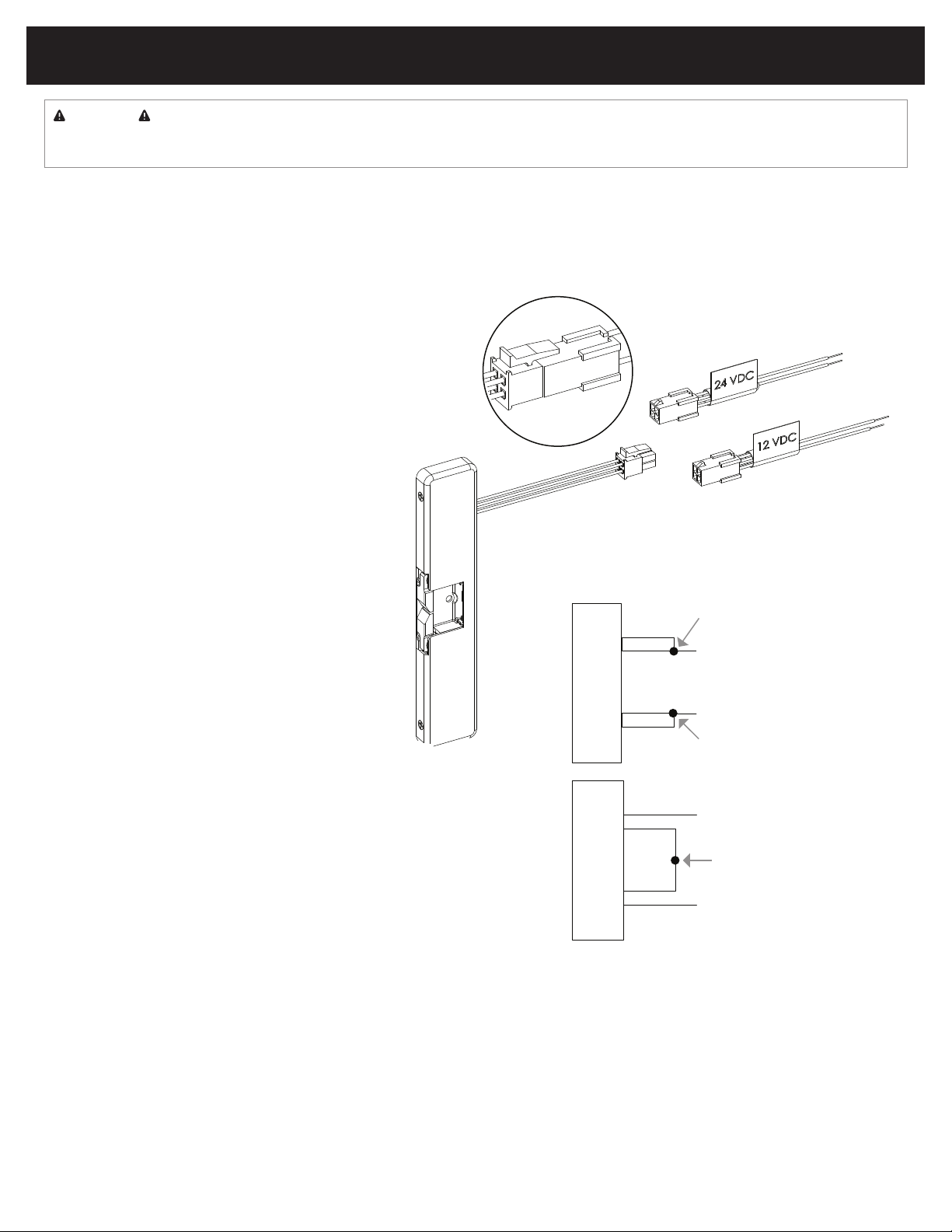

Diagram 2: 12V to 24V Conversion

If Connector Is Missing

Finishing the Installation

1 Electrically CONNECT the 9400/9500/9600

to the Plug In Connector, and ATTACH

the electric strike to the jamb using the

1/4"-20 x 1"mounting screws provided.

2 CHECK latchbolt interaction to determine

if horizontal adjustment is needed, and

ADJUST as needed; then LOCK DOWN the

horizontal adjustment using the

#10-32 set screws as illustrated on Page 4.

3 OPTIONAL LOCKDOWN FEATURE:

INSTALL the #10-24 UNC or 10-32

UNF lockdown screw if additional

security is required; however, REMOVE

the strike before drilling hole.

4 INSTALL the cover plate, and SECURE

in place using the #6-32 x 1/4"Cover

Screws as illustrated on Page 4.

Converting the

Operation Mode

NOTE 1: The 9400/9500/9600 series

Electric Strikes are pre-set for FAIL SECURE

OPERATION as shown in Diagram 5.

NOTE 2: There are Selector Stop Pins, one on

the left side and one on the right side. Both

Selector Stop Pins must be repositioned to

convert the strike to FAIL SAFE OPERATION.

1 To convert to FAIL SAFE OPERATION,

REMOVE the Selector Stop Pins on

each side of the strike body using

the provided 5/64" hex key.

2 MOVE the Selector Stop Pins to the FAIL SAFE

OPERATION position (towards the center

of the strike) as pictured in Diagram 6.

3 TIGHTEN both Selector Stop Pins after

they have been moved to the FAIL SAFE

OPERATION position using the 5/64" hex key.

Verifying the

Operation Mode

NOTE: Both keepers should be unlocked without

power, but lock when power is applied.

1 VERIFY that both keepers are

in FAIL SAFE OPERATION.

Diagram 3

Latchbolt Monitor

White Common

Orange Normally Open

Green Normally Closed

Diagram 5: Fail Secure Operation

If Connector Is Missing

Diagram 6: Fail Safe Operation

Diagram 4

Latchbolt Strike Monitor

Brown Common

Blue Normally Open

Yellow Normally Closed

White Brown

Selector Stop

Pin Location

Selector Stop

Pin Location

Orange Blue

Green Yellow

Lockdown

Screw

(optional)

Set Screw

Location

Set Screw

Location

Mounting

Screw

Mounting

Screw

[228.6mm]

7/8"

[22.5mm]

1-3/4"

[44.5mm]

1-1/16"

[27mm]

7/8"

[22.5mm]

1-5/16"

[33.3mm]

1-5/16"

[33.3mm]

4-1/8"

[104.8mm]

4-1/8"

[104.8mm]

1/2"

[12.7mm]

Clearance

for

LBM/LBSM

Wiring

Centerline

of Latchbolt

This edge

toward

door

Deadlatch Vertical Alignment.

USE this line as a reference to center deadlatch**

Mounting

Hole

Locations

for

1/4-20 UNC

Mounting

Screws

** See note prior to

Step 5 on Page 2

Final Lockdown Feature 10-32 UNF or

10-24 UNC Screw (optional)

3/4"

[19mm]

Clearance

for Power

Wiring

Frame Preparation

3026006.002 rev D

express written permission of Hanchett Entry Systems, Inc. is prohibited.

techsupport.esh@assaabloy.com | assaabloyesh.com

800.626.7590 | 10027 S. 51st Street Phoenix, AZ 85044 USA

Adjusting Horizontal and Lockdown

1 LOOSEN the two 1/4"-20 x 1"mounting screws.

2 ADJUST strike to appropriate horizontal position

3 TIGHTEN the two 1/4"-20 x 1"mounting screws

4 SECURE the adjustment by tightening the set screws

5 INSTALL the #10-32 UNF or 10-24 UNC lockdown screw (optional).

Installing the Cover

1 ATTACH the cover using the

#6-32 x 1/4" Cover Screws

Template

NOTE: May not be to scale. For easy installation,

the template should be ordered.
