Assa Abloy Corbin Russwin ED3400 Series Manuel utilisateur

FM361 04/20

Installation Instructions

or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

For installation assistance contact Corbin Russwin

1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

WARNING

This product can expose you to lead

which is known to the state of California

to cause cancer and birth defects or other

reproductive harm. For more information

go to www.P65warnings.ca.gov.

ED3400/ED3400A

Series

Exit Devices

Surface Vertical Rod

ED3400/ED3400A Series

Installation Instructions

Surface Vertical Rod

FM361 04/20

part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

For installation assistance contact Corbin Russwin

1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

TOC Table of Contents

1 Tools Required ..................................................................3

2 Package Contents ...............................................................3

3 Installation ......................................................................4

a Template ........................................................................4

b Active Case ......................................................................5

c Chassis ..........................................................................5

d Inactive Case ....................................................................6

e Outside Trim ....................................................................6

f Top Latch and Rod ...............................................................7

g Mount Bottom Rod Assembly....................................................7

h Adjustment .....................................................................8

i Top Strike .......................................................................8

j Mount Bottom Strike ............................................................9

k Covers......................................................................... 10

l Rod Guides .................................................................... 11

m Crossbar....................................................................... 11

n Top Latch Trigger .............................................................. 11

ED3400/ED3400A Series

Installation Instructions

Surface Vertical Rod

FM361 04/20

part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

For installation assistance contact Corbin Russwin

1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

1 Tools Required

• Measuring tape

• Power drill

• Drill bits: 3/32", 1/4", 11/32", 3/8"and #25

• Taps: #10-24

• Screwdrivers: Phillips #2 and Phillips #3

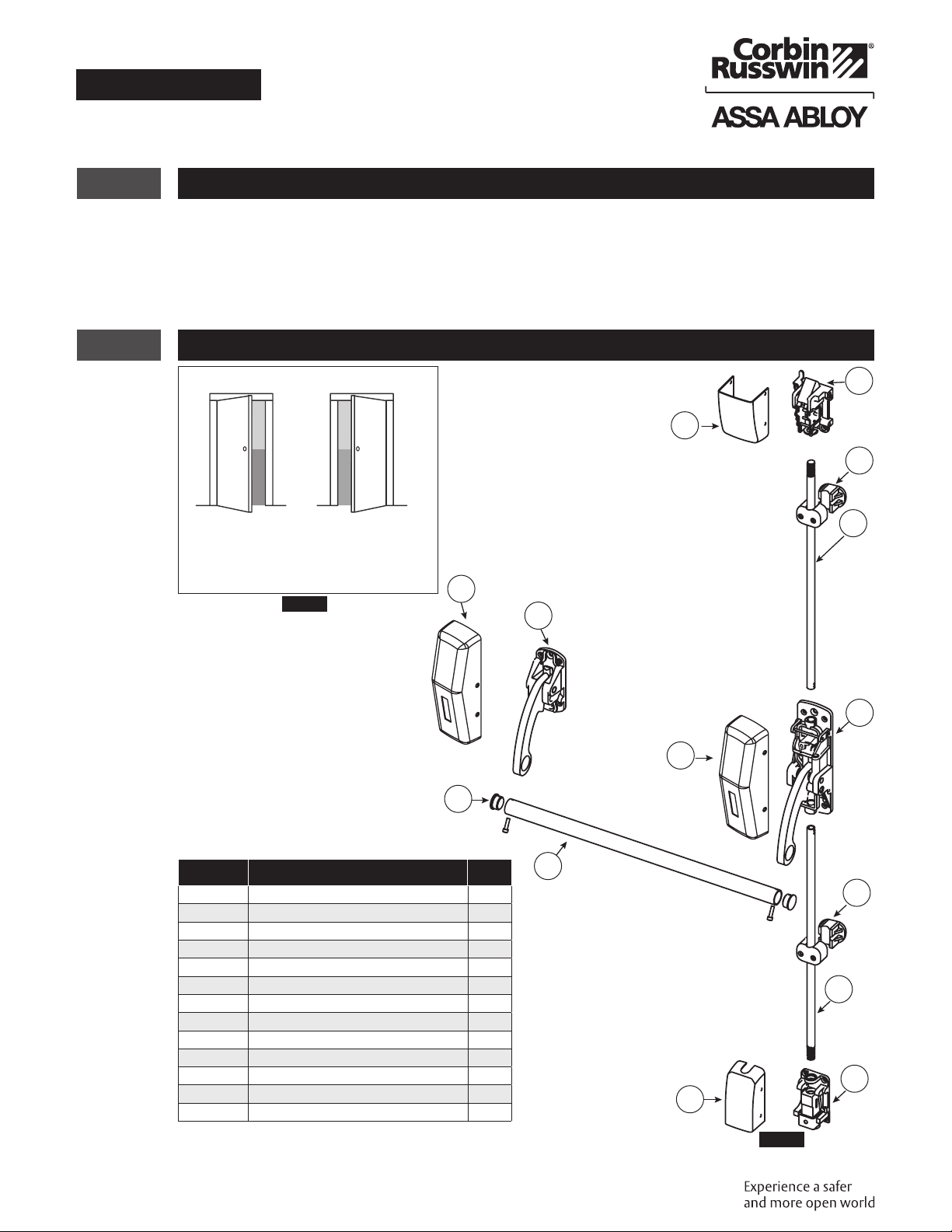

2 Package Contents

This Exit Device Is Non-Handed

LHR

Left Hand Reverse

Hinges Left

Open Outward

RHR

Right Hand Reverse

Hinges Right

Open Outward

Figure1

Figure2 Part Description Qty.

1 Top Latch Cover 1

2 Top Latch Chassis 1

3 Rod Guide 2

4 Top Rod 1

5 Active Case Cover 1

6 Active Case Chassis 1

7 Inactive Case Cover 1

8 Inactive Case Chassis 1

9 Cross Bar Plug 1

10 Cross Bar 1

11 Bottom Rod 1

12 Bottom Latch Chassis 1

13 Bottom Latch Cover 1

Figure2

ED3400/ED3400A Series

Installation Instructions

Surface Vertical Rod

FM361 04/20

part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

For installation assistance contact Corbin Russwin

1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

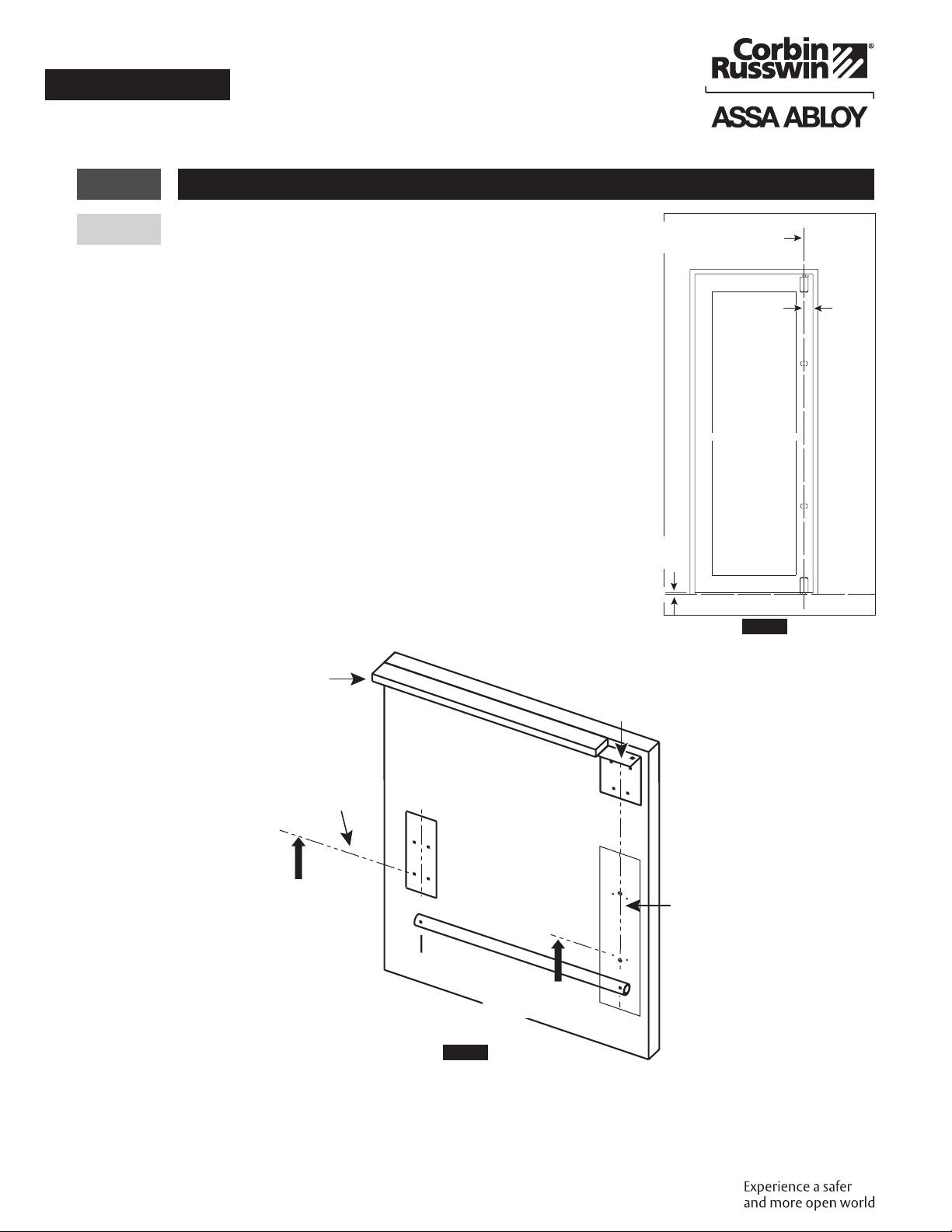

3 Installation

a Template

1. Mark the vertical centerline on inside of door as follows:

• If stile is 4-1/2"wide or greater, measure 2-3/4"from doorstop.

• If stile is less than 4-1/2"wide, make A equal to 1/2 the width of

the exposed lock stile (when door is closed against stop).

2. Measure 37-5/8" above finished floor and draw horizontal line for

active case template.

3. Align template (T31207) for active case with centerline and tape.

4. Using crossbar hole centers for measuring, draw vertical centerline of

inactive case.

5. Measure 38-5/8" above finished floor and draw horizontal line for

inactive case template (1" higher than the active case).

6. Align template (T31206) for inactive case with centerline and tape.

7. Position top strike template (T31209) into place.

8. Center punch mounting holes for active and inactive case,

and top strike.

9. Drill and tap holes in door, per templates.

Figure4

TEMPLATE

T31207

TEMPLATE

T31206

TEMPLATE

T31209

Top latch

template

Door stop

38-5/8" Above

finished floor

37-5/8" Above

finished floor

Vertical for top latch,

bottom latch and active case

Horizontal of inactive case

holes

Vertical for top latch,

bottom latch and active case

Inside

face of

door

Finished Floor

5/8"

Max

Figure3

ED3400/ED3400A Series

Installation Instructions

Surface Vertical Rod

FM361 04/20

part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

For installation assistance contact Corbin Russwin

1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

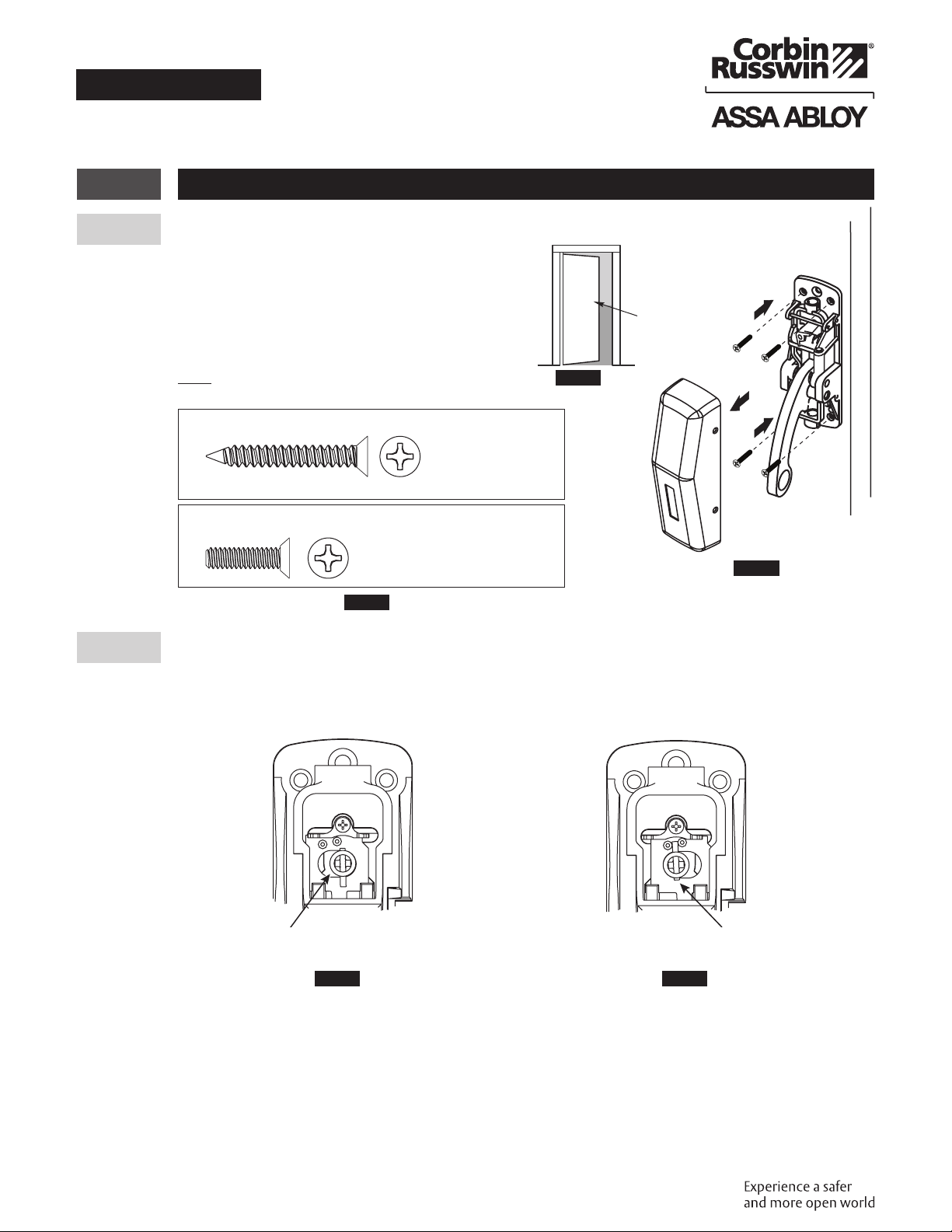

3 Installation (cont.)

b Active Case

1. Remove cover from active case chassis.

2. Mount chassis to door as indicated in Figure5

and Figure6.

3. If installing a cylinder function, ensure hub

pin is in correct position. (Step 3c)

Note

Active case is larger than inactive case.

Figure7

Wood: #10 x 1-1/4"

Phillips flat head

(Total = 4)

Metal: #10-24 x 3/4"

Phillips flat under cut

(Total = 4)

Active case mounting screws - Actual size

c Chassis

For ED3457A (Nightlatch) long end of pin faces down. Cylinder turns 180° in both directions. (Figure 8)

For ED3455A/ED3455AT (Classroom) long end of pin faces up. Cylinder turns 360° to the left or

right. (Figure 9)

Cylinder

hub

Hub pin up for

55T function

Figure8 Figure9

Figure5

Active case side

(away from

door hinge)

Hinge

side

Figure6

ED3400/ED3400A Series

Installation Instructions

Surface Vertical Rod

FM361 04/20

part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

For installation assistance contact Corbin Russwin

1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

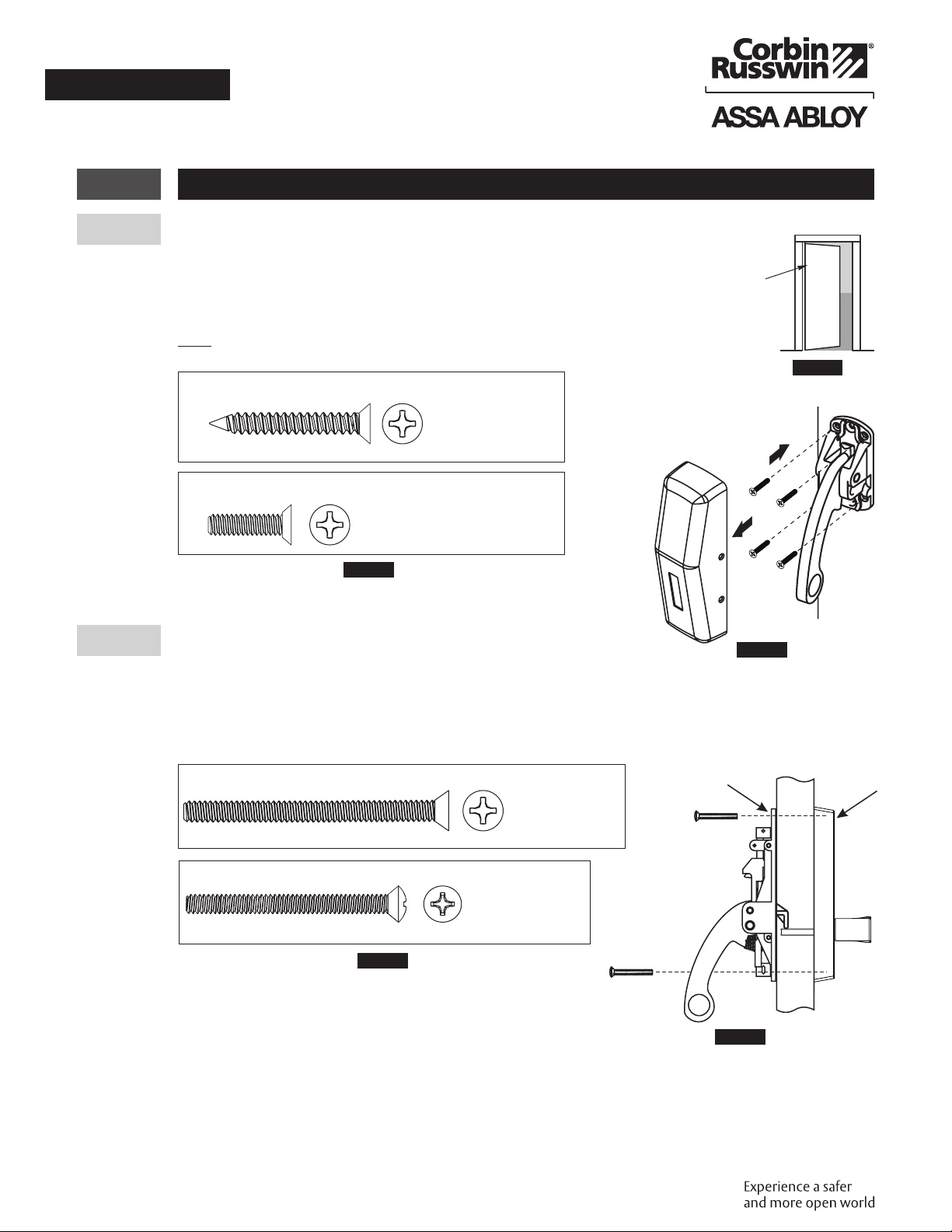

3 Installation (cont.)

d Inactive Case

1. Remove cover from inactive case chassis.

2. Mount chassis to door as indicated in Figure10 and Figure11.

Note

Active case is larger than inactive case.

Figure12

Wood: #10 x 1-1/4"

Phillips flat head

(Total = 4)

Metal: #10-24 x 3/4"

Phillips flat under cut

(Total = 4)

Inactive case mounting screws - Actual size

e Outside Trim

1. Thread cylinder into outside trim (if applicable).

2. Slide through-bolt screws through inside chassis and door.

3. Align outside trim with exposed through-bolt screws and secure.

1/4 -20 x 2-3/8"

Phillips Flat Head

(Total = 2)

Outside trim mounting screws - Actual size

Figure14

#10-24 x 2"

Phillips Oval Head

Machine Screw

(Total = 2)

Cylinder mounting screws - Actual size

Figure10

Inactive case

side (near

door hinge)

Hinge

side

Figure11

Figure13

Outside trim

Chassis

Door

ED3400/ED3400A Series

Installation Instructions

Surface Vertical Rod

FM361 04/20

part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

For installation assistance contact Corbin Russwin

1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

3 Installation (cont.)

f Top Latch and Rod

1. Remove cover.

2. Screw top rod into top latch chassis

halfway. (Figure15)

3. Confirm crossbar arm is NOT in

dogged position.

4. Remove top rod pin from active

chassis and slide top rod into

active chassis. (Figure16)

5. Attach top latch chassis to door

with screws according

to template.

Note

Use through-bolt screws for fire rated doors.

6. Ensure top latch bolt is fully extended.

7. Rotate rod until upper hole (see detail)

aligns with hole in active chassis and

insert rod adjustment pin.

g Mount Bottom Rod Assembly

1. Remove cover.

2. Position bottom case on door,

centered on vertical center line.

Raise or lower to achieve gap

indicated for strike application.

(Figure18)

3. Mark and center punch mounting holes for bottom latch.

4. Drill and tap mounting holes.

5. Screw bottom rod into bottom latch chassis until finger tight.

Figure15

Figure16

Active Chassis

Top rod

Top latch cover

Top latch chassis

Rod adjustment pin

Wood: #10 x 1-1/4"

Phillips flat head

(Total = 4)

Outside trim mounting screws - Actual size

Figure17

Metal: #10-24 x 3/4"

Phillips Flat under

cut (Total = 4)

Cylinder mounting screws - Actual size

Mortise applied strikes Surface applied strike Latch track thresholds

(by others)

1/4" 1/8" 1/8"

Figure18

ED3400/ED3400A Series

Installation Instructions

Surface Vertical Rod

FM361 04/20

part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

For installation assistance contact Corbin Russwin

1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

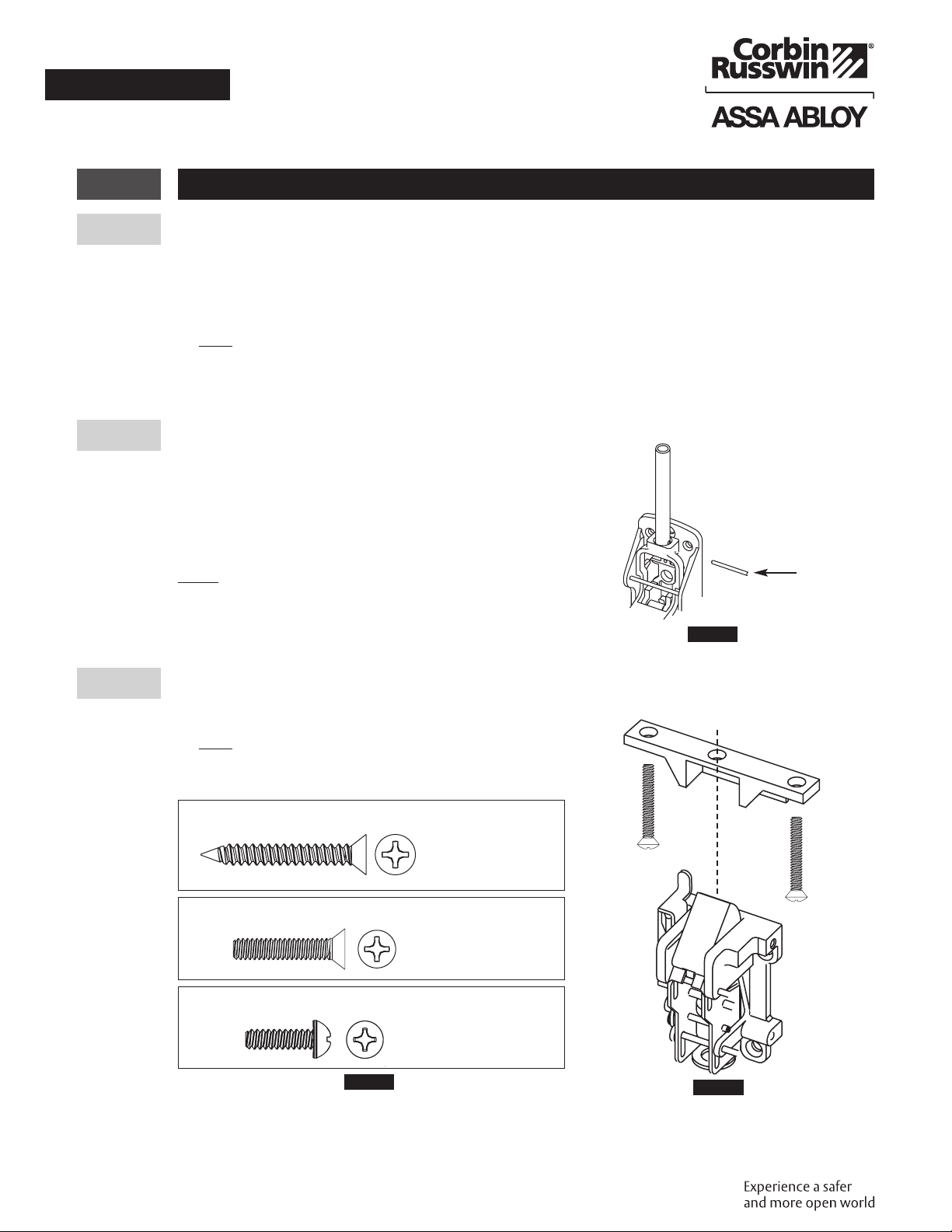

3 Installation (cont.)

g Mount Bottom Rod Assembly (cont.)

6. Confirm crossbar arm is NOT in dogged position.

7. Remove bottom rod pin from active chassis and slide bottom rod into active chassis.

8. Attach bottom latch chassis to door.

Note

Use through-bolt screws for fire rated doors.

9. Ensure bottom latch bolt is fully extended.

10.Rotate rod until middle hole aligns with hole in active chassis and insert rod adjustment pin.

h Adjustment

1. Depress crossbar arm to verify top latch goes into holdback.

2. If latch does not go into holdback, pull out the adjustment

pin. Rotate top rod counterclockwise one complete turn,

reinsert pin and test again. Continue this step until

holdback is achieved.

Notes

• If there is minimal thread engagement with top latch

chassis, use lower hole in rod to secure to active chassis.

• If rod is rotated too far into top latch, engagement with top strike

will not occur or will be minimal. Rotate rod counterclockwise for additional engagement.

i Top Strike

1. Align top strike with holes on doorstop of frame and secure.

Note

Align thick end of strike closest to door.

2. Close door and verify engagement of top strike and latch.

Wood: #12 x 1-1/2"

Phillips Flat Head

(Total = 2)

Top strike mounting screws - Actual size

Metal: #12-24 x 1"

Phillips Flat Head

(Total = 2)

Top strike mounting screws - Actual size

Metal: #10-24 x 3/4"

Phillips Round Head

(Total = 2)

Top strike mounting screws - Actual size

Figure21

Rod

adjustment

Figure19

Centerline

Top

strike

plate

Top latch

assembly

Figure20

ED3400/ED3400A Series

Installation Instructions

Surface Vertical Rod

FM361 04/20

part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

For installation assistance contact Corbin Russwin

1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

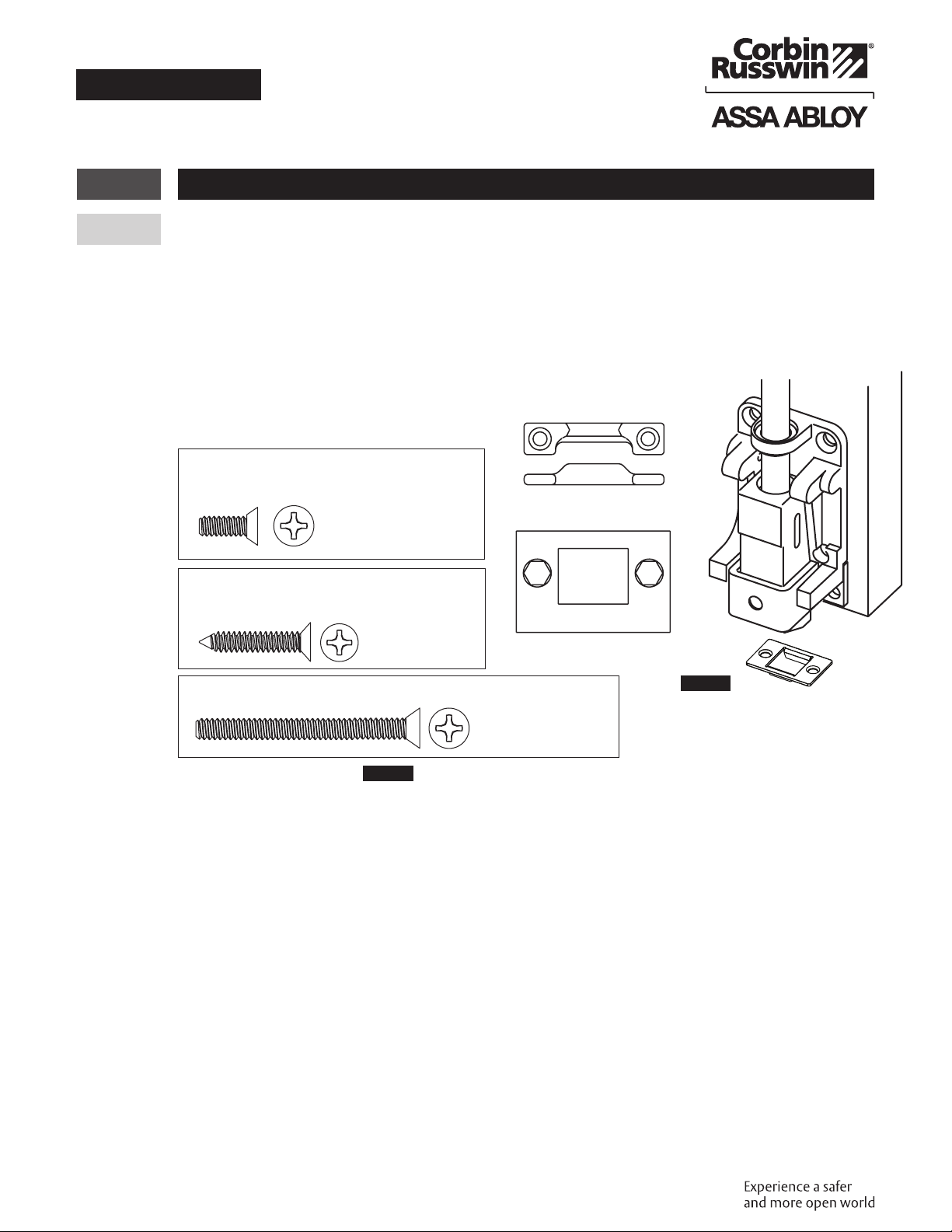

3 Installation (cont.)

j Mount Bottom Strike

Mark and install according to appropriate template and the following information. For surface -applied

strikes:

1. Transfer vertical centerline to floor or threshold and mark.

2. Center strike on the marked line.

3. Mark mounting holes. (If using Flush Bottom Strike (S03), mark mounting holes and outline of strike.)

4. Drill holes for screws.

5. Mount strike with screws provided.

6. Tighten screws.

Figure23

Metal: #12-24 x 1/2"

Phillips Flat Head

(Total = 2)

Surface Projecting Bottom Strike

Mounting Screws Actual Size

Surface Projecting Bottom Strike

Mounting Screws Actual Size

Wood: #12 x 1"

Phillips Flat Head

(Total = 2)

1/4 -20 x 2" Phillips

Flat Head (Total = 2)

Flush Bottom Strike Mounting Screws - Actual Size

Surface Projecting

Bottom Strike

Flush Bottom Strike

(S03)

Figure22

ED3400/ED3400A Series

Installation Instructions

Surface Vertical Rod

FM361 04/20

part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

For installation assistance contact Corbin Russwin

1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

3 Installation (cont.)

k Covers

1. Attach covers to both case chassis and latch chassis.

2. Tighten all screws.

Inactive Case Chassis Active Case Chassis

Top Latch Chassis

Bottom Latch Chassis

Figure24

#8-32 x 5/16" Phillips

Oval Head (Total = 8)

#8-32 x 7/32" Phillips

Oval Head (Total = 8)

Latch Chassis Screws - Actual Size

Case Chassis Screws - Actual Size

Figure25

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Assa Abloy Serrure de porte

Assa Abloy

Assa Abloy Corbin Russwin Access 700 ML20700 TCPWI1... Manuel utilisateur

Assa Abloy

Assa Abloy Sargent BHL 8200 Series Manuel utilisateur

Assa Abloy

Assa Abloy Corbin Russwin DL2200 Series Manuel utilisateur

Assa Abloy

Assa Abloy ePED 1386-00 Manuel utilisateur

Assa Abloy

Assa Abloy ESA500 Manuel d'installation

Assa Abloy

Assa Abloy Aperio C100 V3 Manuel utilisateur

Assa Abloy

Assa Abloy ABLOY EL574 Manuel utilisateur

Assa Abloy

Assa Abloy Yale YD-01-CON-NOMOD-PB Manuel utilisateur

Assa Abloy

Assa Abloy Sargent 7300 Series Manuel utilisateur

Assa Abloy

Assa Abloy shine Manuel utilisateur

Assa Abloy

Assa Abloy Sargent Profile G1 Series Manuel utilisateur

Assa Abloy

Assa Abloy ANYKEY Manuel utilisateur

Assa Abloy

Assa Abloy Corbin Russwin FE6600 Series Manuel utilisateur

Assa Abloy

Assa Abloy effeff Mini Shear Magnet Manuel utilisateur

Assa Abloy

Assa Abloy Yale YDD724A Manuel utilisateur

Assa Abloy

Assa Abloy Lockwood Selector Series Manuel utilisateur

Assa Abloy

Assa Abloy effeff MAGG1200SM Manuel utilisateur

Assa Abloy

Assa Abloy SARGENT Profile Series Manuel utilisateur

Assa Abloy

Assa Abloy Arrow Revolution U4A-YRHCPZW0 Caractéristiques techniques

Assa Abloy

Assa Abloy Sargent 52-4424 Mode d’emploi

Assa Abloy

Assa Abloy Yale Assure Lock YRD620 Caractéristiques techniques

Assa Abloy

Assa Abloy Yale eBoss 886F Series Manuel utilisateur

Assa Abloy

Assa Abloy NORTON RIXSON M19 Manuel utilisateur

Assa Abloy

Assa Abloy Sargent KP Series Manuel d'installation

Manuels Serrure de porte populaires d'autres marques

We.lock

We.lock SECBNEBL51 Manuel utilisateur

Iseo

Iseo MA1A Manuel utilisateur

ID Lock

ID Lock 150 Manuel utilisateur

Lockly

Lockly ACCESS TOUCH PRO Manuel utilisateur

iLoq

iLoq G50S Manuel utilisateur

SDC

SDC Z7835 Manuel utilisateur

ilco

ilco 452 Manuel utilisateur

Samsung

Samsung shs-h705 Manuel utilisateur

TRU-BOLT

TRU-BOLT 08102017 Manuel utilisateur

CDVI

CDVI 500-LADJ Manuel utilisateur

Igloohome

Igloohome Deadbolt 2S Metal Grey Instructions d'installation et d'entretien

eSSL

eSSL FL-300 Manuel utilisateur

JAKO

JAKO JKBTNX4 Manuel utilisateur

Dorma

Dorma MUNDUS PREMIUM GK 50 Guide de l'utilisateur

SCOOP

SCOOP Pullbloc 4.1 FS Panik Manuel utilisateur

Yale

Yale MORTISE 8800 SERIES Manuel utilisateur

Siegenia

Siegenia KFV AS3500 Manuel utilisateur

Saflok

Saflok Quantum ädesē RFID Manuel utilisateur
