ASROCK PRO Series Manuel utilisateur

Contact Information

If you need to contact ASRock or want to know more about ASRock, you’re

welcome to visit ASRock’s website at http://www.asrock.com; or you may contact

your dealer for further information. For technical questions, please submit a

support request form at https://event.asrock.com/tsd.asp

ASRock Incorporation

e-mail: info@asrock.com.tw

ASRock EUROPE B.V.

e-mail: sales@asrock.nl

ASRock America, Inc.

e-mail: sales@asrockamerica.com

Scan the QR code to view more manuals and documents.

Contents

Chapter 1 Introduction 1

1.1 Package Contents 1

1.2 Specications 2

1.3 Motherboard Layout 6

1.4 I/O Panel 8

1.5 Block Diagram 9

Chapter 2 Installation 10

2.1 Installing the CPU 11

2.2 Installing the CPU Fan and Heatsink 13

2.3 Installing Memory Modules (DIMM) 21

2.4 Connecting the Front Panel Header 25

2.5 Installing the Motherboard 26

2.6 Installing SATA Drives 27

2.7 Installing a Graphics Card 29

2.8 Connecting Peripheral Devices 32

2.9 Connecting the Power Connectors 33

2.10 Power On 34

2.11 Jumpers Setup 35

2.12 Onboard Headers and Connectors 36

2.13 M.2 SSD Module Installation Guide 45

English

B550M Pro SE

Chapter 1 Introduction

ank you for purchasing ASRock B550M Pro SE motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control.

It delivers excellent performance with robust design conforming to ASRock’s

commitment to quality and endurance.

1.1 Package Contents

• ASRock B550M Pro SE Motherboard (Micro ATX Form Factor)

• ASRock B550M Pro SE User Manual

• 2 x Serial ATA (SATA) Data Cables (Optional)

• 2 x Screws for M.2 Sockets (Optional)

Because the motherboard specications and the BIOS soware might be updated, the

content of this documentation will be subject to change without notice. In case any

modications of this documentation occur, the updated version will be available on

ASRock’s website without further notice. If you require technical support related to

this motherboard, please visit our website for specic information about the model

you are using. You may nd the latest VGA cards and CPU support list on ASRock’s

website as well. ASRock website http://www.asrock.com.

English

1.2 Specications

Platform • Micro ATX Form Factor

CPU • Supports AMD AM4 Socket RyzenTM 3000, 3000 G-Series,

4000 G-Series, 5000 and 5000 G-Series Desktop Processors*

* Not compatible with AMD Athlon™ Processors.

Chipset • AMD PRO565

Memory • Dual Channel DDR4 Memory Technology

• 4 x DDR4 DIMM Slots

• AMD Ryzen series CPUs (Vermeer) support DDR4

4533+(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200

(OC)/4133(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/

3600(OC)/3466(OC)/3200/2933/2667/2400/2133 ECC &

non-ECC, un-buered memory*

• AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC

)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133

(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/

3466(OC)/3200/2933/2667/2400/2133 ECC & non-ECC, un-

buered memory*

• AMD Ryzen series APUs (Cezanne) support DDR4

4733+(OC)/4666(OC)/4600(OC)/4533(OC)/4466(OC)/

4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/

4000(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/

3466(OC)/3200/2933/2667/2400/2133 ECC & non-ECC, un-

buered memory*

• AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC

)/4666(OC)/4600(OC)/4533(OC)/4466(OC)/4400(OC)

/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/

3866(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/

3200/2933/2667/2400/2133 ECC & non-ECC, un-buered

memory*

• AMD Ryzen series APUs (Picasso) support DDR4 3333+(OC

)/3200(OC)/2933/2667/2400/2133 non-ECC, un-buered

memory*

* For Ryzen Series APUs (Picasso, Cezanne and Renoir), ECC is

only supported with PRO CPUs.

* Please refer to Memory Support List on ASRock’s website for

more information. (http://www.asrock.com/)

English

B550M Pro SE

• Max. capacity of system memory: 128GB

• Supports Extreme Memory Prole (XMP) memory modules

* Please refer to page 21 for AMD non-XMP memory frequency

support. For more details, please refer to the QVL on ASRock’s

website.

Expansion

Slot

AMD Ryzen series CPUs (Vermeer and Matisse)

• 2 x PCIe x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4

mode)*

AMD Ryzen series APUs (Cezanne and Renoir)

• 2 x PCIe x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4

mode)*

AMD Ryzen series APUs (Picasso)

• 2 x PCIe x16 Slots (PCIE1: Gen3x8 mode; PCIE3: Gen3 x4

mode)*

* Supports NVMe SSD as boot disks

• Supports AMD CrossFireTM

• 1 x PCIe 3.0 x1 Slot (PCIE2: x1 mode)

Graphics • Integrated AMD RadeonTM Vega Series Graphics in Ryzen

Series APU* (Actual support may vary by CPU)

• 1 x HDMI 2.1, supports HDR, HDCP 2.3, 4K Ultra HD

(UHD) playback and max. resolution up to 4K 60Hz*

• 1 x DisplayPort 1.4, supports HDCP 2.3, 4K Ultra HD

(UHD) playback and max. resolution up to 5K 120Hz

* Picasso supports HDCP 2.2 with HDMI 2.0 Port

Audio • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

LAN • 2.5 Gigabit LAN 10/100/1000/2500 Mb/s

• Dragon RTL8125BG

• Supports Dragon 2.5G LAN Soware

- Smart Auto Adjust Bandwidth Control

- Visual User Friendly UI

- Visual Network Usage Statistics

- Optimized Default Setting for Game, Browser, and

Streaming Modes

- User Customized Priority Control

English

USB • 6 x USB 3.2 Gen1 Type-A (4 Rear, 2 Front)

• 6 x USB 2.0 (2 Rear, 4 Front)

* All USB ports support ESD Protection

Rear Panel

I/O

• 1 x PS/2 Mouse/Keyboard Port

• 1 x HDMI Port

• 1 x DisplayPort 1.4

• 4 x USB 3.2 Gen1 Ports

• 2 x USB 2.0 Ports

• 1 x RJ-45 LAN Port with LED

• HD Audio Jacks: Line in / Front Speaker / Microphone

Storage CPU:

• 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280

PCIe Gen4x4 (64 Gb/s) mode (with Vermeer, Matisse) or

Gen3x4 (32 Gb/s) mode (with Cezanne, Renoir and Picasso)*

Chipset:

• 1 x M.2 Socket (M2_2, Key M), supports type 2280 SATA3

6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes*

• 4 x SATA3 6.0 Gb/s Connectors

* Supports NVMe SSD as boot disks

RAID • Supports RAID 0, RAID 1 and RAID 10 for SATA storage

devices

Connector • 1 x SPI TPM Header

• 1 x Power LED and Speaker Header

• 2 x RGB LED Headers*

• 2 x Addressable LED Headers**

• 1 x CPU Fan Connector (4-pin)***

• 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan

Speed Control)****

• 1 x 24 pin ATX Power Connector

• 1 x 8 pin 12V Power Connector

• 1 x Front Panel Audio Connector

• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

* Support in total up to 12V/3A, 36W LED Strip

** Support in total up to 5V/3A, 15W LED Strip

English

B550M Pro SE

*** CPU_FAN1 supports the fan power up to 1A (12W).

**** CHA_FAN1~3/WP support the fan power up to 2A (24W).

**** CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is

in use.

BIOS

Feature

• AMI UEFI Legal BIOS with GUI support

OS • Microso® Windows® 10 64-bit / 11 64-bit

Certica-

tions

• FCC, CE

• ErP/EuP ready (ErP/EuP ready power supply is required)

* For detailed product information, please visit our website: http://www.asrock.com

Please realize that there is a certain risk involved with overclocking, including

adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using

third-party overclocking tools. Overclocking may aect your system’s stability, or

even cause damage to the components and devices of your system. It should be done

at your own risk and expense. We are not responsible for possible damage caused by

overclocking.

English

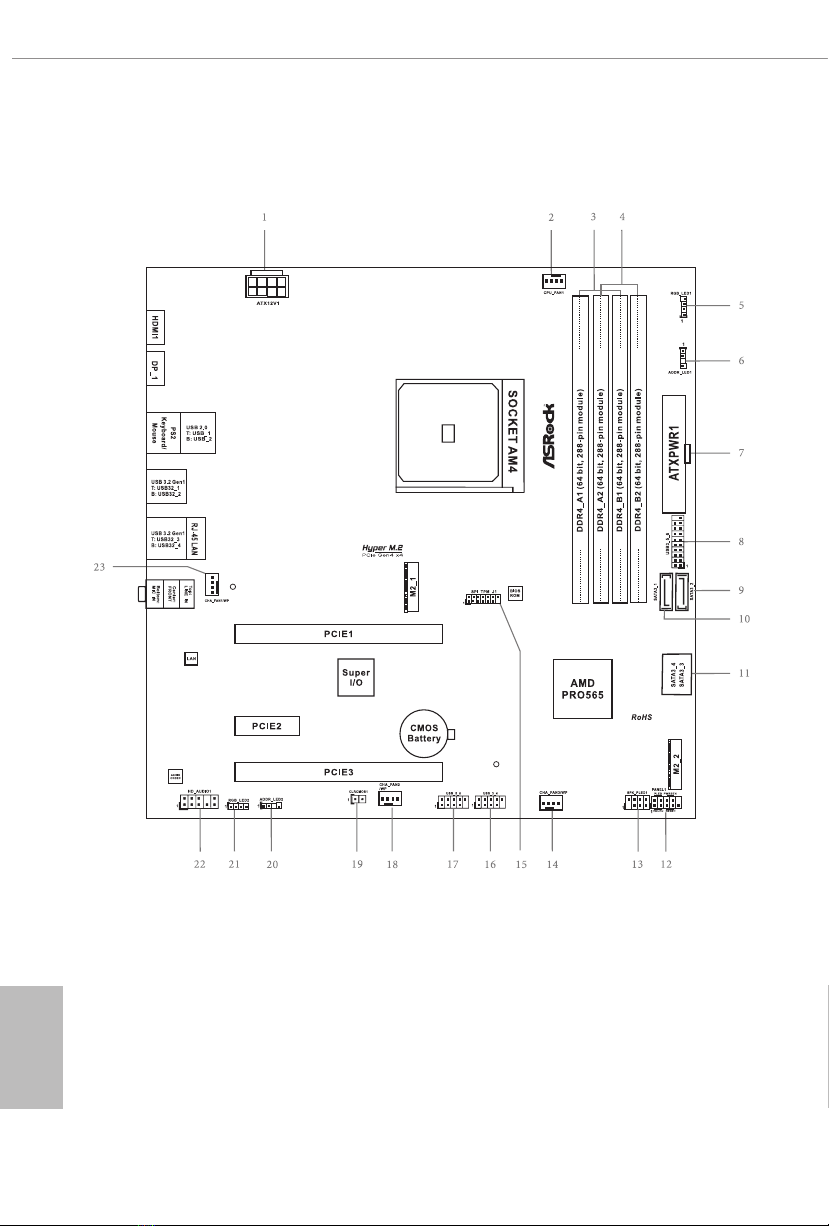

1.3 Motherboard Layout

English

B550M Pro SE

No. Description

1 8 pin 12V Power Connector (ATX12V1)

2 CPU Fan Connector (CPU_FAN1)

3 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)

4 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)

5 RGB LED Header (RGB_LED1)

6 Addressable LED Header (ADDR_LED1)

7 ATX Power Connector (ATXPWR1)

8 USB 3.2 Gen1 Header (USB3_5_6)

9 SATA3 Connector (SATA3_2)

10 SATA3 Connector (SATA3_1)

11 SATA3 Connector (SATA3_4)(Upper), SATA3 Connector (SATA3_3)(Lower)

12 System Panel Header (PANEL1)

13 Power LED and Speaker Header (SPK_PLED1)

14 Chassis/Water Pump Fan Connector (CHA_FAN3/WP)

15 SPI TPM Header (SPI_TPM_J1)

16 USB 2.0 Header (USB_3_4)

17 USB 2.0 Header (USB_5_6)

18 Chassis/Water Pump Fan Connector (CHA_FAN2/WP)

19 Clear CMOS Jumper (CLRCMOS1)

20 Addressable LED Header (ADDR_LED2)

21 RGB LED Header (RGB_LED2)

22 Front Panel Audio Header (HD_AUDIO1)

23 Chassis/Water Pump Fan Connector (CHA_FAN1/WP)
