ASRock P4VM890 Motherboard

Motherboard LMotherboard L

Motherboard Layoutayout

ayoutayout

ayout

EnglishEnglish

English

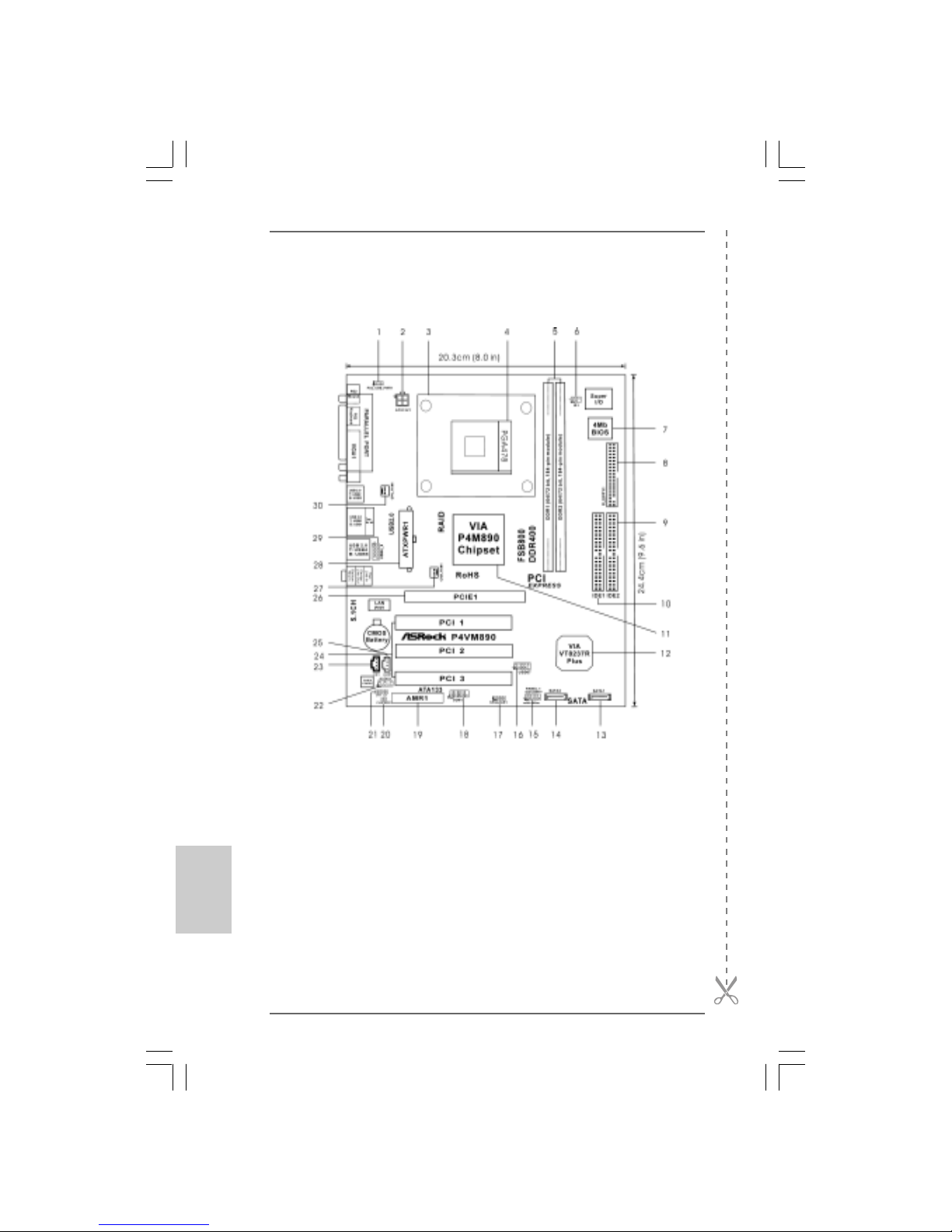

1 PS2_USB_PWR1 Jumper 16 USB 2.0 Header (USB67, Blue)

2 ATX 12V Connector (ATX12V1) 17 Chassis Speaker Header (SPEAKER 1)

3 CPU Heatsink Retention Module 18 Serial Port Connector (COM1)

4 CPU Socket 19 AMR Slot (AMR1)

5 2 x 184-pin DDR DIMM Slots (DDR1, DDR2; Blue) 20 Clear CMOS Jumper (CLRCMOS1)

6 Infrared Module Header (IR1) 21 JR1 / JL1 Jumpers

7 Flash Memory 22 Front Panel Audio Header (AUDIO1)

8 Floppy Connector (FLOPPY1) 23 Internal Audio Connector: CD1 (Black)

9 Secondary IDE Connector (IDE2, Black) 24 Internal Audio Connector: AUX1 (White)

10 Primary IDE Connector (IDE1, Blue) 25 3 x PCI Slots (PCI1- 3)

11 North Bridge Controller 26 PCI Express x16 Slot (PCIE1)

12 South Bridge Controller 27 Chassis Fan Connector (CHA_FAN1)

13 Primary Serial ATA Connector (SATA1) 28 ATX Power Connector (ATXPWR1)

14 Secondary Serial ATA Connector (SATA2) 29 Shared USB 2.0 Header (USB4_5, Blue)

15 System Panel Header (PANEL1) 30 CPU Fan Connector (CPU_FAN1)

ASRock P4VM890 Motherboard

EnglishEnglish

English

ASRock I/O PlusASRock I/O Plus

ASRock I/O PlusTMTM

TMTM

1 Parallel Port 7 USB 2.0 Ports (USB01)

2 RJ-45 Port 8 USB 2.0 Ports (USB23)

3 Line In (Light Blue) 9 VGA Port

4 Line Out (Lime) 10 PS/2 Keyboard Port (Purple)

5 Microphone (Pink) 11 PS/2 Mouse Port (Green)

6 Shared USB 2.0 Ports (USB45)

ASRock P4VM890 Motherboard

1. Introduction1. Introduction

1. Introduction

Thank you for purchasing ASRock P4VM890 motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found in

the user manual presented in the Support CD.

Because the motherboard specifications and the BIOS software might

be updated, the content of this manual will be subject to change

without notice. In case any modifications of this manual occur, the

updated version will be available on ASRock website without further

notice. You may find the latest VGA cards and CPU support lists on

ASRock website as well.

ASRock website http://www.asrock.com

1.1 Package Contents1.1 Package Contents

1.1 Package Contents

ASRock P4VM890 Motherboard

(Micro ATX Form Factor: 9.6-in x 8.0-in, 24.4 cm x 20.3 cm)

ASRock P4VM890 Quick Installation Guide

ASRock P4VM890 Support CD

One 80-conductor Ultra ATA 66/100/133 IDE Ribbon Cable

One Ribbon Cable for a 3.5-in Floppy Drive

One SerialATA (SATA) Cable (Optional)

One SerialATA (SATA) HDD Power Cable (Optional)

OneASRock I/O PlusTM Shield

One COM Port Bracket

EnglishEnglish

English

ASRock P4VM890 Motherboard

EnglishEnglish

English

1.21.2

1.2 SpecificationsSpecifications

SpecificationsSpecifications

Specifications

Platform - Micro ATX Form Factor: 9.6-in x 8.0-in, 24.4 cm x 20.3 cm

CPU - Socket 478 for Intel®Pentium®4 / Celeron® D(Prescott,

Northwood, Willamate) processors

- FSB 800/533/400 MHz

- Supports Hyper-Threading Technology (see CAUTION 1)

- Supports Untied Overclocking Technology (see CAUTION 2)

Chipset - Northbridge: VIA®P4M890

- Southbridge: VIA®VT8237R Plus

Memory - 2 xDDRDIMM slots

- Support DDR400/333

- Max. capacity: 2GB

Hybrid Booster - CPU Frequency Stepless Control (see CAUTION 3)

- ASRock U-COP (see CAUTION 4)

- Boot Failure Guard (B.F.G.)

Expansion Slot - 3 x PCI slots

- 1 x PCI Express x16 slot

- 1 x AMR slot

Graphics - Integrated VIA®UniChrome Pro 3D/2DGraphics

- DirectX 7.0 VGA

- Max. shared memory 64MB

Audio - Realtek ALC653 5.1channel AC’97 audio codec

LAN - VIA®PHY VT6103

- Speed: 10/100 Ethernet

- Supports Wake-On-LAN

Rear Panel I/O ASRock I/O PlusTM

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x VGA Port

- 1 x Parallel Port (ECP/EPP Support)

- 6 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 LAN Port

- Audio Jack: Line in/Front Speaker/Microphone

Connector - 2 x Serial ATA 1.5 Gb/s connectors, support RAID (RAID 0,

RAID 1 and JBOD) and “Hot Plug” functions

- 2 x ATA133 IDE connectors (support 4 x IDE devices)

- 1 x Floppy connector

- 1 x IR header

- 1 x COM port header

- CPU/Chassis FAN connector

ASRock P4VM890 Motherboard

EnglishEnglish

English

- 20 pin ATX power connector

- 4 pin 12V power connector

- CD in header

- AUX in header

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports; 2 of them are

shared with USB45 ports on the I/O panel)

(see CAUTION 5)

BIOS Feature - 4MbAMI BIOS

-AMI Legal BIOS

- Supports “Plug and Play”

-ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- AMBIOS 2.3.1 Support

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version)

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

OS - Microsoft® Windows® 2000 / XP compliant

Certifications - FCC, CE, WHQL

WARNING

Please realize that there is a certain risk involved with overclocking, including adjusting

the setting in the BIOS, applying Untied Overclocking Technology, or using the third-

party overclocking tools. Overclocking may affect your system stability, or even

cause damage to the components and devices of your system. It should be done at

your own risk and expense. We are not responsible for possible damage caused by

overclocking.

ASRock P4VM890 Motherboard

EnglishEnglish

English

CAUTION!

1. About the setting of “Hyper Threading Technology”, please check page 26

of “User Manual” in the support CD.

2. This motherboard supports Untied Overclocking Technology. Please read

“Untied Overclocking Technology” on page 19 for details.

3. Although this motherboard offers stepless control, it is not recommended

to perform over-clocking. Frequencies other than the recommended CPU

bus frequencies may cause the instability of the system or damage the

CPU.

4. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC system.

5. Power Management for USB 2.0 works fine under Microsoft®Windows® XP

SP1 or SP2 / 2000 SP4.

ASRock P4VM890 Motherboard

EnglishEnglish

English

2.2.

2. InstallationInstallation

InstallationInstallation

Installation

P4VM890 is a MicroATX form factor (9.6-in x 8.0-in, 24.4 cm x 20.3 cm) motherboard.

Before you install the motherboard, study the configuration of your chassis to en-

sure that the motherboard fits into it.

Pre-installation PrecautionsPre-installation Precautions

Pre-installation Precautions

Take note of the following precautions before you install motherboard com-

ponents or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any

component.

2. To avoid damaging the motherboard components due to static electricity,

NEVER place your motherboard directly on the carpet or the like. Also

remember to use a grounded wrist strap or touch a safety grounded

object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded anti-

static pad or in the bag that comes with the component.

Before you install or remove any component, ensure that the power is

switched off or the power cord is detached from the power supply.

Failure to do so may cause severe damage to the motherboard,

peripherals, and/or components.

ASRock P4VM890 Motherboard

2.1 CPU Installation2.1 CPU Installation

2.1 CPU Installation

Step 1. Unlock the socket by lifting the lever up to a 90° angle.

Step 2. Position the CPU directly above the socket such that its marked corner

matches the base of the socket lever.

Step 3. Carefully insert the CPU into the socket until it fits in place.

The CPU fits only in one correct orientation. DO NOT force the

CPU into the socket to avoid bending of the pins.

Step 4. When the CPU is in place, press it firmly on the socket while you push down

the socket lever to secure the CPU. The lever clicks on the side tab to

indicate that it is locked.

2.2 Installation of CPU Fan and Heatsink2.2 Installation of CPU Fan and Heatsink

2.2 Installation of CPU Fan and Heatsink

This motherboard adopts 478-pin CPU socket to support Intel®Pentium® 4/

Celeron®CPU. It requires larger heatsink and cooling fan to dissipate heat.

You also need to spray thermal grease between the CPU and the heatsink to

improve heat dissipation. Make sure that the CPU and the heatsink are se-

curely fastened and in good contact with each other. Then connect the CPU

fan to the CPU_FAN connector (CPU_FAN1, see p.2 No. 30). For proper

installation, please kindly refer to the instruction manuals of the CPU fan and

the heatsink.

STEP1:

LiftTheSocketLever Upto90°

STEP2/STEP3:

Match The CPU Marked Corner

toTheSocketMarked Corner

STEP4:

PushDownAndLock

TheSocketLever

Lift Lever Up to 90°

CPU Marked Corner

Socket Marked Corner

EnglishEnglish

English

ASRock P4VM890 Motherboard

1010

EnglishEnglish

English

2.3 Installation of Memory Modules (DIMM)2.3 Installation of Memory Modules (DIMM)

2.3 Installation of Memory Modules (DIMM)

P4VM890 motherboard provides two 184-pin DDR (Double Data Rate) DIMM slots.

Please make sure to disconnect power supply before adding or removing

DIMMs or the system components.

Step 1. Unlock a DIMM slot by pressing the retaining clips outward.

Step 2. Align aDIMM on the slot such that the notch on theDIMM matches the break

on the slot.

The DIMM only fits in one correct orientation. It will cause

permanent damage to the motherboard and the DIMM if you

force the DIMM into the slot at incorrect orientation.

Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends fully

snap back in place and the DIMM is properly seated.

Table des matières

Langues :

Autres manuels ASROCK Carte mère

ASROCK

ASROCK H61M-HVGS Manuel utilisateur

ASROCK

ASROCK IMB-380-D Manuel utilisateur

ASROCK

ASROCK A780GXE/128M Manuel utilisateur

ASROCK

ASROCK 880GM PRO3 Manuel utilisateur

ASROCK

ASROCK NUC-1260P Manuel utilisateur

ASROCK

ASROCK G31M-GS - R2.0 Manuel utilisateur

ASROCK

ASROCK A88M-ITX/ac Manuel utilisateur

ASROCK

ASROCK PRO Series Manuel utilisateur

ASROCK

ASROCK 775i945GZ Manuel utilisateur

ASROCK

ASROCK SP55 PRO - Manuel utilisateur

ASROCK

ASROCK Velocita Z490 PG Manuel utilisateur

ASROCK

ASROCK B75 Pro3 Manuel utilisateur

ASROCK

ASROCK P43C-ME Manuel utilisateur

ASROCK

ASROCK 939Dual-SATA2 Manuel utilisateur

ASROCK

ASROCK H87M Pro4 Manuel utilisateur

ASROCK

ASROCK X470 Master SLI/ac Manuel utilisateur

ASROCK

ASROCK UTX-110 Manuel utilisateur

ASROCK

ASROCK H310M-ITX/ac Manuel utilisateur

ASROCK

ASROCK IMB-A182P Manuel utilisateur

ASROCK

ASROCK 790GX Pro Manuel utilisateur

ASROCK

ASROCK K8A780LM Manuel utilisateur

ASROCK

ASROCK C70M1 R2.0 Manuel utilisateur

ASROCK

ASROCK 880G EXTREME3 - LIST Manuel utilisateur

ASROCK

ASROCK P4VX4 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
