ASRock P45R2000-WiFi / P45R2000 / P45TurboTwins2000 Motherboard

EnglishEnglish

English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documen-

tation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identifica-

tion or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Specifications and information contained in this guide are furnished for informational

use only and subject to change without notice, and should not be constructed as a

commitment by ASRock. ASRock assumes no responsibility for any errors or omissions

that may appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or

conditions of merchantability or fitness for a particular purpose. In no event shall

ASRock, its directors, officers, employees, or agents be liable for any indirect, special,

incidental, or consequential damages (including damages for loss of profits, loss of

business, loss of data, interruption of business and the like), even if ASRock has been

advised of the possibility of such damages arising from any defect or error in the guide

or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic

substance controlled in Perchlorate Best Management Practices (BMP) regulations

passed by the California Legislature. When you discard the Lithium battery in

California, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

Published May 2008

2ASRock P45R2000-WiFi / P45R2000 / P45TurboTwins2000 Motherboard

EnglishEnglish

English

Motherboard LMotherboard L

Motherboard Layoutayout

ayoutayout

ayout

(P45R2000-(P45R2000-

(P45R2000-WiFWiF

WiFWiF

WiFi / P45R2000)i / P45R2000)

i / P45R2000)i / P45R2000)

i / P45R2000)

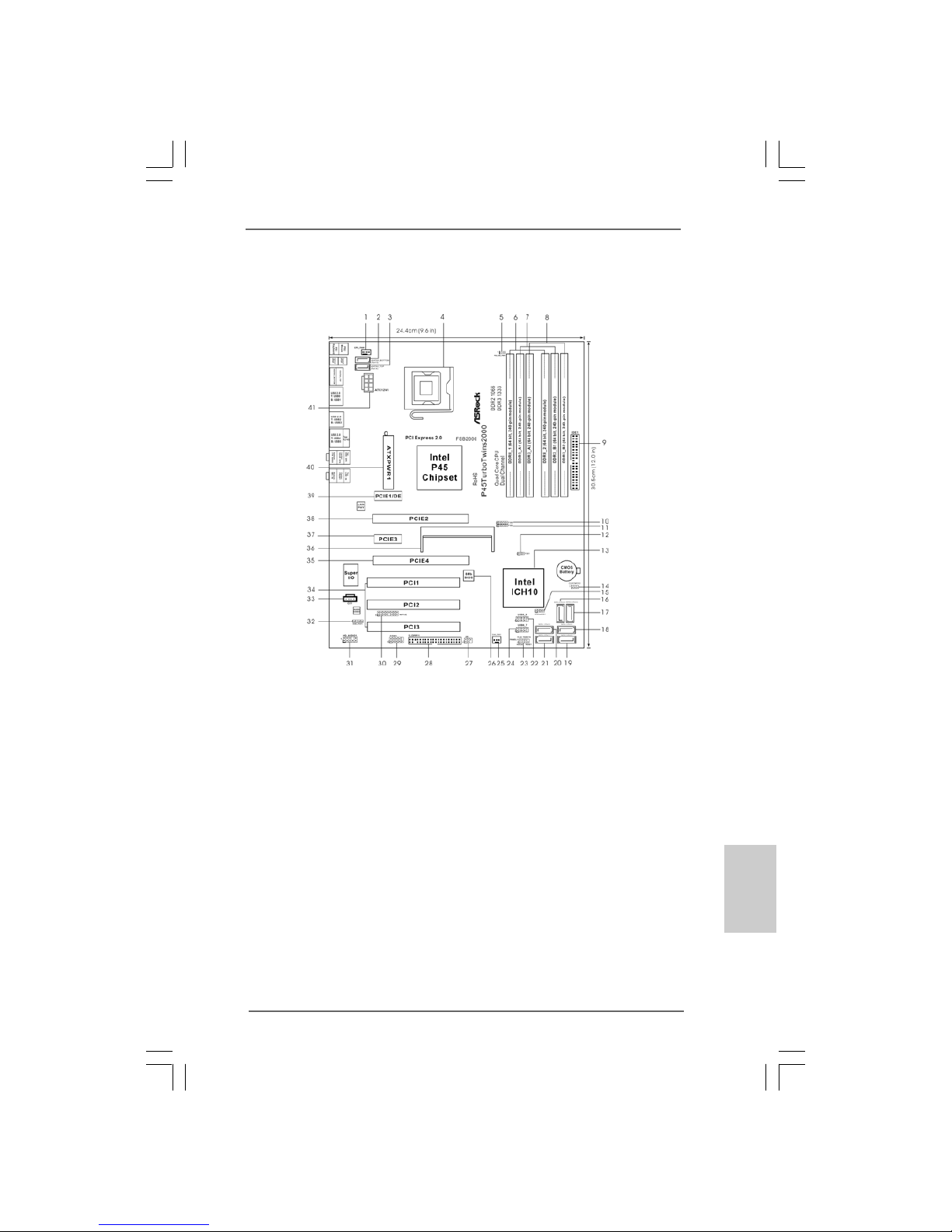

1 CPU Fan Connector (CPU_FAN1) 22 USB 2.0 Header (USB8_9, Blue)

2 eSATAII Connector (eSATAII_BOTTOM (Port 5)) 23 System Panel Header (PANEL1)

3 eSATAII Connector (eSATAII_TOP (Port 4)) 24 USB 2.0 Header (USB6_7, Blue)

4 775-Pin CPU Socket 25 Chassis Fan Connector (CHA_FAN1)

5 PS2_USB_PWR1 Jumper 26 SPI BIOS Chip

6 2 x 240-pin DDR2 DIMM Slots 27 Front Panel IEEE 1394 Header

(Dual Channel A: DDRII_1, DDRII_2; Yellow) (FRONT_1394)

7 2 x 240-pin DDR3 DIMM Slots 28 DeskExpress Hot Plug Detection Header

(Dual Channel B: DDR3_A1, DDR3_B1; Green) (IR1)

8 2 x 240-pin DDR3 DIMM Slots 29 Floppy Connector (FLOPPY1)

(Dual Channel C: DDR3_A2, DDR3_B2; Pink) 30 COM Port Header (COM1)

9 IDE1 Connector (IDE1, Blue) 31 WiFi/E Header (WIFI/E)

10 FSB3 Jumper 32 Front Panel Audio Header (HD_AUDIO1)

11 FSB2 Jumper 33 HDMI_SPDIF Header (HDMI_SPDIF1)

12 FSB1 Jumper 34 Internal Audio Connector: CD1 (Black)

13 South Bridge Controller 35 PCI Slots (PCI1 - 3)

14 Clear CMOS Jumper (CLRCMOS1) 36 PCI Express 2.0 x16 Slot (PCIE4, Blue)

15 Chassis Speaker Header (SPEAKER 1) 37 SLI/XFire Switch Card Retention Slot

16 SATAII Connector (SATAII_6 (Port5), Orange) 38 PCI Express x1 Slot (PCIE3)

17 SATAII Connector (SATAII_5 (Port4), Orange) 39 PCI Express 2.0 x16 Slot (PCIE2, Green)

18 SATAII Connector (SATAII_3 (Port2), Red) 40 PCI Express x1 Slot (PCIE1/DE)

19 SATAII Connector (SATAII_4 (Port3), Red) 41 ATX Power Connector (ATXPWR1)

20 SATAII Connector (SATAII_1 (Port0), Red) 42 ATX 12V Connector (ATX12V1)

21 SATAII Connector (SATAII_2 (Port1), Red)

ASRock P45R2000-WiFi / P45R2000 / P45TurboTwins2000 Motherboard

EnglishEnglish

English

Motherboard LMotherboard L

Motherboard Layout (P45Tayout (P45T

ayout (P45Tayout (P45T

ayout (P45TurboTurboT

urboTurboT

urboTwins2000)wins2000)

wins2000)wins2000)

wins2000)

1 CPU Fan Connector (CPU_FAN1) 21 SATAII Connector (SATAII_2 (Port1), Red)

2 eSATAII Connector (eSATAII_BOTTOM (Port 5)) 22 USB 2.0 Header (USB8_9, Blue)

3 eSATAII Connector (eSATAII_TOP (Port 4)) 23 System Panel Header (PANEL1)

4 775-Pin CPU Socket 24 USB 2.0 Header (USB6_7, Blue)

5 PS2_USB_PWR1 Jumper 25 Chassis Fan Connector (CHA_FAN1)

6 2 x 240-pin DDR2 DIMM Slots 26 SPI BIOS Chip

(Dual Channel A: DDRII_1, DDRII_2; Yellow) 27 DeskExpress Hot Plug Detection Header

7 2 x 240-pin DDR3 DIMM Slots (IR1)

(Dual Channel B: DDR3_A1, DDR3_B1; Green) 28 Floppy Connector (FLOPPY1)

8 2 x 240-pin DDR3 DIMM Slots 29 COM Port Header (COM1)

(Dual Channel C: DDR3_A2, DDR3_B2; Pink) 30 WiFi/E Header (WIFI/E)

9 IDE1 Connector (IDE1, Blue) 31 Front Panel Audio Header (HD_AUDIO1)

10 FSB3 Jumper 32 HDMI_SPDIF Header (HDMI_SPDIF1)

11 FSB2 Jumper 33 Internal Audio Connector: CD1 (Black)

12 FSB1 Jumper 34 PCI Slots (PCI1 - 3)

13 South Bridge Controller 35 PCI Express 2.0 x16 Slot (PCIE4, Blue)

14 Clear CMOS Jumper (CLRCMOS1) 36 SLI/XFire Switch Card Retention Slot

15 Chassis Speaker Header (SPEAKER 1) 37 PCI Express x1 Slot (PCIE3)

16 SATAII Connector (SATAII_6 (Port5), Orange) 38 PCI Express 2.0 x16 Slot (PCIE2, Green)

17 SATAII Connector (SATAII_5 (Port4), Orange) 39 PCI Express x1 Slot (PCIE1/DE)

18 SATAII Connector (SATAII_3 (Port2), Red) 40 ATX Power Connector (ATXPWR1)

19 SATAII Connector (SATAII_4 (Port3), Red) 41 ATX 12V Connector (ATX12V1)

20 SATAII Connector (SATAII_1 (Port0), Red)

4ASRock P45R2000-WiFi / P45R2000 / P45TurboTwins2000 Motherboard

EnglishEnglish

English

ASRASR

ASRock DualLock DualL

ock DualLock DualL

ock DualLAN_SPDIF I/OAN_SPDIF I/O

AN_SPDIF I/OAN_SPDIF I/O

AN_SPDIF I/O

(P45R2000-(P45R2000-

(P45R2000-WiFWiF

WiFWiF

WiFi / P45R2000)i / P45R2000)

i / P45R2000)i / P45R2000)

i / P45R2000)

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will find “Mixer” tool on your system.

Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click

“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA

Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek

HDAAudio 2nd output” to use front panel audio.

** If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE forAudio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker

(No. 10) (No. 7) (No. 8) (No. 6)

2 V -- -- --

4VV----

6 VVV--

8 VVVV

LAN Port

ACT/LINK

LED

SPEED

LED

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

SPEED LED Activity/Link LED

Status Description Status Description

Off 10Mbps connection Off No link

Orange 100Mbps connection Orange Linked

Green 1Gbps connection Blinking Data Activity

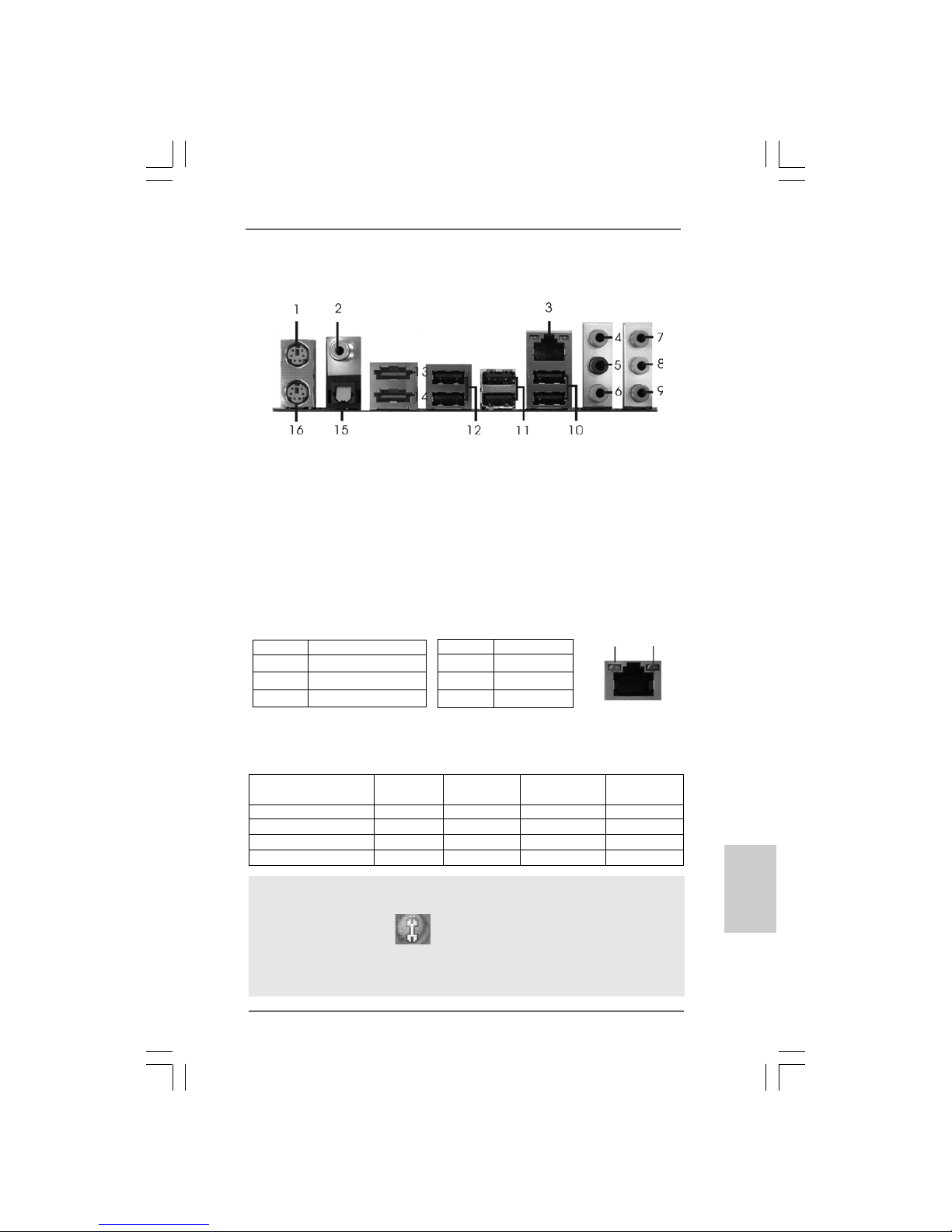

1 PS/2 Mouse Port (Green) ** 10 Front Speaker (Lime)

2 Coaxial SPDIF Out Port 11 Microphone (Pink)

3 IEEE 1394 Port 12 USB 2.0 Ports (USB45)

* 4 LAN RJ-45 Port 13 USB 2.0 Ports (USB23)

* 5 LAN RJ-45 Port 14 USB 2.0 Ports (USB01)

6 Side Speaker (Gray) 15 eSATAII Port (eSATAII_TOP)

7 Rear Speaker (Black) 16 eSATAII Port (eSATAII_BOTTOM)

8 Central / Bass (Orange) 17 Optical SPDIF Out Port

9 Line In (Light Blue) 18 PS/2 Keyboard Port (Purple)

ASRock P45R2000-WiFi / P45R2000 / P45TurboTwins2000 Motherboard

EnglishEnglish

English

LAN Port

ACT/LINK

LED

PEED

LED

ASRASR

ASRock SPDIF I/O Plus (P45Tock SPDIF I/O Plus (P45T

ock SPDIF I/O Plus (P45Tock SPDIF I/O Plus (P45T

ock SPDIF I/O Plus (P45TurboTurboT

urboTurboT

urboTwins2000)wins2000)

wins2000)wins2000)

wins2000)

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will find “Mixer” tool on your system.

Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click

“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA

Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek

HDAAudio 2nd output” to use front panel audio.

** If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker

(No. 8) (No. 5) (No. 6) (No. 4)

2 V -- -- --

4VV----

6 VVV--

8 VVVV

LAN Port

ACT/LINK

LED

SPEED

LED

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

SPEED LED Activity/Link LED

Status Description Status Description

Off 10Mbps connection Off No link

Orange 100Mbps connection Orange Linked

Green 1Gbps connection Blinking Data Activity

1 PS/2 Mouse Port (Green) 9 Microphone (Pink)

2 Coaxial SPDIF Out Port 10 USB 2.0 Ports (USB45)

* 3 LAN RJ-45 Port 11 USB 2.0 Ports (USB23)

4 Side Speaker (Gray) 12 USB 2.0 Ports (USB01)

5 Rear Speaker (Black) 13 eSATAII Port (eSATAII_TOP)

6 Central / Bass (Orange) 14 eSATAII Port (eSATAII_BOTTOM)

7 Line In (Light Blue) 15 Optical SPDIF Out Port

** 8 Front Speaker (Lime) 16 PS/2 Keyboard Port (Purple)

6ASRock P45R2000-WiFi / P45R2000 / P45TurboTwins2000 Motherboard

EnglishEnglish

English

ASRock WiFi-802.11g Module SpecificationsASRock WiFi-802.11g Module Specifications

ASRock WiFi-802.11g Module Specifications

(F(F

(For P45R2000-or P45R2000-

or P45R2000-or P45R2000-

or P45R2000-WiFWiF

WiFWiF

WiFi Only)i Only)

i Only)i Only)

i Only)

ASRock WiFi-802.11g module is an easy-to-use wireless local area network (WLAN)

adapter to support WiFi+AP function. WithASRock WiFi-802.11g module, you can

easily create a wireless environment and enjoy the convenience of wireless network

connectivity.Therefore, from anywhere within the signal range, you will be able to play

LANgames, connect to the internet, access and share printers, and make Internet

phone calls easily.

Standard - IEEE 802.11g

Data Rate - 6, 9, 12, 18, 24, 36, 48, 54Mbps

Security - Access Point mode (AP mode): WEP, WPA

Network -Access Point mode (AP mode)

Architecture Types - Station mode: Infrastructure mode andAd-Hoc mode

Frequency Band - 2.4~2.5GHz

Operating Range - Indoor: 80ft (30m)

Outdoor: 200ft (60m)

* The range varies in different environments

Number of - up to 16 stations

Connected Devices

(AP Mode)

Antenna -ASRock WiFi-802.11g omni-directional antenna

LED -Green data transmission (AIR) LED

Support OS - Windows®XP / XP 64-bit / VistaTM / VistaTM 64-bit

Compatibility - Full compatible with IEEE 802.11g standard products

Software Support -ASRock WiFi-802.11g Wizard

If you want to start to use ASRock WiFi-802.11g module on this motherboard, please

carefully read “ASRock WiFi-802.11g Module Operation Guide” in the package for

the detailed introduction and operation procedures. You can also read the document in

the following path ofASRock motherboard support CD:

..\ ASRock WiFi-802.11g \ Vista64_Vista_XP64_XP

ASRock P45R2000-WiFi / P45R2000 / P45TurboTwins2000 Motherboard

1. Introduction1. Introduction

1. Introduction

Thank you for purchasingASRock P45R2000-WiFi / P45R2000 / P45TurboTwins2000

motherboard, a reliable motherboard produced underASRock’s consistently stringent

qualitycontrol.ItdeliversexcellentperformancewithrobustdesignconformingtoASRock’s

commitment to quality and endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found in

the user manual presented in the Support CD.

Because the motherboard specifications and the BIOS software might be

updated, the content of this manual will be subject to change without

notice. In case any modifications of this manual occur, the updated

version will be available on ASRock website without further notice. You

may find the latest VGA cards and CPU support lists on ASRock website

as well. ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specific information about the model you are using.

www.asrock.com/support/index.asp

1.1 P1.1 P

1.1 Packack

ackack

ackage Contentsage Contents

age Contentsage Contents

age Contents

ASRock P45R2000-WiFi / P45R2000 / P45TurboTwins2000 Motherboard

(ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm)

ASRock P45R2000-WiFi / P45R2000 / P45TurboTwins2000 Quick Installation Guide

ASRock P45R2000-WiFi / P45R2000 / P45TurboTwins2000 Support CD

ASRock WiFi-802.11g Module OperationGuide (For P45R2000-WiFi Only)

Motherboard Accessories

OneASRock SLI/XFire Switch Card

One 80-conductor UltraATA66/100/133 IDE Ribbon Cable

One Ribbon Cable for a 3.5-in Floppy Drive

Four SerialATA (SATA)Data Cables (Optional)

One SerialATA (SATA) HDD Power Cable (Optional)

OneHDMI_SPDIFCable (Optional)

One “ASRockDualLAN_SPDIF I/O” I/O Panel Shield (P45R2000-WiFi / P45R2000)

One “ASRock SPDIF I/O Plus” I/O Panel Shield (P45TurboTwins2000)

WiFi Accessories (For P45R2000-WiFi Only)

OneASRock WiFi-802.11g Module

OneAntenna

One WiFi Bracket

EnglishEnglish

English

8ASRock P45R2000-WiFi / P45R2000 / P45TurboTwins2000 Motherboard

EnglishEnglish

English

1.21.2

1.2 SpecificationsSpecifications

SpecificationsSpecifications

Specifications

Platform - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

-All Solid Capacitor design

CPU - LGA 775 for Intel®CoreTM 2 Extreme / CoreTM 2 Quad / CoreTM

2Duo / Pentium®DualCore/ Celeron®,supportingPenryn Quad

Core Yorkfield andDual Core Wolfdale processors

- Compatible with FSB2000/1600/1333/1066/800 MHz

(see CAUTION 1)

- Supports Hyper-ThreadingTechnology (see CAUTION 2)

- Supports Untied Overclocking Technology (see CAUTION 3)

- Supports EM64T CPU

Chipset -Northbridge: Intel®P45

- Southbridge: Intel®ICH10R (P45R2000-WiFi / P45R2000)

-Southbridge:Intel®ICH10 (P45TurboTwins2000)

Memory -Dual ChannelDDR3/DDR2 Memory Technology

(see CAUTION 4)

- 4 xDDR3DIMM slots

- SupportDDR3 1333/1066 non-ECC, un-buffered memory

(see CAUTION 5)

- Max. capacity of system memory: 8GB (see CAUTION 6)

- 2 xDDR2DIMM slots

- SupportDDR2 1066/800/667 non-ECC, un-buffered memory

(see CAUTION 5)

- Max. capacity of system memory: 8GB (see CAUTION 6)

Expansion Slot - SupportsATITM CrossFireTM (see CAUTION 7)

- 2 x PCI Express 2.0 x16 slots

(green @ x16 mode, blue @ x8 mode)

- 2 x PCI Express x1 slots

- 3 x PCI slots

Audio P45R2000-WiFi / P45R2000

- 7.1 CH Windows® VistaTM Premium Level HDAudio with

Content Protection

-DAC with 110dB dynamic range (ALC890Audio Codec)

P45TurboTwins2000

- 7.1 CH Windows® VistaTM Premium Level HDAudio

(ALC888Audio Codec)

LAN - PCIE x1Gigabit LAN10/100/1000 Mb/s

-RealtekRTL8111B/RTL8111C

- Supports Wake-On-LAN

ASRock P45R2000-WiFi / P45R2000 / P45TurboTwins2000 Motherboard

EnglishEnglish

English

- SupportsDual LANfeature (For P45R2000-WiFi / P45R2000

Only)

Wireless LAN -ASRock WiFi-802.11g module

(For - 54Mbps IEEE 802.11g / 11Mbps IEEE 802.11b

P45R2000-WiFi - Supports SoftwareAccess Point mode (AP mode) and

Only) Station mode (Infrastructure mode andAd-hoc mode)

Rear Panel I/O P45R2000-WiFi/ P45R2000

ASRockDualLAN_SPDIF I/O

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x Coaxial SPDIF Out Port

- 1 x Optical SPDIF Out Port

- 6 x Ready-to-Use USB 2.0 Ports

- 2 x eSATAII Ports

- 2 x RJ-45 LAN Ports with LED

(ACT/LINK LEDand SPEEDLED)

- 1 x IEEE 1394 Port

- HDAudio Jack: Side Speaker/Rear Speaker/Central/Bass/

Line in/Front Speaker/Microphone (see CAUTION 8)

P45TurboTwins2000

ASRock SPDIF I/O Plus

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x Coaxial SPDIF Out Port

- 1 x Optical SPDIF Out Port

- 6 x Ready-to-Use USB 2.0 Ports

- 2 x eSATAII Ports

- 1 x RJ-45 LANPort with LED(ACT/LINK LEDand SPEEDLED)

- HDAudio Jack: Side Speaker/Rear Speaker/Central/Bass/

Line in/Front Speaker/Microphone (see CAUTION 8)

Connector - 6 x SATAII 3.0Gb/s connectors, support RAID(RAID0,

RAID1, RAID 10, RAID5 and Intel Matrix Storage),NCQ,

AHCI and “Hot Plug” functions (see CAUTION 9)

* RAID functions are for P45R2000-WiFi / P45R2000 only

- 2 x eSATAII 3.0Gb/s connectors (shared with 2 SATAII

connectors) (see CAUTION 10)

- 1 xATA133 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

- 1 xDeskExpress Hot PlugDetection header

- 1 x COM port header

- 1 x HDMI_SPDIF header

- 1 x IEEE 1394 header (P45R2000-WiFi / P45R2000)

1010

10 ASRock P45R2000-WiFi / P45R2000 / P45TurboTwins2000 Motherboard

EnglishEnglish

English

WARNING

Please realize that there is a certain risk involved with overclocking, including

adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using

the third-party overclocking tools. Overclocking may affect your system stability, or

even cause damage to the components and devices of your system. It should be

done at your own risk and expense. We are not responsible for possible damage

caused by overclocking.

- CPU/Chassis FANconnector

- 24 pinATX power connector

- 8 pin 12V power connector

- CD in header

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

(see CAUTION 11)

- 1 x WiFi/E header (see CAUTION 12)

BIOS Feature - 8MbAMI BIOS

-AMI Legal BIOS

- Supports “Plug and Play”

-ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

-AMBIOS 2.3.1 Support

- CPU,DRAM,NB, SB, VTTVoltage Multi-adjustment

- Supports I. O. T. (Intelligent Overclocking Technology)

Support CD -Drivers, Utilities,AntiVirus Software (TrialVersion)

Unique Feature -ASRock OC Tuner (see CAUTION 13)

- Hybrid Booster:

- CPU Frequency Stepless Control (see CAUTION 14)

-ASRock U-COP (see CAUTION 15)

- Boot FailureGuard (B.F.G.)

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

OS - Microsoft® Windows® 2000 / XP / XP 64-bit / VistaTM /

VistaTM 64-bit compliant (see CAUTION 16)

Certifications - FCC, CE, WHQL

* For detailed product information, please visit our website: http://www.asrock.com

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels ASROCK Carte mère

ASROCK

ASROCK 790GX Pro Manuel utilisateur

ASROCK

ASROCK IMB-380-L Manuel de service

ASROCK

ASROCK FM2A85X Extreme4 Manuel utilisateur

ASROCK

ASROCK Fatal1ty Z77 Professional-M series Manuel utilisateur

ASROCK

ASROCK 770DE3L - AMD RAID Manuel utilisateur

ASROCK

ASROCK ZH77 Pro3 Manuel utilisateur

ASROCK

ASROCK Z590 PG Velocita Manuel utilisateur

ASROCK

ASROCK E3C236D2I Manuel utilisateur

ASROCK

ASROCK H61DE-S3 Manuel utilisateur

ASROCK

ASROCK N100M Manuel utilisateur

ASROCK

ASROCK X58 SUPERCOMPUTER - Manuel utilisateur

ASROCK

ASROCK Fatal1ty 990FX Killer Manuel utilisateur

ASROCK

ASROCK 970A-G3.1 Manuel utilisateur

ASROCK

ASROCK 775Dual-915GL Manuel utilisateur

ASROCK

ASROCK FM2A58 Pro+ Manuel utilisateur

ASROCK

ASROCK N68-GS3 FX Manuel utilisateur

ASROCK

ASROCK H370M-HDV/M.2 Manuel utilisateur

ASROCK

ASROCK Z87 OC Formula ac Manuel utilisateur

ASROCK

ASROCK K7UPGRADE-600 Manuel utilisateur

ASROCK

ASROCK H370 Pro4 Manuel utilisateur

ASROCK

ASROCK B360M-HDV Manuel utilisateur

ASROCK

ASROCK P65iCafe Manuel utilisateur

ASROCK

ASROCK 960GM/U3S3 FX Manuel utilisateur

ASROCK

ASROCK 4CoreDual-VSTA Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
