ASROCK M3A-GLAN - V1.0 Manuel utilisateur

M3A-GLAN

User Manual

Version 1.0

Published May 2009

No part of this manual may be reproduced, transcribed, transmitted, or translated in

any language, in any form or by any means, except duplication of documentation by

the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this manual may or may not be regis-

tered trademarks or copyrights of their respective companies, and are used only for

identification or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Specifications and information contained in this manual are furnished for informa-

tional use only and subject to change without notice, and should not be constructed

as a commitment by ASRock. ASRock assumes no responsibility for any errors or

omissions that may appear in this manual.

With respect to the contents of this manual, ASRock does not provide warranty of

any kind, either expressed or implied, including but not limited to the implied warran-

ties or conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of profits, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the manual or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic

substance controlled in Perchlorate Best Management Practices (BMP) regulations

passed by the California Legislature. When you discard the Lithium battery in

California, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

ContentsContents

Contents

1.1.

1. IntroductionIntroduction

IntroductionIntroduction

Introduction ......................................................................................................................

......................................................................................................................

........................................................... 55

1.1 Package Contents ..................................................................... 5

1.2 Specifications ........................................................................... 6

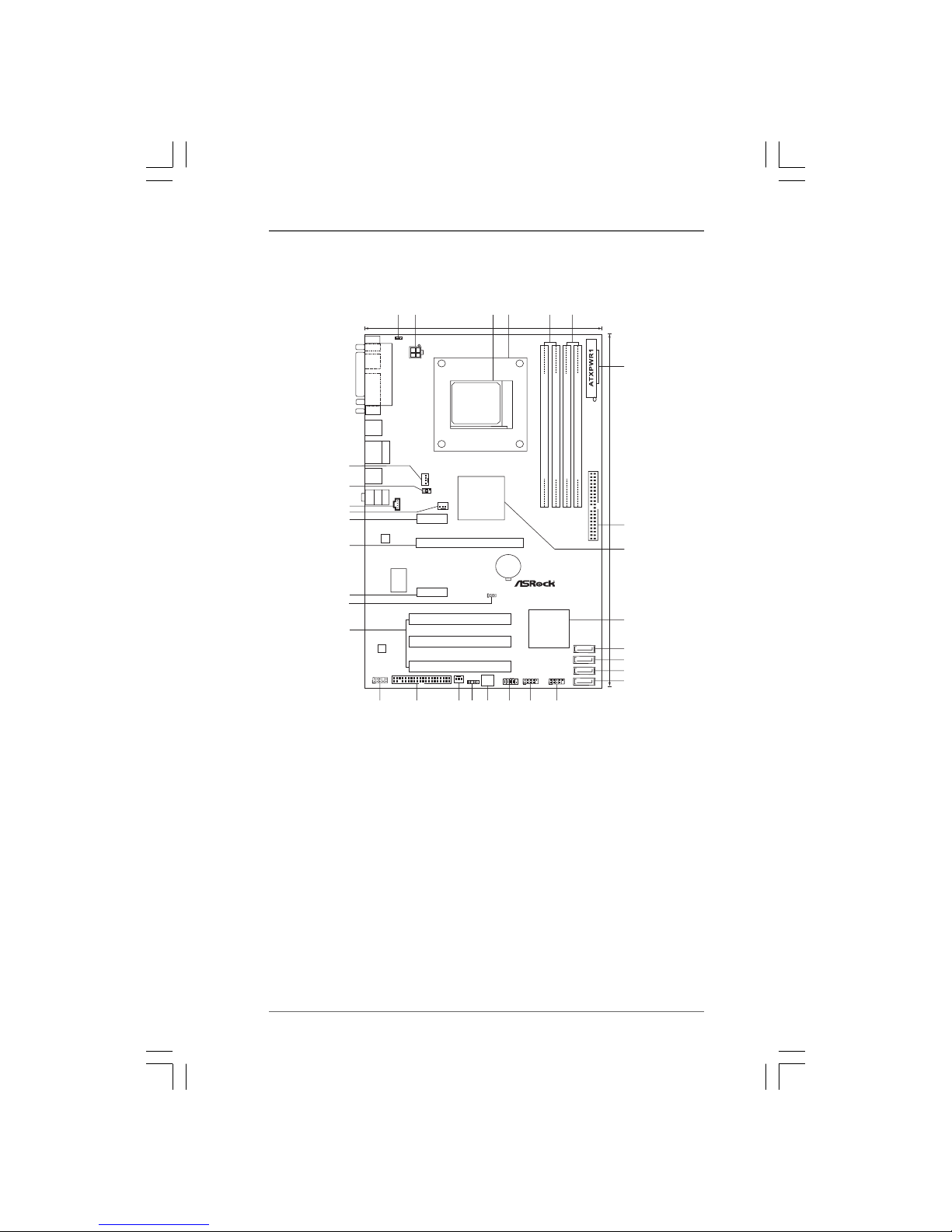

1.3 Motherboard Layout ................................................................. 10

1.4 I/OPanel .................................................................................... 11

2.2.

2. InstallationInstallation

InstallationInstallation

Installation ............................................................................................................................

............................................................................................................................

.............................................................. 1212

1212

Pre-installation Precautions ............................................................... 12

2.1 CPUInstallation ......................................................................... 13

2.2 Installation of CPU Fan and Heatsink ....................................... 13

2.3 Installation of Memory Modules (DIMM) .................................... 14

2.4 Expansion Slots (PCI and PCI Express Slots) .......................... 16

2.5 Jumpers Setup.......................................................................... 17

2.6 Onboard Headers and Connectors.......................................... 18

2.7 SATAII HardDisk Setup Guide .................................................. 22

2.8 Serial ATA (SATA) / Serial ATAII (SATAII) Hard Disks

Installation ................................................................................. 23

2.9 Hot Plug and Hot Swap Functions for SATA / SATAII HDDs .... 23

2.10 SATA/ SATAII HDD Hot Plug Feature and Operation Guide ..... 24

2.11 Driver InstallationGuide ............................................................ 26

2.12 Installing Windows®XP / XP 64-bit / VistaTM / VistaTM 64-bit

With RAID Functions ................................................................. 26

2.12.1 Installing Windows®XP / XP 64-bit With RAID

Functions .................................................................... 26

2.12.2 Installing Windows®VistaTM / VistaTM 64-bit With RAID

Functions...................................................................... 27

2.13 Installing Windows®XP / XP 64-bit / VistaTM / VistaTM 64-bit

Without RAID Functions ............................................................ 28

2.13.1 Installing Windows®XP / XP 64-bit Without RAID

Functions...................................................................... 28

2.13.2 Installing Windows®VistaTM / VistaTM 64-bit Without RAID

Functions...................................................................... 29

2.14 Untied Overclocking Technology .............................................. 30

3.3.

3. BIOS SBIOS S

BIOS SBIOS S

BIOS SETUP UTILITYETUP UTILITY

ETUP UTILITYETUP UTILITY

ETUP UTILITY ......................................................................................................

......................................................................................................

................................................... 3131

3131

3.1 Introduction ............................................................................... 31

3.1.1 BIOS Menu Bar ............................................................... 31

3.1.2 Navigation Keys ............................................................. 32

3.2 Main Screen.............................................................................. 32

3.3 Smart Screen............................................................................ 33

3.4 Advanced Screen .................................................................... 34

3.4.1 CPU Configuration .......................................................... 35

3.4.2 Memory Configuration .................................................... 38

3.4.3 Chipset Configuration..................................................... 42

3.4.4 ACPI Configuration ......................................................... 43

3.4.5 IDE Configuration ............................................................ 44

3.4.6 PCIPnPConfiguration ...................................................... 46

3.4.7 Floppy Configuration ...................................................... 47

3.4.8 Super IO Configuration................................................... 47

3.4.9 USB Configuration .......................................................... 48

3.5 Hardware Health Event Monitoring Screen ............................. 49

3.6 Boot Screen.............................................................................. 50

3.6.1 Boot Settings Configuration ........................................... 50

3.7 Security Screen........................................................................ 51

3.8 Exit Screen ............................................................................... 52

4.4.

4. Software SupportSoftware Support

Software SupportSoftware Support

Software Support ......................................................................................................

......................................................................................................

................................................... 5353

5353

4.1 Install Operating System........................................................... 53

4.2 Support CD Information............................................................. 53

4.2.1 Running Support CD....................................................... 53

4.2.2 Drivers Menu .................................................................. 53

4.2.3 Utilities Menu ................................................................... 53

4.2.4 Contact Information ........................................................ 53

1.1.

1. IntroductionIntroduction

IntroductionIntroduction

Introduction

Thank you for purchasing ASRock M3A-GLAN motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming toASRock’s commitment to quality and

endurance.

In this manual, chapter 1 and 2 contain introduction of the motherboard and step-by-step

guide to the hardware installation. Chapter 3 and 4 contain the configuration guide to

BIOS setup and information of the Support CD.

Because the motherboard specifications and the BIOS software might be

updated, the content of this manual will be subject to change without

notice. In case any modifications of this manual occur, the updated

version will be available on ASRock website without further notice. You

may find the latest VGA cards and CPU support lists on ASRock website

as well. ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specific information about the model you are using.

www.asrock.com/support/index.asp

1.11.1

1.1 PP

Packack

ackack

ackage Contentsage Contents

age Contentsage Contents

age Contents

1 x ASRock M3A-GLAN Motherboard

(ATX Form Factor: 12.0-in x 7.8-in, 30.5 cm x 19.8 cm)

1 x ASRock M3A-GLAN Quick Installation Guide

1 x ASRock M3A-GLAN Support CD

1 x Ultra ATA 66/100/133 IDE Ribbon Cable (80-conductor)

1 x SerialATA (SATA) Data Cable (Optional)

1 x SerialATA(SATA) HDDPower Cable (Optional)

1 x I/O Panel Shield

1.21.2

1.2 SpecificationsSpecifications

SpecificationsSpecifications

Specifications

Platform - ATX Form Factor: 12.0-in x 7.8-in, 30.5 cm x 19.8 cm

CPU - Support for SocketAM2+ / AM2 processors: AMD PhenomTM

FX / Phenom /Athlon 64 FX /Athlon 64 X2 Dual-Core / Athlon

X2 Dual-Core / Athlon 64 / Sempronprocessor

- Support forAM3 processors: AMD PhenomTM II X4 / X3 /

X2 and Athlon II X4 / X3 / X2 processors

-AMD LIVE!TM Ready

- Supports AMD’s Cool ‘n’ QuietTM Technology

- FSB 1000 MHz (2.0 GT/s)

- Supports Untied Overclocking Technology (see CAUTION 1)

- Supports Hyper-Transport Technology

Chipset - Northbridge: AMD 480X CrossFireTM Chipset

- Southbridge: AMD SB600

Memory - Dual Channel DDR2 Memory Technology (see CAUTION 2)

- 4 xDDR2DIMM slots

- Support DDR2 1066/800/667/533 non-ECC, un-buffered

memory (see CAUTION 3)

- Max. capacity of system memory: 16GB (see CAUTION 4)

Expansion Slot - 1 x PCI Express x16 slot

- 2 x PCI Express x1 slots

- 3 x PCI slots

Audio - 5.1 CH Windows®VistaTM Premium Level HDAudio

(ALC662 Audio Codec)

LAN - PCIE x1Gigabit LAN10/100/1000 Mb/s

- Realtek RTL8111DL

- Supports Wake-On-LAN

Rear Panel I/O ASRockHD 6CH I/O

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x Serial Port: COM1

- 1 x Parallel Port (ECP/EPP Support)

- 6 x Ready-to-Use USB 2.0 Ports

-1 xRJ-45 LAN Port with LED(ACT/LINK LEDand SPEED LED)

- HDAudio Jack: Line in/Front Speaker/Microphone

Connector - 4 x Serial ATAII 3.0Gb/s connectors, support RAID(RAID 0,

RAID 1 and RAID10),NCQ,AHCI and “Hot Plug” functions

(see CAUTION 5)

- 1 x ATA133 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

- 1 x IR header

- CPU/Chassis/Power FAN connector

- 24 pinATX power connector

- 4 pin 12V power connector

- CD in header

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

(see CAUTION 6)

BIOS Feature - 4MbAMI BIOS

-AMI Legal BIOS

- Supports “Plug and Play”

-ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

- CPU Voltage Multi-adjustment

- Supports Smart BIOS

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version)

Unique Feature - ASRock OC Tuner (see CAUTION 7)

- Intelligent Energy Saver (see CAUTION 8)

- Instant Boot

- ASRock Instant Flash (see CAUTION 9)

- Hybrid Booster:

- CPU Frequency Stepless Control (see CAUTION 10)

- ASRock U-COP (see CAUTION 11)

- Boot Failure Guard (B.F.G.)

-ASRockAM2 Boost: ASRock PatentedTechnology to boost

memory performance up to 12.5% (see CAUTION 12)

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU/Chassis/Power Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

OS - Microsoft® Windows® XP / XP Media Center / XP 64-bit /

VistaTM / VistaTM 64-bit compliant

Certifications - FCC, CE, Microsoft®WHQL Certificated

* For detailed product information, please visit our website: http://www.asrock.com

WARNING

Please realize that there is a certain risk involved with overclocking, including adjusting

the setting in the BIOS, applying Untied Overclocking Technology, or using the third-

party overclocking tools. Overclocking may affect your system stability, or even

cause damage to the components and devices of your system. It should be done at

your own risk and expense. We are not responsible for possible damage caused by

overclocking.

CAUTION!

1. This motherboard supports Untied Overclocking Technology. Please read “Un-

tied Overclocking Technology” on page 30 for details.

2. This motherboard supports Dual Channel Memory Technology. Before

you implement Dual Channel Memory Technology, make sure to read

the installation guide of memory modules on page 14 for proper installation.

3. Whether 1066MHz memory speed is supported depends on the AM2+ CPU

you adopt. If you want to adopt DDR2 1066 memory module on this

motherboard, please refer to the memory support list on our website for

the compatible memory modules.

ASRock website http://www.asrock.com

4. Due to the operating system limitation, the actual memory size may be

less than 4GB for the reservation for system usage under Windows®XP

and Windows®VistaTM. For Windows®XP 64-bit and Windows®VistaTM 64-

bit with 64-bit CPU, there is no such limitation.

5. Before installing SATAII hard disk to SATAII connector, please read the “SATAII

Hard Disk Setup Guide” on page 22 to adjust your SATAII hard disk drive to

SATAII mode. You can also connect SATA hard disk to SATAII connector

directly.

6. Power Management for USB 2.0 works fine under Microsoft®Windows®

VistaTM 64-bit / VistaTM / XP 64-bit / XP SP1 or SP2.

7. It is a user-friendly ASRock overclocking tool which allows you to surveil

your system by hardware monitor function and overclock your hardware

devices to get the best system performance under Windows® environment.

Please visit our website for the operation procedures of ASRock OC

Tuner. ASRock website: http://www.asrock.com

8. Featuring an advanced proprietary hardware and software design,

Intelligent Energy Saver is a revolutionary technology that delivers

unparalleled power savings. The voltage regulator can reduce the

number of output phases to improve efficiency when the CPU cores are

idle. In other words, it is able to provide exceptional power saving and

improve power efficiency without sacrificing computing performance. To

use Intelligent Energy Saver function, please enable Cool ‘n’ Quiet option

in the BIOS setup in advance. Please visit our website for the operation

procedures of Intelligent Energy Saver.

ASRock website: http://www.asrock.com

9. ASRock Instant Flash is a BIOS flash utility embedded in Flash ROM.

This convenient BIOS update tool allows you to update system BIOS

without entering operating systems first like MS-DOS or Windows®. With

this utility, you can press <F6> key during the POST or press <F2> key to

BIOS setup menu to access ASRock Instant Flash. Just launch this tool

and save the new BIOS file to your USB flash drive, floppy disk or hard

drive, then you can update your BIOS only in a few clicks without prepar-

ing an additional floppy diskette or other complicated flash utility. Please

be noted that the USB flash drive or hard drive must use FAT32/16/12 file

system.

10. Although this motherboard offers stepless control, it is not recommended

to perform over-clocking. Frequencies other than the recommended CPU

bus frequencies may cause the instability of the system or damage the

CPU.

11. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC system.

12. This motherboard supports ASRock AM2 Boost overclocking technology. If

you enable this function in the BIOS setup, the memory performance will

improve up to 12.5%, but the effect still depends on the AM2 CPU you adopt.

Enabling this function will overclock the chipset/CPU reference clock. However,

we can not guarantee the system stability for all CPU/DRAM configurations.

If your system is unstable after AM2 Boost function is enabled, it may not be

applicative to your system. You may choose to disable this function for

keeping the stability of your system.

1010

SOCKET AM2

AMD

480X

CrossFire

Chipset

ATI

SB600

Chipset

FSB800

DDRII_1 (64 bit, 240-pin module)

DDRII_2 (64 bit, 240-pin module)

FSB800

DDRII_3 (64 bit, 240-pin module)

DDRII_4 (64 bit, 240-pin module)

AM2+/AM3

Phenom II

DDR2 1066

Dual Channel

19.8cm (7.8-in)

30.5cm (12.0-in)

CD1

ATX12V1

PS2_USB_PW1

CPU_FAN1

PARALLEL PORT

COM1

PS2

Mouse

PS2

Keyboard

USB 2.0

T: USB0

B: USB1

Top:

RJ-45

Top:

LINE IN

Center:

FRONT

Bottom:

MIC IN

RoHS

4Mb

BIOS

CMOS

BATTERY

PCIE1

PCI1

PCI2

PCI3

CLRCMOS1

Super

I/O

LAN

PHY

IR1

AUDIO

CODEC

HD_AUDIO1

FLOPPY1

USB8_9

SATAII_1

(PORT1)

CHA_FAN1

HDLED RESET

PLED PWRBTN

PANEL1

SPEAKER1

IDE1

124

1920

USB 2.0

T: USB2

B: USB3

USB 2.0

T: USB4

B: USB5

PCIE3

PCIE2

USB6_7

SATAII_2

(PORT2)

SATAII_3

(PORT3)

SATAII_4

(PORT4)

M3A-GLAN

PWR_FAN1

1.3 Motherboard Layout1.3 Motherboard Layout

1.3 Motherboard Layout

1 PS2_USB_PW1 Jumper 17 System Panel Header (PANEL1, Orange)

2 ATX 12V Power Connector (ATX12V1) 18 SPI Flash Memory (4Mb)

3 AM2 940-Pin CPU Socket 19 Chassis Speaker Header

4 CPU Heatsink Retention Module (SPEAKER 1, Purple)

5 2 x 240-pin DDR2 DIMM Slots 20 Chassis Fan Connector (CHA_FAN1)

(Dual Channel A: DDRII_1, DDRII_2; Yellow) 21 Floppy Connector (FLOPPY1)

6 2 x 240-pin DDR2 DIMM Slots 22 Front Panel Audio Header

(Dual Channel B: DDRII_3, DDRII_4; Orange) (HD_AUDIO1, Lime)

7 ATX Power Connector (ATXPWR1) 23 PCI Slots (PCI1- 3)

8 Primary IDE Connector (IDE1, Blue) 24 Clear CMOS Jumper (CLRCMOS1)

9 Northbridge Controller 25 PCI Express x1 Slot (PCIE3)

10 Southbridge Controller 26 PCI Express x16 Slot (PCIE2)

11 Fourth SATAII Connector (SATAII_4 (PORT4)) 27 PCI Express x1 Slot (PCIE1)

12 Third SATAII Connector (SATAII_3 (PORT3)) 28 Power Fan Connector (PWR_FAN1)

13 Secondary SATAII Connector (SATAII_2(PORT2)) 29 Internal Audio Connector: CD1 (Black)

14 Primary SATAII Connector (SATAII_1 (PORT1)) 30 Infrared Module Header (IR1)

15 USB 2.0 Header (USB6_7, Blue) 31 CPU Fan Connector (CPU_FAN1)

16 USB 2.0 Header (USB8_9, Blue)

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ASROCK Carte mère

ASROCK

ASROCK IMB-153 Manuel utilisateur

ASROCK

ASROCK H61M-XT PLUS Manuel utilisateur

ASROCK

ASROCK Fatal1ty B85 Killer Manuel utilisateur

ASROCK

ASROCK 970 Pro2 Manuel utilisateur

ASROCK

ASROCK RIPTIDE Z790 PG Manuel utilisateur

ASROCK

ASROCK IMB-A160 Manuel de service

ASROCK

ASROCK P45XE Manuel utilisateur

ASROCK

ASROCK P43C-ME Manuel utilisateur

ASROCK

ASROCK PV530A Manuel utilisateur

ASROCK

ASROCK IMB-391 Manuel de service

ASROCK

ASROCK X79 Extreme11 Manuel de l'opérateur

ASROCK

ASROCK Z77 Extreme6 Manuel utilisateur

ASROCK

ASROCK Z87M Pro4 Manuel utilisateur

ASROCK

ASROCK ALIVENF5-VSTA Manuel utilisateur

ASROCK

ASROCK A320TM-ITX Manuel utilisateur

ASROCK

ASROCK 990FX Extreme6 Manuel utilisateur

ASROCK

ASROCK DN2800MT Manuel utilisateur

ASROCK

ASROCK H67M Manuel utilisateur

ASROCK

ASROCK E3V5 WS Manuel utilisateur

ASROCK

ASROCK Z87M Extreme4 Manuel utilisateur

ASROCK

ASROCK N68-VGS3 UCC - Manuel utilisateur

ASROCK

ASROCK X79 Extreme9 Manuel utilisateur

ASROCK

ASROCK 890GX Extreme3 Manuel utilisateur

ASROCK

ASROCK fatality H270 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
