ASRock K7Upgrade-600 Motherboard

No part of this installation guide may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for

identification or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Specifications and information contained in this guide are furnished for informational

use only and subject to change without notice, and should not be constructed as a

commitment by ASRock. ASRock assumes no responsibility for any errors or

omissions that may appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any

kind, either expressed or implied, including but not limited to the implied warranties or

conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of profits, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from

any defect or error in the guide or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

ASRock Website: http://www.asrock.com

Published August 2004

EnglishEnglish

English

ASRock K7Upgrade-600 Motherboard

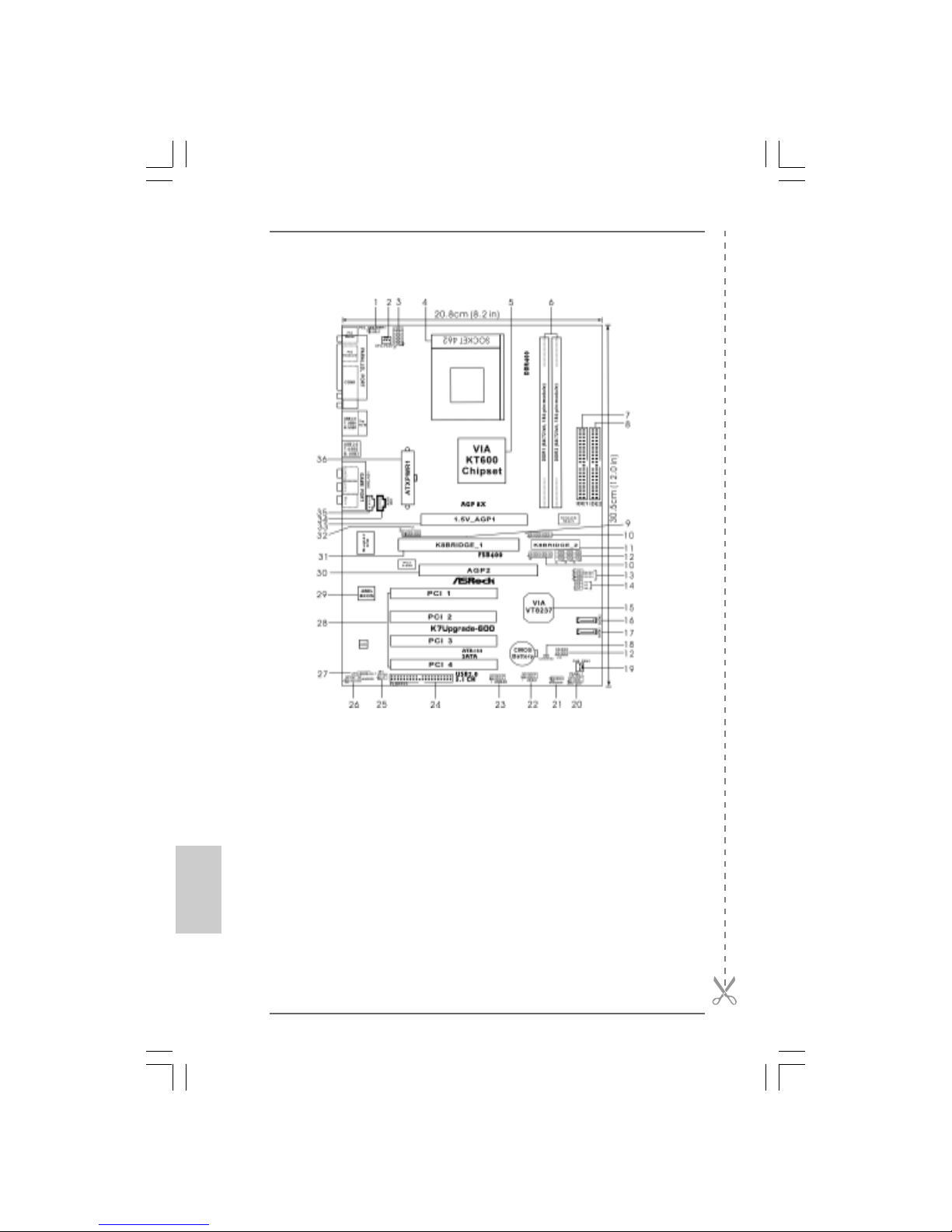

Motherboard LMotherboard L

Motherboard Layoutayout

ayoutayout

ayout

EnglishEnglish

English

1 PS2_USB_PWR1 Jumper 19 Chassis Fan Connector ( CHA_FAN1 )

2 CPU Fan Connector ( CPU_FAN1 ) 20 System Panel Header ( PANEL1 )

3 J1 Jumper ( 5 x 3-Pin ) 21 Chassis Speaker Header ( SPEAKER1 )

4 CPU Socket 22 USB 2.0 Header ( USB67, Blue )

5 North Bridge Controller 23 USB 2.0 Header ( USB45, Blue )

6 184-pin DDR DIMM Slots ( DDR1-2 ) 24 Floppy Connector ( FLOPPY1 )

7 Primary IDE Connector ( IDE1, Blue ) 25 Infrared Module Header ( IR1 )

8 Secondary IDE Connector ( IDE2, Black ) 26 Front Panel Audio Header ( AUDIO1 )

9 J14 Jumper ( 3 sets of 1 x2-Pin ) 27 JR1 / JL1 Jumpers

10 J4/ J5 Jumpers ( 8 x 2-Pin ) 28 4 x PCI Slots ( PCI1- 4 )

11 Future CPU Bridge ( K8BRIDGE_2 ) 29 Flash Memory

12 J7/ J8/ J9/ J12 Jumpers ( 4 sets of 4 x 3-Pin ) 30 AGP Slot ( AGP2 )

13 FSB Select Jumpers 31 Future CPU Bridge ( K8BRIDGE_1 )

( FSB_SEL0, FSB_SEL1,FSB_SEL2 ) 32 J6 Jumper ( 5 x 2-Pin )

14 J11/ J13/ J16 Jumpers ( 3 sets of 1 x 3-Pin ) 33 AGP Slot ( 1.5V_AGP1 )

15 South Bridge Controller 34 Internal Audio Connector: CD1 ( Black )

16 Secondary Serial ATA Connector ( SATA2) 35 Internal Audio Connector: AUX1 ( White )

17 Primary Serial ATA Connector ( SATA1 ) 36 ATX Power Connector ( ATXPWR1 )

18 Clear CMOS Jumper ( CLRCMOS2 )

ASRock K7Upgrade-600 Motherboard

EnglishEnglish

English

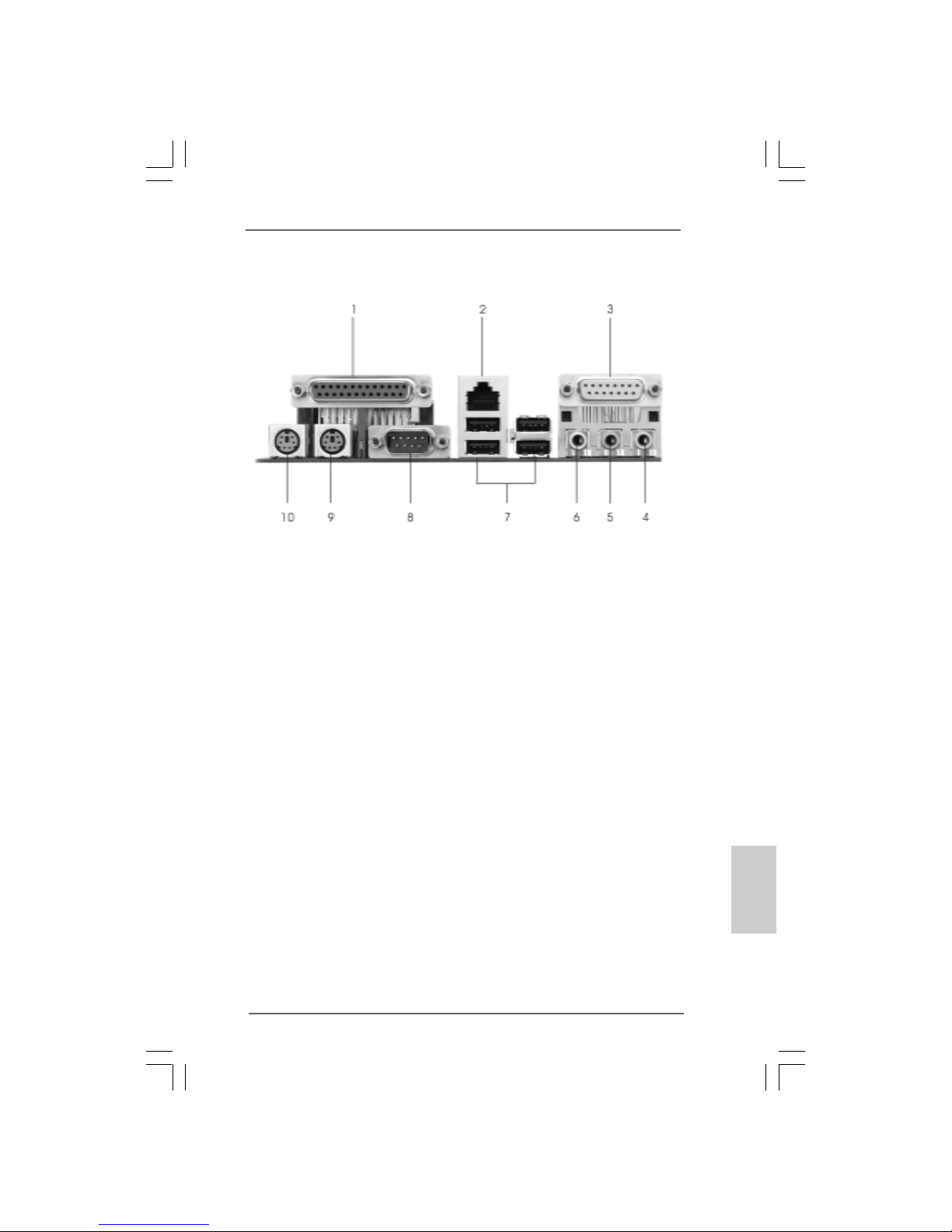

ASRock I/OASRock I/O

ASRock I/OTMTM

TMTM

1 Parallel Port 6 Line Out (Lime)

2 RJ-45 Port 7 USB 2.0 Ports

3 Game Port 8 Serial Port (COM1)

4 Microphone (Pink) 9 PS/2 Keyboard Port (Purple)

5 Line In (Light Blue) 10 PS/2 Mouse Port (Green)

ASRock K7Upgrade-600 Motherboard

1. Introduction1. Introduction

1. Introduction

Thank you for purchasing ASRock K7Upgrade-600 motherboard, a reliable mother-

board produced under ASRock’s consistently stringent quality control. It delivers

excellent performance with robust design conforming to ASRock’s commitment to

quality and endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found in

the user manual presented in the Support CD.

Because the motherboard specifications and the BIOS software might

be updated, the content of this manual will be subject to change

without notice. In case any modifications of this manual occur, the

updated version will be available on ASRock website without further

notice. You may find the latest memory and CPU support lists on

ASRock website as well.

ASRock website http://www.asrock.com

1.1 Package Contents1.1 Package Contents

1.1 Package Contents

ASRock K7Upgrade-600 Motherboard

(ATX Form Factor: 12.0-in x 8.2-in, 30.5 cm x 20.8 cm)

ASRock K7Upgrade-600 Quick Installation Guide

ASRock K7Upgrade-600 Support CD

One 80-conductor Ultra ATA 66/100/133 IDE Ribbon Cable

One Ribbon Cable for a 3.5-in Floppy Drive

One Serial ATA (SATA) Data Cable

One Serial ATA (SATA) HDD Power Cable(Optional)

OneASRock I/O Shield

One Jumper Cap Remover

EnglishEnglish

English

ASRock K7Upgrade-600 Motherboard

1.2 Specifications1.2 Specifications

1.2 Specifications

Platform: ATX Form Factor: 12.0-in x 8.2-in, 30.5 cm x 20.8 cm

CPU: 462-Pin Socket SupportingAMDAthlonTM /AthlonTM XP /DuronTM

/ 32-bit Sempron Processor

Chipsets: North Bridge:

VIA KT600, FSB @ 400 MHz

South Bridge:

VIA VT8237, supports USB 2.0, ATA 133, SATA 1.5Gb/s

Memory: 2DDRDIMMSlots:DDR1,DDR2

Support PC3200 (DDR400) / PC2700 (DDR333) /

PC2100 (DDR266), Max. 2GB

IDE: IDE1:ATA 133 / UltraDMAMode 6

IDE2: ATA 133 / UltraDMA Mode 6

Support up to 4 IDE devices

Serial ATA: 2 SATA connectors

Support 1.5Gb/s data transfer rate

Floppy Port: Supports up to 2 floppy disk drives

Audio: 5.1 channels AC’97 Audio

LAN: Speed: 802.3u (10/100 Ethernet), supports Wake-On-LAN

Hardware Monitor: CPU Temperature Sensing

Motherboard Temperature Sensing

CPU Overheat Shutdown to Protect CPU Life

(ASRock U-COP)(see CAUTION 1)

CPU Fan Tachometer

Chassis Fan Tachometer

Voltage Monitoring: +12V, +5V, +3.3V, Vcore

K8 Bridge: Supports CPU upgrade from AMD K7 462-Pin CPU to

AMD K8 754-Pin CPU (see page 9 for details)

PCI slots: 4 slots with PCI Specification 2.3

AGP slots: 2 AGP slots, support 1.5V, 8X/4XAGP card (see CAUTION 2)

1.5V_AGP1 supports for K7 AGP Interface

AGP2 supports for K8 AGP Interface

USB 2.0: 8 USB 2.0 ports:

include 4 ready-to-use USB 2.0 ports on the rear panel,

plus two on-board header supporting 4 extra USB 2.0 ports

(see CAUTION 3)

ASRock I/O: 1 PS/2 mouse port, 1 PS/2 keyboard port,

EnglishEnglish

English

ASRock K7Upgrade-600 Motherboard

1 serial port: COM1,

1 parallel port: ECP/EPP support,

4 ready-to-use USB 2.0 ports,

1 RJ-45 port,

Audio Jack: Line In / Line Out / Microphone

BIOS: AMIBIOS

Supports “Plug and Play”

ACPI 1.1 compliance wake up events

SMBIOS 2.3.1 support

CPU frequency stepless control

(only for advanced users’ reference, see CAUTION 4)

OS: Microsoft®Windows®98SE / ME / 2000 / XP compliant

CAUTION!

1. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC system.

2. Do NOT use a 3.3V AGP card on the AGP slot of this motherboard!

It may cause permanent damage!

3. Power Management for USB 2.0 works fine under Microsoft®Windows® XP

SP1/2000 SP4. It may not work properly under Microsoft®Windows®98/

ME. Please refer to Microsoft®official document at

http://www.microsoft.com/whdc/hwdev/bus/USB/USB2support.mspx

4. Although this motherboard offers stepless control, it is not recommended

to perform over clocking. Frequencies other than the recommended CPU

bus frequencies may cause the instability of the system or damage the

CPU. The CPU host frequency of this motherboard is determined by the

jumper-setting. You must set the FSB jumper according to your AMD CPU

before you use the “Manual” option as the FSB setting in BIOS setup to

perform over clocking. Please check page 26 of the User Manual in the

Support CD for details.

EnglishEnglish

English

ASRock K7Upgrade-600 Motherboard

2. Installation2. Installation

2. Installation

Pre-installation PrecautionsPre-installation Precautions

Pre-installation Precautions

Take note of the following precautions before you install mother-

board components or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any

component. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

2. To avoid damaging the motherboard components due to static

electricity, NEVER place your motherboard directly on the car-

pet or the like. Also remember to use a grounded wrist strap or

touch a safety grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a

grounded antstatic pad or in the bag that comes with the

component.

5. When placing screws into the screw holes to secure the

motherboard to the chassis, please do not over-tighten the

screws! Doing so may damage the motherboard.

2.1 CPU Installation2.1 CPU Installation

2.1 CPU Installation

STEP1: Unlock the socket by lifting the lever up to a 90oangle.

STEP2: Position the CPU directly above the socket such that its marked

corner matches the base of the socket lever.

STEP3: Carefully insert the CPU into the socket until it fits in place.

The CPU fits only in one correct orientation. DO NOT force the CPU

into the socket to avoid bending of the pins.

STEP4: When the CPU is in place, press it firmly on the socket while you

push down the socket lever to secure the CPU. The lever clicks on

the side tab to indicate that it is locked.

STEP5: Install CPU fan and heatsink. For proper installation, please kindly

refer to the instruction manuals of your CPU fan and heatsink vendors.

EnglishEnglish

English

ASRock K7Upgrade-600 Motherboard

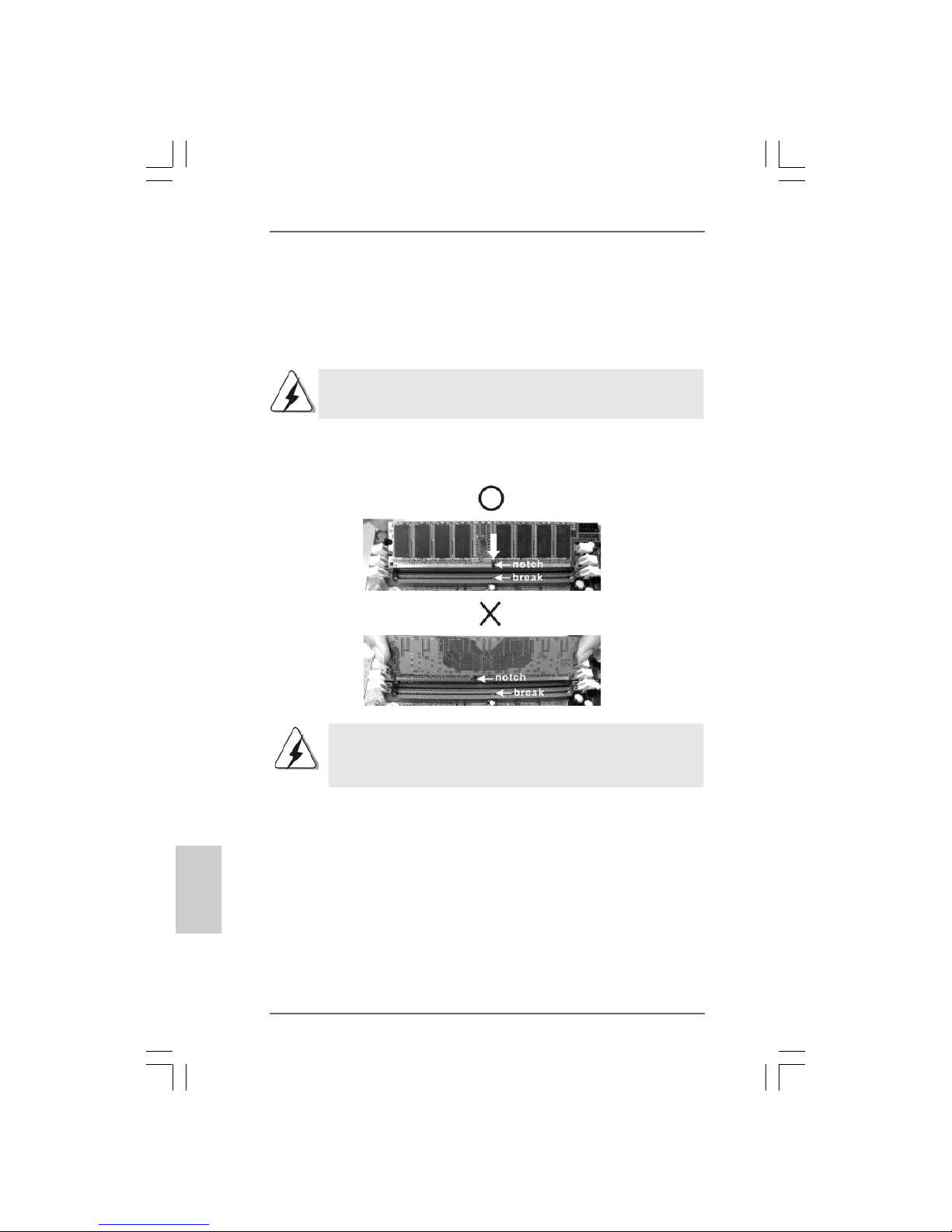

2.2 Installation of Memory Modules (DIMM)2.2 Installation of Memory Modules (DIMM)

2.2 Installation of Memory Modules (DIMM)

K7Upgrade-600 motherboard provides two 184-pin DDR (Double Data Rate) DIMM

slots.

Installing a DIMMInstalling a DIMM

Installing a DIMM

Please make sure to disconnect power supply before adding or

removing DIMMs or the system components.

STEP1: Unlock a DIMM slot by pressing the retaining clips outward.

STEP2: Align a DIMM on the slot such that the notch on the DIMM matches the

break on the slot.

The DIMM only fits in one correct orientation. It will cause permanent

damage to the motherboard and the DIMM if you force the DIMM into the

slot at incorrect orientation.

STEP3: Firmly insert the DIMM into the slot until the retaining clips at both ends

fully snap back in place and the DIMM is properly seated.

EnglishEnglish

English

ASRock K7Upgrade-600 Motherboard

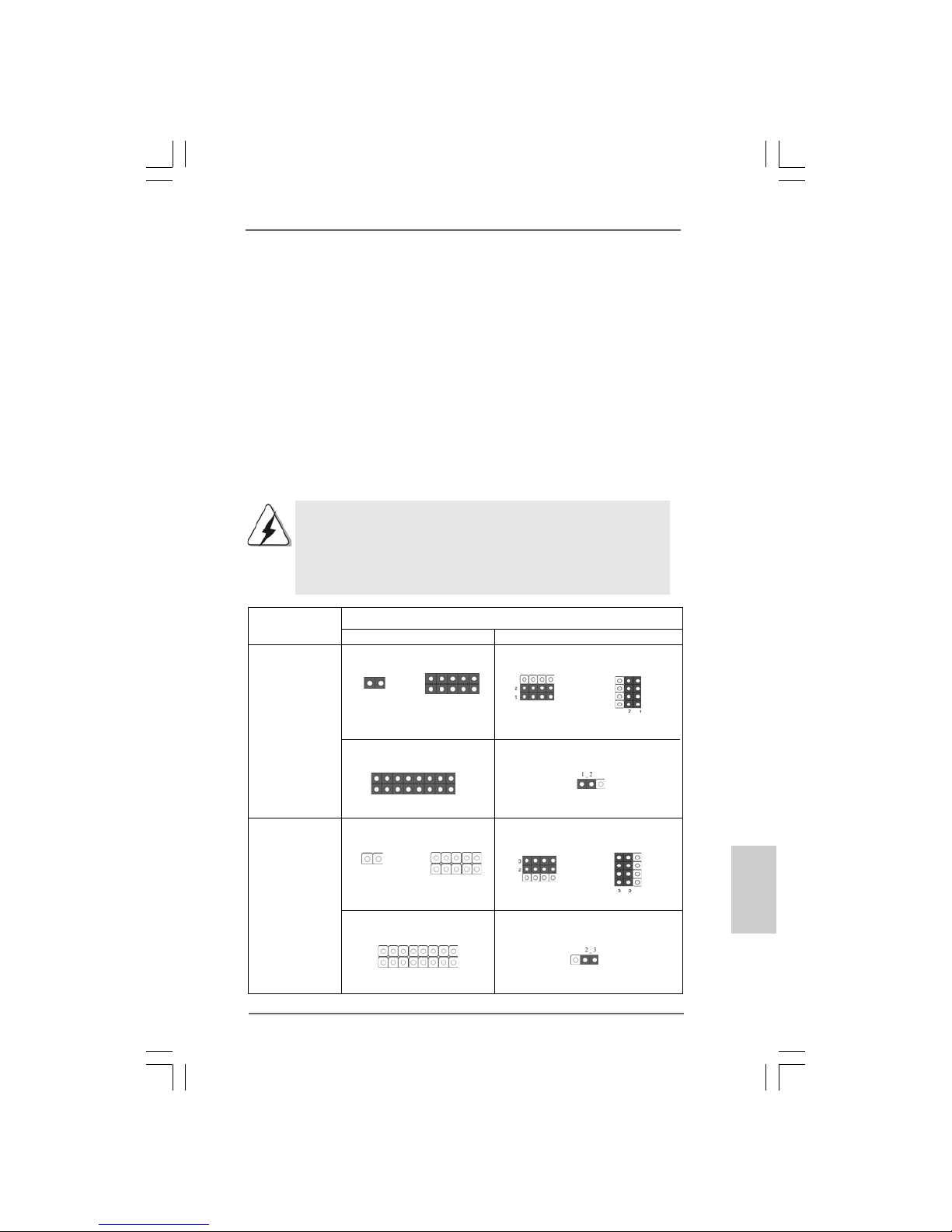

CPUType Jumper Settings

2-Pin Jumpers 3-Pin Jumpers

462-PinCPU

(Default)

754-PinCPU

(Usinganadd-on

ASRock 754 Bridge)

J14

(page 2, No. 9)

(1 x 2-pin; short ) (5 x 2-pin; short )

(8 x 2-pin; short )

(page 2, No. 32) J7/ J8 / J9

(page 2, No. 12)

J4/J5

(page 2, No. 10)

J12

(page 2, No. 12)

J11/J13 / J16

(page 2, No. 14)

(4 x 3-pin; short pin1, pin2)

(1 x 3-pin; short pin1, pin2)

J14

(page 2, No. 9)

(1 x 2-pin; open ) (5 x 2-pin; open )

(8 x 2-pin; open )

(page 2, No. 32)

J11/J13/J16

(page 2, No. 14)

(1 x 3-pin;

short pin2, pin3)

J4/J5

(page 2, No. 10)

J7/ J8 / J9

(page 2, No. 12)

J12

(page 2, No. 12)

(4 x 3-pin; short pin2, pin3)

2.32.3

2.3 Expansion SlotsExpansion Slots

Expansion SlotsExpansion Slots

Expansion Slots (K8 Bridge, PCI Slots, and AGP Slots)(K8 Bridge, PCI Slots, and AGP Slots)

(K8 Bridge, PCI Slots, and AGP Slots)(K8 Bridge, PCI Slots, and AGP Slots)

(K8 Bridge, PCI Slots, and AGP Slots)

There are 1 set of K8 Bridge, 4 PCI slots, and 2 AGP slots (the slot 1.5V_AGP1

supports for K7 AGP Interface, and the slot AGP2 supports for K8 AGP Interface) on

K7Upgrade-600 motherboard.

K8 Bridge

(Orange-Colored Bridge (K8BRIDGE_1) + Brown-Colored Bridge (K8BRIDGE_2)):

The set of K8 Bridge allows you to upgrade your AMD 462-Pin CPU to AMD 754-Pin

CPU by installing an add-on ASRock 754Bridge (optional) into this K8 Bridge on

K7Upgrade-600 motherboard. Before you upgrade the AMD 462-Pin CPU to the

AMD 754-Pin CPU, it is necessary to adjust the jumper settings for those required

jumpers on K7Upgrade-600 motherboard. Please refer to the table below for the

correct jumper settings.

The orange-colored Bridge (K8BRIDGE_1) is not an AGP slot, and the

brown-colored Bridge (K8BRIDGE_2) is not an AMR slot! Please do

NOTinsertany AGPcardintothe orange-colored Bridge(K8BRIDGE_1)

and AMR card into the brown-colored Bridge (K8BRIDGE_2)! It may

cause permanent damage to the hardware!

EnglishEnglish

English

(4 x 3-pin;

short pin1, pin2)

ASRock K7Upgrade-600 Motherboard

1010

NOTE

When adjusting the jumper settings, you may use the tool, Jumper Cap Remover, to help you

removing the jumper caps more easily. This Jumper Cap Remover is bundled in your motherboard

package, and please follow the “Jumper Cap Remover Instruction” to use it properly.

PCI slots: PCI slots are used to install expansion cards that have the 32-bit PCI

interface.

AGP slot: The AGP slots are used to install a graphics card. Please insert the AGP

card with K7AGP Interface into the slot 1.5V_AGP1 (see page 2,No. 33),

or insert the AGP card with K8 AGP Interface into the slot AGP2 (see

page 2, No. 30). Please do not install AGP cards into the slot

1.5V_AGP1 and the slot AGP2 at the same time. It may cause permanent

damage to the hardware.

PleasedoNOTusea3.3VAGPcardontheAGPslotof thismotherboard!

It may cause permanent damage! For the voltage information of your

AGP card, please check with the AGP card vendors.

Installing an expansion cardInstalling an expansion card

Installing an expansion card

STEP1: Before installing the expansion card, please make sure that the power

supply is switched off or the power cord is unplugged. Please read the

documentation of the expansion card and make necessary hardware

settings for the card before you start the installation.

STEP2: Remove the bracket facing the slot that you intend to use. Keep the screws

for later use.

STEP3: Align the card connector with the slot and press firmly until the card is

completely seated on the slot.

STEP4: Fasten the card to the chassis with screws.

EnglishEnglish

English

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels ASROCK Carte mère

ASROCK

ASROCK P4I945GC Manuel utilisateur

ASROCK

ASROCK A55iCafe Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

ASROCK

ASROCK Z87 OC Formula/ac Manuel utilisateur

ASROCK

ASROCK 870 EXTREME3 Manuel utilisateur

ASROCK

ASROCK 4Core1600Twins-P35D Manuel utilisateur

ASROCK

ASROCK H670 Steel Legend Manuel utilisateur

ASROCK

ASROCK Fatal1ty Z77 Professional Manuel utilisateur

ASROCK

ASROCK K7S41 Manuel utilisateur

ASROCK

ASROCK Z68 Pro3 Gen3 Manuel utilisateur

ASROCK

ASROCK G41M-LE Manuel utilisateur

ASROCK

ASROCK Z790 Pro RS/D4 Manuel utilisateur

ASROCK

ASROCK ALIVENF5-VSTA R2.0 Manuel utilisateur

ASROCK

ASROCK H81 Pro BTC Manuel utilisateur

ASROCK

ASROCK IMB-X1712 Manuel de service

ASROCK

ASROCK H77M-ITX Manuel utilisateur

ASROCK

ASROCK Fatal1ty Z77 Professional-M Manuel utilisateur

ASROCK

ASROCK IMB-185 Manuel de service

ASROCK

ASROCK 880GXHU3/128M Manuel utilisateur

ASROCK

ASROCK D2123D4I4 Manuel utilisateur

ASROCK

ASROCK E35LM1 Manuel utilisateur

ASROCK

ASROCK FM2A88M Extreme4 Manuel utilisateur

ASROCK

ASROCK X399D8A-2T Manuel utilisateur

ASROCK

ASROCK B85M-ITX Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
