ASROCK H87E-ITX/ac Manuel utilisateur

Version 1.0

Published May 2013

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Website: http://www.asrock.com

English

H87E-ITX/ac

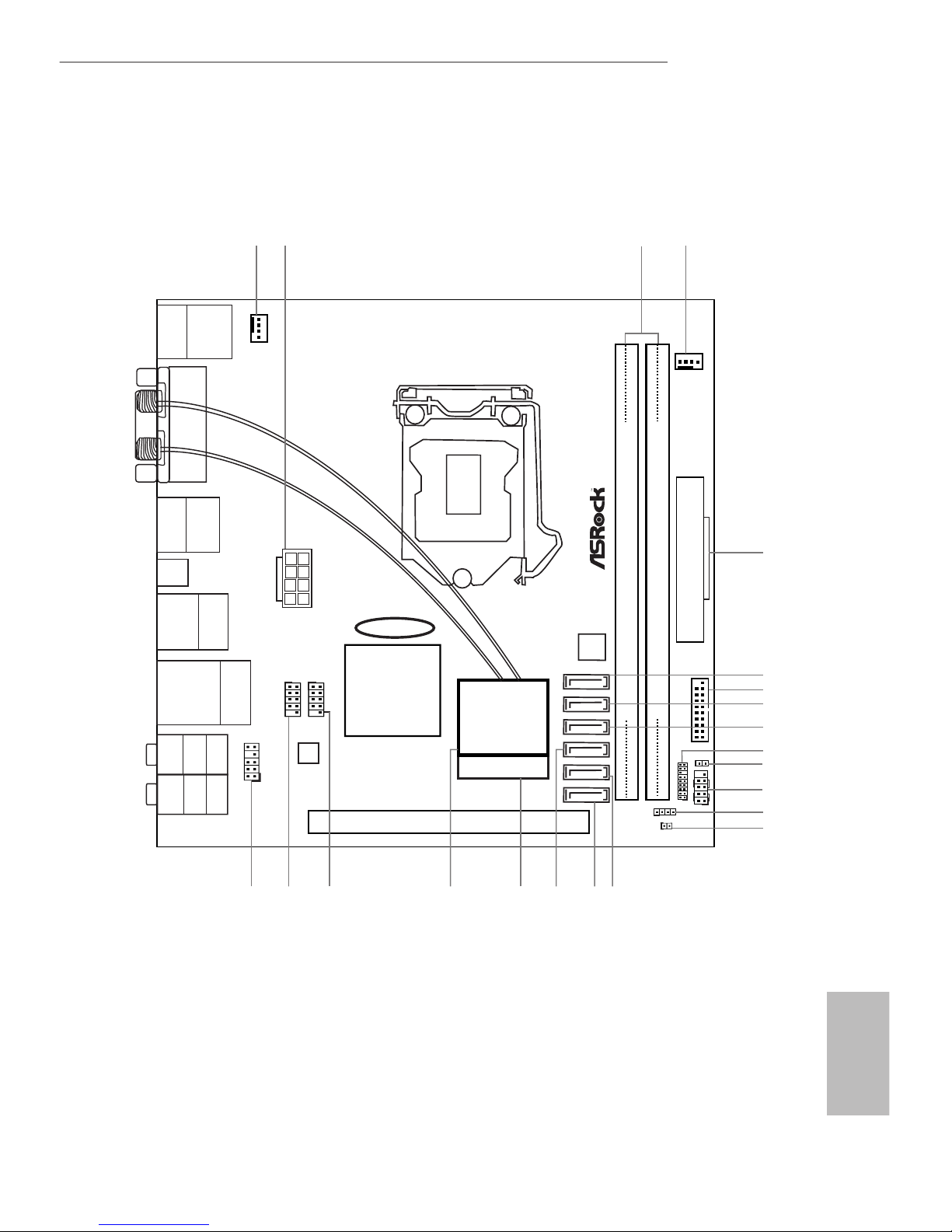

Motherboard Layout

Intel

Z87

PCIE1

DDR3_A1 (64 bit, 240-pin module)

DDR3_B1 (64 bit, 240-pin module)

64Mb

BIOS

HDL ED R ESE T

PLED PWRBTN

PANEL1

HD_AUDIO1

CHA_FAN1

CPU_FAN1

USB 2.0

T: USBA0

B: USBA1

DVI1

HDMI

DP_1

Clr

CMOS

USB 3.0

T: USB1

B: USB2

eSATA5

Top:

RJ-45

USB 3.0

T: USB3

B: USB4

Top:

CTR BASS

Center:

REAR SPK

Bottom:

Optical

SPDIF

Top:

LINE IN

Center:

FRONT

Bottom:

MIC IN

MINI_PCIE1

WiFi-802.11n

Module

ATXPWR1

RoHS

H87E-ITX/ac

AUDIO

CODEC

ATX12V1

SATA3_5

SATA3_4

SATA3_3

SATA3_2

SATA3_1

SATA3_0

1 2

CMOS

Battery

USB3_5_6

TPMS1

SPEAKER1

CLRCMOS1

USB_2_3

USB_4_5

16 15

21 18

CI1

PS2

Keyboard

/Mouse

English

No. Description

1 CPU Fan Connector (CPU_FAN1)

2 ATX 12V Power Connector (ATX12V1)

3 2 x 240-pin DDR3 DIMM Slots (DDR3_A1, DDR3_B1)

4 Chassis Fan Connector (CHA_FAN1)

5 ATX Power Connector (ATXPWR1)

6 SATA3 Connector (SATA3_5) (shared with eSATA)

7 USB 3.0 Header (USB3_5_6)

8 SATA3 Connector (SATA3_4)

9 SATA3 Connector (SATA3_3)

10 TPM Header (TPMS1)

11 Chassis Intrusion Header (CI1)

12 System Panel Header (PANEL1)

13 Chassis Speaker Header (SPEAKER1)

14 Clear CMOS Jumper (CLRCMOS1)

15 SATA3 Connector (SATA3_1)

16 SATA3 Connector (SATA3_0)

17 SATA3 Connector (SATA3_2)

18 mini-PCI Express Slot (MINI_PCIE1)

19 WiFi-802.11n Module

20 USB 2.0 Header (USB_4_5)

21 USB 2.0 Header (USB_2_3)

22 Front Panel Audio Header (HD_AUDIO1)

English

H87E-ITX/ac

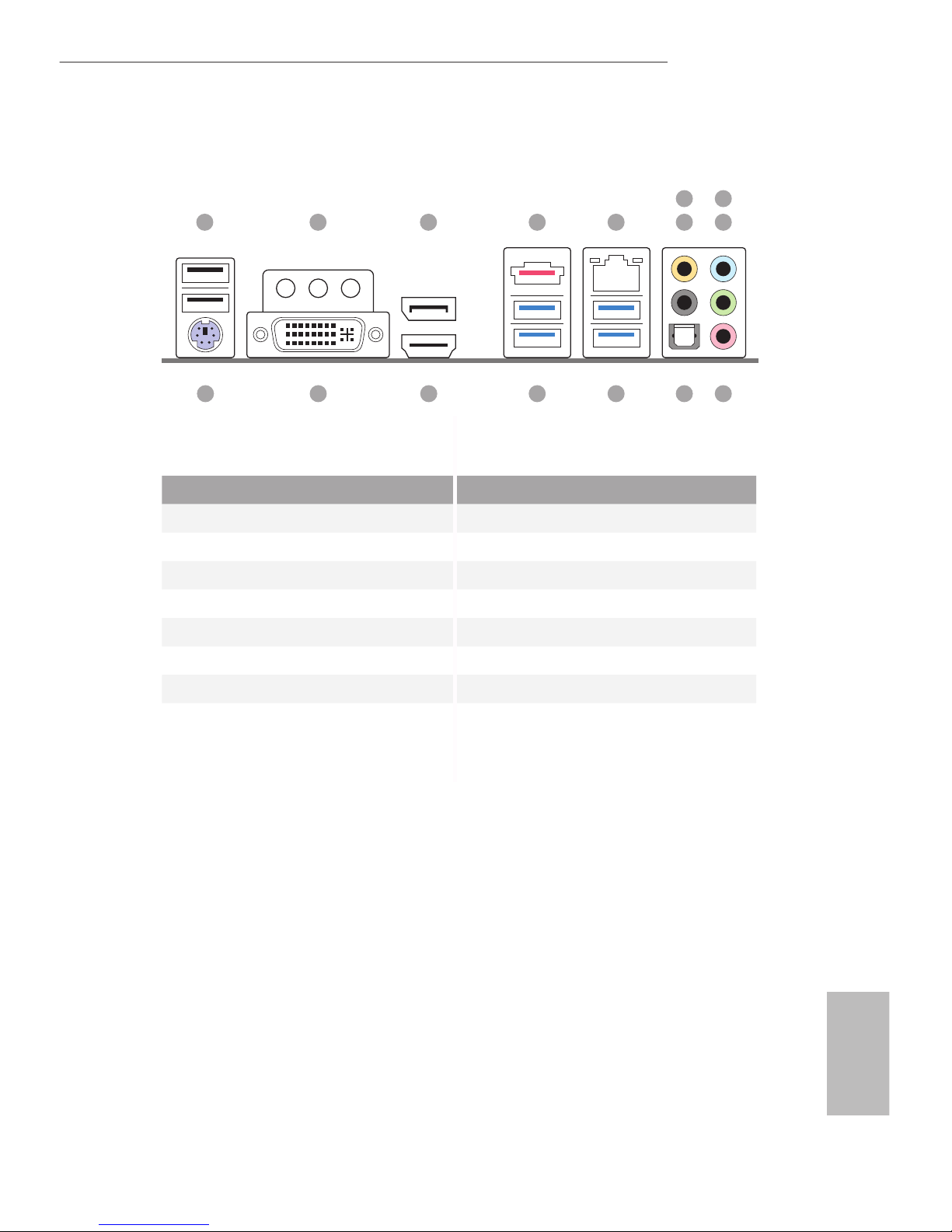

I/O Panel

No. Description No. Description

1 USB 2.0 Ports (USB01) 9 Front Speaker (Lime)**

2Antenna Ports 10 Microphone (Pink)

3Display Port 11 Optical SPDIF Out Port

4eSATA Connector*** 12 USB 3.0 Ports (USB3_34)

5 LAN RJ-45 Port 13 USB 3.0 Ports (USB3_12)

6 Central / Bass (Orange) 14 HDMI Port

7 Rear Speaker (Black) 15 DVI-I Port

8 Line In (Light Blue) 16 PS/2 Keyboard Port

10111213141516

1 2 3 754

English

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

** If you use a 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See the table below

for connection details in accordance with the type of speaker you use.

Audio Output

Channels

Front Speaker

(No. 8)

Rear Speaker

(No. 6)

Central / Bass

(No. 5)

Line In

(No. 7)

2V -- -- --

4V V -- --

6V V V --

8V V V V

*** e eSATA connector is shared with SATA3_5 connector.

ACT/LINK LED

SPEED LED

LAN Port

To enable Multi-Streaming, you need to connect a front panel audio cable to the front

panel audio header. Aer restarting your computer, you will nd the “Mixer” tool on your

system. Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and

click “ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select

“Realtek HDA Primary output” to use the Rear Speaker, Central/Bass, and Front Speaker,

or select “Realtek HDA Audio 2nd output” to use the front panel audio.

English

H87E-ITX/ac

Chapter 1 Introduction

ank you for purchasing ASRock H87E-ITX/ac motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control.

It delivers excellent performance with robust design conforming to ASRock’s

commitment to quality and endurance.

1.1 Package Contents

• ASRock H87E-ITX/ac Motherboard (Mini-ITX Form Factor)

• ASRock H87E-ITX/ac Quick Installation Guide

• ASRock H87E-ITX/ac Support CD

• 2 x Serial ATA (SATA) Data Cables (Optional)

• 1 x I/O Panel Shield

• 1 x ASRock WiFi 2.4/5GHz Antenna

Because the motherboard specications and the BIOS soware might be updated, the

content of this documentation will be subject to change without notice. In case any modi-

cations of this manual occur, the updated version will be available on ASRock’s website

without further notice. If you require technical support related to this motherboard, please

visit our website for specic information about the model you are using. You may nd the

latest VGA cards and CPU support list on ASRock’s website as well. ASRock website http://

www.asrock.com.

English

1.2 Specications

Platform • Mini-ITX Form Factor

• ASRock DuraCap (2.5 x longer life time) (100% Japan-made

high-quality conductive polymer capacitors)

A-Style • Home Cloud

• WiFi 802.11ac

CPU • Supports 4th generation Intel® CoreTM i7 / i5 / i3 / Xeon® /

Pentium® / Celeron® in LGA1150 package

• Digi Power design

• 4 Power Phase design

• DrMOS

• Supports Intel®Turbo Boost 2.0 Technology

Chipset • Intel®H87

• Supports Intel® Small Business Advantage 2.0

Memory • Dual Channel DDR3 Memory Technology

• 2 x DDR3 DIMM Slots

• Supports DDR3 1600/1333/1066 non-ECC, un-buered

memory

• Max. capacity of system memory: 16GB

(see CAUTION)

• Supports Intel®Extreme Memory Prole (XMP)1.3/1.2

Expansion

Slot

• 1 x PCI Express 3.0 x16 Slot

• 1 x half mini-PCI Express Slot: For WiFi + BT module

Graphics • Intel® HD Graphics Built-in Visuals and the VGA outputs can

be supported only with processors which are GPU integrated.

• Supports Intel® HD Graphics Built-in Visuals : Intel® Quick

Sync Video with AVC, MVC (S3D) and MPEG-2 Full

HW Encode1, Intel® InTruTM 3D, Intel® Clear Video HD

Technology, Intel® InsiderTM, Intel® HD Graphics 4400/4600

• Pixel Shader 5.0, DirectX 11.1

• Max. shared memory 1792MB

English

H87E-ITX/ac

• ree VGA output options: DVI-I, HDMI and DisplayPort

• Supports Triple Monitors

• Supports HDMI Technology with max. resolution up to 4K ×

2K (4096x2304) @ 24Hz

• Supports DVI-I with max. resolution up to 1920x1200 @

60Hz

• Supports DisplayPort with max. resolution up to 4K × 2K

(4096x2304) @ 24Hz

• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

HBR (High Bit Rate Audio) with HDMI Port (Compliant

HDMI monitor is required)

• Supports HDCP with DVI-I, HDMI and DisplayPort Ports

• Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback

with DVI-I, HDMI and DisplayPort Ports

Audio • 7.1 CH HD Audio with Content Protection (Realtek ALC1150

Audio Codec)

• Premium Blu-ray Audio support

LAN • Gigabit LAN 10/100/1000 Mb/s

• Giga PHY Intel® I217V

• Supports Intel® Remote Wake Technology

• Supports Wake-On-LAN

• Supports Energy Ecient Ethernet 802.3az

• Supports PXE

Wireless

LAN

• Supports IEEE 802.11a/b/g/n/ac

• Supports Dual-Band (2.4/5 GHz)

• Supports high speed wireless connections up to 867Mbps

• 2 Antennas to support 2 (Transmit) x 2 (Receive) Diversity

Technolog y

• Supports Bluetooth 4.0 / 3.0 + High speed class II

English

Rear Panel

I/O

• 1 x PS/2 Mouse/Keyboard Port

• 1 x DVI-I Port

• 1 x HDMI Port

• 1 x DisplayPort

• 1 x Optical SPDIF Out Port

• 1 x eSATA Connector

• 2 x USB 2.0 Ports

• 4 x USB 3.0 Ports

• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

• HD Audio Jacks: Rear Speaker / Central / Bass / Line in /

Front Speaker / Microphone

Storage • 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0,

RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology

12 and Intel Smart Response Technology), NCQ, AHCI and

“Hot Plug” (SATA3_5 connector is shared with the eSATA

port)

• 1 x eSATA Connector, supports NCQ, AHCI and “Hot Plug”

functions

Connector • 1 x Chassis Intrusion Header

• 1 x TPM Header

• 1 x CPU Fan Connector (4-pin)

• 1 x Chassis Fan Connector (4-pin)

• 1 x 24 pin ATX Power Connector

• 1 x 8 pin 12V Power Connector (High Density Power

Connector)

• 1 x Front Panel Audio Connector

• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

• 1 x USB 3.0 Header (Supports 2 USB 3.0 ports)

BIOS

Feature

• 64Mb AMI UEFI Legal BIOS with multilingual GUI support

• ACPI 1.1 compliance wake up events

• SMBIOS 2.3.1 support

• CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage multi-adjust-

ment

English

H87E-ITX/ac

Support

• Drivers, Utilities, AntiVirus Soware (Trial Version), Cyber-

Link MediaEspresso 6.5 Trial, Google Chrome Browser and

Toolbar, Start8, MeshCentral, Splashtop Streamer

Hardware

Monitor

• CPU/Chassis Temperature Sensing

• CPU/Chassis Tachometer

• CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-

Adjust by CPU Temperature)

• CPU/Chassis Fan Multi-Speed Control

• Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

OS • Microso® Windows® 8 / 8 64-bit / 7 / 7 64-bit compliant

Certica-

tions

• FCC, CE, WHQL

• ErP/EuP ready (ErP/EuP ready power supply is required)

Please realize that there is a certain risk involved with overclocking, including adjusting

the setting in the BIOS, applying Untied Overclocking Technology, or using third-party

overclocking tools. Overclocking may aect your system’s stability, or even cause damage to

the components and devices of your system. It should be done at your own risk and expense.

We are not responsible for possible damage caused by overclocking.

Due to limitation, the actual memory size may be less than 4GB for the reservation for sys-

tem usage under Windows® 32-bit operating systems. Windows® 64-bit operating systems

do not have such limitations. You can use ASRock XFast RAM to utilize the memory that

Windows® cannot use.

* For detailed product information, please visit our website: http://www.asrock.com

Autres manuels pour H87E-ITX/ac

Table des matières

Autres manuels ASROCK Carte mère

ASROCK

ASROCK 970 Extreme3 R2.0 Manuel utilisateur

ASROCK

ASROCK AB350M Pro4 Manuel utilisateur

ASROCK

ASROCK H61M-GE Manuel utilisateur

ASROCK

ASROCK G41M-PS Manuel utilisateur

ASROCK

ASROCK Z75 Pro3 Manuel utilisateur

ASROCK

ASROCK QC7000M Manuel utilisateur

ASROCK

ASROCK Z790 Steel Legend WiFi Manuel utilisateur

ASROCK

ASROCK 880G Pro3 Manuel utilisateur

ASROCK

ASROCK 890GX EXTREME4 Manuel utilisateur

ASROCK

ASROCK SBC-311 Manuel utilisateur

ASROCK

ASROCK ALIVENF7G-HD720P Manuel utilisateur

ASROCK

ASROCK Fatal1ty Z77 Professional Manuel utilisateur

ASROCK

ASROCK N68C-SE Manuel utilisateur

ASROCK

ASROCK IMB-184-PY Manuel de service

ASROCK

ASROCK Q370D4-P1 Manuel utilisateur

ASROCK

ASROCK ALIVENF4G-DVI Manuel utilisateur

ASROCK

ASROCK 880GMH-USB3 - V1.0 Manuel utilisateur

ASROCK

ASROCK H55ICAFE Manuel utilisateur

ASROCK

ASROCK Fatal1ty X299 Professional Gaming i9 XE... Manuel utilisateur

ASROCK

ASROCK Q87WSA-DL Manuel utilisateur

ASROCK

ASROCK Phantom Gaming Z490 Manuel utilisateur

ASROCK

ASROCK Z77 Extreme6 Manuel utilisateur

ASROCK

ASROCK Z97 Pro3 Manuel utilisateur

ASROCK

ASROCK B450M-HDV R4.0 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
