1 / 77

2 / 77

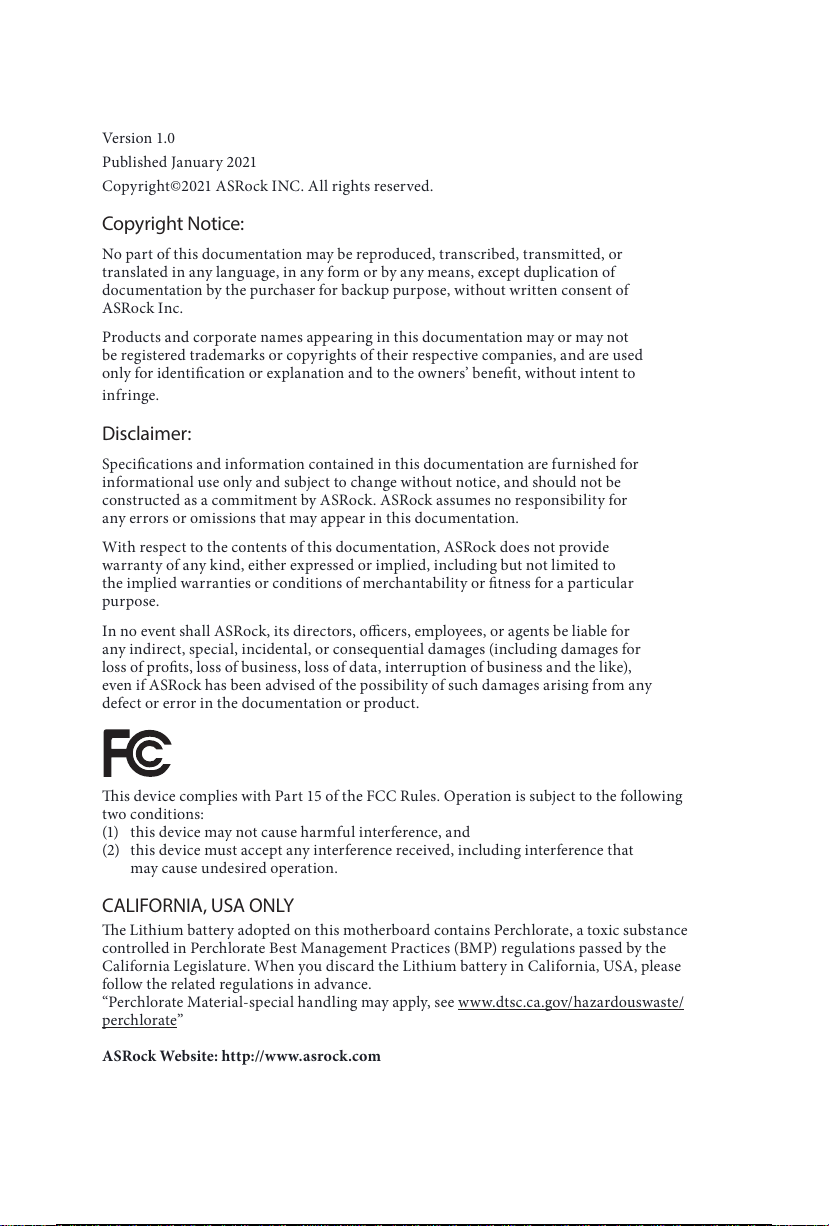

Version 1.0

Published January 2021

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Website: http://www.asrock.com

3 / 77

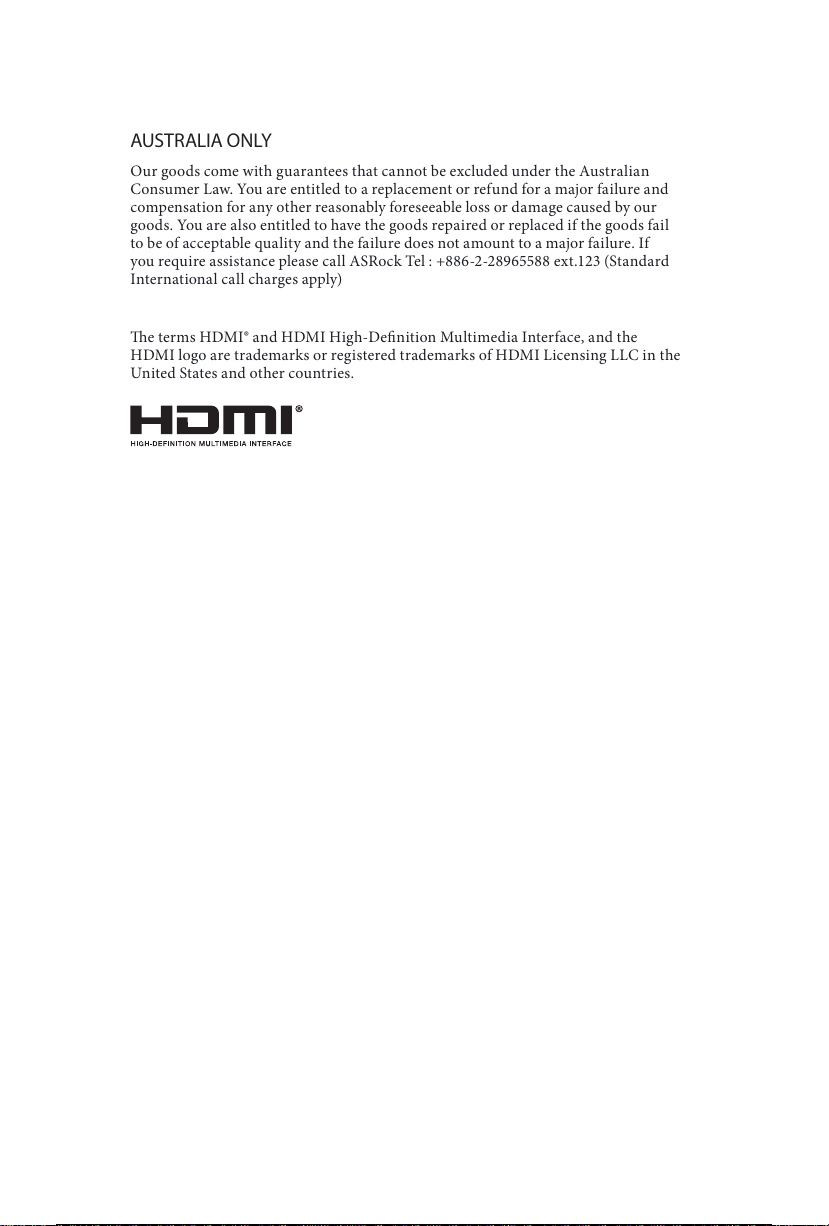

AUSTRALIA ONLY

Our goods come with guarantees that cannot be excluded under the Australian

Consumer Law. You are entitled to a replacement or refund for a major failure and

compensation for any other reasonably foreseeable loss or damage caused by our

goods. You are also entitled to have the goods repaired or replaced if the goods fail

to be of acceptable quality and the failure does not amount to a major failure. If

you require assistance please call ASRock Tel : +886-2-28965588 ext.123 (Standard

International call charges apply)

e terms HDMI® and HDMI High-Denition Multimedia Interface, and the

HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the

United States and other countries.

4 / 77

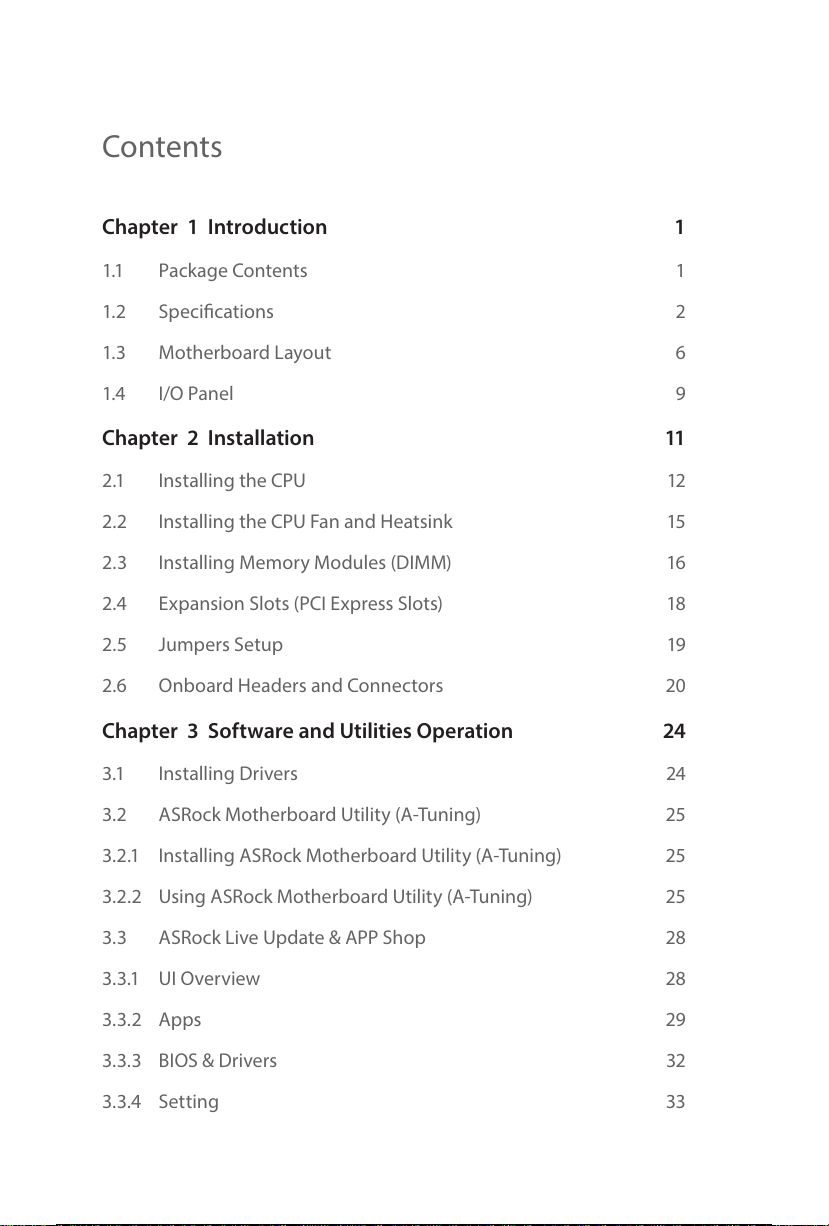

Contents

Chapter 1 Introduction 1

1.1 Package Contents 1

1.2 Specications 2

1.3 Motherboard Layout 6

1.4 I/O Panel 9

Chapter 2 Installation 11

2.1 Installing the CPU 12

2.2 Installing the CPU Fan and Heatsink 15

2.3 Installing Memory Modules (DIMM) 16

2.4 Expansion Slots (PCI Express Slots) 18

2.5 Jumpers Setup 19

2.6 Onboard Headers and Connectors 20

Chapter 3 Software and Utilities Operation 24

3.1 Installing Drivers 24

3.2 ASRock Motherboard Utility (A-Tuning) 25

3.2.1 Installing ASRock Motherboard Utility (A-Tuning) 25

3.2.2 Using ASRock Motherboard Utility (A-Tuning) 25

3.3 ASRock Live Update & APP Shop 28

3.3.1 UI Overview 28

3.3.2 Apps 29

3.3.3 BIOS & Drivers 32

3.3.4 Setting 33

5 / 77

Chapter 4 UEFI SETUP UTILITY 34

4.1 Introduction 34

4.2 EZ Mode 35

4.3 Advanced Mode 36

4.3.1 UEFI Menu Bar 36

4.3.2 Navigation Keys 37

4.4 Main Screen 38

4.5 OC Tweaker Screen 40

4.6 Advanced Screen 48

4.6.1 CPU Conguration 49

4.6.2 Chipset Conguration 51

4.6.3 Storage Conguration 54

4.6.4 Super IO Conguration 55

4.6.5 ACPI Conguration 56

4.6.6 USB Conguration 57

4.6.7 Trusted Computing 58

4.7 Tools 59

4.8 Hardware Health Event Monitoring Screen 61

4.9 Security Screen 63

4.10 Boot Screen 64

4.11 Exit Screen 67

6 / 77

English

H470M-HDV

H470M-HVS

Chapter 1 Introduction

ank you for purchasing ASRock H470M-HDV / H470M-HVS motherboard,

a reliable motherboard produced under ASRock’s consistently stringent quality

control. It delivers excellent performance with robust design conforming to

ASRock’s commitment to quality and endurance.

In this documentation, Chapter 1 and 2 contains the introduction of the

motherboard and step-by-step installation guides. Chapter 3 contains the operation

guide of the soware and utilities. Chapter 4 contains the conguration guide of

the BIOS setup.

1.1 Package Contents

• ASRock H470M-HDV / H470M-HVS Motherboard (Micro ATX Form Factor)

• ASRock H470M-HDV / H470M-HVS Quick Installation Guide

• ASRock H470M-HDV / H470M-HVS Support CD

• 2 x Serial ATA (SATA) Data Cables (Optional)

• 1 x I/O Panel Shield

Because the motherboard specications and the BIOS soware might be updated, the

content of this documentation will be subject to change without notice. In case any

modications of this documentation occur, the updated version will be available on

ASRock’s website without further notice. If you require technical support related to

this motherboard, please visit our website for specic information about the model

you are using. You may nd the latest VGA cards and CPU support list on ASRock’s

website as well. ASRock website http://www.asrock.com.

7 / 77

English

1.2 Specications

Platform • Micro ATX Form Factor

• Solid Capacitor design

CPU • Supports 10th Gen Intel® CoreTM Processors (Socket 1200)

• Digi Power design

• 5 Power Phase design

• Supports Intel® Turbo Boost Max 3.0 Technology

Chipset • Intel® H470

Memory • Dual Channel DDR4 Memory Technology

• 2 x DDR4 DIMM Slots

• Supports DDR4 2933/2800/2666/2400/2133 non-ECC, un-

buered memory

* Please refer to Memory Support List on ASRock's website for

more information. (http://www.asrock.com/)

* CoreTM (i9/i7) support DDR4 up to 2933; CoreTM (i5/i3),

Pentium® and Celeron® support DDR4 up to 2666.

• Supports ECC UDIMM memory modules (operate in non-

ECC mode)

• Max. capacity of system memory: 64GB

• Supports Intel® Extreme Memory Prole (XMP) 2.0

• 15μ Gold Contact in DIMM Slots

Expansion

Slot

• 1 x PCI Express 3.0 x16 Slot

* Supports NVMe SSD as boot disks

• 1 x PCI Express 3.0 x1 Slot

Graphics • Intel® UHD Graphics Built-in Visuals and the VGA outputs

can be supported only with processors which are GPU

integrated.

• Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265

8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2,

MJPEG, VC-1

* VP9 10bit and VC-1 are for decode only.

* VP8 and VP9 encode are not supported by Windows OS.

8 / 77

English

H470M-HDV

H470M-HVS

• Graphics, Media & Compute: Microso DirectX 12, OpenGL

4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid /

Switchable Graphics, OpenCL 2.1

• Display & Content Security: Rec. 2020 (Wide Color Gamut),

Microso PlayReady 3.0, Intel® SGX Content Protection,

UHD/HDR Blu-ray Disc

H470M-HDV:

• ree graphics output options: D-Sub, DVI-D and HDMI

• Supports Triple Monitor

• Supports HDMI 1.4 with max. resolution up to 4K x 2K

(4096x2160) @ 30Hz

• Supports DVI-D with max. resolution up to 1920x1200 @

60Hz

• Supports D-Sub with max. resolution up to 1920x1200 @

60Hz

• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant

HDMI monitor is required)

• Supports HDCP 2.3 with DVI-D and HDMI 1.4 Ports

• Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port

H470M-HVS:

• Dual graphics output: support HDMI and D-Sub ports by

independent display controllers

• Supports HDMI 1.4 with max. resolution up to 4K x 2K

(4096x2160) @ 30Hz

• Supports D-Sub with max. resolution up to 1920x1200 @

60Hz

• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant

HDMI monitor is required)

• Supports HDCP 2.3 with HDMI 1.4 Port

• Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port

Audio • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

• Supports Surge Protection

LAN • PCIE x1 Gigabit LAN 10/100/1000 Mb/s

• Realtek RTL8111H

• Supports Wake-On-LAN

9 / 77

English

• Supports Lightning/ESD Protection

• Supports Energy Ecient Ethernet 802.3az

• Supports PXE

Rear Panel

I/O

• 1 x PS/2 Mouse/Keyboard Port

• 4 x USB 2.0 Ports (Supports ESD Protection)

• 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)

• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

• HD Audio Jacks: Line in / Front Speaker / Microphone

H470M-HDV:

• 1 x D-Sub Port

• 1 x DVI-D Port

• 1 x HDMI Port

H470M-HVS:

• 1 x D-Sub Port

• 1 x HDMI Port

Storage • 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0,

RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology

17), NCQ, AHCI and Hot Plug

Connector • 1 x SPI TPM Header

• 1 x Chassis Intrusion and Speaker Header

• 1 x CPU Fan Connector (4-pin)

* e CPU Fan Connector supports the CPU fan of maximum

1A (12W) fan power.

• 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan

Speed Control)

* e Chassis/Water Pump Fan supports the water cooler fan of

maximum 2A (24W) fan power.

* CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

• 1 x 24 pin ATX Power Connector

• 1 x 8 pin 12V Power Connector

• 1 x Front Panel Audio Connector

• 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports

ESD Protection)

• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

(Supports ESD Protection)

10 / 77

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ASROCK Carte mère

ASROCK

ASROCK X570 Taichi Manuel utilisateur

ASROCK

ASROCK G41C-GS Manuel utilisateur

ASROCK

ASROCK P4DUAL-880PRO Manuel utilisateur

ASROCK

ASROCK H61M-HG4 Manuel utilisateur

ASROCK

ASROCK N68C-GS FX Manuel utilisateur

ASROCK

ASROCK 990FX Extreme9 Manuel utilisateur

ASROCK

ASROCK H61M-GE Manuel utilisateur

ASROCK

ASROCK ConRoe945GZ-DVI Manuel utilisateur

ASROCK

ASROCK H81 Pro BTC Manuel utilisateur

ASROCK

ASROCK A770DE Manuel utilisateur

ASROCK

ASROCK AD2550B-ITX Manuel utilisateur

ASROCK

ASROCK A7785GM Manuel utilisateur

ASROCK

ASROCK 990FX Extreme9 Manuel utilisateur

ASROCK

ASROCK X58 EXTREME - Manuel utilisateur

ASROCK

ASROCK CONROE865GV Manuel utilisateur

ASROCK

ASROCK X99M Extreme4 Manuel utilisateur

ASROCK

ASROCK Z97 Killer Manuel utilisateur

ASROCK

ASROCK 890GX Extreme3 Manuel utilisateur

ASROCK

ASROCK H61M-VS R2.0 Manuel utilisateur

ASROCK

ASROCK IMB-785 Manuel de service

ASROCK

ASROCK H81M Manuel utilisateur

ASROCK

ASROCK N68-VS3 UCC - Manuel utilisateur

ASROCK

ASROCK H61M-GE Manuel utilisateur

ASROCK

ASROCK H67DE3 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
