ASROCK G41M-S Manuel utilisateur

ASRock G41M-S Motherboard

EnglishEnglish

English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documen-

tation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identifica-

tion or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Specifications and information contained in this guide are furnished for informational

use only and subject to change without notice, and should not be constructed as a

commitment by ASRock. ASRock assumes no responsibility for any errors or omissions

that may appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or

conditions of merchantability or fitness for a particular purpose. In no event shall

ASRock, its directors, officers, employees, or agents be liable for any indirect, special,

incidental, or consequential damages (including damages for loss of profits, loss of

business, loss of data, interruption of business and the like), even if ASRock has been

advised of the possibility of such damages arising from any defect or error in the guide

or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

Published July 2009

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic

substance controlled in Perchlorate Best Management Practices (BMP) regulations

passed by the California Legislature. When you discard the Lithium battery in

California, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

2ASRock G41M-S Motherboard

EnglishEnglish

English

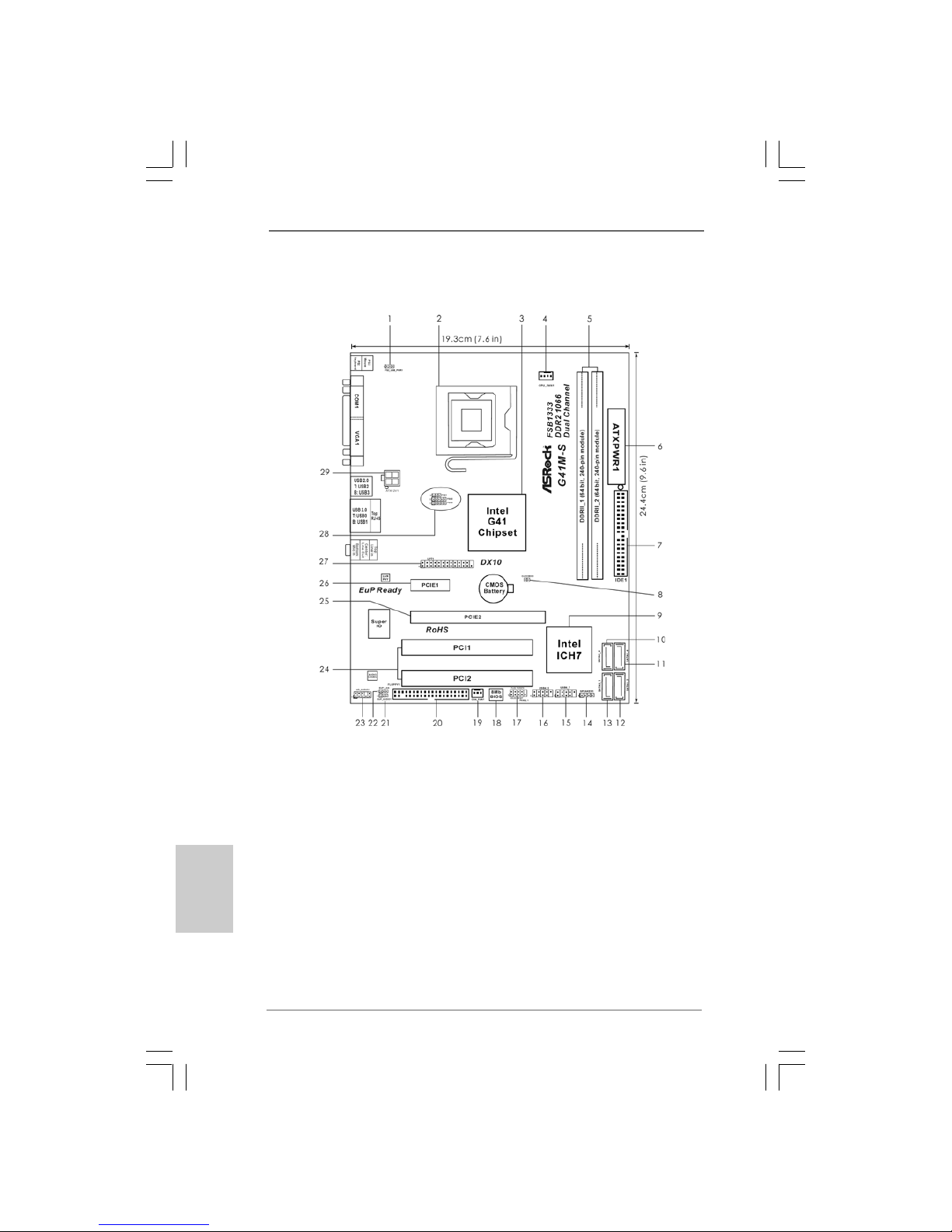

Motherboard LayoutMotherboard Layout

Motherboard Layout

1 PS2_USB_PWR1 Jumper 16 USB 2.0 Header (USB4_5, Blue)

2 775-Pin CPU Socket 17 System Panel Header (PANEL1, Orange)

3 North Bridge Controller 18 BIOS SPI Chip

4 CPU Fan Connector (CPU_FAN1) 19 Chassis Fan Connector (CHA_FAN1)

5 2 x 240-pin DDR2 DIMM Slots 20 Floppy Connector (FLOPPY1)

(Dual Channel: DDRII_1, DDRII_2; Yellow) 21 EUP Audio Jumper (EUP_AUDIO1)

6 ATX Power Connector (ATXPWR1) 22 EUP LAN Jumper (EUP_LAN1)

7 IDE1 Connector (IDE1, Blue) 23 Front Panel Audio Header

8 Clear CMOS Jumper (CLRCMOS1) (HD_AUDIO1, Lime)

9 South Bridge Controller 24 PCI Slots (PCI1- 2)

10 Third SATAII Connector (SATAII_3; Orange) 25 PCI Express x16 Slot (PCIE2)

11 Fourth SATAII Connector (SATAII_4;Orange) 26 PCI Express x1 Slot (PCIE1)

12 Secondary SATAII Connector (SATAII_2; Red) 27 Print Port Header (LPT1, Purple)

13 Primary SATAII Connector (SATAII_1; Red) 28 FSB1 / FSB2 / FSB3 Jumper

14 Chassis Speaker Header (SPEAKER 1, Purple) 29 ATX 12V Connector (ATX12V1)

15 USB 2.0 Header (USB6_7, Blue)

ASRock G41M-S Motherboard

EnglishEnglish

English

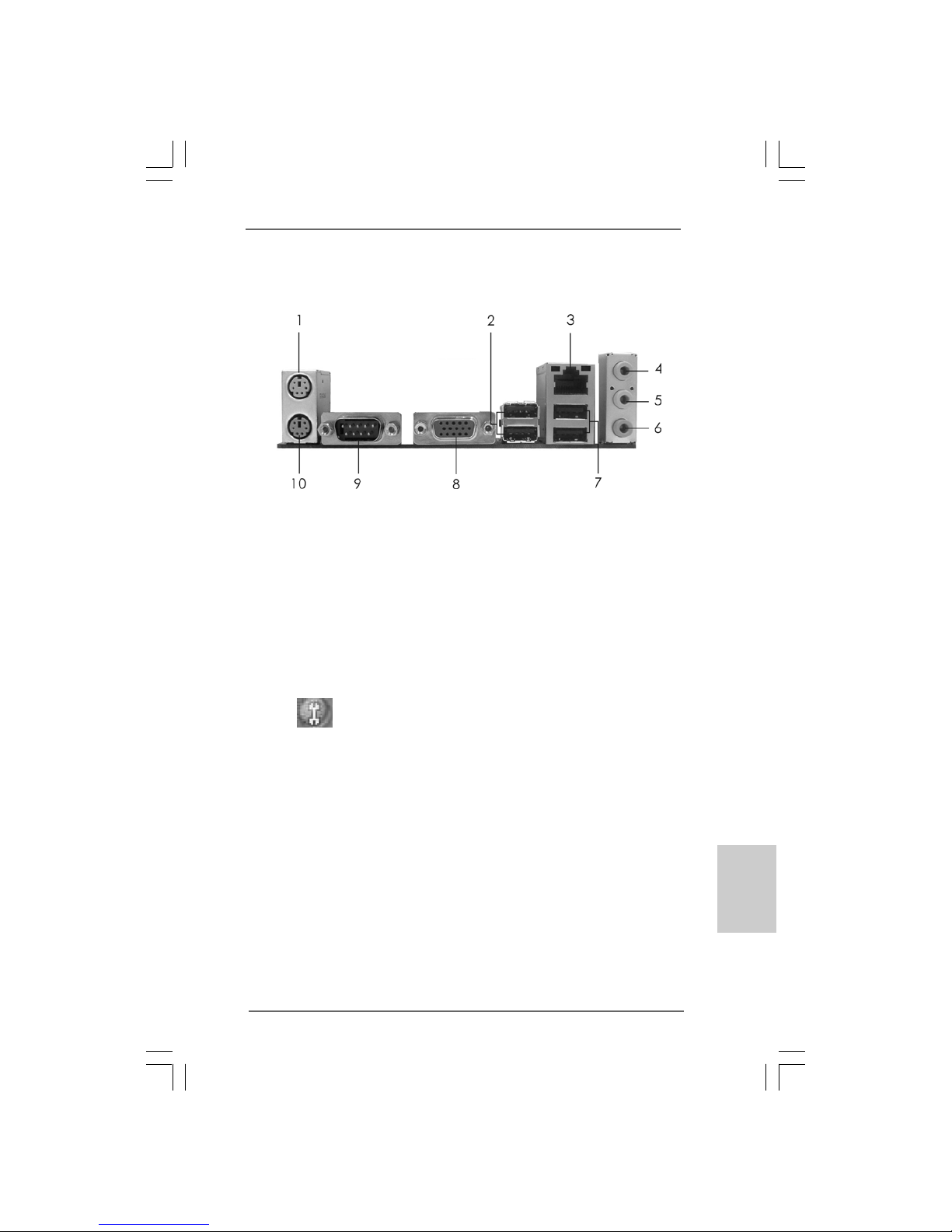

I/O PI/O P

I/O Panelanel

anelanel

anel

1 PS/2 Mouse Port (Green) 6 Microphone (Pink)

2 USB 2.0 Ports (USB23) 7 USB 2.0 Ports (USB01)

3 RJ-45 Port 8 VGAPort

4 Line In (Light Blue) 9 COM Port

5 Line Out (Lime) 10 PS/2 Keyboard Port (Purple)

* To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. Please refer to below steps for the software setting of Multi-Streaming.

For Windows®XP:

After restarting your computer, you will find “Mixer” tool on your system. Please select “Mixer

ToolBox” , click “Enable playback multi-streaming”, and click “ok”. Choose “2CH” or

“4CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker

and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio. Then

reboot your system.

For Windows®VistaTM:

After restarting your computer, please double-click “Realtek HDAudio Manager” on the

system tray. Set “Speaker Configuration” to “Quadraphonic” or “Stereo”. Click “Device

advanced settings”, choose “Make front and rear output devices playbacks two different audio

streams simultaneously”, and click “ok”. Then reboot your system.

4ASRock G41M-S Motherboard

EnglishEnglish

English

1. Introduction1. Introduction

1. Introduction

Thank you for purchasing ASRock G41M-S motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

This Quick InstallationGuide contains introduction of the motherboard and step-by-step

installation guide. More detailed information of the motherboard can be found in the user

manual presented in the Support CD.

Because the motherboard specifications and the BIOS software might

be updated, the content of this manual will be subject to change without

notice. In case any modifications of this manual occur, the updated

version will be available on ASRock website without further notice. You

may find the latest VGA cards and CPU support lists on ASRock website

as well. ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specific information about the model you are using.

www.asrock.com/support/index.asp

1.1 Package Contents1.1 Package Contents

1.1 Package Contents

ASRock G41M-S Motherboard

(Micro ATX Form Factor: 9.6-in x 7.6-in, 24.4 cm x 19.3 cm)

ASRock G41M-S Quick Installation Guide

ASRock G41M-S Support CD

One 80-conductor Ultra ATA 66/100 IDE Ribbon Cable (Optional)

One SerialATA (SATA) Data Cable (Optional)

One I/O Panel Shield

ASRock G41M-S Motherboard

EnglishEnglish

English

1.21.2

1.2 SpecificationsSpecifications

SpecificationsSpecifications

Specifications

Platform - Micro ATX Form Factor: 9.6-in x 7.6-in, 24.4 cm x 19.3 cm

CPU - LGA 775 for Intel®CoreTM 2 Extreme / CoreTM 2 Quad / CoreTM

2 Duo / Pentium®Dual Core / Celeron®Dual Core / Celeron®,

supporting Penryn Quad Core Yorkfield and Dual Core

Wolfdale processors

- Supports FSB1333/1066/800/533 MHz (see CAUTION 1)

- Supports Hyper-Threading Technology (see CAUTION 2)

- Supports Untied Overclocking Technology (see CAUTION 3)

- Supports EM64T CPU

Chipset - Northbridge: Intel®G41

- Southbridge: Intel®ICH7

Memory - Dual Channel DDR2 Memory Technology (see CAUTION 4)

- 2 xDDR2DIMM slots

- Supports DDR2 1066/800/667/533 non-ECC, un-buffered

memory (see CAUTION 5)

- Max. capacity of system memory: 8GB (see CAUTION 6)

Expansion Slot - 1 x PCI Express x16 slot

- 1 x PCI Express x1 slot

- 2 x PCI slots

Graphics - Intel®Graphics Media Accelerator X4500

- Pixel Shader 4.0, DirectX 10

- Max. shared memory 352MB (see CAUTION 7)

Audio - 5.1 CH Windows® VistaTM Premium Level HDAudio

(Realtek ALC662 Audio Codec)

LAN - Realtek PCIE x1 LAN 8103EL / 8102EL

- Speed: 10/100 Ethernet

- Supports Wake-On-LAN

Rear Panel I/O I/OPanel

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x Serial Port: COM1

- 1 x VGA Port

- 4 x Ready-to-Use USB 2.0 Ports

-1 xRJ-45 LANPort with LED(ACT/LINK LEDand SPEED LED)

- HDAudio Jack: Line in / Front Speaker / Microphone

6ASRock G41M-S Motherboard

EnglishEnglish

English

Connector - 4 x SATAII 3.0 Gb/s connectors (No Support for RAID and

“Hot Plug” functions) (see CAUTION 8)

- 1 x ATA100 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

- 1 x Print port header

- CPU/Chassis FANconnector

- 24 pin ATX power connector

- 4 pin 12V power connector

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

(see CAUTION 9)

BIOS Feature - 8MbAMI BIOS

-AMI Legal BIOS

- Supports “Plug and Play”

-ACPI 1.1 Compliance Wake Up Events

-AMBIOS 2.3.1 Support

- Supports Smart BIOS

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version)

Unique Feature - ASRock OC Tuner (see CAUTION 10)

- Intelligent Energy Saver (see CAUTION 11)

- Instant Boot

- ASRock Instant Flash (see CAUTION 12)

- Hybrid Booster:

- CPU Frequency Stepless Control (see CAUTION 13)

- ASRock U-COP (see CAUTION 14)

- Boot Failure Guard (B.F.G.)

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

OS - Microsoft® Windows® 2000 / XP / XP 64-bit / VistaTM /

VistaTM 64-bit compliant

Certifications -FCC, CE

- EuP Ready (EuP ready power supply is required)

(see CAUTION 15)

* For detailed product information, please visit our website: http://www.asrock.com

ASRock G41M-S Motherboard

EnglishEnglish

English

WARNING

Please realize that there is a certain risk involved with overclocking, including

adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using

the third-party overclocking tools. Overclocking may affect your system stability, or

even cause damage to the components and devices of your system. It should be

done at your own risk and expense. We are not responsible for possible damage

caused by overclocking.

CAUTION!

1. This motherboard supports native FSB1333/1066/800 MHz. For

normal operation, you do not need to adjust the jumper settings. For

special overclocking mode, please refer to page 15 for proper jumper

settings.

2. About the setting of “Hyper Threading Technology”, please check page 31

of “User Manual” in the support CD.

3. This motherboard supports Untied Overclocking Technology. Please read

“Untied Overclocking Technology” on page 20 for details.

4. This motherboard supportsDual Channel Memory Technology. Before you

implement Dual Channel Memory Technology, make sure to read the

installation guide of memory modules on page 12 for proper installation.

5. Please check the table below for the CPU FSB frequency and its

corresponding memory support frequency.

CPU FSB Frequency Memory Support Frequency

1333 DDR2 667, DDR2 800, DDR2 1066

1066 DDR2 667, DDR2 800, DDR2 1066

800 DDR2 667, DDR2 800

533 DDR2 533

* DDR2 1066 memory modules will operate in overclocking mode.

* If you adopt a DDR2 1066 memory module on this motherboard,

you need to adjust the jumpers. Please refer to page 15 for proper

jumper settings.

6. Due to the operating system limitation, the actual memory size may be

less than 4GB for the reservation for system usage under Windows®XP

and Windows®VistaTM. For Windows®XP 64-bit and Windows®VistaTM 64-

bit with 64-bit CPU, there is no such limitation.

7. The maximum shared memory size is defined by the chipset vendor and

is subject to change. Please check Intel®website for the latest information.

8. Before installing SATAII hard disk to SATAII connector, please read the “SATAII

Hard Disk Setup Guide” on page 24 of “User Manual” in the support CD to

adjust your SATAII hard disk drive to SATAII mode. You can also connect SATA

hard disk to SATAII connector directly.

9. Power Management for USB 2.0 works fine under Microsoft®Windows®

VistaTM 64-bit / VistaTM / XP 64-bit / XP SP1 or SP2 / 2000 SP4.

8ASRock G41M-S Motherboard

EnglishEnglish

English

10. It is a user-friendly ASRock overclocking tool which allows you to surveil

your system by hardware monitor function and overclock your hardware

devices to get the best system performance under Windows® environment.

Please visit our website for the operation procedures of ASRock OC

Tuner. ASRock website: http://www.asrock.com

11. Featuring an advanced proprietary hardware and software design,

Intelligent Energy Saver is a revolutionary technology that delivers

unparalleled power savings. In other words, it is able to provide exceptional

power saving and improve power efficiency without sacrificing computing

performance. Please visit our website for the operation procedures of

Intelligent Energy Saver.

ASRock website: http://www.asrock.com

12. ASRock Instant Flash is a BIOS flash utility embedded in Flash ROM.

This convenient BIOS update tool allows you to update system BIOS

without entering operating systems first like MS-DOS or Windows®. With

this utility, you can press <F6> key during the POST or press <F2> key to

BIOS setup menu to access ASRock Instant Flash. Just launch this tool

and save the new BIOS file to your USB flash drive, floppy disk or hard

drive, then you can update your BIOS only in a few clicks without prepar-

ing an additional floppy diskette or other complicated flash utility. Please

be noted that the USB flash drive or hard drive must use FAT32/16/12 file

system.

13. Although this motherboard offers stepless control, it is not recommended

to perform over-clocking. Frequencies other than the recommended CPU

bus frequencies may cause the instability of the system or damage the

CPU.

14. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC system.

15. EuP, stands for Energy Using Product, was a provision regulated by

European Union to define the power consumption for the completed system.

According to EuP, the total AC power of the completed system shall be

under 1.00W in off mode condition. To meet EuP standard, an EuP ready

motherboard and an EuP ready power supply are required. According to

Intel’s suggestion, the EuP ready power supply must meet the standard of

5v standby power efficiency is higher than 50% under 100 mA current

consumption. For EuP ready power supply selection, we recommend you

checking with the power supply manufacturer for more details.

ASRock G41M-S Motherboard

2.2.

2.InstallationInstallation

InstallationInstallation

Installation

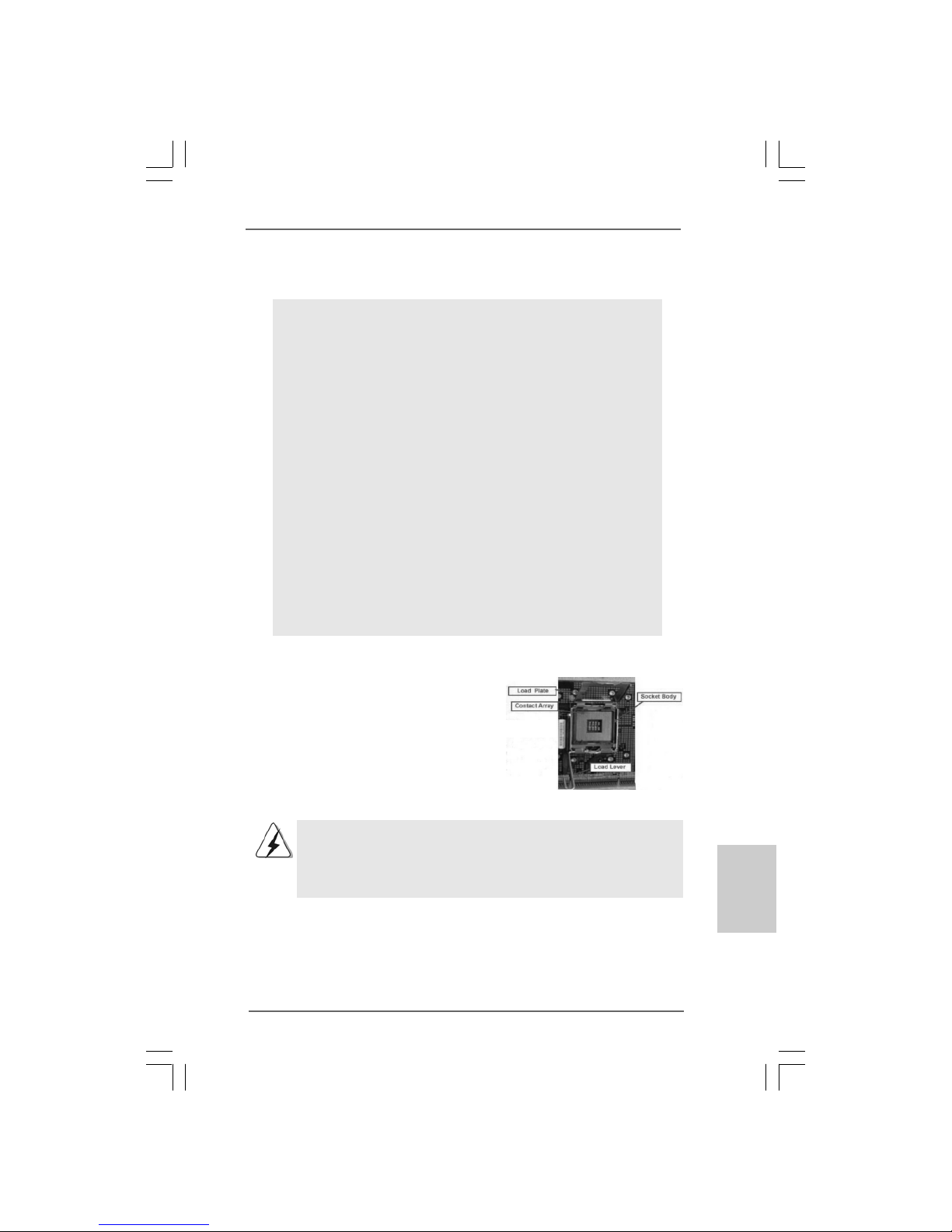

Pre-installation PrecautionsPre-installation Precautions

Pre-installation Precautions

Take note of the following precautions before you install mother-

board components or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any

component. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

2. To avoid damaging the motherboard components due to static

electricity, NEVER place your motherboard directly on the carpet

or the like. Also remember to use a grounded wrist strap or touch

a safety grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded

antstatic pad or in the bag that comes with the component.

5. When placing screws into the screw holes to secure the

motherboard to the chassis, please do not over-tighten the

screws! Doing so may damage the motherboard.

2.12.1

2.1 CPU InstallationCPU Installation

CPU InstallationCPU Installation

CPU Installation

For the installation of Intel 775-LAND CPU,

please follow the steps below.

Before you insert the 775-LAND CPU into the socket, please check if

the CPU surface is unclean or if there is any bent pin on the socket.

Do not force to insert the CPU into the socket if above situation is

found. Otherwise, the CPU will be seriously damaged.

775-Pin Socket Overview

EnglishEnglish

English

1010

10 ASRock G41M-S Motherboard

EnglishEnglish

English

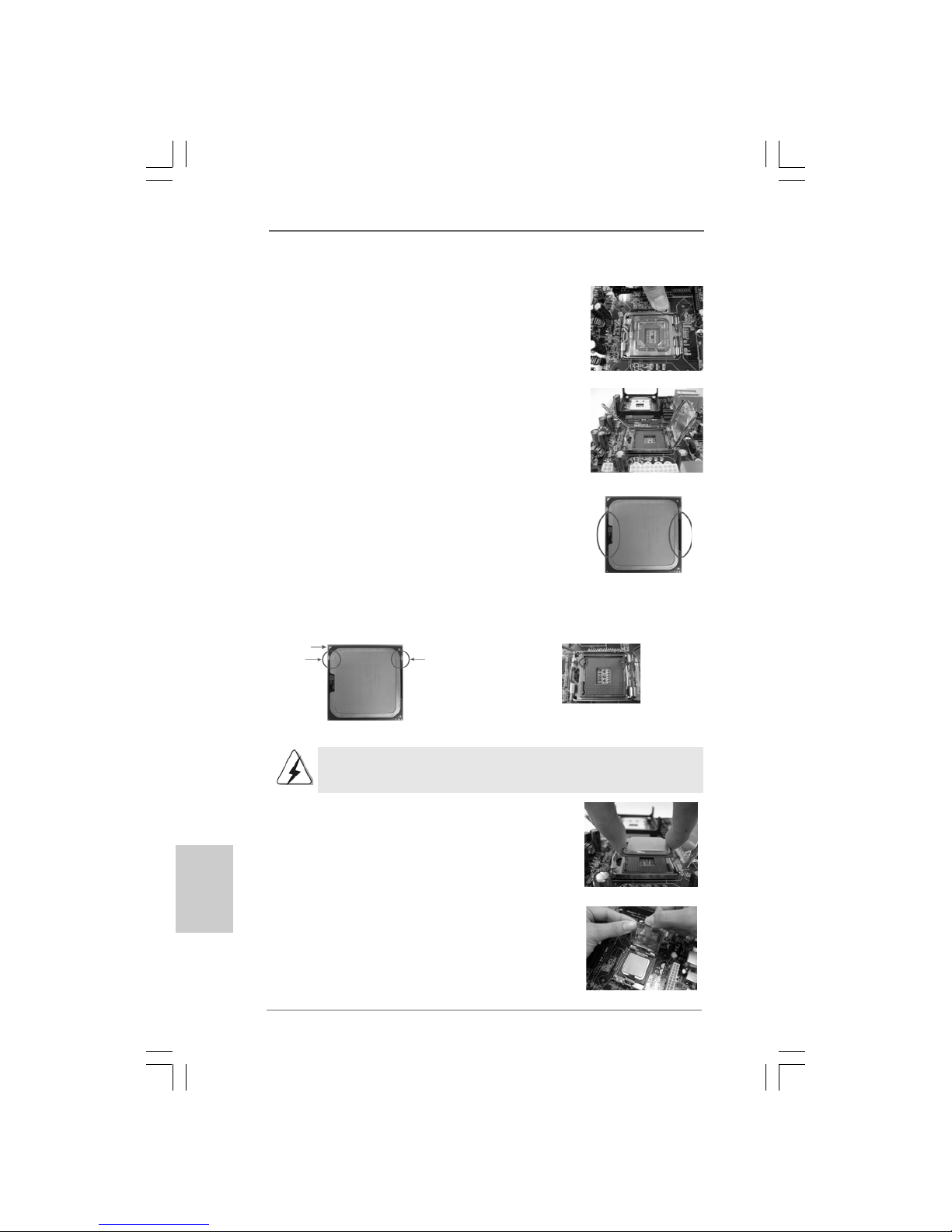

Step 1. Open the socket:

Step 1-1. Disengaging the lever by depressing

down and out on the hook to clear

retention tab.

Step 1-2. Rotate the load lever to fully open po-

sition at approximately 135 degrees.

Step 1-3. Rotate the load plate to fully open po-

sition at approximately 100 degrees.

Step 2. Insert the 775-LAND CPU:

Step 2-1. Hold the CPU by the edges where are

marked with black lines.

Step 2-2. Orient the CPU with IHS (Integrated

Heat Sink) up. Locate Pin1 and the two

orientation key notches.

For proper inserting, please ensure to match the two orientation key

notches of the CPU with the two alignment keys of the socket.

Step 2-3. Carefully place the CPU into the socket

by using a purely vertical motion.

Step 2-4. Verify that the CPU is within the socket

and properly mated to the orient keys.

Step 3. Remove PnP Cap (Pick and Place Cap):

Use your left hand index finger and thumb to

support the load plate edge, engage PnP cap

with right hand thumb and peel the cap from the

socket while pressing on center of PnP cap to

assist in removal.

black line

775-PinSocket

Pin1

alignment key alignment key

Pin1

orientation

key notch orientation

key notch

775-LAND CPU

Autres manuels pour G41M-S

Table des matières

Autres manuels ASROCK Carte mère

ASROCK

ASROCK 775i945GZ Manuel utilisateur

ASROCK

ASROCK H81 Pro BTC Manuel utilisateur

ASROCK

ASROCK X99 WS-E Manuel utilisateur

ASROCK

ASROCK 939A785GMH/128M Manuel utilisateur

ASROCK

ASROCK Z77 OC Formula Manuel utilisateur

ASROCK

ASROCK PV530A Manuel utilisateur

ASROCK

ASROCK 870 EXTREME Manuel utilisateur

ASROCK

ASROCK P4I45PE Manuel utilisateur

ASROCK

ASROCK FM2A58 Pro+ Manuel utilisateur

ASROCK

ASROCK GENOAD24QM3-2L2T/BCM Manuel utilisateur

ASROCK

ASROCK N61P-GS - V1.0 Manuel utilisateur

ASROCK

ASROCK 785GM-GS3 Manuel utilisateur

ASROCK

ASROCK B550 STEEL LEGEND Manuel utilisateur

ASROCK

ASROCK NUC-8365UE Manuel utilisateur

ASROCK

ASROCK Z170 Pro4 Manuel utilisateur

ASROCK

ASROCK AM1H-ITX Manuel utilisateur

ASROCK

ASROCK Z590 PRO4 Manuel utilisateur

ASROCK

ASROCK G41MH-LE3 Manuel utilisateur

ASROCK

ASROCK X299 creator Manuel utilisateur

ASROCK

ASROCK Fatal1ty Z270 Gaming-ITX/acSeries Manuel utilisateur

ASROCK

ASROCK M266A Manuel utilisateur

ASROCK

ASROCK Z790 Pro RS/D4 Manuel utilisateur

ASROCK

ASROCK 760GM-HD Manuel utilisateur

ASROCK

ASROCK H77WS-DL Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
