ASROCK FM2A58+BTC Manuel utilisateur

Version 1.0

Published March 2014

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Website: http://www.asrock.com

PB 1

English

FM2A58+ BTC

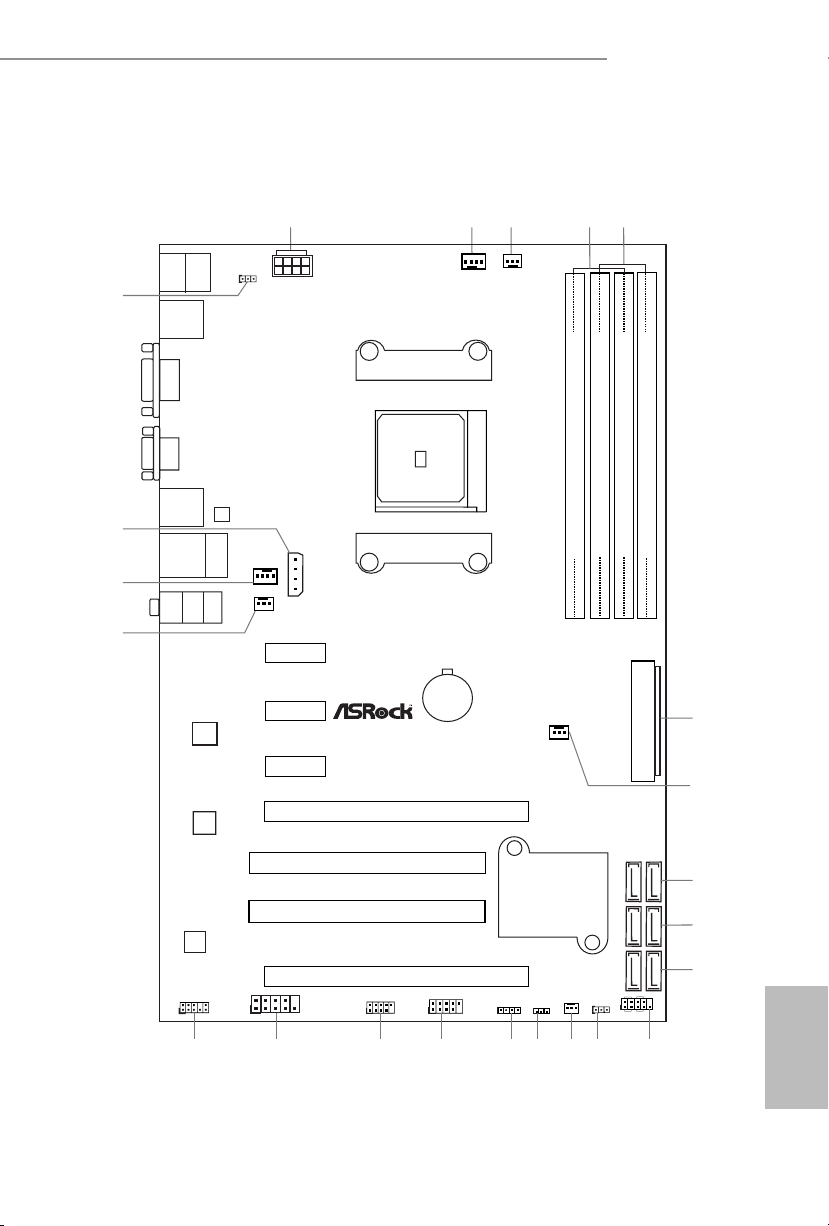

Motherboard Layout

SOCKET FM2b

Supe r

I/O

CMOS

BATTERY

PCIE1

LAN

AUDIO

CODEC

CPU_FAN1 CPU_FAN2

64Mb

BIOS

FM2A58+ BTC

PCIE4

PCIE2

PCI1

PCI2

CLRCMOS1

HDLED RESET

PLED PWRBTN

PANEL1

SPEAKER1

PLED1

HD_AUDIO1

COM1

USB6_7

USB8_9

Top:

LINE I N

Center:

FRONT

Bottom:

MIC IN

RoHS

PS2

Mouse

PS2

Keyboard

USB 2.0

T: USB2

B: USB3

RJ-45 LAN

USB 2.0

T: USB4

B: USB5

CHA_FAN1

PCIE3

PCI Express 3.0

USB 2.0

T: USB0

B: USB1

ATX12V1

DDR3_A1 (64 bit, 240-pin module)

DDR3_A2 (64 bit, 240-pin module)

DDR3_B1 (64 bit, 240-pin module)

DDR3_B2 (64 bit, 240-pin module)

ATXPWR1

CHA_FAN2

CHA_FAN3

PWR_FAN1

SATA_1_2

SATA_3_4

SATA_5_6

1112131415161718

PCIE5

AMD

A58

(Bolton-D2)

Chipset

PCIE_PWR1

VGA1

DVI1

USB01_PWR1

2 3

English

FM2A58+ BTC

No. Description

1 ATX 12V Power Connector (ATX12V1)

2 CPU Fan Connector (CPU_FAN1)

3 CPU Fan Connector (CPU_FAN2)

4 2 x 240-pin DDR3 DIMM Slots (DDR3_A1, DDR3_B1)

5 2 x 240-pin DDR3 DIMM Slots (DDR3_A2, DDR3_B2)

6 ATX Power Connector (ATXPWR1)

7 Chassis Fan Connector (CHA_FAN2)

8SATA2 Connectors (SATA _5_6)

9SATA2 Connectors (SATA _3_4)

10 SATA2 Connectors (SATA _1_2)

11 System Panel Header (PANEL1)

12 Clear CMOS Jumper (CLRCMOS1)

13 Chassis Fan Connector (CHA_FAN3)

14 Power LED Header (PLED1)

15 Chassis Speaker Header (SPEAKER1)

16 USB 2.0 Header (USB8_9)

17 USB 2.0 Header (USB6_7)

18 COM Port Header (COM1)

19 Front Panel Audio Header (HD_AUDIO1)

20 Power Fan Connector (PWR_FAN1)

21 Chassis Fan Connector (CHA_FAN1)

22 PCIe Power Connector (PCIE_PWR1)

23 USB Power Jumper (USB01_PWR1) (only for the USB01 ports)

2 3

English

FM2A58+ BTC

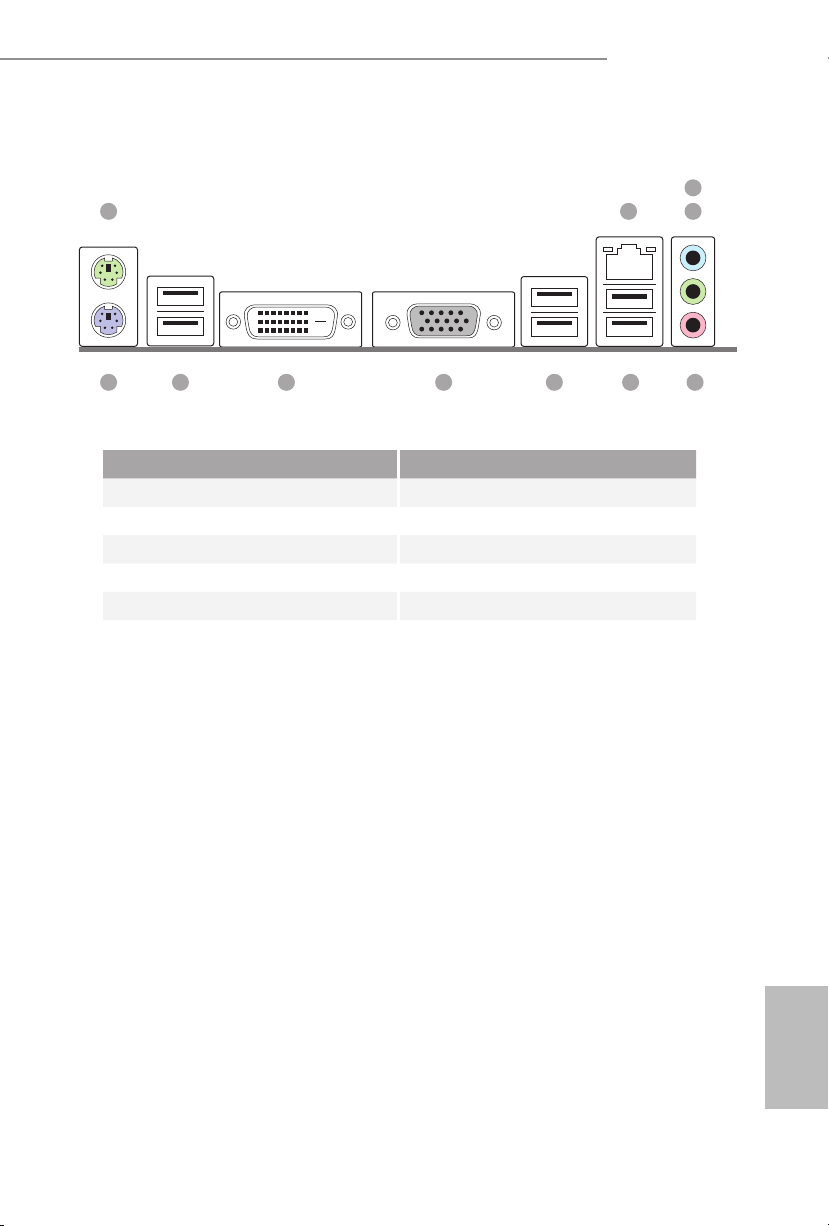

I/O Panel

No. Description No. Description

1 PS/2 Mouse Port (Green) 7 USB 2.0 Ports (USB23)

2 LAN RJ-45 Port* 8 D-Sub Port (VGA1)

3 Line In (Light Blue) 9 DVI-D Port (DVI1)

4 Front Speaker (Lime) 10 USB 2.0 Ports (USB01)

5Microphone (Pink) 11 PS/2 Keyboard Port (Purple)

6 USB 2.0 Ports (USB45)

1 2 4

567891011

4 PB

English

FM2A58+ BTC

* There are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indica-

tions.

Activity / Link LED Speed LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

ACT/LINK LED

SPEED LED

LAN Port

PB 5

English

FM2A58+ BTC

1. Introduction

Thank you for purchasing ASRock FM2A58+ BTC motherboard, a reliable moth-

erboard produced under ASRock’s consistently stringent quality control. It delivers

excellent performance with robust design conforming to ASRock’s commitment to

quality and endurance.

In this documentation, Chapter 1 and 2 contains the introduction of the motherboard

and step-by-step installation guides. Chapter 3 contains the operation guide of the

software and utilities. Chapter 4 contains the conguration guide of the BIOS setup.

Because the motherboard specications and the BIOS software might

be updated, the content of this manual will be subject to change without

notice. In case any modications of this manual occur, the updated ver-

sion will be available on ASRock website without further notice. You may

nd the latest VGA cards and CPU support lists on ASRock website as

well. ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specic information about the model you are using.

www.asrock.com/support/index.asp

1.1 Package Contents

ASRock FM2A58+ BTC Motherboard (ATX Form Factor)

ASRock FM2A58+ BTC Quick Installation Guide

ASRock FM2A58+ BTC Support CD

2 x Serial ATA (SATA) Data Cables (Optional)

1 x I/O Panel Shield

6 7

English

FM2A58+ BTC

1.2 Specications

Platform • ATX Form Factor

• All Solid Capacitor design

• High Density Glass Fabric PCB

CPU • Supports Socket FM2+ 95W / FM2 100W processors

• 4 + 2 Power Phase design

Chipset • AMD A58 FCH (Bolton-D2)

Memory • Dual Channel DDR3 Memory Technology

• 4 x DDR3 DIMM Slots

• Supports DDR3 2400+(OC)/2133(OC)/1866

(OC)/1600/1333/1066 non-ECC, un-buffered memory

(see CAUTION 1)

• Max. capacity of system memory: 64GB (see CAUTION

• Supports Intel® Extreme Memory Prole (XMP) 1.3 / 1.2

• Supports AMD Memory Prole Technology (AMP) up to

AMP 2400

• 15μ Gold Contact in DIMM Slots

Expan-

sion

Slot

• 1 x PCI Express 3.0 x16 Slot (PCIE4 @ x16 mode)

* PCIE 3.0 is only supported with FM2+ CPU. With FM2

CPU, it only supports PCIE 2.0.

• 1 x PCI Express 2.0 x16 Slot (PCIE5 @ x4 mode)

• 3 x PCI Express 2.0 x1 Slots

• 2 x PCI Slots

• Supports AMD Quad CrossFireXTM, CrossFireXTM and

Dual Graphics

• 15μ Gold Contact in VGA PCIe Slot (PCIE4)

Graphics • Integrated AMD RadeonTM R7/R5 Series Graphics in

A-series APU

• DirectX 11.1, Pixel Shader 5.0 with FM2+ CPU. DirectX

11, Pixel Shader 5.0 with FM2 CPU.

• Max. shared memory 2GB

• Dual VGA output: support DVI-D and D-Sub by

independent display controllers

• Supports Dual-link DVI-D with max. resolution up to

2560x1600 @ 60Hz

6 7

English

FM2A58+ BTC

• Supports D-Sub with max. resolution up to 1920x1200 @

60Hz

• Supports AMD Steady VideoTM 2.0: New video post

processing capability for automatic jitter reduction on

home/online video

• Supports HDCP with DVI-D Port

• Supports Full HD 1080p Blu-ray (BD) playback with

DVI-D Port

Audio • 5.1 CH HD Audio (Realtek ALC662 Audio Codec)

• Supports Surge Protection (ASRock Full Spike Protec-

tion)

• TI® NE5532 Premium Headset Amplier (Supports up to

600 ohm headsets) (Line-Out on rear I/O only)

LAN • PCIE x1 Gigabit LAN 10/100/1000 Mb/s

• Realtek RTL8111GR

• Supports Wake-On-WAN (see CAUTION 3)

• Supports Wake-On-LAN

• Supports Lightning/ESD Protection (ASRock Full Spike

Protection)

• Supports LAN Cable Detection

• Supports Energy Efcient Ethernet 802.3az

• Supports PXE

Rear

Panel I/O

• 1 x PS/2 Mouse Port

• 1 x PS/2 Keyboard Port

• 1 x D-Sub Port

• 1 x DVI-D Port

• 6 x USB 2.0 Ports (Supports ESD Protection (ASRock

Full Spike Protection))

• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and

SPEED LED)

• HD Audio Jacks: Line in / Front Speaker / Microphone

Storage • 6 x SATA2 3.0 Gb/s Connectors, support RAID (RAID 0,

RAID 1 and RAID 10), NCQ, AHCI and Hot Plug

8 9

English

FM2A58+ BTC

Connec-

tor

• 1 x COM Port Header

• 1 x Power LED Header

• 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)

• 3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin)

• 1 x Power Fan Connector (3-pin)

• 1 x 24 pin ATX Power Connector

• 1 x 8 pin 12V Power Connector

• 1 x PCIe Power Connector

• 1 x Front Panel Audio Connector

• 1 x USB Power Jumper (Ultra USB Power)

• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

(Supports ESD Protection (ASRock Full Spike Protec-

tion))

BIOS

Feature

• 64Mb AMI UEFI Legal BIOS with GUI support

• Supports “Plug and Play”

• ACPI 1.1 Compliant wake up events

• Supports jumperfree

• SMBIOS 2.3.1 support

• DRAM, CPU Voltage multi-adjustment

Support

• Drivers, Utilities, AntiVirus Software (Trial Version),

Google Chrome Browser and Toolbar, Start8 (30 days

trial)

Hardware

Monitor

• CPU temperature sensing

• Chassis temperature sensing

• CPU Fan Tachometer

• Chassis Fan Tachometer

• CPU/Chassis Quiet Fan

• CPU/Chassis Fan multi-speed control

• Voltage monitoring: +12V, +5V, +3.3V, Vcore

OS • Microsoft® Windows® 10 32-bit / 10 64-bit / 8.1 32-bit /

8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit

* For the updated Windows® 10 driver, please visit

ASRock’s website for details: http://www.asrock.com

* Carrizo FM2r2 processor supports Windows® 10 64-

bit / 8.1 64-bit / 7 32-bit / 7 64-bit only.

8 9

English

FM2A58+ BTC

WARNING

Please realize that there is a certain risk involved with overclocking,

including adjusting the setting in the BIOS, applying Untied Overclocking

Technology, or using third-party overclocking tools. Overclocking may

affect your system’s stability, or even cause damage to the components

and devices of your system. It should be done at your own risk and

expense. We are not responsible for possible damage caused by

overclocking.

* For detailed product information, please visit our website: http://www.asrock.com

CAUTION!

1. Whether 2400/2133/1866/1600MHz memory speed is support-

ed depends on the CPU you adopt. If you want to adopt DDR3

1866/1600 memory module on this motherboard, please refer

to the memory support list on our website for the compatible

memory modules.

ASRock website http://www.asrock.com

2. Due to the operating system limitation, the actual memory size

may be less than 4GB for the reservation for system usage un-

der Windows®10 / 8.1 / 8 / 7. For Windows®64-bit OS with 64-

bit CPU, there is no such limitation. You can use ASRock XFast

RAM to utilize the memory that Windows®cannot use.

3. Wake-On-WAN allows you to wake up this system from remote

mobile devices, such as smart phones, tables, or other PCs.

It needs third-party softwares and applications to utilize this

feature. Please visit our website for Home Cloud topic.

Certica-

tions

• FCC, CE, WHQL

• ErP/EuP ready (ErP/EuP ready power supply is

required)

Table des matières

Autres manuels ASROCK Carte mère

ASROCK

ASROCK 4Core1600Twins-P35 Manuel utilisateur

ASROCK

ASROCK Phantom Gaming 4 Z690 Manuel utilisateur

ASROCK

ASROCK PENRYN1600SLI-110DB Manuel utilisateur

ASROCK

ASROCK 990FX Extreme4 Manuel utilisateur

ASROCK

ASROCK H91M-XT PLUS Manuel utilisateur

ASROCK

ASROCK H61M-HVGS Manuel utilisateur

ASROCK

ASROCK Fatal1ty Z97 Manuel utilisateur

ASROCK

ASROCK P55 EXTREME4 - Manuel utilisateur

ASROCK

ASROCK X38TURBOTWINS Manuel utilisateur

ASROCK

ASROCK H510M-HVS R2.0 Manuel utilisateur

ASROCK

ASROCK Z68 EXTREME4 - ANNEXE 541 Manuel utilisateur

ASROCK

ASROCK PRO4 B550 Manuel utilisateur

ASROCK

ASROCK Q1900TM-ITX Manuel utilisateur

ASROCK

ASROCK Z77M Manuel utilisateur

ASROCK

ASROCK OC FORMULA X299 Manuel utilisateur

ASROCK

ASROCK B650 PG LIGHTNING Manuel utilisateur

ASROCK

ASROCK IMB-151N Manuel utilisateur

ASROCK

ASROCK FM2A75M Pro4 Manuel utilisateur

ASROCK

ASROCK H410M-HDV/M.2 Manuel utilisateur

ASROCK

ASROCK 880GMH USB3 R2.0 Manuel utilisateur

ASROCK

ASROCK IMB-R1000 Manuel de service

ASROCK

ASROCK H570M Pro4 Manuel utilisateur

ASROCK

ASROCK 4X4-R1000M Manuel utilisateur

ASROCK

ASROCK Z270M-STX MXM Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
