ASROCK E350M1 - Manuel utilisateur

E350M1

User Manual

Version 1.1

Published June 2011

No part of this manual may be reproduced, transcribed, transmitted, or translated in

any language, in any form or by any means, except duplication of documentation by

the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this manual may or may not be regis-

tered trademarks or copyrights of their respective companies, and are used only for

identication or explanation and to the owners’ benet, without intent to infringe.

Disclaimer:

Specications and information contained in this manual are furnished for informa-

tional use only and subject to change without notice, and should not be constructed

as a commitment by ASRock. ASRock assumes no responsibility for any errors or

omissions that may appear in this manual.

With respect to the contents of this manual, ASRock does not provide warranty of

any kind, either expressed or implied, including but not limited to the implied warran-

ties or conditions of merchantability or tness for a particular purpose.

In no event shall ASRock, its directors, ofcers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from

any defect or error in the manual or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-

lowing two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic

substance controlled in Perchlorate Best Management Practices (BMP) regulations

passed by the California Legislature. When you discard the Lithium battery in Cali-

fornia, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

Contents

1 Introduction ......................................................... 5

1.1 Package Contents ......................................................... 5

1.2 Specications ................................................................. 6

1.3 Motherboard Layout ....................................................... 10

1.4 I/O Panel ...................................................................... 11

2 Installation ........................................................... 13

2.1 Screw Holes ................................................................... 13

2.2 Pre-installation Precautions ......................................... 13

2.3 Installation of Memory Modules (DIMM) ........................ 14

2.4 Expansion Slot (PCI Express Slot) .................................... 15

2.5 Dual Monitor Feature ..................................................... 16

2.6 Jumpers Setup .......................................................... 18

2.7 Onboard Headers and Connectors ............................ 19

2.8 Serial ATA3 (SATA3) Hard Disks Installation ............. 22

2.9 Hot Plug and Hot Swap Functions for SATA3 HDDs .... 23

2.10 SATA / SATAII / SATA3 HDD Hot Plug Feature and

Operation Guide ........................................................ 24

2.11 Driver Installation Guide ............................................. 26

2.12 Installing Windows® 8 / 8 64-bit / 7 / 7 64-bit / VistaTM /

VistaTM 64-bit / XP / XP 64-bit Without RAID Functions 26

2.12.1 Installing Windows® XP / XP 64-bit Without RAID

Functions............................................................ 26

2.12.2 Installing Windows® 8 / 8 64-bit / 7 / 7 64-bit /

VistaTM / VistaTM 64-bit Without RAID Functions . 26

3 UEFI SETUP UTILITY ................................................. 28

3.1 Introduction .................................................................... 28

3.1.1 UEFI Menu Bar .................................................... 28

3.1.2 Navigation Keys ................................................... 29

3.2 Main Screen ................................................................... 29

3.3 OC Tweaker Screen ...................................................... 30

3.4 Advanced Screen ........................................................... 32

3.4.1 CPU Conguration ............................................... 33

3.4.2 North Bridge Conguration................................... 34

3.4.3 South Bridge Conguration .................................. 35

3.4.4 Storage Conguration .......................................... 36

3.4.5 Super IO Conguration ........................................ 37

3.4.6 ACPI Conguration............................................... 38

3.4.7 USB Conguration ............................................... 39

3.5 Hardware Health Event Monitoring Screen ................... 40

3.6 Boot Screen ................................................................... 41

3.7 Security Screen ............................................................. 42

3.8 Exit Screen .................................................................... 43

4 Software Support ................................................. 44

4.1 Install Operating System ................................................ 44

4.2 Support CD Information ................................................. 44

4.2.1 Running Support CD ............................................ 44

4.2.2 Drivers Menu ........................................................ 44

4.2.3 Utilities Menu........................................................ 44

4.2.4 Contact Information .............................................. 44

Chapter 1: Introduction

Thank you for purchasing ASRock E350M1 motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

In this manual, chapter 1 and 2 contain introduction of the motherboard and step-

by-step guide to the hardware installation. Chapter 3 and 4 contain the conguration

guide to BIOS setup and information of the Support CD.

Because the motherboard specications and the BIOS software might be

updated, the content of this manual will be subject to change without no-

tice. In case any modications of this manual occur, the updated version

will be available on ASRock website without further notice. You may nd

the latest VGA cards and CPU support lists on ASRock website as well.

ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specic information about the model you are using.

www.asrock.com/support/index.asp

1.1 Package Contents

ASRock E350M1 Motherboard

(Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

ASRock E350M1 Quick Installation Guide

ASRock E350M1 Support CD

2 x Serial ATA (SATA) Data Cables (Optional)

1 x I/O Panel Shield

ASRock Reminds You...

To get better performance in Windows® 8 / 8 64-bit / 7 / 7 64-bit / VistaTM /

VistaTM 64-bit, it is recommended to set the BIOS option in Storage Con-

guration to AHCI mode. For the BIOS setup, please refer to the “User

Manual” in our support CD for details.

1.2 Specifications

Platform - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm

- Solid Capacitor for CPU power

CPU - AMD Dual-Core Zacate E350/E350D APU

- Supports AMD’s Cool ‘n’ QuietTM Technology

- UMI 2.5 GT/s

Chipset - AMD A50M Chipset

Memory - 2 x DDR3 DIMM slots

- Supports DDR3 1066/800 non-ECC, un-buffered

memory

- Max. capacity of system memory: 16GB (see CAUTION 1)

Expansion Slot - 1 x PCI Express 2.0 x16 slot (blue @ x4 mode)

Graphics - Integrated AMD Radeon HD 6310 graphics

- DX11 class iGPU, Pixel Shader 5.0

- Max. shared memory 512MB (see CAUTION 2)

- Three VGA Output options: D-Sub, DVI-D and HDMI

- Supports HDMI Technology with max. resolution up to

1920x1200 (1080P)

- Supports DVI with max. resolution up to 1920x1200 @ 75Hz

- Supports D-Sub with max. resolution up to 2048x1536 @

85Hz

- Supports HDCP function with DVI and HDMI ports

- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback

with DVI and HDMI ports

- Supports Dolby® TrueHD and DTS-HD Master Audio

through HDMI port

Audio - 7.1 CH HD Audio with Content Protection

(Realtek ALC892 Audio Codec)

- Premium Blu-ray audio support

LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111E

- Supports Wake-On-LAN

- Supports LAN Cable Detection

- Supports Energy Efcient Ethernet 802.3az

Rear Panel I/O I/O Panel

- 1 x PS/2 Keyboard/Mouse Port

- 1 x VGA/D-Sub Port

- 1 x VGA/DVI-D Port

- 1 x HDMI Port

- 1 x Optical SPDIF Out Port

- 6 x Ready-to-Use USB 2.0 Ports

- 1 x eSATA3 Connector

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

- HD Audio Jack: Rear Speaker/Central/Bass/Line in/Front

Speaker/Microphone (see CAUTION 3)

SATA3 - 4 x SATA3 6.0 Gb/s connectors, support NCQ, AHCI and

"Hot Plug" functions

Connector - 4 x SATA3 6.0Gb/s connectors

- 1 x CIR header

- 1 x COM port header

- CPU/Chassis FAN connector

- 24 pin ATX power connector

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

BIOS Feature - 32Mb AMI BIOS

- AMI UEFI Legal BIOS with GUI support

- Supports “Plug and Play”

- ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

- DRAM, FCH, +1V, +1.8V Voltage Multi-adjustment

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version),

CyberLink MediaEspresso 6.5 Trial, Google Chrome

Browser and Toolbar

Unique Feature - ASRock Instant Boot

- ASRock Instant Flash (see CAUTION 4)

- ASRock APP Charger (see CAUTION 5)

- Hybrid Booster:

- ASRock U-COP (see CAUTION 6)

- Boot Failure Guard (B.F.G.)

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU/Chassis Fan Tachometer

- CPU/Chassis Quiet Fan (Allow Chassis Fan Speed

Auto-Adjust by CPU or MB Temperature)

- CPU/Chassis Fan Multi-Speed Control

- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

CAUTION!

1. Due to the operating system limitation, the actual memory size may be

less than 4GB for the reservation for system usage under Windows® 8 / 7

/ VistaTM / XP. For Windows® OS with 64-bit CPU, there is no such limita-

tion.

2. The maximum shared memory size is dened by the chipset vendor and

is subject to change. Please check AMD website for the latest informa-

tion.

3. For microphone input, this motherboard supports both stereo and mono

modes. For audio output, this motherboard supports 2-channel, 4-chan-

nel, 6-channel, and 8-channel modes. Please check the table on page 11

for proper connection.

4. ASRock Instant Flash is a BIOS ash utility embedded in Flash ROM.

This convenient BIOS update tool allows you to update system BIOS

without entering operating systems rst like MS-DOS or Windows®. With

this utility, you can press <F6> key during the POST or press <F2> key to

BIOS setup menu to access ASRock Instant Flash. Just launch this tool

and save the new BIOS le to your USB ash drive, oppy disk or hard

drive, then you can update your BIOS only in a few clicks without prepar-

ing an additional oppy diskette or other complicated ash utility. Please

be noted that the USB ash drive or hard drive must use FAT32/16/12 le

system.

WARNING

Please realize that there is a certain risk involved with overclocking, including

adjusting the setting in the BIOS, applying Untied Overclocking Technology, or

using the third-party overclocking tools. Overclocking may affect your system

stability, or even cause damage to the components and devices of your system.

It should be done at your own risk and expense. We are not responsible for possible

damage caused by overclocking.

OS - Microsoft® Windows® 8 / 8 64-bit / 7 / 7 64-bit / VistaTM /

VistaTM 64-bit / XP / XP Media Center / XP 64-bit compliant

Certications - FCC, CE, WHQL

- ErP/EuP Ready (ErP/EuP ready power supply is required)

(see CAUTION 7)

* For detailed product information, please visit our website: http://www.asrock.com

5. If you desire a faster, less restricted way of charging your Apple devices,

such as iPhone/iPod/iPad Touch, ASRock has prepared a wonderful

solution for you - ASRock APP Charger. Simply installing the APP Char-

ger driver, it makes your iPhone charged much quickly from your com-

puter and up to 40% faster than before. ASRock APP Charger allows you

to quickly charge many Apple devices simultaneously and even supports

continuous charging when your PC enters into Standby mode (S1), Sus-

pend to RAM (S3), hibernation mode (S4) or power off (S5). With APP

Charger driver installed, you can easily enjoy the marvelous charging

experience than ever.

ASRock website: http://www.asrock.com/Feature/AppCharger/index.asp

6. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC sys-

tem.

7. EuP, stands for Energy Using Product, was a provision regulated by Eu-

ropean Union to dene the power consumption for the completed system.

According to EuP, the total AC power of the completed system shall be

under 1.00W in off mode condition. To meet EuP standard, an EuP ready

motherboard and an EuP ready power supply are required. According to

Intel’s suggestion, the EuP ready power supply must meet the standard

of 5v standby power efciency is higher than 50% under 100 mA current

consumption. For EuP ready power supply selection, we recommend you

checking with the power supply manufacturer for more details.

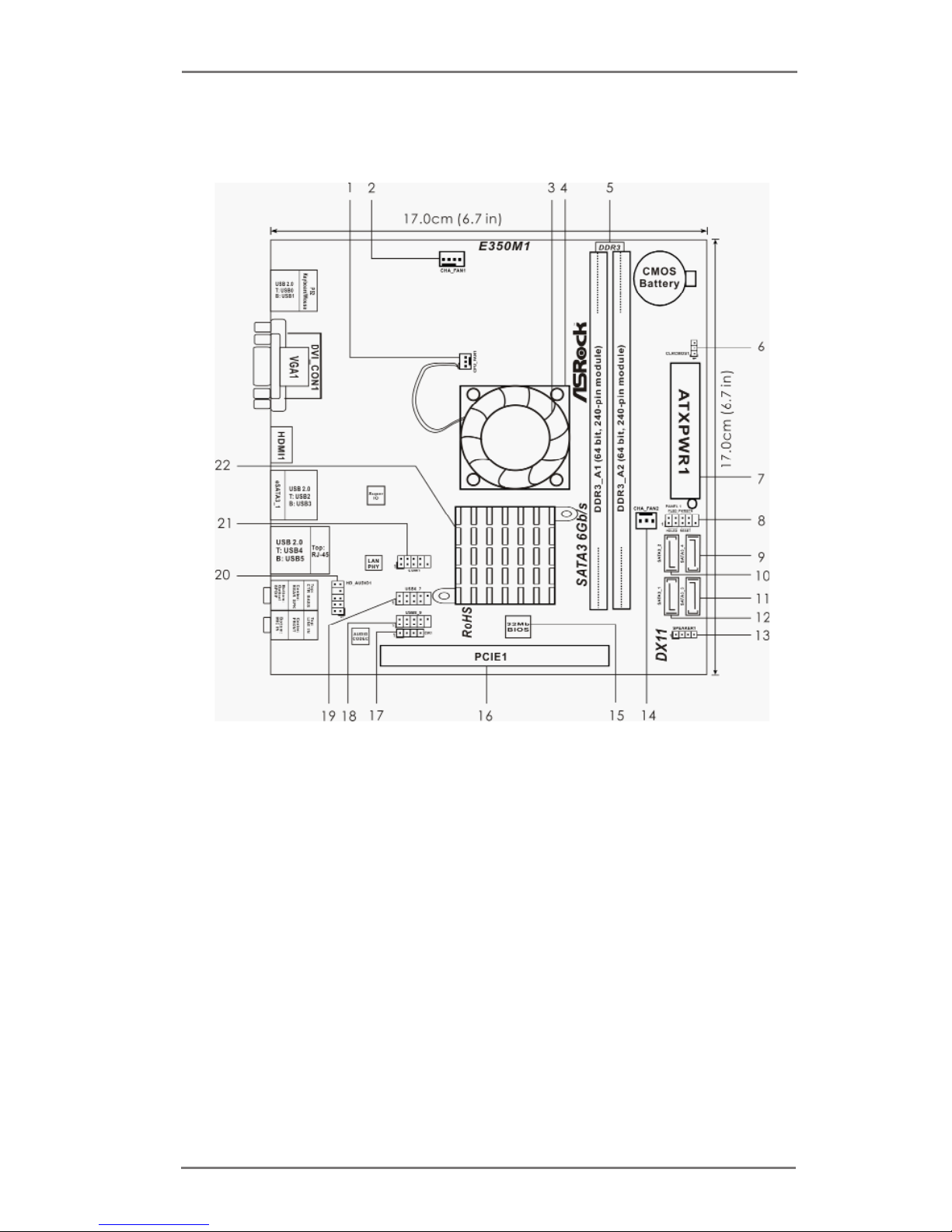

1.3 Motherboard Layout

1 CPU Fan Connector (CPU_FAN1) 13 Chassis Speaker Header

2 Chassis Fan Connector (CHA_FAN1) (SPEAKER 1, White)

3 CPU Fan 14 Chassis Fan Connector (CHA_FAN2)

4 CPU Heatsink 15 32Mb SPI Flash

5 2 x 240-pin DDR3 DIMM Slots 16 PCI Express 2.0 x16 Slot (PCIE1, Blue)

(DDR3_A1, DDR3_A2, Blue) 17 Consumer Infrared Module Header (CIR1)

6 Clear CMOS Jumper (CLRCMOS1) 18 USB 2.0 Header (USB8_9, Blue)

7 ATX Power Connector (ATXPWR1) 19 USB 2.0 Header (USB6_7, Blue)

8 System Panel Header (PANEL1, White) 20 Front Panel Audio Header

9 SATA3 Connector (SATA3_4, White) (HD_AUDIO1, White)

10 SATA3 Connector (SATA3_2, White) 21 COM Port Header (COM1)

11 SATA3 Connector (SATA3_3, White) 22 AMD A50M Chipset

12 SATA3 Connector (SATA3_1, White)

Autres manuels pour E350M1 -

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ASROCK Carte mère

ASROCK

ASROCK H61M-PS Manuel utilisateur

ASROCK

ASROCK X79 Extreme4-M Manuel utilisateur

ASROCK

ASROCK H97 Pro4 Manuel utilisateur

ASROCK

ASROCK Q2900M Manuel utilisateur

ASROCK

ASROCK B75TM-ITX Manuel de référence

ASROCK

ASROCK B85M-DGS Manuel utilisateur

ASROCK

ASROCK C621A WS Manuel utilisateur

ASROCK

ASROCK Z77 Pro4-M Manuel utilisateur

ASROCK

ASROCK P55 DELUXE - V1.1 Manuel utilisateur

ASROCK

ASROCK P41C-DE Manuel utilisateur

ASROCK

ASROCK FM2A75M-DGS R2.0 Manuel utilisateur

ASROCK

ASROCK K8UPGRADE-PCIE Manuel utilisateur

ASROCK

ASROCK G41M-GE3 Manuel utilisateur

ASROCK

ASROCK X99 Extreme6/ac Manuel utilisateur

ASROCK

ASROCK FM2A75M-ITX Manuel utilisateur

ASROCK

ASROCK J4105B-ITX Manuel utilisateur

ASROCK

ASROCK Z68 Extreme4 Gen3 Manuel utilisateur

ASROCK

ASROCK M3A790GMH 128M - V1.0 Manuel utilisateur

ASROCK

ASROCK Z87 OC Formula/ac Manuel utilisateur

ASROCK

ASROCK X399M Taichi Manuel utilisateur

ASROCK

ASROCK K8NF4G-SATA2 R2.0 - Manuel utilisateur

ASROCK

ASROCK B85M Pro3 Manuel utilisateur

ASROCK

ASROCK 775i45GV Manuel utilisateur

ASROCK

ASROCK K7VM4 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
