ASROCK C216 WS Manuel de l'opérateur
1
Guide to SATA Hard Disks
Installation and RAID Conguration
1. Guide to SATA Hard Disks Installation ..............................2
1.1 Serial ATA (SATA) Hard Disks Installation ................2
2. GuidetoRAIDCongurations ...........................................3
2.1 Introduction of RAID.................................................3
2.2 RAIDCongurationPrecautions ..............................5
2.3 InstallingWindows®8/ 864-bit / 7 / 7 64-bit With
RAIDFunctions........................................................6
2.4 SettingtheBIOSRAIDItems ...................................7
2.5 ConguringtheIntelRAIDBIOS..............................7
2.6 DeletingRAIDVolumes..........................................11
2
1. Guide to SATA Hard Disks Installation
1.1 Serial ATA (SATA) Hard Disks Installation
IntelC216chipsetsupportsSerialATA(SATA)harddiskswith
RAIDfunctions,includingRAID0,RAID1,RAID5,RAID10
andIntelRapidStorage.PleasereadtheRAIDcongurations
inthisguidecarefullyaccordingtotheIntelsouthbridgechipset
thatyourmotherboardadopts.YoumayinstallSATAharddisks
onthismotherboardforinternalstoragedevices.ForSATA
installationguide,pleaserefertoSerialATA(SATA)HardDisks
Installationof“UserManual”inthesupportCD.Thissection
willguideyouhowtocreateRAIDonSATAports.
3
2. GuidetoRAIDCongurations
2.1 Introduction of RAID
ThismotherboardadoptsIntelsouthbridgechipsetthatinte-
gratesRAIDcontrollersupportingRAID0/RAID1/IntelRapid
Storage/RAID10/RAID5functionwithfourindependentSe-
rialATA(SATA)channels.Thissectionwillintroducethebasic
knowledgeofRAID,andtheguidetocongureRAID0/RAID
1/IntelRapidStorage/RAID10/RAID5settings.
RAID
Theterm“RAID”standsfor“RedundantArrayofIndependent
Disks”,whichisamethodcombiningtwoormoreharddisk
drivesintoonelogicalunit.Foroptimalperformance,please
installidenticaldrivesofthesamemodelandcapacitywhen
creatingaRAIDset.
RAID 0 (Data Striping)
RAID0iscalleddatastripingthatoptimizestwoidenticalhard
diskdrivestoreadandwritedatainparallel,interleavedstacks.
Itwillimprovedataaccessandstoragesinceitwilldoublethe
datatransferrateofasinglediskalonewhilethetwoharddisks
performthesameworkasasingledrivebutatasustained
data transfer rate.
WARNING!!
AlthoughRAID0functioncanimprovetheaccessperformance,
it does not provide any fault tolerance. Hot-Plug any HDDs of
theRAID0Diskwillcausedatadamageordataloss.
RAID 1 (Data Mirroring)
RAID1iscalleddatamirroringthatcopiesandmaintainsan
identicalimageofdatafromonedrivetoaseconddrive.Itpro-
videsdataprotectionandincreasesfaulttolerancetotheentire
systemsincethediskarraymanagementsoftwarewilldirect
allapplicationstothesurvivingdriveasitcontainsacomplete
copyofthedataintheotherdriveifonedrivefails.
4
Intel Rapid Storage
TheIntelRapidStoragetechnologysupportedallowsyouto
createaRAID0andRAID1setusingonlytwoidenticalhard
diskdrives.TheIntelRapidStoragetechnologycreatestwo
partitionsoneachharddiskdrivetocreateavirtualRAID0
andRAID1sets.Thistechnologyalsoallowsyoutochange
theharddiskdrivepartitionsizewithoutlosinganydata.
RAID 10
RAID10isastripedcongurationwithRAID1segments
whosesegmentsareRAID1arrays.Thiscongurationhasthe
samefaulttoleranceasRAID1,andhasthesameoverhead
forfault-toleranceasmirroringalone.RAID10achieveshigh
input/outputratesbystripingRAID1segments.Insome
instances,aRAID10congurationcansustainmultiplesimul-
taneousdrivefailure.Aminimumoffourharddiskdrivesis
requiredforthissetup.
RAID 5
RAID5stripesbothdataandparityinformationacrossthreeor
moreharddiskdrives.AmongtheadvantagesofRAID5con-
gurationincludebetterHDDperformance,faulttolerance,and
higherstoragecapacity.TheRAID5congurationisbestsui-
tedfortransactionprocessing,relationaldatabaseapplications,
enterpriseresourceplanning,andotherbusinesssystems.Use
aminimumofthreeidenticalharddiskdrivesforthissetup.
5
2.2 RAID Congurations Precautions
1. PleaseusetwonewdrivesifyouarecreatingaRAID
0(striping)arrayforperformance.Itisrecommended
tousetwoSATAdrivesofthesamesize.Ifyouuse
twodrivesofdifferentsizes,thesmallercapacityhard
diskwillbethebasestoragesizeforeachdrive.For
example,ifoneharddiskhasan80GBstoragecapa-
cityandtheotherharddiskhas60GB,themaximum
storagecapacityforthe80GB-drivebecomes60GB,
andthetotalstoragecapacityforthisRAID0setis
120GB.
2. Youmayusetwonewdrives,oruseanexistingdrive
andanewdrivetocreateaRAID1(mirroring)array
fordataprotection(thenewdrivemustbeofthe
samesizeorlargerthantheexistingdrive).Ifyou
usetwodrivesofdifferentsizes,thesmallercapacity
harddiskwillbethebasestoragesize.Forexample,
ifoneharddiskhasan80GBstoragecapacityand
theotherharddiskhas60GB,themaximumstorage
capacityfortheRAID1setis60GB.
3. Pleaseverifythestatusofyourharddisksbeforeyou
setupyournewRAIDarray.
WARNING!!
PleasebackupyourdatarstbeforeyoucreateRAIDfunctions.
IntheprocessyoucreateRAID,thesystemwillaskifyouwant
to“ClearDiskData”ornot.Itisrecommendedtoselect“Yes”,
andthenyourfuturedatabuildingwilloperateunderaclean
environment.
6
2.3 Installing Windows®8/ 864-bit / 7 / 7 64-bit
With RAID Functions
IfyouwanttoinstallWindows®8/ 864-bit / 7 / 7 64-bit
OSonyourSATA/SATA2/SATA3HDDswithRAID
functions,pleasefollowtheproceduresbelow.
STEP 1: Set up UEFI.
A.EnterUEFISETUPUTILITYAdvancedscreen
StorageConguration.
B.Set“SATAModeSelection”to[RAID]forSATA2_2to
SATA2_5andSATA3_0andSATA3_1ports.
STEP 2: Use “RAID Installation Guide” to set RAID
conguration.
Beforeyoustartto configurethe RAIDfunction,youneed
to check the installation guide in the Support CD for proper
configuration. PleaserefertothedocumentintheSupport
CD, “Guide to SATA Hard Disks Installation and RAID
Conguration”, which is located in the folder at the following
path:
.. \ RAID Installation Guide
STEP 3: Install Windows®8/ 864-bit / 7 / 7 64-bit on your
system.
7
2.4 Setting the BIOS RAID Items
After installing the hard disk drives, please set the necessary
RAIDitemsintheBIOSbeforesettingyourRAIDconguration.
Boot your system, and press <F2> key to enter BIOS setup
utility. Highlight Advanced and press <Enter>, then the main
interfaceofBIOSsetuputilitywillappear.Pleasesettheoption
Congure SATA as to [RAID]. Save your change before you
exitBIOSsetup.
2.5 Conguring the Intel RAID BIOS

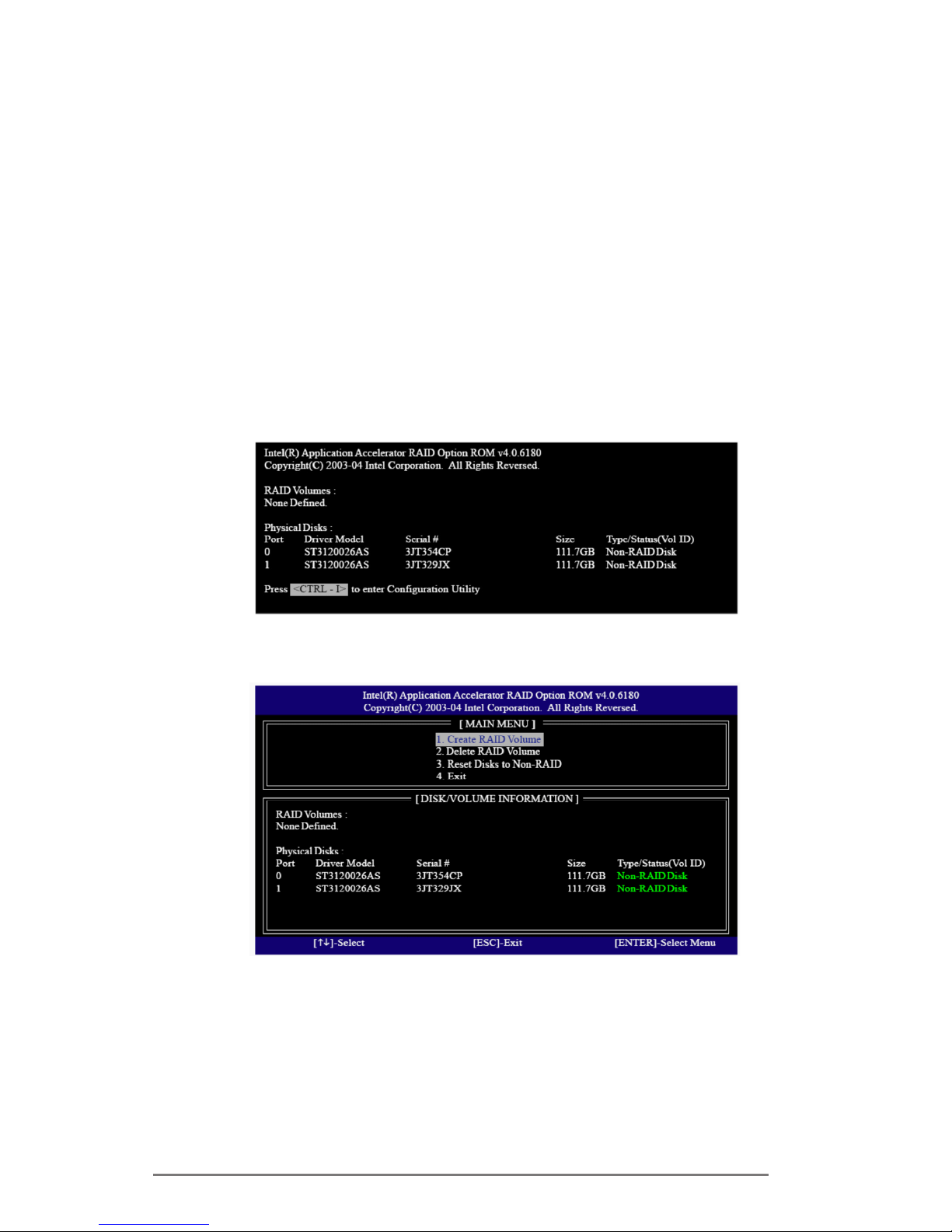

Reboot your computer. Wait until you see the RAID software
promptingyoutopress<Ctrl+I>.
Press <Ctrl+I>.Then, theIntelRAIDUtility- Create RAID
Volumewindowappears.
SelecttheoptionCreate RAID Volumeandpress<Enter>.
8

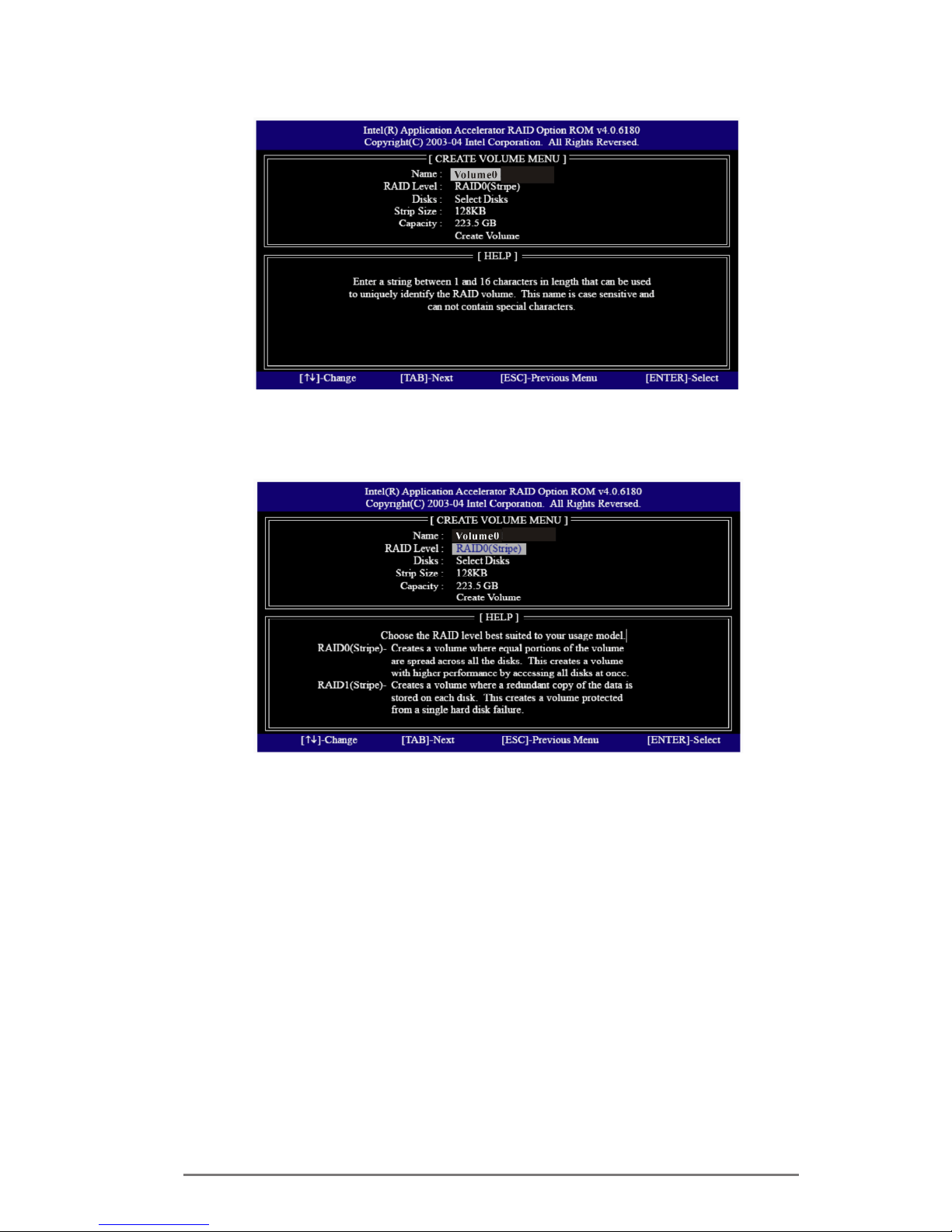

IntheCreateVolumeMenu,underNameitem,pleasekey-ina
uniquenamewith1-16lettersforyourRAIDvolumethenpress
<Enter>.
Use the up or down arrow keys to select your desired RAID
Level.YoumayselectRAID0(Stripe),RAID1(Mirror),RAID
5orRAID10foryourRAIDlevel.Press<Enter>,andthenyou
can select Strip Size.
9
If you selected RAID 0 (Stripe), use the up or down keys to
selectthestripesizeforyourRAID0arraythenpress<Enter>.
Theavailable values range from8KBto128KB.Thedefault
selection is 128 KB. The strip value should be chosen based
ontheplanneddriveusage.
•8/16KB-lowdiskusage
•64KB-typicaldiskusage
•128KB-performancediskusage
Afteryousetdiskblocksize,press<Enter>tosetdisk
Capacity.
AftersettingupCapacity,pleasepress<Enter>.
10

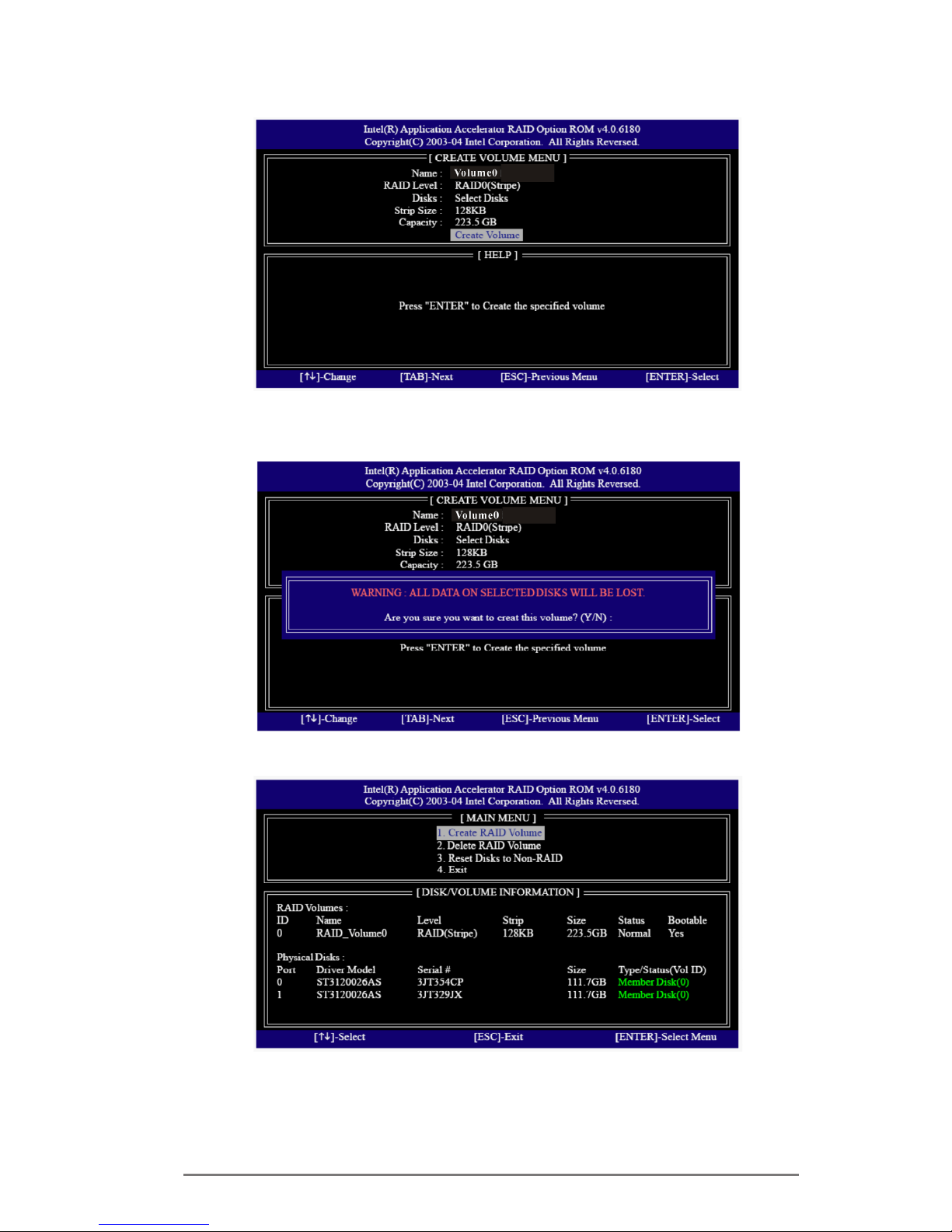

Press<Enter>undertheCreate Volumeitem.Theutility
promptsaconrmationmessageasbelow.
Press<Y>tocompletethesetupofRAID.
Afterthecompletion,youwillseethedetailedinformationabout
theRAIDthatyousetup.
