ASROCK B85M BTC Manuel utilisateur

Version 1.0

Published March 2014

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Website: http://www.asrock.com

B85M BTC

English

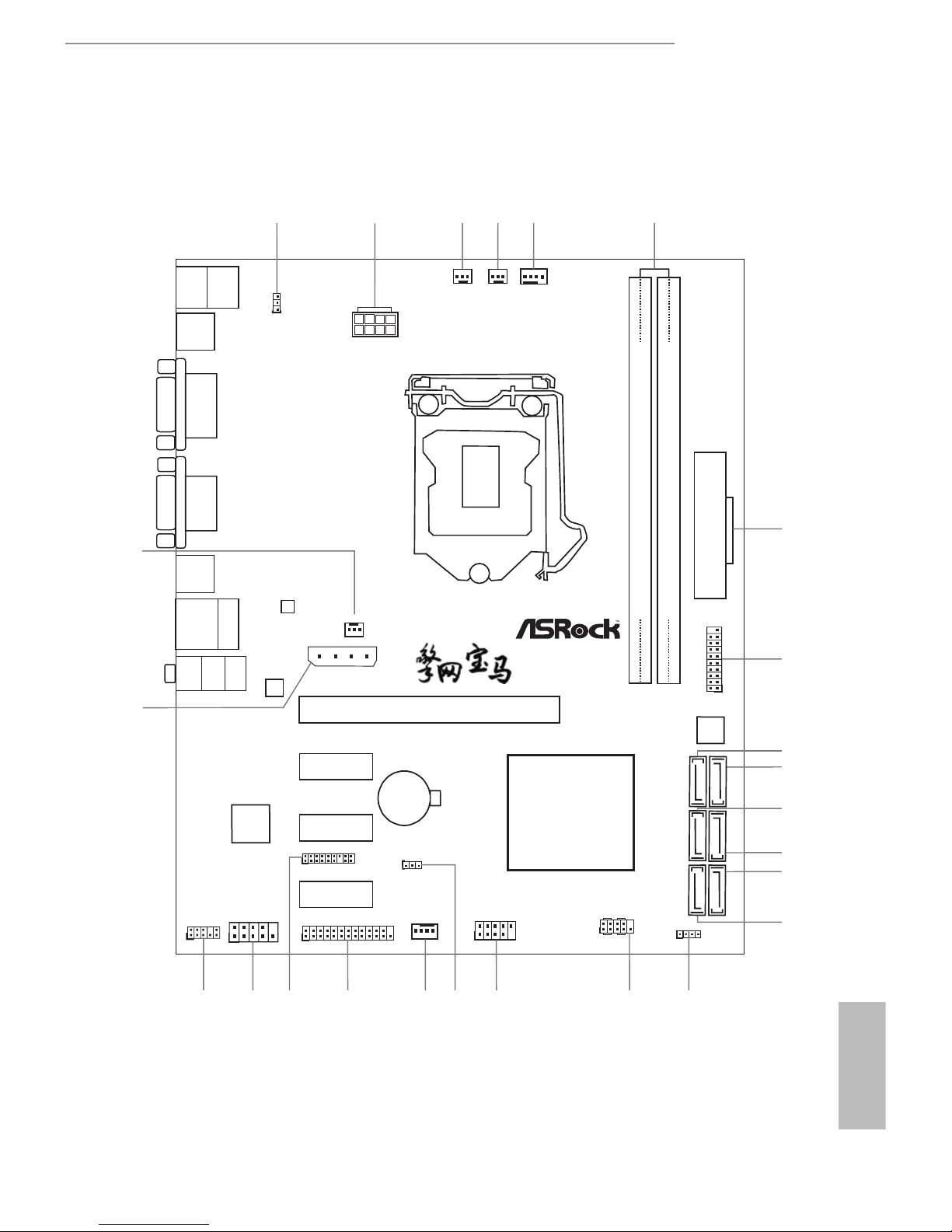

Motherboard Layout

Intel

B85

DDR3_B1 (64 bit, 240-pin module)

DDR3_A1 (64 bit, 240-pin module)

ATX12V1

CMOS

Battery

Super

I/O

ATXPWR1

LAN

Top:

RJ-45

USB 2.0

T: USB2

B: USB3

Top:

LINE IN

Center:

FRONT

Bottom:

MIC IN

CLRCMOS1

SPEAKER1

HDLED RESET

PLED PWRBTN

PANEL1

USB4_5

COM1

HD_AUDIO1

B85M BTC

CHA_FAN1

CHA_FAN2

RoHS

23 18

CPU_FAN1

346

64Mb

BIOS

USB 2.0

T: USB0

B: USB1

Audio

CODEC

PCIE1

PWR_FAN1

TPMS1

LPT1

USB3_2_3

PCIE2

PCIE3

PCIE4

USB 3.0

SATA3 _1 SATA3 _3 SATA2 _5

SATA3 _0 SATA3 _2 SATA2 _4

CPU_FAN2

PCIE_PWR1

PS2

Keyboard

PS2

Mouse

VGA1

DVI1

USB 3.0

T: USB0

B: USB1

USB01_PWR1

English

No. Description

1 USB Power Jumper (USB01_PWR1)

2 ATX 12V Power Connector (ATX12V1)

3 Power Fan Connector (PWR_FAN1)

4 CPU Fan Connector (CPU_FAN2)

5 CPU Fan Connector (CPU_FAN1)

6 2 x 240-pin DDR3 DIMM Slots (DDR3_A1, DDR3_B1)

7 ATX Power Connector (ATXPWR1)

8 USB 3.0 Header (USB3_2_3)

9 SATA2 Connector (SATA2_5)

10 SATA2 Connector (SATA2_4)

11 SATA3 Connector (SATA3_3)

12 SATA3 Connector (SATA3_2)

13 SATA3 Connector (SATA3_0)

14 SATA3 Connector (SATA3_1)

15 Chassis Speaker Header (SPEAKER1)

16 System Panel Header (PANEL1)

17 USB 2.0 Header (USB4_5)

18 Clear CMOS Jumper (CLRCMOS1)

19 Chassis Fan Connector (CHA_FAN1)

20 Print Port Header (LPT1)

21 TPM Header (TPMS1)

22 COM Port Header (COM1)

23 Front Panel Audio Header (HD_AUDIO1)

24 PCIe Power Connector (PCIE_PWR1)

25 Chassis Fan Connector (CHA_FAN2)

B85M BTC

English

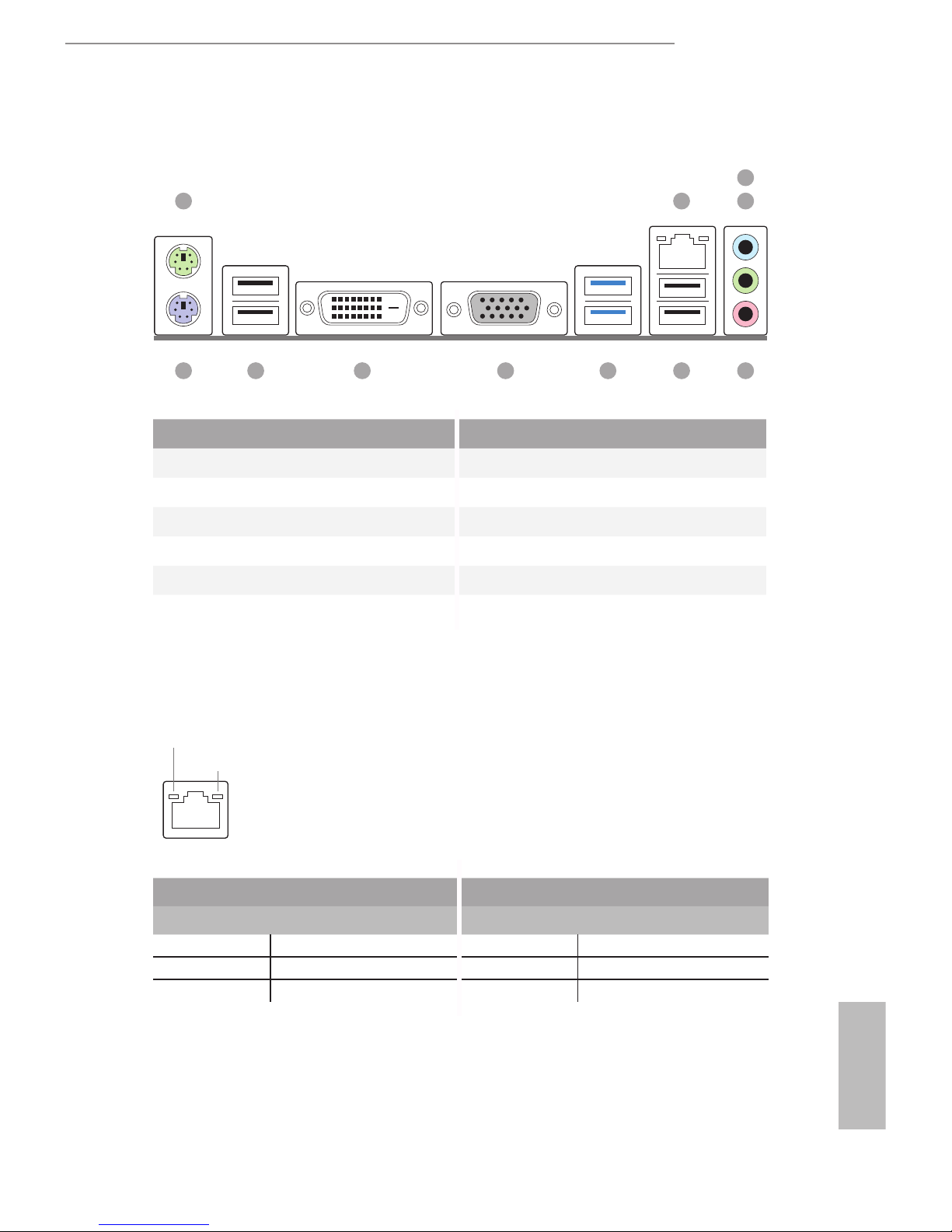

I/O Panel

No. Description No. Description

1 PS/2 Mouse Port 7 USB 3.0 Ports (USB3_01)

2 LAN RJ-45 Port* 8 D-Sub Port

3 Line In (Light Blue) 9 DVI-D Port

4 Front Speaker (Lime) 10 USB 2.0 Ports (USB01)

5 Microphone (Pink) 11 PS/2 Keyboard Port

6 USB 2.0 Ports (USB23)

1 2 4

567891011

** ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

ACT/LINK LED

SPEED LED

LAN Port

English

Chapter 1 Introduction

ank you for purchasing ASRock B85M BTC motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality

and endurance.

1.1 Package Contents

• ASRock B85M BTC Motherboard (Micro ATX Form Factor)

• ASRock B85M BTC Quick Installation Guide

• ASRock B85M BTC Support CD

• 2 x Serial ATA (SATA) Data Cables (Optional)

• 1 x I/O Panel Shield

Because the motherboard specications and the BIOS soware might be updated, the

content of this documentation will be subject to change without notice. In case any

modications of this documentation occur, the updated version will be available on

ASRock’s website without further notice. If you require technical support related to

this motherboard, please visit our website for specic information about the model

you are using. You may nd the latest VGA cards and CPU support list on ASRock’s

website as well. ASRock website http://www.asrock.com.

B85M BTC

English

1.2 Specications

Platform • Micro ATX Form Factor

• All Solid Capacitor design

• High Density Glass Fabric PCB

CPU • Supports 4th generation Intel® CoreTM i7 / i5 / i3 / Xeon® /

Pentium® / Celeron® in LGA1150 package

• Digi Power design

• 4 Power Phase design

• Supports Intel® Turbo Boost 2.0 Technology

Chipset • Intel® B85

• Supports Intel® Small Business Advantage 2.0

Memory • Dual Channel DDR3 Memory Technology

• 2 x DDR3 DIMM Slots

• Supports DDR3 1600/1333/1066 non-ECC, un-buered

memory

• Max. capacity of system memory: 16GB (see CAUTION)

• Supports Intel® Extreme Memory Prole (XMP) 1.3 / 1.2

• 15 Gold Contact in DIMM Slots

Expansion

Slot

• 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)

• 3 x PCI Express 2.0 x1 Slots

• 15 Gold Contact in VGA PCIe Slot (PCIE1)

Graphics • Intel® HD Graphics Built-in Visuals and the VGA outputs can

be supported only with processors which are GPU integrated.

• Supports Intel® HD Graphics Built-in Visuals : Intel® Quick

Sync Video with AVC, MVC (S3D) and MPEG-2 Full

HW Encode1, Intel® InTruTM 3D, Intel® Clear Video HD

Technology, Intel® InsiderTM, Intel® HD Graphics 4400/4600

• Pixel Shader 5.0, DirectX 11.1

• Max. shared memory 1792MB

• Dual graphics output: support DVI-D and D-Sub by

independent display controllers

• Supports DVI-D with max. resolution up to 1920x1200 @

60Hz

English

• Supports D-Sub with max. resolution up to 1920x1200 @

60Hz

• Supports HDCP with DVI-D Port

• Supports Full HD 1080p Blu-ray (BD) playback with DVI-D

Port

Audio • 5.1 CH HD Audio (Realtek ALC662 Audio Codec)

• Supports Surge Protection (ASRock Full Spike Protection)

• TI® NE5532 Premium Headset Amplier (Supports up to 600

ohm headsets) (Line-Out on rear I/O only)

LAN • PCIE x1 Gigabit LAN 10/100/1000 Mb/s

• Realtek RTL8111GR

• Supports Wake-On-WAN

• Supports Wake-On-LAN

• Supports Lightning/ESD Protection (ASRock Full Spike

Protection)

• Supports LAN Cable Detection

• Supports Energy Ecient Ethernet 802.3az

• Supports PXE

Rear Panel

I/O

• 1 x PS/2 Mouse Port

• 1 x PS/2 Keyboard Port

• 1 x D-Sub Port

• 1 x DVI-D Port

• 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full

Spike Protection))

• 2 x USB 3.0 Ports (Supports ESD Protection (ASRock Full

Spike Protection))

• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

• HD Audio Jacks: Line in / Front Speaker / Microphone

Storage • 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and

Hot Plug

• 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and

Hot Plug

B85M BTC

English

Connector • 1 x Print Port Header

• 1 x COM Port Header

• 1 x TPM Header

• 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)

• 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin)

• 1 x Power Fan Connector (3-pin)

• 1 x 24 pin ATX Power Connector

• 1 x 8 pin 12V Power Connector

• 1 x PCIe Power Connector

• 1 x Front Panel Audio Connector

• 1 x USB Power Jumper (Ultra USB Power)

• 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD

Protection (ASRock Full Spike Protection))

• 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD

Protection (ASRock Full Spike Protection))

BIOS

Feature

• 64Mb AMI UEFI Legal BIOS with multilingual GUI support

• ACPI 1.1 Compliant wake up events

• SMBIOS 2.3.1 support

• CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage multi-adjust-

ment

Support

• Drivers, Utilities, AntiVirus Soware (Trial version), Google

Chrome Browser and Toolbar, Start8 (30 days trial)

Hardware

Monitor

• CPU/Chassis temperature sensing

• CPU/Chassis/Power Fan Tachometer

• CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by

CPU temperature)

• CPU/Chassis Fan multi-speed control

• Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

OS • Microso® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-

bit / 7 32-bit / 7 64-bit

Certica-

tions

• FCC, CE, WHQL

• ErP/EuP ready (ErP/EuP ready power supply is required)

* For detailed product information, please visit our website: http://www.asrock.com

English

Please realize that there is a certain risk involved with overclocking, including adjust-

ing the setting in the BIOS, applying Untied Overclocking Technology, or using third-

party overclocking tools. Overclocking may aect your system’s stability, or even cause

damage to the components and devices of your system. It should be done at your own

risk and expense. We are not responsible for possible damage caused by overclocking.

Due to limitation, the actual memory size may be less than 4GB for the reservation

for system usage under Windows® 32-bit operating systems. Windows® 64-bit operat-

ing systems do not have such limitations. You can use ASRock XFast RAM to utilize

the memory that Windows® cannot use.

Autres manuels pour B85M BTC

Table des matières

Langues :

Autres manuels ASROCK Carte mère

ASROCK

ASROCK A780GXE/128M Manuel utilisateur

ASROCK

ASROCK H61M-VG3 Manuel utilisateur

ASROCK

ASROCK 990FX Extreme4 Manuel utilisateur

ASROCK

ASROCK S330 - V1.0 Manuel utilisateur

ASROCK

ASROCK ALIVENF6G-GLAN Manuel utilisateur

ASROCK

ASROCK H55 EXTREME3 Manuel utilisateur

ASROCK

ASROCK Z490 AQUA Manuel utilisateur

ASROCK

ASROCK M3A790GXH 128M - V1.0 Manuel utilisateur

ASROCK

ASROCK P45DE Manuel utilisateur

ASROCK

ASROCK PHANTOM GAMING X670E PG Lightning Manuel utilisateur

ASROCK

ASROCK B150M Pro4S/D3 Manuel utilisateur

ASROCK

ASROCK A55M-HVS Manuel utilisateur

ASROCK

ASROCK P43DE3L Manuel utilisateur

ASROCK

ASROCK N68- S Manuel utilisateur

ASROCK

ASROCK H55M-GE Manuel utilisateur

ASROCK

ASROCK X570 Taichi Manuel technique

ASROCK

ASROCK IMB-770 Manuel de service

ASROCK

ASROCK AD2550B-ITX Manuel utilisateur

ASROCK

ASROCK P43 PRO USB3 Manuel utilisateur

ASROCK

ASROCK Z590 PG Velocita Manuel utilisateur

ASROCK

ASROCK N68-GE3 UCC - Manuel utilisateur

ASROCK

ASROCK B85 Anniversary Manuel utilisateur

ASROCK

ASROCK X79 Extreme4 Manuel utilisateur

ASROCK

ASROCK Super Alloy H170A-X1 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
