PB 1

English

B360M-ITX

PCIE1

DDR4_A1 (64 bit, 288-pin module)

DDR4_B1 (64 bit, 288-pin module)

CPU_FAN1

CHA_FAN1/WP

RoHS

B360M-ITX

PS2

Keyboard

/Mouse

16 15 14

AUDIO

CODEC

HD_AUDIO1

SPEAKER1

Intel

B360

ATXPWR1

USB3_3_4

PANEL1

HDLED RESET

PLED PWRBTN

Top:

LINE IN

Center:

FRONT

Bottom:

MIC IN

SATA3_3

SATA3_2

CLRMOS1

SATA3_1

SATA3_0

USB_3_4

M2_1

C 1

Top:

RJ-45

USB 3.2 Gen2

T: USB1

B: USB2

USB 3.2 Gen1

T: USB1

B: USB2

BIOS

ROM

DISPLAY1

Ultra M.2

PCIe Gen3 x4

DVI1

CI1

1BAT1

CHA_FAN2

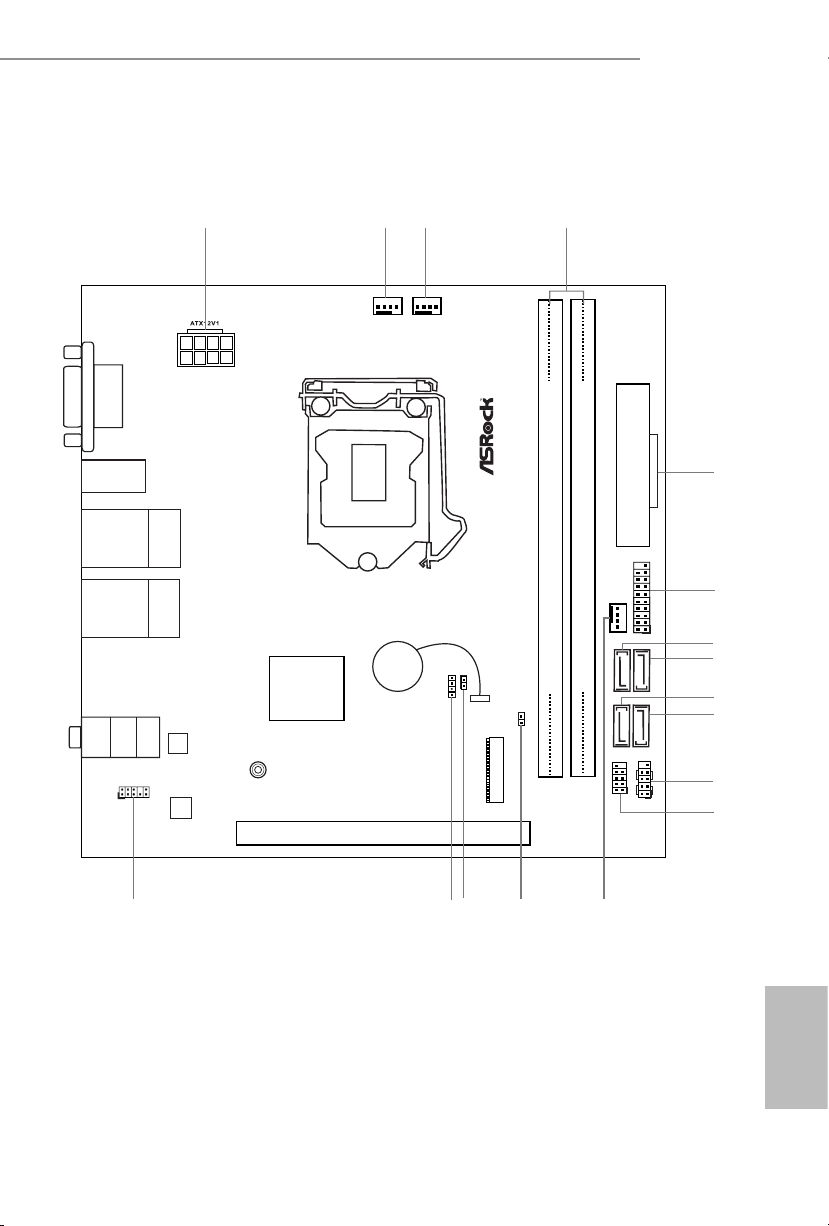

Motherboard Layout

2 3

English

No. Description

1 ATX 12V Power Connector (ATX12V1)

2 Chassis Fan / Waterpump Fan Connector (CHA_FAN1/WP)

3 CPU Fan Connector (CPU_FAN1)

4 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)

5 ATX Power Connector (ATXPWR1)

6 USB 3.2 Gen1 Header (USB3_3_4)

7 SATA3 Connector (SATA3_1)

8 SATA3 Connector (SATA3_0)

9 SATA3 Connector (SATA3_3)

10 SATA3 Connector (SATA3_2)

11 System Panel Header (PANEL1)

12 USB 2.0 Header (USB_3_4)

13 Chassis Fan Connector (CHA_FAN2)

14 Clear CMOS Jumper (CLRMOS1)

15 Chassis Intrusion Header (CI1)

16 Chassis Speaker Header (SPEAKER1)

17 Front Panel Audio Header (HD_AUDIO1)

2 3

English

B360M-ITX

I/O Panel

No. Description No. Description

1DVI-I Port (DVI1) 6 LAN RJ-45 Port*

2DisplayPort 1.2 (DISPLAY1) 7Microphone (Pink)

3 USB 3.2 Gen1 Ports (USB_1_2) 8 Front Speaker (Lime)

4 PS/2 Mouse/Keyboard Port 9 Line In (Light Blue)

5 USB 3.2 Gen2 Type-A Ports (USB3_1_2)

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

ACT/LINK LED

SPEED LED

LAN Port

4 5

English

Chapter 1 Introduction

ank you for purchasing ASRock B360M-ITX motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control.

It delivers excellent performance with robust design conforming to ASRock’s

commitment to quality and endurance.

1.1 Package Contents

• ASRock B360M-ITX Motherboard (Mini-ITX Form Factor)

• ASRock B360M-ITX Quick Installation Guide

• ASRock B360M-ITX Support CD

• 2 x Serial ATA (SATA) Data Cables (Optional)

• 1 x I/O Panel Shield

Because the motherboard specications and the BIOS soware might be updated, the

content of this documentation will be subject to change without notice. In case any modi-

cations of this documentation occur, the updated version will be available on ASRock’s

website without further notice. If you require technical support related to this mother-

board, please visit our website for specic information about the model you are using. You

may nd the latest VGA cards and CPU support list on ASRock’s website as well. ASRock

website http://www.asrock.com.

4 5

English

B360M-ITX

1.2 Specications

Platform • Mini-ITX Form Factor

• Solid Capacitor design

CPU • Supports 9th and 8th Gen Intel® CoreTM Processors (Socket

1151)

• Supports CPU up to 95W

• Digi Power design

• 5 Power Phase design

• Supports Intel® Turbo Boost 2.0 Technology

Chipset • Intel® B360

Memory • Dual Channel DDR4 Memory Technology

• 2 x DDR4 DIMM Slots

• Supports DDR4 2666/2400/2133 non-ECC, un-buered

memory

• Supports ECC UDIMM memory modules (operate in non-

ECC mode)

• Max. capacity of system memory: 64GB

• Supports Intel® Extreme Memory Prole (XMP) 2.0

• 15μ Gold Contact in DIMM Slots

Expansion

Slot

• 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)

* Supports NVMe SSD as boot disks

Graphics * Intel® UHD Graphics Built-in Visuals and the VGA outputs

can be supported only with processors which are GPU

integrated.

• Supports Intel® UHD Graphics Built-in Visuals : Intel®

Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full

HW Encode1, Intel® InTruTM 3D, Intel® Clear Video HD

Technology, Intel® InsiderTM, Intel® UHD Graphics

• DirectX 12

6 7

English

• HWAEncode/Decode: AVC/H.264, HEVC/H.265 8-bit,

HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode

only), MPEG2, MJPEG, VC-1

• Dual graphics output: Support DVI-I and DisplayPort 1.2 by

independent display controllers

• Supports DisplayPort 1.2 with max. resolution up to 4K x 2K

(4096x2304) @ 60Hz

• Supports DVI-I with max. resolution up to 1920x1200 @

60Hz

• Supports HDCP 2.2 with DVI-I and DisplayPort 1.2 Ports

• Supports 4K Ultra HD (UHD) playback with DisplayPort 1.2

Port

Audio • 7.1 CH HD Audio (Realtek ALC887 Audio Codec)

• Supports Surge Protection

• ELNA Audio Caps

LAN • Gigabit LAN 10/100/1000 Mb/s

• Giga PHY Intel® I219V

• Supports Wake-On-LAN

• Supports Lightning/ESD Protection

• Supports Energy Ecient Ethernet 802.3az

• Supports PXE

Rear Panel

I/O

• 1 x PS/2 Mouse/Keyboard Port

• 1 x DVI-I Port

• 1 x DisplayPort 1.2

• 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)

• 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)

• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

• HD Audio Jacks: Line in / Front Speaker / Microphone

6 7

English

B360M-ITX

Storage • 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and

Hot Plug*

* If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will

be disabled.

• 1 x Ultra M.2 Socket, supports M Key type 2280 M.2 SATA3

6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4

(32 Gb/s)**

** Supports Intel® OptaneTM Technolog y

** Supports NVMe SSD as boot disks

** Supports ASRock U.2 Kit

Connector • 1 x Chassis Intrusion Headers

• 1 x CPU Fan Connector (4-pin)

* e CPU Fan Connector supports the CPU fan of maximum

1A (12W) fan power.

• 1 x Chassis Fan Connector (4-pin)

* e Chassis Fan Connector supports the chassis fan of maxi-

mum 1A (12W) fan power.

• 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan

Speed Control)

* e Chassis/Water Pump Fan supports the water cooler fan of

maximum 2A (24W) fan power.

* CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

• 1 x 24 pin ATX Power Connector

• 1 x 8 pin 12V Power Connector

• 1 x Front Panel Audio Connector

• 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports

ESD Protection)

• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

(Supports ESD Protection)

8 9

English

BIOS

Feature

• AMI UEFI Legal BIOS with multilingual GUI support

• ACPI 6.0 Compliant wake up events

• SMBIOS 2.7 Support

• CPU, DRAM, PCH 1.0V, VCCST Voltage Multi-adjustment

Hardware

Monitor

• Temperature Sensing: CPU, Chassis, Chassis/Water Pump

Fans

• Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans

• Quiet Fan (Auto adjust chassis fan speed by CPU tempera-

ture): CPU, Chassis, Chassis/Water Pump Fans

• Fan Multi-Speed Control: CPU, Chassis, Chassis/Water

Pump Fans

• CASE OPEN detection

• Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

OS Microso® Windows® 10 64-bit

Certica-

tions

• FCC, CE

• ErP/EuP ready (ErP/EuP ready power supply is required)

Please realize that there is a certain risk involved with overclocking, including adjusting

the setting in the BIOS, applying Untied Overclocking Technology, or using third-party

overclocking tools. Overclocking may aect your system’s stability, or even cause damage to

the components and devices of your system. It should be done at your own risk and expense.

We are not responsible for possible damage caused by overclocking.

* For detailed product information, please visit our website: http://www.asrock.com

Table des matières

Autres manuels ASROCK Carte mère

ASROCK

ASROCK Q2900M Manuel utilisateur

ASROCK

ASROCK H61DE-S3 Manuel utilisateur

ASROCK

ASROCK K7S8XE Manuel utilisateur

ASROCK

ASROCK Z490 Taichi Manuel utilisateur

ASROCK

ASROCK 775XFIRE-ESATA2 - 02-2006 Manuel utilisateur

ASROCK

ASROCK EP2C606-4L/D16 Manuel utilisateur

ASROCK

ASROCK P55 DELUXE - V1.1 Manuel utilisateur

ASROCK

ASROCK C621A WS Manuel utilisateur

ASROCK

ASROCK Fatal1ty Z97M Killer Series Manuel utilisateur

ASROCK

ASROCK 775Twins-HDTV Guide rapide

ASROCK

ASROCK X370M-HDV Manuel utilisateur

ASROCK

ASROCK P43D1600TWINS Manuel utilisateur

ASROCK

ASROCK Z690 PRO RS Manuel utilisateur

ASROCK

ASROCK A55iCafe Manuel utilisateur

ASROCK

ASROCK P55 PRO/USB3 - Manuel utilisateur

ASROCK

ASROCK B450D4U-V1L Manuel utilisateur

ASROCK

ASROCK N4200-NUC IPC Manuel utilisateur

ASROCK

ASROCK AB350M PRO4/DASH Manuel utilisateur

ASROCK

ASROCK Z77 Extreme6 Manuel utilisateur

ASROCK

ASROCK P55 PRO/USB3 - Manuel utilisateur

ASROCK

ASROCK B150M-DVS R2.0 Manuel utilisateur

ASROCK

ASROCK 939NF6G-VSTA Manuel utilisateur

ASROCK

ASROCK PV530-ITX - Manuel utilisateur

ASROCK

ASROCK H67M Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
