ASROCK 775Dual-VSTA Manuel utilisateur

ASRock 775Dual-VSTA Motherboard

No part of this installation guide may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for

identification or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Specifications and information contained in this guide are furnished for informational

use only and subject to change without notice, and should not be constructed as a

commitment by ASRock. ASRock assumes no responsibility for any errors or

omissions that may appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any

kind, either expressed or implied, including but not limited to the implied warranties or

conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of profits, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the guide or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

ASRock Website: http://www.asrock.com

Published October 2006

EnglishEnglish

English

ASRock 775Dual-VSTA Motherboard

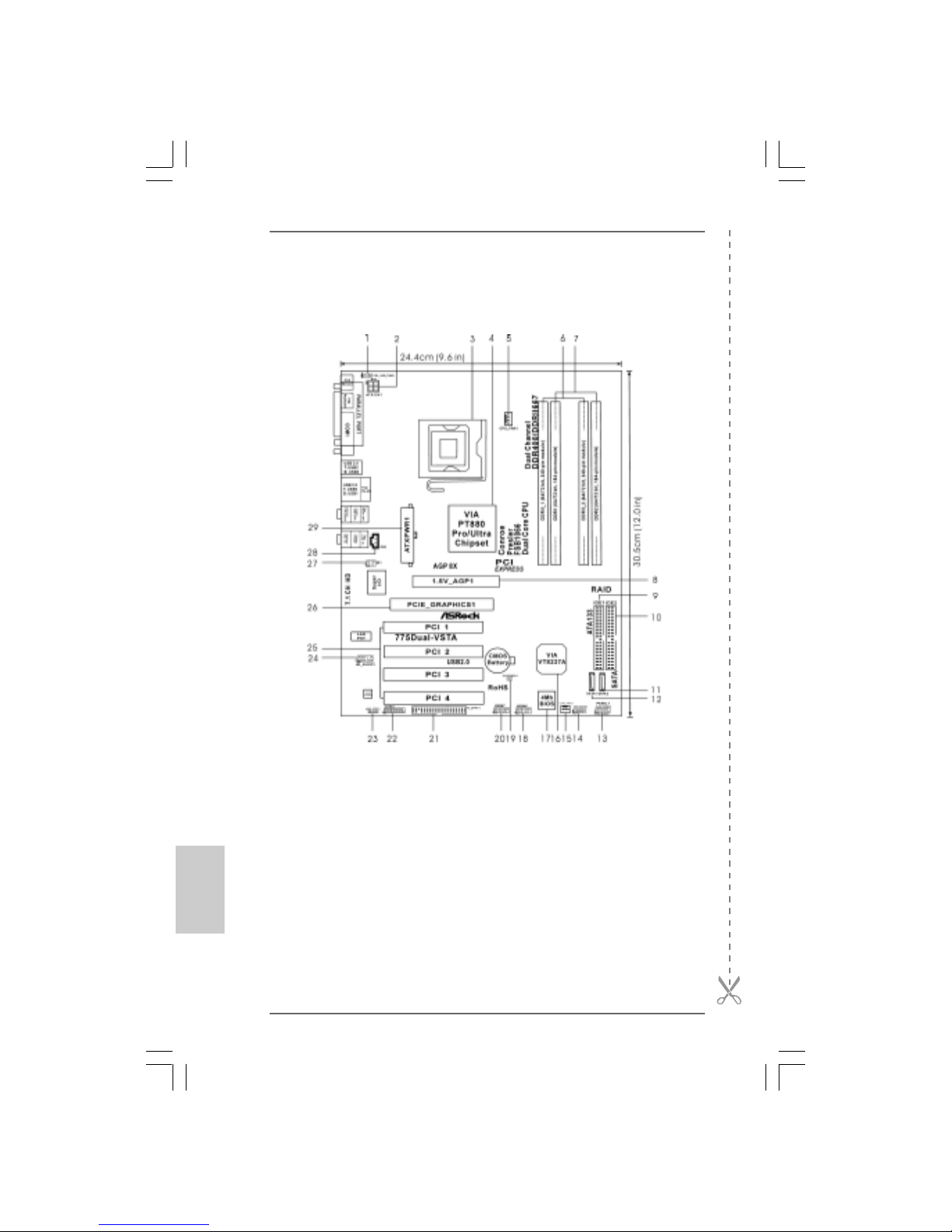

Motherboard LMotherboard L

Motherboard Layoutayout

ayoutayout

ayout

EnglishEnglish

English

1 PS2_USB_PWR1 Jumper 15 Chassis Fan Connector (CHA_FAN1)

2 ATX 12V Connector (ATX12V1) 16 South Bridge Controller

3 775-Pin CPU Socket 17 FlashMemory

4 North Bridge Controller 18 USB 2.0 Header (USB45, Blue)

5 CPU Fan Connector (CPU_FAN1) 19 Clear CMOS Jumper (CLRCMOS1)

6 2 x 240-pin DDRII DIMM Slots 20 USB 2.0 Header (USB67, Blue)

(Dual Channel A: DDRII_1, DDRII_2; Yellow) 21 Floppy Connector (FLOPPY1)

7 2 x 184-pin DDR DIMM Slots 22 Game Connector (GAME1)

(Dual Channel B: DDR1, DDR2; Blue) 23 HDMI_SPDIF Header (HDMI_SPDIF1)

8 AGP Slot (1.5V_AGP1) 24 Front Panel Audio Header (HD_AUDIO1)

9 Primary IDE Connector (IDE1, Blue) 25 4 x PCI Slots (PCI1- 4)

10 Secondary IDE Connector (IDE2, Black) 26 PCI Express Graphics Slot

11 Secondary Serial ATA Connector (SATA2) 27 Infrared Module Header (IR1)

12 Primary Serial ATA Connector (SATA1) 28 Internal Audio Connector: CD1 (Black)

13 System Panel Header (PANEL1) 29 ATX Power Connector (ATXPWR1)

14 Chassis Speaker Header (SPEAKER 1)

ASRock 775Dual-VSTA Motherboard

EnglishEnglish

English

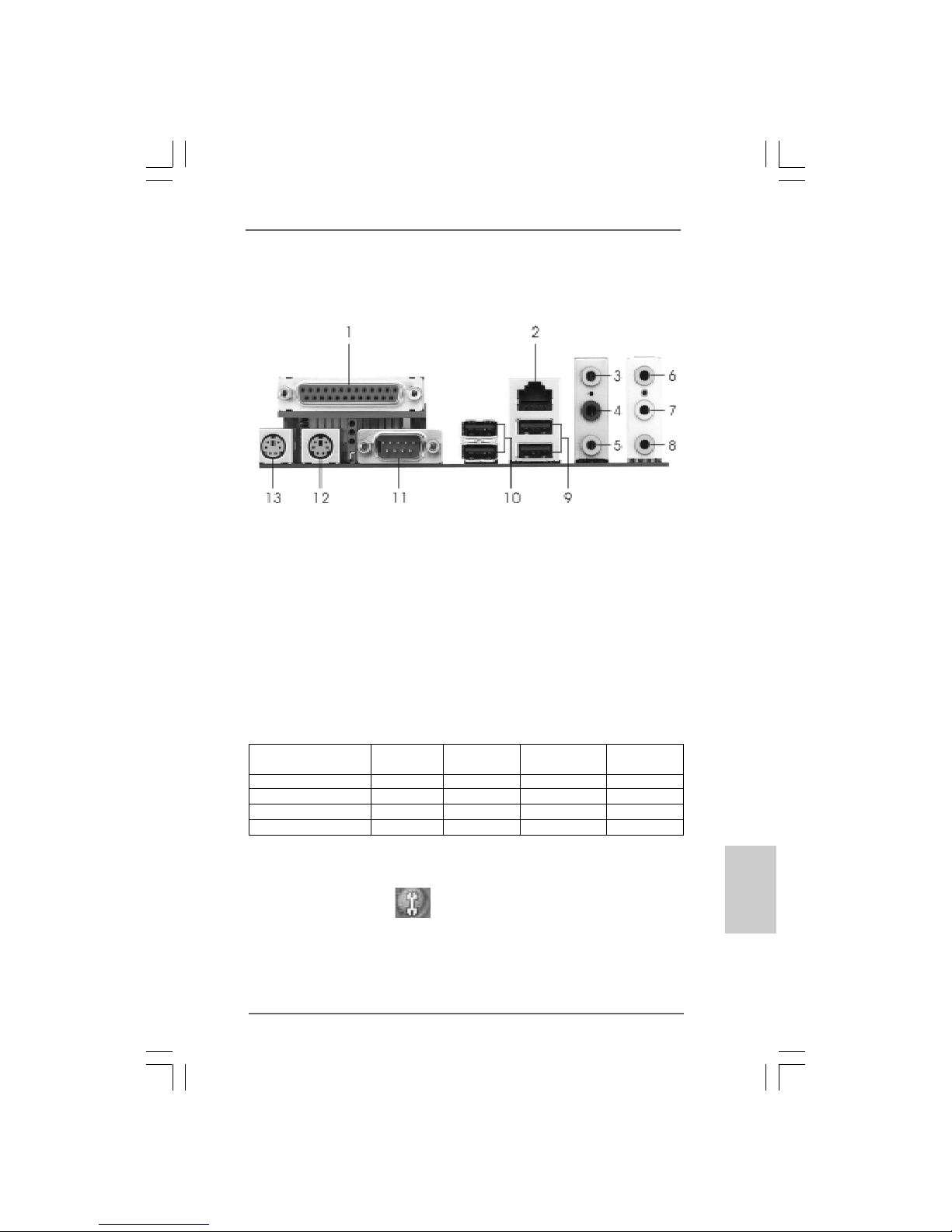

HD 8CH I/OHD 8CH I/O

HD 8CH I/O

1 Parallel Port 8 Microphone (Pink)

2 RJ-45 Port 9 USB 2.0 Ports (USB01)

3 Side Speaker (Gray) 10 USB 2.0 Ports (USB23)

4 Rear Speaker (Black) 11 Serial Port: COM1

5 Central/ Bass (Orange) 12 PS/2 Keyboard Port (Purple)

6 Line In (Light Blue) 13 PS/2 Mouse Port (Green)

*7 Front Speaker (Lime)

* If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See

the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker

(No. 7) (No. 4) (No. 5) (No. 3)

2 V -- -- --

4VV----

6 VVV--

8 VVVV

* To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will find “Mixer” tool on your system.

Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click

“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA

Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek HDA

Audio 2nd output” to use front panel audio.

ASRock 775Dual-VSTA Motherboard

1. Introduction1. Introduction

1. Introduction

Thank you for purchasing ASRock 775Dual-VSTA motherboard, a reliable mother-

board produced under ASRock’s consistently stringent quality control. It delivers

excellent performance with robust design conforming to ASRock’s commitment to

quality and endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found in

the user manual presented in the Support CD.

Because the motherboard specifications and the BIOS software might

be updated, the content of this manual will be subject to change

without notice. In case any modifications of this manual occur, the

updated version will be available on ASRock website without further

notice. You may find the latest VGA cards and CPU support lists on

ASRock website as well.

ASRock website http://www.asrock.com

1.1 Package Contents1.1 Package Contents

1.1 Package Contents

ASRock 775Dual-VSTA Motherboard

(ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm)

ASRock 775Dual-VSTAQuick Installation Guide

ASRock 775Dual-VSTA Support CD

(including LGA 775 CPU Installation Live Demo)

One 80-conductor Ultra ATA 66/100/133 IDE Ribbon Cable

One Ribbon Cable for a 3.5-in Floppy Drive

One SerialATA (SATA) Cable (Optional)

One SerialATA (SATA) HDD Power Cable (Optional)

OneHDMI_SPDIFCable (Optional)

One HD 8CH I/O Panel Shield

EnglishEnglish

English

ASRock 775Dual-VSTA Motherboard

EnglishEnglish

English

1.21.2

1.2 SpecificationsSpecifications

SpecificationsSpecifications

Specifications

Platform - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

CPU - LGA775 for Intel®Dual Core Pentium®XE and Pentium®D /

Pentium® 4 / Celeron®D, supporting CoreTM 2Duo Desktop

(Conroe), Presler and Cedar Mill processors

(in 775-land LGA package)

- FSB 1066/800/533 MHz

- Supports Hyper-Threading Technology (see CAUTION 1)

- Supports Untied Overclocking Technology (see CAUTION 2)

- Supports EM64T CPU

Chipset - Northbridge: VIA® PT880 Pro/Ultra chipset

- Southbridge: VIA®VT8237A

Memory -Dual Channel DDR/DDRII Memory Technology

(see CAUTION 3)

- 2 xDDRIIDIMM slots

- SupportDDRII667/533

- Max. capacity: 2GB

- 2 xDDRDIMM slots

- SupportDDR400/333/266

- Max. capacity: 2GB

Hybrid Booster - CPU Frequency Stepless Control (see CAUTION 4)

- ASRock U-COP (see CAUTION 5)

- Boot Failure Guard (B.F.G.)

Expansion Slot - 4 x PCI slots

- 1 x PCI Express Graphics slot (see CAUTION 6)

- 1 x AGP slot for 1.5V 8X/4X AGP card (see CAUTION 7)

Audio - RealtekALC888 7.1 channel audio CODEC with High

Definition audio

LAN - VIA®PHY VT6103

- Speed: 10/100 Ethernet

- Supports Wake-On-LAN

Rear Panel I/O HD8CHI/O

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x Serial Port: COM1

- 1 x Parallel Port (ECP/EPP Support)

- 4 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 Port

- Audio Jack: Side Speaker/Rear Speaker/Central Bass/Line

in/Front Speaker/Microphone (see CAUTION 8)

ASRock 775Dual-VSTA Motherboard

EnglishEnglish

English

Connector - 2 x SerialATA 1.5Gb/s connectors, support RAID(RAID 0,

RAID 1, and JBOD) and “Hot Plug” functions

- 2 x ATA133 IDE connector (supports 4 x IDE devices)

- 1 x Floppy connector

- 1 x IR header

- 1 x Game header

-1 x HDMI_SPDIFheader(HDMI_SPDIF1)

- CPU/Chassis FAN connector

- 20 pin ATX power connector

- 4 pin 12V power connector

- CD in header

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

(see CAUTION 9)

BIOS Feature - 4MbAMI BIOS

-AMI Legal BIOS

- Supports “Plug and Play”

-ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version)

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU Overheat Shutdown to Protect CPU Life

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

OS - Microsoft® Windows® 2000/XP/XP 64-bit/VistaTM compliant

(see CAUTION 10)

Certifications - FCC, CE, WHQL

ASRock 775Dual-VSTA Motherboard

EnglishEnglish

English

CAUTION!

1. About the setting of “Hyper ThreadingTechnology”, please check page 32

of “User Manual” in the support CD.

2. This motherboard supports Untied Overclocking Technology. Please read

“Untied Overclocking Technology” on page 24 for details.

3. This motherboard supportsDual Channel Memory Technology. Before you

implement Dual Channel Memory Technology, make sure to read the

installation guide of memory modules on page 13 for proper installation.

4. Although this motherboard offers stepless control, it is not recommended

to perform over-clocking. Frequencies other than the recommended CPU

bus frequencies may cause the instability of the system or damage the

CPU.

5. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC system.

6. For the information of the compatible PCI Express VGA cards, please

refer to the “Supported PCI Express VGA Card List for PCI Express

Graphics Slot” on page 9. For the proper installation of PCI Express VGA

card, please refer to the installation guide on page 15.

7. Do NOT use a 3.3V AGP card on the AGP slot of this motherboard!

It may cause permanent damage!

8. For microphone input, this motherboard supports both stereo and mono

modes. For audio output, this motherboard supports 2-channel, 4-channel,

6-channel, and 8-channel modes. Please check the table on page 3 for

proper connection.

9. Power Management for USB 2.0 works fine under Microsoft®Windows®

VistaTM / XP 64-bit / XP SP1 or SP2 / 2000 SP4.

10. Microsoft®Windows®VistaTM driver is not ready yet. We will update it to our

website in the future. Please visit our website for Microsoft®Windows®VistaTM

driver and related information.

ASRock website http://www.asrock.com

ASRock 775Dual-VSTA Motherboard

EnglishEnglish

English

1.31.3

1.3 Minimum Hardware RMinimum Hardware R

Minimum Hardware RMinimum Hardware R

Minimum Hardware Requirement Tequirement T

equirement Tequirement T

equirement Table for Wable for W

able for Wable for W

able for Windowsindows

indowsindows

indows®®

®®

VistaVista

VistaTMTM

TMTM

TM Premium and Basic OSPremium and Basic OS

Premium and Basic OSPremium and Basic OS

Premium and Basic OS

This motherboard can support all features in Windows®VistaTM Premium.

Please follow the below table for minimum hardware requirement.

CPU Celeron D 326

Memory 512MB Single Channel

VGA DX9.0 with WDDM Driver

with 128bit VGA memory (Premium)

with 64bit VGA memory (Basic)

ASRock 775Dual-VSTA Motherboard

1.41.4

1.4 Supported PCI Express VGA Card List for PCISupported PCI Express VGA Card List for PCI

Supported PCI Express VGA Card List for PCISupported PCI Express VGA Card List for PCI

Supported PCI Express VGA Card List for PCI

Express Graphics SlotExpress Graphics Slot

Express Graphics Slot

(for Windows®2000/XP/XP 64-bit/VistaTM)

Graphics Chip ModelName

Vendor

n-VIDIA ASUS Extreme N6200GE/TD

ASUS Extreme N6200TC256/TD

ASUS Extreme N6800GT

ASUS Extreme N6800/TD

ALBATRONPC6600GT

GIGABYTEGV-NX66128D

Inno3D GeFORCE 6600 LE

LEADTEK PX6200 TC/TDH

MSIPCX5750-TD128E

SPARKLEGeFORCE 6200TC

ATI ASUS ExtremeAX700PRO/TVD

ABITRX600XT-PCIE

GECUBERadeonX850XT256M

For the latest updates of the supported PCI Express VGA card list for PCI

Express Graphics slot, please visit ASRock website for details.

ASRock website: http://www.asrock.com/support/index.htm

EnglishEnglish

English

ASRock 775Dual-VSTA Motherboard

1010

EnglishEnglish

English

2.2.

2.InstallationInstallation

InstallationInstallation

Installation

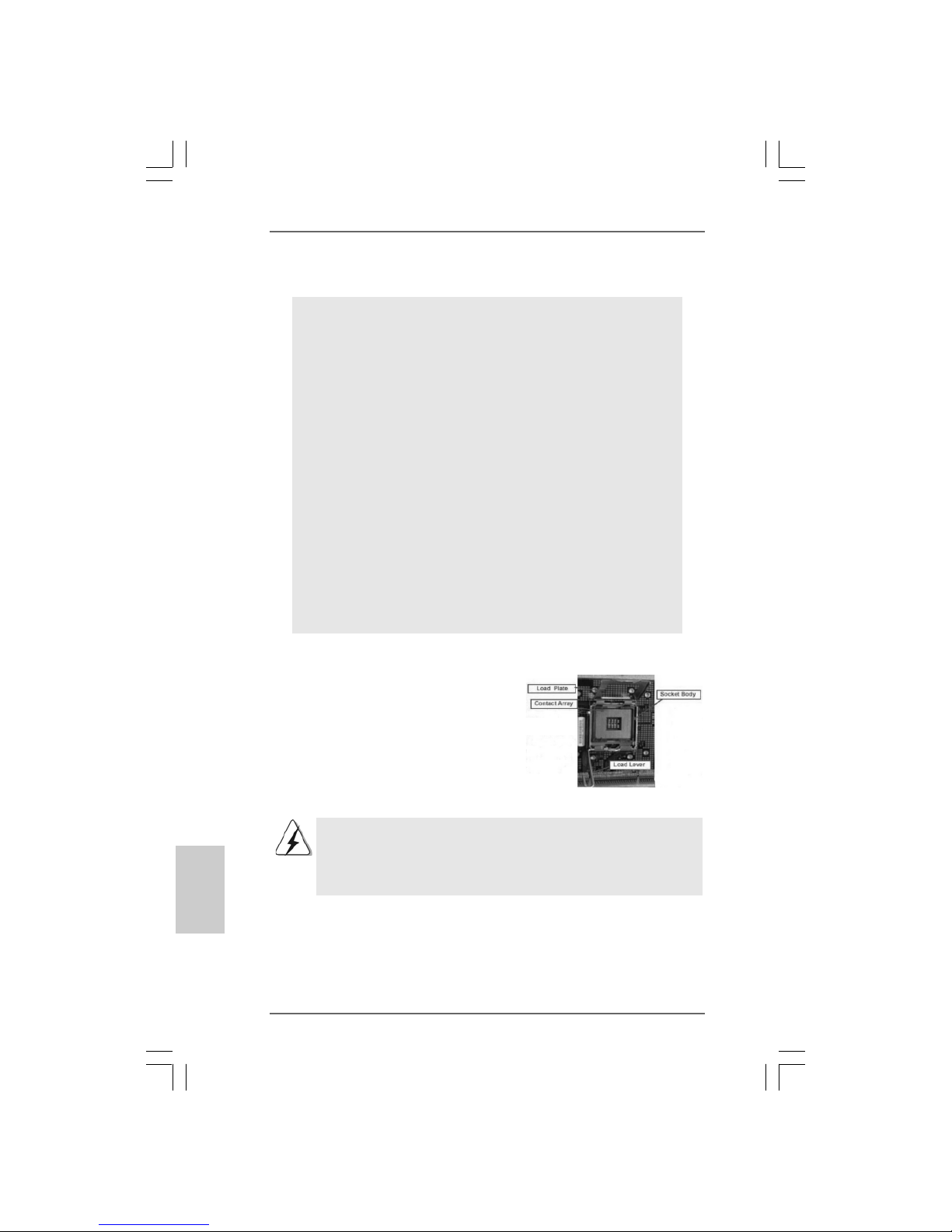

Pre-installation PrecautionsPre-installation Precautions

Pre-installation Precautions

Take note of the following precautions before you install mother-

board components or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any

component. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

2. To avoid damaging the motherboard components due to static

electricity, NEVER place your motherboard directly on the carpet

or the like. Also remember to use a grounded wrist strap or touch

a safety grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded

antstatic pad or in the bag that comes with the component.

5. When placing screws into the screw holes to secure the

motherboard to the chassis, please do not over-tighten the

screws! Doing so may damage the motherboard.

2.12.1

2.1 CPU InstallationCPU Installation

CPU InstallationCPU Installation

CPU Installation

For the installation of Intel 775-LAND CPU,

please follow the steps below.

Before you insert the 775-LAND CPU into the socket, please check if

the CPU surface is unclean or if there is any bent pin on the socket.

Do not force to insert the CPU into the socket if above situation is

found. Otherwise, the CPU will be seriously damaged.

775-Pin Socket Overview

Autres manuels pour 775Dual-VSTA

Table des matières

Langues :

Autres manuels ASROCK Carte mère

ASROCK

ASROCK J4005DC-ITX Manuel utilisateur

ASROCK

ASROCK P41C-DE Manuel utilisateur

ASROCK

ASROCK PRO4 B550 Manuel utilisateur

ASROCK

ASROCK N68-VGS3 UCC - Manuel utilisateur

ASROCK

ASROCK 960GC-GS FX Manuel utilisateur

ASROCK

ASROCK FM2A88M Extreme4+ R2.0 Manuel utilisateur

ASROCK

ASROCK H55 PRO - V1.0 Manuel utilisateur

ASROCK

ASROCK B560 Steel Legend Manuel utilisateur

ASROCK

ASROCK J3160TM-ITX Manuel utilisateur

ASROCK

ASROCK P55DE PRO - Manuel utilisateur

ASROCK

ASROCK 775XFIRE-ESATA2 - 02-2006 Manuel utilisateur

ASROCK

ASROCK FM2A85X Pro Manuel utilisateur

ASROCK

ASROCK QC5000M Manuel utilisateur

ASROCK

ASROCK K8NF4G-SATA2 Manuel utilisateur

ASROCK

ASROCK Z97E-ITX Manuel utilisateur

ASROCK

ASROCK G41MH USB3 Manuel utilisateur

ASROCK

ASROCK Fatal1ty FM2A88X+ Killer Series Manuel utilisateur

ASROCK

ASROCK H110M-DGS Manuel utilisateur

ASROCK

ASROCK 775V88-M+ Manuel utilisateur

ASROCK

ASROCK SBC-210 Manuel de service

ASROCK

ASROCK H97 Anniversary Manuel utilisateur

ASROCK

ASROCK H67M-ITX Manuel utilisateur

ASROCK

ASROCK A88M-G/3.1 Manuel utilisateur

ASROCK

ASROCK 775XFIRE-ESATA2 - 02-2006 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
