ASRock 775i65G Motherboard

EnglishEnglish

English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documen-

tation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identifica-

tion or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Specifications and information contained in this guide are furnished for informational

use only and subject to change without notice, and should not be constructed as a

commitment by ASRock. ASRock assumes no responsibility for any errors or omissions

that may appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or

conditions of merchantability or fitness for a particular purpose. In no event shall

ASRock, its directors, officers, employees, or agents be liable for any indirect, special,

incidental, or consequential damages (including damages for loss of profits, loss of

business, loss of data, interruption of business and the like), even if ASRock has been

advised of the possibility of such damages arising from any defect or error in the guide

or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

Published June 2012

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic

substance controlled in Perchlorate Best Management Practices (BMP) regulations

passed by the California Legislature. When you discard the Lithium battery in

California, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

ASRock 775i65G Motherboard

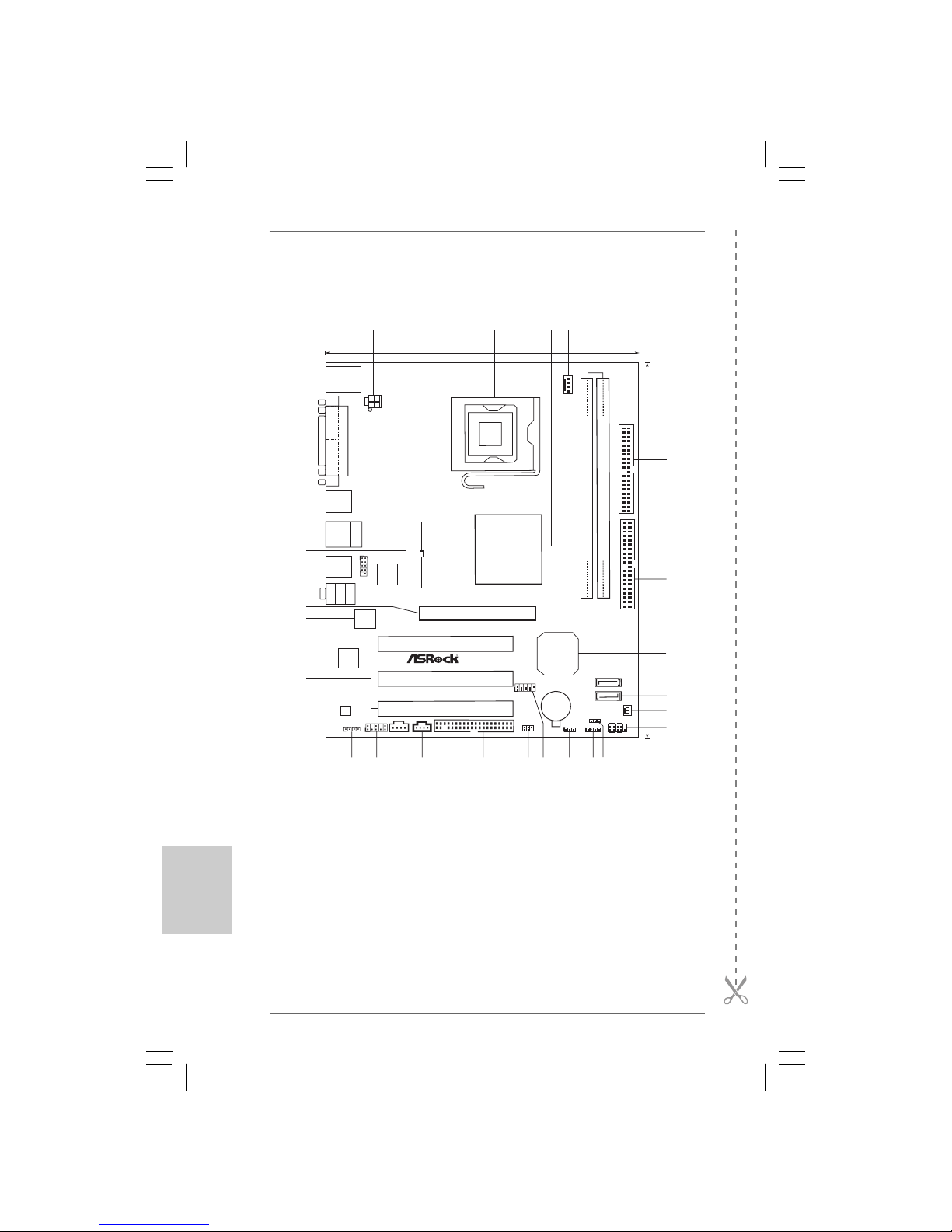

Motherboard LMotherboard L

Motherboard Layoutayout

ayoutayout

ayout

EnglishEnglish

English

1 ATX 12V Connector (ATX12V2) 15 Clear CMOS Jumper (CLRCMOS0)

2 775-Pin CPU Socket 16 USB 2.0 Header (USB67)

3 North Bridge Controller 17 Infrared Module Header (IR1)

4 CPU Fan Connector (CPU_FAN1) 18 Floppy Connector (FLOPPY1)

5 184-pin DDR DIMM Slots (DDR1- 2) 19 Internal Audio Connector: CD1 (Black)

6 Secondary IDE Connector (IDE2, Black) 20 Internal Audio Connector: AUX1 (White)

7 Primary IDE Connector (IDE1, Blue) 21 Front Panel Audio Header (AUDIO1)

8 South Bridge Controller 22 JR1 / JL1 Jumpers

9 Secondary Serial ATA Connector (SATA2) 23 PCI Slots (PCI1- 3)

10 Primary Serial ATA Connector (SATA1) 24 BIOS FWH Chip

11 Chassis Fan Connector (CHA_FAN1) 25 AGP Slot (1.5V_AGP1)

12 System Panel Header (PANEL1) 26 Shared USB 2.0 Header (USB4_5)

13 Power LED Header (PLED1) 27 ATX Power Connector (ATXPWR1)

14 Chassis Speaker Header (SPEAKER1)

DDR1 (64/72 bit, 184-pin module)

DDR2 (64/72 bit, 184-pin module)

1.5V_AGP1

ATX 12V 2

SATA2

SATA1

AUX1 CD1

USB 2.0

T: USB 0

B: USB1

Top :

RJ-45

Top:

Line In

Center:

Line Out

Bottom:

Mic In

USB 2.0

T: USB 4

B: USB5

PCI1

4Mb

BIOS

Super

I/O

USB67

IR1

PANEL1

SPEAKER1

FLOPPY1

CHA_FAN1

CMOS

Battery

Intel

865G

Chipset

IDE1 IDE2

AUDIO1

Audio

CODEC

CPU_FAN1

ATXPWR1

LAN

PHY

Intel

ICH5

20.3cm (8.0 in)

24.4cm (9.6in)

775i65G

USB4_5

124

PCI2

PCI3

CLRCMOS0

JR1 JL1

HDLED RESET

PLED PWRBTN

USB 2.0

T: USB 2

B: USB3

PS2

Mouse

PS2

Keyboard

PARALLEL PORT

COM1 VGA1

ErP/EuP Ready

RoHS

FSB1066

FSB800

PLED1

ASRock 775i65G Motherboard

EnglishEnglish

English

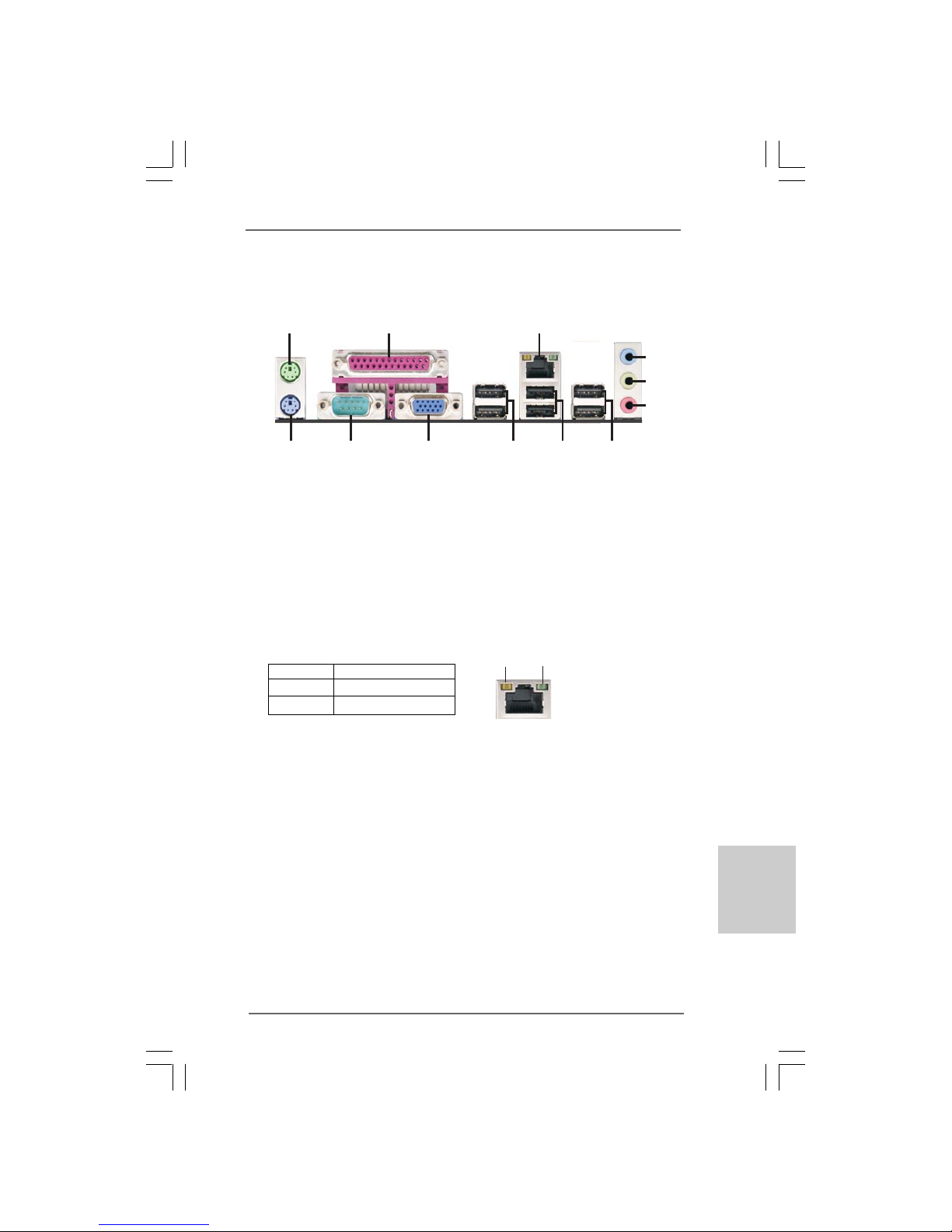

I/O PI/O P

I/O Panelanel

anelanel

anel

1 PS/2 Mouse Port (Green) 7 Shared USB 2.0 Ports (USB45)

2 Parallel Port 8 USB 2.0 Ports (USB01)

* 3 RJ-45 Port 9 USB 2.0 Ports (USB23)

4 Line In (Light Blue) 10 VGA Port

5 Line Out (Lime) 11 Serial Port: COM1

6 Microphone (Pink) 12 PS/2 Keyboard Port (Purple)

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

SPEED LED

Status Description

Yellow 10Mbps connection

Green 100Mbps connection

LAN Port

10Mbps 100Mbps

ASRock 775i65G Motherboard

1. Introduction1. Introduction

1. Introduction

Thank you for purchasing ASRock 775i65G motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found in

the user manual presented in the Support CD.

Because the motherboard specifications and the BIOS software might

be updated, the content of this manual will be subject to change without

notice. In case any modifications of this manual occur, the updated

version will be available on ASRock website without further notice. You

may find the latest VGA cards and CPU support lists on ASRock website

as well. ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specific information about the model you are using.

www.asrock.com/support/index.asp

1.1 P1.1 P

1.1 Packack

ackack

ackage Contentsage Contents

age Contentsage Contents

age Contents

ASRock 7775i65G Motherboard

(MicroATX Form Factor: 9.6-in x 8.0-in, 24.4 cm x 20.3 cm)

ASRock 775i65G Quick InstallationGuide

ASRock 775i65G Support CD

One 80-conductor UltraATA 66/100 IDE Ribbon Cable

One SerialATA(SATA) Data Cable (Optional)

One I/O Panel Shield

EnglishEnglish

English

ASRock 775i65G Motherboard

EnglishEnglish

English

1.21.2

1.2 SpecificationsSpecifications

SpecificationsSpecifications

Specifications

Platform - MicroATX Form Factor: 9.6-in x 8.0-in, 24.4 cm x 20.3 cm

CPU - LGA775 for Intel®Dual-Core CoreTM 2 Extreme / CoreTM 2Duo

/ Pentium®D / Pentium®4 / Celeron®D

- FSB 1066 MHz for external graphics (see CAUTION 1)

- FSB 800/533 MHz for internal graphics

- Supports Hyper-ThreadingTechnology (see CAUTION 2)

- Supports Untied Overclocking Technology (see CAUTION 3)

- Supports EM64T CPU

Chipset -Northbridge: Intel®865G

- Southbridge: Intel®ICH5

Memory - Dual Channel DDR Memory Technology (see CAUTION 4)

- 2 x DDRDIMM slots

- SupportDDR400/333/266 (see CAUTION 5)

- Max. capacity: 2GB

Expansion Slot - 3 x PCI slots

- 1 xAGP slot for 1.5V 8X/4XAGP card (see CAUTION 6)

Graphics - Integrated Intel® ExtremeGraphics 2

-DirectX 8.0

- Max. shared memory 96MB

- SupportsD-Sub with max. resolution up to 2048x1536 @ 75Hz

Audio - 5.1 CHAudio (C-Media 9761AAudio Codec)

LAN - Realtek PCI LAN 8101L

- Speed: 10/100 Ethernet

- Supports Wake-On-LAN

- Supports PXE

Rear Panel I/O I/O Panel

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x Serial Port: COM1

- 1 x VGAPort

- 1 x Parallel Port (ECP/EPP Support)

- 6 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 LAN Port with LED (SPEED LED)

- Audio Jack: Line In / Line Out / Microphone

ASRock 775i65G Motherboard

EnglishEnglish

English

Connector - 2 x SATA 1.5Gb/s connectors

(No Support for “RAID” and “Hot Plug” functions)

- 2 xATA100 IDE connectors (support 4 x IDE devices)

- 1 x Floppy connector

- 1 x IR header

- 1 x Power LED header

- 1 x CPU Fan connector (4-pin)

- 1 x Chassis Fan connector (3-pin)

- 20 pinATX power connector

- 4 pin 12V power connector

- CD in header

-AUX in header

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports; 2 of them are

shared with USB45) (see CAUTION 7)

BIOS Feature - 4MbAMI Legal BIOS

- Supports “Plug and Play”

-ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

Support CD -Drivers, Utilities,AntiVirus Software (Trial Version), CyberLink

MediaEspresso 6.5 Trial,ASRock MAGIX Multimedia Suite -

OEM

Unique Feature -ASRock APP Charger (see CAUTION 8)

- Hybrid Booster:

- CPU Frequency Stepless Control (see CAUTION 9)

-ASRock U-COP (see CAUTION 10)

- Boot FailureGuard (B.F.G.)

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

OS - Microsoft® Windows® 98SE/ME/2000/XP compliant

Certifications - FCC, CE, WHQL

* For detailed product information, please visit our website: http://www.asrock.com

ASRock 775i65G Motherboard

EnglishEnglish

English

CAUTION!

1. FSB1066-CPU is supported only when you install AGP VGA card into

AGP slot. Besides, if you use a FSB1066-CPU on this motherboard,

please adopt a DDR400 CL2.5 memory module.

2. About the setting of “Hyper Threading Technology”, please check page

29 of “User Manual” in the support CD.

3. This motherboard supports Untied Overclocking Technology. Please read

“Untied Overclocking Technology” on page 19 for details.

4. This motherboard supports Dual Channel Memory Technology. Before

you implement Dual Channel Memory Technology, make sure to read

the installation guide of memory modules on page 13 for proper

installation.

5. Please check the table below for the memory support frequency and its

corresponding CPU FSB frequency.

CPU FSB Frequency Memory Support Frequency

800 DDR266, DDR320*, DDR400

533 DDR266, DDR333

*When you use an FSB800-CPU on this motherboard, it will run at

DDR320 if you adopt a DDR333 memory module.

6. Do NOT use a 3.3V AGP card on the AGP slot of this motherboard!

It may cause permanent damage!

7. Power Management for USB 2.0 works fine under Microsoft®Windows®

XP SP1 or SP2 / 2000 SP4. It may not work properly under Microsoft®

Windows®98/ ME.

8. If you desire a faster, less restricted way of charging your Apple devices,

such as iPhone/iPod/iPad Touch, ASRock has prepared a wonderful

solution for you -ASRock APP Charger. Simply installing the APP Charger

driver, it makes your iPhone charged much quickly from your computer

and up to 40% faster than before. ASRock APP Charger allows you to

quickly charge many Apple devices simultaneously and even supports

continuous charging when your PC enters into Standby mode (S1),

hibernation mode (S4) or power off (S5). With APP Charger driver

installed, you can easily enjoy the marvelous charging experience than

ever.

ASRock website: http://www.asrock.com/Feature/AppCharger/index.asp

WARNING

Please realize that there is a certain risk involved with overclocking, including

adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using

the third-party overclocking tools. Overclocking may affect your system stability, or

even cause damage to the components and devices of your system. It should be

done at your own risk and expense. We are not responsible for possible damage

caused by overclocking.

ASRock 775i65G Motherboard

EnglishEnglish

English

9. Although this motherboard offers stepless control, it is not recom-

mended to perform over-clocking. Frequencies other than the recom-

mended CPU bus frequencies may cause the instability of the system

or damage the CPU.

10. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC

system.

ASRock 775i65G Motherboard

EnglishEnglish

English

2. Installation2. Installation

2. Installation

775i65G is a MicroATX form factor (9.6" x 8.0", 24.4 x 20.3 cm) motherboard. Before you

install the motherboard, study the configuration of your chassis to

ensure that the motherboard fits into it.

Make sure to unplug the power cord before installing or removing the

motherboard. Failure to do so may cause physical injuries to you and

damages to motherboard components.

2.1 Screw Holes2.1 Screw Holes

2.1 Screw Holes

Place screws into the holes indicated by circles to secure the motherboard to the chassis.

Do not over-tighten the screws! Doing so may damage the motherboard.

2.2 Pre-installation Precautions2.2 Pre-installation Precautions

2.2 Pre-installation Precautions

Take note of the following precautions before you install motherboard components or

change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any component.

2. To avoid damaging the motherboard components due to static electricity, NEVER

place your motherboard directly on the carpet or the like.Also remember to use

a grounded wrist strap or touch a safety grounded object before you handle

components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded antistatic pad or

in the bag that comes with the component.

Before you install or remove any component, ensure that the power is

switched off or the power cord is detached from the power supply. Failure to

do so may cause severe damage to the motherboard, peripherals, and/or

components.

ASRock 775i65G Motherboard

1010

EnglishEnglish

English

LiftLeverUpto90°

CPUMarkedCorner

SocketMarkedCorner

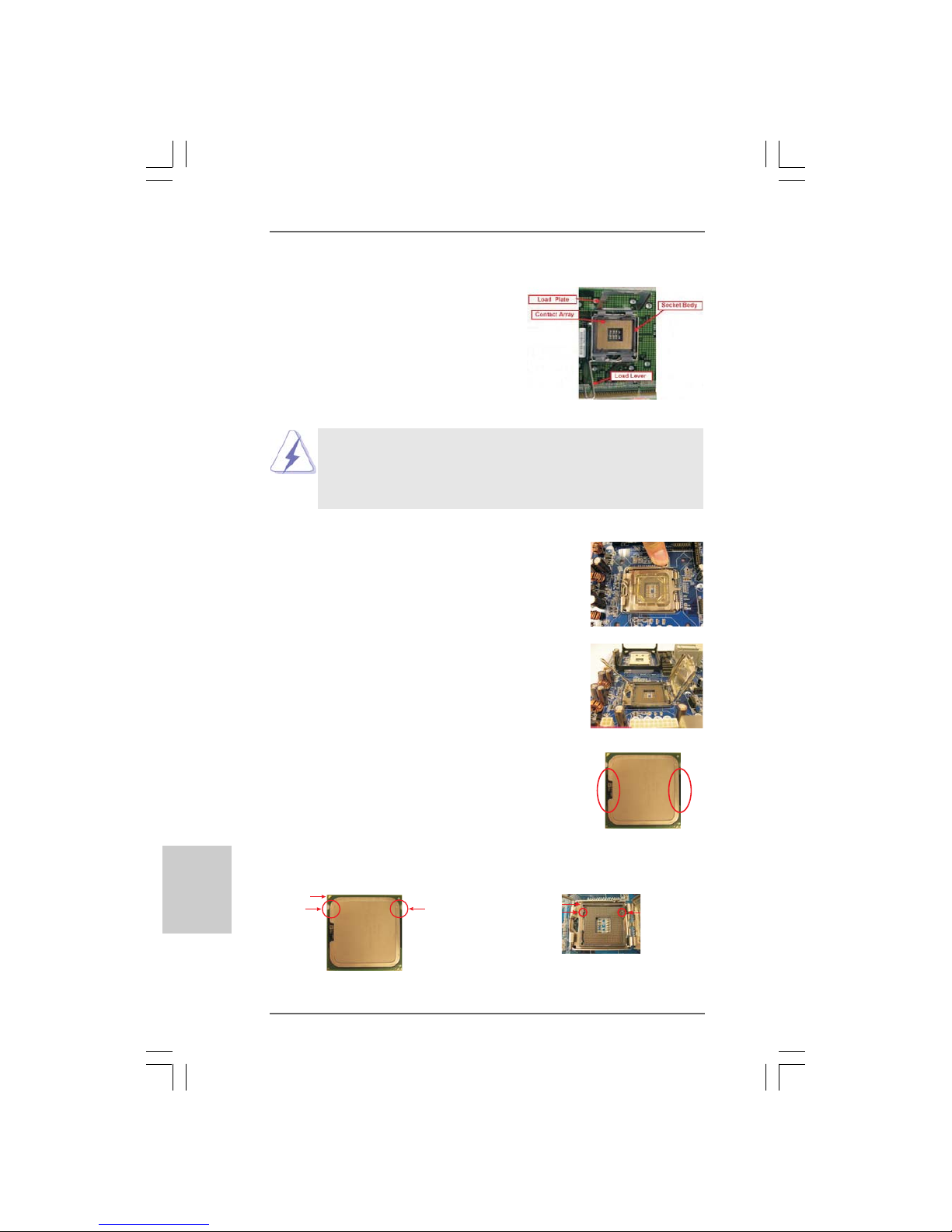

2.3 CPU Installation2.3 CPU Installation

2.3 CPU Installation

For the installation of Intel 775-LAND CPU,

please follow the steps below.

Before you insert the 775-LAND CPU into the socket, please check if

the CPU surface is unclean or if there is any bent pin on the socket.

Do not force to insert the CPU into the socket if above situation is

found. Otherwise, the CPU will be seriously damaged.

Step 1. Open the socket:

Step 1-1. Disengaging the lever by depressing

down and out on the hook to clear re-

tention tab.

Step 1-2. Rotate the load lever to fully open posi-

tion at approximately 135 degrees.

Step 1-3. Rotate the load plate to fully open posi-

tion at approximately 100 degrees.

Step 2. Insert the 775-LAND CPU:

Step 2-1. Hold the CPU by the edges where are

marked with black lines.

Step 2-2. OrienttheCPUwithIHS(IntegratedHeat

Sink) up. Locate Pin1 and the two ori-

entation key notches.

775-Pin Socket Overview

black line

775-Pin Socket

Pin1

alignment key alignment key

Pin1

orientation

key notch orientation

key notch

775-LAND CPU

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ASROCK Carte mère

ASROCK

ASROCK WRX80D8-2T/X550 Manuel utilisateur

ASROCK

ASROCK IMB-170 Manuel utilisateur

ASROCK

ASROCK N68-GS UCC - Manuel utilisateur

ASROCK

ASROCK PV530-ITX - Manuel utilisateur

ASROCK

ASROCK IMB-1713 Manuel utilisateur

ASROCK

ASROCK G41M-S3 Manuel utilisateur

ASROCK

ASROCK H81M-DGS Manuel utilisateur

ASROCK

ASROCK Fatal1ty Z77 Professional Manuel utilisateur

ASROCK

ASROCK P4VM8 Manuel utilisateur

ASROCK

ASROCK A75M Manuel utilisateur

ASROCK

ASROCK P67 EXTREME4 - Manuel utilisateur

ASROCK

ASROCK Fatal1ty 990FX Killer Series Manuel utilisateur

ASROCK

ASROCK ALIVENF4G-DVI Manuel utilisateur

ASROCK

ASROCK X48TURBOTWINS-WIFI Manuel utilisateur

ASROCK

ASROCK B150M-PIO2 Manuel utilisateur

ASROCK

ASROCK 775i45GV Manuel utilisateur

ASROCK

ASROCK P5B-DE Manuel utilisateur

ASROCK

ASROCK Fatal1ty 970 Performance/3.1 Series Manuel utilisateur

ASROCK

ASROCK Z68 EXTREME4 - ANNEXE 541 Manuel utilisateur

ASROCK

ASROCK A780GM-LE 128M - V1.0 Manuel utilisateur

ASROCK

ASROCK Z790 Steel Legend WiFi Manuel utilisateur

ASROCK

ASROCK M3A-GLAN Manuel utilisateur

ASROCK

ASROCK H110TM-ITX Manuel utilisateur

ASROCK

ASROCK FM2A85M-DG3 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
