Asoni CAM662H Manuel utilisateur

5M-IR 720P HD H.264

CMOS Network Fixed Dome Camera

CAM662H

User’s Manual

Date: 10/10/2012

Firmware Version: VB1.0.28

Content

Content .......................................................................................................................................1

1. Preface.................................................................................................................................3

2. Product Specifications.......................................................................................................3

3. Product Installation ............................................................................................................5

A. Hardware Installation......................................................................................................5

Cable Connections................................................................................................................5

B. Monitor Setting................................................................................................................6

C. IP Assignment..................................................................................................................7

4. Live Video............................................................................................................................9

5. Configuration ....................................................................................................................13

A. System ...........................................................................................................................13

System Information.............................................................................................................13

User Management..............................................................................................................17

System Upgrade.................................................................................................................19

System Logs.......................................................................................................................20

B. Video/Audio Setting ......................................................................................................21

Video Format ......................................................................................................................21

Image Setting......................................................................................................................26

C. Network Setting.............................................................................................................28

Network Setting ..................................................................................................................28

Mail / FTP / Samba Setting.................................................................................................33

PPPoE / DDNS Setting.......................................................................................................37

D. Network (Advance) Setting...........................................................................................40

HTTPS Setting....................................................................................................................40

SNMP Setting .....................................................................................................................42

IP Filter Setting ...................................................................................................................44

QoS/ DSCP Setting.............................................................................................................46

IEEE 802.1x Setting............................................................................................................47

E. Event Handling..............................................................................................................48

Event Setting ......................................................................................................................48

Schedule.............................................................................................................................54

Micro-SD Card....................................................................................................................56

6. Network Configuration.....................................................................................................59

A. Intranet Only..................................................................................................................59

Connects to PC Directly......................................................................................................59

Connects to an Exist LAN...................................................................................................60

B. Internet Only..................................................................................................................61

Connects to ADSL with Fixed Public IPAddress.................................................................61

Connects to ADSL with Floating Public IPAddress (PPPoE)..............................................62

C. Intranet + Internet..........................................................................................................64

Connects to Internet with Fixed Public IPAddress..............................................................64

Connects to Internet with Floating Public IPAddress..........................................................66

7. Factory Default..................................................................................................................67

Compatible List of SD Card.....................................................................................................68

1. Preface

This camera is a 720P HD CMOS network camera which builds in web server. User views

real-time video via IE browser. It supports H.264, MJPEG and MPEG4 video compression

which provides smooth and high quality video. The event video can be stored in the

Micro-SD card, and can be playback remotely.

The IR model equips infrared illuminator to provide good image quality, even in darkness.

This camera is an easy-to-use IP camera which is designed for security application.

2. Product Specifications

Onvif compliance

Mega-Pixel CMOS Sensor

H.264 / MJPEG / MPEG4 compression formats and triple streaming

Supports resolution up to 1280x800, 720P@30FPS real time

Self-Contained HTTP Web Server providing Internet capability for remote access

Day & Night functionality for 24-hours surveillance, auto activate IR illuminator in low

illumination

Infrared radiant distance up to 5 meters

Day&Night Switch time control manually

Supports Micro-SD card for local event recording

Online firmware upgrade

Hardware

CPU / RAM / ROM ARM 9, 32 bit RISC / 128MB / 16MB

Image Sensor 1/4” Mega-Pixel CMOS

Lens Fixed 4.2mm, F1.6

IR Distance 5 Meters

IR LED Built-in 7 IR LEDs

Illumination Normal: 1 lux IR On: 0 lux

Power Supply DC 12V, 1A

Power Consumption Max. 4 Watt

Dimensions Φ110 x H90 mm

Network

Ethernet 10/ 100 Base-T

Network Protocol IPv4/IPv6, HTTP, HTTPS, TCP/IP, RTP/RTSP, UDP, 3GPP, SMTP, FTP,

Samba, PPPoE, DHCP, DDNS, NTP, UPnP, SNMP, QoS/DSCP, IP Filter,

IEEE 802.1x, Bonjour

Onvif Compliance Yes, compliance with Onvif V2.10, 1.02 and 1.01

System

Video Resolution 1280x800, 1280x720, 640x480, 320x240, 176x144

Compression Format H.264 / MJPEG / MPEG4

Frame Rate Up to 30FPS

Triple Streaming Yes (2 for live view, 1 for 3GPP)

3GPP Yes, Live view with 3G mobile phone

Video Bitrate Adjustment CBR, VBR

Video Adjustment Brightness, Contrast, Hue, Saturation, Sharpness, Gain control, Shutter time,

Sense Up, Digital WDR, Digital Noise Reduction, Day/Night color mode,

Video orientation

Image Snapshot Yes

Privacy Mask Yes, 3 different areas

Motion Detection Yes, 3 different areas

Event Trigger Motion Detection

Triggered Action Send Email, Send to FTP, Save to SD Card, Save to Samba HDD

Pre/ Post Alarm Yes, configurable

Security Password protection, IP address filtering, HTTPS encrypted data

transmission, IEEE 802.1x port-based authentication, QoS/DSCP

Firmware Upgrade HTTP mode, can be upgraded remotely

Connection Up to 10 clients simultaneously

SD card management

Recording Trigger Motion Detection, IP Check, Network Disconnect

Schedule Snapshot with schedule

Video Format Video (AVI), Snapshot (JPEG)

Video Playback Yes

Web browsing requirement

OS Windows 2000, XP, Vista, Windows 7

Web Browser Microsoft IE V7.0 (32-bit) or above, Mozilla Firefox V6.0 or above, Opera

V11.5 or above, Safari V5.1 or above, Google Chrome V13.0 or above

Suggested Hardware Intel Core 2 Duo 2.53GHz, RAM: 1GB

Graphic card: 128MB onboard RAM

* Specifications are subject to change without notice

3. Product Installation

A. Hardware Installation

Cable Connections

Power Jack:

To connect the DC 12V power adapter.

Network Connector:

The RJ-45 connector allows connect to the Ethernet network.

Micro-SD Card Slot

(inside of the camera):

Insert a Micro-SD card if you want to do the event recording in

the camera.

1. Connect Ethernet cable for network connection.

2. Connect power adapter to turn on the camera.

3. Set up the network configurations according to the network environment. For further

explanation, please refer to Network Configuration chapter.





Power Jack

Network Connector



Micro

-SD Card Slot (Inside of camera)

B. Monitor Setting

1. Right-Click on the desktop. Select “Properties”

2. Change color quality to “Highest (32bit)”.

C. IP Assignment

Always consult your network administrator before assigning an IP address to your

camera in order to avoid using a previously assigned IP address.

MAC Address: Each network camera has a unique Ethernet address (MAC address)

shown on the sticker of the device.

One final note, although the IP Search is able to find and configure any network

device on the LAN except those that are behind a router, it is a good idea to set the

host PC to the same subnet. In order to connect to the Web-based user interface of

the network camera, the host PC must be in the same subnet. For more information

about subnets, please consult your network administrator.

“Asoni IP Search” is a utility that provides an easier, more efficient way to configure the IP

address and network settings of the network camera in Local Network (LAN).

The software can be installed from the attached software CD.

1. Once “Asoni IP Search” has been successfully installed on the computer, double

click the “Search CAM4_CAM6_NVR6LX” icon on the desktop.











2. IP Search searches all the network devices which connect to the intranet and lists

on the window. Click [Search] button to search again.

3. From the list, click and select the device with the MACAddress that corresponds to

the device that is to be configured.

4. The network configuration of the selected device will show on the bottom, filling in

the Device Name, IPAddress, Subnet Mask, Gateway and the others.

5. Click [Modify]button to save the settings into the device.

6. Wait for few seconds to let the device update the settings, and then click [Search]

button again to re-search the network devices.

7. Double-click the network device listed on the window, It will open an IE browser and

connect to this device directly.

4. Live Video

Start the IE browser, type the IP address of the

network camera in the address field:

http://<IP of camera>

If the “HTTP Port” has been changed from “80”,

type the URL as:

http://<IP of camera>:<HTTP Port>

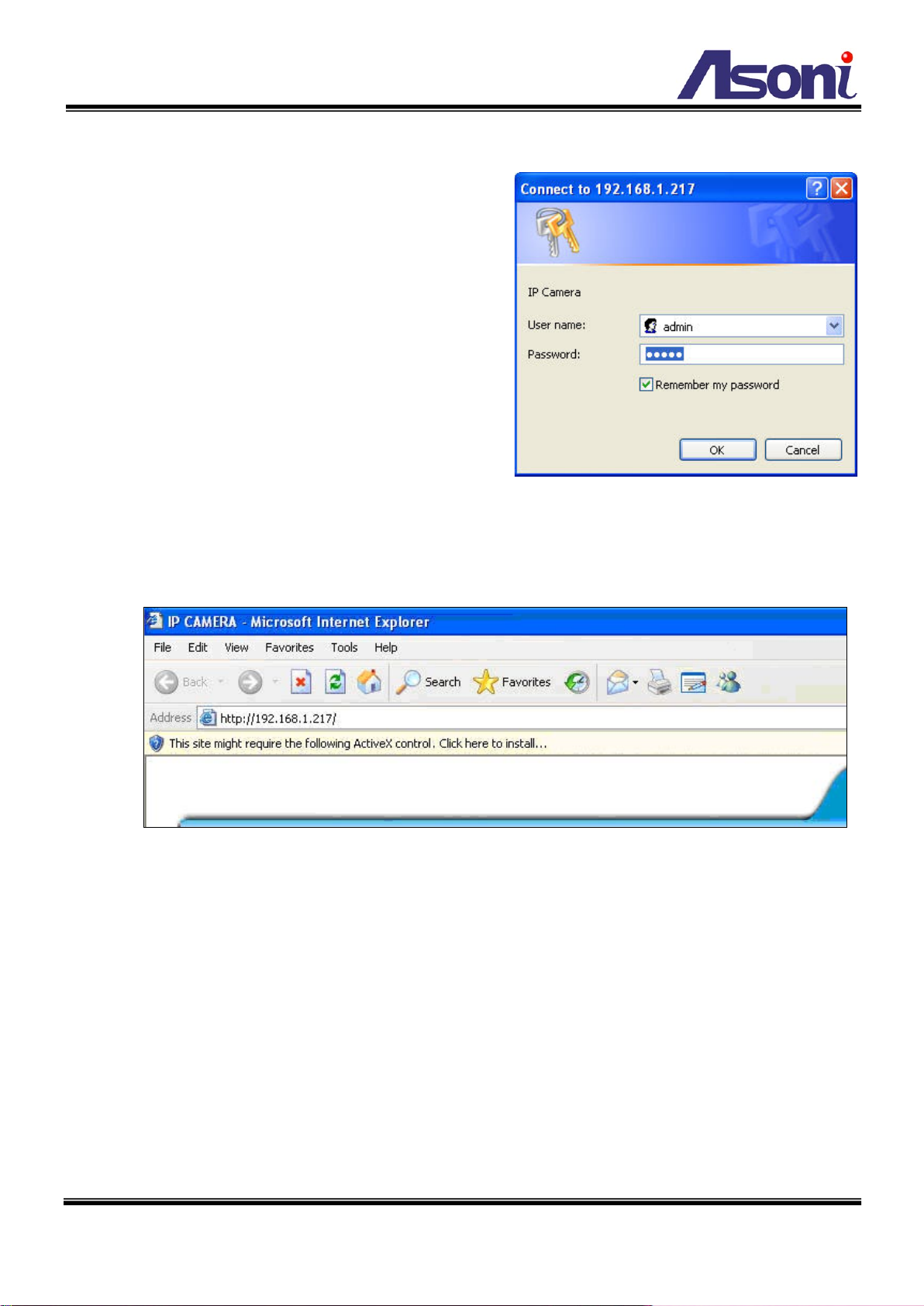

After link to the camera, it will show a dialogue

box. Key-in the user name and password to

log-in and open the web page of camera.

The default user name and password are “admin” and “admin”.

For the first time to view the camera video via IE, it will ask you to install the ActiveX

component.

If the installation failed, please check the security setting for the IE browser.

1. In IE, click on [Tools] [Internet Options…]

2. Click on [Security] Tab [Custom Level…]

3. In Security Settings, under [Download unsigned ActiveX controls], select

“Enable” or “Prompt”.

4. In Security Settings, under [Initialize and script ActiveX controls not marked as

safe], select “Enable” or “Prompt”.

5. When pop-up window with warning message, click [Yes] to save the settings.
