Asoni CAM636M Manuel utilisateur

2 Mega-Pixel

H.264 CMOS Network Dome

CAM636M / CAM636M-PoE

User’s Manual

Date: 7/20/2012

Firmware Version: V1.0.32

Content

Content .......................................................................................................................................1

1. Preface.................................................................................................................................3

2. Product Specifications.......................................................................................................3

3. Product Installation ............................................................................................................6

A. Hardware Installation......................................................................................................6

Cable Connections................................................................................................................6

I/O Connections....................................................................................................................7

B. Monitor Setting................................................................................................................9

C. IP Assignment................................................................................................................10

4. Live Video..........................................................................................................................12

5. Configuration ....................................................................................................................17

A. System ...........................................................................................................................17

System Information.............................................................................................................17

User Management..............................................................................................................21

System Upgrade.................................................................................................................23

System Logs.......................................................................................................................24

B. Video/Audio Setting ......................................................................................................25

Video Format ......................................................................................................................25

Image Setting......................................................................................................................30

Audio Setting ......................................................................................................................32

C. Network Setting.............................................................................................................33

Network Setting ..................................................................................................................33

Mail / FTP / Samba Setting.................................................................................................37

PPPoE Setting....................................................................................................................40

DDNS Setting .....................................................................................................................41

D. Event Handling..............................................................................................................43

Event Setting ......................................................................................................................43

I/O Setting...........................................................................................................................49

Schedule.............................................................................................................................51

SD Card..............................................................................................................................53

6. Network Configuration.....................................................................................................56

A. Intranet Only..................................................................................................................56

Connects to PC Directly......................................................................................................56

Connects to an Exist LAN...................................................................................................57

B. Internet Only..................................................................................................................58

Connects toADSL with Fixed Public IPAddress.................................................................58

Connects toADSL with Floating Public IPAddress (PPPoE)..............................................59

C. Intranet + Internet..........................................................................................................61

Connects to Internet with Fixed Public IPAddress..............................................................61

Connects to Internet with Floating Public IPAddress..........................................................63

7. Factory Default..................................................................................................................64

Compatible List of SD Card.....................................................................................................65

1. Preface

This camera is a professional 2 Mega-Pixel CMOS network camera which builds in web

server. User views real-time video via IE browser. It supports H.264, JPEG and MPEG4

(3GPP Only) video compression which provides smooth and high quality video. The event

video can be stored in the SD card, and can be playback remotely.

The PoE model built-in support for Power over Ethernet allows the camera to receive both

data and power over a single Ethernet cable.

This camera is an easy-to-use IP camera which is designed for security application.

2. Product Specifications

2 Mega-Pixel CMOS Sensor

H.264 / MJPEG / MPEG4 (3GPP Only) compression formats.

Supports resolution up to 1600x1200

H.264 / MJPEG / MPEG4 (3GPP Only) triple streaming.

Self-Contained HTTP Web Server providing Internet capability for remote access

Built-in PoE splitter, support for Power over Ethernet (PoE model)

Supports SD card for local event recording

2-way audio

Recorded files compatible with Microsoft Windows Media Player

Hardware

CPU / RAM / ROM ARM 9, 32 bit RISC / 256MB / 16MB

Image Sensor 1/3” CMOS, 2 Mega-Pixel

Lens 1/3”, Vari-focal 2.7~9mm, Mega-Pixel lens

Illumination 0.5 lux

Day / Night Mechanism IR Cut Filter (ICR)

Video Out 1 Analog video out (BNC connector)

Audio In 1 Microphone in (3.5mm phone jack for connecting external passive-type of

microphone)

Audio Out 1 Line out (3.5mm phone jack for connecting external amplified speaker)

Digital I/O 1 Digital in / 1 Relay out

Power Supply Normal model: DC 12V, 1A

PoE model (built-in PoE Splitter):

Use PoE: PoE Injector (IEEE 802.3af)

Or, use Power Adaptor: DC 12V, 1A

Power Consumption Max. 6 Watt

Dimensions Φ131.2 x H94.3 mm

Network

Ethernet 10/ 100 Base-T

Network Protocol HTTP, TCP/IP, RTP/RTSP, 3GPP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP

System

Video Resolution 1600x1200, 1280x1024, 1280x960, 1280x720

800x592, 640x480, 320x240, 176x144

Compression Format H.264 / MJPEG / MPEG-4 (3GPP only)

Frame Rate Up to 15FPS@1600x1200, 22FPS@1280x1024, 25FPS@1280x960,

30FPS@1280x720

Triple Streaming Yes (2 for live view, 1 for 3GPP)

3GPP Yes, Live view with 3G mobile phone

Video Bitrate Adjustment CBR, VBR

Video Adjustment Brightness, Contrast, Sharpness, BLC, Frame Rate at Night, Video

orientation

Image Snapshot Yes

Privacy Mask Yes, 3 different areas

Motion Detection Yes, 3 different areas

Event Trigger Motion Detection, Digital In

Triggered Action Send Email, Send to FTP, Save to SD Card, Relay Out

Pre/ Post Alarm Yes, configurable

Security Password protection

Firmware Upgrade HTTP mode, can be upgraded remotely

Connection Up to 10 clients simultaneously

Audio Yes, 2-way

SD card management

Recording Trigger Motion Detection, Digital In, IP Check, Network Disconnect

Schedule Snapshot with schedule

Video Format Video (AVI), Snapshot (JPEG)

Video Playback Yes

Web browsing requirement

OS Windows 2000, XP, Vista, Windows 7

Web Browser Microsoft IE V7.0 (32-bit) or above, Mozilla Firefox V6.0 or above, Opera

V11.5 or above, Safari V5.1 or above, Google Chrome V13.0 or above

Suggested Hardware Intel Core 2 Duo 1.66GHz, RAM: 1GB

Graphic card: 128MB onboard RAM

* Specifications are subject to change without notice

3. Product Installation

A. Hardware Installation

Cable Connections

Power Jack:

To connect the DC 12V power adapter.

Digital I/O:

Digital In and Relay Out.

Video Output: The BNC connector allows connect to the analog display to

output analog video for locally monitoring.



Microphone Input (Red): The 3.5mm phone jack allows connect to a passive-type of

microphone, the audio will be heard at the remote site.



Audio Output (Green): The 3.5mm phone jack allows connect to an amplified speaker,

you can hear the voice of the remote site from the speaker.

Network Connector:

The RJ-45 connector allows connect the Ethernet cable.



SD Card Slot (inside of

the camera): Insert a SD card if you want to do the event recording (video

only) in the camera.

1. Connect the cable of Digital I/O, Video output,Audio output and Microphone input if

you want to use these functionalities.

2. Connect Ethernet cable for network connection.













Power Jack (DC 12V)

Digital I/O

Analog Video Output

(

Red) Microphone Input

(

Green) Audio Output

Network Connector



3. Connect power adapter to turn on the camera.

4. If the camera is PoE model, the power adapter is not necessary. The camera will get

the power from the PoE injector or PoE switch.

PoE (Power over Ethernet) is a technology that integrates power into a standard LAN

infrastructure. It enables power to be provided to the network device, such as an IP

phone or a network camera, using the same cable as that used for network connection.

It eliminates the need for power outlets at the camera locations. Please follow the

below figure for the connection.

5. Set up the network configurations according to the network environment. For further

explanation, please refer to Network Configuration chapter.

I/O Connections

I/O connector – used in application, for e.g., motion detection, event triggering, alarm

notifications. It provides the interface to:

1 set of Digital Input (Alarm + GND) – The digital inputs for connecting devices

that can toggle between an open and closed circuit, such as PIRs, door/window

contacts, glass break detectors, etc. When a signal is received the status changes

and the input becomes active.

1 set of Relay Output (N.O. + COM or N.C + COM) – The output to Relay switch of

the alarm device such as LEDs, Sirens, etc.

GND

ALARM

N.C.

COM

N.O.

Digital In

Relay Out

PoE Switch or PoE Injector

Ethernet Cable

Data only

Ethernet Cable

Mixed data and power

PoE Network Camera

To Network

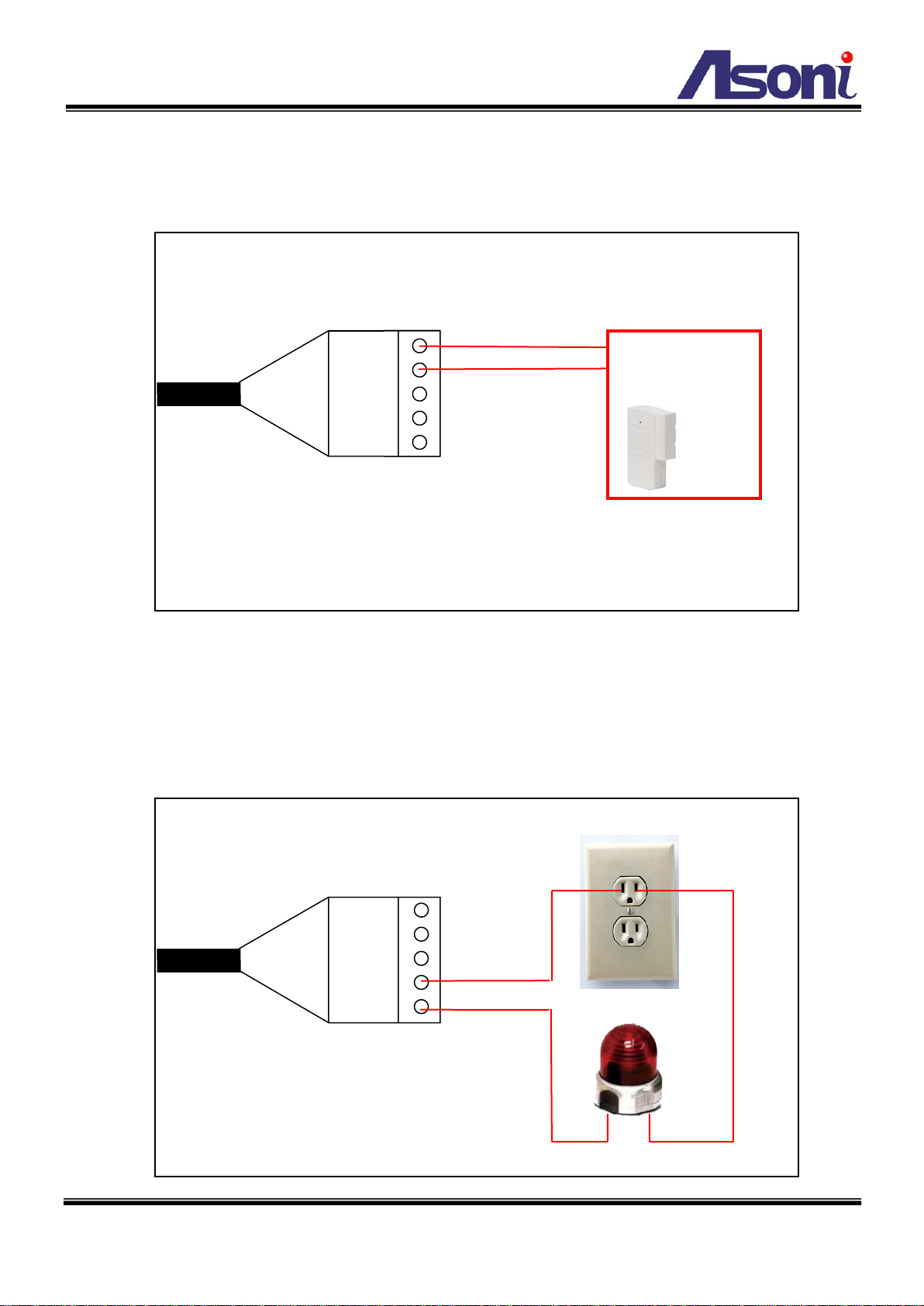

Digital Input (Alarm Input)

GND (Ground): Initial status is LOW.

Alarm: Max. 50mA, 12VDC.

Relay Output

COM: Common pin.

N.O. (Normally Open): Max. 1A/ 24VDC or 0.5A/ 125VAC.

N.C. (Normally Close): Max. 1A / 24VDC or 0.5A/ 125VAC.

GND

ALARM

N.C.

COM

N.O.

Door/Window

Contacts

GND

ALARM

N.C.

COM

N.O.

B. Monitor Setting

1. Right-Click on the desktop. Select “Properties”

2. Change color quality to “Highest (32bit)”.
