ASCO POWER TECHNOLOGIES 5010 Manuel utilisateur
ASCO 5010 Remote Display Unit
1
Installation Considerations
Installation and maintenance of the ASCO 5010 Remote
Display Unit should only be performed by qualified,
competent personnel that have appropriate training and
experience with high voltage and current devices. The meter
must be installed in accordance with all Local and National
Electrical Codes and regulations.
This equipment has no user serviceable parts.
.
Important Symbols Used in This Manual
TABLE OF CONTENTS
Section Page
1 .............. Introduction ............................................................. 3
2 .............. Getting Started........................................................ 4
3 .............. Hardware Description ............................................. 6
4 .............. Mounting ................................................................. 9
5 .............. Wiring.................................................................... 10
6 .............. Navigating through the screens ............................ 12
7 .............. Basic Configuration............................................... 14
8 .............. Using the ASCO 5010 Remote Display Unit......... 18
9 .............. Monitoring ............................................................. 32
10 ............. Troubleshooting .................................................... 42
11 ............. Technical Definitions............................................. 45
12 ............. ASCO 5400 Series Website
Reference ............................................................. 48
Figure Page
Figure 1. ASCO 5400 Series Basic Module Unit .................... 2
Figure 2. ASCO 5010 Functional Display Unit........................ 6
Figure 3 External Display Panel (Rear View)......................... 7
Figure 4 ASCO 5010 RDU -Technical Drawing ..................... 7

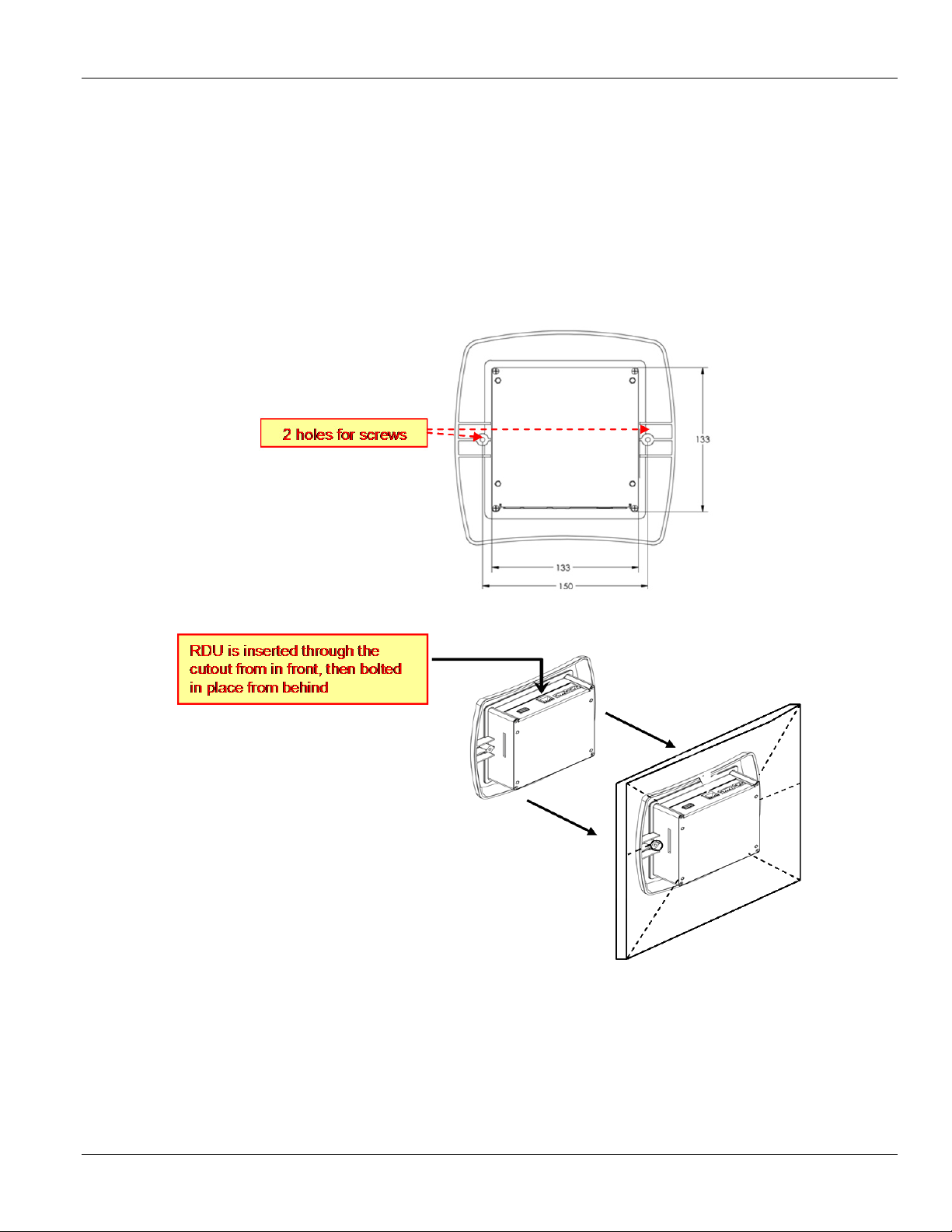

Figure 5 Screw Holes for Affixing RDU to a Panel................. 9
Figure 6 Mounting the Remote Display Device
to a Panel................................................................. 9
Figure 7 Power Over Ethernet PoE Connection .................. 11
Figure 8 Terminals for RS485/422 on the Rear Side
of the ASCO 5010 RDU......................................... 11
Figure 9 The ASCO 5010 RDU Main Menu......................... 12
Figure 10 The ASCO Welcome Screen followed by the
Connection Configuration Page............................. 14
Figure 11 The ASCO Search Utility for Finding ASCO Elements
on the LAN............................................................. 24
Figure 12 The Two Page Configuration Menu ....................... 25
Figure 13 The Information Page ............................................ 26
Figure 14 Read-only "About" Information .............................. 26
Figure 15 Current transformer conductor inserted correctly
through the ASCO 5400 Series ............................. 28
Figure 16 PT/CT Settings- inputting the Primary
PT Value ................................................................ 28
Figure 17 The Main Menu- Default on Power Up .................. 32
Figure 18 Large Digits Display- A Typical Page Layout......... 34
Figure 19 The Factors Summary Page: K-factor and
Crest Factor ........................................................... 36
Figure 20 Volt/Amp Summary................................................ 36
Figure 21 The Power Summary Page.................................... 37
Figure 22 The THD Summary Page ...................................... 37
Figure 23 Waveforms Main Menu.......................................... 38
Figure 24 Navigating the Oscilloscope .................................. 39
Figure 25 A Harmonic Spectrum Screen ............................... 40
Figure 26 The Phasor Display ............................................... 41
Figure 27 The Flickering Summary........................................ 42
Figure 28 A Detailed Flicker Summary .................................. 43
P
O
WER Florham Park, New Jersey 07932-1591
TECHNOLOGIES For sales or service, call: 1 800-800-2726 (ASCO) www.ascopower.com
ASCO POWER TECHNOLOGIES CANADA, PO Box 1238, 17 Airport Road
Brantford, Ontario, Canada N3T 5T3
Series ASCO 5010 Series
IO-70051 Rev. 0 9/12
5010 Remote
Display Unit
1Operator’s Manual
WARNING is used in this manual to warn of a hazardous
situation which, if not avoided, could result in death or
serious in
j
ur
y
.
W
ARNING
CAUTION
CAUTION is used in this manual to warn of a hazardous
situation which, if not avoided, could result in minor or
moderate injury.
NOTICE is used in this manual to address practices not related
to physical injury.
NOTIC
E
DANGER is used in this manual to warn of a hazardous
situation which, if not avoided, will result in death or
serious injury.
DANGER
ASCO 5010 Remote Display Unit
2
Acronyms
A Ampere
CT Current Transformer
DHCP Dynamic Host Configuration Protocol
IP Internet Protocol
OPC (formerly OLE for Process Control), a series of standards specifications
PF Power Factor
PoE Power over Ethernet
PT Potential Transformer
RDU Remote Display Unit
SCADA Supervisory Control and Data Acquisition
SMTP Simple Mail Transfer Protocol
SNTP Simple Network Time Protocol
SSL Secure Sockets Layer
Subnet masking Local Internet subnet masking determined usually by IP admin
THD Total Harmonic Distortion
Figure 1: The ASCO 5400 Series Basic Module Unit
ASCO 5010 Remote Display Unit
3
Section 2. Introduction
This manual is the last chapter in a series of seven, and will instruct the user in the installation, configuration and use of the
Remote Display Unit to monitor and configure any Power Quality Data Center, using a direct connection or through a LAN/WAN
The seven chapters comprising the ASCO manual set for the Power Quality Data Center series are listed as follows:
1. ASCO 5400 Series Power Quality Data Center Installation and Wiring Manual- This manual instructs the user on
installing the Power Quality Meter into an electric panel and how to begin using the Power Quality Data Center.
2. ASCO 5400 Series Power Quality Meter Operation Manual- This manual describes the interface for monitoring and
configuring the ASCO 5400 Series Power Quality Meter using the onboard WEB server as it is accessible from a
standard web browser from any PC connected to the Internet (or LAN).
3. PQSCADA Site Manager Installation Manual- This manual instructs the user in installing the server based Site
Manager Software that will manage the Nodes that will collect, store and analyze the compressed data produced by
the ASCO 5400 Series Power Quality Meter.
4. PQSCADA Site Manager User Manual- This manual instructs the user in setting up the server based Site Manager
with Nodes that will collect, store and analyze the compressed data from the ASCO 5400 Series Power Quality
Meter. The manual instructs the user in surfing to the Site Manager, adding and removing Nodes and operating the
ASCO Power Quality Reporting Tool.
5. Investigator Installation Manual- This manual instructs the user in installing the Investigator software used to access,
load and analyze data from different ASCO 5400 Series Power Quality Meters in order to understand the cause for
power quality events that occurred in the system.
6. Investigator User Manual- This manual instructs the user in the use of the Investigator software to load and analyze
data from different ASCO 5400 Series Power Quality Meters in order to understand the cause for power quality
events that occurred in the system.
7. ASCO 5010 Remote Display Installation and Operation Manual- This manual instructs the user in the installation,
configuration and use of the Remote Display to monitor and configure any Power Quality Meter, using a direct
connection or through a LAN/WAN.
2.1 Overview
The ASCO 5010 LCD Remote Display Unit is an integral part of the ASCO Power Quality Meter system, allowing
interconnectivity with the ASCO 5400 Series Power Quality Meter for configuring and monitoring the electrical distribution
system.
The ASCO 5010 Remote Display Unit (RDU) connects and communicates with the ASCO 5400 Series Power Quality Meter
directly via RJ45 network cable or through IP communication from anywhere in the world. One RDU can be used to monitor and
configure many ASCO 5400 Series Power Quality Meters.
The ASCO 5010 RDU enables configuring all aspects of the ASCO 5400 Series Power Quality Meter and displays all monitored
real time values. Figure 1 describes the role of the ASCO 5010 RDU in managing power quality data in a power distribution
system.
The ASCO 5400 Series Power Quality Meter (1) is connected to the electrical system via current and potential transformers.
These instruments constantly record the voltage and current waveforms at a resolution of up to 1024 samples per cycle. This data
is compressed on board using the ASCO PQZip technology. The PQZip files are transferred to a PNode (4) running on a server
managed by the Site Manager. The PNode stores the data collected from the instrument and responds to requests from client
workstations running ASCO Investigator software (5). When an engineer using the Investigator software wishes to analyze the
data collected by the instrument from a certain time frame, the PNode decompresses the requested data, performs the necessary
mathematical calculations to display the electrical parameters requested by the client and then arranges and configures the data to
be displayed on the specific screen used by the client.
Every ASCO 5400 Series Power Quality Meter hosts an onboard Website allowing access to data from any web browser.
Inputting the IP address of the instrument in the address window of an internet browser will bring the ASCO 5400 Series webpage
to the browser with current real time monitored values (2). Configuration of the ASCO 5400 Series may also be achieved via the
Website.
ASCO 5010 Remote Display Unit
4
The ASCO IP Address Search Tool (6) is an important element in the ASCO Power Quality Meter System. This utility allows all
ASCO 5400 Series Power Quality Meter and ASCO 5010 RDU connected to a LAN to be found and identified on line.
The ASCO 5010 (3) Remote Display LCD is used to both configure and monitor the ASCO 5400 Series Power Quality Meter
achieving much the same effect as when using a web browser but with the added tactile feedback only a dedicated LCD display
can offer. The ASCO 5010 RDU can be used as a hand held monitoring and configuring tool connecting to each ASCO 5400
Series Power Quality Meter in turn using a CAT 5e/6 network cable with a RJ45 plug, or optionally plugging into a network
connection and alternately inputting the IP addresses of the different instruments.
Section 2. Getting Started
2.1 Unpacking
The ASCO 5400 Series Power Quality Data Center is shipped with the following:
# Description Quantity
1 ASCO 5010 LCD Remote Display Unit (RDU) 1
2 LAN cable 1
3 ASCO 5010 Display Installation & Operation Manual 1
4 RS485/422 Communication terminal block connector - BL3.5/4/90LF SW- 4p Black Clamping yoke, 1
5 48DC terminal block connector - BL3.5/2/90LF SW – 2p Black Clamping yoke 1
6 Screws for mounting to wall metal plate 2
7 Flat fastening disk for mounting with screws 2
8 Screw-nut 2
ASCO 5010 Remote Display Unit
5
2.2 Safety Precautions
Before working with the ASCO 5010 Remote Display Unit, please read this User Manual carefully. The manufacturer will not be
responsible for damage or injury due to misuse.
The following general safety guidelines apply to ASCO 5010 RDU installation and operation. When performing any operation
with the ASCO 5010, always observe these safety precautions.
The instructions contained in this manual are intended for qualified personnel only. To avoid personal injury, do not
perform any activity other than as contained herein unless you are qualified to do so.
Before connecting cables to the ASCO 5010 RDU, verify that the 48VDC supply is disconnected.
To prevent shock or fire hazard, do not expose the ASCO 5010 RDU to rain or moisture.
Do not make unauthorized modifications to the ASCO 5010.
Always operate the ASCO 5010 RDU within the specified power tolerances.
To use and operate the ASCO 5010 RDU, strictly follow the specifications of this manual. The manufacturer will
not be responsible for any damage or injury resulting from equipment misuse and/or unsafe work practices.
W
ARNING
NOTIC
E
ASCO 5010 Remote Display Unit
6
Section 3. Hardware Description
3.1 ASCO 5010 Remote Display Unit Overview
The ASCO 5010 Remote Display Unit shown in Figure 2 can be divided into three conceptual sections. The upper section
contains the Status LEDs, the middle section contains the visual interface; a header and the monitor screen and the lower section
contains the input interface; 5 Function keys and a Network key.
Figure 2: The ASCO 5010 Remote Display Unit
The Status LEDs indicate as follows:
Green LED – External power indication
Red LED – Failure or indication of incomplete configuration
The Header contains the name of the instrument currently connected and the time of day.
The five Function keys are context sensitive, offering dynamic functionality as the unit is used, with the current function
appearing above the key.
The Network key is used to disconnect with the current instrument, enabling connectivity with another instrument.
Network key
ASCO 5010 Remote Display Unit
7
Figure 3 shows the ASCO 5010 RDU connectors as follows:
a. RJ45 – used for both communication & power sourcing the unit (PoE – power over the Ethernet cable coming from
ASCO 5400 Series Power Quality Meter). By factory default, the ASCO 5010 RDU is ready for connecting to
any ASCO 5400 Series unit at the LCD port. A simple CAT5e/6 cable connecting directly between the ASCO
5010 RDU and ASCO 5450 and 5490 LAN2/LCD port will automatically power up, connect and open the main
menu screen relevant for that specific ASCO 5400 Series PQM currently connected. Remote connectivity
(through an IP network) is also applicable but requires configuration as described later in this manual.
b. DC 48V – Used for alternative power source (for remote connectivity when PoE is not available)
c. RS485/422 – Used in industrial applications for multi-drop series communication when IP networking is not
available.
Figure 3: The ASCO 5010 Remote Display Unit – Rear View
48V DC
RJ45
RS485/422
ASCO 5010 Remote Display Unit
8
3.2 ASCO Technical and Environmental Specifications
3.2.1 Physical Specifications
Figure 4: ASCO 5010 RDU - Technical Drawing
ASCO 5010 Remote Display Unit
9
3.2.1.1 ASCO 5010 Remote Display Specifications
3.2.2 Environmental Specifications
Intended use Indoor- mounted in a low voltage electrical distribution panel
Altitude Up to 2000 meters
Operating temperature range -4º to +140º F (-20º to +60º C )
Maximum relative humidity 95%
Power requirements 10 VA
Fuse rating 2 A fuse mounted in line with the AC power supply phase wire
Installation Category Class III
Pollution Degree Degree 2
Dimensions (H×W×D) 197×200×46 mm
Panel cutout: 135×135 mm
Power supply 48 VDC
LAN1 PoE in
LED backlight 160×128 pixels graphic screen
ASCO 5010 Remote Display Unit
10
Section 4. Mounting
The ASCO 5010 Remote Display Unit is designed for mounting on a flat panel through a 138x138mm cutout with two 5mm
holes. Two screws are supplied for fixing the display unit to the panel from behind. A typical location for mounting the ASCO
5010 RDU is on the front panel of an electrical distribution panel. Figure 5 and Figure 6 aid in describing the method of attaching
the RDU to a panel.
A 138 x138 hole is cut out from the panel and the RDU is slid in to place from in front. The RDU is then fixed in place using two
screws from behind.
Figure 5: Screw Holes for Affixing RDU to a Panel
Figure 6: Mounting the Remote Display Device to a Panel
Autres manuels ASCO POWER TECHNOLOGIES Système de contrôle
