FriendlyNET®FM2008/2009

SNMP/Web Managed Switches

Setup Guide

2 Setup Guide

FriendlyNET FM2008/2009 SNMP/Web Managed Switches

Quick Start Guide

Follow these steps to install your switch:

1. Open the box and check the contents. See Chapter 1 for a complete

list of the items included with your switch.

2. Install the switch in an equipment or wall rack, or prepare it for

desktop placement.

3. Connect the power supply.

4. Connect network devices to the switch.

5. Refer to the User’s Manual on the accompanying CD-ROM for

configuration and management capabilities.

For more information on installing the switch, please refer to Chap-

ter 2.

4 Setup Guide

FriendlyNET FM2008/2009 SNMP/Web Managed Switches

Table of Contents

Quick Start Guide 3

Chapter 1 Introduction 7

Chapter 2 Installation and Setup 13

Appendix A Troubleshooting 21

Appendix B Safety and Regulatory Compliance 23

Appendix C Specifications 25

Appendix D Warranty Statement 27

6 Setup Guide

FriendlyNET FM2008/2009 SNMP/Web Managed Switches

Chapter 1 Introduction

In today’s society, communication and sharing information are

essential to our lifestyle. Computer networks have proven to be one

of the fastest methods of communication.

The FM2008/2009 switches are compact desktop-sized switches

that are an ideal solution for the SOHO (Small Office or Home Of-

fice) network user. They provide a full wire-speed, Fast Ethernet

switching function that allows a high-performance, low-cost connec-

tion. Each switch features store-and-forward switching and can

auto-learn and store source addresses on an 8K-entry MAC ad-

dress table.

The switches provide 8 switched, auto-sensing 10/100 Mbps RJ-45

Ethernet ports. Each switch will automatically detect the speed of

the device(s) connected to it, allowing the use of both 10 and

100Mbps legacy devices. The 10Mbps bandwidth will accommodate

10Mbps workgroup hubs while simultaneously providing the

100Mbps bandwidth needed to accommodate multimedia applica-

tions. In addition, each RJ-45 port supports Auto MDI/MDIX func-

tion.

The FM2009 switch also provides one 100Base-FX fiber port. Four

types of fiber connectors are available: SC, MT-RJ, VF-45 (multi-

mode), and SC (single-mode). The fiber port can be used to con-

nect to a remote site up to 2 kilometers (multi-mode) or 15–60 kilo-

meters (SC single-mode) away.

With its built-in Web-based Management, managing and configur-

ing the switch is easy: From cabinet management to port-level con-

trol and monitoring, you can visually configure and manage your

8 Setup Guide

network via your web browser. Just click your mouse instead of typ-

ing command strings. However, the switch can also be managed via

Telnet, Console, or SNMP Management.

Features

•Conforms to IEEE 802.3, 802.3u, and 802.3x Ethernet Stan-

dards

•8x auto-sensing 10/100Mbps Ethernet RJ-45 ports

•Automatic MDI/MDIX crossover for each 10BaseT/100BaseTX

port

•FM2009 only: 1 fixed 100Mbps fiber port (SC/SC single-mode/

MT-RJ/VF-45 connector)

•Half-duplex mode for backpressure, and full-duplex for flow

control

•Store-and-forward switching architecture for abnormal packet

filtering

•Automatic address learning, address migration

•8K-entry MAC address table

•2Mbit memory buffer sharing

•Performs non-blocking full wire speed LED-indicators for

Power, 100Mbps, Link/Activity, Full Duplex

•10-inch desktop-sized design

Please refer to the User’s Manual (CD-ROM) for a more complete

list of management features.

Package Contents

Unpack the contents of the switch and verify them against the

following checklist:

•Switch

•Power Cord

•Rack Mount Kit

•Four Rubber Feet

•RS-232 Cable

•Setup Guide (this document)

FriendlyNET FM2008/2009 SNMP/Web Managed Switches

•User’s Manual on CD-ROM

Management Methods

The switch series supports the following management methods:

•Console and Telnet Management

•Web-based Management

•SNMP Network Management

Console and Telnet Management

Console Management is done through the RS-232 Console Port.

Managing the switch in this method requires a direct connection

between the computer and the switch, while Telnet management is

done over the network. Once the switch is on the network, you can

use Telnet to log in and change the configuration.

Note: The default IP address of the switch is 192.168.0.1, and the

default user name AND password is root.

Web-based Management

The switch provides an embedded HTML web site residing in flash

memory. It offers advanced management features and allows users

to manage the switch from anywhere on the network through a

standard browser such as Microsoft Internet Explorer.

SNMP Network Management

SNMP (Simple Network Management Protocol) provides a means

to monitor and control network device, and to manage configura-

tions, statistic collection, performance, and security.

10 Setup Guide

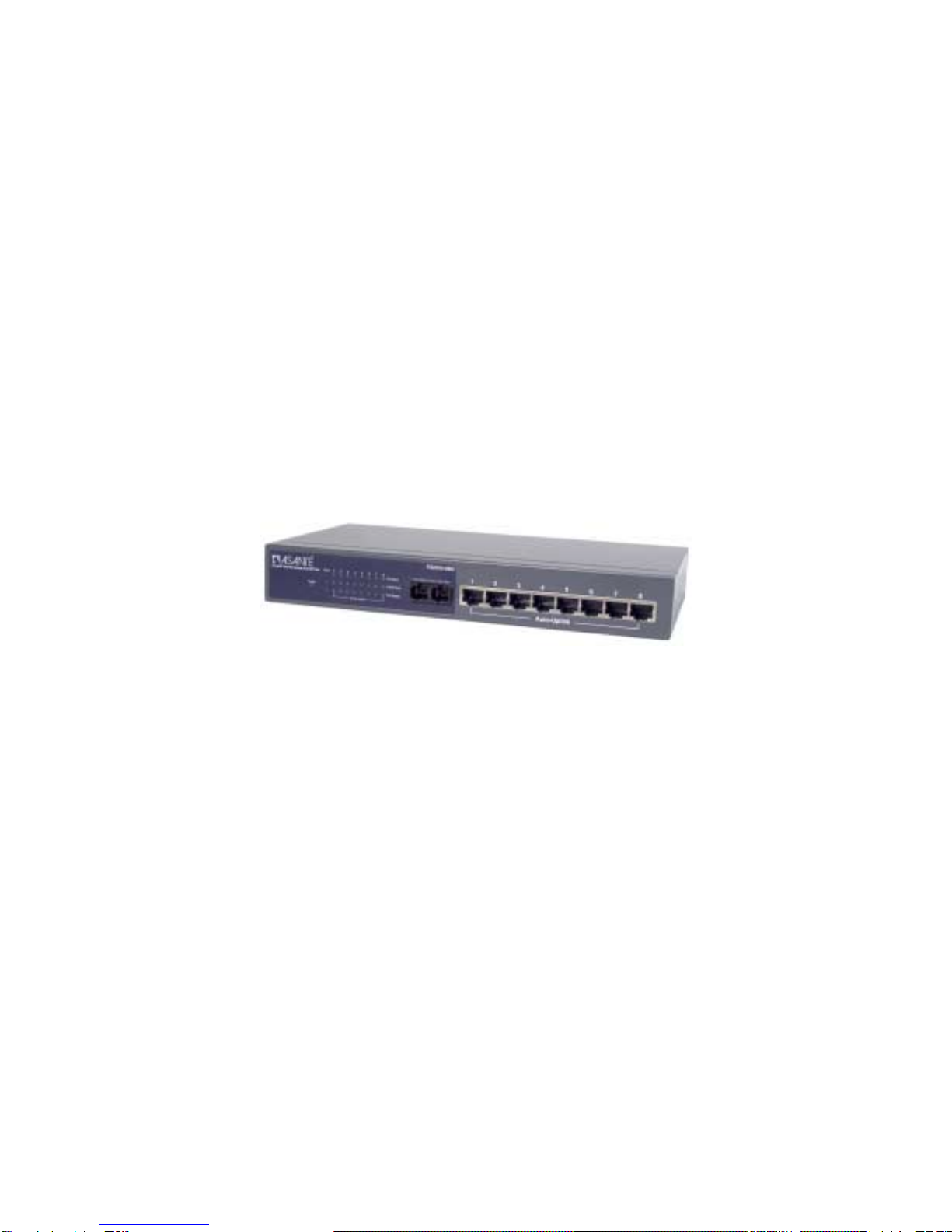

Front Panel

Note: The model shown is the FM2009. The FM2008 is identical,

except that there is no fiber uplink port.

The front panel of the switch consists of 8 auto-sensing

10/100Mbps Ethernet RJ-45 ports (automatic MDI/MDIX), one

100Base-FX fiber port, and the LED indicators.

Four types of fiber connectors are available for the fiber port: SC,

SC single-mode, MT-RJ, and VF-45.

LED Indicators

The fiber port has two LED indicators (Link/Activity, Full Duplex),

and each UTP port has three LED indicators (100Mbps, Link/

Activity, Full Duplex).

The following table provides descriptions of the LEDs’ statuses and

meanings. These LEDs provide a real-time indication of systematic

operation status.
