artisan ART2-36 Manuel utilisateur
10
6
5
7
4
8
5
4
7
7
13
3
1
2
1
14
12
9
11
BILL OF MATERIAL
NO. PART #
DESCRIPTION
QTY
1
100-2376
ART BRIQUETTE TRAY - 9-3/4" WIDE
2
2
100-2377
ART BRIQUETTE TRAY - 13-3/4" WIDE
1
3
265-0030
BRIQUETTE - 2"Ø ROUND
60
4
290-0323
ARTISAN BBQ GRID - 9.8125" WIDE
2
5
290-0324
ARTISAN BBQ GRID - 13.8125" WIDE
1
6
290-0354
ART-36 WARMING GRID
1
7
290-0355
ART BBQ - U-BURNER
3
8
510-0552
ART-ROT36 ROTISSERIE KIT
1
9
510-0602
ARTISAN 36" GREASE TRAY ASSEMBLY
1
10
510-0745
ART-36 - FRONT HOOD- SEE PARTS DWG.
1
11
510-0766
ART2-36 ELECTRICAL COMP. SEE PART DWG.
1
12
510-0767
ART2-36 GAS MANIFOLD - SEE PARTS DWG.
1
13
510-0829
ART2-36 BBQ MAIN BODY - SEE PARTS DWG.
1
14
510-0834
ART2-36 FRONT PANEL - SEE PARTS DWG.
1
SUPERIOR EQUIPMENT SOLUTIONS
7039 EAST SLAUSON AVENUE
COMMERCE, CA. 90040
DRAWING NO.:
PROJECT TITLE:
DRAWING TITLE:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS
INC. ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT WRITTEN PERMISSION FROM SUPERIOR
EQUIPMENT SOLUTIONS, INC. IS PROHIBITED.
500-0116M
SHEET 1 OF 1
ART2 GRILLS
ART2-36 BBQ ASSEMBLY
LAST SAVED BY: »» adrian «« Monday, March 24, 2014 8:19:26 AM
DRAWN BY:
ADRIAN CRISCI
CREATED:
3/24/2014 8:11:18 AM
Artisan
6
8
7
7
10
9
5
2
4
3
4
4
4
1
A
B
ITEM NUMBER
QUANTITY

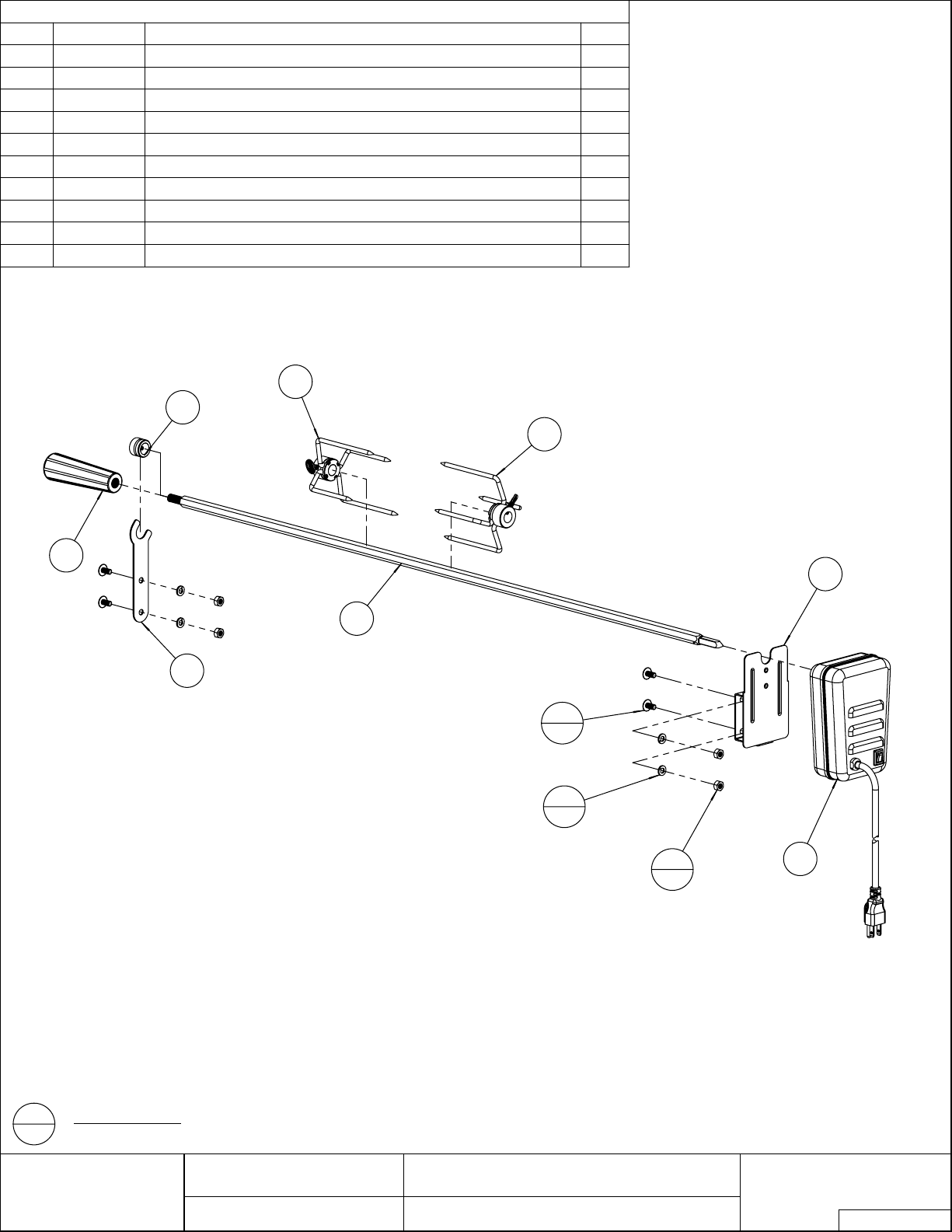

BILL OF MATERIALS
ITEM
PART N°
DESCRIPTION
QTY
1
100-2366
ART ROTISSERIE HOLDER BRACKET
1
2
200-0057
SCREW 1/4-20 X 1/2 - TRUSS HEAD - PHILPS
4
3
200-0087
WASHER - 1/4" SPRING LOCK- REGULAR - SS
4
4
200-0090
1/4-20 - DOUBLE CHAMFER - HEX NUT
4
5
210-0493
ARTISAN ROTISSERIE MOTOR
1
6
290-0330
HANDLE - ROTISSERIE SPEAR - ARTISAN
1
7
290-0331
FORK - ARTISAN ROTISSERIE ASSEMBLY (FORK + THUMB SCREW)
2
8
290-0332
BUSHING- ARTISAN ROTISSERIRE BUSHING ASSEMBLY
1
9
290-0333
BRACKET - ARTISAN ROTISSERIE MOTOR MOUNT
1
10
290-0336
SPEAR ROTISSERIE - ARTISAN 36" BBQ
1
SUPERIOR EQUIPMENT SOLUTIONS
7039 EAST SLAUSON AVENUE
COMMERCE, CA. 90040
DRAWING NO.:
PROJECT TITLE:
DRAWING TITLE:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS
INC. ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT WRITTEN PERMISSION FROM SUPERIOR
EQUIPMENT SOLUTIONS, INC. IS PROHIBITED.
510-0552M
SHEET 1 OF 1
ART2 GRILLS
ART-ROT36 ROTISSERIE KIT
LAST SAVED BY: »» adrian «« Thursday, March 20, 2014 9:00:40 AM
DRAWN BY:
ADRIAN CRISCI
CREATED:
6/30/2011 10:54:15 AM
Artisan
5
LIGHT FIXTURE AND IT'S
REPLACEABLE PARTS
SHOWN ON ELECTRICAL
COMPONENTS DRAWING
510-0766M
4
ALSO SHOWN ON DRAWING 510-0766M
AS REFERENCE
6
2
3
1
BILL OF MATERIAL
NO. PART #
DESCRIPTION
QTY
1
100-2363
ART ROTISSERIE ELECTRODE COVER
1
2
200-0111
SCREW 8-18 X ½ - SELF TAP - 410 SS
1
3
200-0267
10-32 X 1/2 - PAN HEAD - PHILIPS SCREW
1
4
210-0240
ELECTRODE - DUAL TIP "L" SHAPE- ROTISSERIE
1
5
210-0488
LAMP FIXTURE ASSEMBLY - G9/120V/40W
1
6
510-0744
ART-36 ROTISSERIE BURNER PANEL - WELDED PARTS
1
SUPERIOR EQUIPMENT SOLUTIONS
7039 EAST SLAUSON AVENUE
COMMERCE, CA. 90040
DRAWING NO.:
PROJECT TITLE:
DRAWING TITLE:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS
INC. ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT WRITTEN PERMISSION FROM SUPERIOR
EQUIPMENT SOLUTIONS, INC. IS PROHIBITED.
510-0743M
SHEET 1 OF 1
ART2 GRILLS
ART-36 ROTISSERIE BURNER PANEL
LAST SAVED BY: »» adrian «« Thursday, March 20, 2014 4:28:06 PM
DRAWN BY:
ADRIAN CRISCI
CREATED:
3/20/2014 3:00:58 PM
Artisan
A
B
3
4
2
4
4
2
1
2
8
5
5
5
6
6
7
ITEM NUMBER
QUANTITY
THERMOMETER BODY
BEZEL
NUT
BILL OF MATERIAL
NO. PART #
DESCRIPTION
QTY
1
200-0057
SCREW 1/4-20 X 1/2 - TRUSS HEAD - PHILPS
2
2
200-0087
WASHER - 1/4" SPRING LOCK- REGULAR - SS
4
3
200-0091
HH- HD - 1/4-20 x 1 x .75 THREAD
4
4
200-0313
NUT ¼ x 20 - ACORN - SELF LOCKING
2
5
210-0490
ARTISAN THERMOMETER ASSEMBLY
1
6
290-0063
HANDLE - END CAP ASSEMBLY
2
7
290-0328
ARTISAN 36" BBQ - FRONT HOOD HANDLE BAR
1
8
510-0746
ART-36 FRONT HOOD - WELDED PARTS
1
SUPERIOR EQUIPMENT SOLUTIONS
7039 EAST SLAUSON AVENUE
COMMERCE, CA. 90040
DRAWING NO.:
PROJECT TITLE:
DRAWING TITLE:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS
INC. ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT WRITTEN PERMISSION FROM SUPERIOR
EQUIPMENT SOLUTIONS, INC. IS PROHIBITED.
510-0745M
SHEET 1 OF 1
ART2 GRILLS
ART2-36 - FRONT HOOD ASSEMBLY
LAST SAVED BY: »» adrian «« Thursday, March 13, 2014 8:06:38 AM
DRAWN BY:
ADRIAN CRISCI
CREATED:
3/10/2014 11:52:36 AM
Artisan
8
11
5
8
8
2 9
2
6
10
3
7
1
1
1
4
REPLACEMENT
LAMP G9/40W/120V
#210-0317
REPLACEMENT GLASS
#210-0495
BILL OF MATERIAL
NO. PART #
DESCRIPTION
QTY
1
200-0009
HEYCO STRESS RELIEF BUSHING # 1200 SR 6N3-4
3
2
210-0198
SWITCH - WEATHER BOOT & CAP
2
3
210-0240
ELECTRODE - DUAL TIP "L" SHAPE- ROTISSERIE
1
4
210-0287
BLACK POWER SUPPLY CORD 125V 15A 14/3 X 8FT LONG
1
5
210-0465
IGNITER MODULE (4 POINTS)
1
6
210-0470
LIGHT SWITCH
1
7
210-0488
LAMP FIXTURE ASSEMBLY - G9/120V/40W
1
8
210-0491
ARTISAN U-BURNER ELECTRODE TIP
3
9
210-0538
IGNITER SWITCH ASSEMBLY - OFF [ON] MOMENTARY
1
10
210-0539
IGNITER WIRE - NEUTRAL ASSEMBLY
1
11
210-0541
ART2-36 IGNITER WIRE KIT
1
SUPERIOR EQUIPMENT SOLUTIONS
7039 EAST SLAUSON AVENUE
COMMERCE, CA. 90040
DRAWING NO.:
PROJECT TITLE:
DRAWING TITLE:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS
INC. ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT WRITTEN PERMISSION FROM SUPERIOR
EQUIPMENT SOLUTIONS, INC. IS PROHIBITED.
510-0766M
SHEET 1 OF 1
ART2 GRILLS
ART2-36 ELECTRICAL COMPONENTS
LAST SAVED BY: »» adrian «« Thursday, March 20, 2014 4:19:59 PM
DRAWN BY:
ADRIAN CRISCI
CREATED:
3/20/2014 4:11:44 PM
Artisan
13
4
1
12
7
11 10
12
10
12
10 2
8
14 3
5
6
9
NOTE:
SUPPLIED BY CUSTOMER
ON NG INSTALLATIONS
(SEE OWNER'S MANUAL)
THESE TWO ITEMS ARE
PROVIDED BY ARTISAN
ON LP INSTALLATIONS
ITEM
PART NUMBER
DESCRIPTION
QTY
1
100-1949
ROTISSERIE LINE - 36" L x 3/8" ID
1
2
200-0274
ELBOW 90°- CAST IRON - 1/2" FPT x 1/2" MPT
1
3
220-0275
NIPPLE - 1/2" MPT X 3/8" OD FL
1
4
220-0276
ELBOW .375 MPT x .375 COMP
1
5
220-0280
REGULATOR GAS - MAXITROL RV48CL440002
1
6
220-0301
REGULATOR - LP GAS W/36" HOSE - CONN. GREEN
1
7
220-0399
ELBOW 1/8-27 FPT x 3/8" Ø COMPRESSION
1
8
220-0431
GAS MANIFOLD
1
9
290-0030
KNOB BBQ - ALFRESCO "A" LETTER
4
10
290-0320
GAS VALVE - 1/8-27 MPT X 1/8-27 NPTS
3
11
290-0321
VALVE - GAS - [ON/OFF] FLOW - 1/8-27 MPT X 1/8-27 NPTS
1
12
SEE NOTE
ORIFICE - MAIN BURNER - (SEE NOTE FOR SIZING)
3
13
SEE NOTE
ORIFICE - IR ROTISSERIE UNIT (SEE NOTE FOR SIZING)
1
14
SEE NOTE
1/2" ODF - FLEX SS GAS LINE (BY CUSTOMER)
1
NOTE:
ORIFICE OR VALVE ASSEMBLY
TO CHANGE ACCORDING TO FUEL
SUPPLY: NATURAL GAS OR LIQUID
PROPANE.
ITEM
NG
LP
PART # PART #
12
220-0436 220-0472
13
220-0283 220-0284
SUPERIOR EQUIPMENT SOLUTIONS
7039 EAST SLAUSON AVENUE
COMMERCE, CA. 90040
DRAWING NO.:
PROJECT TITLE:
DRAWING TITLE:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS
INC. ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT WRITTEN PERMISSION FROM SUPERIOR
EQUIPMENT SOLUTIONS, INC. IS PROHIBITED.
510-0767M
SHEET 1 OF 1
GAS MANIFOLD
LAST SAVED BY: »» neil «« Wednesday, January 30, 2019 1:34:11 PM
DRAWN BY:
N SILCOCK
CREATED:
5/14/2018 10:42:22 AM
Artisan
ART2-36 & ARTP-36
A
B
10
2
12
54
8
3
7
3
11
2
18
2
13
8
13
8
1
2
2
1
3
6
14
16
4
19
15
17
ITEM NUMBER
QUANTITY
5
BILL OF MATERIAL
NO. PART #
DESCRIPTION
QTY
1
100-2024
FIREBOX TRAY SLIDE PART-A
2
2
100-2025
FIREBOX TRAY SLIDE PART-B
2
3
100-2038
ARTISAN IGNITER & LIGHT SWITCH BRACKET
1
4
100-2358
ART-36 BACK HOOD - REAR COVER
1
5
100-2370
ART2 - ELECTRICAL BOX COVER
1
6
100-2372
ART-36 FIREWALL
1
7
100-2373
ART - BURNER BRACKET
3
8
100-2374
ART - IGNITER COVER - STANDARD
3
9
200-0057
SCREW 1/4-20 X 1/2 - TRUSS HEAD - PHILPS
6
10
200-0062
10-32 X 3/4 - PAN HEAD - PHILIPS SCREW
2
11
200-0082
10-32 X 1/4 - PAN HEAD - PHILIPS SCREW
2
12
200-0111
SCREW 8-18 X ½ - SELF TAP - 410 SS
54
13
200-0267
10-32 X 1/2 - PAN HEAD - PHILIPS SCREW
8
14
510-0741
ART-36 FIREBOX - RIVETED PARTS
1
15
510-0742
ART2-36 - PERIMETER RING
1
16
510-0743
ART-36 ROTISSERIE BURNER PANEL
1
17
510-0747
ART2 IGNITER BRACKET ASSEMBLY
1
18
510-0748
ART - PERIMETER MOUNTING BRACKET
2
19
510-0865
ART2-36 FIREBOX REAR COVER ASSEMBLY
1
SUPERIOR EQUIPMENT SOLUTIONS
7039 EAST SLAUSON AVENUE
COMMERCE, CA. 90040
DRAWING NO.:
PROJECT TITLE:
DRAWING TITLE:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS
INC. ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT WRITTEN PERMISSION FROM SUPERIOR
EQUIPMENT SOLUTIONS, INC. IS PROHIBITED.
510-0829M
SHEET 1 OF 1
ART2 GRILLS
ART2-36 BBQ MAIN BODY ASSEMBLY
LAST SAVED BY: »» adrian «« Thursday, March 20, 2014 2:38:24 PM
DRAWN BY:
ADRIAN CRISCI
CREATED:
3/11/2014 11:47:05 AM
Artisan
3
2
1
4
2
4
4
5
A
B
ITEM NUMBER
QUANTITY
BILL OF MATERIAL
NO. PART #
DESCRIPTION
QTY
1
200-0086
1/4-20 X 3/8 - TRUSS HEAD - PHILIPS SCREW
4
2
200-0087
WASHER - 1/4" SPRING LOCK- REGULAR - SS
4
3
200-0093
WASHER - PUSH LOCK 1/8" ID X 3/8" OD (LOGO)
2
4
290-0356
ARTISAN LOGO
1
5
510-0835
ART2-36 FRONT PANEL - WELDED PARTS
1
SUPERIOR EQUIPMENT SOLUTIONS
7039 EAST SLAUSON AVENUE
COMMERCE, CA. 90040
DRAWING NO.:
PROJECT TITLE:
DRAWING TITLE:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS
INC. ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT WRITTEN PERMISSION FROM SUPERIOR
EQUIPMENT SOLUTIONS, INC. IS PROHIBITED.
510-0834M
SHEET 1 OF 1
ART2 GRILLS
ART2-36 FRONT PANEL ASSEMBLY
LAST SAVED BY: »» adrian «« Thursday, March 20, 2014 9:02:12 AM
DRAWN BY:
ADRIAN CRISCI
CREATED:
3/20/2014 8:28:38 AM
Artisan
Autres manuels artisan Gril
