Arrow Storage Products LO1010 Instructions d'utilisation
Gloves must be worn
at all times to reduce
risk of injury!
Owner’s Manual
& Assembly Guide
01BD
721770217
Model No. LO1010 DW1010HGH6
Nominal Size
10’ x 10’
www.arrowsheds.com
BUILDING DIMENSIONS
* See Inside for Detailed Safety Information.
Customer Service:
1-800-851-1085 or
Size rounded off to the nearest foot
Exterior Dimensions
(Roof Edge to Roof Edge)
Width Depth Height
Interior Dimensions
(Wall to Wall)
Width Depth Height
Door
Opening
Width Height
Approx.
Size
Storage
Area
10’ x 10’ 92 Sq. Ft. 545 Cu. Ft. 123 1/4” 117” 81 3/8” 118 1/4” 111 3/4” 80 1/8” 55 1/2” 60”
3,0 m x 2,8 m 8,5 m215,4 m3313,1 cm 297,2 cm 206,7 cm 300,4 cm 283,8 cm 203,5 cm 141,0 cm 152,4 cm
For proper base construction see page 12
Base
Size
121” x 114 1/2”
307,3 cm x 290,8 cm
†
†
2

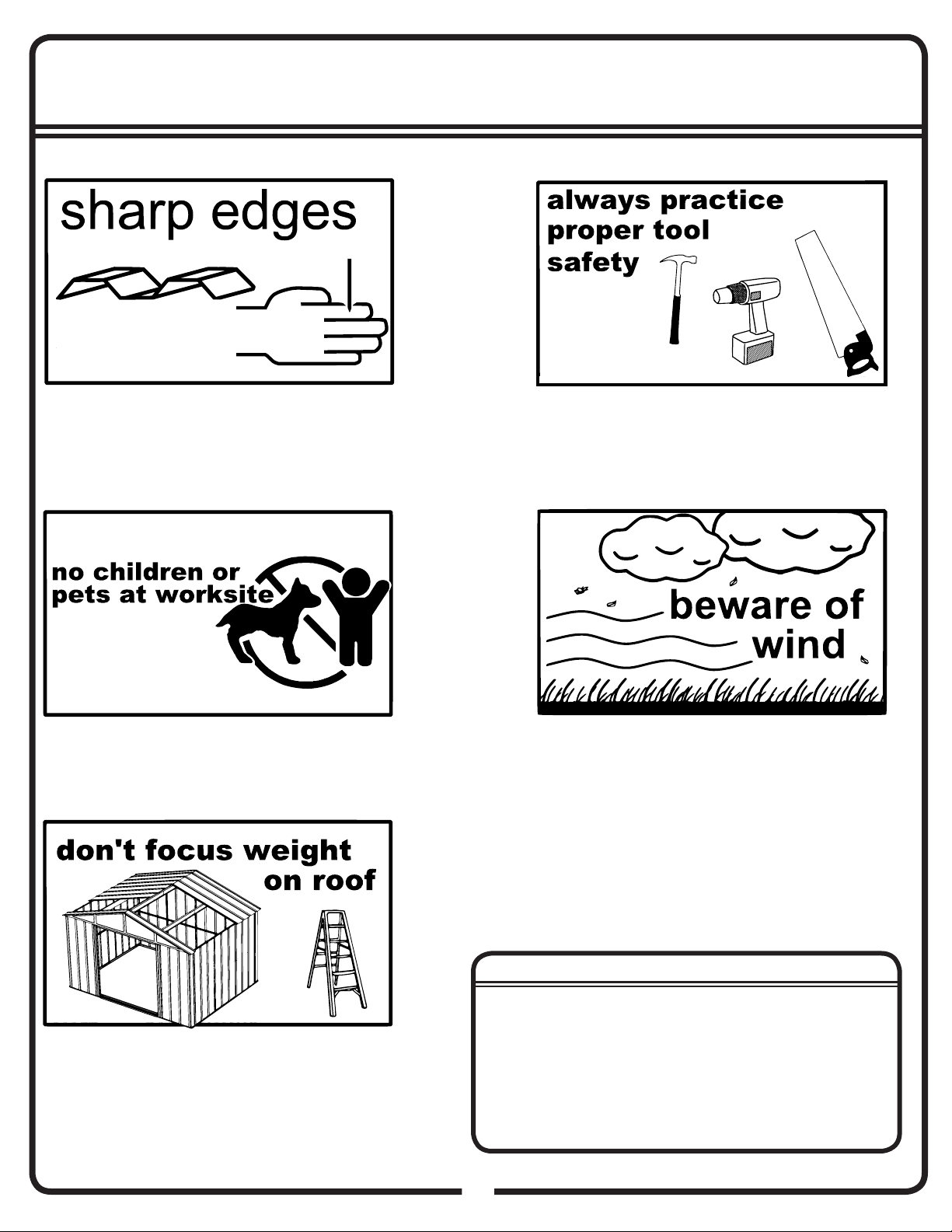

SAFETY PRECAUTIONS...
Safety precautions MUST be followed at all times throughout the construction of your building!
Care must be taken when handling various pieces
of your building since many contain sharp edges.
Please wear work gloves, eye protection and
long sleeves when assembling or performing any
maintenance on your building.
Practice caution with the tools being used in the
assembly of this building. Be especially familiar with
the operation of all power tools.
Keep children and pets away from the worksite
during construction and until the building is
completely assembled. This will help avoid
distractions and any accidents which may occur.
NEVER concentrate your weight on the roof of the
building. When using a step ladder make sure that
it is fully open and on even ground before climbing
on it.
Do NOT attempt to assemble your building on a
windy day. The large panels can catch the wind like
a “sail”, causing them to be whipped around making
construction diffi cult and unsafe.
Do NOT attempt to assemble your building before
double checking that you have all the parts indicated
in the parts lists (page 8) as well as all hardware
(page 7). Any building left partially assembled may
be seriously damaged by even light winds.
IMPORTANT NOTE ON ANCHORING
• Your building MUST be anchored to prevent wind
damage. An anchoring kit is not supplied with your
building and you have many options when it comes to
anchoring. See anchoring page for more info.
• You must also have a temporary anchoring system in
place in case you need to take a break from assembly.
See page 4 for more info.
02H
3
ASSEMBLY TIPS &TOOLS
How to Select and Prepare Your Building Site: Before you start to assemble your
building, you will want to decide on a good location. The best location is a level area with good drainage.
• Allow enough working space so it is not diffi cult to move parts into position for assembly. Be sure there will be enough
space at the entrance for the doors to completely open. Also, there needs to be enough space outside the building to be
able to fasten the panel screws from the outside.
• Before assembling any parts, your base should be constructed and an anchoring system should be ready to use.
Watch the Weather Closely: Be sure the day you choose to install your building is dry and calm.
Do NOT attempt to assemble your building on a windy day. Be careful on wet or muddy ground.
Use Teamwork: Two or more people are required to assemble your building. One person can hold
the parts or panels in place while the other person fastens them together and handles the tools. This
makes the process of assembling your building faster and safer.

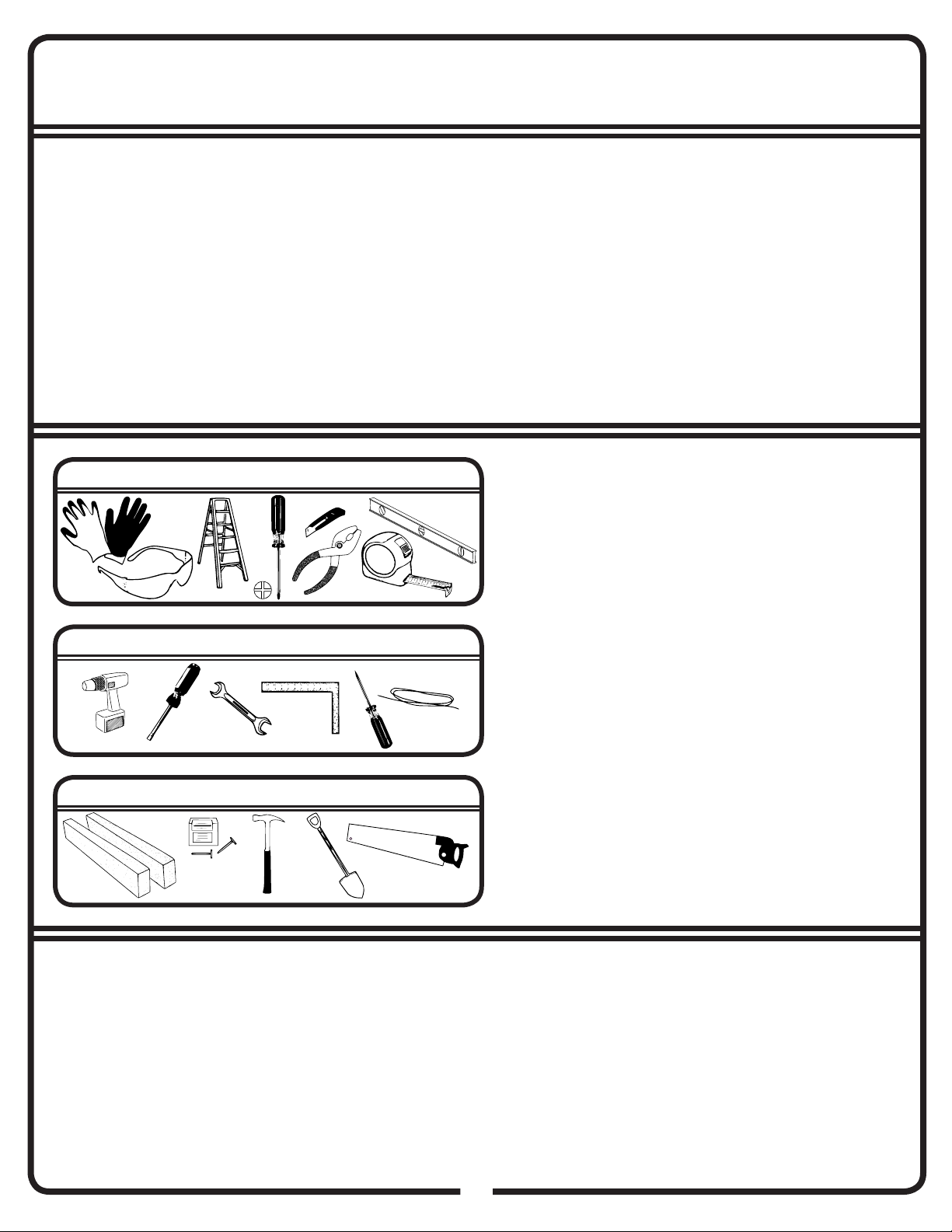

Tools and Materials: Here is a list of some basic tools and materials you will need to assemble
your building. Decide which method of anchoring and the type of base you will use to make a complete
list of the materials you will need.
• Work Gloves
• Safety Glasses
• Step Ladder
• No. 2 Phillips Screwdriver (Magnetic Tip Preferred)
• Utility Knife or Scissors
• Pliers
• Carpenter’s Level
• Tape Measure
• Power Drill (Cordless, Variable Speed)
• Nut Driver or Wrench
• Square
• String (for squaring the frame)
• Awl (to align holes)
• Lumber and/or Concrete
• Hammer and Nails
• Spade or Shovel
• Hand Saw or Power Saw
WHAT YOU NEED
RECOMMENDED TIME SAVERS
BASE PREPARATION TOOLS
03A
4
FREQUENTLY ASKED QUESTIONS
Q. How long will it take to assemble the building?
A. Assembly time depends on a variety of factors, including roof design, tools available, DIY skill and the pace
at which you work. Guidelines for each shed assembly are approximate AFTER completion of the base, and
assume two or more people working on the assembly. Generally, you should plan on at least one day working with
someone who can assist you; again, after constructing the base. Refer to the clock icons on each product page
on the website for specifi c time estimates.
Q. How do I decide where to put my shed?
A. The key to a successful assembly is to make sure the shed will be square and level when built. The shed can
be assembled directly onto level ground (grass or dirt). If you have location options, choose one that is already
fl at, with good drainage to control moisture. If you don’t have a fl at, well-drained area, you need to prepare the
space. Level the area using cinder blocks, concrete, crushed gravel or other sturdy materials. Once level with good
drainage, construct your base. Using a carpenter’s level, make sure your base is level and free of bumps or ridges
to provide good support for your building.
Q. What if I can’t fi nish my building in one session?
A. If weather conditions change so that it becomes windy or rainy, it is recommended that you stop assembly
until conditions improve. This is for your safety and for protection of the shed panels. However, do not leave
your unfi nished construction without fi rst temporarily anchoring the corners of the shed to your base and placing
weights, such as patio blocks or sandbags, on the fl oor frame. Failure to anchor the building if you leave it while
partially assembled could result in irreparable damage or personal injury if the building collapses.
Note: Most instruction manuals provide a warning note at the beginning of the installation step for corner panels,
stating that the remainder of the building assembly requires multiple hours and more than one person. Do not
continue beyond this point if you do not have enough time or help to complete the assembly that day. A partially
assembled building can be severely damaged by even light winds.
Q. Do I need to anchor my building?
A. Yes! Fully assembled buildings should be anchored using a permanent anchoring system. If you need to leave
your building before it is completely assembled, you will need to temporarily anchor the corners of the shed to your
base, and place weights, such as patio blocks or sandbags, on top of the fl oor frame.
Q. How do I temporarily anchor my building before it’s fully assembled?
A. An incomplete building must be anchored before breaking for any period of time to prevent possible damage.
•If the building is on a wood base, secure the frame with wood screws in the corners
•If the building is on a concrete base, temporarily anchor the frame in the corners
•Use patio blocks or sandbags on top of the fl oor frame as weights
•Secure the fl oor frame to the ground with ground augers or rope the frame in the corners to the ground
Q. How do I control condensation and prevent water from leaking in?
A. To minimize condensation, install a continuous, unbroken plastic vapor barrier with a thickness of 6 mil.
between exposed ground surface and the building’s base. Make sure that all weather stripping and washers are
used throughout the assembly process. Make sure that the weather-stripping tape adheres to the panels when
installing it along the main ridge beam. Do not stretch it. Apply it directly off the roll onto clean panels. Ensure
that all washers are fl ush with the panels and do not over-tighten screws, as this can crack the washers. Silicone
caulking may be used to create watertight seals at the washers and throughout the building.
04A
5
Q. What kind of base do I use?
A. You can:
•Use an Arrow Base Kit
•Pour a concrete slab
•Build a wood deck/fl oor (use exterior-grade plywood)
•Use patio blocks
•Build on crushed gravel, dirt or grass
Arrow provides a base kit accessory that is an option for most building sizes. If you are building a wood deck/fl oor,
an Arrow fl oor frame kit on top of your deck/fl oor assembles in minutes and provides a fl oor frame suitable for a
5/8” exterior-grade plywood fl oor (not included). A continuous unbroken plastic vapor barrier with a thickness of 6
mil. between the ground and the building’s base is also recommended.
Q. How should I measure for my base?
A. Shed dimensions are provided in “nominal” size. Nominal sizes are roof-edge measurements rounded to the
nearest foot and are not the measurements to use for constructing the shed base. So, carefully check the exact,
recommended base size in the specifi cations for your shed model.
Q. How do I align the holes in the wall panels with the holes in the fl oor frame?
A. Make sure that the shed is level and square, with the correct fl oor frame size, and that the corner panels are
installed correctly. Line up the large hole in the panel with the small holes in the fl oor frame. An awl can be used to
help align the holes.
Q. How do I align the holes in the roof panels with the holes in the roof beam and side wall angles?
A. Your building must be level and square in order for the holes to align. It must be square at both the top and
bottom. Check that the building is square by measuring diagonally. The two diagonal measurements will be equal.
If your building is out of square, carefully rock and push the shed until it is square. Also, try loosening the roof
beams to give more play and fl exibility. Non-alignment can also occur if your building is not level. You can raise
corners and shim under them to make it level. Check that the panels are installed in the proper location. The
building should not be permanently anchored until the complete unit is assembled; otherwise, you will not be able
to make adjustments for squareness during assembly. Do not attach the bottom of the roof panels to the side wall
angles until all the roof panels are up.
Note: If you have to stop assembly for any reason before it is complete, do not leave your unfi nished construction
without fi rst temporarily anchoring the corners of the shed to your base and placing weights, such as patio blocks
or sandbags, on the fl oor frame.
Q. How do I ensure that the sliding doors on the building will hang level?
A. Make sure that the door track has been correctly installed, with the long leg on top and the short leg on the
bottom. Check that the door slides are straddling the upper and lower legs of the door track assembly, putting the
door slide only halfway in the track. Also, the rounded end of the door slide should be at the bottom and the square
end at the top.
Q. What kind of customer support is available?
A. Our instruction manuals contain step-by-step assembly illustrations and guide you from preparation through
assembly to care and maintenance of your fi nished building. Each part is marked with a factory number for easy
identifi cation. In addition, our assembly animation (located under the Customer Support menu on the website)
provides helpful tips. But if you need to reach someone at Arrow, you can contact Arrow Customer Service, toll free,
at 1-800-851-1085 (press 1) or via e-mail at [email protected]. Have your model number and instruction
manual with you when you call.
05A
6
Q. What if the rear wall angle and channels are too large to fi t inside of the rear wall panels?
A. Check the dimensions of wall assemblies. They should be slightly smaller than the fl oor frames. Lay the
assemblies on top of the rear fl oor frame and pull them up to the top of the wall panels causing the corner panels
to stand erect and not lean inward. Caution: Be careful to not scratch the panels on the way up.
Q. The wide rib always overlaps the crimped rib. Is there ever an exception?
A. This sequence is to be followed through the assembly process. However, this will typically happen once on the
rear and once on each side wall (vertical wall units only) where there will be either two crimped ribs overlapping or
two wide ribs overlapping. This may give it a tighter fi t, but it will work.
Q. Can the building be painted?
A. The buildings can be painted with an exterior-grade paint designed for use on steel. Contact your local paint
supplier for recommendations.
Q. I heard that rust might be an issue with steel; is it?
A. While steel can rust, with proper care this should not be an issue. For a long-lasting fi nish, periodically clean
the exterior surface and apply spray-on car wax. Touch up scratches as soon as you notice them by immediately
cleaning the area with a wire brush or emery paper, washing it and applying touch-up paint. This will minimize rust
and maintain your shed’s attractive appearance for years.
Q. How do I take care of dents in my shed?
A. Proper selection of shed size, including a suffi cient door-opening width, and proper placement of your shed
should minimize the possibility of damage. If a dent does occur, carefully push the dent out from the opposite side.
If the paint has been scratched or removed, touch up the area as soon as you notice it. Immediately clean the area
with a wire brush or emery paper, wash it and apply touch-up paint. This will minimize rust and maintain your shed’s
attractive appearance for years.
Still have questions? Visit us online at www.arrowsheds.com to view lots of helpful tips and information
regarding all of our available products. You can also contact our Customer Service team at 1-800-851-1085
06A

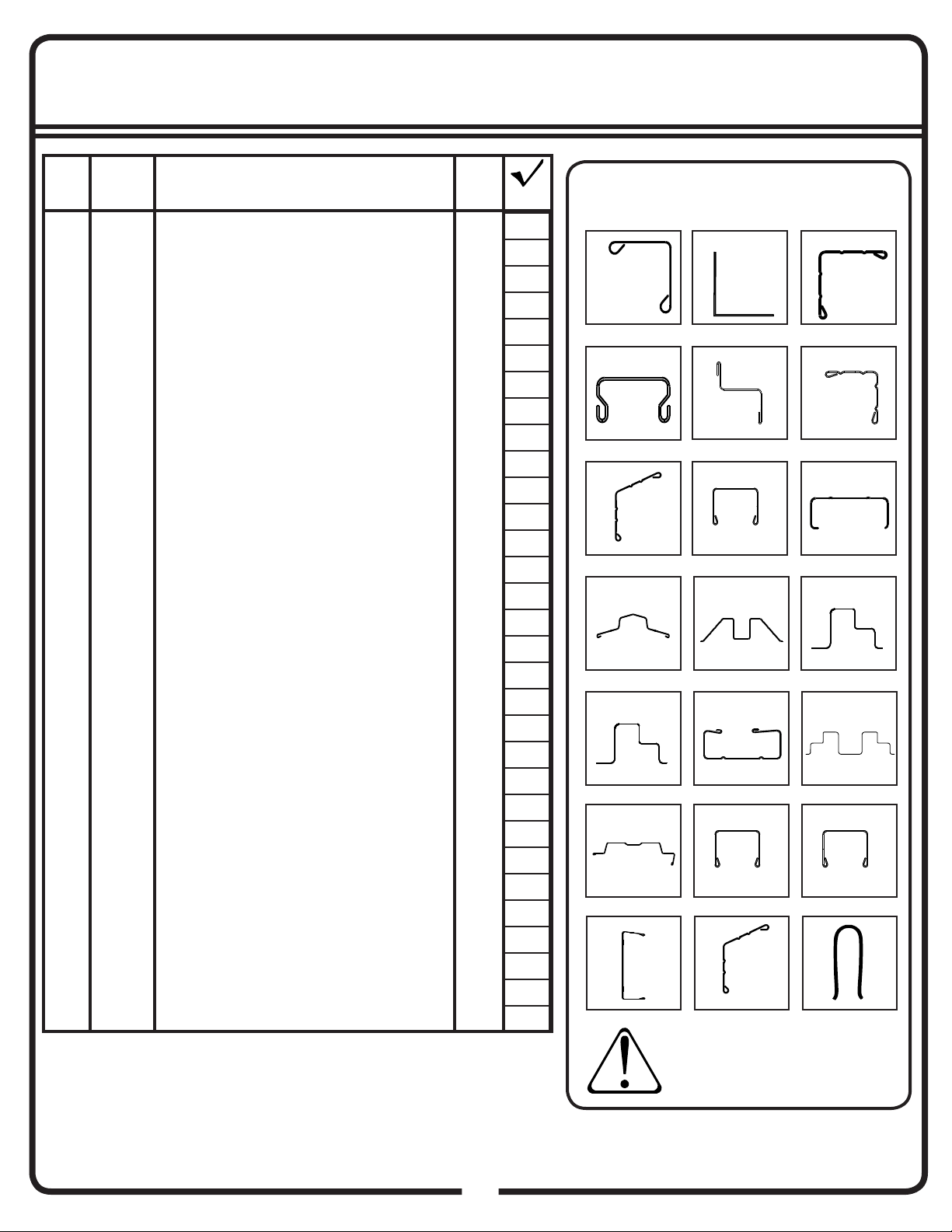

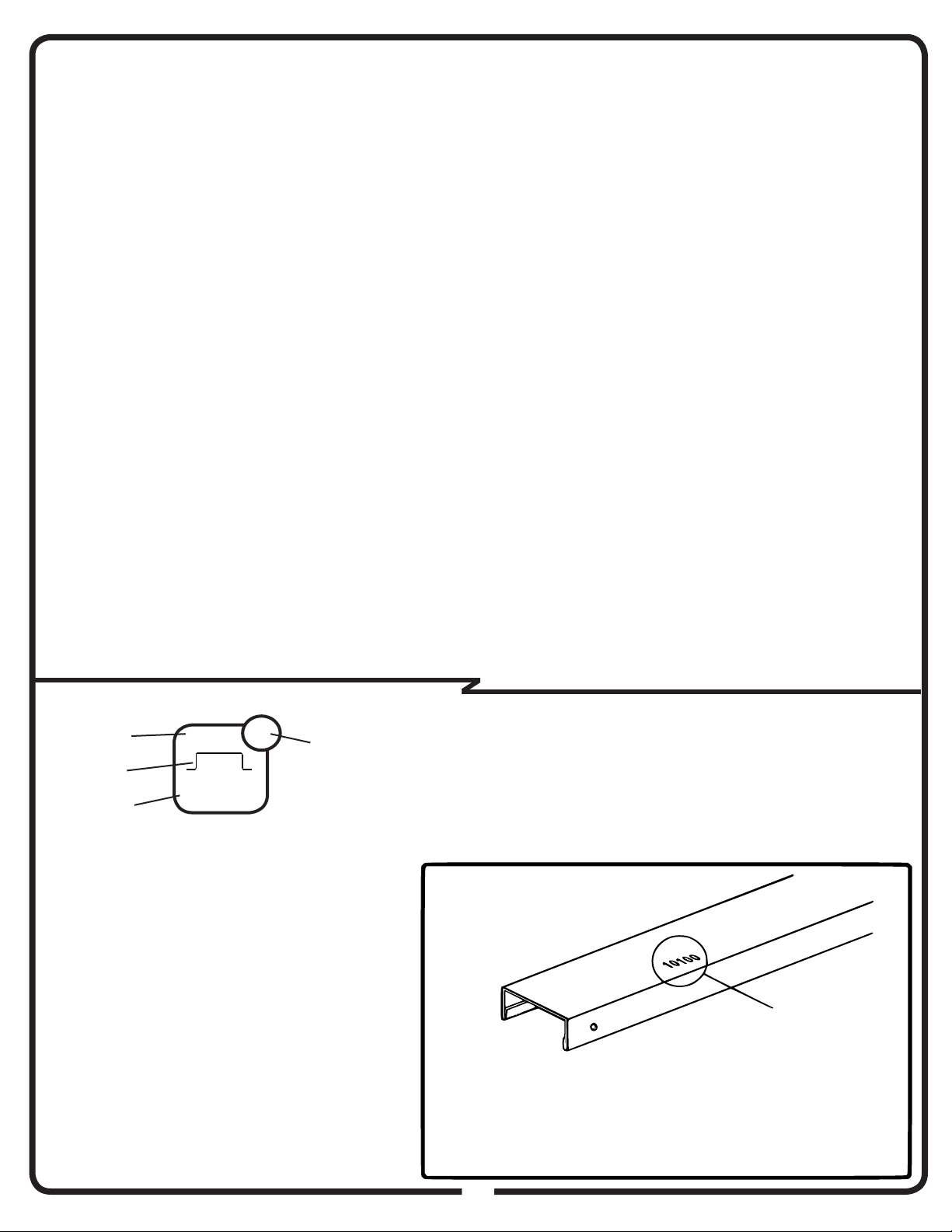

At the top of each page you will see one or more Part
Cues like the one to the left. These Part Cues are
designed to help you quickly identify the parts needed
for each step.
##### 5
Part No. Quantity Needed
End View
Part Name Part Name

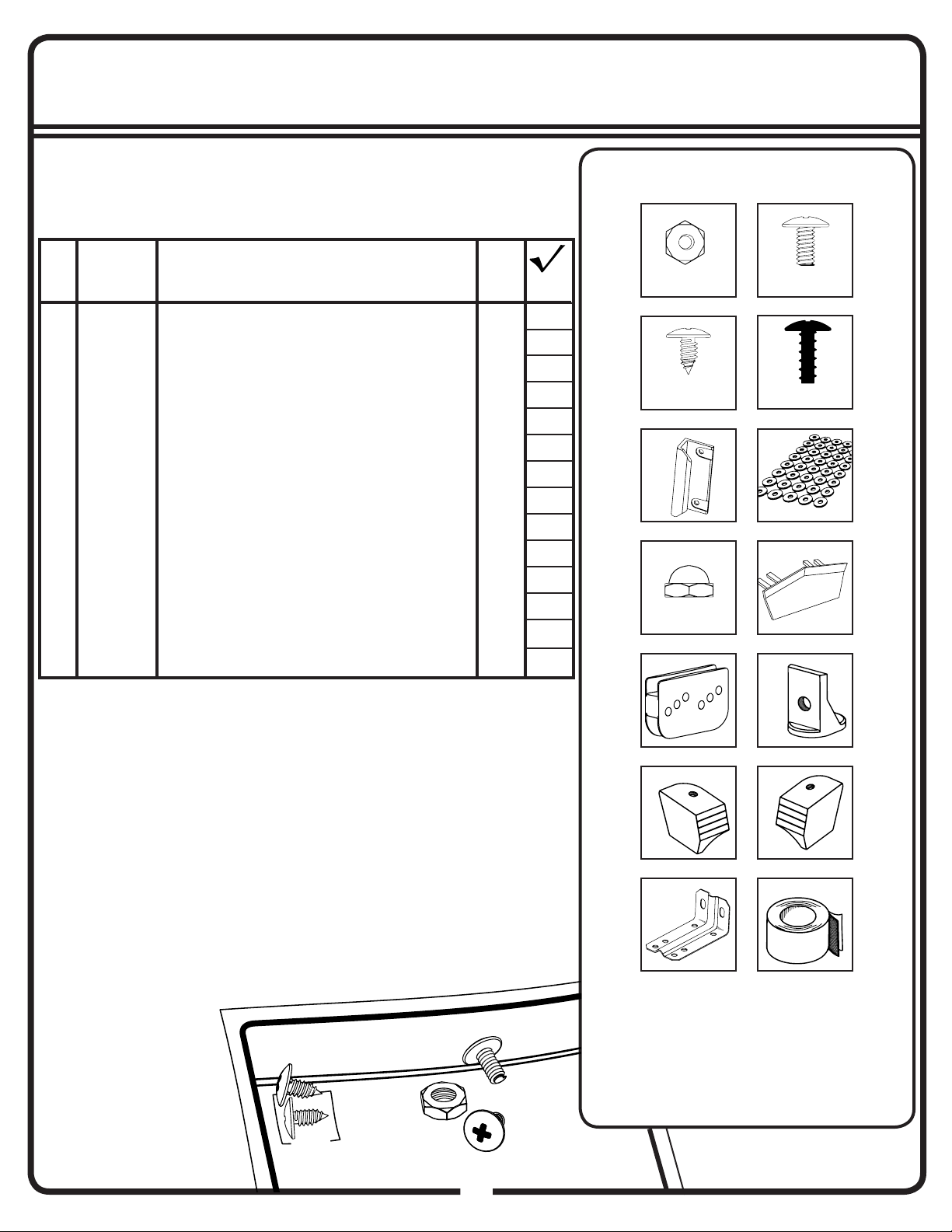

Confi rm that all hardware and parts are
present before attempting to assemble
your building.
Customer Service:
1-800-851-1085 or
For missing or damaged parts contact
Customer Service. Do not return to store.
Part Numbers
Part Number
1. Each part has an identifying part number on it.
2. Part Numbers are referenced in each step.
3. Unpainted parts have a stamped in number and painted
parts have a number that is inked on.
Remove inked on numbers with soap and water after assembly.
7
HARDWARE LIST...
8
11 12
07BD
1
11/32 Hex.
14
Hardware Views by Key No.
2
#2 Phillips
3
#2 Phillips
6
1 65103 Hex Nut (#8-32) 165
2 65923 Small Bolt (#8-32 x 3/8) (10 mm) 165
3 65004 Small Screw (#8AB x 5/16) (8 mm) 356
4 65900A Black Screw (#10B X 1/2) (13 mm) 8
5 66846 Handle 2
6 66646 Washer Sheet 10
7 65109 Acorn Nut (#8-32) 4
8 67468 Peak Cap 2
9 66769 Door Slide 4
10 66382 Lower Door Guide 4
11 66183L Left Roof Trim Cap 2
12 66183R Right Roof Trim Cap 2
13 6228 Track Support 2
14 67545 Weather Stripping 1
Key
No.
Part
No.
Part
Description Qty. List
The fasteners used in each step are shown
actual size at the top of each page. If you are
unsure which fastener to use, hold it up to the
picture and use the one that matches.
QTY 18
13
4
#2 Phillips
5
7
5/16 Hex.
9 10
6
Key
No.
Part
No.
Part
Description
Qty.
List
1 3719 Door Handle Brace 2
2 6635 Gable Brace 4
3 9009 Gable Brace 2
4 9204 Roof Beam Brace 2
5 9365 Front Wall Channel 2
6 10497 Horizontal Door Brace 4
7 5986 Rear Wall Angle 2
8 6015 Side Roof Trim 4
9 6278 Vertical Door Brace 2
10 6403 Door Track Splice 1
11 6514 Corner Panel 4
12 6515 Wall Panel 8
13 6869 Ridge Cap 2
14 7743 Roof Panel 4
15 8576 Right Gable 2
16 8577 Left Gable 2
17 8934 Ramp 1
18 8936 Rear Floor Frame 2
19 9086 Right Roof Panel 2
20 9087 Left Roof Panel 2
21 9299 Side Floor Frame 4
22 9366 Door Track 2
23 9367 Front Floor Frame 2
24 9369 Door Jamb 2
25 9373 Front Wall Panel 2
26 9917 Rear Wall Channel 2
27 9923 Side Wall Channel 4
28 10475 Door 2
29 10518 Roof Beam 8
30 10521 Side Wall Angle 4
31 69835 Edge Trim (Green) 4
PARTS LIST...
8
08BD
13
6
Selected End Views by Key No.
21
7
8 9
29
24 26
18
22 23
Gables, Roof Panels, Wall
Panels, and Doors not
shown.
1 2&3 4
5
10
17
27
3130

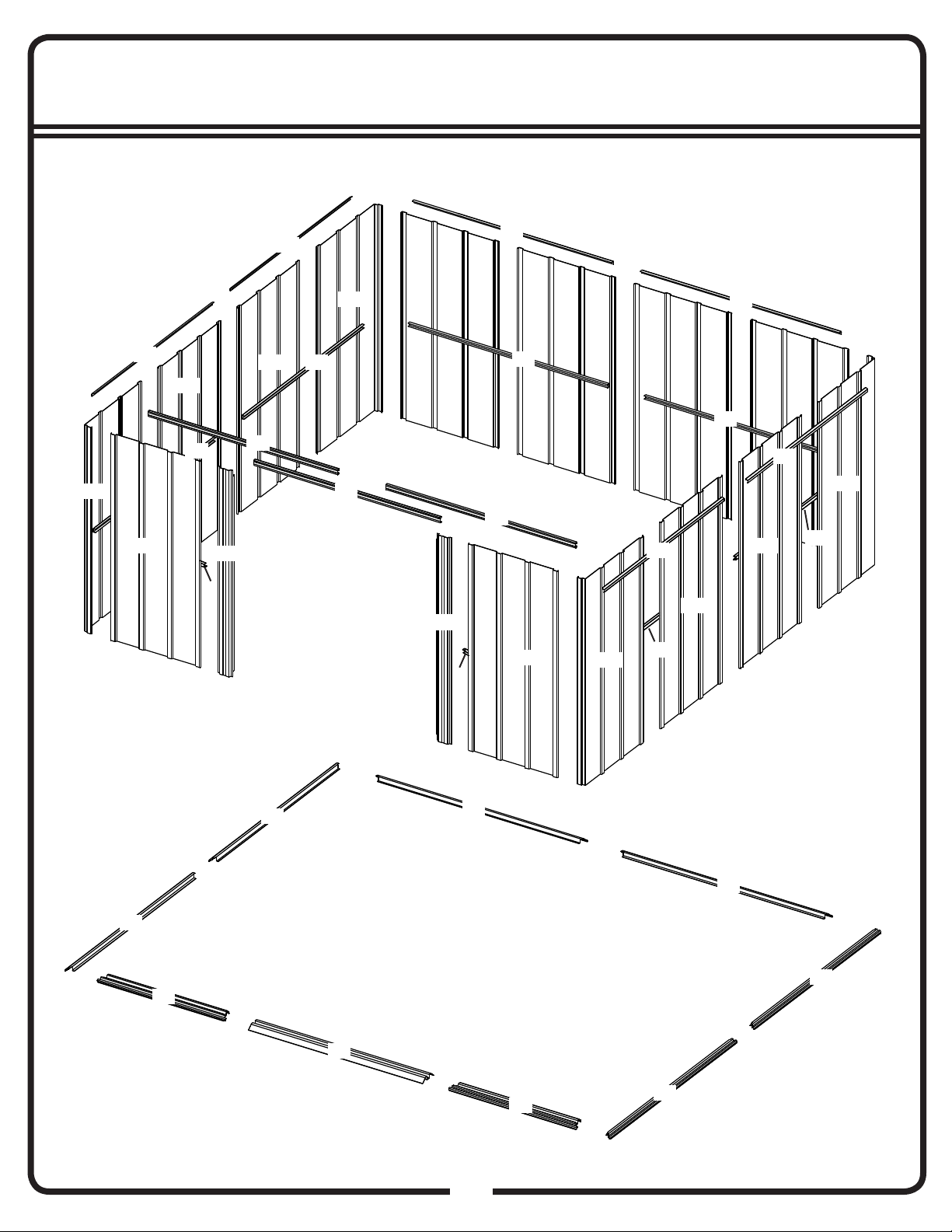

ASSEMBLY BY KEY NO.
9
09BD
Walls
Floor
7
10
5
5
7
11
11
11
11
12
12
12 12
12
12
12
12
17
18
18
21
21
21
21
22
22
23
23
24
24
25
25
30
30
30
30
26
26
27
27
27
27
ASSEMBLY BY KEY NO.

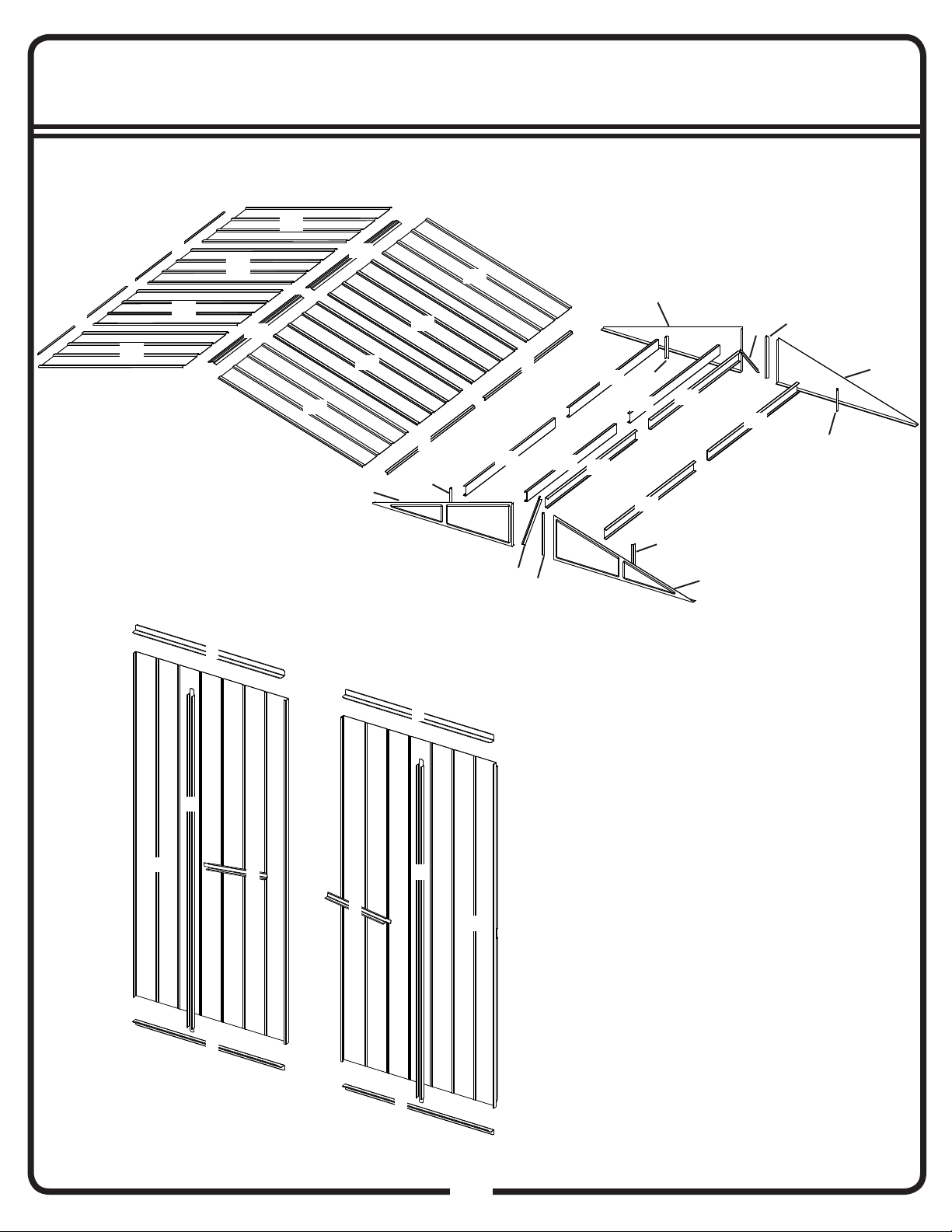

10
10BD
Doors
1
1
6
6
6
6
9
9
28
28
Roof
13
2
2
2
2
3
3
4
4
8
8
8
813
14
14
14
14
15
15
16
16
19
19
20
20
29
29
29
29
29 29
29
29
31
31
31
31
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels Arrow Storage Products Entreposage extérieur
Arrow Storage Products
Arrow Storage Products CLG65CC Series Instructions d'utilisation
Arrow Storage Products
Arrow Storage Products Spacemaker CY43T21 Instructions d'utilisation
Arrow Storage Products
Arrow Storage Products WH109EU Manuel d'utilisation et d'entretien
Arrow Storage Products
Arrow Storage Products SCG67CC Instructions d'utilisation
Arrow Storage Products
Arrow Storage Products CLG1012CC Instructions d'utilisation
Arrow Storage Products
Arrow Storage Products SCP104CC Series Instructions d'utilisation
Arrow Storage Products
Arrow Storage Products ELPHD84 Instructions d'utilisation
Arrow Storage Products
Arrow Storage Products EG1214AB Instructions d'utilisation
Arrow Storage Products
Arrow Storage Products EG1216AB Manuel utilisateur
Arrow Storage Products
Arrow Storage Products CLG1212CC Instructions d'utilisation
Arrow Storage Products
Arrow Storage Products BR106 Manuel d'utilisation et d'entretien
Arrow Storage Products
Arrow Storage Products IWC108 Instructions d'utilisation
Arrow Storage Products
Arrow Storage Products 697.68222 Manuel d'utilisation et d'entretien
Arrow Storage Products
Arrow Storage Products EH106A Manuel d'utilisation et d'entretien
Arrow Storage Products
Arrow Storage Products NW65 Manuel d'utilisation et d'entretien
Arrow Storage Products
Arrow Storage Products SCG86CC Instructions d'utilisation
Arrow Storage Products
Arrow Storage Products 697.68103-B Manuel d'utilisation et d'entretien
Arrow Storage Products
Arrow Storage Products SpaceMaker WL86CL Instructions d'utilisation
Arrow Storage Products
Arrow Storage Products LW108 Series Instructions d'utilisation
Arrow Storage Products
Arrow Storage Products MRDSCG65BG Instructions d'utilisation
Arrow Storage Products
Arrow Storage Products EH1012 Manuel d'utilisation et d'entretien
Arrow Storage Products
Arrow Storage Products EG86BG Instructions d'utilisation
Arrow Storage Products
Arrow Storage Products CLG67CC Instructions d'utilisation
Arrow Storage Products
Arrow Storage Products EG66AN Instructions d'utilisation
Manuels Entreposage extérieur populaires d'autres marques
Lifetime
Lifetime 6418 Manuel utilisateur
rollaway container
rollaway container ARPCA24 Manuel utilisateur
Duratuf
Duratuf Havelock Manuel utilisateur
X-METAL
X-METAL 4065 Manuel utilisateur
Outdoor Life Products
Outdoor Life Products FP2030 F Manuel utilisateur
Royalcraft
Royalcraft Faro 295L Storage Box Manuel utilisateur
