Essence 2000/3000

Manual Bed

Instructions for Use

...with people in mind

6050088 Rev 01 • 09/2015

Design Policy and Copyright

® and ™ are trademarks belonging to the ArjoHuntleigh group of companies.

As our policy is one of continuous development, we reserve the right to modify

designs without prior notice. The content of this publication may not be copied

either wholly or in part without the consent of ArjoHuntleigh.

Version 01

Revised 09/2015

6050088 Rev 01 1

Contents

1. Introduction..........................................................................5

2. Applications.........................................................................7

3. Operation..............................................................................8

4. Accessories – Fitting and Operation................................15

5. Cleaning .............................................................................20

6. Care and Preventive Maintenance....................................21

7. Warranty and Service........................................................22

8. Technical Data................................................................... 23

6050088 Rev 01 2

Warnings, Cautions and Notes

WARNINGS given in this manual identify possible hazards in procedures or

conditions, which if not correctly followed, could result in death, injury or other

serious adverse reactions.

Cautions given in this manual identify possible hazards in procedures or

conditions, which if not correctly followed, could result in equipment damage or

failure.

Notes given in this manual (indicated by ) are used to explain or amplify a

procedure or condition.

☆Indicates an optional item.

6050088 Rev 01 3

General Warnings and Cautions

WARNING

These instructions are mandatory for the safe and effective use of this

product, including the safety of patients and carers.

Read and understand these instructions before assembling or operating

the bed. You must be trained in the proper use of this product, its

functions and controls, and any accessories. The bed must be installed

and operated in accordance with information in these instructions.

Unauthorised modifications or repairs to this product may affect its

safety and will invalidate any warranty. ArjoHuntleigh accepts no liability

for any incident, accident or reduction in performance which may occur

as a result of such repairs or modifications.

Do not smoke or use open flames near this equipment and do not expose

it to extremes of temperature.

Do not use accessories that have not been designed and approved for

use with the bed. Do not connect the bed to other equipment unless

specified in these instructions.

Where risk assessment indicates that a patient is at high risk of

entrapment owing to their medical condition or other circumstances, and

where there is no medical benefit from their being left in a contoured

position, place the mattress platform in the flat position when the patient

is unattended.

Do not place the bed on an incline greater than 7° as this may, in extreme

circumstances, cause the bed to overbalance.

Keep these instructions in a safe place – you may need to refer to them

later on.

6050088 Rev 01 4

1. Introduction

Product description

The ArjoHuntleigh Essence™ 2000/3000 are beds with manually operated

functions, intended as general ward beds for supporting adult patients mainly

in an acute care environment in hospital.

Basic treatment and positioning can take place while the patient is in the bed.

There are two basic models in the range:

Model

Essence 2000 Four section bed with manually adjustable backrest and leg

elevation.

Model

Essence 3000 Model Essence 3000 with the addition of height adjustment.

Features

•Integrated stamping deck sheet

•New removable Head/Foot board with Blow Molding art

•Manual crank operated backrest angle and leg elevation

•Manual crank operated adjustment of knee break angle elevation

•Manual crank operated adjustment of height adjustment (For Essence 3000

only)

•Double side hooks for drainage bag

•4 buffer wheels for each corner

A range of accessories is available, including IV poles, sundry basket, dining

board, medical record holder, etc. ☆

6050088 Rev 01 5

Product overview

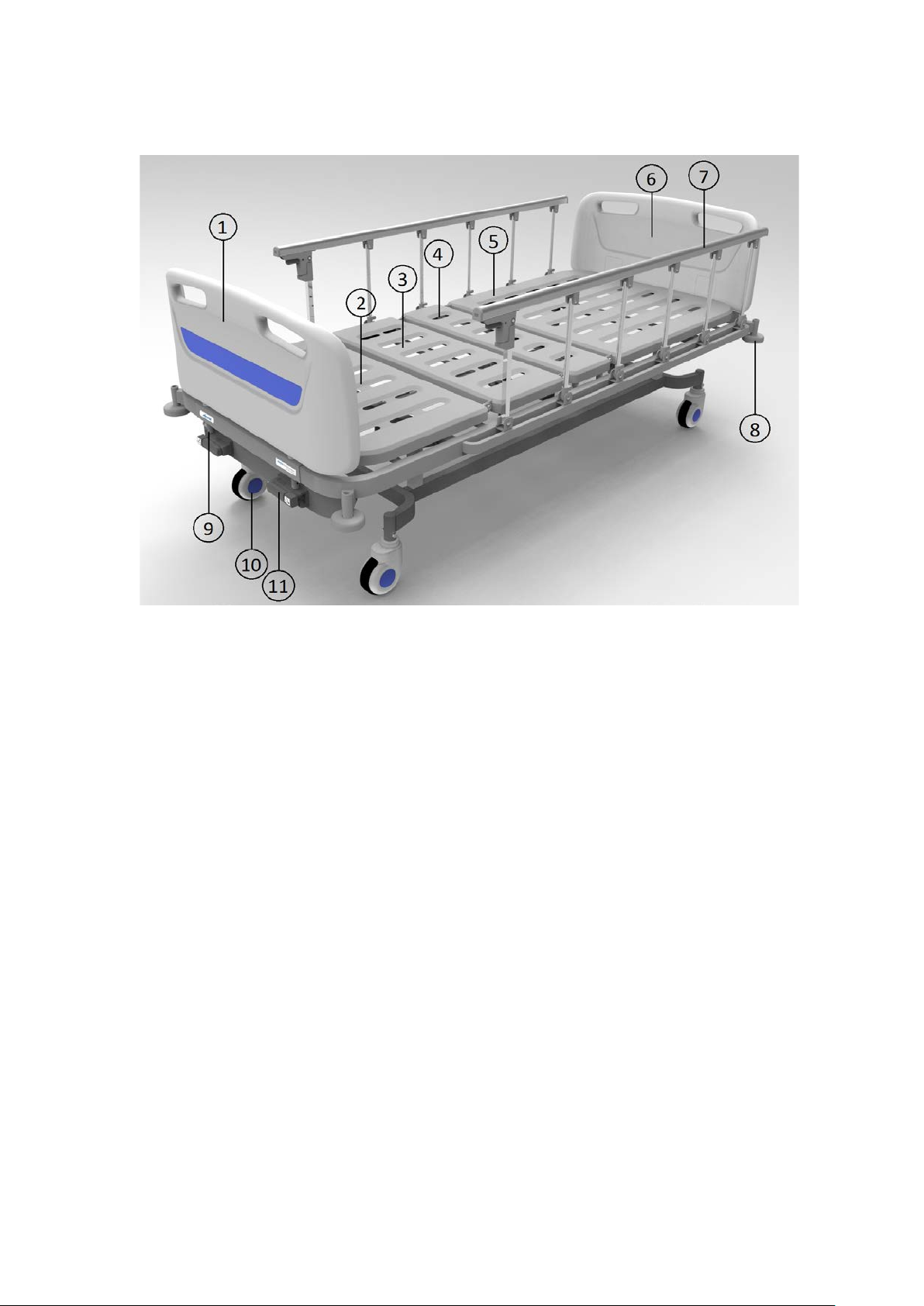

1. Foot board 9. Head/Foot panel lock

2. Calf section 10. Castor

3. Thigh section 11. Crank handle

4. Seat section

5. Backrest section

6. Head board

7. Side rail

8. Buffer wheel/accessory socket

6050088 Rev 01 6

2. Applications

Intended use

Essence 2000/3000 models are suitable for use in the

following areas:

•Acute care provided in a hospital or other medical

facility where medical supervision and monitoring is

required, e.g. general medical and surgical wards.

•Long term care in a medical area where medical

supervision is required and monitoring is provided if

necessary, e.g. nursing homes and geriatric

facilities.

Indications

The bed is appropriate for situations where assistance

is required in positioning the patient, or in reducing

lifting and manual handling stresses on the carer.

Contra-

indications

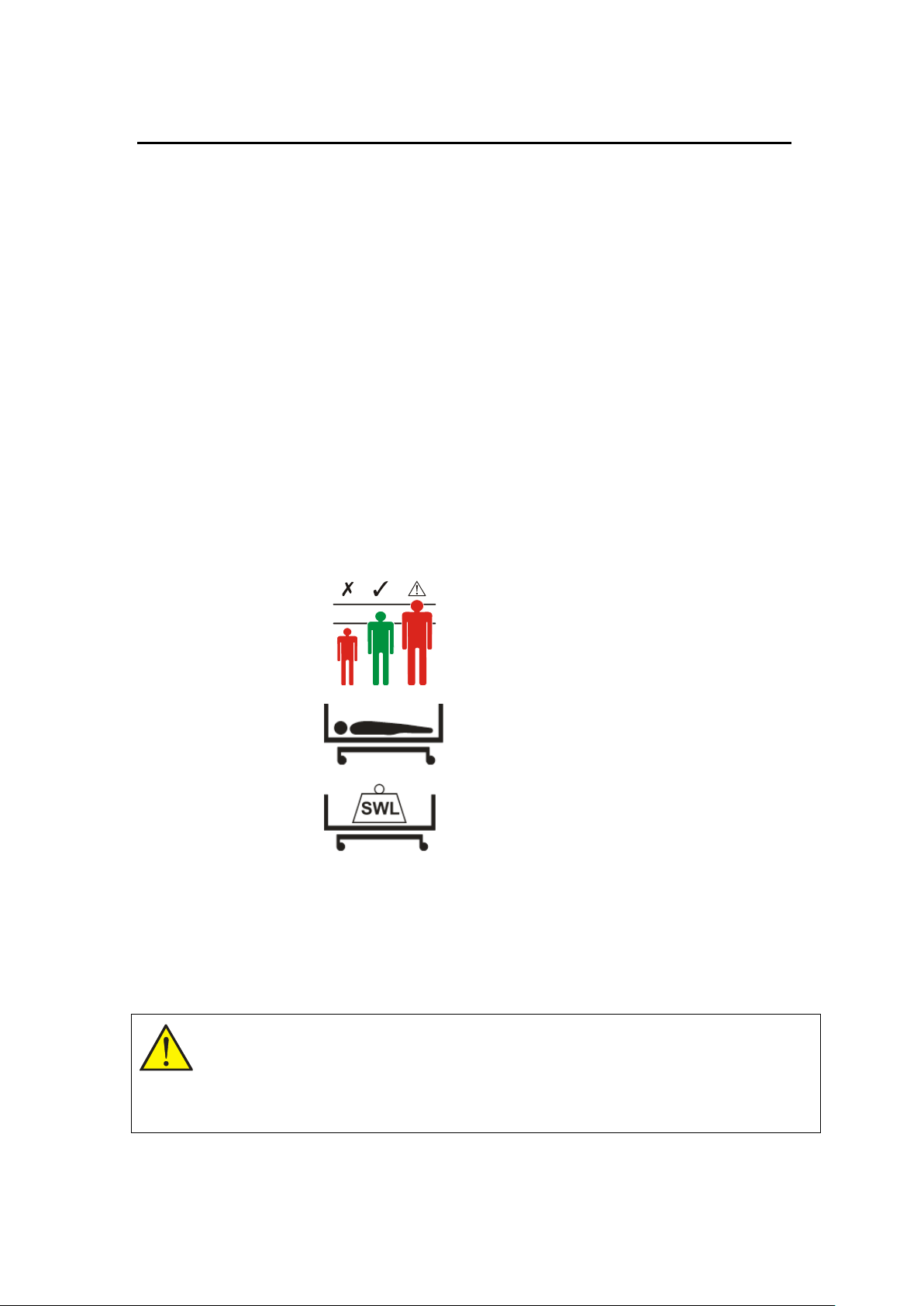

The bed is intended for use by adults.

This bed is not suitable for patients weighing less than

20kg.

The recommended patient height is

between 140cm and 190cm.

The maximum recommended patient

weight is 160kg.

The safe working load of the bed is

205kg.

The safe working load is calculated as follows:

Maximum patient weight …………………..…… 160kg

Mattress ………………………………………….. 20kg

Accessories (including attached loads) …….… 25kg

TOTAL …………………………………………… 205kg

WARNING

If the combined weight of the mattress and accessories exceeds 45kg, the

maximum patient weight must be reduced accordingly.

6050088 Rev 01 7

3. Operation

Cautions

●To reduce the risk of injury due to falls, lower the bed to minimum height

when the patient is unattended (For Essence 3000 only).

●When the bed is operated, make sure that obstacles such as bedside

furniture do not restrict its movement.

●Before operating the bed, make sure the patient is positioned correctly to

avoid entrapment or imbalance.

●Always apply the brakes when the bed is stationary.

●Keep these instructions together with beds for easy reference.

6050088 Rev 01 8
