ARJO HUNTLEIGH E8X Manuel utilisateur

815-514EN_04 · 06/2019 · Page 1/4

Technical Data

Safe Working Load (SWL): 250kg (550lbs)

Maximum patient weight: 185kg (407 lbs)

Recommended patient height: 146 to 190cm (57 to 74 ins.)

Product weight (without mattress): 150kg (330 lbs)

Operating temperature: 5°C to 40°C (41°F to 104°F)

Standard mattress size: 202 x 88 x 18 cm (79.5 x 34.6 x 7 ins)

Liquid ingress protection: IPX4

Product overview

Head board Calf section Mattress extension catch bar

Head end split side rail Foot board CPR release handle

Caregiver controls Accessory socket Foot end split side rail

Backrest section Roller buffer Head end brake pedal (optional)

Patient controls Bed extension locking handle Lifting pole socket

Attendant Control Panel (ACP) Bed stripper (linen shelf)

Seat section Brake bar

Thigh section Calf extension sheet

This Quick Reference Guide (QRG) is intended to assist the user in understanding the basic functions of this medical bed.

The QRG does not replace the safety warnings, cautions and other important information provided in the Instructions for Use

(IFU) supplied with the equipment; copies of the IFU are available on request from Arjo.

6RPHRIWKHIXQFWLRQVVKRXOGRQO\EHXVHGE\FOLQLFDOO\TXDOL¿HGSHUVRQQHO7KHFDUHUVKRXOGPDNHVXUHWKH\KDYHUHDGDQG

understood the IFU before using this medical bed.

$FOLQLFDOO\TXDOL¿HGSHUVRQVKRXOGDVVHVVWKHDJHKHLJKWDQGPHGLFDOFRQGLWLRQRIWKHSDWLHQWWRHQVXUHWKH\FDQXVHWKH

product safely.

Place the mattress platform in the low height position when the patient is unattended.

QUICK REFERENCE GUIDE

Enterprise 8000X (E8X)

1Power on indicator

2Battery indicator

3Raise / lower mattress platform height

4Raise / lower backrest

5Raise / lower thigh section

6Auto-Chair (described below)

7Head down tilt (Trendelenburg)

8CPR - hold down the button to return the bed to a

ÀDWSRVLWLRQ

9Foot down tilt (Reverse Trendelenburg)

10 Function lock / unlock

11 Bio-Contour (described below)

Patient Controls

Caregiver Controls Patient Handset

Attendant Control Panel (ACP)

Battery status indicator 2

Battery fully charged

(indicator off)

Battery charging

Battery discharged

Bed controls

The Auto-Chair up button simultaneously raises

the backrest and thigh sections, pausing when the

backrest reaches 45º. Continue to hold the button

down to lower the foot end of the mattress platform

into a chair position.

The Bio-Contour up button simultaneously raises

the backrest and thigh sections to provide upright

SDWLHQWSUR¿OLQJWKHUDLVHGWKLJKVHFWLRQSUHYHQWV

the patient sliding down the bed.

The Bio-Contour down button returns the mattress

SODWIRUPWRDÀDWSRVLWLRQ

To operate controls

Select a function button for example raise / lower

mattress platform height. The indicator light on

the selected function will turn green and the bed will

immediately begin to move accordingly.

Press the Function Lock button, then press the

Attendant Control Panel button(s) corresponding to

the function(s) to be locked or unlocked.

Green light indicates function selected.

Yellow light indicates function is locked out.

Function lockout

Auto-Chair

Bio-Contour

Raise and lower the backrest.

The backrest will pause when it reaches an angle

approximately 30º above the horizontal.

Backrest

If the backrest angle is greater than 45º, it will return to 45º

to prevent the patient from tipping forwards.

The Auto-Chair down button returns the mattress platform

WRDÀDWDQGOHYHOSRVLWLRQ

Raise and lower the mattress platform. When

lowered to 38cm (40cm on beds with 150mm

FDVWRUVDERYHWKHÀRRULWZLOOSDXVHWKHQFRQWLQXH

to lower until it reaches its minimum height.

Mattress platform height

The “lock” indicator above the function button

will light yellow when the function is locked

and go out when it is unlocked.

At minimum height, clearance underneath the bed

is reduced. Keep your feet away from the areas

below the side rails and take extra care when

using patient hoists or similar equipment.

A “beeping” sound indicates

that the bed is operating on

battery power. Connect the bed

to the mains supply as soon as

possible.

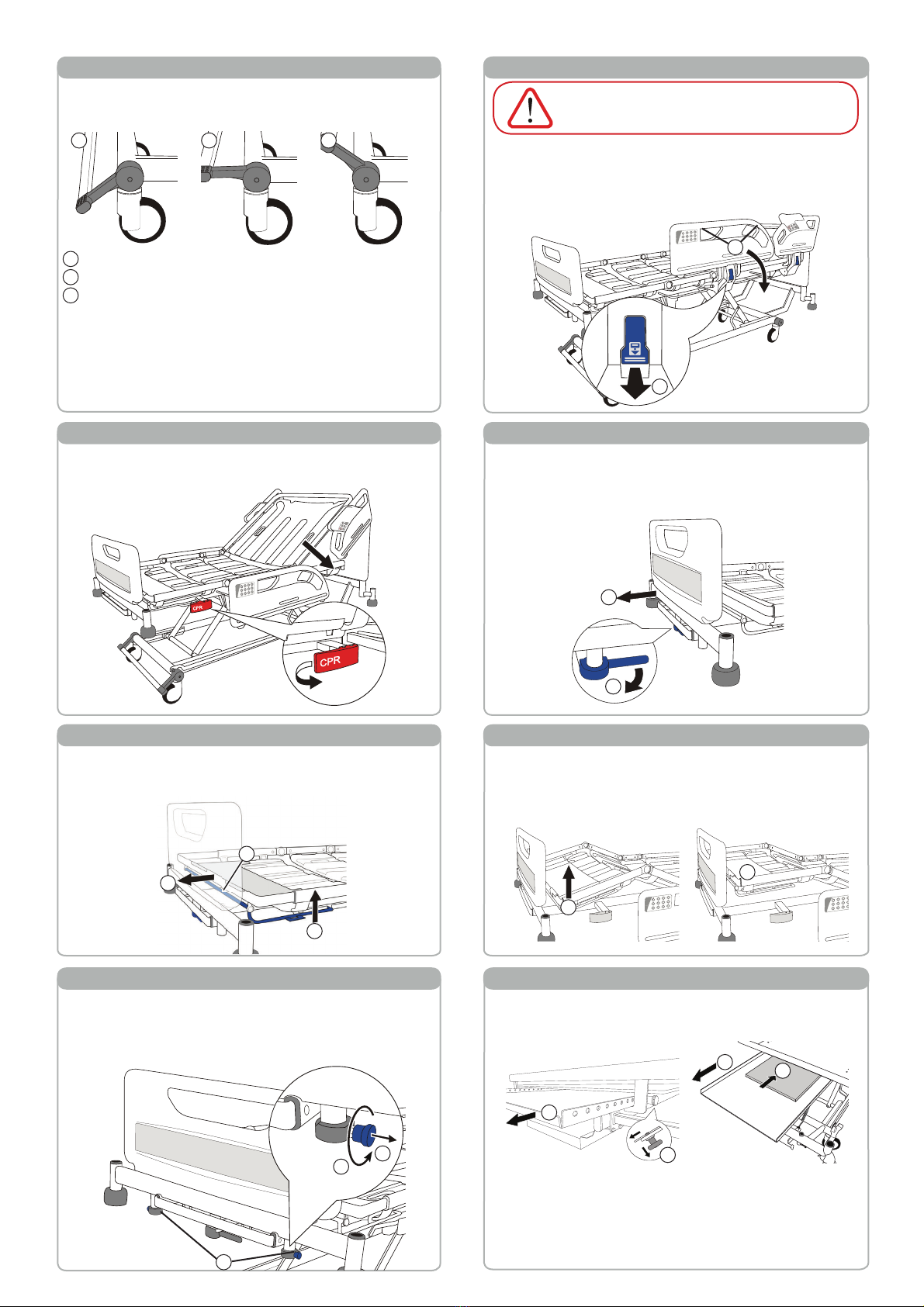

Page 2/4

Pull the blue extension locking handle locking handle (1).

Pull out the bed frame (2) to the required position and

release the handle.

Adjust the mattress platform length to match the bed frame.

Bed length adjustment

Brakes and steering

The brakes should be applied at all times when the bed is

stationary. The pedals may be linked by a full width brake

bar.

Side rails

Pull the blue release lever (2) to lower the side rail.

To raise the side rail, hold onto either side rail handle (1) and

pull the side rail up and away from the bed until it locks in the

raised position.

Hold the side of the calf section frame and manually lift the

calf section upwards (1) until it latches in the horizontal

(vascular) position (2). Use the caregiver controls or ACP to

lower the thigh section to the angled (Fowler) position.

Calf section adjustment

Pull the red manual CPR lever located on either side of the

bed to quickly lower the backrest.

CPR backrest release

Locking head and foot boards

7KHKHDGDQGIRRWERDUGVFDQHDFKEH¿WWHGZLWKRSWLRQDO

locking catches (1) to prevent accidental removal. To unlock

a board: pull out the blue catches (2) and rotate them a

quarter-turn (3); the board can now be lifted off the bed.

Apply the brakes. Remove the head board from the bed.

Pull the knob (1) to release the catch and slide the tray out

(2) as far as will go.

Release the knob to hold the tray in the fully open position

(3). Position the X-ray cassette (4) on the tray with its bottom

edge against the lip at the foot end of the tray.

Pull the knob and slide the tray underneath the backrest.

Release the knob to hold the tray in one of the latching

positions.

;UD\FDVVHWWHWUD\LI¿WWHG

To use the steering castor: Position the bed so all castors

line up in the direction of travel. Raise the pedals to lock

the steering castor and move the bed by pushing it from the

opposite end of the steering castor.

Lift the blue extension catch bar (1) and hold the middle

of the crossbar (2), then pull the mattress platform to the

required position (3).

Mattress platform length adjustment

1Brake: brakes are applied on all four castors.

2Free: all four castors are free to rotate and swivel.

3Steer:all four castors can rotate, but the steering castor

(see below) is locked so that it cannot swivel. This helps

to keep the bed on a straight line.

Make sure the side rail is securely locked when

in the raised position.

Page 3/4

815-514EN_04 · 06/2019 · Page 4/4

ArjoHuntleigh AB

Hans Michelsensgatan 10

211 20 Malmö, Sweden

www.arjo.com

If you experience any problems when using this product:

1. Refer to the Instructions for Use (part number 746-585) for further information.

2. Check the troubleshooting guide in the product service manual (part number 746-587).

3. For additional product information contact Arjo.

815-514EN

Troubleshooting
