Ariston A45V Guide d'installation

A45V

TUMBLE DRYER

Use and Care & Installation Instructions

SteCHOIR A TAMBOUR

Utilisation et Entretien et Notice D'lnstallation

SECADORA

Instrucciones et Instalaci6n, Uso y

Mantenimiento

English

Contents

Important Safety Instructions 3-4

Grounding Instructions 4

Features - Get to know the main parts of your Dryer 5-6

How to use your Dryer 7

The Controls 8-9

Easy Iron Program 10

Sorting your laundry 11

Wash Care Labels 12

Items not suitable for tumble drying 12

Items requiring special attention 13

Guide to Drying Times 14

Caring for your Dryer 15

If something goes wrong 16

Installation Instructions 17

RetentionofthisInstructionBook

This Instruction Book must be kept handy for reference as it contains important details on

the safe and proper use of the appliance.

If you sell or pass the appliance to someone else, or move house and leave it behind, make

sure this Book is also provided so the new owner can become familiar with the appliance

and safety warnings.

Important Safety Instructions

Using your Tumble Dryer is easy.

To reduce the risk of fire, electric shock or injury to persons when using

your app ance ! fo ow the bas € precaut °ns nclud ng thefo ow ng!

1. Read all the instructions before using the appliance.

2. Do not dry articles that have previously been cleaned in, washed in, soaked in

or spotted with gasoline, dry-cleaning solvents or other flammable or explosive

substances, as they give off vapours that could ignite or explode.

3. Do not allow children to play on or in the appliance. Close supervision of

children is necessary when the appliance is used near children.

4. Before the appliance is removed from service or discarded, remove the door to

the drying compartment.

5. Do not reach into the appliance if the drum is moving.

6. Do not install or store this appliance where it will be exposed to the weather.

7. Do not tamper with the controls.

8. Do not repair or replace any part of the appliance or attempt any servicing

unless specifically recommended in the user-maintenance instructions.

9. Do not use fabric softener or products to eliminate static unless recommended

by the manufacturer of the fabric softener or product.

10. Do not use heat to dry articles containing foam rubber or similarly textured

rubber-like materials.

11. Clean the lint filter before and after each load.

12. Keep the area around the exhaust opening and adjacent surroundings free

from the accumulation of lint, dust and dirt.

13. The interior of the appliance and exhaust duct should be cleaned periodically

by qualified service personnel.

14. Do not place items exposed to cooking oils in your dryer. Items contaminated

with cooking oils may contribute to a chemical reaction that could cause a load

to catch fire.

SAVE THESE INSTRUCTIONS

IMPORTANT:

A CHILD COULD CLIMB INTO OR TAMPER WITH AN UNATTENDED

TUMBLE DRYER.

WHEN THE MACHINE IS NOT IN USE TURN IT OFF, REMOVE THE PLUG AND

CLOSE THE DOOR.

For your safety

ALWAYS •

When the dryer is not in use, switch off and close the door.

Comply with the specified electrical requirements.

Ensure that your dryer is installed correctly and has adequate

ventilation. (see, "Installation Instructions")

Finish every programme with the cool tumble cycle provided.

Clean the filter, it is essential that the filter is kept clear of lint at all

times.

Observe the rules for drying garments.

CAUTION:

Avoid touching the rear of the dryer when it is

in use, as it may be hot!

Grounding Instructions

Improper connection of the equipment-grounding conductor

can result in a risk of electric shock, Check with a qualified

electrician or service representative or personnel if you are

in doubt as to whether the appliance is properly grounded!

In the event of malfunction or breakdown, grounding will reduce the

risk of electric shock by providing a path of least resistance for electric

current. This appliance is equipped with a cord having an equipment-

grounding conductor and a grounding plug. The plug must be plugged

into an appropriate outlet that is properly installed and grounded in

accordance with all local codes and ordinances.

DO NOT modify the plug provided with the appliance. If it will not fit

the outlet, have a proper outlet installed by a qualified electrician or

exchange the cord with an appropriate one rated for the dryer.

REFER TO THE RATING PLATE FOR VOLTAGE AND CURRENT

REQUIREMENTS (see diagram for location.)

The dryer should be connected to the power source via a suitable

socket which is accessible after installing your dryer.

This dryer must be connected to 30A INDIVIDUAL BRANCH

CIRCUIT.

For full details see 'Installation Instructions' section of this book.

NOTE: IF IN DOUBT ABOUT ANY OFTHE ABOVE CONSULT

A QUALIFIED ELECTRICIAN.

Features-Gettoknowthemainpartsofyourdryer

See "The Controls"

Push here to

open door

Air intake grille

NOTE: If your dryer

is new wipe out the

inside of the drum

before you first use

it to remove any

dust which may

have accumulated

during transit.

Lint Filter

CLEAN AFTER

EACH LOAD

Rating Plate, Model & Serial numbers

Door

catch

Door Latch

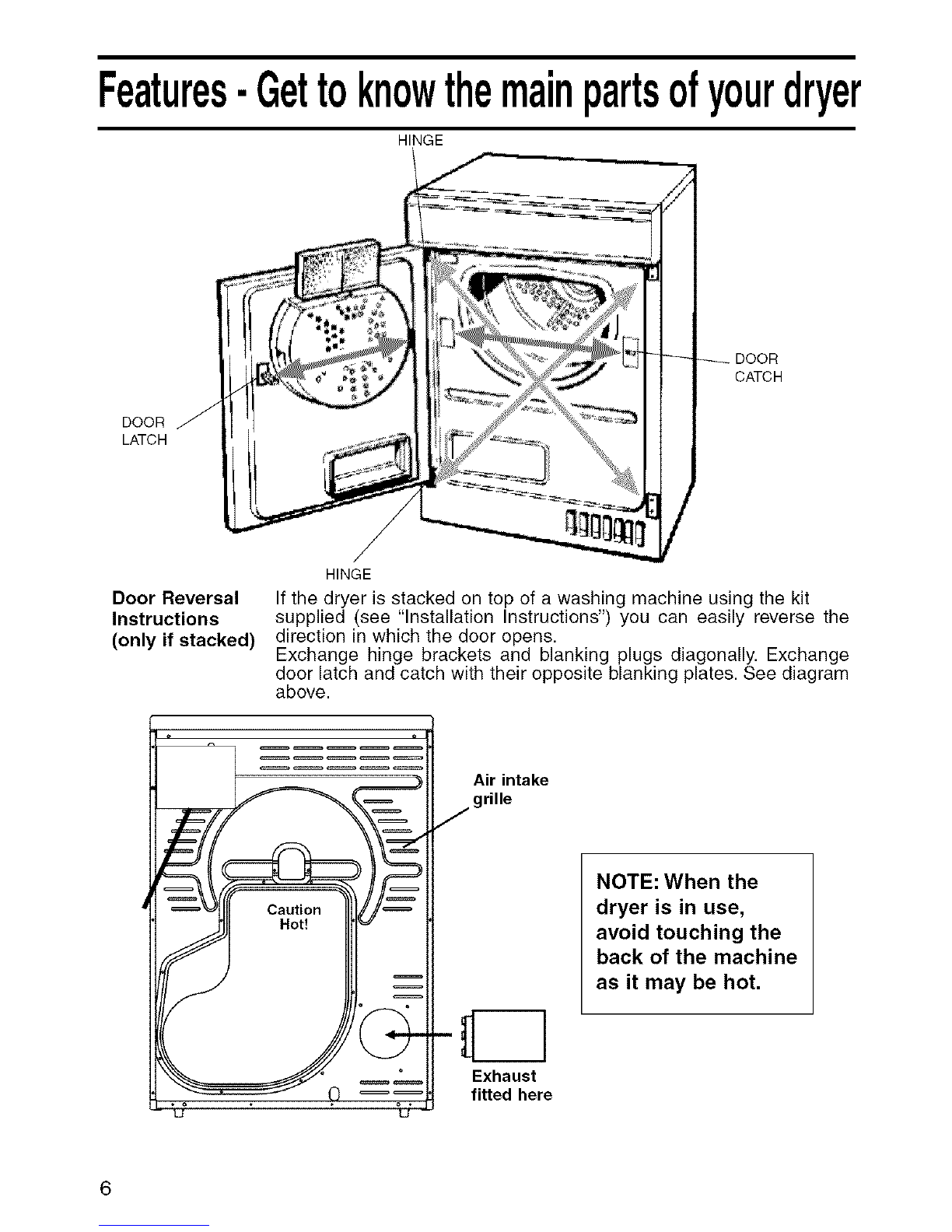

Features-Gettoknowthemainpartsofyourdryer

HINGE

DOOR

LATC H

Door Reversal

Instructions

(only if stacked)

DOOR

CATCH

HINGE

If the dryer is stacked on top of a washing machine using the kit

supplied (see "Installation Instructions") you can easily reverse the

direction in which the door opens.

Exchange hinge brackets and blanking plugs diagonally. Exchange

door latch and catch with their opposite blanking plates. See diagram

above.

Air intake

grille

Exhaust

fitted here

NOTE: When the

dryer is in use,

avoid touching the

back of the machine

as it may be hot.

Howto useyourdryer

WARNING I

To reduce the risk of fire, electric shock or injury to persons, read the IMPORTANT SAFETY

NSTRUCT ONS before operat ng th s app ance.

1. Plug in and turn on power.

WARNING

WHEN SWITCHING ELECTRICITY ON OR I

OFF PLEASE ENSURE THATYOUR HANDS

ARE DRY,

2. Press the power ButtonIN

On/Off button IN. The POWERON

dryer will not operate

unless the power Button OUT

On/Off button is IN. POWEROFF

3. Sort your

laundry (see the

"Sorting Your

Laundry"

section)

4. Open the door

by pressing and

releasing the front

panel in the position

shown.

5. Always make

sure that the... LINT FILTER ]is clean and in place

6. Load the dryer

placing the

clothes carefully in

the drum pushing

them well towards

the back and

away from the

door seal. Close

the door.

7. Select the required program or drying

time. (see "The Controls" section)

8. Press the

START switch to

start the drying

program.

Removing Items

9. When finished,

open the door and

take out the

laundry. Clean and

replace the lint filter.

10. Turn off power and close the door.

WARN,NG

WHEN SWITCHING ELECTRICITY ON OR I

OF F PLEASE ENSURETHATYOUR HANDS I

ARE DRY, I

By opening the door you can check the dryness of the load as often

as you wish and if you want, to remove some items before they are

fully dry. (This is particularly useful for a mixed load where you want

to iron some items, but others are to be fully dried.) You will need

to press the START button after closing the door to re-start the

program. See 'The Controls' section.

TheControls

_ A_STON

...............

Power Switch

ON/OFF

Setting the

Program

Options

Starting the Dryer

Press the On/Off button IN to turn the dryer on.

The dryer will not operate unless the power On/Off button is IN.

Toset the required program, all you have to do is turn the Program

Control knob until the required selection appears in line with the

indicator.

Automatic Sensor Dry Programs (for load sizes more than 2 Ib -1 kg)

1. Extra Dry Regular Cottons (high heat)

This gives driest results.

Some bulky items or large load of new towels may

appear slightly damp after this program and require a

short additional period of timed drying.

2. Light Dry Regular Cottons (high heat)

3. Iron Dry Regular Cottons (high heat)

This gives the dampest results.

4. Extra Dry Permanent Press (low heat)

5. Light Dry Permanent Press (low heat)

6. Iron Dry Permanent Press (low heat)

Timed Dry Programmes (for load sizes less than 2 Ib -1 kg)

7. 40 minutes (low heat) include cool tumble followed by the

Crease Care phase.

8. 30 minutes (low heat) include cool tumble followed by the

Crease Care phase.

9. 20 minutes (low heat) include cool tumble followed by the

Crease Care phase.

10. fi_ Air fluff, 20 minutes of cool tumble.

11. _ Easy Iron Program, see section "Easy Iron Program".

For description of other programs see next page.

Press and release the START button to commence a drying program

(The drying program must have been selected first).

The Drying Light will then come on.

NOTE: If the door is opened during a program, the dryer will

automatically stop. To continue the program, after closing the door,

the START button must be pressed.

TheControls

Drying Light

Heating Light

Low Heat Light

Air Fluff phase

Crease Care

phase

This light will come on whenever a program is active (running).

If this light flashes it means that an automatic programme has

exceeded 180 minutes. For safety reasons this being the maximum

drying time available.

Should this occur, the causes may be:

• The load is too big, or bulky.

• The filter is blocked.

• A cotton load was spun at LOW speed.

• There may be a fault.

Turn the dryer Off, check through the first three causes, and then try

again.

This light comes on during the drying part of the program, except for

the short periods during the drum reverse action.

This light comes on to indicate that the dryer is running on the low

heat setting.

About 10 minutes before the program is completed, the heating

elements will be turned off and the program enters the final 'Air Fluff'

phase. During this phase, the fabric is cooled. You should always

allow the dryer to complete this phase.

By opening the door, you can check the dryness of the load as often

as you wish and if you want, remove some items before they are fully

dry. (This is particularly useful for a mixed load where you want to iron

some items, but others to be fully dried.)

You will need to press the START button after closing the door to

re-start the program. See previous page.

At the end of the drying program it may not be convenient to take out

the clothes immediately. Do not worry, the dryer will protect your

clothes from creasing by gently turning them over occasionally with a

few revolutions of the drum. At the same time a warning buzzer will

sound intermittently to remind you that the clothes are ready to take

out.

Autres manuels pour A45V

Table des matières

Langues :

Autres manuels Ariston Séchoir

Ariston

Ariston A45V Mode d'emploi

Ariston

Ariston TVF 75C Manuel utilisateur

Ariston

Ariston TCL73X Caractéristiques techniques

Ariston

Ariston A45V Guide d'installation

Ariston

Ariston TVM 70C Manuel utilisateur

Ariston

Ariston ASL 75 CXS NA Mode d’emploi

Ariston

Ariston AS66VX Mode d’emploi

Ariston

Ariston ASL 65 VXS NA Caractéristiques techniques

Ariston

Ariston TCM80C Manuel utilisateur

Ariston

Ariston TCF 97B Manuel utilisateur

Ariston

Ariston TVM 70 Manuel utilisateur

Ariston

Ariston AS65VXSNA Mode d’emploi

Ariston

Ariston ASL 75 CXS NA Manuel utilisateur

Ariston

Ariston TCM 80 Manuel utilisateur

Ariston

Ariston AS700C Manuel utilisateur

Ariston

Ariston TVM63 Mode d’emploi

Ariston

Ariston AS60V Manuel utilisateur

Ariston

Ariston AQUALTIS AQCF 851 B U Manuel utilisateur

Ariston

Ariston AS 65 VXS NA Mode d’emploi

Ariston

Ariston ASL800C Manuel utilisateur

Ariston

Ariston ASD70C Manuel utilisateur

Ariston

Ariston ASL 75 CXS NA Caractéristiques techniques

Ariston

Ariston TCL73XNA Mode d’emploi

Ariston

Ariston TVM63X NA Instructions d'utilisation et d'installation

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Electrolux

Electrolux EW2H328R2 Manuel utilisateur

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

Electrolux

Electrolux TP5080TW Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur
