Dear Customer,

Thank you for choosing an ARISTON boiler.

We guarantee that your boiler is a reliable and technically sound

product.

This User’s Manual provides detailed instructions and recommen-

dations for proper installation, use and maintenance.

Remember to keep this manual in a safe place for future reference

i.e. by the gas meter.

Your local MTS Servicing Centre is at your complete disposal for

all requirements.

MTS (GB) Limited Every attempt has been made to avoid errors of any kind

in this User’s Manual, the Management invites customers to inform

of any inaccuracies which they may find.

This will help to improve our service

The guarantee on this appliance is valid for 12

months from the first day of installation.

Repairs to the electric, hydraulic or gas circuits

may be carried out only by your local authorised

MTS Servicing Centre.

TABLE OF CONTENTS

1) GENERAL INFORMATION page 5

2) OPERATING INSTRUCTIONS page 8

3) TIME CLOCK page 11

4) USEFUL INFORMATION

AND TROUBLESHOOTING page 13

IMPORTANT

Please read this manual carefully.

For additional information, please consult the

“Installation and Servicing Instructions.”

Please ensure manuals provided are kept with the appliance so that they

can be used by the end-user, installer or our authorised engineer.

B 3

MTS (GB) Limited support the , initiative. Your installer will give

you, and show you how to use, a logbook which will give you important

information about your boiler, and heating system. Please have this log-

book to hand whenever you contact a service engineer or us.

All CORGI Registered Installers carry a CORGI ID card, and have a

registration number. Both should be recorded in your boiler Logbook.

You can check your installer is CORGI registered by calling CORGI

direct on :- ( 1256) 3723 .

4B 3

GENERAL DATA

Heating input max

Heating input min

Heating output max

Heating output min

Efficiency at Maximum Thermal Capacity (see installation instructions)

Efficiency at Reduced Thermal Capacity (see installation instructions)

CENTRAL HEATING

Operating Temperature max

Operating Temperature min

Maximum Heating Pressure

Minimum Heating Pressure

Built-in expansion vessel - Total capacity

DOMESTIC HOT WATER*

Maximum Temperature of Water for Domestic Use

Minimum Temperature of Water for Domestic Use

Working pressure max

Working pressure min

Flow rate ∆T 25°C

Flow rate ∆T 35°C

Minimum flow rate

ELECTRICAL DATA

Electrical Supply/Frequency

Wattage Rating

Protection of Electrical System

CATEGORY

Nominal Pressure/Methane Gas (G20)

Nominal Pressure/Liquid Gas (G30-G31)

kW(Btu/h)

°C

bar

litres

°C

bar

l/min

V/Hz

mbar

29.8 (101707)

12.0 (40956)

27.1 (92492)

10.1 (34471)

91.6

88.3

0.2

15.6

11.2

2.6

230/50

150

X 4 D

30-37

33.0 (112629)

12.0 (40956)

30.3 (103414)

10.2 (34813)

92.0

88.6

0.2

17.3

12.4

2.6

230/50

150

X 4 D

30-37

TECHNICAL INFORMATION Genus 27 RFFI

System Genus 3 MFFI

* Combination

versions only

B 3

LEGEND

A) Ignition Lockout Reset Button/Safety (Overheat)Thermostat Reset

B) Ignition Lockout L.E.D.

C) Selector Knob for Summer/Winter/Flue Analysis Modes

D) Low System Water Level L.E.D.

E) Temperature Adjustment Knob for Domestic Hot Water

F) Heating System Thermometer

G) Safety (Overheat)Thermostat Intervention L.E.D.

H) Adjustment Knob for Heating Temperature

I) On/Off L.E.D.

L) On/Off Switch

O) Heating System Pressure Gauge

40 50 60 70 80

C C

Genus 27 RFFI SYSTEM

Genus 3 MFFI

6B 3

Installation, start-up, adjustments and maintenance must be per-

formed by a competent person only in accordance with the Gas Safety

(Installation & Use) Regulations (1984) and the instructions provided.

Improper installation may cause damage or injury to individuals, ani-

mals and personal property, for which the manufacturer will not be

held liable.

To ensure efficient and safe operation it is recommended that the boil-

er is serviced annually by a competent person.

If it is known or suspected that a fault exits on the appliance, it must

not be used until fault has been corrected by a competent person

HELPFUL SUGGESTIONS

To get the most out of your boiler, we have provided you

with some useful advice on the proper use and mainte-

nance:

- Periodically check the system pressure using the pres-

sure guage “O”, make sure that the pressure is

between 1.0 and 1.5 bar (the blue part on the gauge)

when the system is off and cool. The warning L.E.D.

“D”will indicate if the pressure is below the minimum recommended

value. Consult your installer for checking and refilling the system.

- The outer panels of the unit's case must only be cleaned with a damp

cloth. Do not use abrasive cleaners. The Control panel can be wiped with

either a damp or dry cloth. Spray polishes must not be used on the con-

trol panel surface or knobs. Care must be taken in preventing any liquid

entering the appliance.

- If the water is exceptionally hard, install a water softener so that the effi-

ciency of the unit remains the same over time, as this will consume less gas.

- To improve comfort and take full advantage of the heat produced by the

boiler, it is recommended that an external thermostat be installed.

- If the boiler is not going to be used for an extended period of time,

turn off the supply of electricity to the unit by pressing the

On/Off switch “L”.

The green L.E.D. “I”will turn off. Then turn off the

supply of gas to the unit itself.

- It is good practice to clean and service the appliance

and central heating system every year.

Call an Authorised Service Centre.

B 3

WINTER AND SUMMER OPERATING MODES

(FOR ALL MODELS)

The boiler is fitted with a selector knob “C”which

allows you to switch between winter <>and

summer <>operating modes and vice versa.

When the knob is set to <>, the boiler can

serve the dual purpose of providing heat and/or hot

water for domestic use.

The supply of hot water for domestic use always

takes precedence over heating. When the knob is

set to <>,the boiler cuts out the heating system and only provides hot

water for domestic use (when needed).

START-UP PROCEDURE

LIGHTING

(FOR ALL MODELS )

Before starting the unit, check the following:

·The water pressure on the pressure gauge “O”;

·That the gas cock and the inlet for domestic water are

open.

These models are equipped with electronic ignition which utilises contact

ionisation.

To make the boiler operational, simply press the On/Off switch “L”.

The green L.E.D. “I”will then turn on.

At this point the boiler is ready for use: a centralised

electronic control unit will automatically light the main

burner when needed. If the burner does not light within

the pre-set safety time limit, the red “B”L.E.D. will light

up. To reset the ignition system, the reset button “A”

must be pressed. Should the system fail to light a sec-

ond time, check to make sure that the gas cock is open.

If the problem persists, contact one of our Authorised

Service Centres for assistance.

8B 3

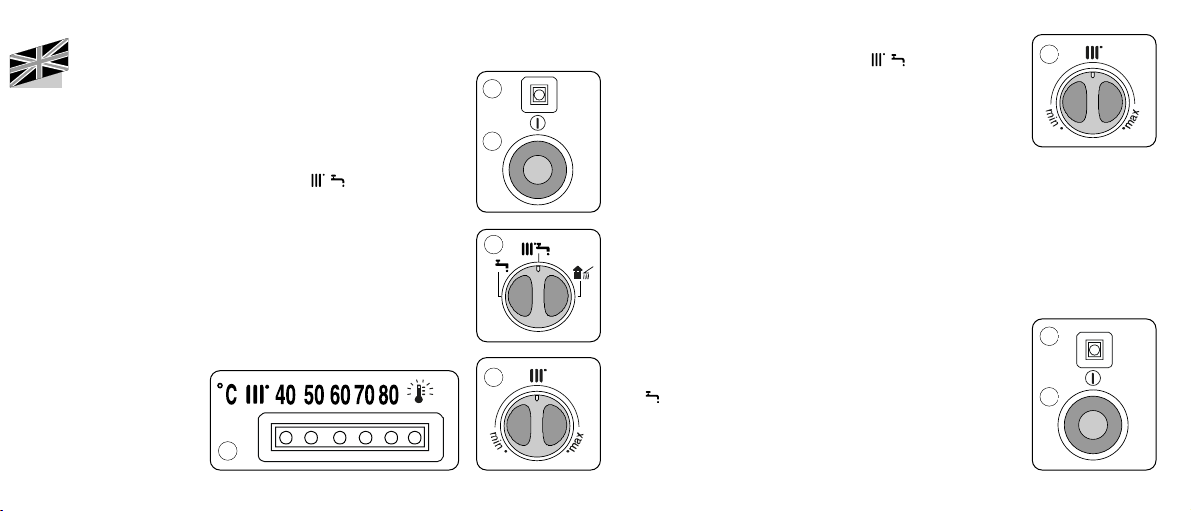

TURNING ON THE BOILER

Installation without a room thermostat :

- Turn on the power supply to the boiler by pressing the

On/Off switch “L”; the green L.E.D. “I”will then turn on;

- Turn the “C”selector knob to <>;

- Regulate the temperature of the water in the boiler by

turning the “H”knob. The temperature can vary

between 42°C and about 82°C;

- Check the boiler temperature on the thermometer with

the yellow L.E.D.s “F”. With this type of installation, the

ambient temperature does not influence the operation

of the boiler and

the circulation

pump always re-

mains in

operation.

Installation with a room thermostat:

- Turn the “C”selector knob to < >;

- Turn on the power supply to the boiler by pressing the

On/Off switch ”L”; the green L.E.D. will then turn on;

- Turn the thermostat knob “H”to the highest tempera-

ture setting.

- With this type of installation, the boiler is controlled by a room thermostat.

Therefore, it runs until the ambient temperature has reached the tempe-

rature setting on the thermostat. At that point, the main burner will turn off

and the circulation pump will stop.

TURNING OFF THE BOILER

Installation without a room thermostat:

To turn off the heating, turn the “C”selector knob to

<>. The boiler will still provide hot water for domestic

use.

B 3

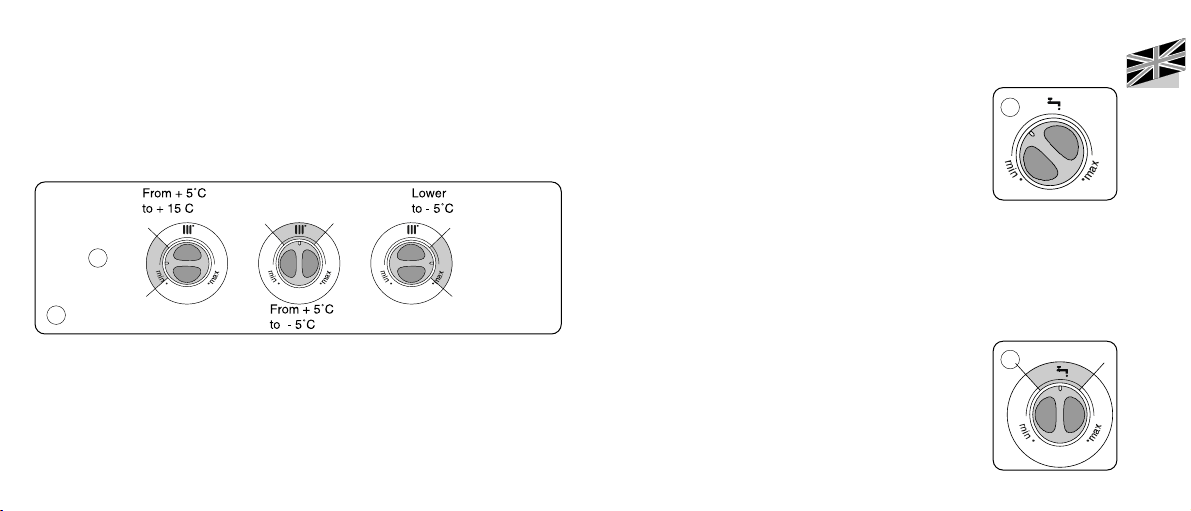

ADJUSTING THE HEATING TEMPERATURE

To economise on consumption while achieving the highest level of comfort,

the temperature adjustment knob is designed with three different heating

zones based on the temperature outside the home.

Rotate the knob “H”as shown below.

PRODUCTION OF HOT WATER

FOR DOMESTIC USE

(FOR ALL MODELS)

- Turn on the power to the boiler by pressing the

On/Off switch “L”;

- With these settings, the boiler is already ready for use,

regardless of the position of the “C”selector knob.

- Turn the “E”knob to select the temperature for the hot water (between

36°C and about 56°C depending on the flow rate of the water).

ADJUSTING THE TEMPERATURE OF

WATER FOR DOMESTIC USE

(FOR ALL MODELS)

It is recommended that the temperature for the hot water

should not be set to high temperatures and then mixed

with cold water. Setting the thermostat to medium tem-

peratures is preferable (see figure).

1 B 3

SHUTDOWN PROCEDURE

(FOR ALL MODELS)

To turn off the main burner, simply press the On/Off

switch “L”; the green L.E.D. “I”will also turn off.

As a precautionary measure, it is recommended that

the gas cock located on the bottom of the boiler be

turned off as well.

TIME CLOCK

The steps marked with the symbol are necessary to carry out a switch-

ing program.

PREPARING FOR OPERATION

Activate the “Reset”switch to reset the time switch to it’s default settings

(activate using a pencil or similar pointed instrument). Do this:

- every time you wish to “Reset”the time switch;

- to erase all switching times and the current time of day

After approximately two seconds the following display appears:

ENTER CURRENT TIME AND WEEKDAY

Keep the “”key pressed down. During the sum-

mer time period press the +/-1h key once.

Enter the hour using the “h”key.

Enter the minutes using the “m”key.

Enter the day using the “Day”key.

1 = Mon ....... 7 = Sun

Input time Enter minutes

Manual switch

Enter weekdays

Enter the hour

Weekdays blinks

Reset

Enter

switching time Summer and

winter time

setting

Autres manuels pour GENUS

Table des matières

Autres manuels Ariston Chaudière

Ariston

Ariston EURO COMBI A/27 MFFI Guide de l'utilisateur

Ariston

Ariston ACO 35 MFFI Manuel utilisateur

Ariston

Ariston Genus 27 Plus Manuel utilisateur

Ariston

Ariston Excalibur 80 Manuel utilisateur

Ariston

Ariston GENUS PREMIUM EVO SYSTEM 12 Guide de l'utilisateur

Ariston

Ariston EURO COMBI A/23 MFFI Manuel utilisateur

Ariston

Ariston Type C Guide de l'utilisateur

Ariston

Ariston GENUS 24 FF Manuel utilisateur

Ariston

Ariston GENUS 24 FF Guide de l'utilisateur

Ariston

Ariston GENUS PREMIUM EVO HP 45 Guide de l'utilisateur

Ariston

Ariston Genus 27 Plus Manuel utilisateur

Ariston

Ariston CLAS EVO SYSTEM 24 CF Manuel utilisateur

Ariston

Ariston BAC1S Manuel d'utilisation et d'entretien

Ariston

Ariston microGENUS HE 24 MFFI Manuel utilisateur

Ariston

Ariston EGIS C 15 FF NG Manuel utilisateur

Ariston

Ariston EuroCombi Type C A23 MFFI Guide de l'utilisateur

Ariston

Ariston GENUS 27 RFFI SYSTEM Manuel utilisateur

Ariston

Ariston GENUS 41-116-01 Manuel utilisateur

Ariston

Ariston GENUS PREMIUM EVO HP 45 Manuel utilisateur

Ariston

Ariston Type C Manuel utilisateur

Ariston

Ariston Genus 27 Plus Manuel utilisateur

Ariston

Ariston MICROCOMBI 23 MFFI Manuel utilisateur

Ariston

Ariston microGENUS HE 28 MFFI Guide de l'utilisateur

Ariston

Ariston DIA 24 MFFICE Guide de l'utilisateur

Manuels Chaudière populaires d'autres marques

Vaillant

Vaillant uniSTOR VIH SW GB 500 BES Manuel utilisateur

Radijator

Radijator BIO max 23.1 Manuel utilisateur

Brunner

Brunner BSV 20 Manuel utilisateur

Buderus

Buderus Logamax GB062-24 KDE H V2 Manuel utilisateur

Potterton

Potterton 50e Fiche technique

UTICA BOILERS

UTICA BOILERS TriFire Manuel utilisateur

Joannes

Joannes LADY Series Manuel

ECR International

ECR International UB90-125 Manuel d'instructions

Froling

Froling FHG Turbo 3000 Manuel utilisateur

Froling

Froling P4 Pellet 8 - 105 Manuel utilisateur

U.S. Boiler Company

U.S. Boiler Company K2 Manuel utilisateur

Henrad

Henrad C95 FF Manuel utilisateur

NeOvo

NeOvo EcoNox EF 36 Manuel utilisateur

Potterton

Potterton PROMAX SL 12 Manuel utilisateur

Eco Hometec

Eco Hometec EC 25 COMPACT Manuel utilisateur

Viessmann

Viessmann VITODENS 200 Mode d’emploi

Baxi

Baxi Prime 1.24 Manuel utilisateur

REXNOVA

REXNOVA ISA 20 BITHERMAL Manuel utilisateur
