Aristel AN1808-08 Manuel utilisateur

Installation

This 4G audio intercom is suitable for both flush mounting and surface mounting.

4G AUDIO INTERCOM

(SURFACE MOUNTING)

4G AUDIO

INTERCOM

(FLUSH MOUNTING)

AN1808-08 4G

QUICK INSTALLATION GUIDE

AN1808-08 4G

1/5

1. SIM card installation (Fig 1)

1.1 Disconnect the 12V adaptor from the AN1808-01

1.2 Remove the rear plastic cover

1.3 Remove the SIM card cover from the bottom of the unit

1.4 Slide the SIM card holder towards the front of the unit

1.5 Lift up the holder

1.6 Before inserting the SIM card, ensure that it is not PIN number

locked. (If locked, use a mobile phone to unlock it).

1.7 Insert the SIM card (Note orientation of notched corner)

1.8 Replace holder and slide towards the rear of the unit to lock in place

1.9 Replace rear plastic cover

AN1808-08 4G QUICK INSTALL GUIDE

AN1808-08 4G

2/5

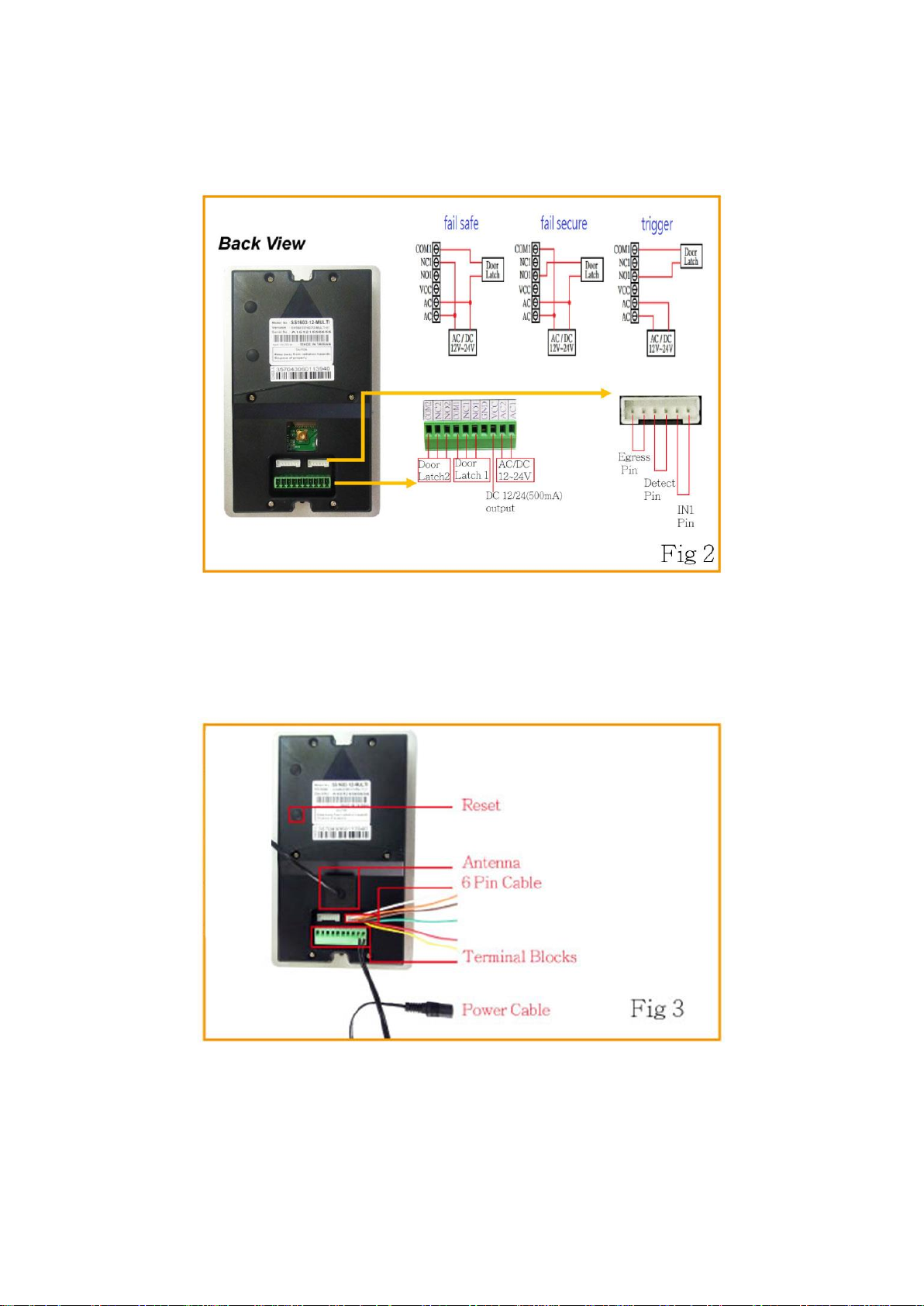

2. Connecting with the door lock system (Fig 2)

2.1 According your door lock type to wire with door latch of connector.

3. Connecting the Antenna (Fig 3)

3.1 Plug on the antenna cord to the connector on the rear of the unit

3.2 Place antenna away from electrical/electronic systems (computers,

microwave ovens, etc

AN1808-08 4G QUICK INSTALL GUIDE

AN1808-08 4G

3/5

4. Power on and Fix it well

4.1 Connect the power adaptor into the connector marked AC

4.2 The blue indicator of call button should be on and you will hear Du

Du tone. 4.3 Fix the unit on the position before ready.

4.4 When the Du Du tone is disappeared then the Device is ready.

Wiring Diagram

AN1808-08 4G QUICK INSTALL GUIDE

AN1808-08 4G

4/5

Using the AN1808-01

1. Setting your call out numbers

i) Send the text SMS to the number of device.

ii) The format of text SMS is *12*1234#11[call out number 1]#12[call out

number 2]#13[call out number 3]#

iii) When the setting is finished, the sender will receive the reply as

below a s11[call out number 1]#12[call out number 2]#13[call out

number 3]#OK.

iv) If you press call button of device, it will call to the numbers in sequence.

2. Setting your dial in numbers

i) Send the text SMS to the number of device.

ii) The format of text SMS is *12*1234#71[country code]#72[relay][call in

number 1]# 72[relay][call in number 2]#

iii) When the setting is finished, the sender will receive the reply as below.

71[country code]#72[relay][call in number 1]# 72[relay][call in number

2]#...OK

iv) If you call to the number of device through the dial in numbers, the device

will trigger the relay to control the door latch.

v) If the number is not matched with the dial in numbers, the device will answer

and sound a beep. Then you can enter the programming mode by password.

3. App on iOS and Android

i) Please search “3G intercom” on Apple store or Google Play

ii) The App can help you to program the device easier.

iii) You can use the App to unlock the door through call or SMS.

AN1808-08 4G QUICK INSTALL GUIDE

AN1808-08 4G

5/5
