Aries S224045 Manuel utilisateur

Product Image

Notes and Maintenance

Before you begin installation, read all instructions thoroughly.

Proper tools will improve the quality of installation and reduce the time required.

To protect the product, wax after installing. Regular waxing is recommended to

add a protective layer over the ﬁnish. Do not use any type of polish or wax that may

contain abrasives that could damage the ﬁnish.

For stainless steel, polish may be used to clear small scratches

and scuffs on the ﬁnish. Mild soap may be used also to clean the product.

Always start threaded fasteners by hand and ﬁnish tightening with a wrench.

Do not use an impact driver as this may result in cross-threading and cause

damage to the side bar.

Level of Difﬁculty

Easy

Scan

for helpful

install tips

Front

Rear

INSTALLATION MANUAL S224045

Parts List

1Driver / left side bar

1Passenger / right side bar

8Mounting bracket, universal

13 Clip nut, 8mm

17 Hex bolt, 8mm x 25mm

17 Flat washer, 8mm

17 Lock washer, 8mm

17 Hex bolt, 10mm x 30mm

19 Flat washer, 10mm

18 Lock washer, 10mm

1Bolt plate, 10mm

2Hex nut, 10mm

1Plastic bolt retainer, 10mm

1Def-tank L-bracket

1Def-tank support bracket

Tools Required

Ratchet Socket, 16mm

Wrench, 16mm Socket, 13mm

Level

PAGE 1 • S224045-INS-RC • 800.798.0813 • NEED ASSISTANCE? • ARIESAUTOMOTIVE.COM

ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 800.798.0813 • S224045-INS-RC • PAGE 2

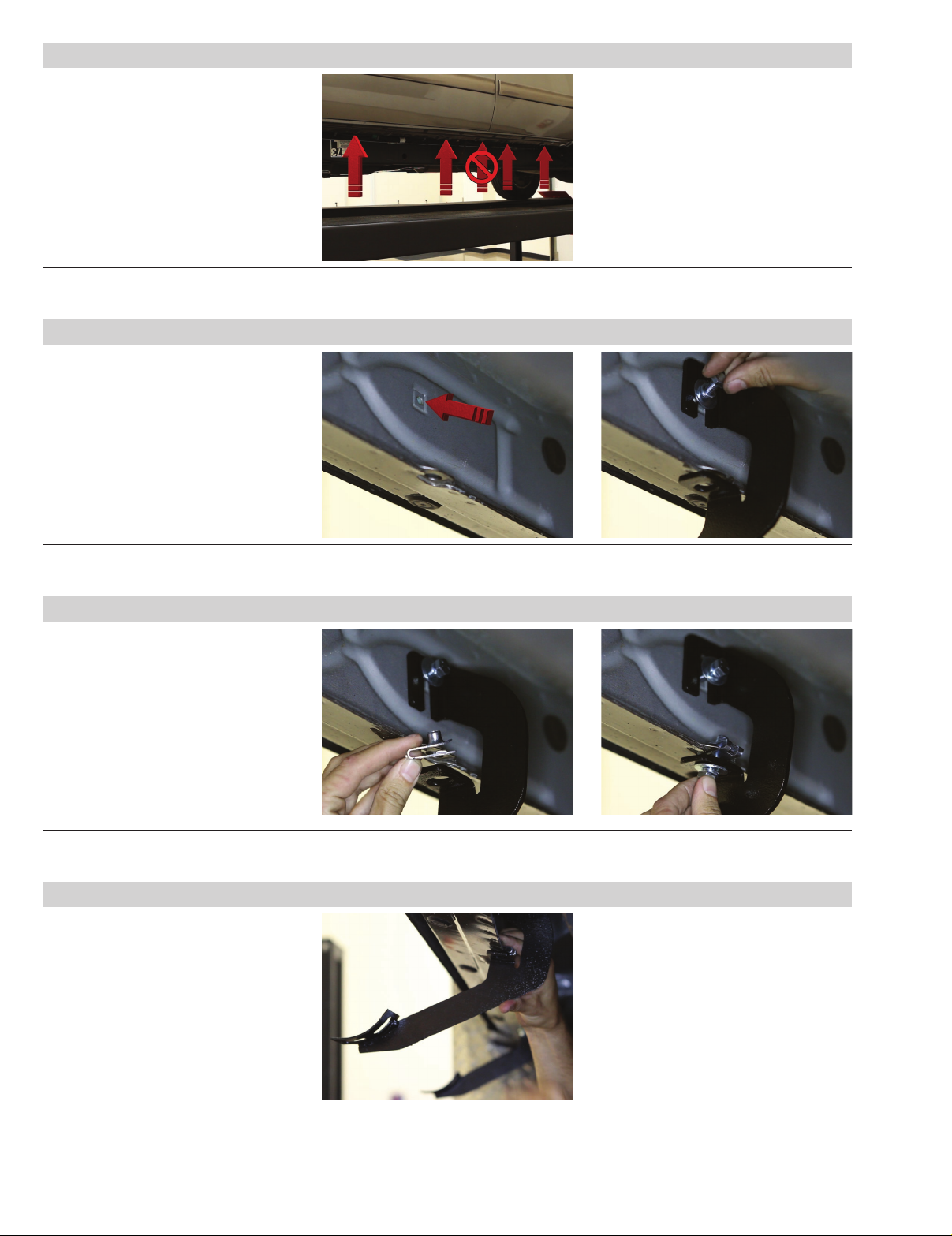

Step 1

Locate the ﬁve mounting tabs along

the bottom edge of the vehicle body.

This installation will use the ﬁrst,

second, fourth and ﬁfth mounting tabs.

Step 2

Starting at the front driver side mounting

location, locate the threaded hole on

the inside of the body panel.

Attach a universal mounting bracket to

the body panel using an 8mm hex bolt

with a lock and ﬂat washer.

Snug the hardware,

but do not fully tighten.

Step 3

Rotate the bottom of the bracket

to the side to expose the hole in

the mounting tab.

Slide an 8mm clip-nut over the

mounting tab and rotate the bracket

back into position.

Secure the bracket with a second 8mm

hex bolt, lock washer and ﬂat washer.

Snug the hardware,

but do not fully tighten.

Step 4

Repeat steps 2 and 3 to install the

second bracket over the second

mounting tab location from step 1.

PAGE 3 • S224045-INS-RC • 800.798.0813 • NEED ASSISTANCE? • ARIESAUTOMOTIVE.COM

Step 5

Locate the fourth mounting tab from step 1

and remove the rubber plug from the

access hole.

Insert a clip nut through the access hole

and align it over the adjacent small hole.

Secure the top of the bracket with

an 8mm hex bolt, lock washer and

ﬂat washer.

Repeat step 3 to secure

the bottom of the bracket.

Step 6

Locate the ﬁfth mounting tab from step 1.

Repeat step 5 to install the fourth

and ﬁnal bracket on the driver side

of the vehicle.

Step 7

Carefully position the side bar

onto the mounting brackets.

Ensure all the mount locations on

the bottom of the side bar line up

with the mounting brackets.

Note: If the holes on the side bar to

not match up with the brackets, ensure

all brackets have been installed in the

correct locations and the correct side

bar is being used.

Step 8

Attach the side bar to the brackets

with eight of the 10mm hex bolts,

lock washers and ﬂat washers.

Snug the hardware,

but do not fully tighten.

ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 800.798.0813 • S224045-INS-RC • PAGE 4

Step 9

Ensure the vehicle is on level ground.

Use a bubble level ensure the side bar

is level and parallel with the side of the

vehicle. Make adjustments to the bracket

positions and rotate the side bar as

necessary.

With the side bar aligned, tighten all the

hardware on the brackets to the vehicle.

Double check that the side bar is level

and ﬁnalize the install by tightening all the

hardware securing it to the brackets.

Step 10

Repeat steps 1 through 9

on the passenger side.

Note: For diesel trucks, the front bracket

on the passenger side will require the

included def-tank brackets. Follow steps

11 through 16 to complete the install.

Step 12

Insert the 10mm bolt plate into

the access hole in the rocker panel.

Push the plastic retainer onto the

threaded end of the bolt plate to

help hold the plate in position.

Step 11 2014 or older 2015 or newer

Locate the def-tank bracket

components for diesel truck models.

Begin the install by locating the round

factory hole in the bottom of the rocker

panel, closest to the front bracket

mounting location. The installation of

the bracket will vary depending on the

vehicle model shown to the right.

Remove the plastic plug to expose

the mounting hole in the rocker panel.

PAGE 5 • S224045-INS-RC • 800.798.0813 • NEED ASSISTANCE? • ARIESAUTOMOTIVE.COM

Step 13

Select the def-tank L-bracket.

Attach the short end of the bracket to

the bolt plate with the ﬂat washer, lock

washer and 10mm hex nut.

Snug the hardware,

but do not fully tighten.

Step 14

Slide an 8mm clip nut onto the mounting

tab. Fasten the side bar mounting

bracket with an 8mm hex bolt, ﬂat

washer and lock washer.

Snug the hardware,

but do not fully tighten.

Step 15

Bolt the def-tank support bracket to

the back of the def-tank L-bracket using

a 10mm hex bolt, ﬂat washer and lock

washer.

Snug the hardware,

but do not fully tighten.

Step 16

Repeat steps 7 through 9 on

the passenger side of the vehicle.

Congratulations on the installation

of your new ARIES 4" oval side bars.

With the side bars installed, periodic

inspections should be performed to ensure

all mounting hardware remains tight.

To protect your investment, see the

'Notes and Maintenance' section on

the ﬁrst page of this instruction manual.
