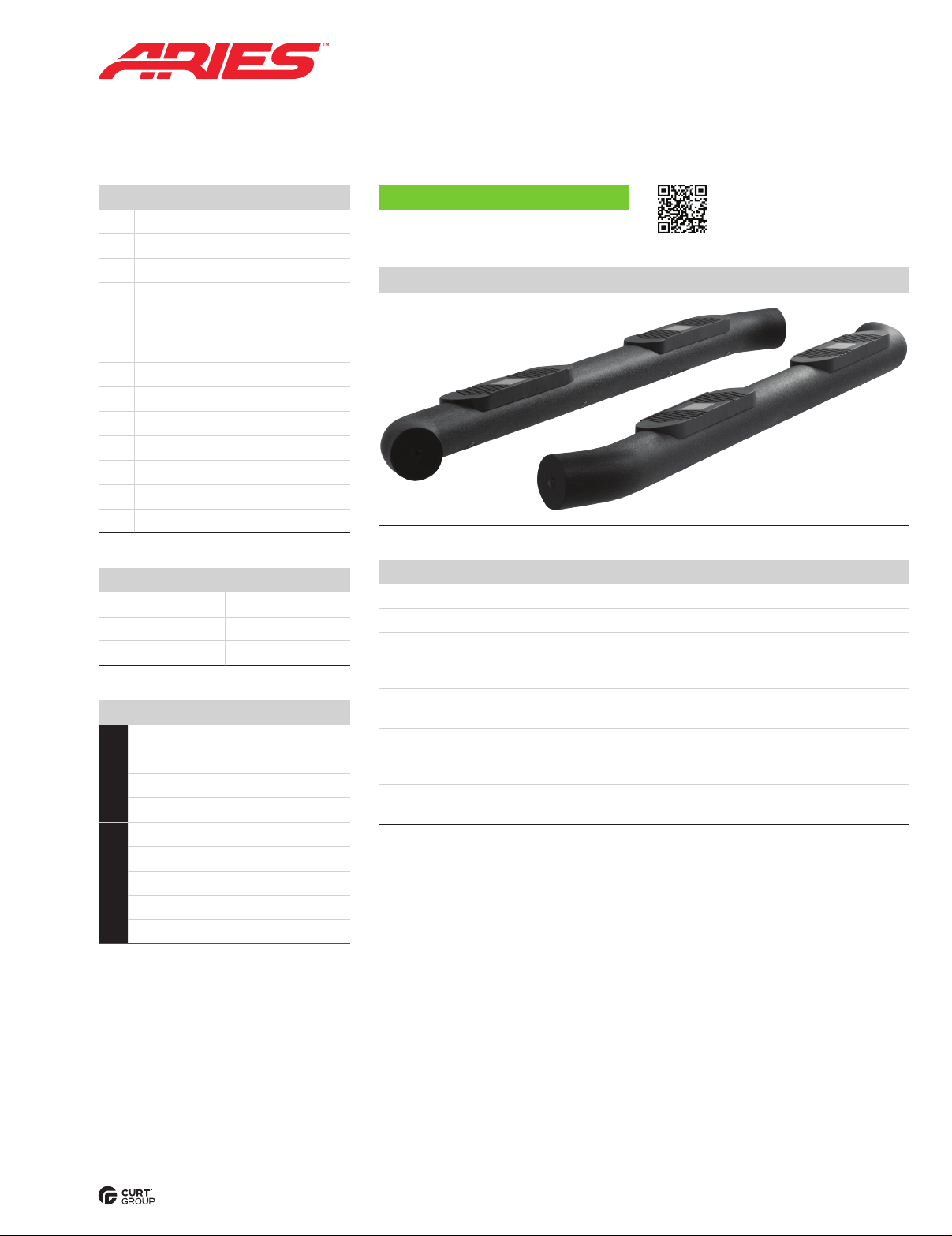

PAGE 1 • AL234045-INS-RE• 877.287.8634 • NEED ASSISTANCE? • ARIESAUTOMOTIVE.COM

Product Image

Level of Difﬁculty

Easy

Parts List

1Driver / left side bar

1Passenger / right side bar

6Mounting bracket, universal

2Mounting bracket,

passenger / right, front, upper

2Mounting bracket,

passenger / right, front, lower

14 Clip nut, M8

30 Hex bolt, M8 x 25mm

30 Flat washer, M8

30 Lock washer, M8

2Hex bolt, M10 x 30mm

2Flat washer, M10

2Lock washer, M10

Tools Required

Ratchet Socket, 16mm

Wrench, 16mm Socket, 13mm

Level

Scan

for helpful

install tips

Front

Rear

INSTALLATION MANUAL AL234045

Notes and Maintenance

Before you begin installation, read all instructions thoroughly.

Proper tools will improve the quality of installation and reduce the time required.

To protect the product, wax after installing. Regular waxing is recommended

to add a protective layer over the ﬁnish. Do not use any type of polish or wax

that may contain abrasives that could damage the ﬁnish.

For polished, gloss and other smooth ﬁnishes,

polish may be used to clear small scratches and scuffs on the ﬁnish.

Mild automotive detergent may be used to clean the product.

Do not use dish detergent, abrasive cleaners, abrasive pads,

wire brushes or other similar products that may damage the ﬁnish.

Refer to the table to the left when securing hardware during the

installation process to help prevent damage to the product or vehicle.

Torque Speciﬁcations

METRIC

M6 bolt 3 ft.-lbs.

M8 bolt 7 ft.-lbs.

M10 bolt 16 ft.-lbs.

M12 bolt 28 ft.-lbs.

SAE

1/4" bolt 3 ft.-lbs.

5/16" bolt 7 ft.-lbs.

3/8" bolt 16 ft.-lbs.

7/16" bolt 20 ft.-lbs.

1/2" bolt 28 ft.-lbs.

Use above torque setting

unless otherwise noted

ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 877.287.8634 • AL234045-INS-RE• PAGE 2

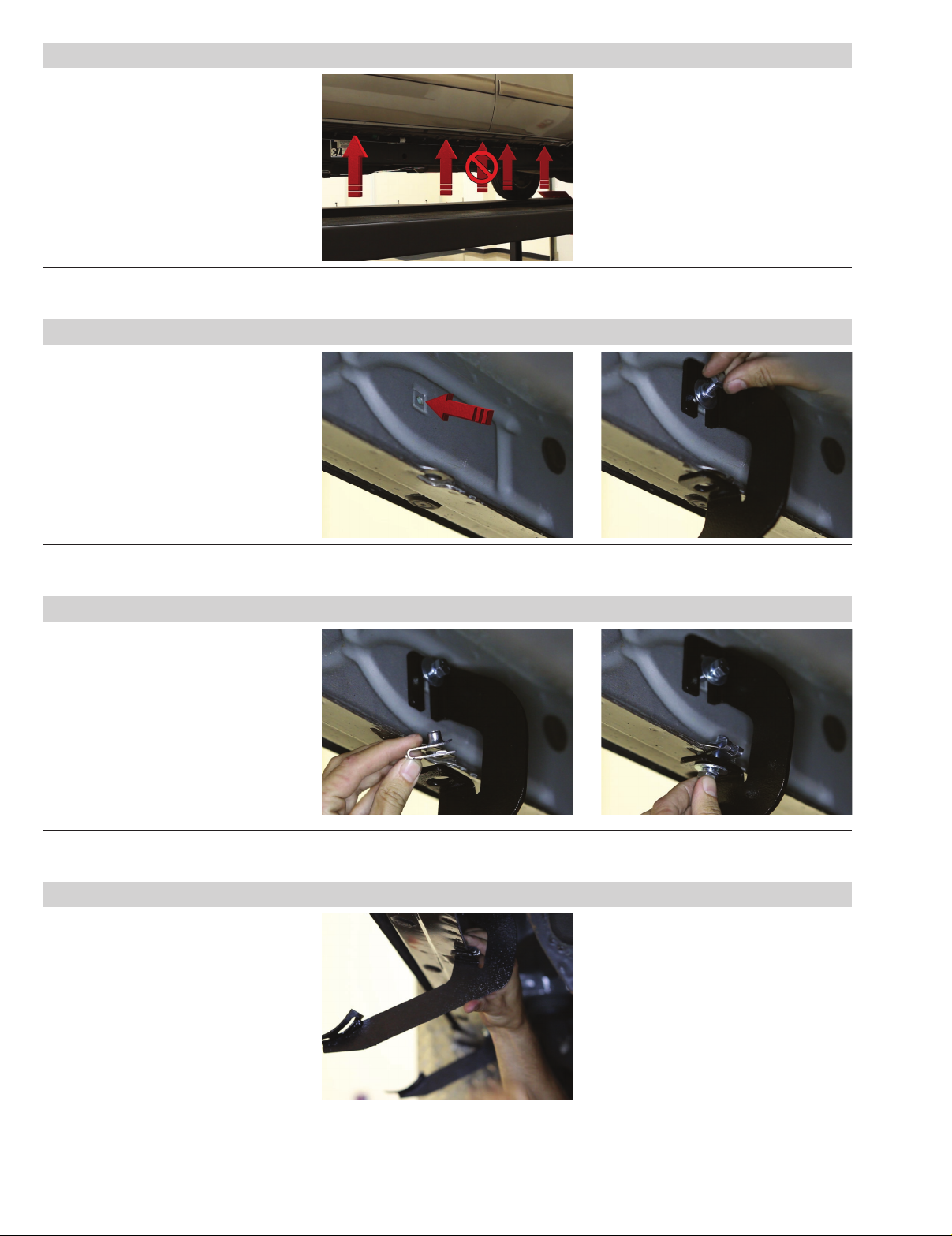

Step 1

Locate the ﬁve mounting tabs along

the bottom edge of the vehicle body.

This installation will use the ﬁrst,

second, fourth and ﬁfth mounting tabs

Step 2

Starting at the front driver side

mounting location, locate the threaded

hole on the inside of the body panel.

Attach a universal mounting bracket

to the body panel using an M8 hex bolt

with a lock and ﬂat washer.

Snug the hardware,

but do not fully tighten.

Step 3

Rotate the bottom of the bracket to

the side to expose the hole in the

mounting tab.

Slide an M8 clip-nut over the

mounting tab and rotate the bracket

back into position.

Secure the bracket with a second

M8 hex bolt, lock washer and ﬂat washer.

Snug the hardware,

but do not fully tighten.

Step 4

Repeat steps 2 and 3 to install

the second bracket over the second

mounting tab location from step 1.

PAGE 3 • AL234045-INS-RE• 877.287.8634 • NEED ASSISTANCE? • ARIESAUTOMOTIVE.COM

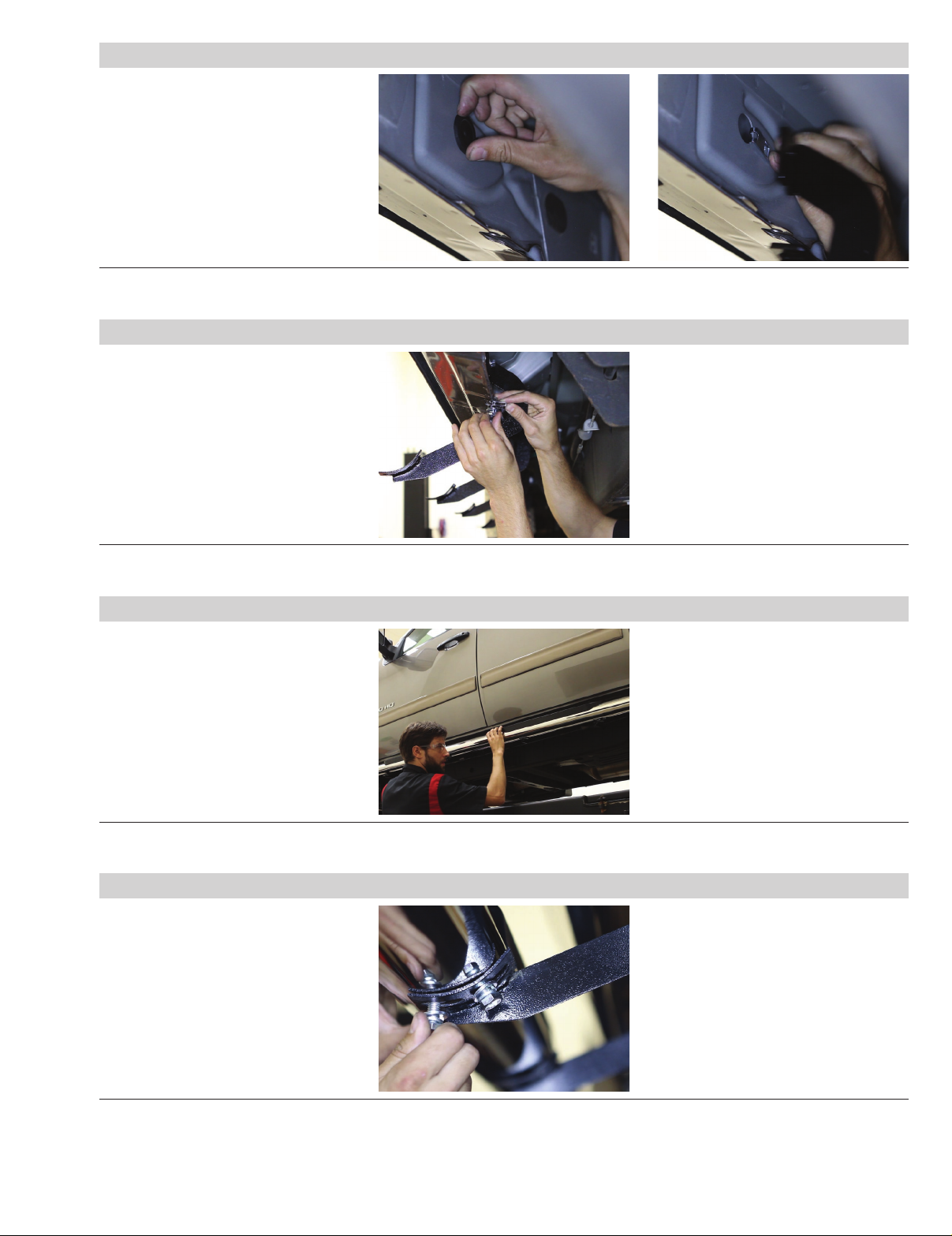

Step 5

Locate the fourth mounting tab from step

1 and remove the rubber plug from the

access hole.

Insert a clip nut through the access hole

and align it over the adjacent small hole.

Secure the top of the bracket with an M8

hex bolt, lock washer and ﬂat washer.

Repeat step 3 to secure

the bottom of the bracket.

Step 6

Locate the ﬁfth mounting tab from step 1.

Repeat step 5 to install the fourth

and ﬁnal bracket on the driver side

of the vehicle.

Step 7

Carefully position the side bar

onto the mounting brackets.

Ensure all the mount locations

on the bottom of the side bar line

up with the mounting brackets.

Note: If the holes on the side bar to

not match up with the brackets, ensure

all brackets have been installed in the

correct locations and the correct side

bar is being used.

Step 8

Attach the side bar to the brackets

with eight of the M8 hex bolts,

lock washers and ﬂat washers.

Snug the hardware,

but do not fully tighten.

ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 877.287.8634 • AL234045-INS-RE• PAGE 4

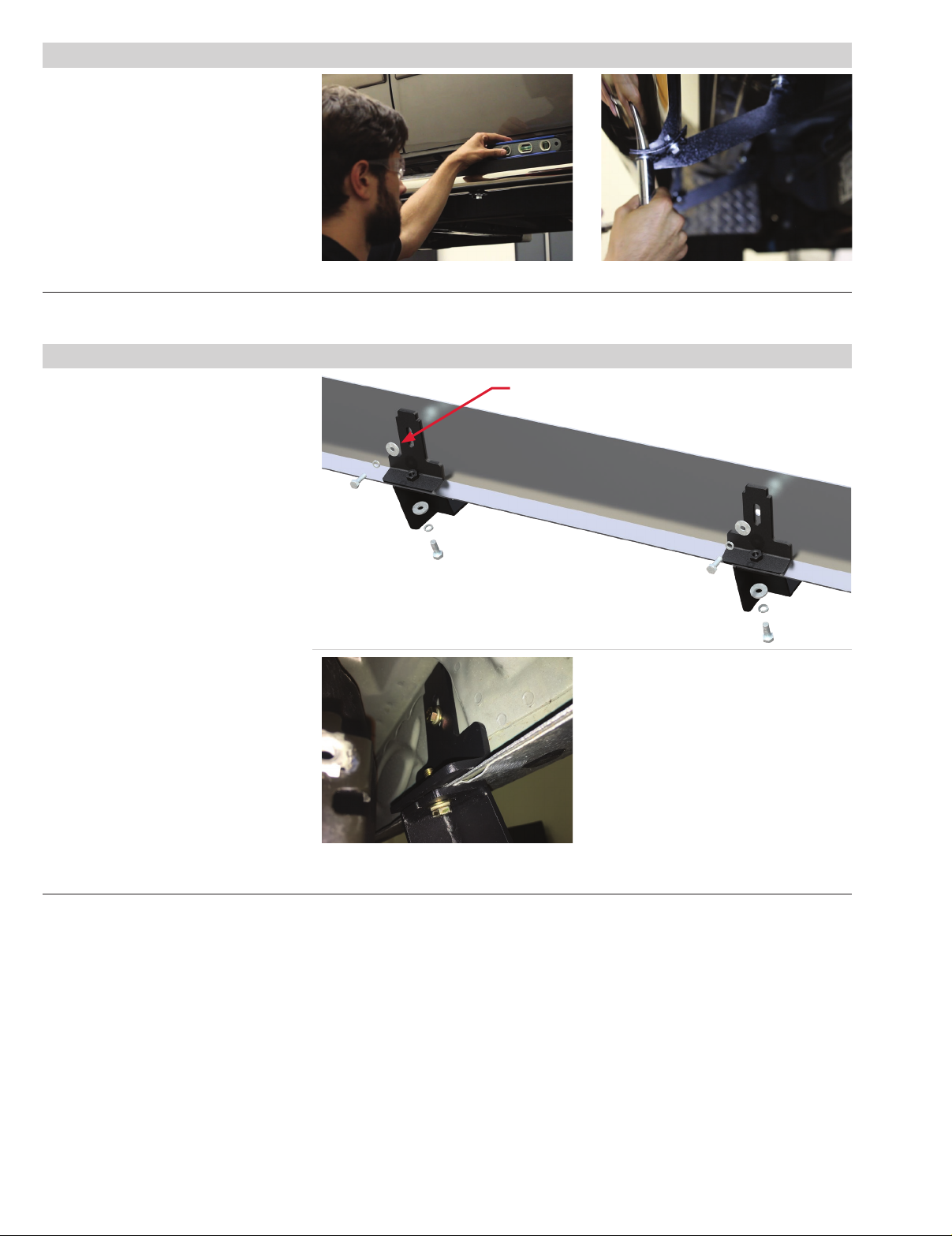

Step 9

Ensure the vehicle is on level ground.

Use a bubble level ensure the side bar

is level and parallel with the side of the

vehicle. Make adjustments to the bracket

positions and rotate the side bar as

necessary.

With the side bar aligned, tighten all the

hardware on the brackets to the vehicle.

Double check that the side bar is level

and ﬁnalize the install by tightening all the

hardware securing it to the brackets.

Step 10

Locate the front mounting point on the

passenger side of the vehicle to install

the front two passenger mounting

brackets.

Note: If there is a Def tank you will not

be able to insert the M8 hardware on

front upper bracket.

Place the upper mounting bracket

against the rocker panel. Align the weld

nut on the upper mounting bracket with

the mounting hole in the rocker panel.

Secure the top mounting bracket to the

rocker panel using an M8 hex bolt, M8

lock washer and M8 ﬂat washer.

Align one of the passenger front

lower mounting brackets with the

upper mounting bracket. Secure the

two mounting brackets together using

an M10 hex bolt, M10 lock washer

and M10 ﬂat washer.

Torque all M10 hardware to 31.6 ft-lbs.

Repeat this process to install the

second passenger mounting bracket.

Snug the hardware,

but do not fully tighten.

Rear

Front

M8 hardware is not

used with DEF tank

PAGE 5 • AL234045-INS-RE• 877.287.8634 • NEED ASSISTANCE? • ARIESAUTOMOTIVE.COM

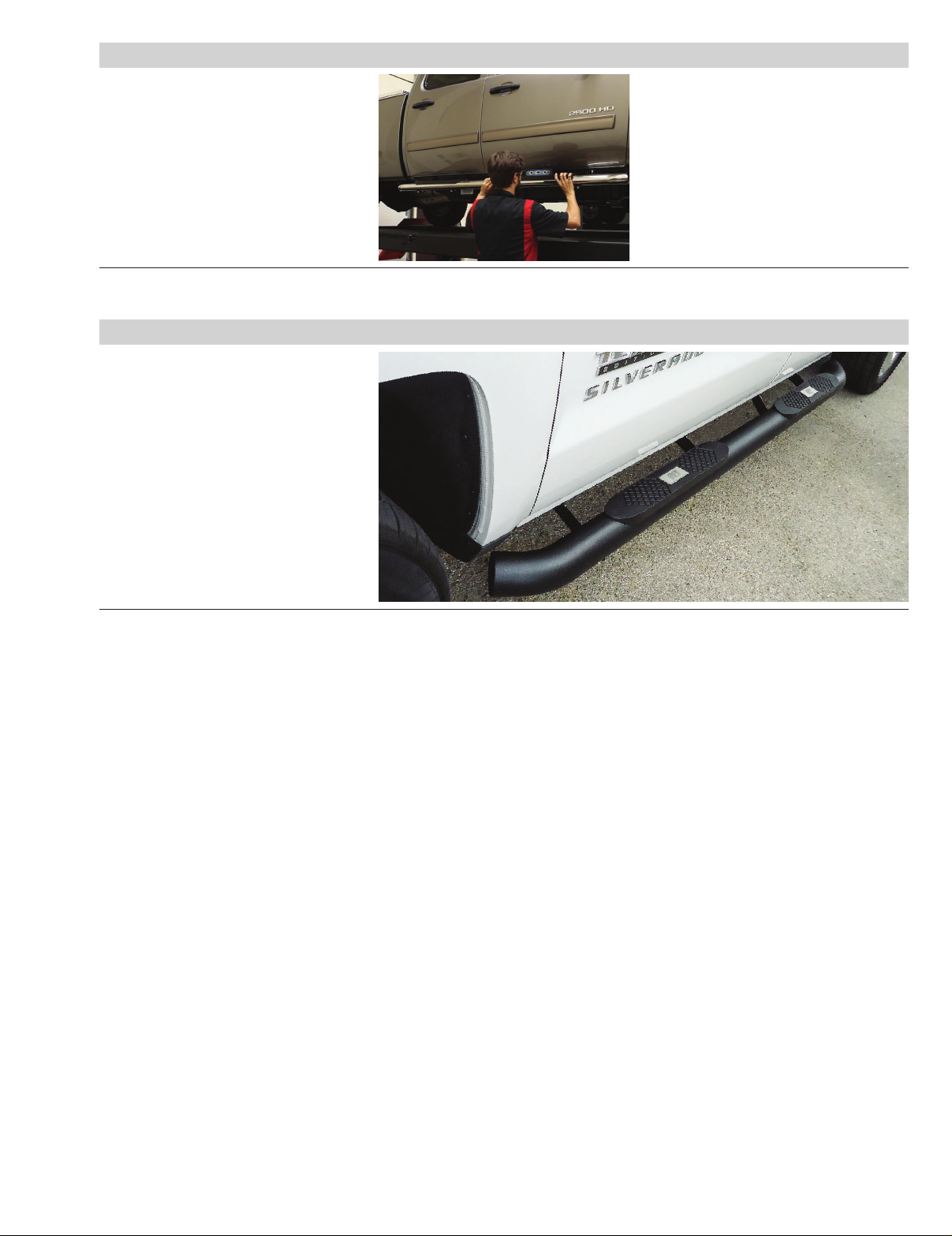

Step 12

With the side bars installed, periodic

inspections should be performed to ensure

all mounting hardware remains tight.

Congratulations on the installation of

your new ARIES 4" Big Step™side bars.

To protect your investment, see the

'Notes and Maintenance' section on

the ﬁrst page of this instruction manual.

Step 11

Repeat steps 5 through 9 on the

passenger side for the remaining

brackets and side bar.
