Aries 2074120 Manuel utilisateur

PAGE 1 • 2074120-INS-RA • 800.798.0813 • NEED ASSISTANCE? • ARIESAUTOMOTIVE.COM

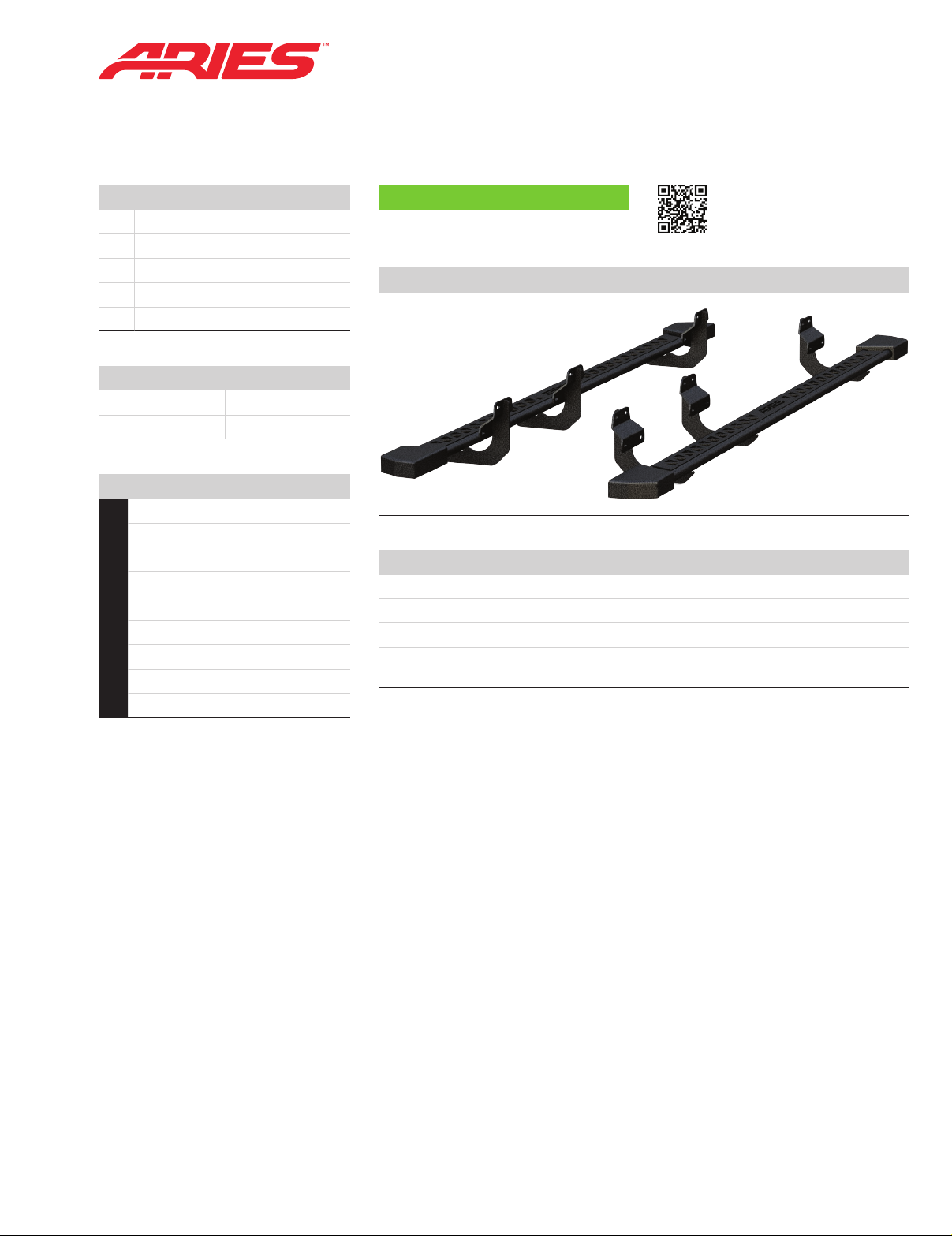

Product Image

Notes and Maintenance

Before you begin installation, read all instructions thoroughly.

Proper tools will improve the quality of installation and reduce the time required.

For black ﬁnishes, mild soap may be used to clean the product.

Refer to the table to the left when securing hardware during the

installation process to help prevent damage to the product or vehicle.

Level of Difﬁculty

Easy

Parts List

1Driver / left side rocker step

1Passenger / right side bar

18 Flat washer, M8

18 Lock nut, M8

18 Plastic spacer, M8

Tools Required

Torque wrench Extension

Socket, 13mm

Scan

for helpful

install tips

Front

Rear

INSTALLATION MANUAL 2074120

Torque Speciﬁcations

METRIC

M6 bolt 3 ft.-lbs.

M8 bolt 7 ft.-lbs.

M10 bolt 16 ft.-lbs.

M12 bolt 28 ft.-lbs.

SAE

1/4" bolt 3 ft.-lbs.

5/16" bolt 7 ft.-lbs.

3/8" bolt 16 ft.-lbs.

7/16" bolt 20 ft.-lbs.

1/2" bolt 28 ft.-lbs.

ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 800.798.0813 • 2074120-INS-RA • PAGE 2

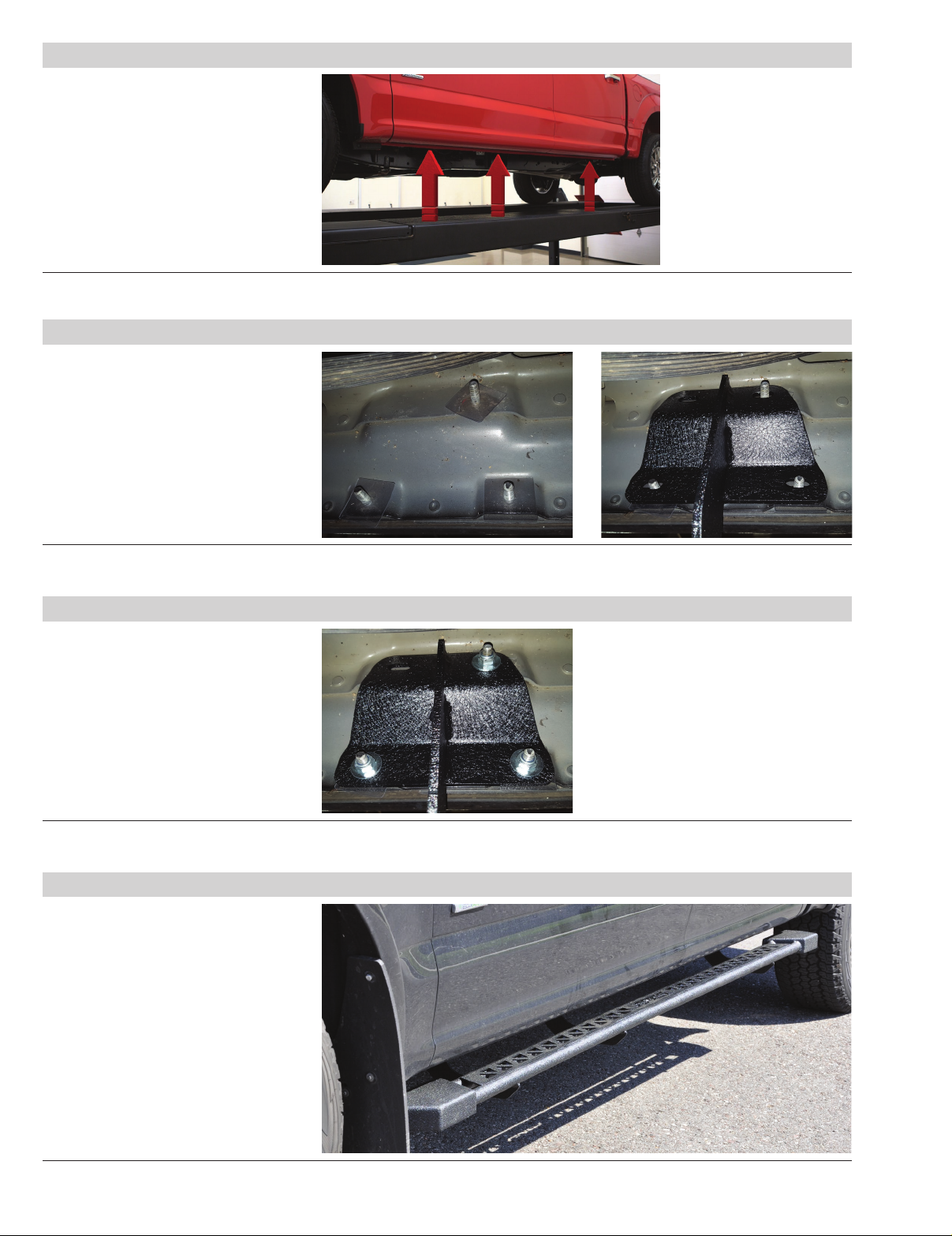

Step 4

Repeat steps 1 through 3

on the passenger side of the vehicle.

Congratulations on the installation

of your ARIES rocker steps.

With the rocker steps installed,

periodic inspections should be

performed to ensure all mounting

hardware remains tight.

Step 1

Starting on the driver-side,

locate the three mounting locations

underneath the vehicle.

Step 2

Place plastic spacers on the M8 tabs

With help, lift the driver-side rocker step

up to the vehicle. Align the mounting

holes on the rocker step with the

mounting points on the vehicle.

Step 3

Secure the rocker step to the

vehicle using two M8 lock nuts

and two M8 ﬂat washers.

Repeat step 2 and the above

process to secure the middle

and rear mounting brackets.

With the rocker step in position,

tighten all mounting hardware to the

recommended torque speciﬁcations

listed in the table on the ﬁrst page.
