PAGE 1 • 1500100-INS-RB• 877.287.8634 • NEED ASSISTANCE? • ARIESAUTOMOTIVE.COM
Product Image
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To protect the product, wax after installing. Regular waxing is recommended
to add a protective layer over the finish. Do not use any type of polish or wax
that may contain abrasives that could damage the finish.
For polished, gloss and other smooth finishes,
polish may be used to clear small scratches and scuffs on the finish.
Mild automotive detergent may be used to clean the product.
Do not use dish detergent, abrasive cleaners, abrasive pads,
wire brushes or other similar products that may damage the finish.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.
Level of Difficulty
Easy
Parts List
1Driver / left door
1Passenger / right door
2Flange nut, M6
6Flat head cap screw,
M6 x 30mm
6Flat washer, M6
6Hex lock nut, M6
Tools Required
Ratchet Extension
T27 Torx drive Wrench, 10mm
T50 Torx drive Allen wrench, 4mm
Torque wrench Socket, 13mm
Scan
for helpful
install tips
INSTALLATION MANUAL 1500100
Torque Specifications
M6 flange nut 75 in.-lbs.
M6 lock nut 90 in.-lbs.
ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 877.287.8634 • 1500100-INS-RB • PAGE 2
Step 1
Beginning on the driver side, remove
the three Torx head bolts securing
the side mirror to the vehicle.
Set the mirrors aside to be re-installed
on the tube doors.
Step 2
Locate the door strap on the inside of the
vehicle. Remove the strap from the hook.
CAUTION: Once the strap is released
the door can swing open into the vehicle,
potentially causing damage.
Step 3
Remove the nuts from the bottom
of the factory hinge pins.
Lift the door off and carefully set aside.
PAGE 3 • 1500100-INS-RB• 877.287.8634 • NEED ASSISTANCE? • ARIESAUTOMOTIVE.COM
Step 4
To install the tube doors, position
the hinge pins directly above the
hinges. Lower the hinge pins into
the door hinges until the hinge pins
are fully seated. Install the provided
M6 flange nuts.
Step 5
Be sure the rotary latch is aligned
properly with the factory door strike.
With the rotary latch in the open position,
line up the latch with the factory door
strike and gently close the door. It may
be necessary to loosen the factory door
strike for proper alignment.
When proper alignment is achieved,
tighten the door strike screws. Open and
close the door to make sure the door is
secure and functioning properly.
Note: If factory doors are re-installed,
be sure to return the door strike to its
original position.
ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 877.287.8634 • 1500100-INS-RB• PAGE 4

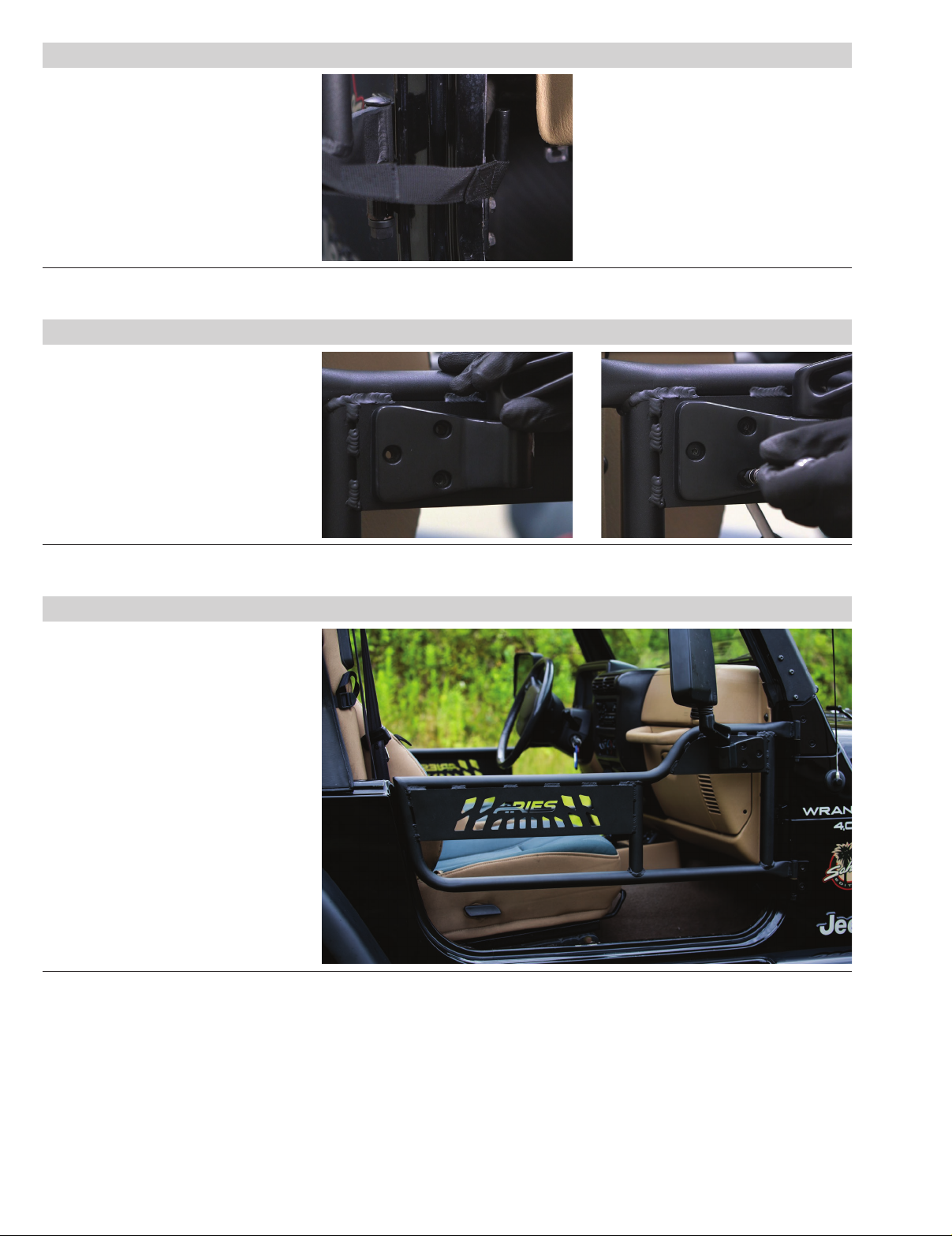

Step 6
Attach the door strap to the hook
located on the inside of the vehicle.
Step 7
To install the factory mirrors, locate
and remove the plugs in the three mirror
mounting holes in the tube door.
Align the mirror with the mounting holes
and secure with the provided M6 screw,
flat washer and lock nut.
Step 8
Repeat steps 1 through 7 for
the passenger side tube door.
With the doors installed, periodic
inspections should be performed to
ensure all hardware remains tight.
To protect your investment, see the
'Notes and Maintenance' section on
the first page of this instruction manual.
Congratulations on the installation
of your new ARIES tube doors.
