Aries 2055123 Manuel utilisateur

PAGE 1 • 2055123-INS-RB • 800.798.0813 • NEED ASSISTANCE? • ARIESAUTOMOTIVE.COM

Level of Difﬁculty

Easy

Scan

for helpful

install tips

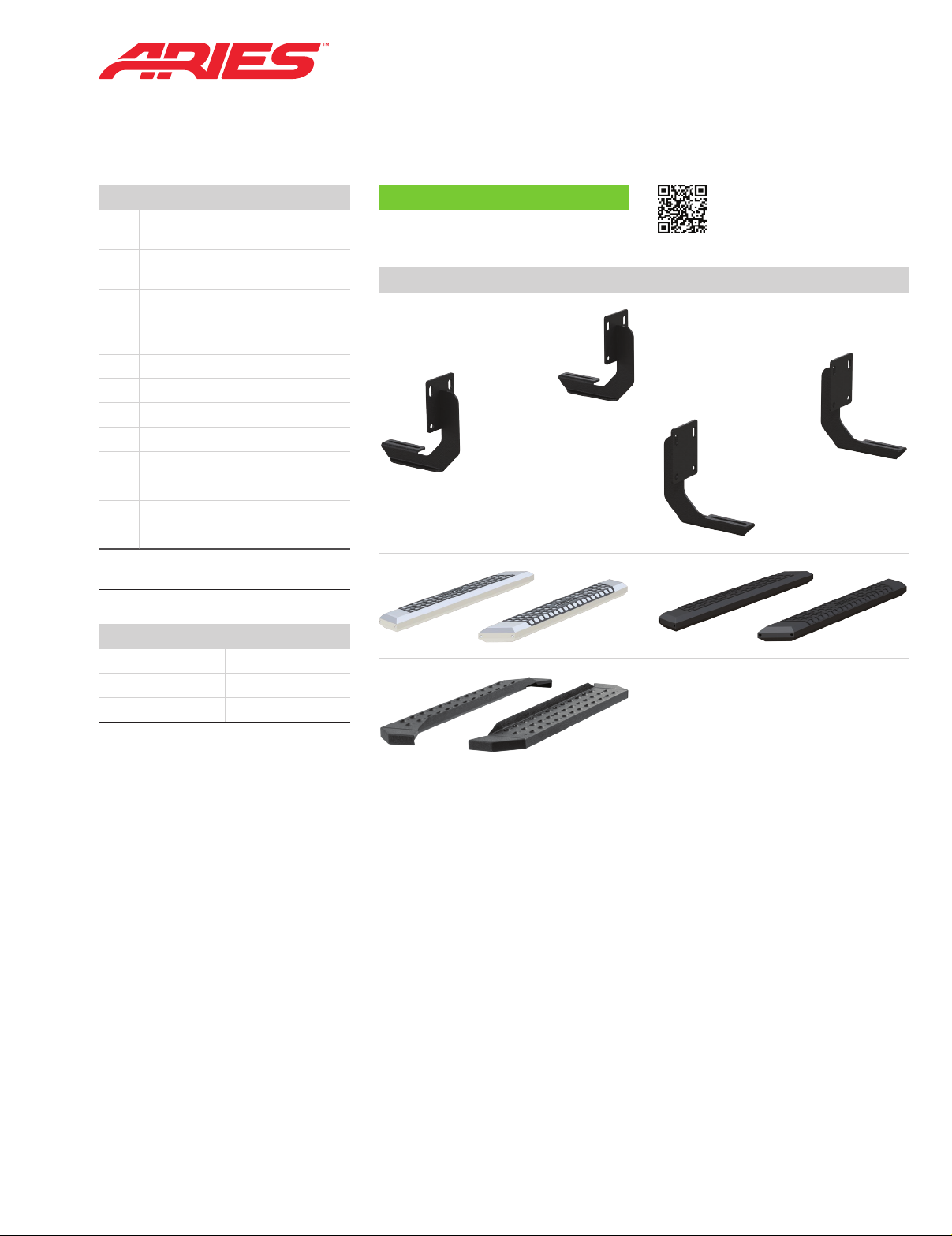

INSTALLATION MANUAL 2055123

Parts List

1Driver / left

side bar / running board

1Passenger / right

side bar / running board

4VersaTrac™mounting bracket,

universal

8 Hex bolt, M8 (B)

8Flat washer, M8 (B)

8Lock washer, M8 (B)

8Hex nut, M8 (B)

8Clip nut M10

16 Hex bolt, M10 (S)

24 Flat washer, M10 (S)

16 Lock washer, M10 (S)

8Hex nut, M10 (S)

(S) = Silver hardware

(B) = Black hardware

Tools Required

Ratchet Socket, 13mm

Torque wrench Socket, 16mm

Level

Product Image

AdvantEDGE™

RidgeStep™

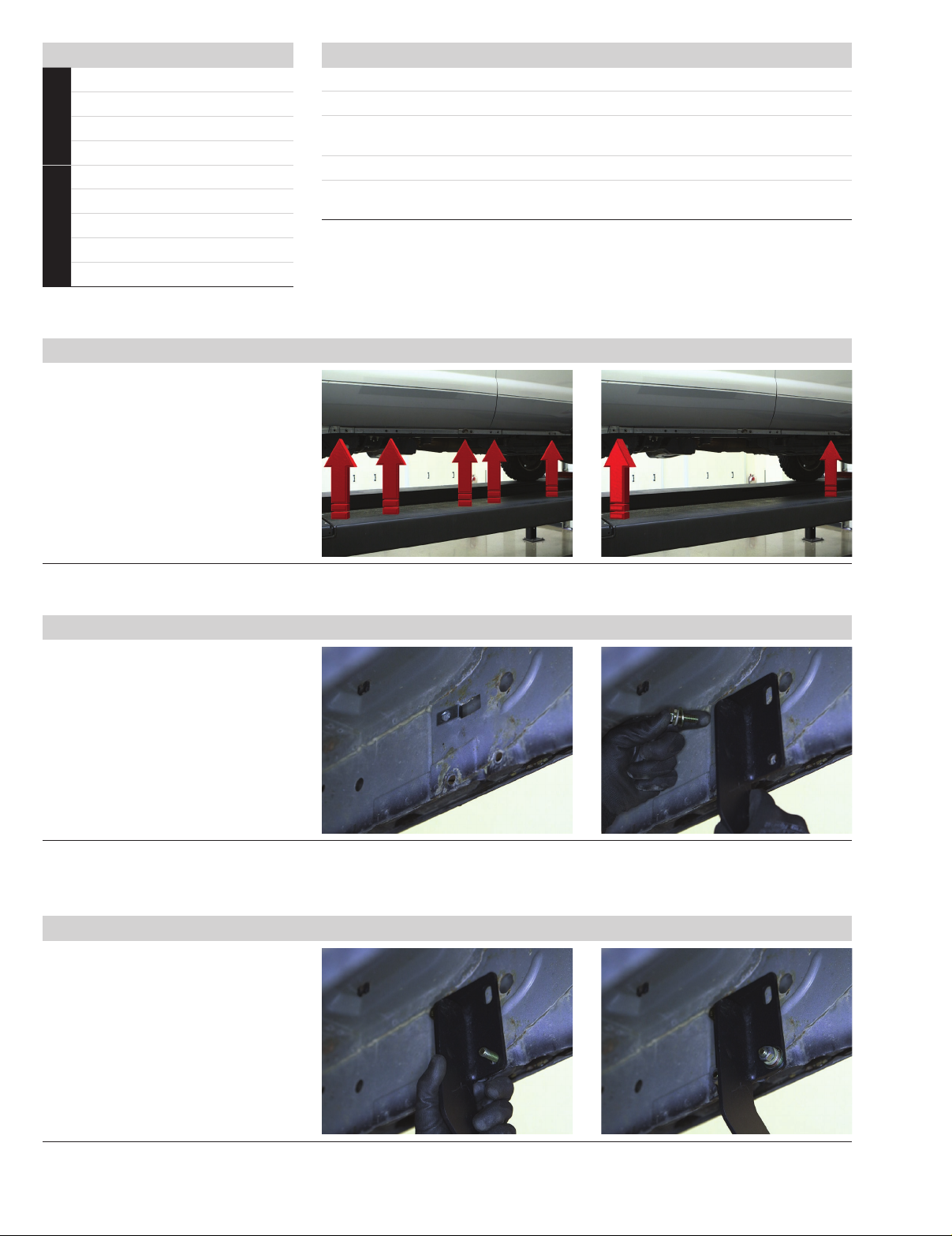

ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 800.798.0813 • 2055123-INS-RB • PAGE 2

Step 1

Starting on the driver side, locate

the ﬁve mounting tabs along

the bottom edge of the vehicle.

This installation will use the

ﬁrst and ﬁfth mounting tabs.

Step 2

Starting at the front driver-side mounting

location, insert an M10 clip nut into the

square hole and align it over the adjacent

round hole.

Place a bracket onto the vehicle

and secure with an M10 hex bolt,

lock washer and ﬂat washer.

Snug the hardware,

but do not fully tighten.

Step 3

Finish securing the front mounting

bracket to the vehicle using an M10

hex bolt and ﬂat washer from the outside

of the bracket and an M10 hex nut, lock

washer and ﬂat washer on the inside.

Repeat this step for the remaining

bottom bolt location.

Notes and Maintenance

Before you begin installation, read all instructions thoroughly.

Proper tools will improve the quality of installation and reduce the time required.

For chrome powder coat, polish may be used to clear small scratches

and scuffs on the ﬁnish. Mild soap may be used also to clean the product.

For black ﬁnishes, mild soap may be used to clean the product.

Refer to the table to the left when securing hardware during the

installation process to help prevent damage to the product or vehicle.

Torque Speciﬁcations

METRIC

M6 bolt 3 ft.-lbs.

M8 bolt 7 ft.-lbs.

M10 bolt 16 ft.-lbs.

M12 bolt 28 ft.-lbs.

SAE

1/4" bolt 3 ft.-lbs.

5/16" bolt 7 ft.-lbs.

3/8" bolt 16 ft.-lbs.

7/16" bolt 20 ft.-lbs.

1/2" bolt 28 ft.-lbs.

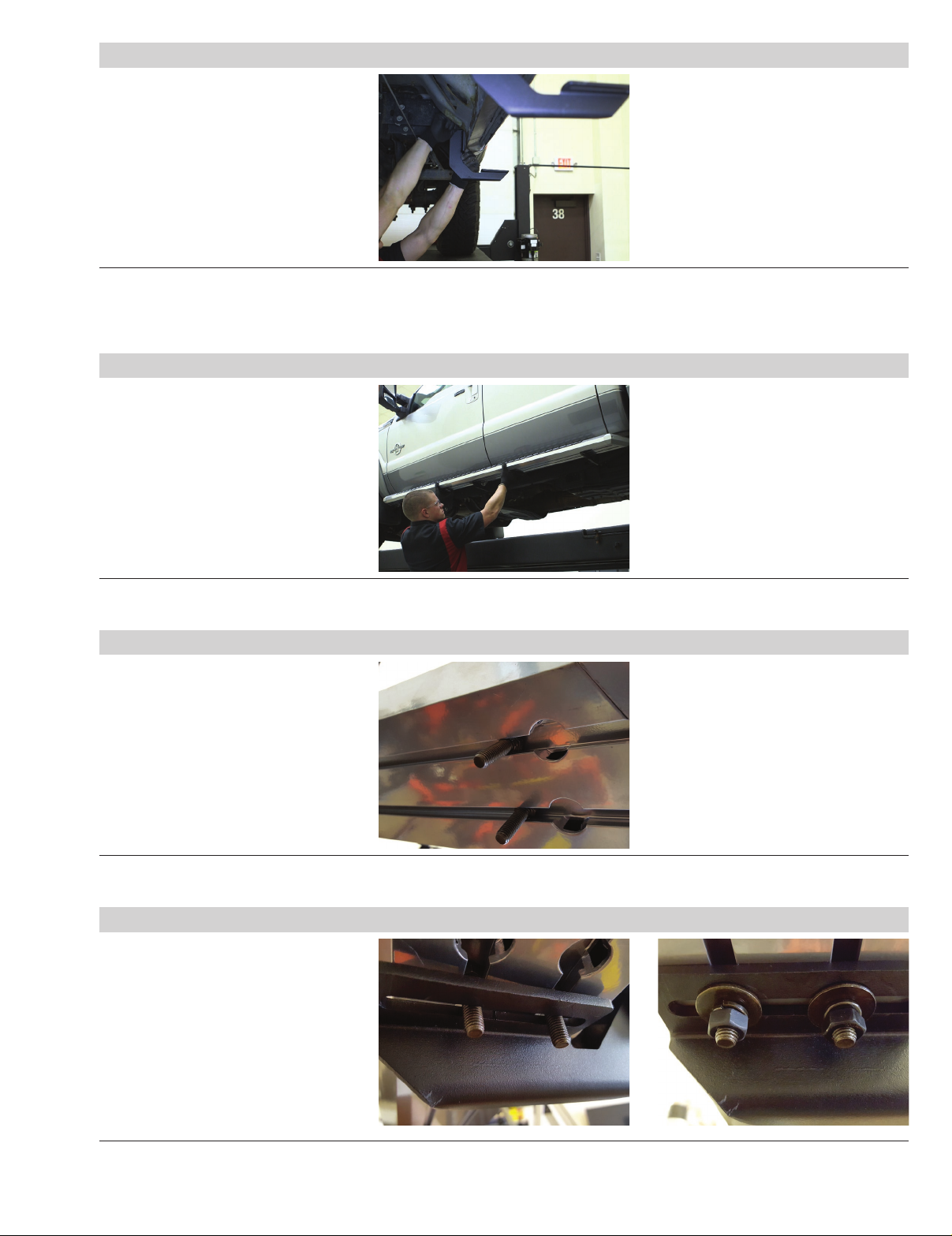

PAGE 3 • 2055123-INS-RB • 800.798.0813 • NEED ASSISTANCE? • ARIESAUTOMOTIVE.COM

Step 4

Repeat steps 2 and 3 to install the rear

bracket over the mounting tab location

from step 1.

Step 5A - AdvantEDGE™Side Bars

Carefully place the side bar

onto the mounting brackets.

Ensure the outer edge of the side bar

is lined up with the outer edge of

the mounting brackets.

Step 5B - AdvantEDGE™Side Bars

Locate the round slots on

the base of the side bar.

Insert two M8 hex bolts into each

slot, sliding them towards the front

mounting bracket.

Step 5C - AdvantEDGE™Side Bars

Slide the bolts down the rail so that two

bolts are positioned for each bracket.

Carefully lift the side bar up and move

the bolts as necessary so they are in line

with the slots on the mounting brackets.

Secure the side bar to the brackets

using ﬂat washers, lock washers

and M8 hex nuts.

Snug the hardware, but do not fully

tighten. Continue to step 7.

If installing RidgeStep™running boards, skip to Step 6A

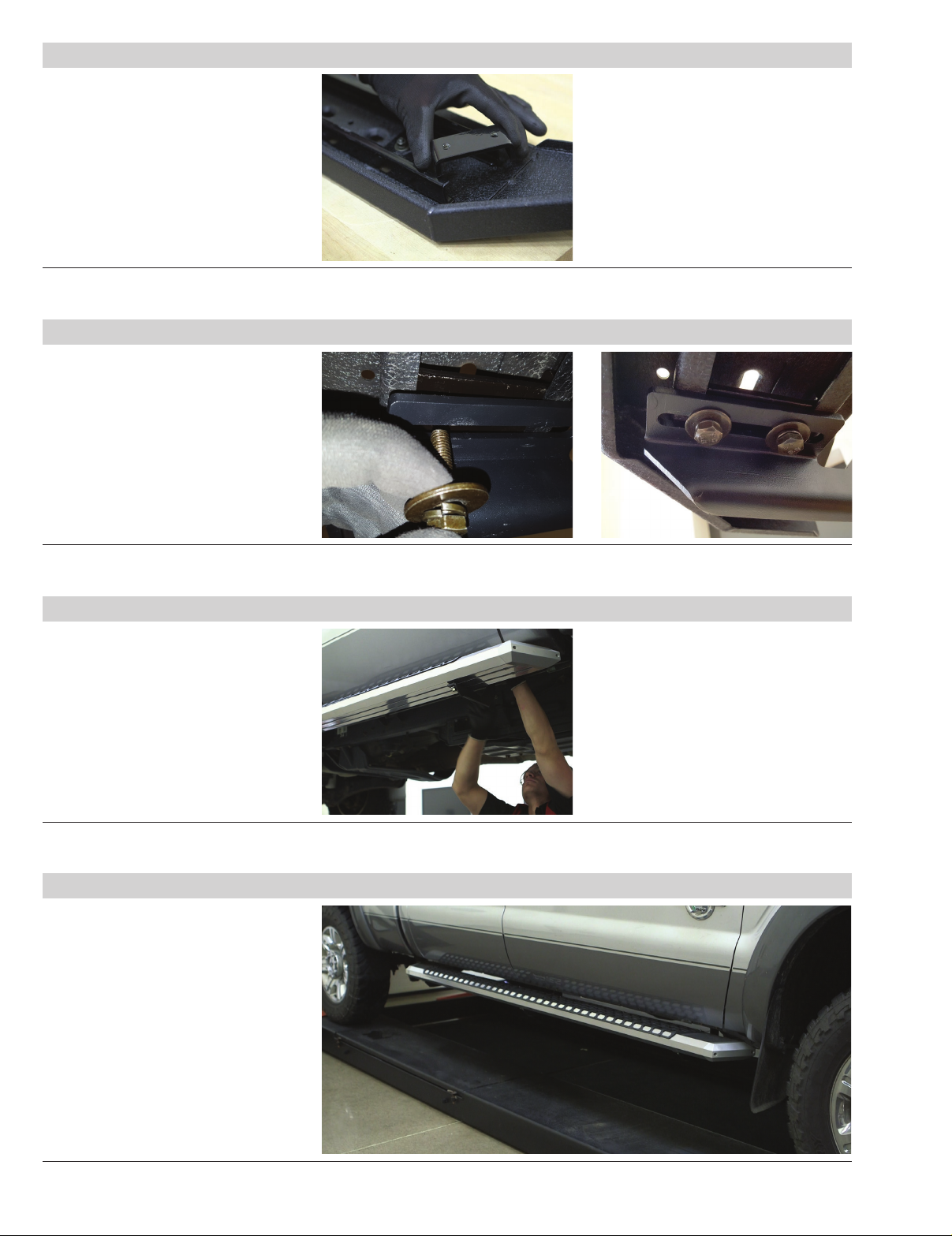

ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 800.798.0813 • 2055123-INS-RB • PAGE 4

Step 7

At this time, adjust the side bar /

running board to the desired location.

With the side bar / running board

in position, it is recommended to

tighten all brackets to the vehicle ﬁrst,

followed by the side bar / running board

connections.

For recommended torque speciﬁcations,

refer to the table on page two.

Step 8

Repeat steps 1 through 7 on

the passenger side of the vehicle.

Congratulations on the installation

of your new ARIES AdvantEDGE™

side bars / RidgeStep™running boards.

With the side bars / running boards

installed, periodic inspections should

be performed to ensure all mounting

hardware remains tight.

To protect your investment, see the

'Notes and Maintenance' section on the

second page of this instruction manual.

Step 6A - RidgeStep

™Running Boards

Slide the two C-shaped track

mounting brackets into the rail slots.

Step 6B - RidgeStep

™Running Boards

Carefully place the running board

onto the mounting brackets.

Align the C-shaped track mounting

brackets with the mounting brackets

on the vehicle.

Attach the C-shaped track mounting

brackets to the mounting brackets using

M8 hex bolts, lock washers and ﬂat

washers.
