Quick Start Guide

Sno-Tek 28E (920403 s/n 35000 & up)

•Step 1: Unfold Handlebar

•Step 2: Install Discharge Chute

•Step 3: Install Discharge Chute Crank

•Step 4: Install Remote Deflector Cable

•Step 5: Check Function of Dual Handle Interlock

•Step 6: Check Tire Pressure

•Step 7: CheckAuger Gearcase Oil

•Step 8: Check Engine Crankcase Oil

•Step 9: Fill Engine Fuel Tank

•Step 10: Start Engine

•Step 11: Stop Engine

READ AND UNDERSTAND ALL INSTRUCTION, WARNING, AND DANGER LABELS.

IMPORTANT: READ OPERATOR’S MANUAL AND ENGINE MANUAL

THOROUGHLY AND FOLLOW THE IMPORTANT SAFE OPERATION PRACTICES

BEFORE OPERATING.

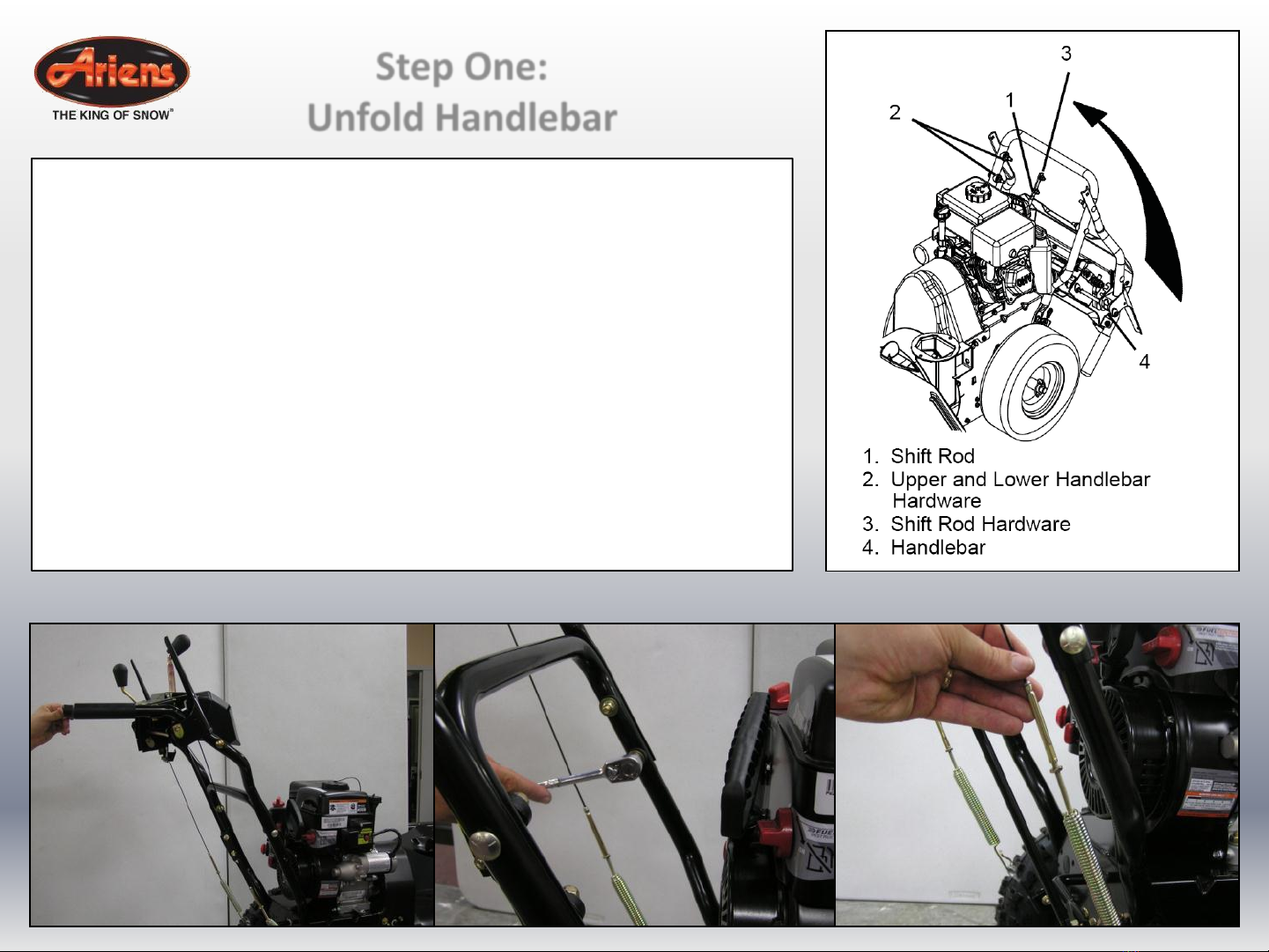

Step One:

Unfold Handlebar

1. Remove the lower and loosen the upper hardware on the

handlebar assembly.

2. Loosen the hardware on the shift rod.

3. Put the speed selector lever in the sixth forward position.

4. Rotate the handlebar into operating position.

NOTE: Be careful not to damage cable spring hooks when rotating

handlebar upward.

5. Install and tighten the hardware on the handlebar assembly

and shift rod.

6. Check tension on auger and traction clutch cables.

IMPORTANT: Cables should not be slack nor under tension.Adjust

as necessary.

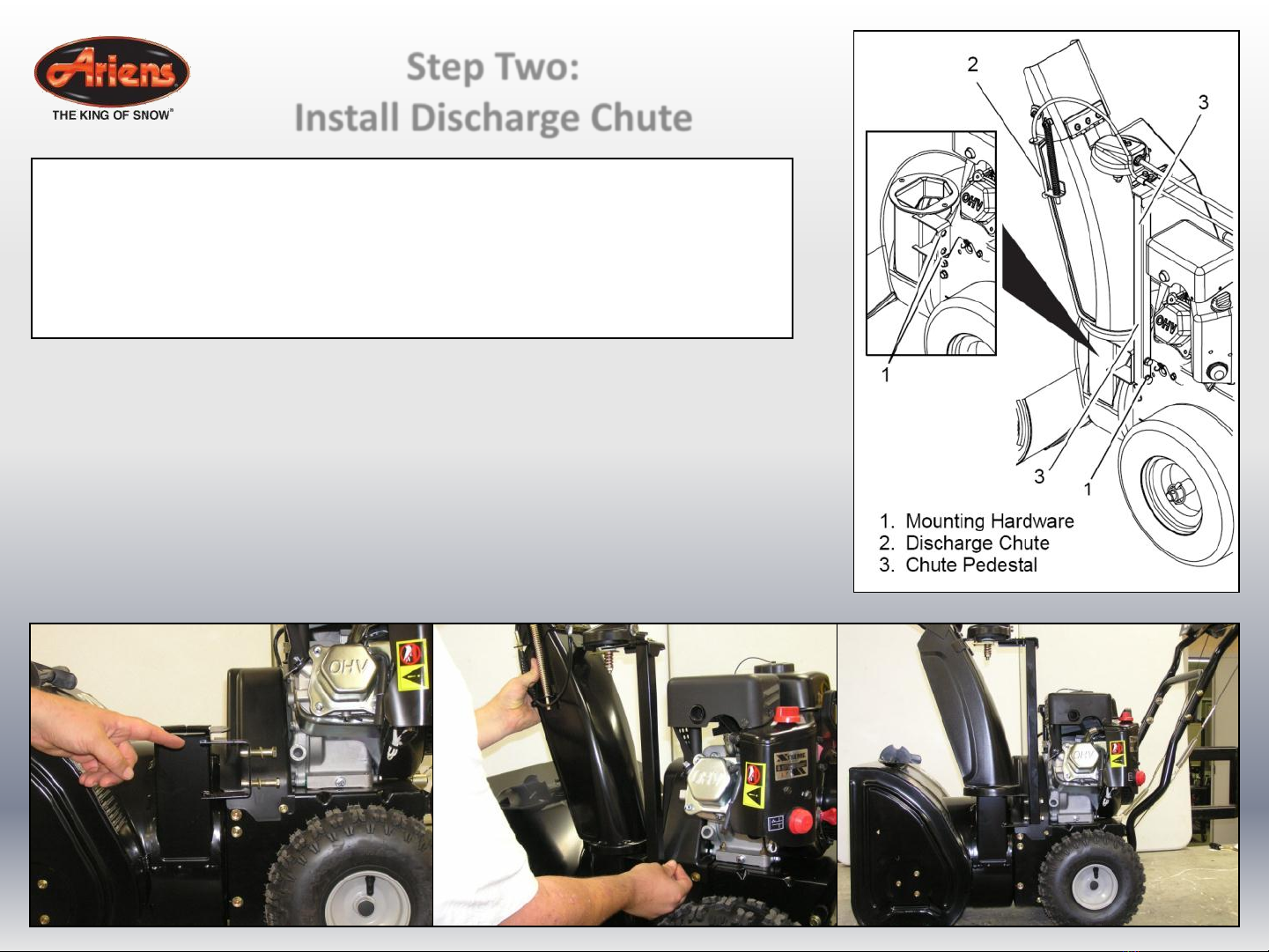

Step Two:

Install Discharge Chute

1. Remove mounting hardware from the bottom of the chute

pedestal mount.

2. Install discharge chute over opening in the auger housing and

secure pedestal to auger housing with hardware removed

above.

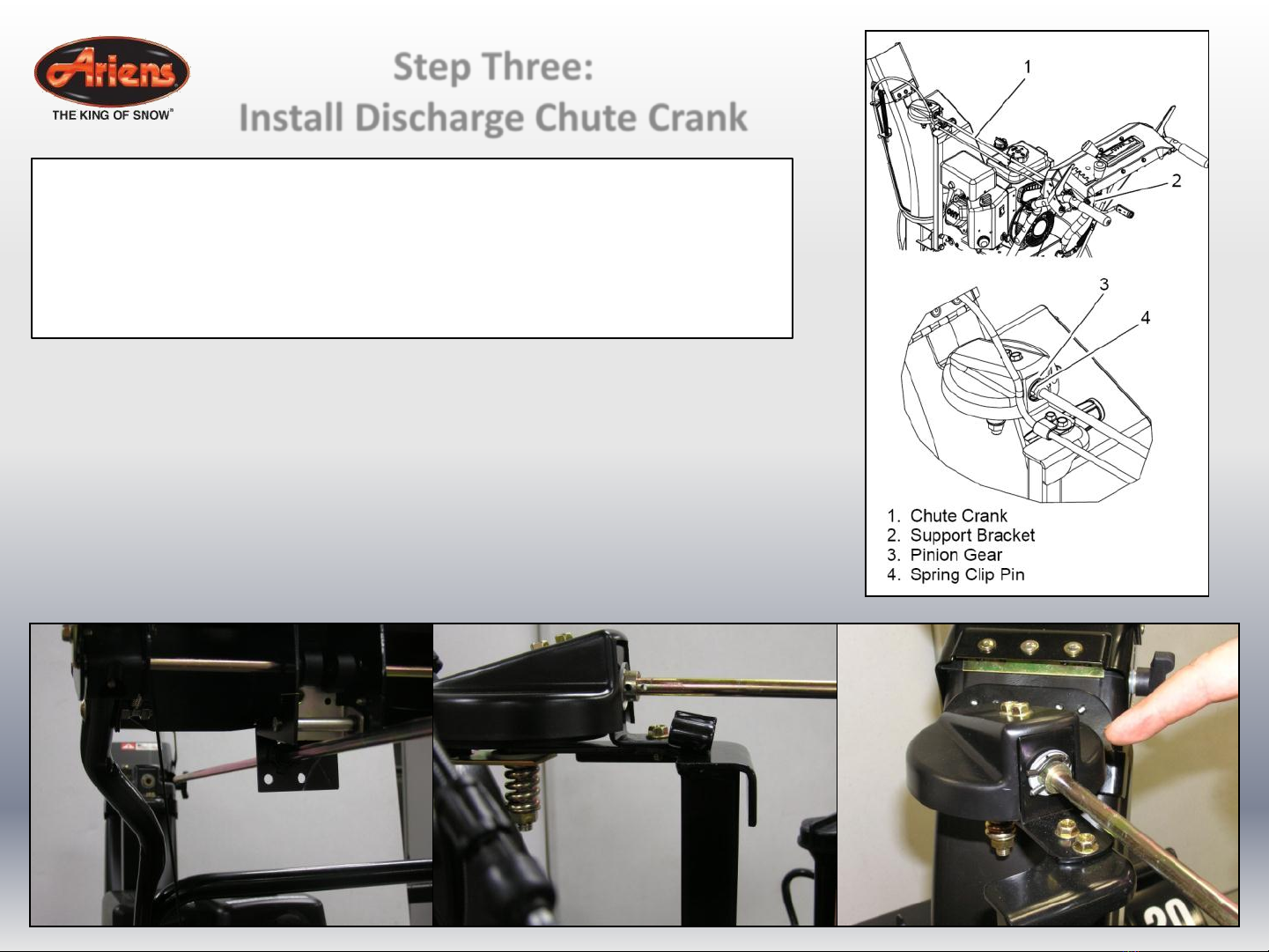

Step Three:

Install Discharge Chute Crank

1. Slide chute crank through support bracket.

NOTE: Be careful not to damage nylon bushing when attaching

crank to the dash.

2. Connect the chute crank to the pinion gear on chute with

spring clip pin.

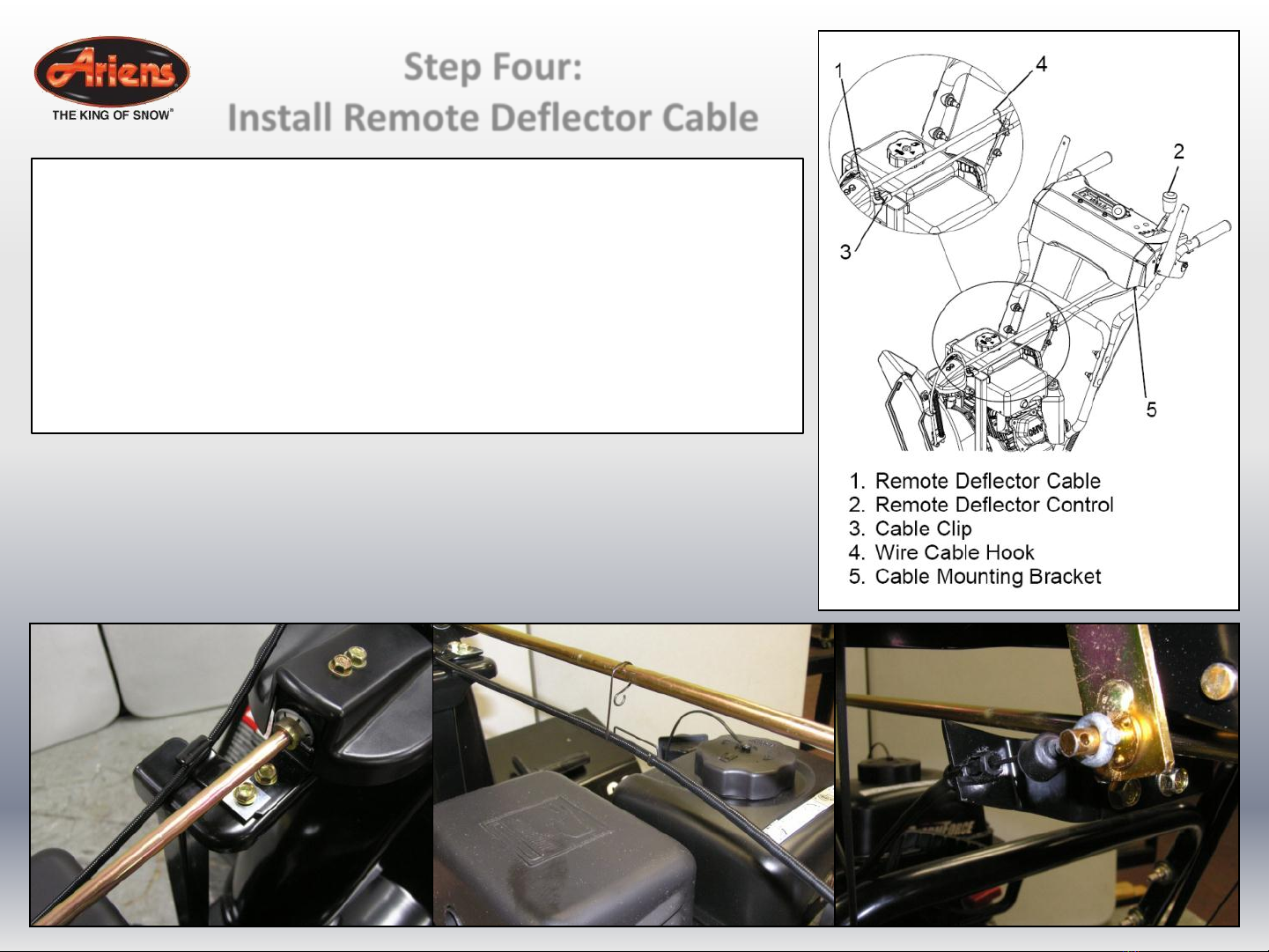

Step Four:

Install Remote Deflector Cable

1. Slide cable through clip on top of discharge chute pedestal

2. Bend clip closed around cable.

3. Using the wire hook attached to the deflector cable, hook cable

to discharge chute crank.

4. Pull rubber seal cap away from snap fitting.

5. Install snap fitting into cable bracket’s mounting hole located

under the dash.

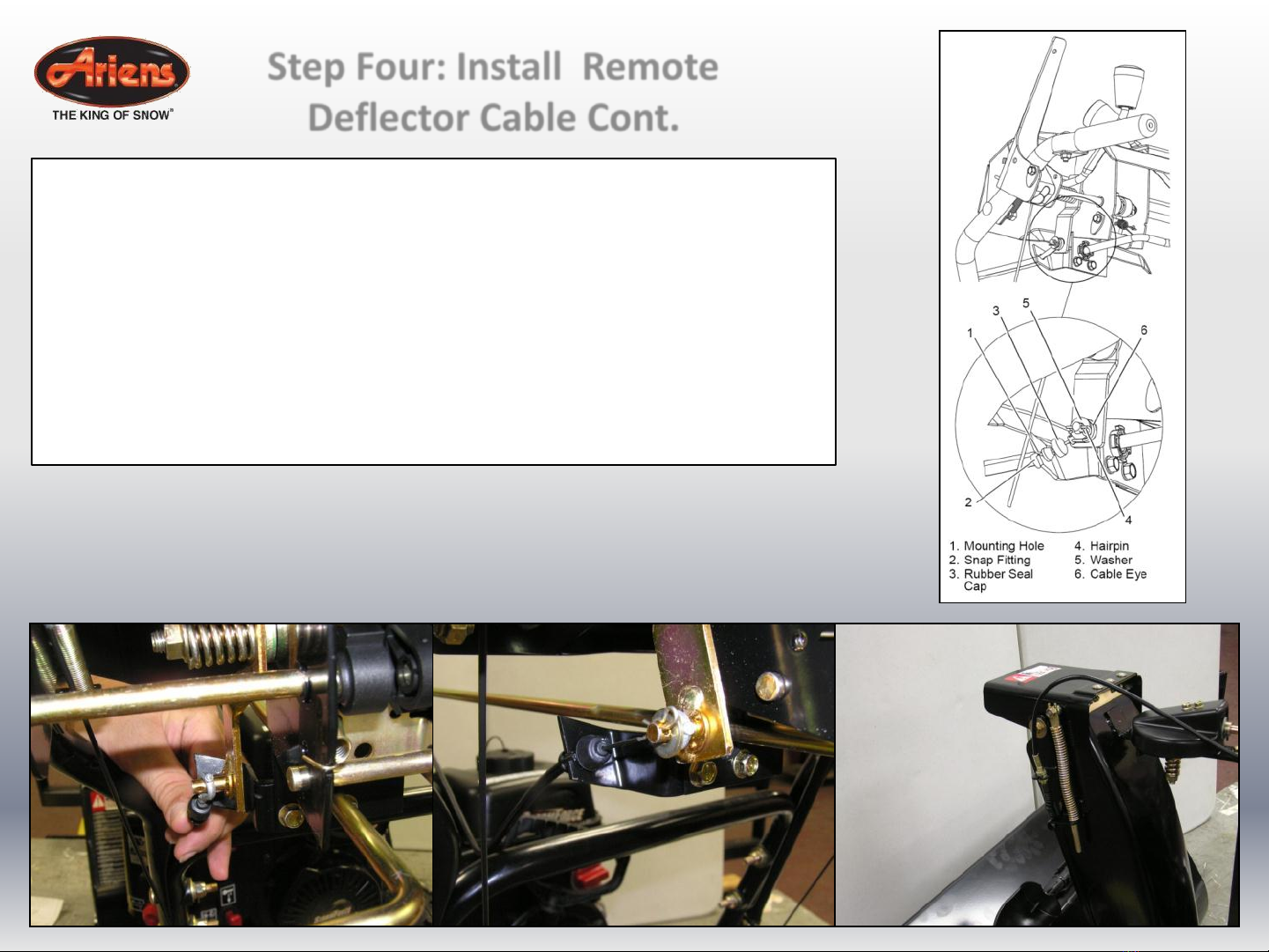

Step Four: Install Remote

Deflector Cable Cont.

6. Position rubber seal cap over the top of snap fitting.

7. Move deflector control lever to rear most position.

8. Attach cable eye to pin on bottom of deflector control lever.

NOTE: Hold down chute deflector cap, if needed, for more cable slack.

9. Secure cable eye to control lever with washer and hairpin.

10. Test controls to be sure deflector works properly. If deflector does

not follow full range of travel See Remote Discharge Deflector

Control Adjustment (920402, 403) of Owners Manual.

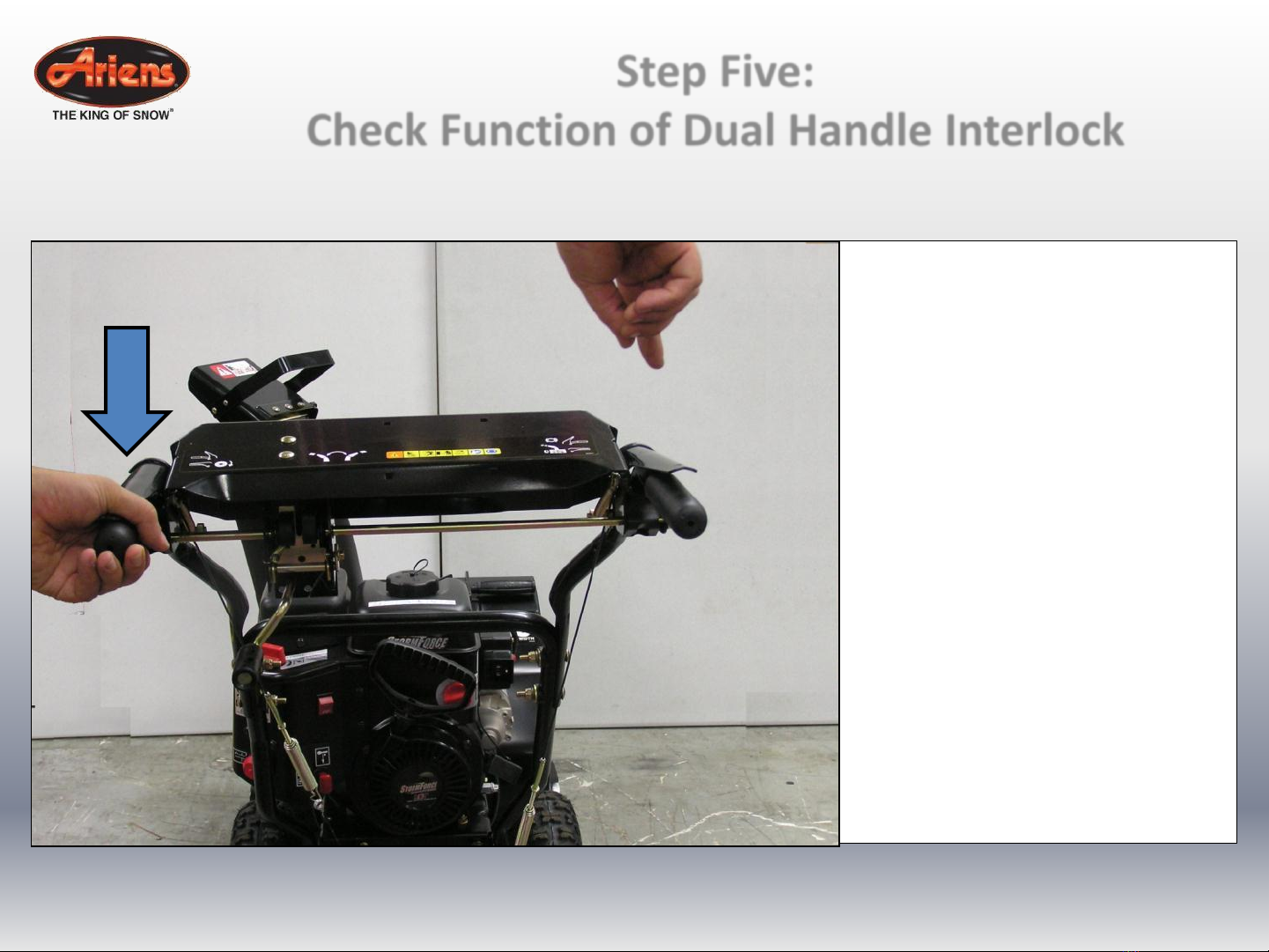

Step Five:

Check Function of Dual Handle Interlock

Without the engine

running, press down

(engage) both clutch

levers. Release

attachment clutch lever.

Attachment clutch should

remain engaged until

traction clutch lever is

released, then both

clutches must disengage.

If they do not, contact your

dealer for repairs.

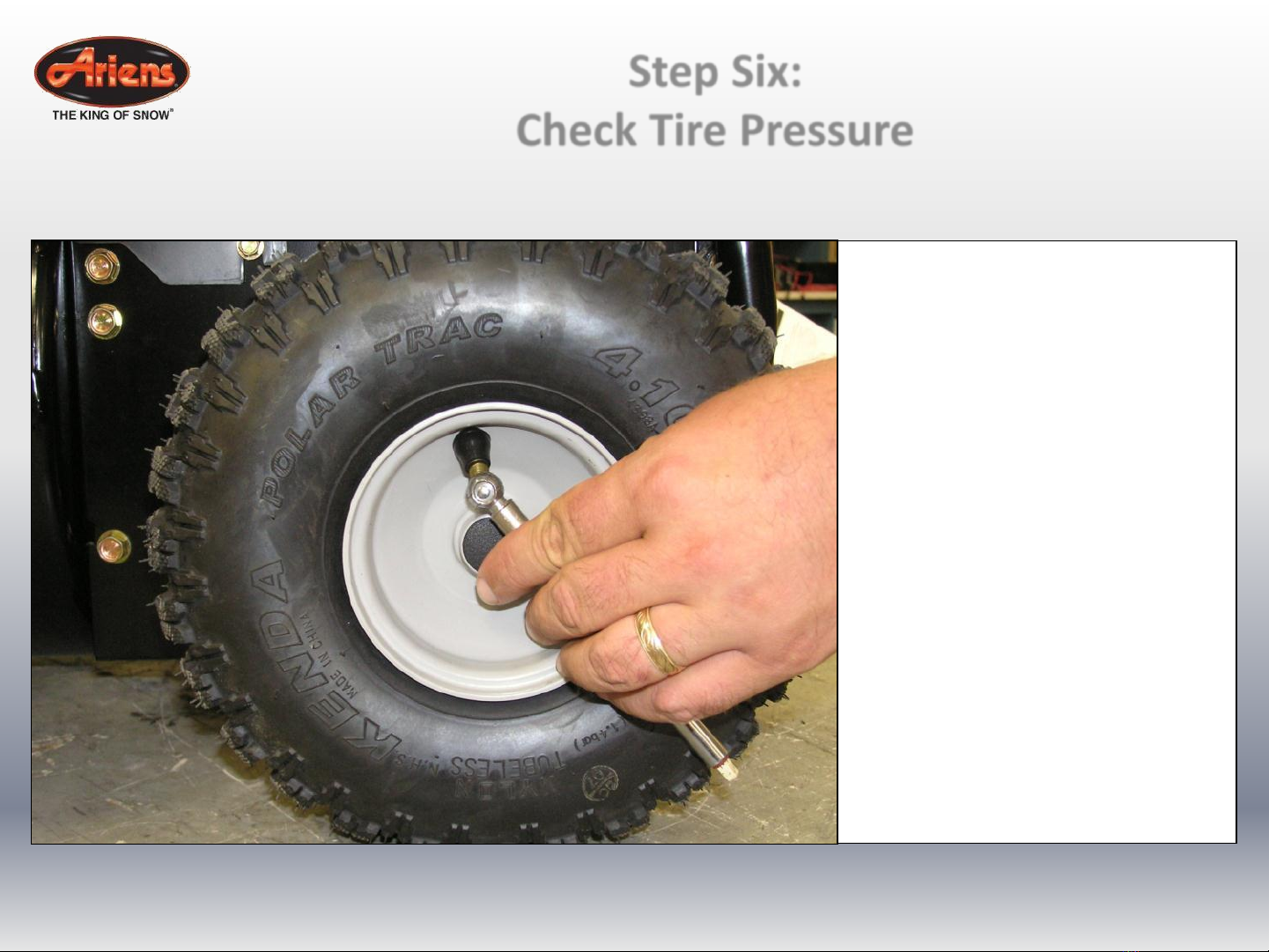

Step Six:

Check Tire Pressure

Check tire pressure and

adjust to the pressure

listed on tire sidewall.

Check oil level in auger

gearcase

(see Check Auger

Gearcase in Owners

Manual).

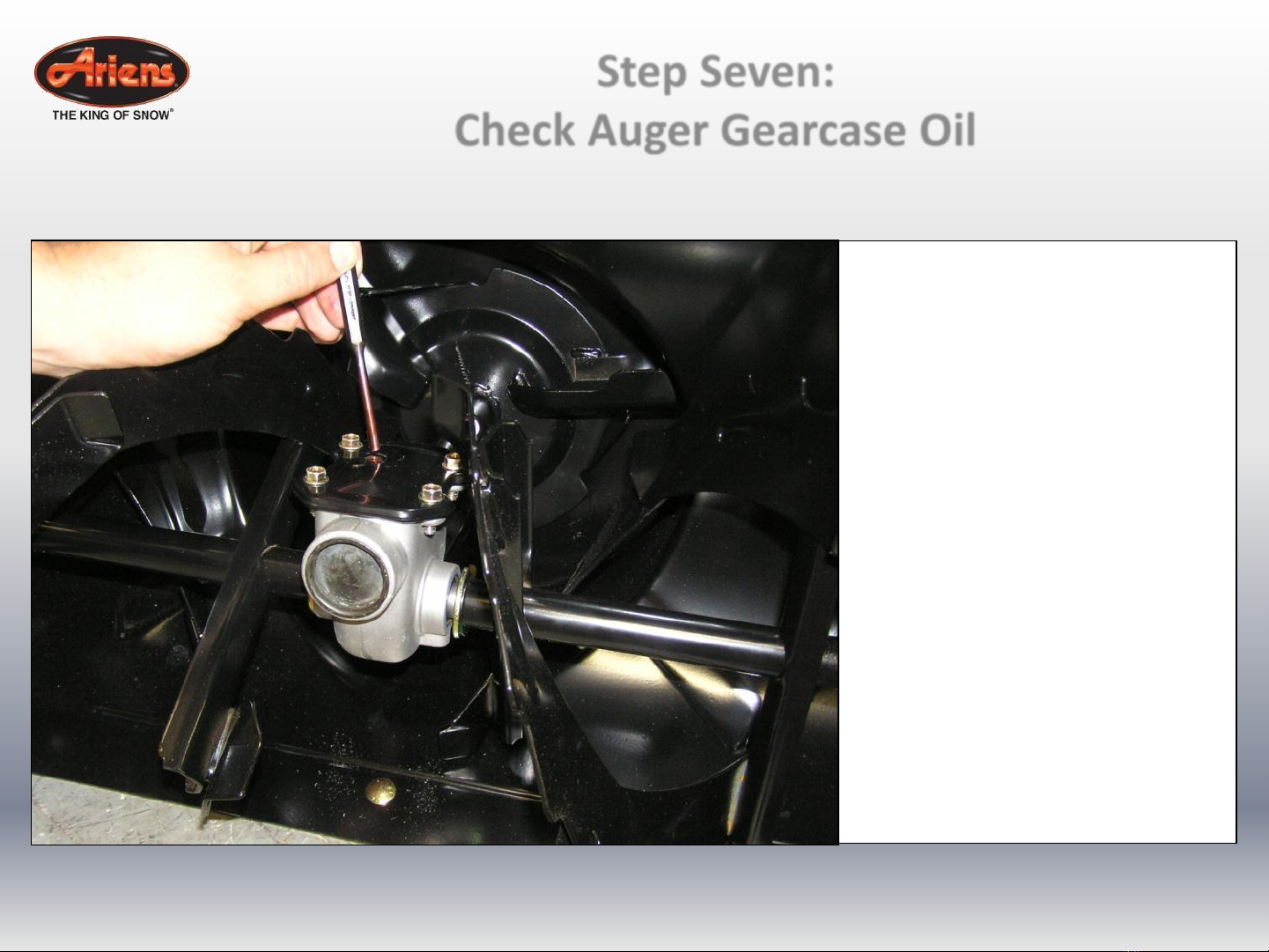

Step Seven:

Check Auger Gearcase Oil

IMPORTANT: The engine

is shipped with 5W-30 oil

in crankcase. Refer to

engine manual for

detailed instructions.

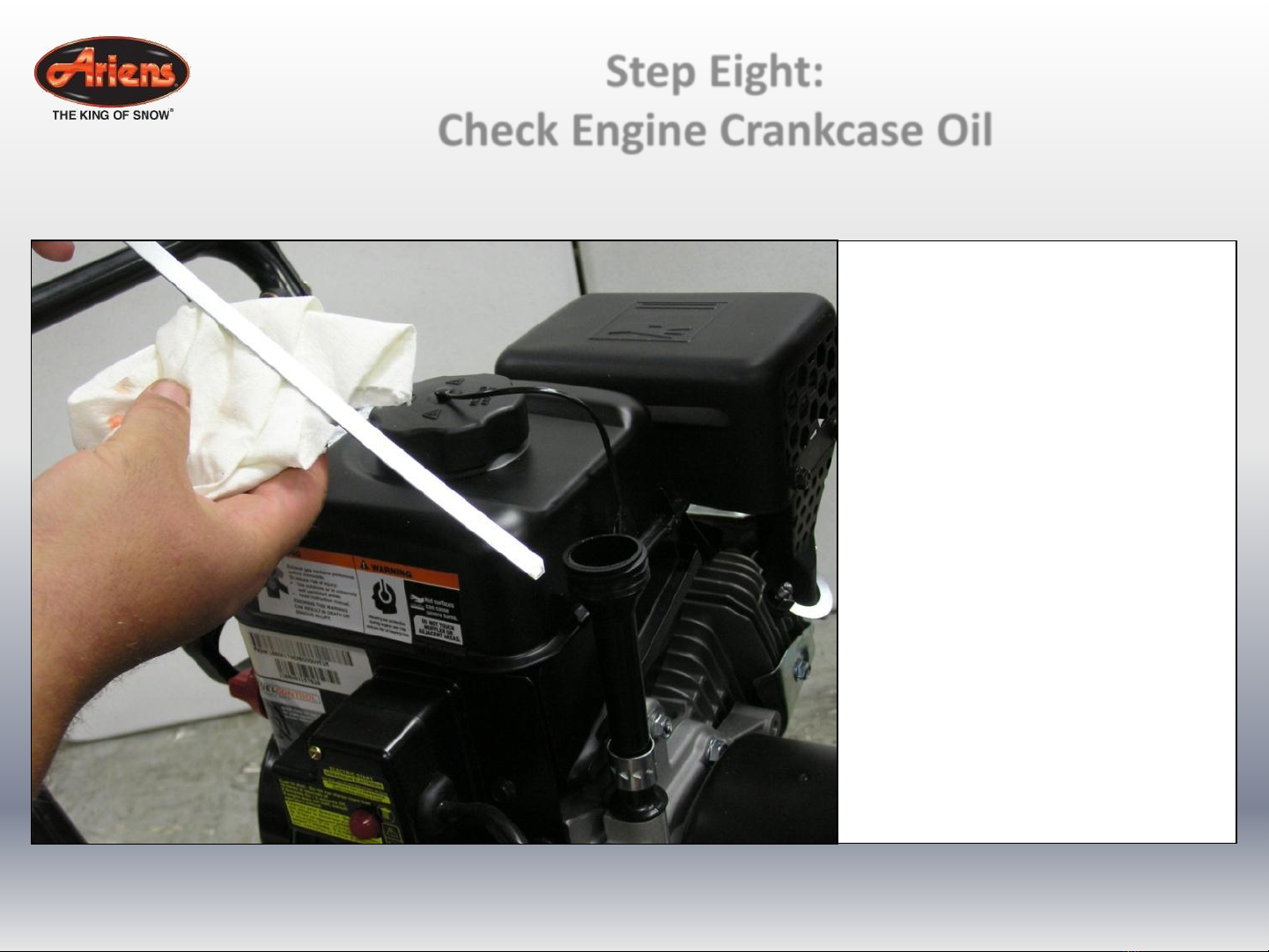

Step Eight:

Check Engine Crankcase Oil
