Argus DC1730 Manuel utilisateur

Contents

Introduction 1

Overview 1

Product Package Contents 1

System Requirements 1

Getting to Know Your Digital Camera 1

Battery Installation 2

Software Installation 3

Taking Photos 7

Camera Function Control 8

Starting Your Camera 8

Deleting Photo 9

Flash 10

Photo Storage Capacity 12

Downloading Photos 12

Using Your Digital Camera as a PC Camera 13

Live Browse 13

Video Conference 14

Appendix 1: Specifications 15

Appendix 2: Answers to Frequently Asked Questions 15

“PhotoImpression ” User’s Manual 18

Introduction

Thank you for purchasing the DC1730 digital camera. It can take photos

and it also has built-in PC camera functions. This camera is equipped with a

8MB SDRAM memory. Connect with USB cable and you can download

photos in the camera to your computer. Using the built-in PC camera

functions, you can have a videoconference over the Internet to have face-to-

face online chatting with friends

Product Package Contents

_Digital camera _CD - ROM ( User manual and software)

_USB cable _Quick user guide

System Requirements

1. Processor: PII 200 MHz or higher

2. Memory: 32MB or higher

3. Color Monitor: (recommended to use 800*600 24 or higher)

4. Operation System: MS Windows 98(Second Edition)\MS Windows Me\

Ms Windows 2000\MS Windows XP

5. Available USB cable and CD-ROM

Getting to Know Your Digital Camera

A. Viewfinder

B. Strap holder

C. C-STN LCD panel

D. LCD panel ON/OFF switch

E. Mode button/Power on

- 1 -

F. _(UP) Photo select button

G. V (Down) Photo select button

H. Play back auto view

I. Shutter button

J. Lens

K. USB port

L. Battery door

M. LED light

N. Flash

Battery Installation

1. Open battery door.

2. Load two AA alkaline batteries according to the electrode directions

indicated on the battery compartment.

3. Cover battery door.

Note: When you use the USB cable to connect the camera with a computer, it is not

necessary to use batteries ,because the camera uses the power supplied by the

computer.

Warning:

1. To avoid loss of photos in the camera due to power loss, please don’t

open the battery compartment unless necessary.

2. If the camera is idle for a long period of time, please remove the

batteries to avoid battery leakage and corrosion.

3. To avoid explosion and hazard to environment, please don’t put the

battery into fire.

4. To avoid photo loss, please download photos to your computer as soon

- 2 -

as possible.

Automatically enter energy saving status

If it is not operated in 60 seconds, the camera will automatically enter

energy saving status.

Software Installation

Insert installation CD into CD-ROM driver, and installation screen will appear

(as shown in figure below).

1. Install PhotoImpression; 2.. Install Driver; 3. Browse CD-ROM; 4. Exit

Prompt: PhotoImpression (See reference or other instructions for detail).

Select “Install Application” and follow promptings to install. After this

installation is completed, select “Install CD-ROM driver”. You may select

installation language as needed.

Note: In case of failure in automatic installation or if you want to share CD with

other computer, manual installation is required. See installation steps below:

1. Install installation CD into CD-ROM driver, and installation screen will

appear (as shown in figure below). Select “Install PhotoImpression”.

- 3 -

2. You will be prompted to select an installation language. You may select

“English”.

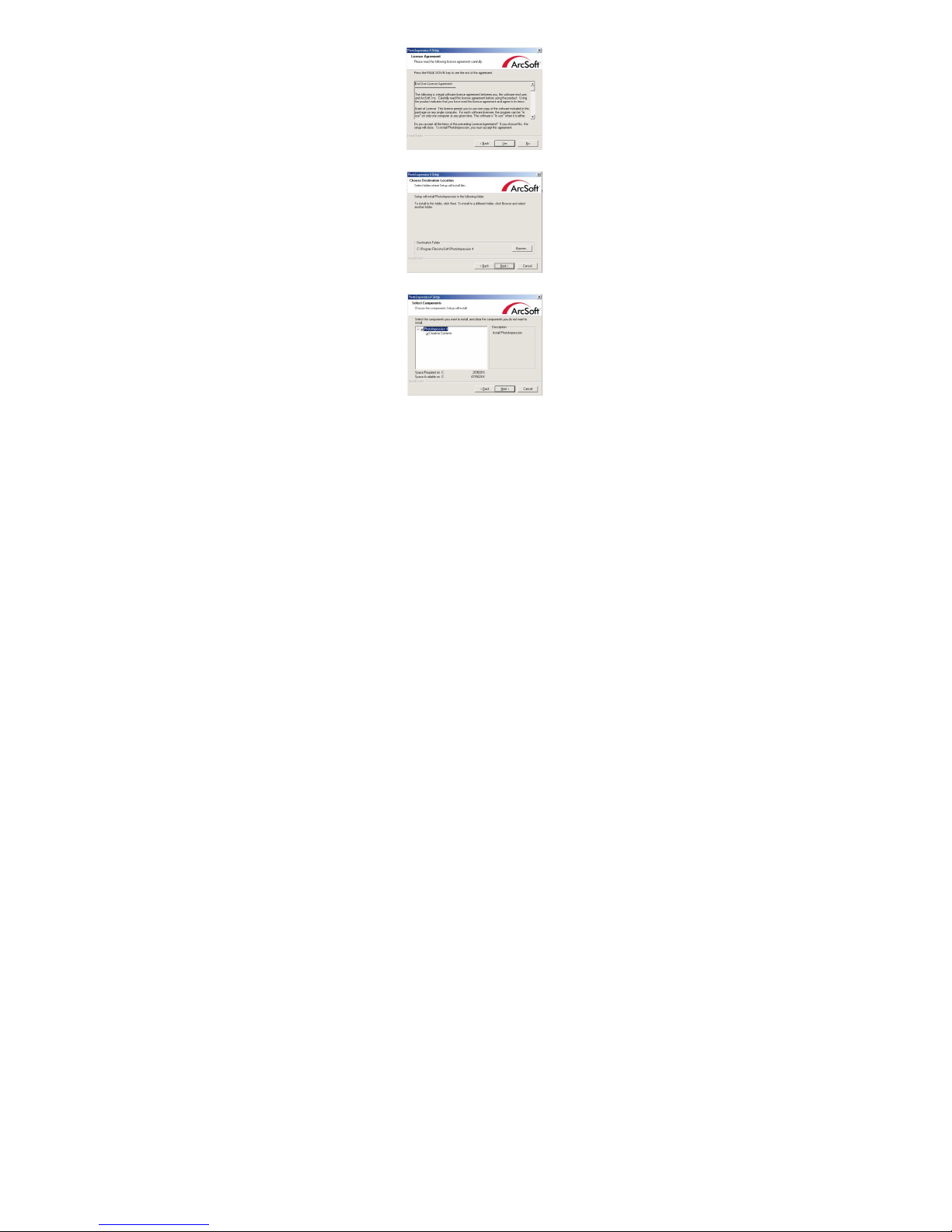

3. Click “Next” button on “Welcome” screen.

4. Please read and accept the end user agreement.

- 4 -

5. Select installation destination and click “Next” button.

6. Select “PhotoImpression 4” to install.

- 5 -

7. Please select program folder. Then click “Next” to continue.

8. This will start the installation. Please do not click any button until it is

completed.

9. Click “Complete” to complete ArcSoft software installation.

(Note: You must select “Loading Camera Driver”.)

- 6 -

10. Installation screen will appear. Click “Install Driver” to install camera

driver:

11. After the installation of driver is completed, it will activate the computer.

Taking Photos

Before using your digital camera, please check if the battery is low. To

take photos, please follow the following steps:

1. Press Shutter button and then press Mode button to start the camera. In

about 3 second, LCD on the back of your camera will display and buzzer

will give off a “Beep”. This means startup is completed.

2. Find objects to take via Viewfinder.

3. Hold the camera steadily, and press Shutter button to take photos.

4. You will hear one beep, indicating your photo has been taken. You may

continue taking photos.

5. When the camera is full of photos, the display will read “000”. When you

press Shutter, it will give off continuous “Beep” prompting.

Prompt:

1. Hold camera steadily while taking photos.

2. Insufficient light may affect the quality of photos. (In case of failure in

- 7 -

photo taken, the camera will give off two “beeps”).

Camera Function Control

The functions of the digital camera are performed in operating mode. If it

is in energy-saving status, press Mode button and the camera will become

activated within about 3 seconds. In initial status, it can take 24 photos. After

the camera enters operating mode, other functions of the camera can be

operated.

Starting Your Camera

Press Shutter button and then press Mode button to start the camera.

In about 3 seconds, LCD on the back of your camera will display and buzzer

will give off a “Beep” . This means startup is completed.

Automatic Energy-saving Status

When your camera is not operated for 60 seconds, it will automatically enter

power-off status.

Taking Photos

After camera is activated, press Shutter once and it will take one photo and

give off two “beeps”. If it is not operated within 3 seconds, LCD will return to

Preview status from Menu options.

Self-timer

After the camera is activated, press Mode twice and the LCD will display

“”. Press Self-timer within 3 seconds and buzzer will “beep” first slowly and

then faster. It will take one photo in about 10 seconds. If it is not operated

within 3 seconds, LCD will return to Preview status from Menu options.

Taking 3 Photos Continuously

1. After camera is activated, press Mode and LCD will display “ ”.

- 8 -

2. Hold down Shutter within 3 seconds and it will take 3 photos

continuously. If it is not operated within 3 seconds, LCD will return to Preview

status from Menu options.

Prompt:

Poor light in continuous shooting may cause incorrect exposure, affect

photo quality or result in failure in photo taking (in case of failure, your

camera will give off two “beeps”).

Deleting Last Photo

After camera is activated, press Mode four times and LCD will display “

”. Press Shutter within 3 seconds to delete the last photo. If it is not operated

within 3 seconds, LCD will return to Preview status from Menu options.

Deleting All

After camera is activated, press Mode three times and LCD will display

“ ”. Press Shutter within 3 seconds and LCD will flash continuously. Press it

again to delete all photos. If it is not operated within 3 seconds, LCD will

return to Preview status from Menu options.

Hi/Lo Shift

After camera is activated, press Mode Function 5 times and LCD will

display “ ”. Press Shutter within 3 seconds and LCD will display “ ”. This

mode shift between Hi ( ) and Lo ( ).LCD will return to Preview status

from Menu options if it is not operated within 3 seconds, To resume “ ”

status, just press Mode 5 times again and LCD will display “ ”. Press Shutter

within 3 seconds, LCD will display “ ”.

Image Compression/Processing Mode Shift:

After camera is activated, press Mode 6 times and CSTN will display “ ”

- 9 -
