Argosy HD353N Manuel utilisateur

Gigabit Network HDD SATA

User Manual

Ver. 1.3

CONTENTS

Introduction................................................................................1

Key Features .....................................................................................1

System Requirements ........................................................................1

Parts Name and Functions............................................................2

Parts Name and Functions..................................................................2

LED Definition ...................................................................................2

Assemble of the Hard Disk Drive...................................................3

Connection and Removing Connection...........................................4

Network Connection...........................................................................4

USB Printer & Mass Storage Device Connection ...................................4

Removing Connection ........................................................................5

Setup of This Device....................................................................6

Basic.................................................................................................6

Control Panel...................................................................................13

Personal Infomation.........................................................................26

Logout ............................................................................................27

Mapping a Folder in Windows XP ................................................ 28

Printer Setup............................................................................. 31

Mounting SMB Server in Mac OS X .............................................. 34

Mounting SMB Server in Linux .................................................... 38

Network Applications ................................................................. 40

Personal Data Backup ......................................................................40

Network File Sharing........................................................................40

FTP Server ......................................................................................40

Printer Server ..................................................................................41

USB Mass Storage Device.................................................................41

Trouble Shooting ....................................................................... 43

Introduction

Thank you for purchasing this device. It is a flexible, economical and powerful solution for your

network storage application. The following instructions will help you to learn more about the

connections, set-ups, and configurations of it.

Key Features

•External 3.5" hard drive with ethernet interface

•Share music, pictures, movies and data over network

•Share files over LAN as SAMBA file server

•Share files over Internet as FTP server

•Features a USB printer server function

•Expansion of capacity with USB Mass Storage Devices

•Web-based configuration with password protection

•Works with Static IP, DHCP client, or DHCP server

•Easy firmware upgrade

•Hardware Reset key

•Support 3.5” SATA hard disk up to 750GB

•Support UPnP

•Interface: 10/100/1000 Base-TX(Auto MDI/MDI-X), supports auto crossover detection

•Aluminum enclosure with an internal cooling fan for continuous operation

System Requirements

•A PC with Ethernet port

•Windows Vista, Windows XP, or Windows 2000; Mac OS X v10.2.1 or above; Linux

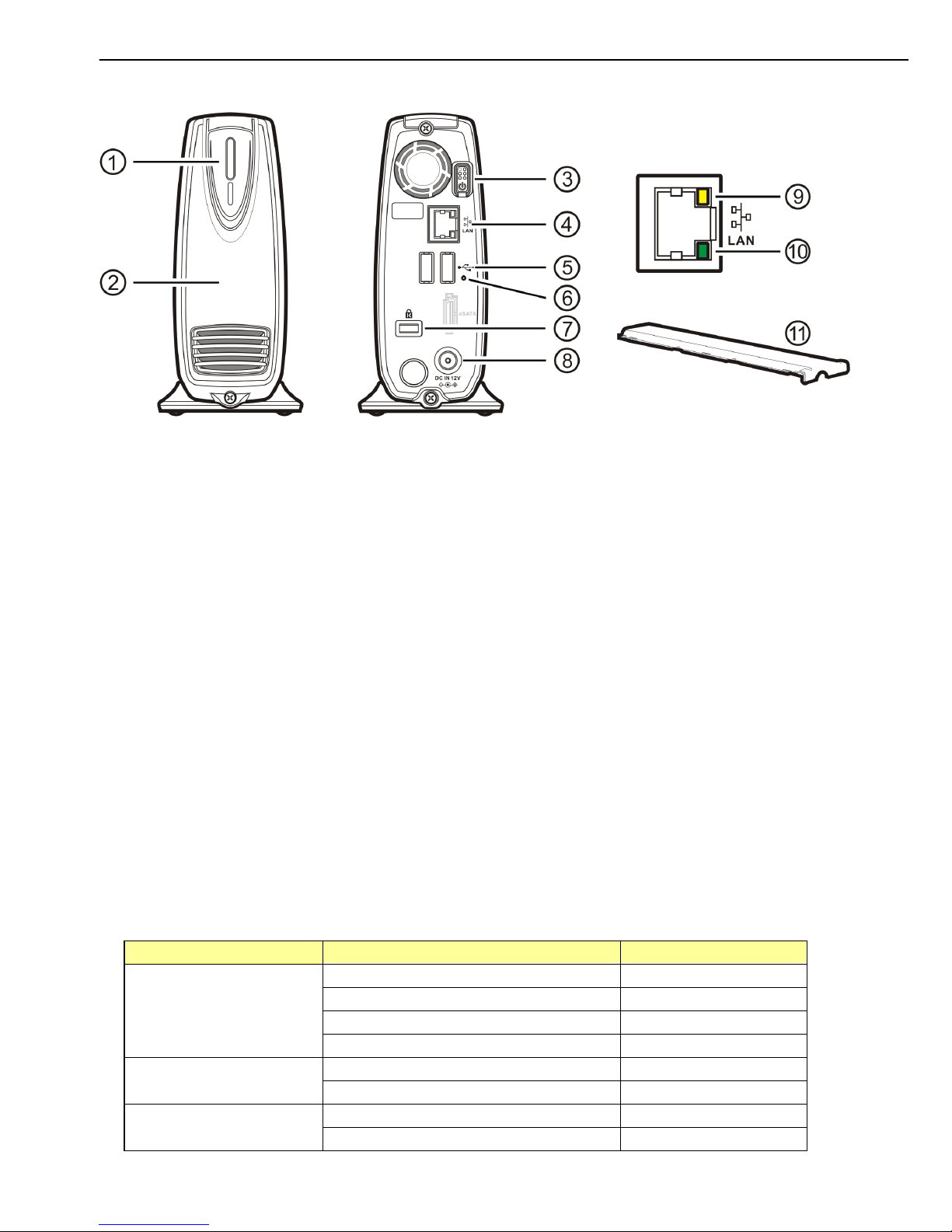

Parts Name and Functions

cPower LED: Power and access (blue) / Booting-up or reset(orange)

dFront cover: Covers the opening of the housing

ePower button: Push to turn on or off this device

fEthernet port: Connects to the Ethernet cable with RJ45 connector

gUSB host ports: Connects to USB printers and USB Mass Storage Devices

hReset key: Press 5 sec to restore factory default

iKensington Security Slot: Connects to a Kensington lock pin

jDC In jack: Connects to the AC adapter

kActivity LED (yellow): Activity status of Ethernet

○

10 Link LED (green): Link status of Ethernet

○

11 Plastic Upper Frame: Covers the groove and screws on the top of this device

LED Definition

LED Name Operating Status LED Color

Booting up Orange

Power ON Blue

NAS Accessing Blinking in blue

Power LED

Resetting Orange

Linked to the Ethernet Green

Link LED Disconnected from the Ethernet No signal

Accessing the Ethernet Orange

Activity LED Not Accessing No signal

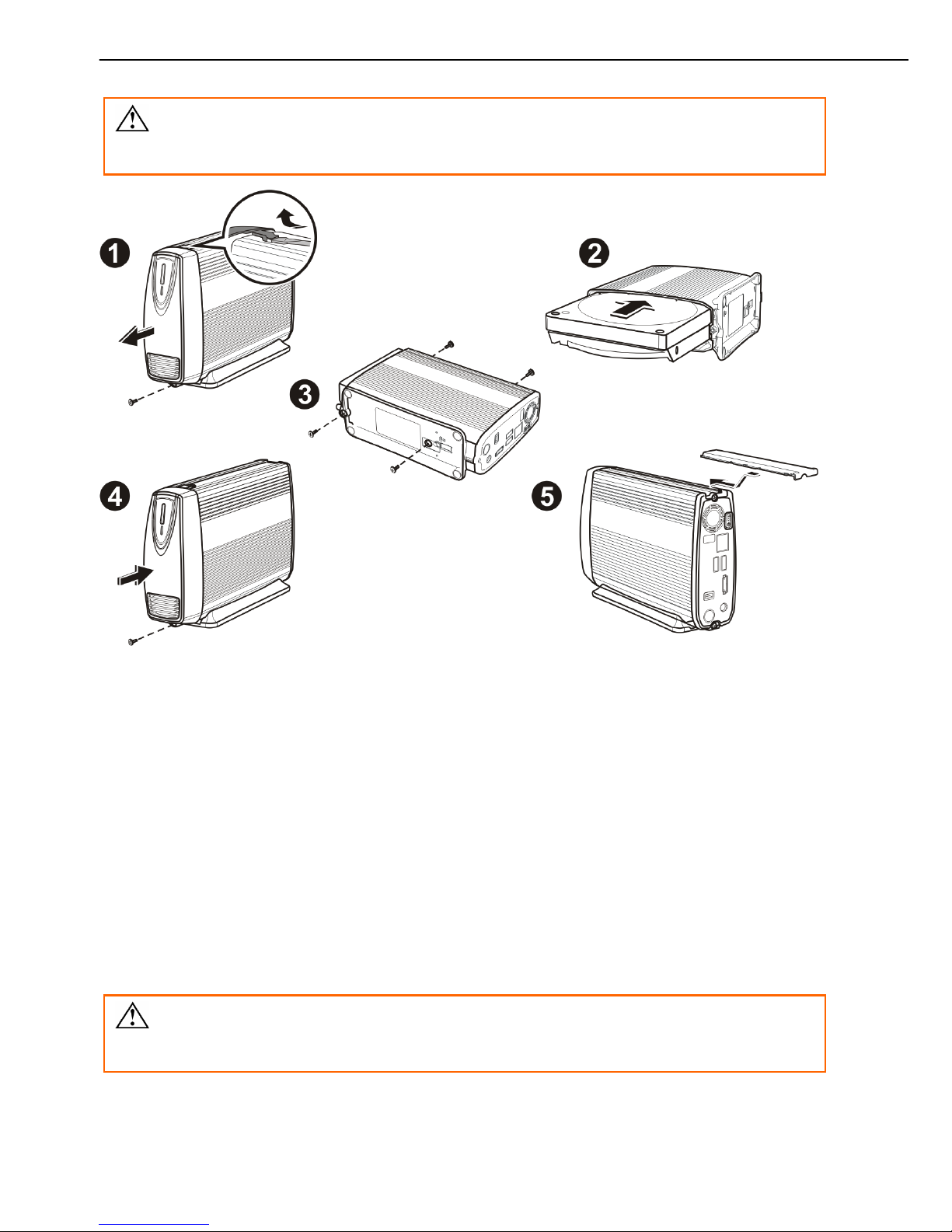

Assemble the Hard Disk Drive

Assemble of the Hard Disk Drive

If you purchased this device with a hard disk drive preassembled, please do not

disassemble the device by yourself. Disassembling will void warranty!

1. Unfasten the screw on the lower part of the front cover. Remove the front cover by lifting

the clip with a flat screw driver.

2. Place the device horizontally; align the hard disk drive with the PCB board. Push slowly and

gently to the most inside until the hard disk drive is firmly seated.

3. Assemble the enclosure by fastening the screws on both top and bottom sides.

4. Attach the front cover to the case and secure the screw on the lower part.

5. Restore the plastic upper frame by sliding it into the gape on the top of the case. Make

sure the plastic upper frame matches the direction.

For a newly attached HDD, formatting it with the user interface of this device is required

before any further operation. (see page 22)

Connection and Removing connection

Connection and Removing Connection

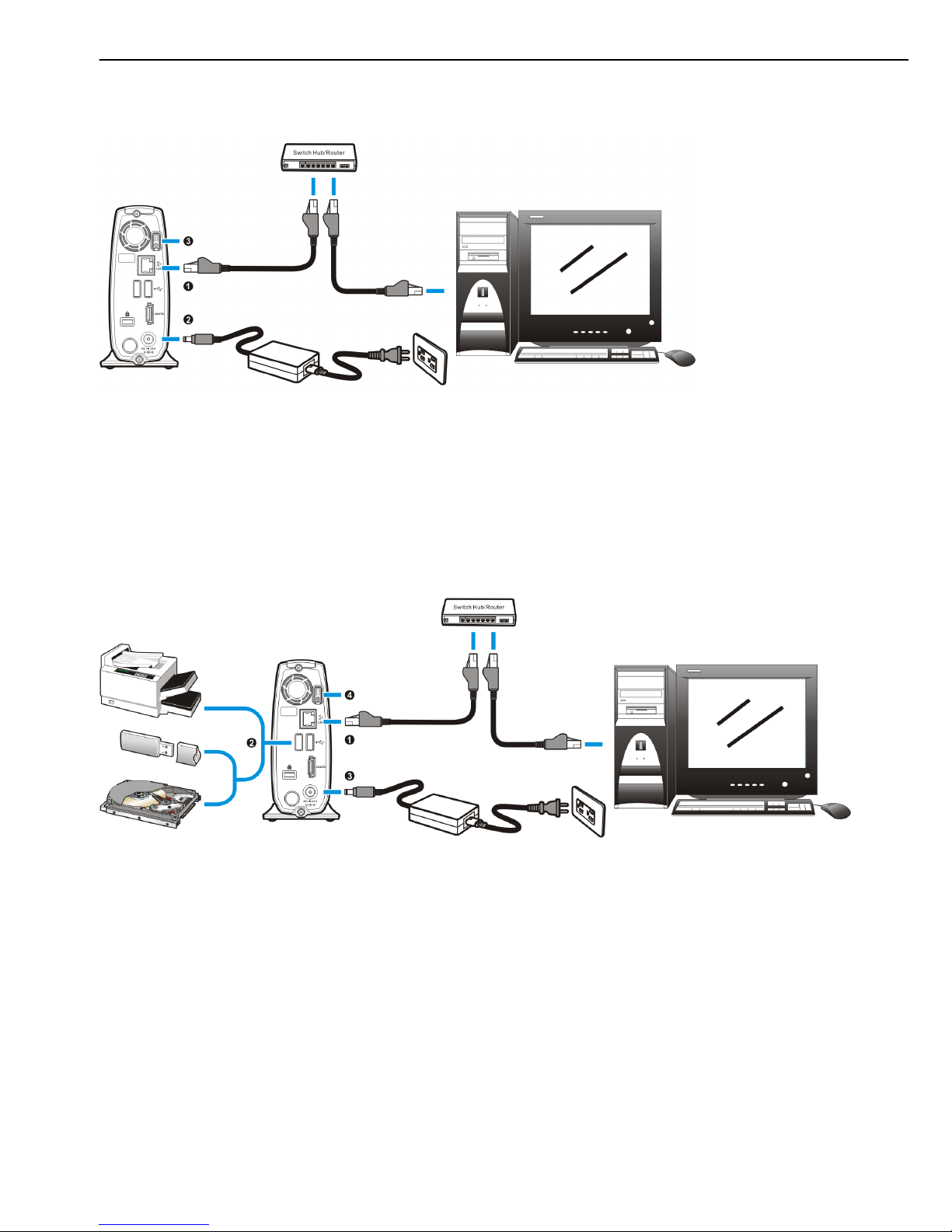

Network Connection

n:Connect this device and a Switch, Hub, Router, or a computer with a RJ45 Ethernet cable.

o:Connect the power supply to this device.

p:Press the “Power button” to turn on this device. The orange LED on the front cover will li

up during booting-up. This device will be ready to use when the blue LED lights up steadily.

USB Printer & Mass Storage Device Connection

n:Connect this device and a Switch, Hub, Router, or computer with a RJ45 Ethernet cable.

o: Connect USB printer(s) or USB mass storage device(s) to this device with USB cable(s). This

device can automatically mount the USB devices connected. (page 28, 41) You may need to

connect the power adapter of the USB HDD in order to operate properly.

p:Connect the power supply to this device.

q:Press the “Power button” to turn on this device. The orange LED on the front cover will li

up during booting-up. This device will be ready to use when the blue LED lights up steadily.

Connection and Removing connection

Removing Connection

Removing USB Mass Storage Devices

This device will auto-mount a USB Mass Storage Device connected to it. But you need to

manually unmount the USB Mass Storage Device before disconnecting it. You can unmount a

USB drive by Control Panel > Maintenance > Disk Utility > clicking “Umount”

button (page 22).

Removing USB Printer

You have to unmount the printer before disconnecting it. You can unmount a USB printer

by Control Panel > File and Print > Printer Server > Unchecking “Enable” box.

(page 17)

Removing Power connection

Press the “Power button” to turn off the device, and then remove its connections.

It is essential that the device need to be turned off prior to the removal the power

connection, or else your data could be damaged.

Setup of This Device

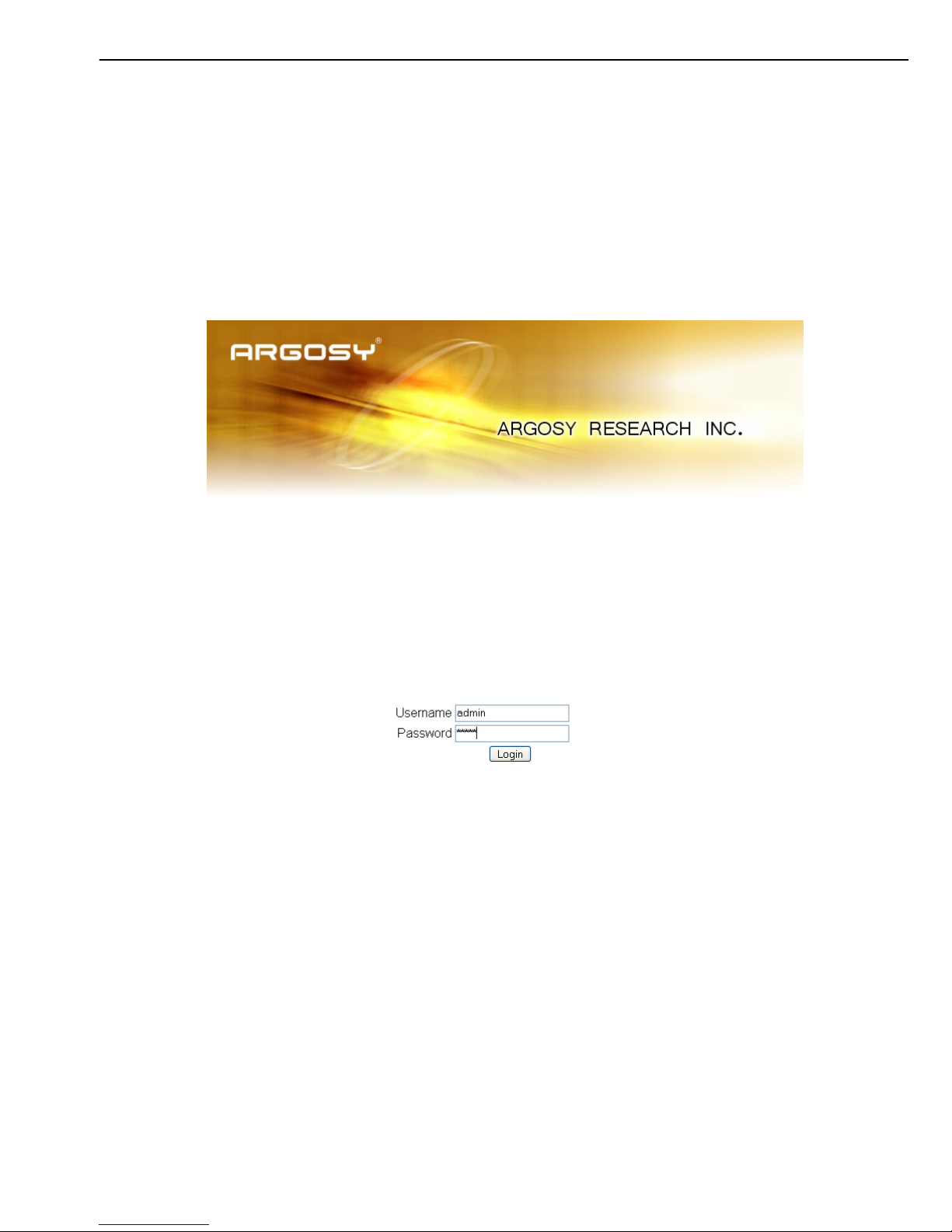

You need to login to get setup access of this device. Key in the IP address assigned to this device

in the URL bar of a browser if a DHCP server is present; key in “192.168.2.1” either a DHCP server is

absent or this device is directly connected to your computer.

“admin”. You can change the password in Personal Information > Account (page 27)

Basic

Quick Setup

Wizard

To setup basic configurations of this device, follow the diagram below.

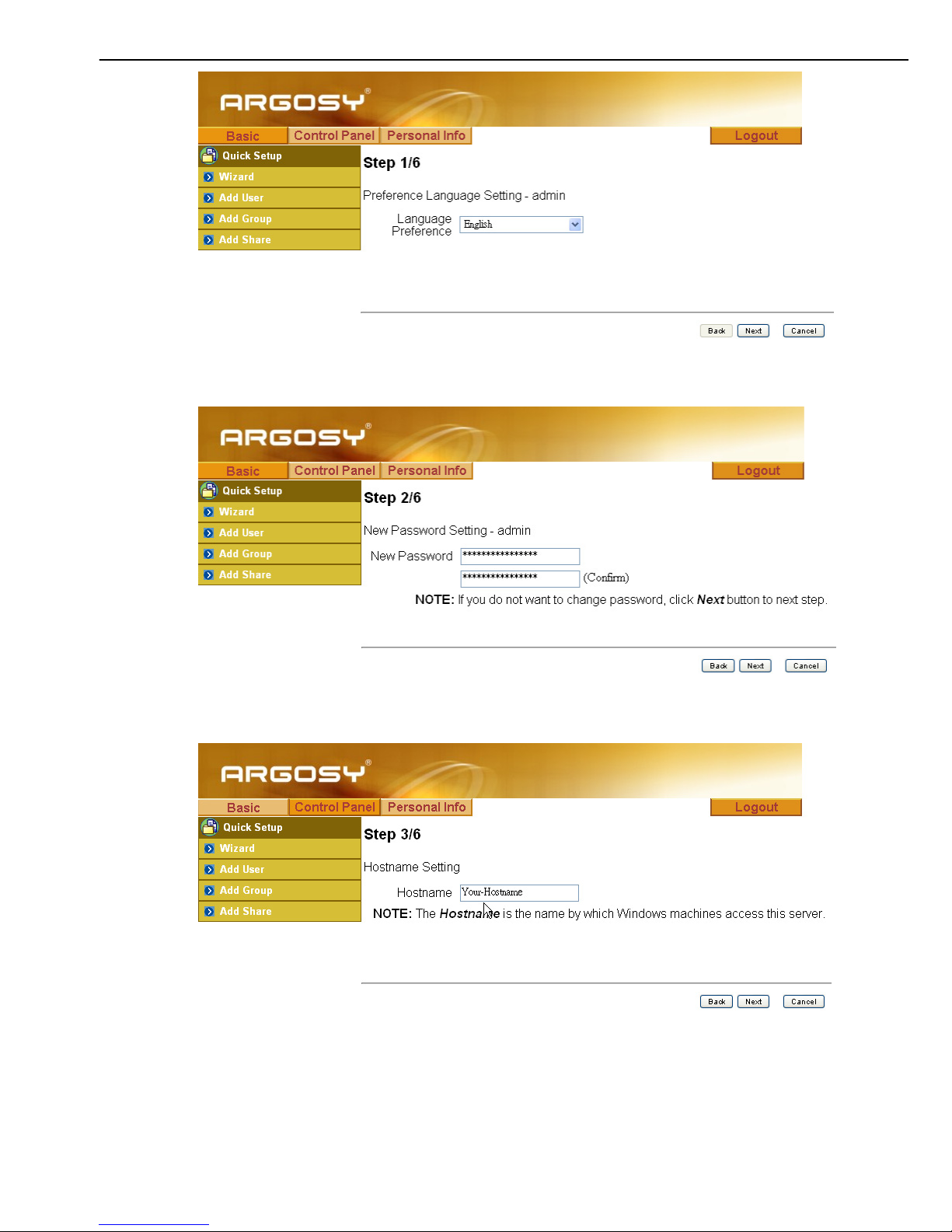

1. Language Setting. Specify the language of this GUI.

Setup of This Device

2. Password Setting. Click “Next” to skip password change.

3. Hostname Setting. This hostname can be seen in My Neighborhood. (default arinas)

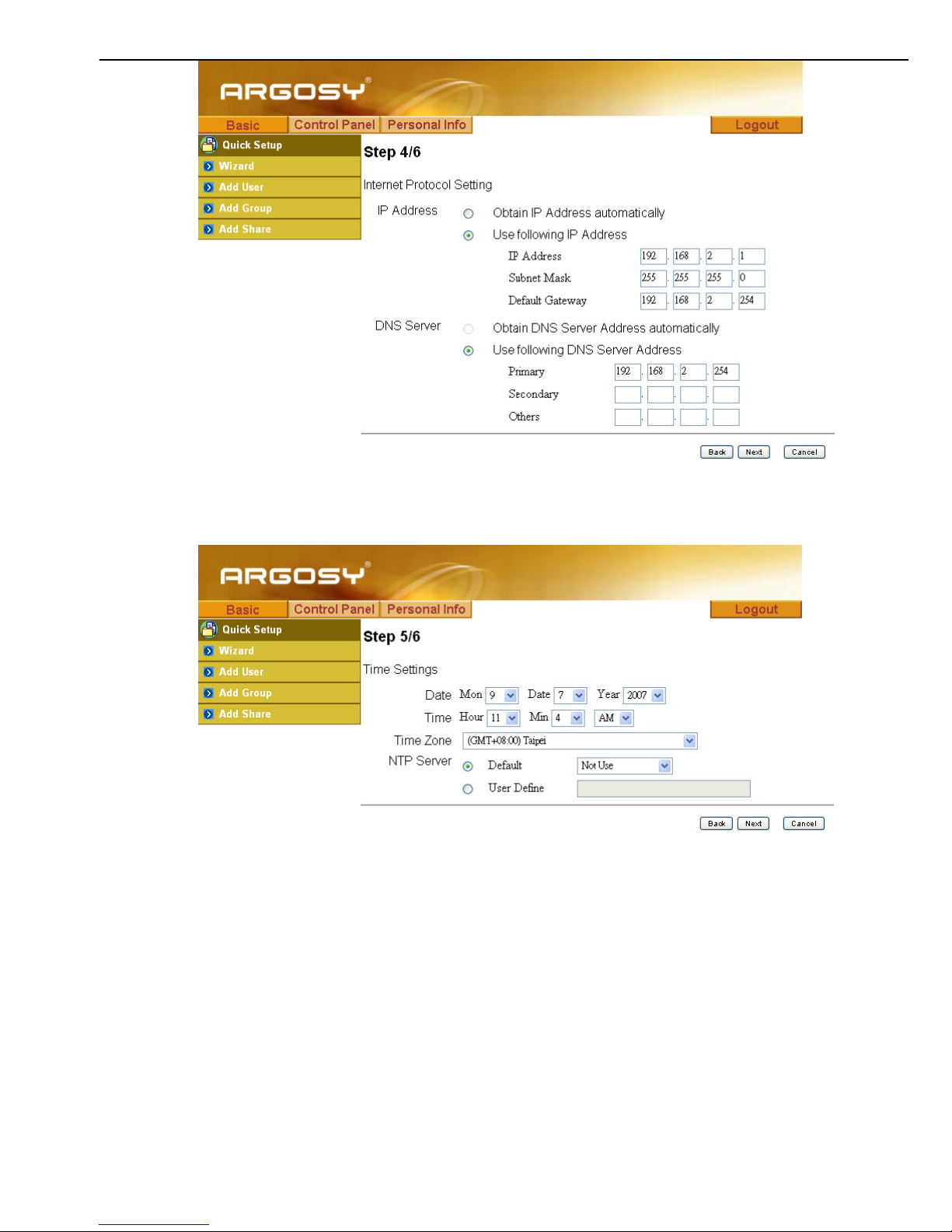

4. Internet Protocol Setting. You may specify a stationary IP address/DNS server address or

enable the “Obtain IP address/DNS server address automatically” checkbox, depending on

your LAN configuration.

Setup of This Device

5. Time Setting. Adjust date, time, and time zone of your local position. Or select a

NTP(Network Time Protocol) server for automatic time setting and calibration.

6. Wizard Setting Confirmation. Click complete to implement above settings.
