Argos Normandy Manuel utilisateur

MADE IN

BRITAIN

Dimensions

Width - 100cm

Depth - 40cm

Height - 74cm

Normandy - Dressing Table and Stool

Assembly Instructions - Please keep for future reference

If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800

Issue 3 - 16/01/15

Important - Please read these instructions fully before starting assembly

ALR3084

325/6208

331/1837

356/1962

Issue 2 - 07/01/15 - The Drawer Wrap was loose.

The Stool Drawer Back and Stool Drawer Base have increased by 4mm and the drillings for the Stool Drawer Front have changed.

Issue 3 - 16/01/15 - Removed“Finished edge”from the Uprights in Steps 13,14 and 16.

Update helpline number.

Safety and Care Advice

Important - Please read these instructions fully before starting assembly

• Warning: This unit weighs

approximately 31.5kgs.

Please lift with care.

• Check you have all the

components and tools listed on

pages 2 and 3.

• Remove all fittings from the

plastic bags and separate them

into their groups.

• Keep children and animals

away from the work area, small

parts could choke if swallowed.

• Parts of the assembly will be

easier with 2 people.

• Make sure you have enough

space to layout the parts before

starting.

• Do not stand or put weight on

the product, this could cause

damage.

• Assemble the item as close to

its final position (in the same

room) as possible.

• Assemble on a soft level

surface to avoid damaging the

unit or your floor (use opened

out unit carton).

Care and maintenance

• Only clean using a damp cloth

and mild detergent, do no use

bleach or abrasive cleaners.

• From time to time check that

there are no loose screws on

this unit.

• This product should not be

discarded with household

waste. Take to your local

authority waste disposal centre.

Note: If required the next page

can be cut out and used as

reference throughout the

assembly. Keep this page with

these instructions for future

reference.

• We do not

recommend the

use of power

drill/drivers for

inserting screws,

as this could damage the unit.

Only use hand screwdrivers.

• Safety note: It is

recommended that this unit is

secured to a wall using the

overbalance kit supplied.

• Dispose of all packaging

carefully and responsibly.

Components - Panels

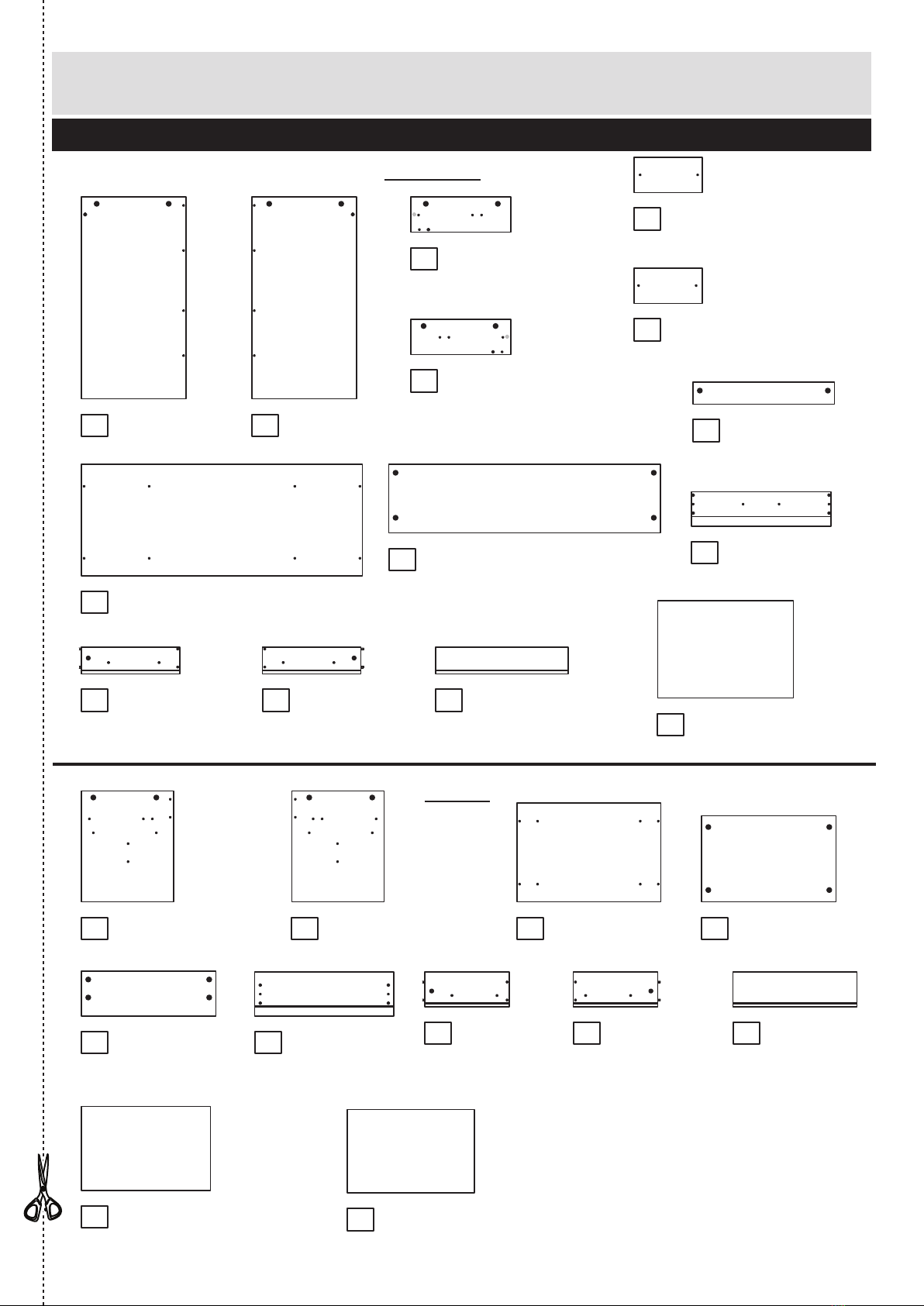

Please check you have all the panels listed below

80%

x 2

If you have damaged or missing components, call the

Customer Helpline: 03456 400800 quoting the reference

numbers below

Top (DF631)

(999 x 396mm)

Left Side (DF632)

(718 x 372mm)

Left Upright (DF635)

(125 x 356mm)

Right Side (DF633)

(718 x 372mm)

Right Upright (DF636)

(125 x 356mm)

Drawer Front (DF637)

(496 x 122mm)

Rail (DF640)

(503 x 78mm)

Drawer Base (T482-347)

(482 x 347mm)

Drawer Back (W471-95)

(471 x 95mm)

Left Drawer

Side (W350-95LH)

(350 x 95mm)

Right Drawer

Side (W350-95RH)

(350 x 95mm)

16 17

20 Stool Right

Drawer Side

(W300-124RH)

(300 x 124mm)

Stool Seat Pad (FHALPAD)

(458 x 300mm)

21 22 23

24 25

Stool

11 12 13

Dresser

Stool Left Side (DF342A)

(395 x 328mm)

Stool Base (DF347A)

(478 x 306mm)

Stool Right Side (DF343A)

(395 x 328mm)

Stool Top (DF344A)

(510 x 352mm)

Stool Drawer

Back (W445-124)

(445 x 124mm)

Modesty (DF634)

(966 x 244mm) x 2

Left Blanking Panel (DF638)

(242 x 125mm)

Right Blanking Panel (DF639)

(242 x 125mm)

Stool Rail (DF346A)

(478 x 160mm) x 2

Stool Drawer

Front (DF345B)

(495 x 157mm)

Stool Left

Drawer Side

(W300-124LH)

(300 x 124mm)

Stool Drawer Base (T456-297)

(456 x 297mm)

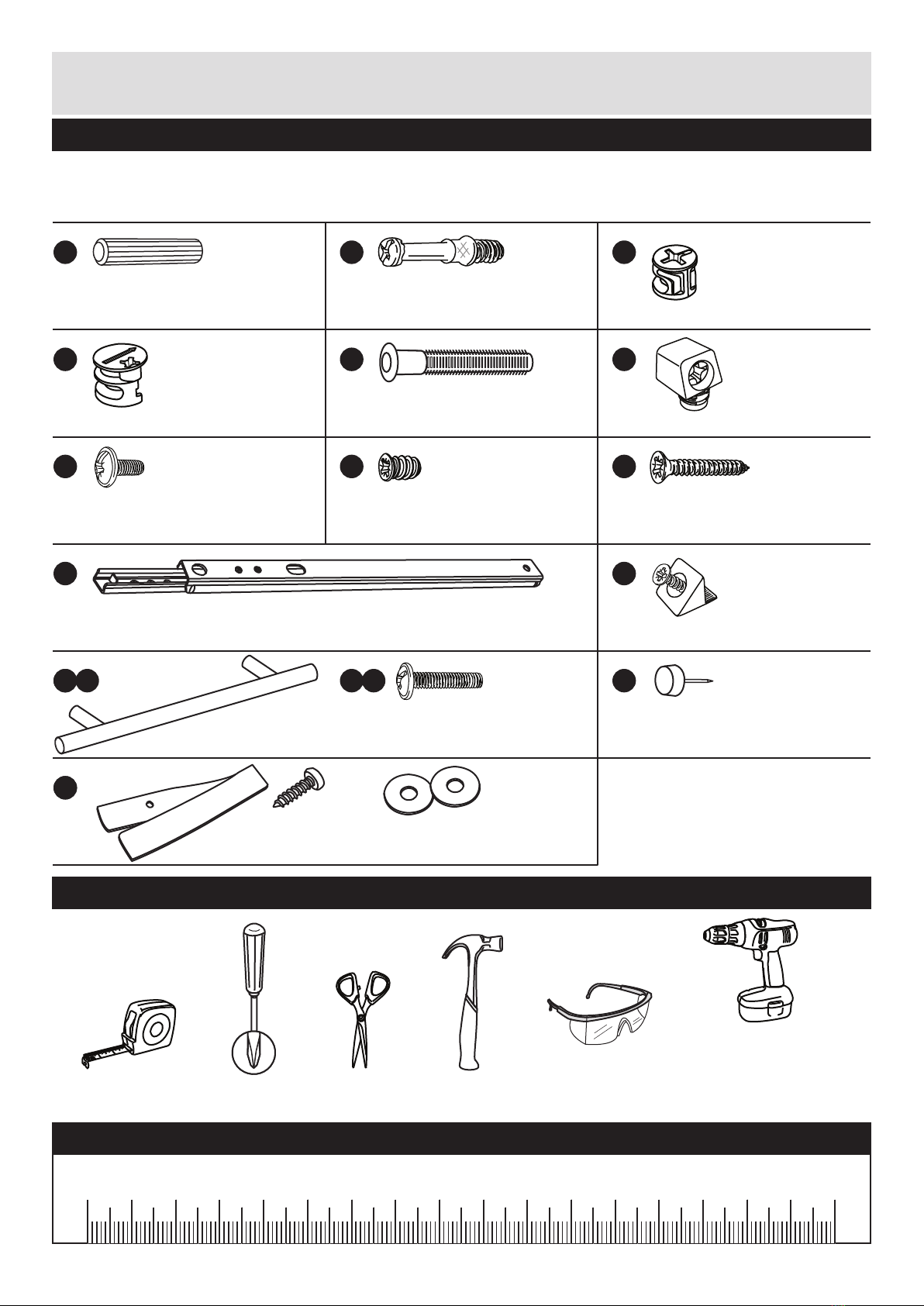

Please check you have all the fittings listed below

Tools required

Components - Fittings If you have damaged or missing components, call the

Customer Helpline: 03456 400800 quoting the reference

numbers below

Note: The quantities below are the correct amount to complete the assembly. In some cases

more fittings may be supplied than are required.

Rule Scissors Hammer

Eye protection

(when using a

hammer or drill)

Cross-head

screwdriver

Ruler - Use this ruler to help correctly identify the screws

mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170

Electric drill

(only use

when drilling

into walls)

B C

D E F

Small locking

nut (F3) x 4

Wooden dowel (F22) x 2 Metal dowel (F901) x 38

Large locking

nut (F900) x 34 Knock-in Peg (F171GY) x 8

Plastic Nail (F91) x 8

Wedgefix (F639) x 4

Mini block (F25) x 4

9mm Screw (F73) x 8

9mm Screw (F74) x 4 25mm Screw (F50) x 4

Handle (FBARHANDLE ) x 1

aL b

Drawer runner (F1004) x 4

Strap Screw Washer x 2

Overbalance protector kit (F269) x 1

19mm Screw (F461) x 2

Assembly Instructions

If you have damaged or missing components, call the

Customer Helpline: 03456 400800 quoting the reference

numbers below

Step 1

11 12

Step 2

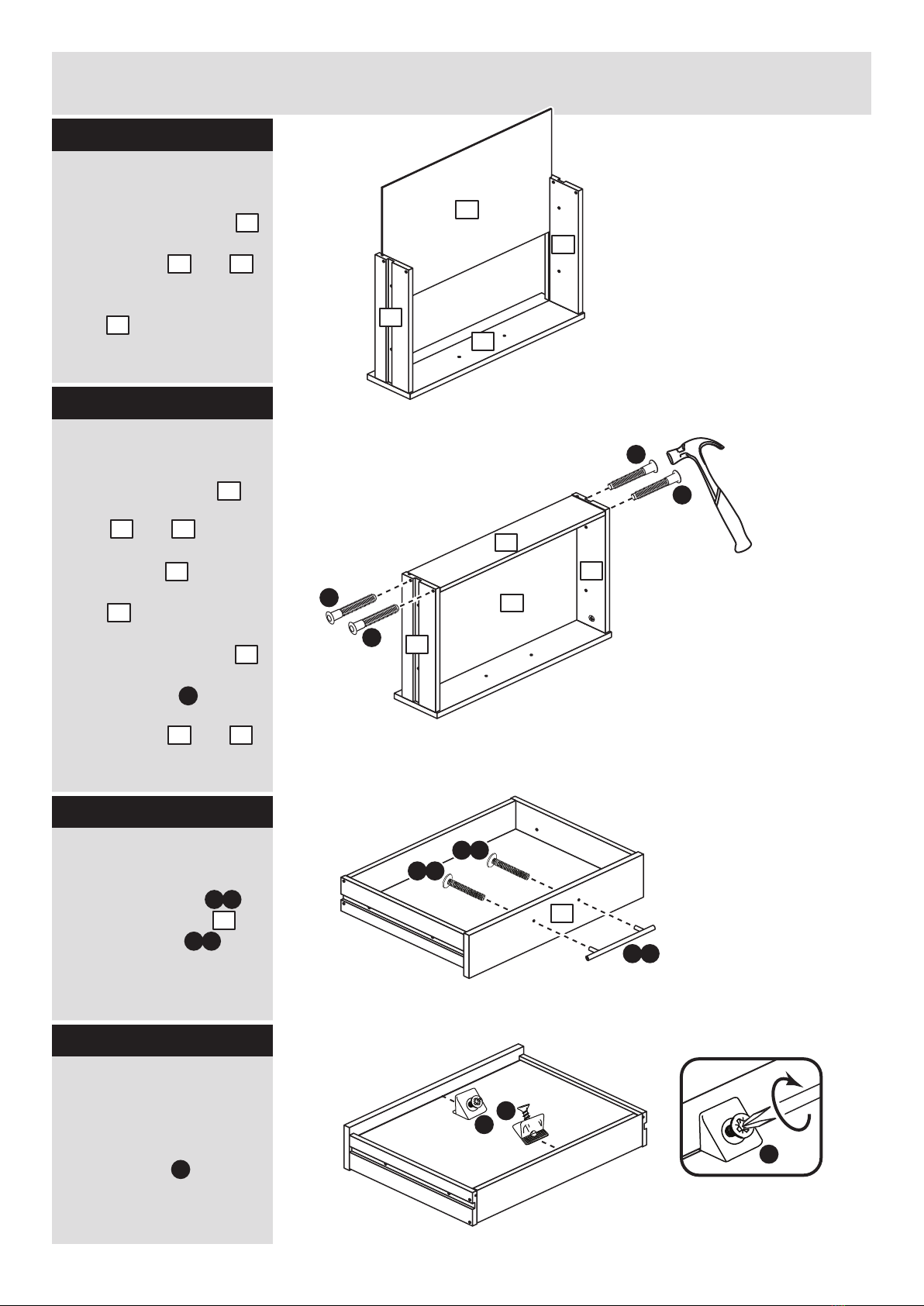

Prepare the drawer

front

Screw 2 metal dowels

into the drawer front .

Note: Tighten the metal

dowels up fully against

the panels.

Prepare the drawer

sides

Insert a small locking

nut into the hole

shown on the left drawer

side and the right

drawer side .

Note: The arrow on the

locking nut must point

towards the hole in the

edge of the panel.

Step 3

Attach the drawer

sides to the drawer

front

Push the left drawer sides

. and right drawer sides

. onto the back of the

drawer front .

Turn the small locking

nuts on the left

drawer side and right

drawer side .

Note: Turn the locking

nuts clockwise to

secure panels - more

than 1/2 a turn.

Assembly Instructions

Step 4

Fit the drawer base

Slide the drawer base

down the grooves in the

drawer sides and

and down into the

groove in the drawer

front .

Step 5

Fit the drawer back

between the drawer

sides and .

Make sure that the

drawer base fits into

the groove in the drawer

back .

Hold the drawer back

in position and tap the

knock-in pegs

through the holes in the

drawer sides and .

Step 6

11 12

Step 7

Fit the wedgefixes

Turn the drawer

assemby over and slide

2 wedgefixes into the

front and back grooves,

as shown, and tighten up

the screws.

L b

L a

Attach the handle

to the drawer front

using 2 screws .

L a

L b

Finished

front edge

Assembly Instructions

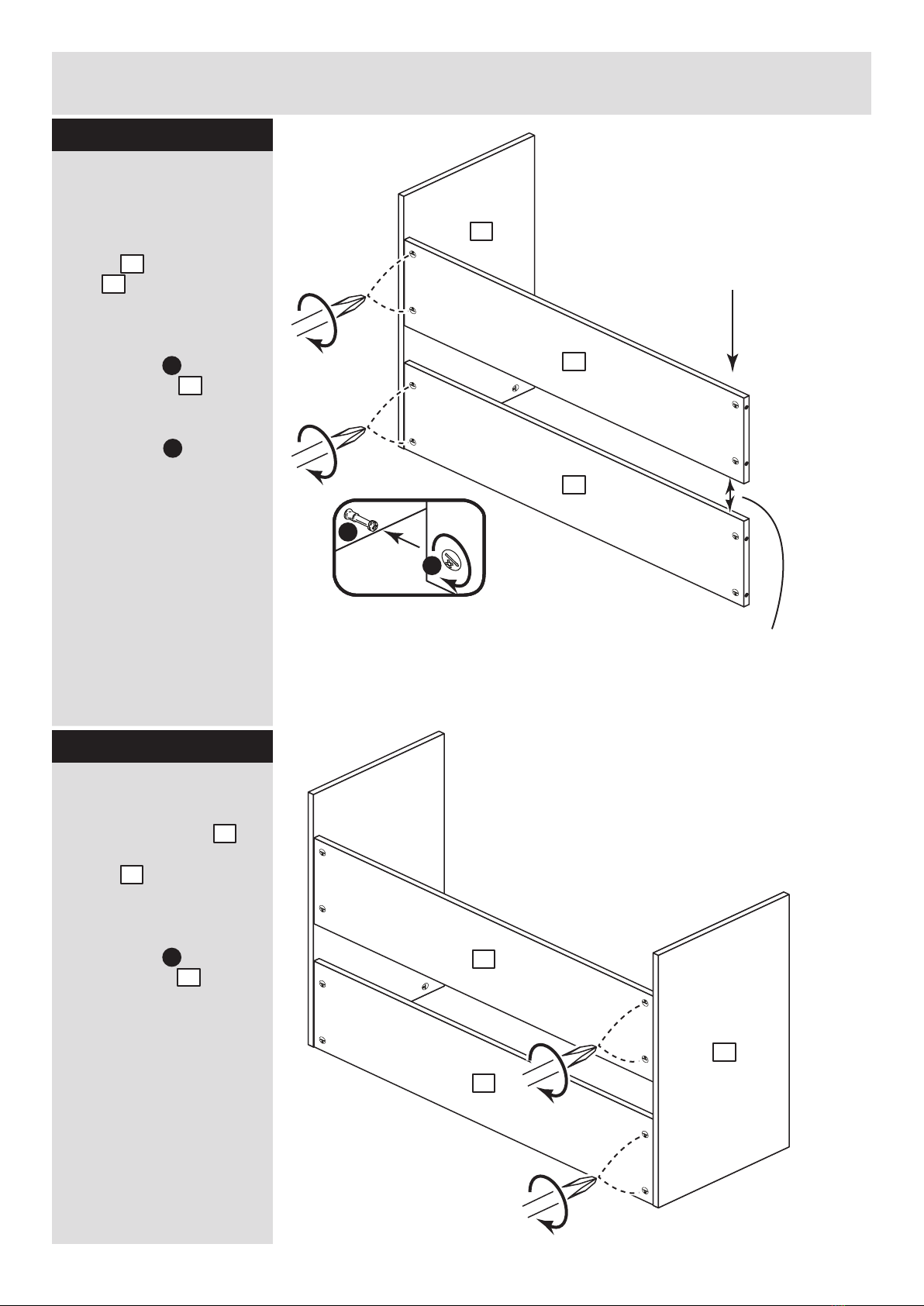

Step 8

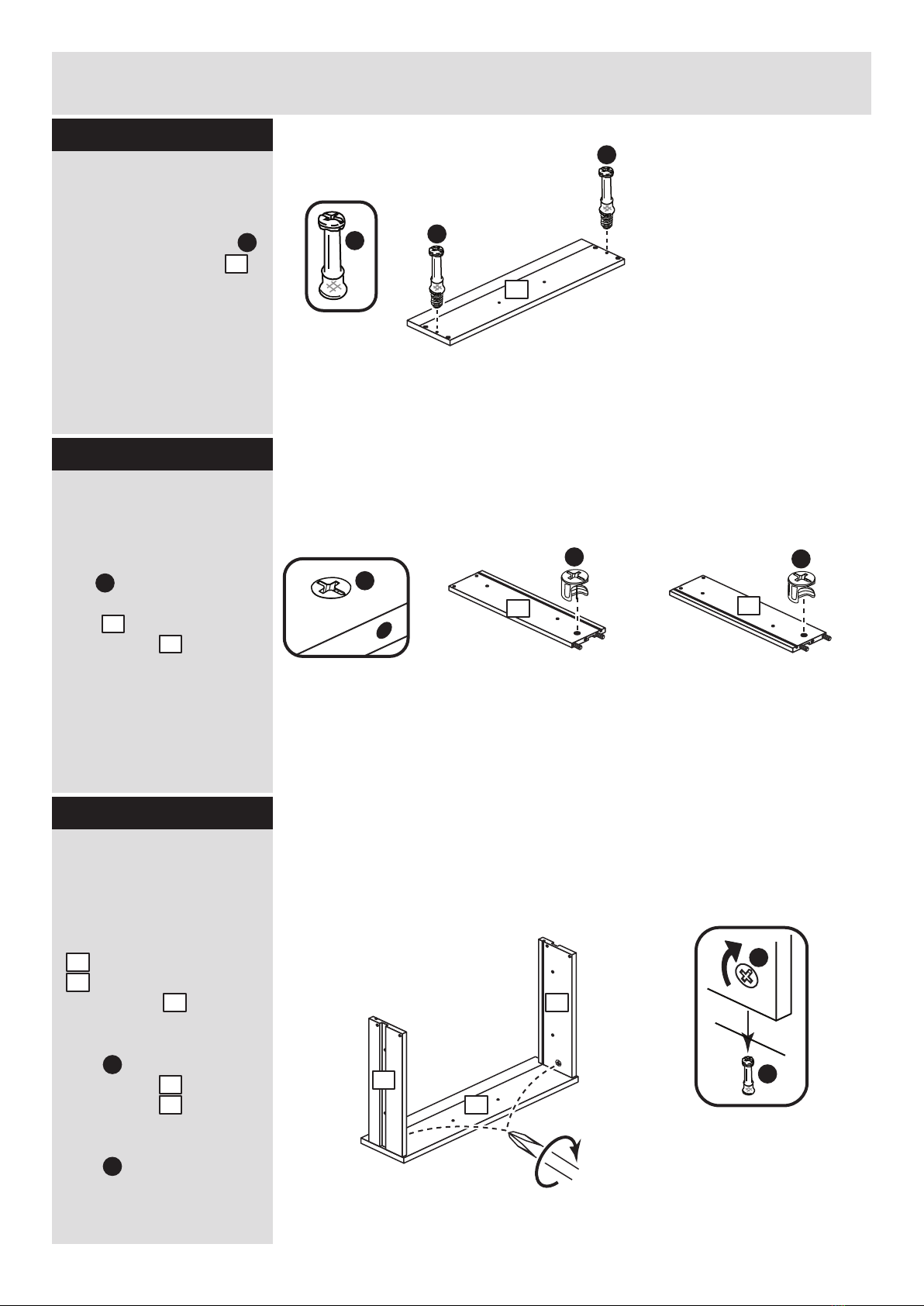

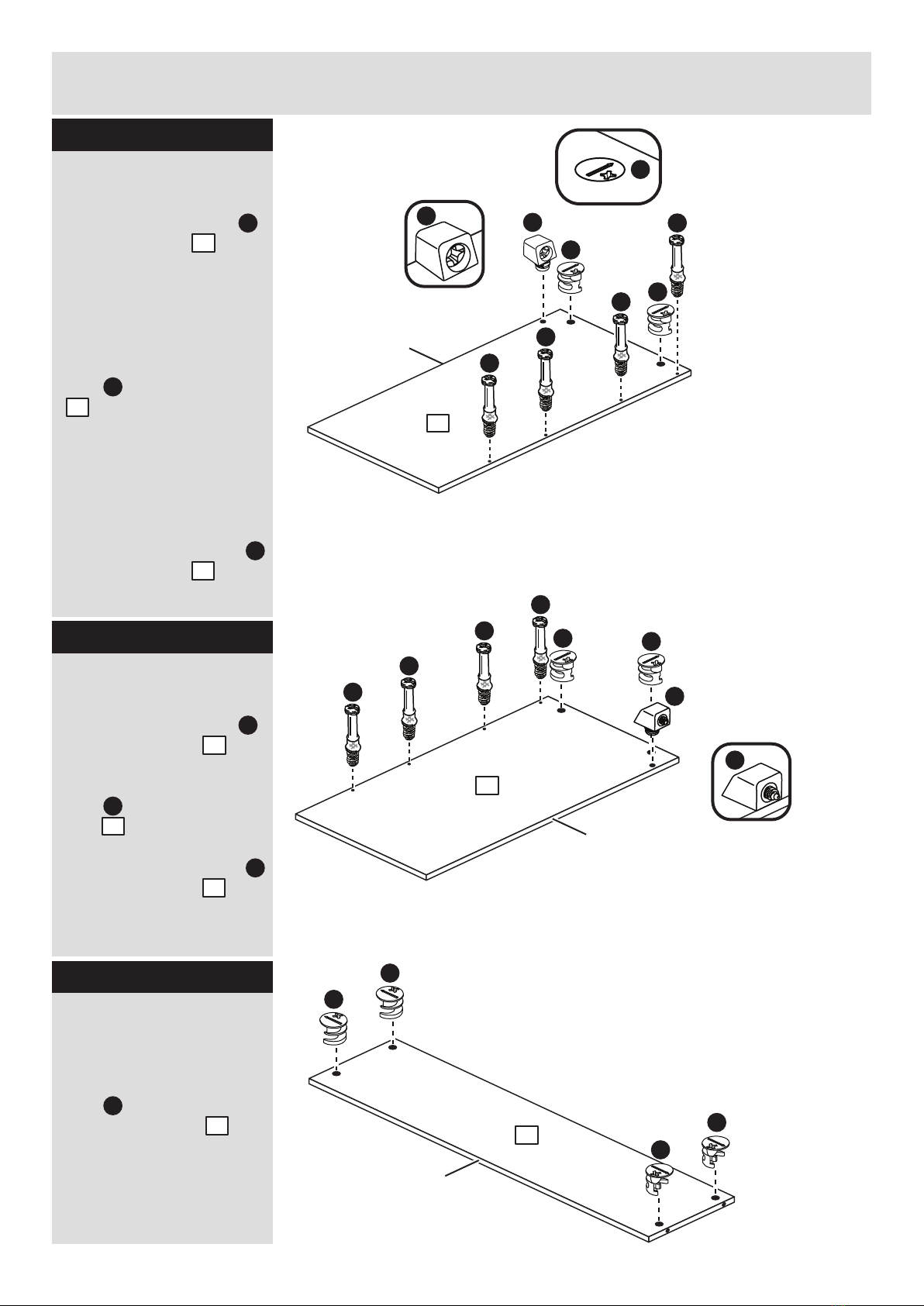

Prepare the left side

Screw 4 metal dowels

into the left side .

Note: Tighten the metal

dowels up fully against

the panels.

Insert 2 large locking

nuts into the left side

. .

Note: The arrow on the

locking nut must point

towards the hole in the

edge of the panel.

Gently tap a mini block

into the left side ,

orientated as shown.

Finished

front edge

Step 9

Prepare the right side

Screw 4 metal dowels

into the right side .

Insert 2 large locking

nuts into the right

side .

Gently tap a mini block

into the right side ,

orientated as shown.

Step 10

Prepare the 2

modesty panels

Insert 4 large locking

nuts into each of the

2 modesty panels .

x 2

Finished

edge

Fit the right side

Push the right side

into the 2 modesty

panels .

Use a screwdriver to

tighten the 2 large

locking nuts fitted to

each modesty .

Finished

top edge

Assembly Instructions

Step 11

Shaped

edge

Join the 2 modesty

panels to the left side

Push the 2 modesty

panels onto the left

side .

Use a screwdriver to

tighten the 2 large

locking nuts fitted to

each modesty .

Note: Turn the large

locking nuts as far as

they will go - more than

1/2 a turn.

Step 12

Note: Support this modesty

until the left side has been

fitted in the next step.

Important:

The finished edges on

the modesty panels must

be facing each other

Assembly Instructions

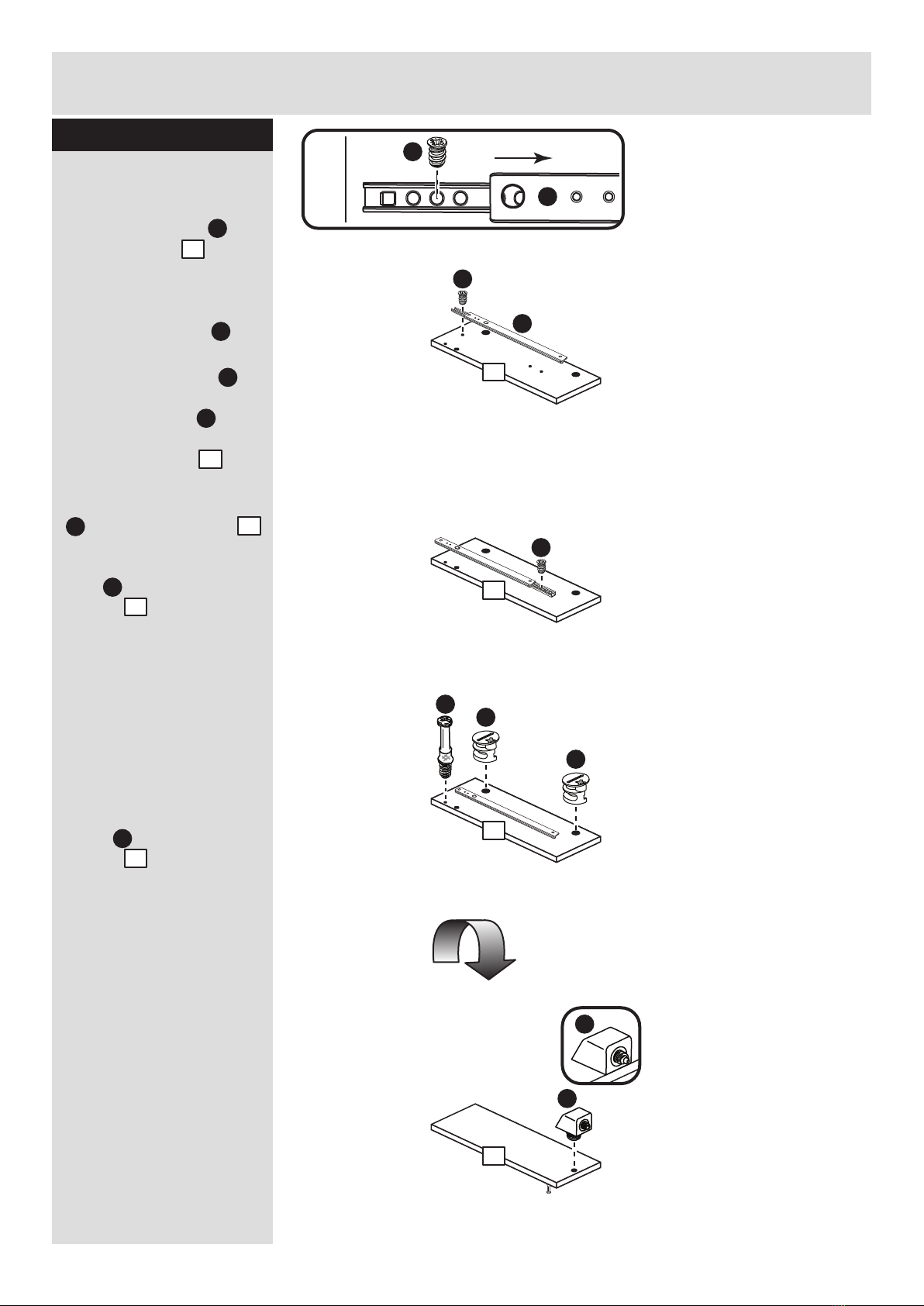

Step 13

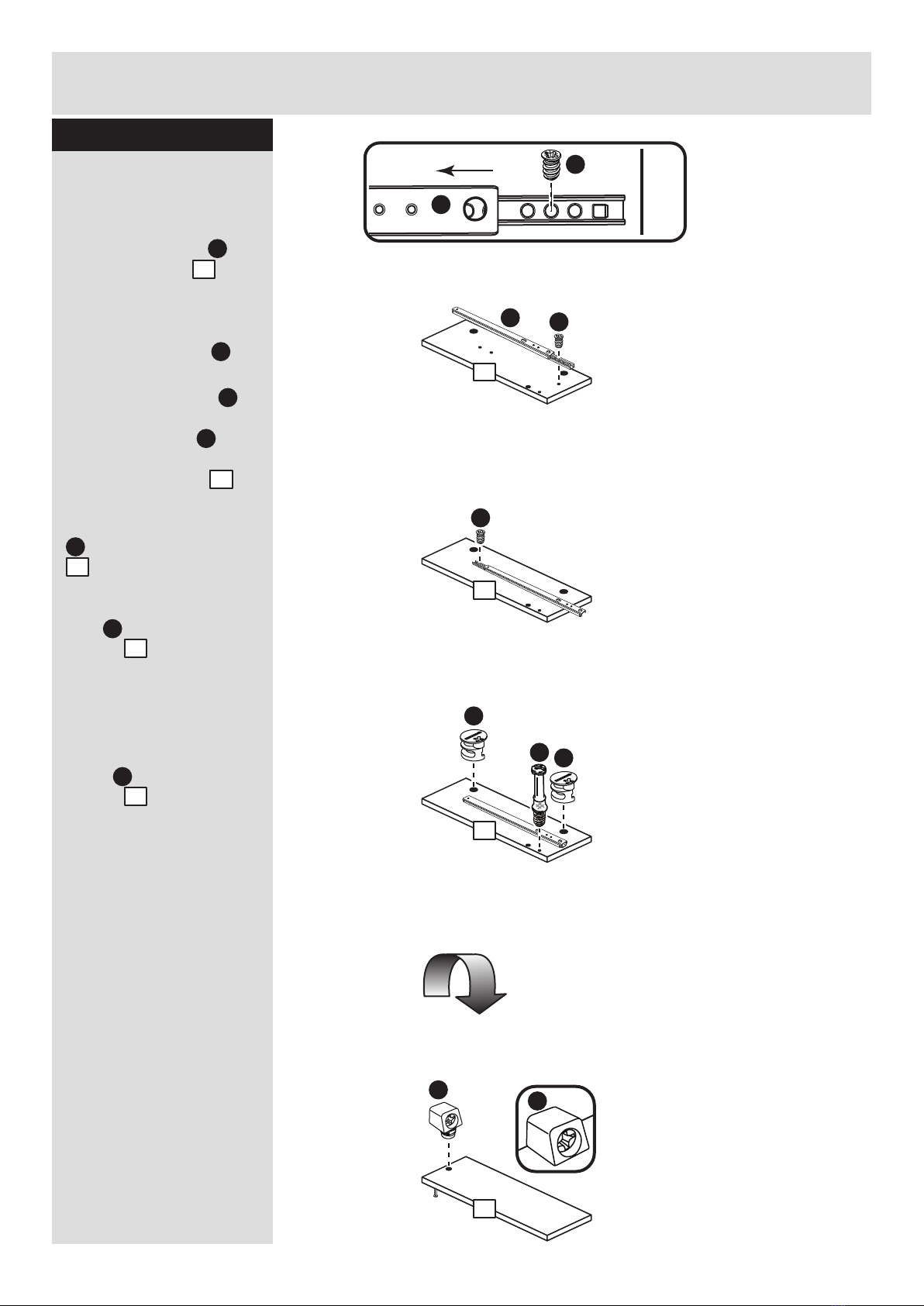

Prepare the top

Screw 8 metal dowels

into the top .

Note: Tighten the metal

dowels up fully against

the panels.

Finished

front edge

Prepare the left upright

a: Place a runner on

the left upright as

shown. Slide back the

top of runner and use the

2nd hole from the front

to fit the 1st screw .

b: Slide the runner

back the other way and

fit the 2nd screw into

the corresponding hole

in the left upright .

c: Screw a metal dowel

. into the left upright .

Insert 2 large locking

nuts into the left

upright .

Note: The arrow on the

locking nuts must point

towards the hole in the

edge of the panel.

Turn the left upright

over

d: Gently tap a mini

block into the left

upright , orientated as

shown.

Turn the left

upright over

Finished

top edge

Assembly Instructions

Step 14

Shaped

edge

Prepare the right

upright

a: Place a runner on

the right upright as

shown. Slide back the

top of runner and use the

2nd hole from the front

to fit the 1st screw .

b: Slide the runner

back the other way and

fit the 2nd screw into

the corresponding hole

in the right upright .

c: Screw a metal dowel

. into the right upright

. .

Insert 2 large locking

nuts into the right

upright .

Turn the right upright

over

d: Gently tap a mini

block into the left

upright , orientated as

shown.

Turn the right

upright over

Finished

front edge

Ce manuel convient aux modèles suivants

Autres manuels Argos Mobilier d'intérieur

Argos

Argos Cube Coffee Table Manuel utilisateur

Argos

Argos Athina 1000 Wall Unit Manuel utilisateur

Argos

Argos Murano 332/6138 Fiche technique

Argos

Argos White Tidy Cupboard 830/1732 Manuel utilisateur

Argos

Argos 709/2592 Manuel utilisateur

Argos

Argos Amy white bunk Trundle Manuel utilisateur

Argos

Argos New Hallingford 4 Door 3 Drawer Wardrobe Manuel utilisateur

Argos

Argos Verona 609/5026 Manuel utilisateur

Argos

Argos Le Marais 393/0782 Manuel utilisateur

Argos

Argos New Penton 258/7129 Manuel utilisateur

Argos

Argos 2587356 Manuel utilisateur

Argos

Argos 832 Manuel utilisateur

Argos

Argos 487/8317 Manuel utilisateur

Argos

Argos Winchester 656/7011 Manuel utilisateur

Argos

Argos Stowe 427/0977 Manuel utilisateur

Argos

Argos Harrogate Multimedia CD760 Manuel utilisateur

Argos

Argos Avalon 4'6 Manuel utilisateur

Argos

Argos 6172884 Manuel utilisateur

Argos

Argos Puerto Rico 658/3129 Manuel utilisateur

Argos

Argos Osaka Dressing Table 2273237 Manuel utilisateur

Argos

Argos Wow Raye Wooden Chair Manuel utilisateur

Argos

Argos Corners 9583119 Manuel utilisateur

Argos

Argos Capella Manuel utilisateur

Argos

Argos 481/3640 Manuel utilisateur

Manuels Mobilier d'intérieur populaires d'autres marques

Homelegance

Homelegance California 1662PEK-1CK Manuel utilisateur

Osmond Ergonomics

Osmond Ergonomics FLO Manuel utilisateur

OVE

OVE ELOISE 42 Manuel utilisateur

overstock

overstock MF286255 Manuel utilisateur

Sonoma

Sonoma 160-801 Manuel utilisateur

BOLERO

BOLERO Wicker Side Chair CF158 Guide d'installation

Coaster

Coaster 4799N Manuel utilisateur

Stor-It-All

Stor-It-All WS39MP Manuel de programmation

Lexicon

Lexicon 194840161868 Manuel utilisateur

Next AMELIA NEW 462947 Manuel utilisateur

Furinno

Furinno 18089 Manuel utilisateur

Munchkin

Munchkin Push to Close MK0001 Manuel utilisateur

impekk

impekk Manual II Manuel utilisateur

Elements

Elements Ember Nightstand CEB700NSE Manuel utilisateur

JWA

JWA CARY 68429 Manuel utilisateur

VIPACK

VIPACK AMORI AMKB9014 Manuel utilisateur

Anthro

Anthro GT03 Series Manuel utilisateur

Rowico

Rowico SANNA Manuel utilisateur
