Argos 2901365 Manuel utilisateur
66 CM KETTLE BBQ
2901365
Width - 70cm
Depth - 77cm
Heitht - 110cm

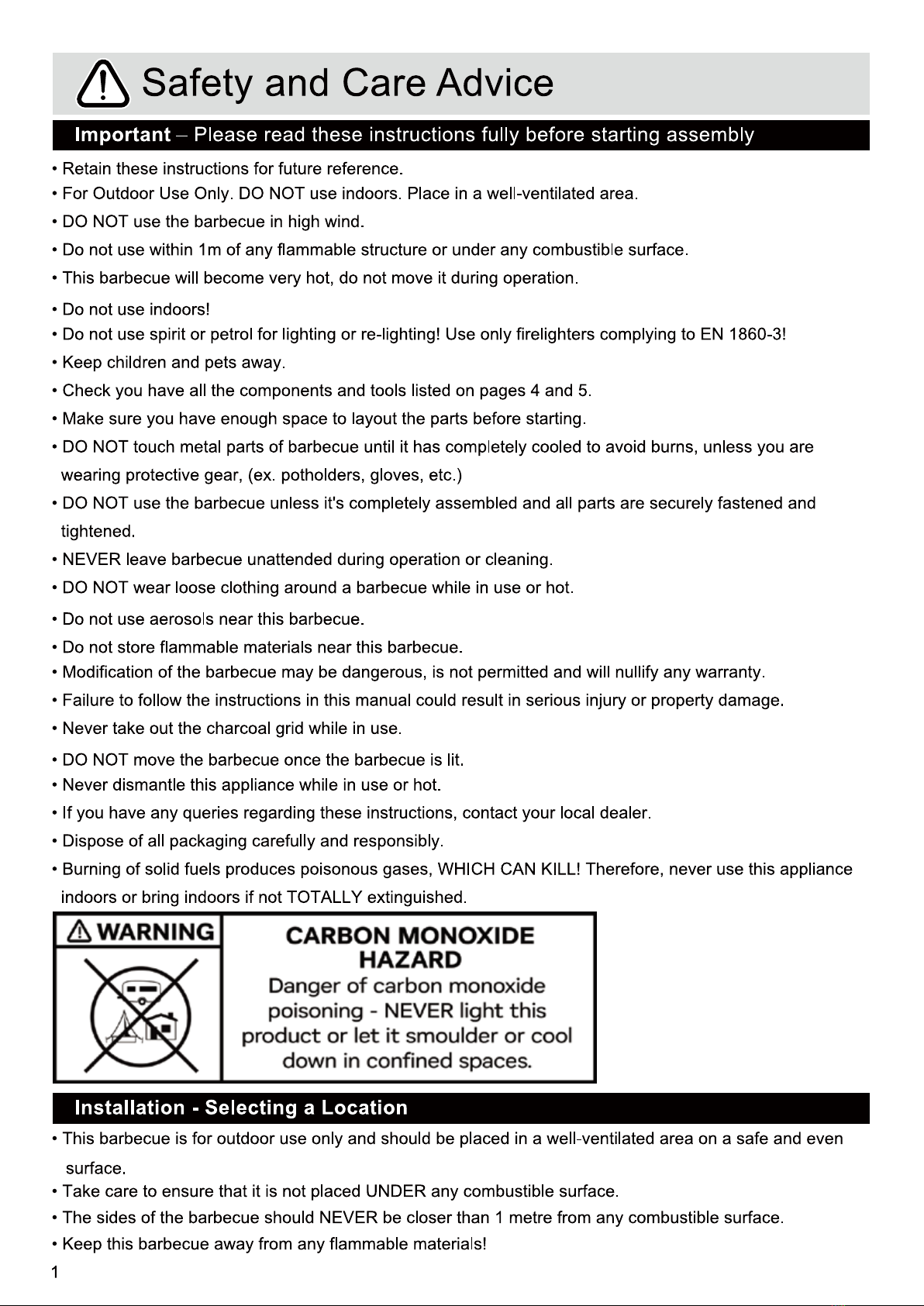

Ash Catcher
Handle
x 1 x 1
x 1
x 2
x 1 x 1 x 1 x 1
x 1 x 1 x 1
x 1
x 1 x 1 x 4 x 2
x 2
x 2
x 1
x 1

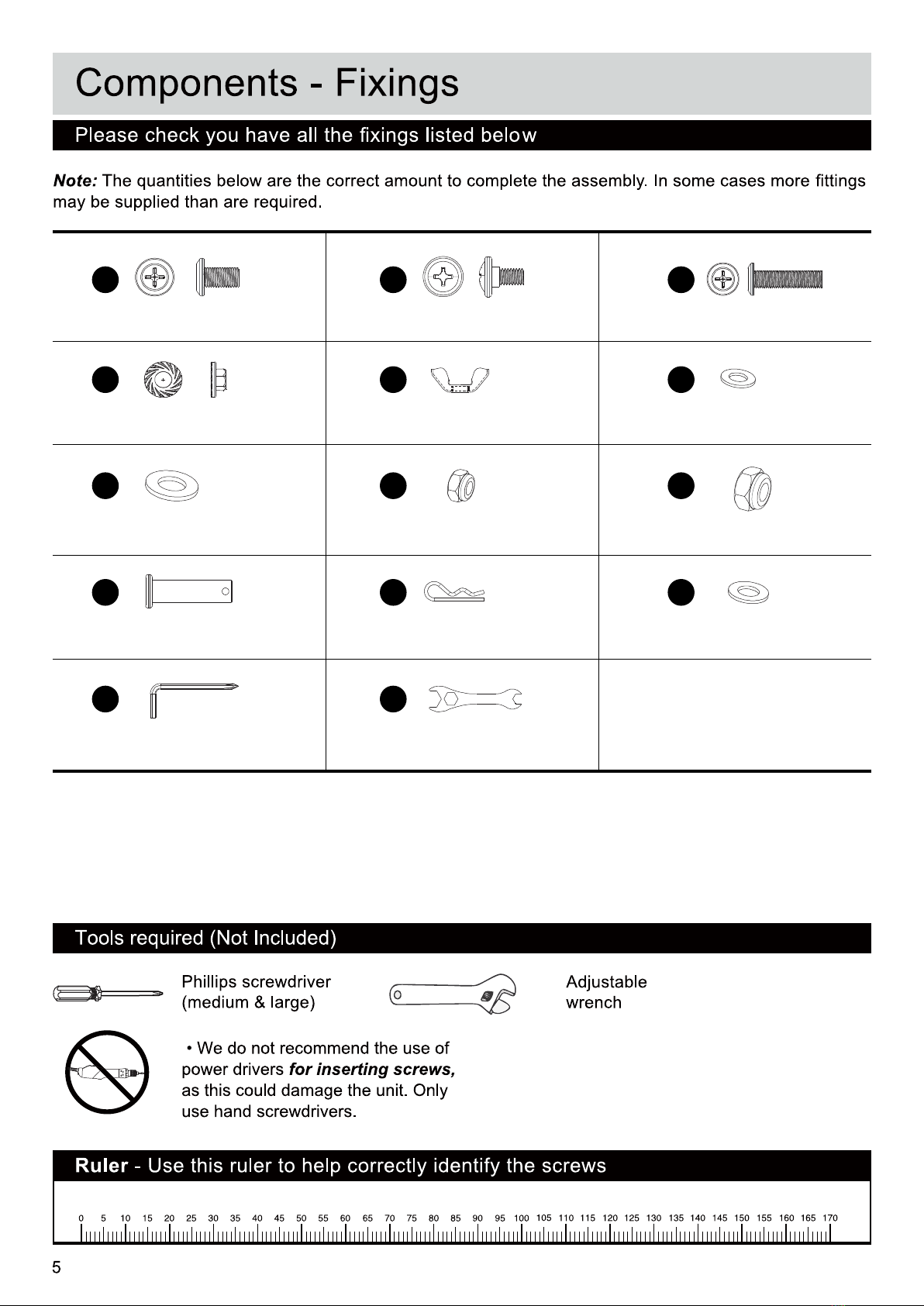

A
M6*13 Screw x 24
B
M5*10 Screw x 1
C
M6*33 Screw x 4
D
M6 Nut x 22
E
M5 Wing Nut x 1
F
Aluminum Washer
-M6(Small) x 14
G
Flat washer-M10 x 2
H
M8 Lock nut x 2
I
M10 Lock nut x 2
J
Hinge Pin x 2
K
Cotter Pin x 2
L
Aluminum Washer
-M6(Big) x 16
M
Screwdriver x 1
N
M6/M8/M10 Hex
Wrench x 1
F
A
D
F
A
B
E
Step 1
Attach handle 4 to lid 1
with two M6x13 screw A,
two aluminum washers .
F
Tighten with screwdriver.
Step 2
Attach lid vent 2 to lid
with one M5x10 screw B
and one M5 wing nut E
as shown. Tighten screw
and nut with screwdriver.
Step 3
3-1: Unscrew the nut from
Temperature Gauge .
3-2: Attach the
Temperature Gauge 3 to
the front of lid 1 and
tighten with the nut again.
Step 4
4-1: Aligen upper hinges
7 & 8 with lid.
4-2: Attach upper hinges
to lid with four M6x13
screws A , four aluminum
washers F , and four M6
nuts D. Partially tighten
screws and nuts with
screwdriver and wrench.
NOTE: DO NOT tighten
fully until step 10.
2
3
3
1
7 8
B
E
A
D
F
A
D
Step 5
Attach the leg connector
15 to bottom bowl 12 with
twelve M6x13 screws A ,
twelve Aluminum washer
L and twelve nuts D ,
Tighten with screwdriver
and hex wrench
Step 6
Attach handle to bottom
bowl 12 with two M6x13
screws A , two aluminum
washer F . Tighten with
screwdriver.
4
Step 7
7-1: Align lower hinges (
10 and 11 ) with bottom
bowl 12 .
7-2: Attah lower hinges to
bowl with four M6x13
screws A , four aluminum
washers F , and four M6
nuts D . Tighten with
screwdriver and wrench.
NOTE: DO NOT tighten
completely until Step 10.
A
A
F
A
F
L
D
A
L D
A
F
A
D
F
12
10 11
12
15 12
C
L
G
G
I
I
H
H
8
Step 8
8-1: Align axle holes in wheel legs
17 during assembly. Wheel legs
attach to the rear of the bottom
bowl, at the end opposite the
handle.
8-2: Slide the top end of each
stationary leg 16 & wheel leg 17
through a leg connector 15 .
8-3: Align the top of each leg with a
corner hole in the bottom bowl.
8-4: Attach each leg to the bowl
with a M6x33 screw C , and
aluminum washer L . Partially
tighten each screw with a
screwdriver.
9-1: Slide the long ends of the wire
shelf 18 through the wheel legs 17 ,
and the short ends through the
stastionary legs 16 .
9-2: Slide a wheel 19 and flat
washer G onto each long end.
Thread a M10 lock nut I onto each
I
long end and tighten with a wrench.
The wheel should spin, but not
wobble.
9-3: Thread a M8 lock nut H onto
each short end and tighten by
wrench.
Step 9
C
L
G
17
17
17
19
16
15
16
H
9
Step 10
10-1: Set lid 1 onto
bottom bowl 12 and align
hinge pins J .
10-2: Slide higne pins J
through holes in hinges.
10-3: Slide one cotter pin
K through hole at end of
each hinge pin.
10-4: Cotter pins should
be tunked into place.
NOTE: Tighten all the
screw for Step 4 and
Step 7 .
Step 11
11-1: Set charcoal grate
6 into bottom bowl.
11-2: Set cooking grate 5
onto top ledge of bottom
bowl.
Step 12
12-1: Attach warming
rack 9 to top lid 1 and
bottom bowl 12 by
inserting ends at back of
warming rack into side
holes of each of top lid 1
.
12-2: Insert wire legs on
both side of warming
rack 9 into holes of
bottom bowl 12 .
J
J
KK
K
K
K
J
J
J
J
1
12
4
5
6
7
1
12
9
