Arecont Vision MegaDome®2 Installation Manual (DN Models Only)

0 | Page

Arecont Vision MegaDome®2 Installation Manual (DN Models Only)

1 | Page

MegaDome®2 Installation Manual (DN Models Only)

A. Arecont Vision MegaDome

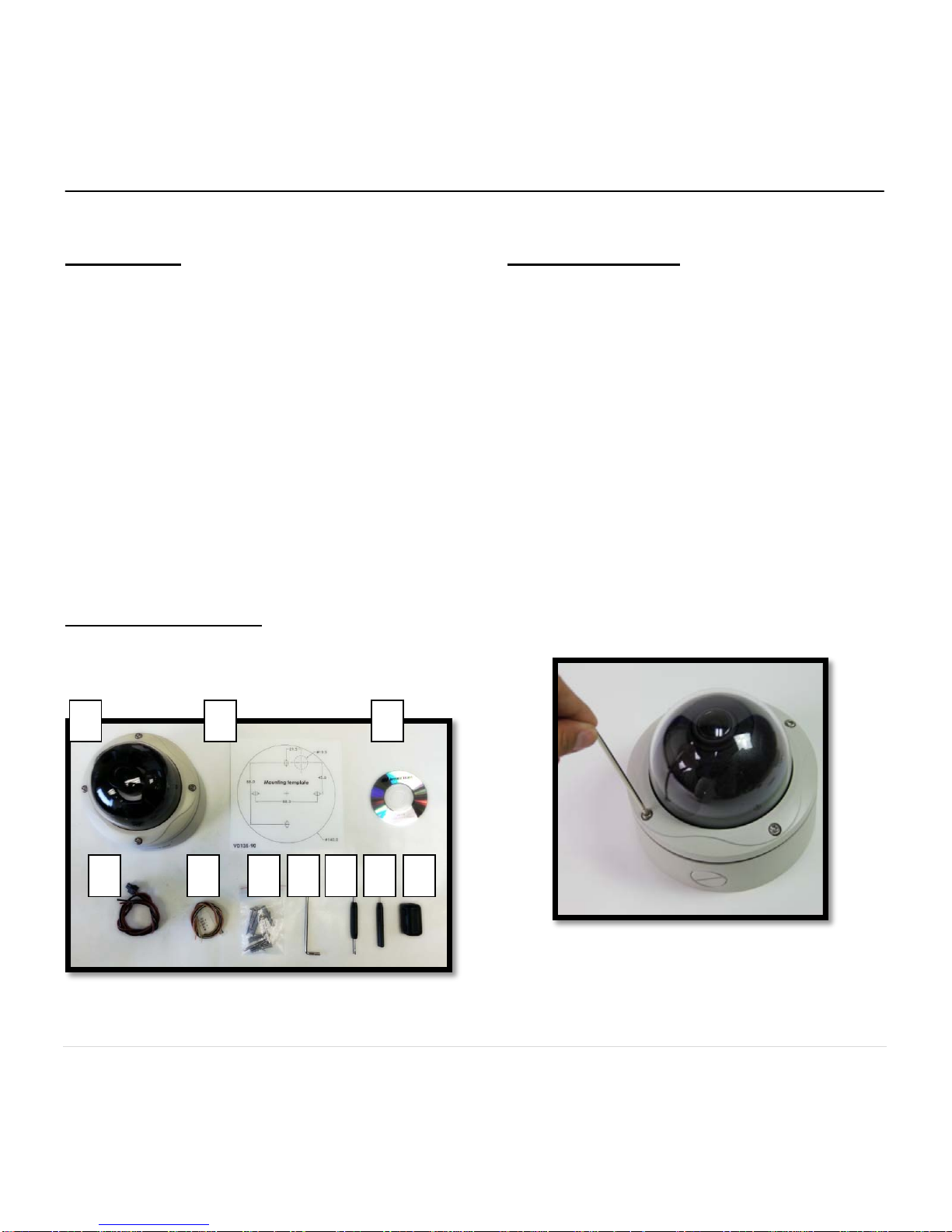

Inside the box:

B. Mounting template

2 camera (DN

Models only)

C. CD with AV100 software and user

manuals (License Key Required for

Recording)

D. AC & DC power cable

E. I/O cable

F. Pack of four (4) wood screws and four (4)

dry wall anchors

G. Security L-Key

H. One double-sided hex key

I. One single-sided hex key

J. Magnetic core

•#1 Phillips head screwdriver

Not included but needed:

•#2 Phillips head screwdriver

Image 1

Mounting the Camera:

1. Remove the camera and hardware from the

box.

2. Using the mounting template, prepare the

mounting surface for camera installation.

NOTE: the 19.5mm diameter hole on the

Mounting template is where the Ethernet

cable will be exiting the MegaDome®

2 align

accordingly. If using the side conduit hole,

please see step 4following.

3. Using Security L-key, loosen the four (4)

screws securing the dome cover (Image 2).

Remove the vandal resistant dome cover.

NOTE: Do not remove the screws from the

dome cover.

Image 2

Arecont Vision MegaDome®2 Installation Manual

2 | Page

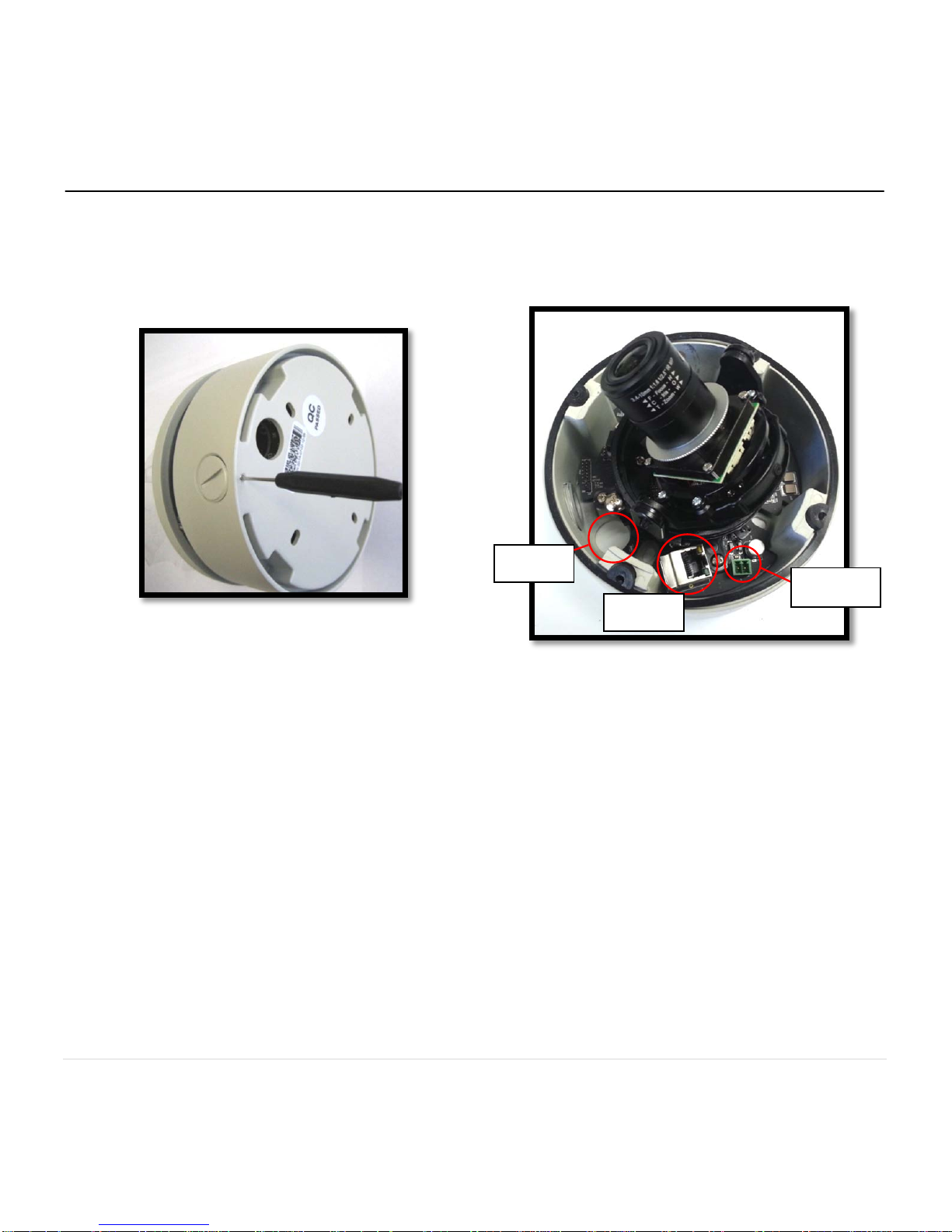

4. If you are using the side conduit opening,

remove the conduit plug by first removing

the socket set screw using the provided

double-sided hex key (Image 3).

Image 3

Note: Make sure that you install the rubber

gasket on the bottom of the camera to form a

weather tight seal with the mount surface.

5. Run the Ethernet cable through the gasket

and the hole on the bottom of the camera

(Image 4) or run the cable through the side

conduit and plug it into the RJ45 port. NOTE:

If the camera will be powered via PoE, please

skip to step 6.

6. If the camera will be powered by an AC or DC

power supply, run the supplied power cable

through the gasket and the hole on the bottom

of the camera or run the cable through the

side conduit and connect it to its respective

connector inside the camera (Image 3).

NOTE: Make sure that your installation of

wires complies with Electrical Code of the

local government where the camera is

installed and that no bare wires are exposed.

Image 4

7. Align the holes in the camera with the

prepared holes on the mounting surface.

Attach the camera to the mounting surface

with the wood screws or any optional

hardware suitable for the mounting surface.

8. Use appropriate mounting accessories to

ensure a water tight installation. Use of silicon

does not guarantee a water resistant install.

HOLE

POWER

RJ-45

Arecont Vision MegaDome®2 Installation Manual

3 | Page

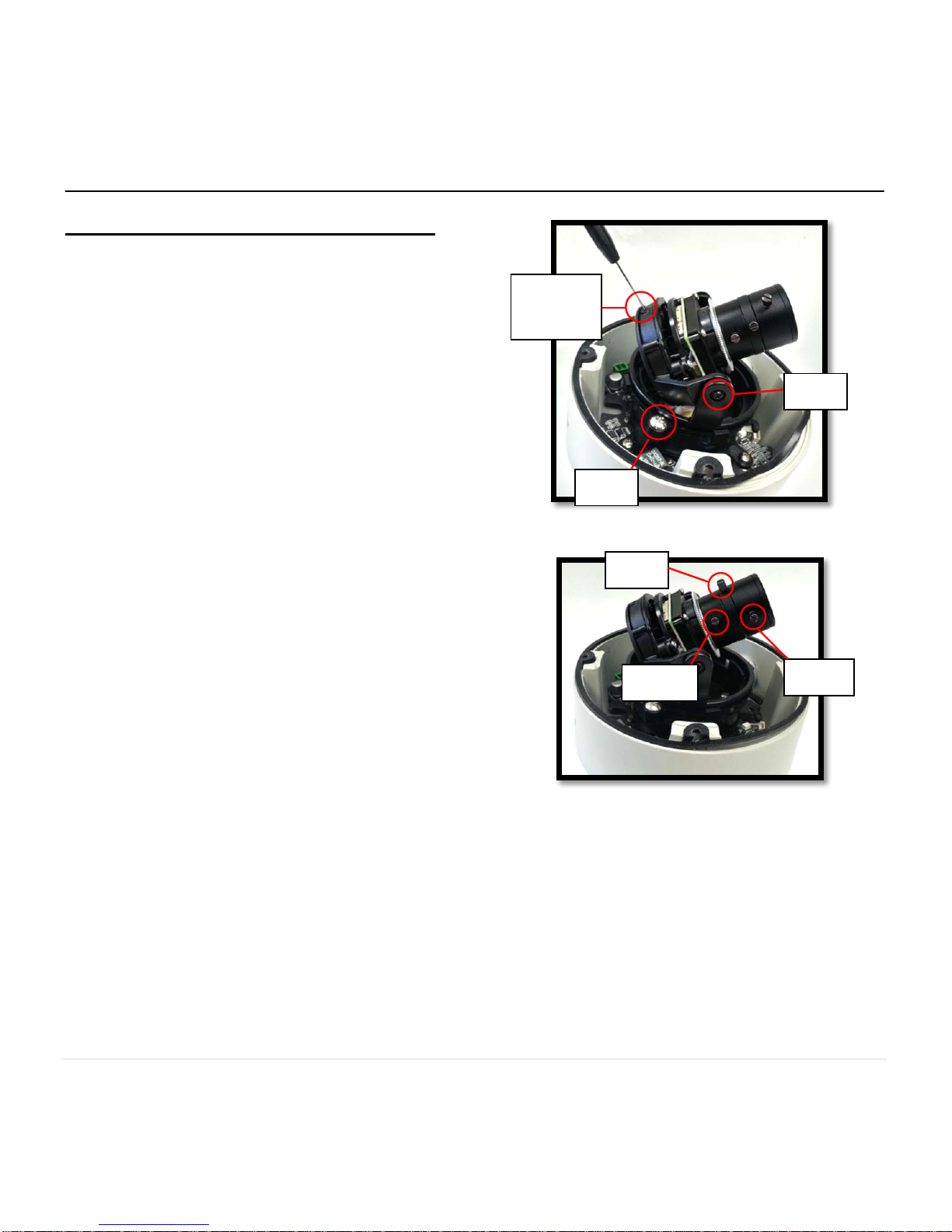

9. To adjust the tilt, use a #1 Phillips screwdriver

to loosen the screw on the side of the plastic

lens bracket 1/4 turn (Image 5). CAUTION:

Do not remove the screw!

Adjusting the Tilt, Pan, Z-Axis (yaw) and Focus:

10. Adjust lens tilt as required and tighten the

screw.

11. To adjust the pan, use a #2 Phillips

screwdriver to loosen the screw as shown in

Image 5.

CAUTION: Do not remove the screw.

12. Adjust the pan as required and tighten the

screw.

13. To adjust the Z-Axis, or yaw, for vertical wall

mounting, loosen the set screw as shown in

Image 5-1.

NOTE: There are two set screws on opposite

sides; both need to be loosened.

CAUTION: Do not remove the screw.

14. Adjust the Z-Axis as required and tighten the

set screws.

15. To adjust back focus, loosen the three (3) set

screws with the appropriate Allen key as

shown Image 5-2 (only one of two screw

holes shown). Adjust the silver back focus

ring as needed and tighten down the set

screws.

17. To focus the lens, loosen the three set screws

as shown in Image 5-2 and adjust each as

needed.

Image 5-1

Image 5-2

16. Remove the protective film from the camera

dome.

NOTE: Be careful not to scratch the vandal

dome cover.

17. Secure the vandal dome cover to the camera

using the provided security L-Key.

Z-Axis

(Yaw)

Tilt

Pan

Zoom

Focus

Iris

Arecont Vision MegaDome®2 Installation Manual

4 | Page

Camera Installation:

18. Install the AV100 application manager

Software as shown in Image 7 (found on the

CD).

19. Run the AV100 application manager by double

clicking on the icon as shown in Image 8

(found on your desktop).

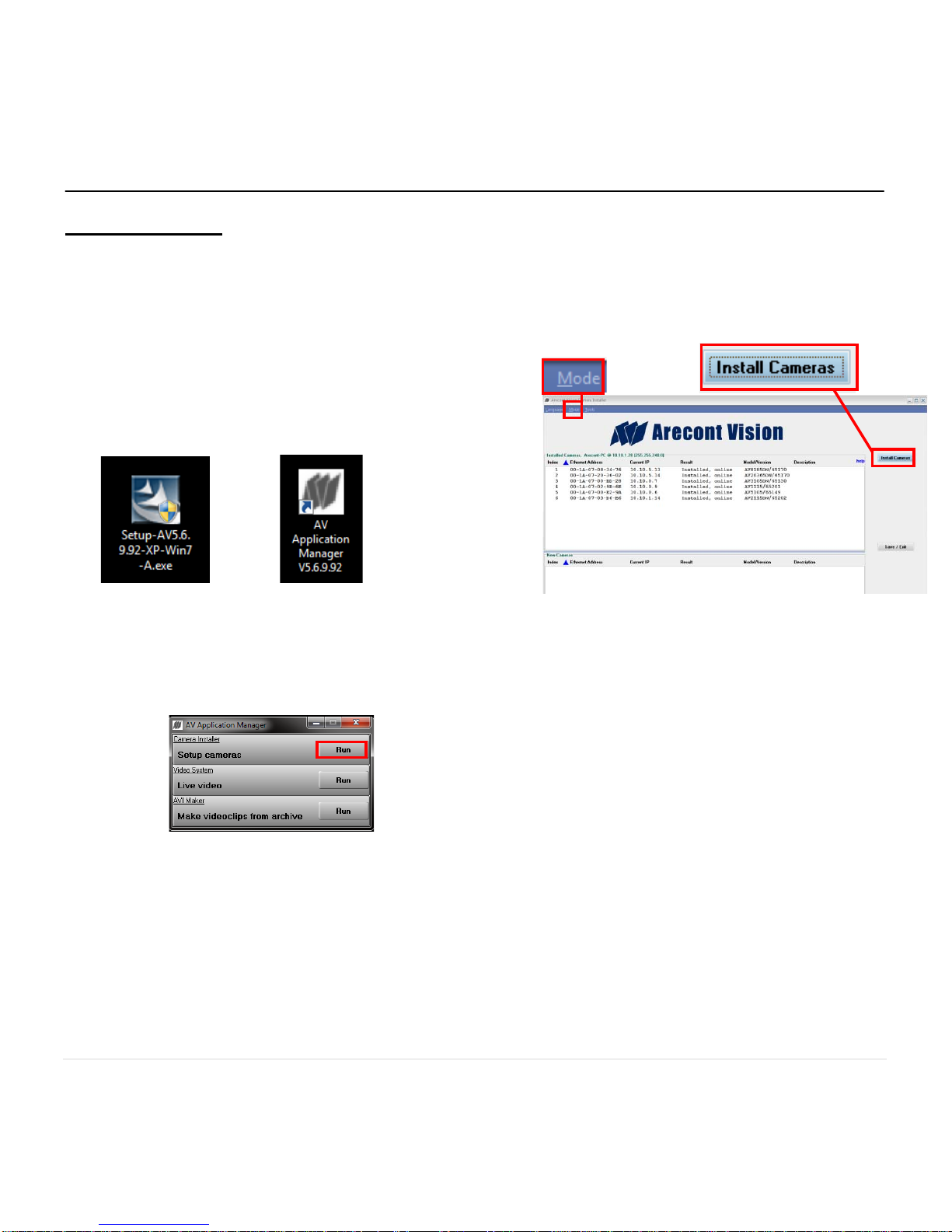

Image 7 Image 8

20. Select “Run” next to “Setup Cameras” from the

AV100 application manager as shown in

Image 9and wait for “Arecont Vision Camera

Installer” window to appear as shown in Image

10.

Image 9

21. Click “Mode” tab to select desired install mode

on Arecont Vision Camera Installer as shown

in Image 10.

NOTE 1: Basic Mode (default setting): software

will automatically discover and change / assign

IP address to match PC subnet.

NOTE 2: Advanced Mode: software will

automatically discover but allow manual update

of the IP address. See “AV100 Installation

Manual” (found on the CD) for details on

Advanced Mode.

Image 10

22. Select “Install Cameras” on Arecont Vision

Camera Installer as shown in Image 10.

23. Confirm all cameras connected to the network

switch appear in the upper window.

24. Repeat Step 22 if all of the cameras do not

appear in the upper window.

CAUTION: If the software does not find a

camera, the software utility may be blocked by

the anti-virus or Windows®

NOTE : Double click the camera model on the

Camera Installer as shown in Image 11 to

access the camera web interface. See “AV

firewall. Before

turning them off, please consult your IT

manager.

Arecont Vision MegaDome®2 Installation Manual

5 | Page

Camera Web Page User Manual” (found on the

CD) for details on the web interface.

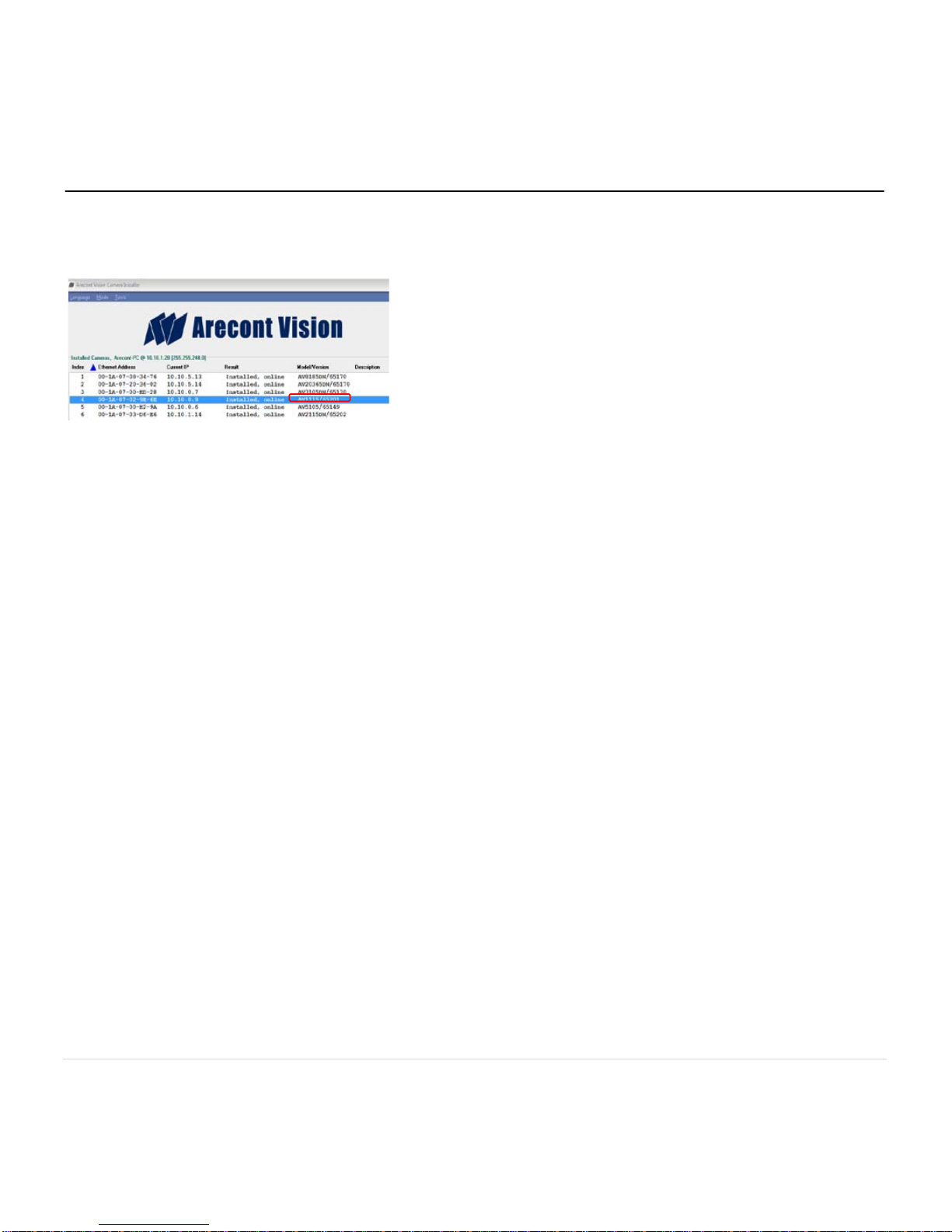

Image 11

25. When all cameras appear, select “Save/Exit.”

The AV100 application will appear.

26. From the “AV100 Application Manager” menu,

select “Run” to view live images.

NOTE: See the “AV100 Installation Manual”

(found on CD) for details on camera

configurations.

Arecont Vision MegaDome®2 Installation Manual

6 | Page

Important Note

Correct Installation:

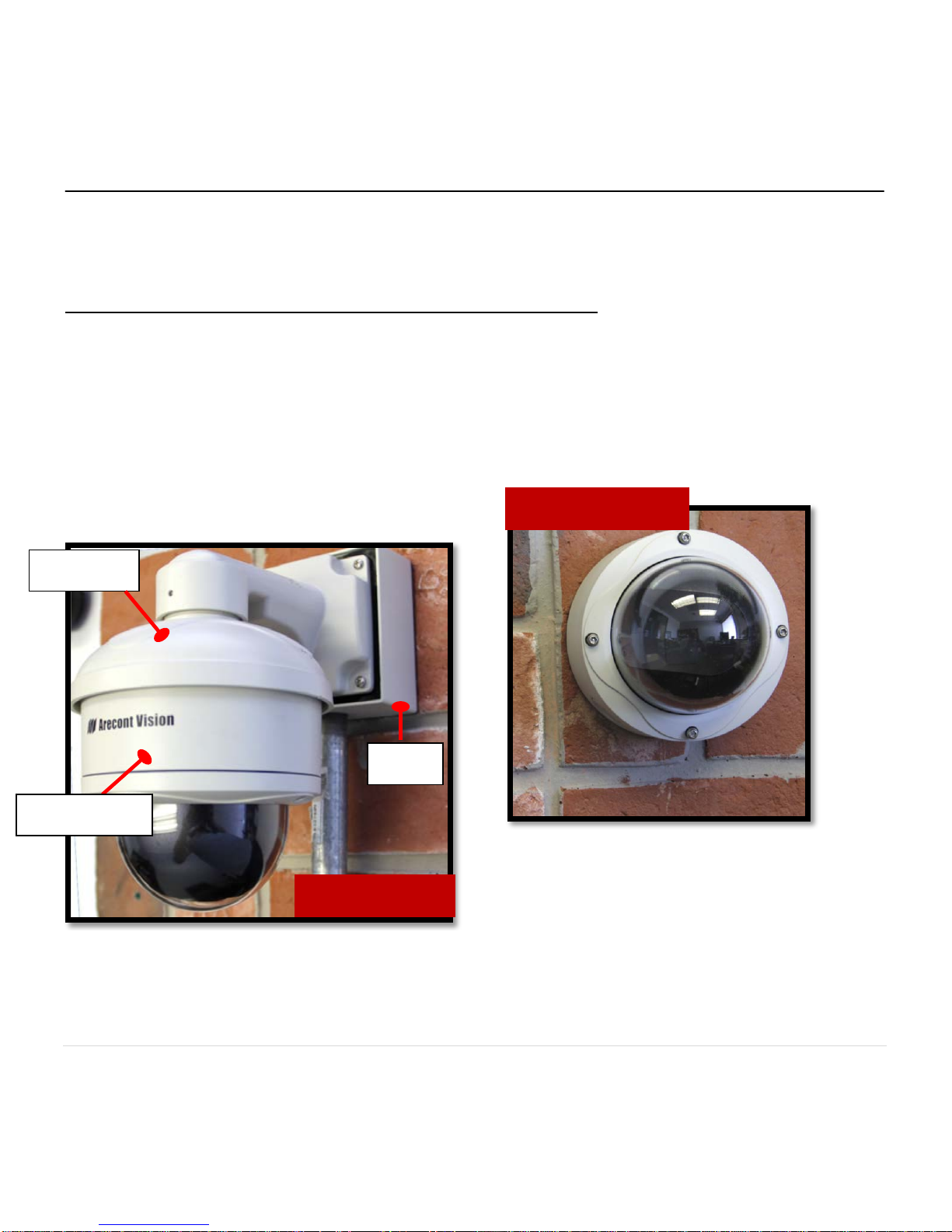

How to correctly install MegaDome® 2 on a ROUGH surface wall

Please install the MegaDome® 2 with wall

mount, (MD-WMT2) and junction box adapter

(SV-JBA) to avoid water leakage risk on

ROUGH surface wall surface as shown in

Image 15.

Image 15

Note: Please see how to install MD-WMT2 on page

9 and SV-JBA on page 10.

Inappropriate Installation:

Attaching the MegaDome® 2 directly onto a

ROUGH wall surface may result in water

leakage see Image 16!

Image 16

NOTE: Water damage from improper installation is

not covered by the warranty!

MD-WMT2

Not Recommended!

SV-JBA

Recommended!

MegaDome® 2

Arecont Vision MegaDome®2 Installation Manual

7 | Page

MegaDome®

2 Accessory (Sold Separately)

Wall Mount (MD-WMT2) Installation Instructions

MD-WMT2 only fits with SV-JBA and SV-EBA but

not with the older MD-JBA and MD-EBA!

Caution:

A. Wall mount

Inside the box:

B. Top shield

C. Mounting template

D. One double-sided hex key

E. Pack of four (4) machine screws

F. Pack of four (4) wood screws and four (4)

dry wall anchors

•#2 Phillips head screwdriver

Not included but needed:

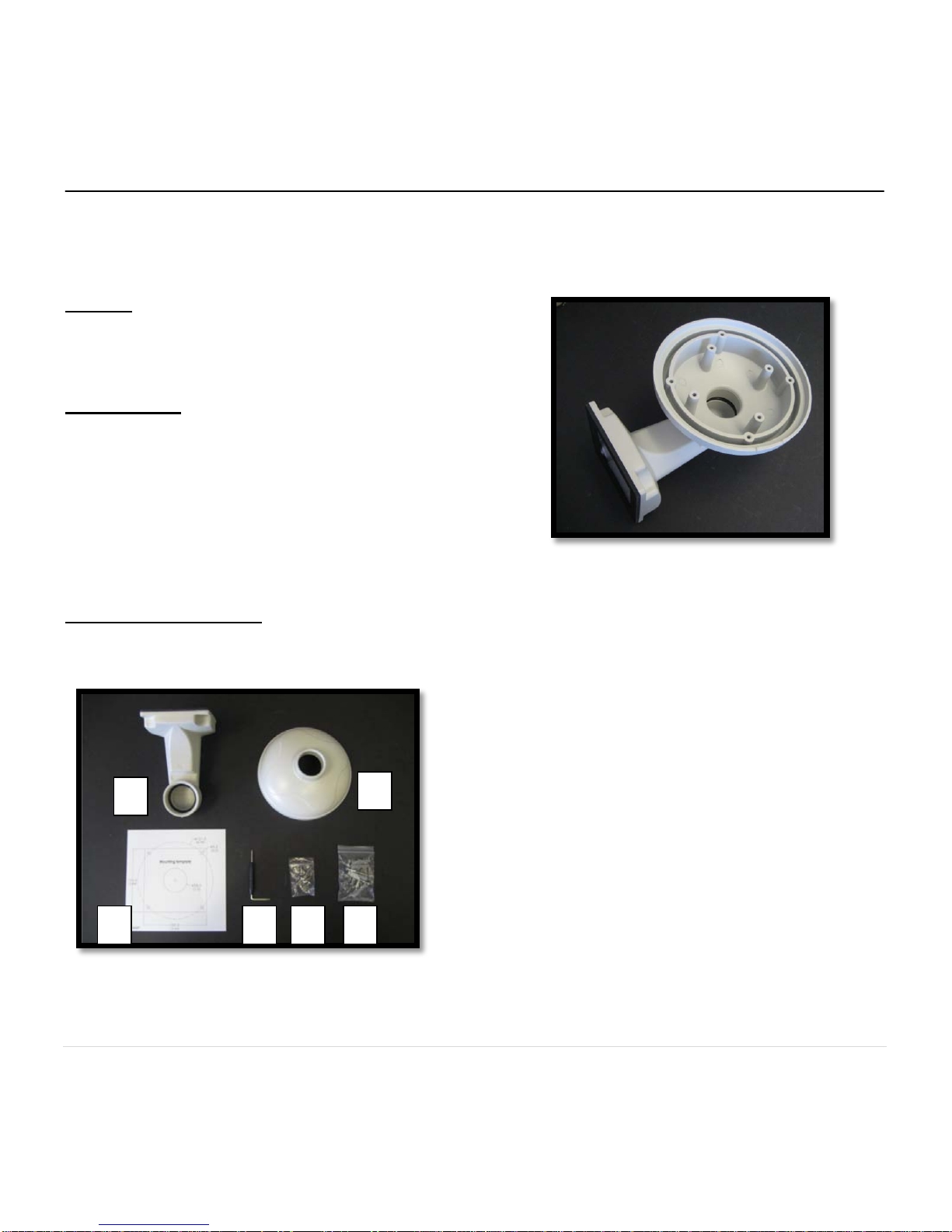

Image 17

1. Remove the wall mount and hardware from

the box.

Image 18

2. Using the mounting template, prepare the

mounting surface.

3. Attach wall mount to the wall using drywall

screws or any optional hardware suitable for

the mounting surface.

3. Install top shield on the wall mount as shown

in image 18.

4. Fasten the socket set screw using the double-

side hex key (D).

5. Run the Ethernet cable and outside power

cable (if necessary) through the wall mount.

6. For installation of the camera, please

reference “Mounting the Camera.”

Arecont Vision MegaDome®2 Installation Manual

8 | Page

MegaDome®

2 Accessory (Sold Separately)

Junction Box Adapter (SV-JBA) for MD-WMT2 Installation Instruction

SV-JBA should always be used in conjunction with

a wall mount, MD-WMT2, for outdoor installation.

Caution:

SV-JBA will only fit with the MD-WMT2 wall mount.

It does not fit the camera dome or older wall mount

MD-CMT!

A. Junction Box Adapter

Inside the box:

B. Pack of four (4) machine screws

C. One double-sided hex key

D. Pack of four (4) wood screws and four (4)

dry wall anchors

E. Mounting template

•#2 Phillips head screwdriver

Not included but needed:

•Wall Mount, MD-WMT

•¾” NPT Conduit (if necessary)

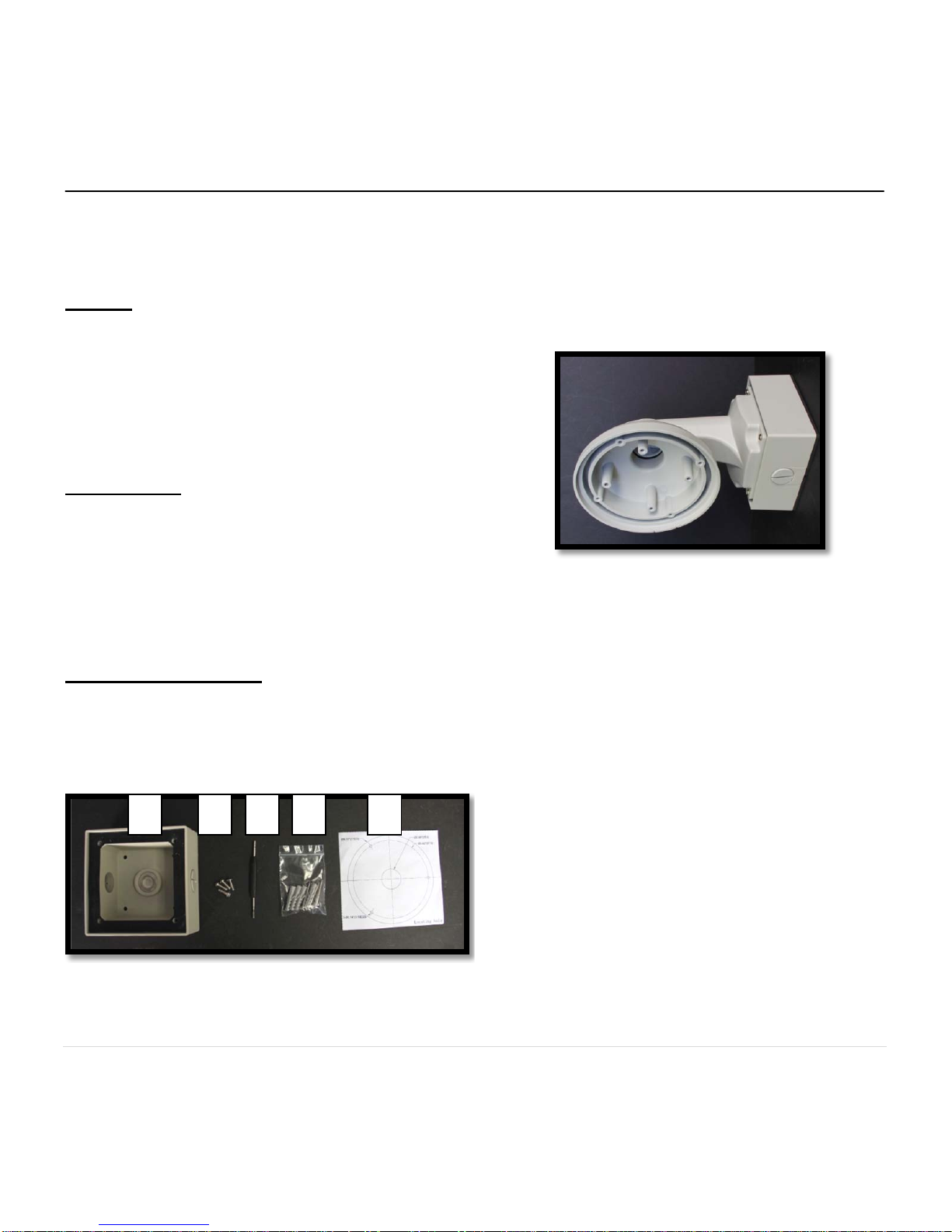

Image 19

1. Remove junction box adapter and hardware

from the box

Image 20

2. Remove the conduit plug by first removing the

socket set screw using the provided hex key

(C).

3. Attach the junction box adapter to the wall

using drywall screws or any optional hardware

suitable for the mounting surface.

4. Attach the wall mount to junction box adapter

then attach cap to the wall mount as shown in

Image 20.

5. Connect ¾” NPT Conduit to the junction box

adapter.

6. Run Ethernet cable and outside power cable

(if necessary) through the Junction Box

Adapter and Wall Mount.

7. For installation of the camera, please

reference “Mounting the Camera.”

B CA D E

Arecont Vision MegaDome®2 Installation Manual

9 | Page

MegaDome®

2 Accessory (Sold Separately)

Pendant Mount (MD-CMT) Installation Instructions

Inside the box:

A. Top shield

B. Pendant Mount

C. Mounting template

D. Pack of four (4) small machine screws

E. Pack of four (4) machine screws

F. Pack of four (4) wood screws and four (4)

dry wall anchors

G. One double-sided hex key

H. Small square rubber gasket

I. Large round rubber gasket

J. #2 Phillips head screwdriver

Not included but needed:

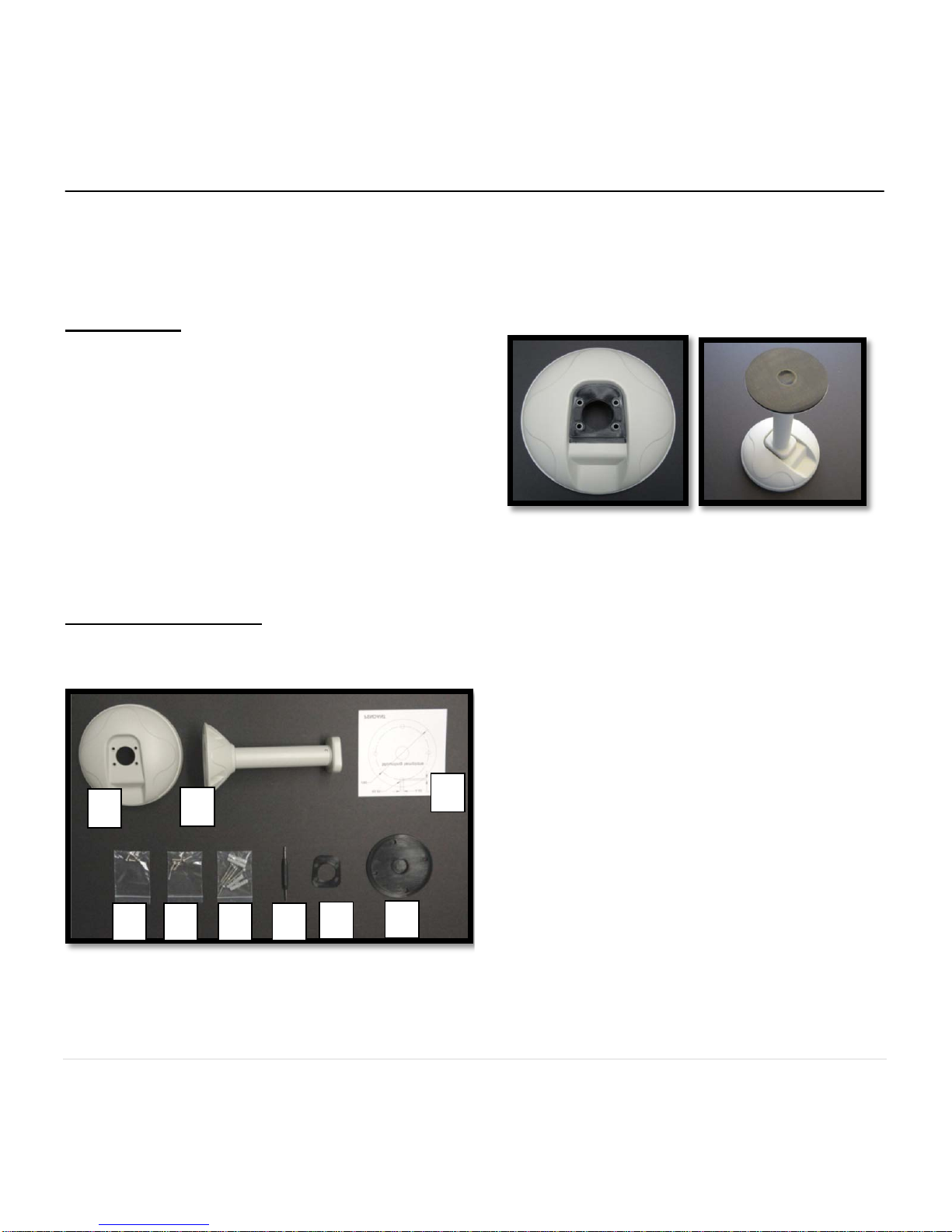

Image 21

1. Remove Pendant Mount and hardware from

the box.

Image 22 Image 23

2. Using the mounting template, prepare the

mounting surface for camera installation.

3. Place small gasket onto pendant mount

shown in image 22.

4. Attach the top shield to the pendant as shown

in Image 23 using four machine screws (E)

provided.

5. Install the large round rubber gasket onto the

pendant as shown in image 23. Be sure to

align the holes appropriately.

6. Run the Ethernet cable and outside power

cable (if necessary) through the Pendant.

7. Attach the pendant to the ceiling using the

four wood screws provided or any optional

hardware suitable for the mounting surface.

8. For installation of the camera, please

reference “Mounting the Camera.”

Autres manuels pour MegaDome 2

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Arecont Vision Caméra de sécurité

Arecont Vision

Arecont Vision MegaView 2 AV1225PMIR-S Manuel utilisateur

Arecont Vision

Arecont Vision SurroundVideo G5 Mini Manuel utilisateur

Arecont Vision

Arecont Vision SurroundVideo Omni AV12176DN-08 Manuel utilisateur

Arecont Vision

Arecont Vision ConteraIP Fisheye AV12CPD-236 Manuel utilisateur

Arecont Vision

Arecont Vision MegaDome G3 Manuel utilisateur

Arecont Vision

Arecont Vision MegaDome 2 Manuel utilisateur

Arecont Vision

Arecont Vision MegaDome AV1355DN-1HK Manuel utilisateur

Arecont Vision

Arecont Vision AV12975DN-NL Manuel utilisateur

Arecont Vision

Arecont Vision D4S Series Manuel utilisateur

Arecont Vision

Arecont Vision MicroDome AV2455DN-S Manuel utilisateur

Arecont Vision

Arecont Vision D4S Series Manuel utilisateur

Arecont Vision

Arecont Vision AV08ZMV-300 Manuel utilisateur

Arecont Vision

Arecont Vision AV1215PM-S Manuel utilisateur

Arecont Vision

Arecont Vision MicroDome G2 AV1555DN-S Manuel utilisateur

Arecont Vision

Arecont Vision AV12ZMV-301 Manuel utilisateur

Arecont Vision

Arecont Vision MegaView v1x series Manuel utilisateur

Arecont Vision

Arecont Vision MicroDome Manuel utilisateur

Arecont Vision

Arecont Vision H.264 Day/Night SurroundVideo Series Manuel utilisateur

Arecont Vision

Arecont Vision AV2225PMIR Manuel utilisateur

Arecont Vision

Arecont Vision AV2325DNIR Manuel utilisateur

Arecont Vision

Arecont Vision Megaball series Manuel utilisateur

Arecont Vision

Arecont Vision AV12275DN-NL Manuel utilisateur

Arecont Vision

Arecont Vision Contera AV02CID-100 Manuel utilisateur

Arecont Vision

Arecont Vision MicroDome AV1455DN-S Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
