Instruction manual –AQ-F215 Simulator 4 (26)
1 AQ-F215 SIMULATOR
AQ-SIM F215 simulates basic outgoing feeder protection and control application.

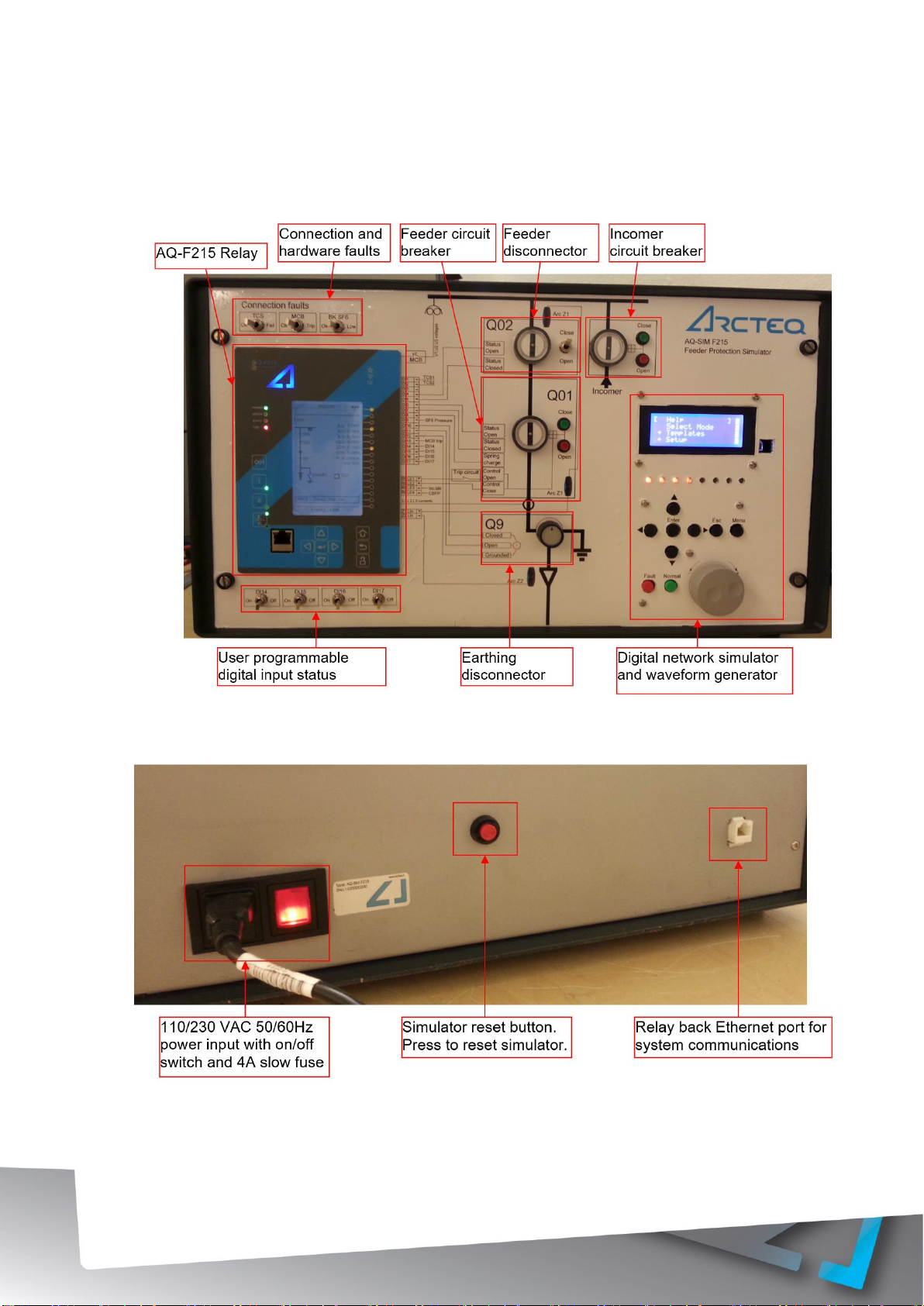

In the picture above is presented the front side of the simulator. Simulator consists of
protection relay, feeder protection model and simulator unit.
Simulator includes voltage and current measurements for the relay. Also, incomer
breaker, bus disconnector, feeder breaker and feeder earthing disconnector are modelled.
Simulator takes care of correct current and voltage feedings based into the feeder switch
arrangements. In the simulator are preprogrammed faults (Overcurrent, feeder arc fault,
bus arc fault, current unbalance, earth fault and user programmed fault) as well as
hardware faults (broken trip circuit, voltage measurement fuse fault, and breaker SF6
pressure alarm) which can be applied to relay and so demonstrate the relay operations.
Simulator is full digital design, so it can be upgraded easily to match different
requirements. Factory defaults can be modified in the simulator menus by user. When the
simulator is powered off the simulator will be reset to factory defaults allowing always the
same starting point for the users in case if the simulator setting is gone wrong.
