ARC MJLT-2005 Manuel utilisateur

1

Issue date: 29/7/2021

SHUTTER REMOTE CONTROL

&

RECEIVER MODULE

MJLT-2005+MJLR-2001

CONTENTS

1. Overview and features Page 2.

2. Diagrams Page 3.

3. Battery Page 4.

4. Mounting on surface Page 6.

5. Installation wiring Page 7.

6. Pairing / Un-pairing device Page 10.

7. Motor calibration Page 11.

8. Operation Page 13.

9. Specifications Page 20.

2

Issue date: 29/7/2021

1.Overview and features

From shutters to pavilions, motorized electronics and furnishing are part of a

modern home. Now they can be part of your connected home.

2-in-1 handy remote or wall switch control can easily be wall mounted and or

affix on any magnetic base.

Main features;

Remote Control

•Compatible to L and M series.

•Control shutter/curtains up, down or stop at any level.

•2 scene button, configure your favorite scenario scenes.

•3V CR2032 battery operation.

•Red LED indication representing different operation status.

•Easy screw mounting or on magnetic surface.

Receiver Module

•32 memories, first in first out storage maintain.

•Built-it motor calibration setting.

•Scene status memory, create your desired atmosphere.

OVERVIEW AND FEATURES

3

Issue date: 29/7/2021

2.Diagrams.

Main Handy Remote Control

Magnetic Back Holder

Front Back

Receiver Module

DIAGRAMS

Red LED

On / Up

Off / Down

Fixing Screws

Scene 1 / 2

4

Issue date: 29/7/2021

3.Battery

1. With a Φ3mm flat headed screwdriver, insert into the allocated slot and with

a little force push open the battery cover then remove battery insulation stirp.

(First time use only)

2. Insert flat headed screwdriver and slightly lift to remove battery.

BATTERY

5

Issue date: 29/7/2021

3. Insert new 3V CR2032 battery making sure the positive symbol is facing

upwards and slide back the battery cover.

LITHIUM BATTERY CAUTION:

Risk of Explosion if battery is replaced by an incorrect type. Dispose of used

batteries according to the environment protection rules.

BATTERY

6

Issue date: 29/7/2021

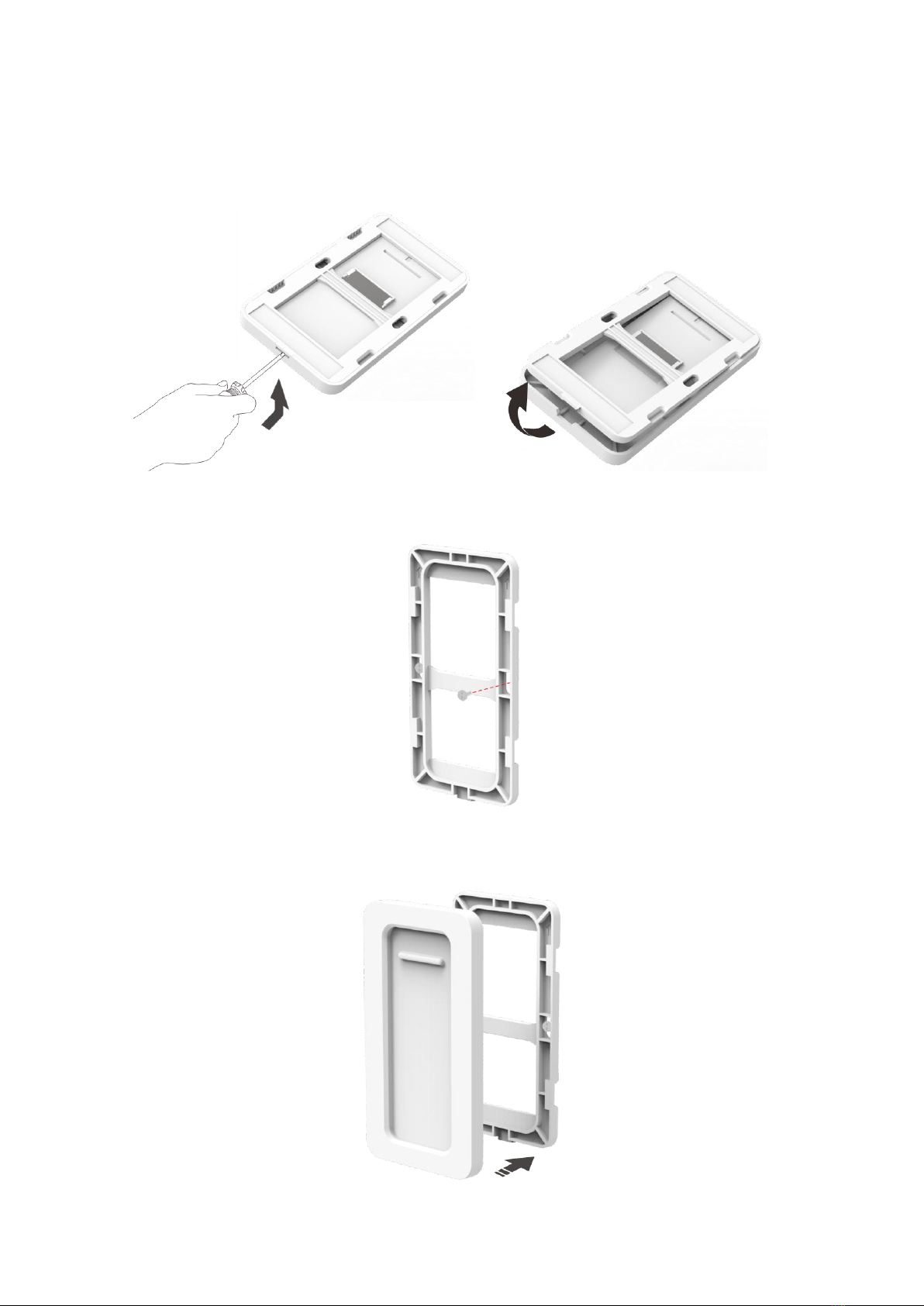

4.Mounting On Surface

1. Insert flat headed screwdriver into the button slot and lift open the front

magnetic holder.

2. Position the back magnetic holder onto surface making sure the arrow is

facing up then affix tightly with 2 screws.

3. Align the front magnetic holder onto the 4 clips and with a little force push

forward making sure ‘click’ sound is heard.

MOUNTING

7

Issue date: 29/7/2021

5.Installation –Wiring

To install module into wall box, break off the mounting tabs.

WIRING

Cut off main power before installing and wiring.

⚫Strip wires at least 7mm then connect the wires as per diagrams below,

ensure terminals are properly tightened and no bare wire is visible.

⚫Suitable wire size for terminal is 1.6mm2 to 2mm2

INSTALLATION - WIRING

8

Issue date: 29/7/2021

With 230V Motor

1. Connect permanent Live wire into module terminal [L].

2. Connect Neutral wire into module terminal [N].

3. Connect jump wire in between module terminal [Com] and [L].

4. Connect 2 Live wire from motor into module terminal [], one to control

‘Up’and one to control ‘Down’.

5. Connect Neutral wire into Motor terminal.

6. Tighten the terminal screws.

7. Connect back mains power supply and proceed pairing with remote control.

INSTALLATION - WIRING

9

Issue date: 29/7/2021

With 24V Motor

1. Connect permanent Live wire into module terminal [L].

2. Connect Neutral wire into module terminal [N].

3. Connect 2 Live wire (A+ & B+) from motor into module terminal [], one to

control ‘Up’and one to control ‘Down’.

4. Connect wire from motor terminal 24V+ to module terminal [Com].

5. Connect wires 24V- & 24V+ to motor.

6. Tighten the terminal screws.

7. Connect back mains power supply and proceed pairing with remote control.

INSTALLATION - WIRING

10

Issue date: 29/7/2021

6.Pairing / Un-pairing Device

PAIRING

Pairing using LEARNING MODE:

1. On the module receiver, press ‘Learn’ button once (Left LED on module will

flash), this will enter learning mode.

2. Within 6 seconds press the UP button to pair, left LED will quick flash to

confirm that pairing is successful and complete.

NOTE: If no signal is received from a remote control within 12 seconds then the

module will automatically exit learning mode without pairing the device.

To exit learning mode manually, simply press the ‘Learn’ button again.

UN-PAIRING

1. On the module receiver, press ‘Learn’ button once (Left LED on module will

flash), this will enter learning mode.

2. Within 6 seconds press the DOWN button to unpair, left LED will quick

flash to confirm that unpairing is successful and complete.

CLEARING ALL MEMORY

Removing all memory stored in the module.

1. On the module press the ‘Learn’ button for 6 seconds, left LED on module

will flash.

2. Release button then press again, this will remove all memory stored in the

module.

PAIRING / UN-PARING DEVICE
