APRILIA ESR2 Manuel utilisateur

electric scooter

User Manual

English | Italiano | Español | Français

Deutsch | Polskie | Português | Ελληνικά

Index

English

Italiano

Español

Français

Deutsch

Polskie

Português

Ελληνικά

106

141

176

211

246

electric scooter

User manual

Thank you for choosing this product.

For information, technical support and assistance, contact your dealer

or visit the website www.apriliasmartmovement.com

English

Indice

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

Safety instructions

Quick-start guide

Contents

Product overview

Control information/Control panel

Assembly and set-up

Fold and carry

Battery charging and activation

Adjusting the brakes

Range

Storage and cleaning

General warnings

App conguration

Learn to drive

Battery (Warnings)

Responsibilities

Maintenance and daily care

Data sheet

Troubleshooting

Error code table

1. Safety instructions

Please read the following instructions carefully before using the product. Save this manual

for future reference or new users.

• The company will not assume any liability deriving from misuse of the product or non-

compliance with road regulations and the instructions in this manual.

• This electric scooter is not a toy. Use it responsibly, with care and respect for others.

• Check the local regulations in force regarding the use of this type of product before using

it and be sure to follow the local regulations. Drive responsibly and pay attention to

people and obstacles to avoid accidents.

• Always use the recommended clothing: non-slip gloves, knee and elbow pads and wear a

helmet.

• The person driving this scooter must be able to place both feet on the oor easily when

holding the handlebars at the correct height.

• When stopping or parking your vehicle, be sure to do so on a smooth, safe surface

• The maximum load capacity for the product is 100kg.

• This product may not be used by more than one person at the same time.

• Misuse of the product or non-compliance with the instructions in this manual may cause

serious damage.

• Should technical problems occur, contact the Technical Assistance Service at your dealer.

• Do not attempt to disassemble or repair the product on your own.

• Do not leave the battery near re or heat sources.

• Avoid using used, defective and/or non-original batteries.

• Do not sit on the product either when driving or stationary.

• In the event that the user who is going to use the product is not familiar with driving this

type of vehicle, it is recommended that they be instructed on the basics of driving by an

adult before using it for the rst time, regarding the following aspects:

1. Acceleration

2. Deceleration

3. Braking

4. Basic driving rules

2. Quick-start guide

• When you use it for the rst time, charge the scooter to 100%.

• Press the power button for a few seconds to start it.

• Check the battery indicator, if the battery is low, recharge it before use, the electric

scooter is a device that requires periodic charging to work.

• Check the tyre pressure (36 PSI) if the scooter has not travelled at least 60% of the

stated km or reached the maximum speed in the rst 3 months of use, it is likely that the

wheels have deated again, it will thus be necessary to restore the pressure as indicated.

• Place the scooter on a at surface.

• Put your hands on the handlebar. Step onto the footplate with one foot and use the other

to give yourself a gentle push and accelerate.

• When the scooter begins to move, place both feet on the footplate and press the

accelerator.

• To drive the scooter, tilt your body in the direction of travel when turning and slowly turn

the handlebars.

• To stop the scooter, release the accelerator and press the electronic or lever brake on the

left side of the handlebar.

• To dismount, rst stop the scooter completely. Trying to get off the scooter while it is in

motion can cause injury.

• When you want to change speed mode, click the ON/OFF button (button B in

chapter 5).

• When driving at night or in dark places,double click the ON/OFF button to turn on the

lights, and wear a reective vest.

For your own safety, wear a helmet and knee pads to protect yourself against falls and

injuries while learning to ride the electric scooter.

The rider assumes all risks for not wearing a helmet or other protective gear.

Always respect the trafc code and trafc-related rules and regulations that are applicable

to cyclists in the country of circulation.

The accelerator is activated once the forward speed exceeds 3 km/h.

For safety reasons, the scooter is initially set up to avoid a standing start.

NOTICE

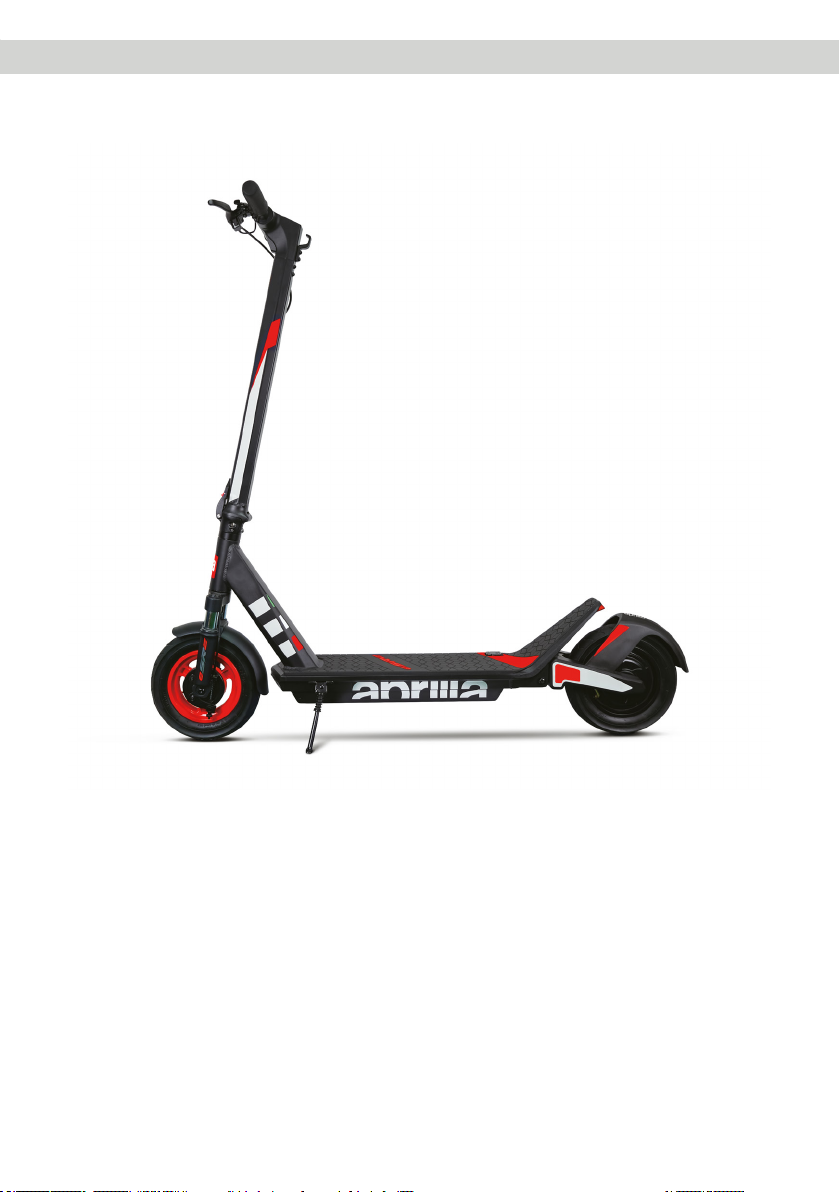

3. Package contents

Assembled scooter, the handlebar has to be installed with the appropriate screws.

The pack includes:

- 1x hexagonal key (3mm)

- 2x M5 screws

- 1x washers

- 1x charger

0606

4. Product overview

brake lever

locking hook

footboard hook closure

motor with

electronic brake

rear wheel

rear

suspension fork

rear light

kickstand

charging

port

framedrum brakefront wheel

headlight

locking mechanism

bell

accelerator

display

front

suspension fork

0707

5. Control information/Control panel

1. Speedometer: Displays the current speed of the scooter.

2. Battery Level: The battery level is indicated by 4 bars. Each bar equals around 25% of

charge.

3. ODO: Total distance travelled.

4. TRIP: Single trip distance.

5. Headlights: Headlight indicator light.

6. Mode 3 - The display shows the number 3 (up to 25km/h)

7. Mode 2 - The display shows the number 2 (up to 20km/h)

8. Mode 1 - The display shows the number 1 (up to 6km/h)

9. Cruise Control: Maintenance of speed. It is activated after the same speed has been

maintained for a few seconds.

10. Bluetooth (always ON)

73 4

0808

• Power Button (B): Hold it for some seconds to turn the scooter ON/OFF.

• Accelerator (A): Use it to start the scooter and to accelerate.

• Brake (C): Press and hold to brake.

• Mode: Press button (B) once to select the speed mode.

• Headlight and rear light: Double press button (B) to switch them on. When the lights are

on, double press button (B) to turn them off.

• Rapidly press 3 times to switch from Km/h to Mph.

• Rapidly press 4 times the button (B) to switch from ODO to TRIP.

The accelerator is activated once the forward speed exceeds 3 km/h.

NOTICE
