SAFETY INSTRUCTIONS

Read this entire installation manual before beginning installation of the Aprilaire 6000 Series Zone Control System. For questions call Aprilaire

customer support at (800) 334-6011 or visit AprilairePartners.com.

WARNING

1. 120 volts may cause serious injury from electrical shock. Leave power disconnected until installation is complete.

2. The system is designed for indoor use only. Do not expose any of the components to moisture.

WARNING

1. Turn o the system power before removing or installing any wires into the terminals of any component of the system. Wiring with a live

circuit can lead to electrical shorts that can damage components.

2. Installation must be done in accordance with all applicable codes.

3. Installer should touch a grounded metal object before handling the components of the system. This will prevent any static discharge that

may cause damage.

4. A 6000 Series Zone Control System may not control temperature properly unless the heating and cooling system is properly sized and

balanced.

5. Insucient air ﬂow or excessive temperatures through the heating and cooling system could result in equipment damage. Refer to the

manufacturer’s recommendations for minimum safe airﬂow and temperature requirements.

6. Do not mount the 6000 Series Control or Sensors on any exterior wall or equipment supply ductwork.

7. Do not install the system components where temperatures exceed 158°F (70°C) or are below 32°F (0°C), non-condensing.

8. Improper system installation could cause water damage from frozen pipes. Check system operation after installation.

READ AND SAVE THESE INSTRUCTIONS

6000 Series Zone Control System

For models 6010, 6015, 6020, 6025, 6030, 6035,

6040, 6045, 6045M

Safety & Installation Instructions

TABLE OF CONTENTS

SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

APPLICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

LAYOUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

6000 Series Hub . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

6000 Series Control Home Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

6000 Series Sensor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

6000 SERIES HUB INSTALLATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

6000 SERIES HUB WIRING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Transformer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Damper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Outdoor Temperature Sensor (Included) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Discharge Air Temperature Sensor (Included) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Return Air Temperature Sensor (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

HVAC Equipment Wiring Diagrams. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Indoor Air Quality Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

6000 SERIES CONTROL AND SENSORS INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Location Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Wiring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

INSTALLER SETUP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

6000 Series Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Installer Setup Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

INSTALLER TOOLS AND TEST TABLE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Table 2: Installer Tools and Test Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

INSTALLER SETTINGS TABLES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Table 3: General System Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Table 4: Thermostat System Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Table 5: Zone System Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Indoor Air Quality (IAQ). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Table 6: Humidifier System Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Table 7: Dehumidifier System Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Table 8: Air Cleaning System Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Table 9: Fresh Air System Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

WI-FI SETUP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

For Aprilaire App Connected Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

For Home Automation Connected Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Connect to a Network using the 6000 Series Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Connect to a Network using a Browser. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

6000 SERIES SENSOR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Zone Number Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

INSTALLER TEST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

6000 Series Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

6000 Series Hub . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

SEQUENCE OF OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

SPECIFICATIONS

INPUT RATINGS (6000 SERIES HUB)

Voltage: 18-30VAC 50/60 Hz

MAXIMUM CURRENT

Damper output per zone (fused): 18VA at 158°F, 30VA at 90°F

Note: Use 18 or 20 AWG solid (non-stranded) wire

ENVIRONMENT

6000 Series Hub Temperature (operating): 32°F – 158°F

6000 Series Control and Sensors (operating): 32°F – 120°F

Temperature (shipping): -30°F – 150°F

Humidity: 5% – 90%, non-condensing

DIMENSIONS

8.63 (219) 1.86

(47)

11.19 (284)

3.07 (78)

0.82

(21)

4.99 (127)

7.11 (181)

6000 SERIES HUB

6000 SERIES SENSOR

6000 SERIES CONTROL

4.38 (111)

1.06

(27)

FIGURE 1 – DIMENSIONS IN INCHES (mm)

90-2405

APPLICATIONS

The Aprilaire 6000 Series Zone Control System is available in these configurations:

Model 6010 2 Zone Hub Black Control 1 Black Sensor Model 6030 2 Zone Hub Black Control

Model 6015 2 Zone Hub White Control 1 White Sensor Model 6035 2 Zone Hub White Control

Model 6020 3 Zone Hub Black Control 2 Black Sensors Model 6040 3 Zone Hub Black Control

Model 6025 3 Zone Hub White Control 2 White Sensors Model 6045 3 Zone Hub White Control

Model 6045M 3 Zone Hub White Control

FEATURES

• Remote access using a downloadable app from the iOS App Store and from Google Play Store

• Indoor air quality control

• Humidification with automatic or manual control

• Dehumidification

• Event-Based™ air cleaning

• Ventilation with temperature and humidity limits

• Temperature control

• Heat Blast® raising the room temperature 3°F to 5°F

• One touch Away

• Large touch screen with adjustable backlight

• 7 day programmability

• Displays room temperature, room humidity, temperature setting, and outdoor temperature

• Air filter, humidifier, dehumidifier, and HVAC service reminders

• Programmable fan control with fan circulation mode

• Easy to use temperature control that can override program schedule at any time

• Progressive recovery that ensures proper temperature at the start of a program event

• Built in compressor protection that prevents damage to your equipment

• Two heating and two cooling stages (conventional)

• Four heating and two cooling stages (heat pump)

• Integrated balance point control

• System test mode

LAYOUT

6000 SERIES HUB

TERMINALS

1. HVAC – HVAC connection.

2. JUMPER – RH/RC Jumper.

3. ZONE 1 CONTROL – 6000 Series Control connection.

4. ZONE 2 CONTROL – 6000 Series Sensor 2 connection.

5. ZONE 3 CONTROL – 6000 Series Sensor 3 connection (3Zone

models only).

6. DAMPER 1 – Zone 1 damper connection.

7. DAMPER 2 – Zone 2 damper connection.

8. DAMPER 3 – Zone 3 damper connection (3 Zone models only).

9. REMOTE SENSORS DAT (Discharge Air Temperature).

10. REMOTE SENSORS ODT (Outdoor Air Temperature).

11. REMOTE SENSORS RAT (Returning Air Temperature).

12. POWER – System power connection 24VAC.

13. HUM/AUX – Humidifier (AUX is for future upgrades).

14. DEHUM – Dehumidifier.

15. VENT – Ventilation.

LEDS

16. POWER – Green: 24VAC present. Flashing: Not connected to 6000

Series Control.

17. EM HEAT – Yellow: Emergency heating is active.

18. HEATING – Green: Heating is active.

19. COOLING – Green: Cooling is active.

20. FAN – Green: Fan output is active.

21. HUM/AUX – Green: Humidification output is active (AUX is for future

upgrades).

22. DEHUMIDIFIER – Green: Dehumidification output is active.

23. VENTILATION – Green: Humidification output is active.

24. ZONE 1 – Green: Damper is open. Red: Damper is closed.

25. ZONE 2 – Green: Damper is open. Red: Damper is closed.

26. ZONE 3 – Green: Damper is open. Red: Damper is closed. (3 Zone

models only)

BUTTON

27. INSTALLER TEST BUTTON – See page 24.

90-2406

NOTE: SCREEN BRIGHTENS AFTER FIRST TOUCH.

OUTDOOR

TEMPERATURE

HEATING AND COOLING

EQUIPMENT STATUS

HOLD MENU

& STATUS

FAN MODE

SELECTION

DETAILED

EQUIPMENT STATUS

HEAT BLAST MODE

& STATUS

WEATHER FORECAST

& ALLERGY REPORT

ACTIVE ALERTS &

ALERT SETTINGS

CURRENT SCREEN

RELATED HELP

MAIN MENU

HUMIDIFIER AND

OR DEHUMIDIFIER

INDOOR AIR QUALITY

SCREEN & SIMPLE

STATUS

ROOM TEMPERATURE

TEMPERATURE SETTINGHEATING AND COOLING STATUS

TEMPERATURE ADJUSTMENT

AIR CLEANING

INDOOR AIR QUALITY

SCREEN & SIMPLE

STATUS

COOL SETTING ZONE SELECTIONWI-FI INDICATOR

(STROBES IN SETUP MODE)

FRESH AIR INDOOR

AIR QUALITY SCREEN

& SIMPLE STATUS

AWAY MODE

& STATUS

SYSTEM MODE

SELECTION

ROOM TEMPERATURE

& HUMIDITY

HEAT SETTINGCURRENT DATE AND TIME

(AUTOMATICALLY UPDATED

IF CONNECTED TO INTERNET)

6000 SERIES CONTROL HOME SCREEN

6000 SERIES SENSOR

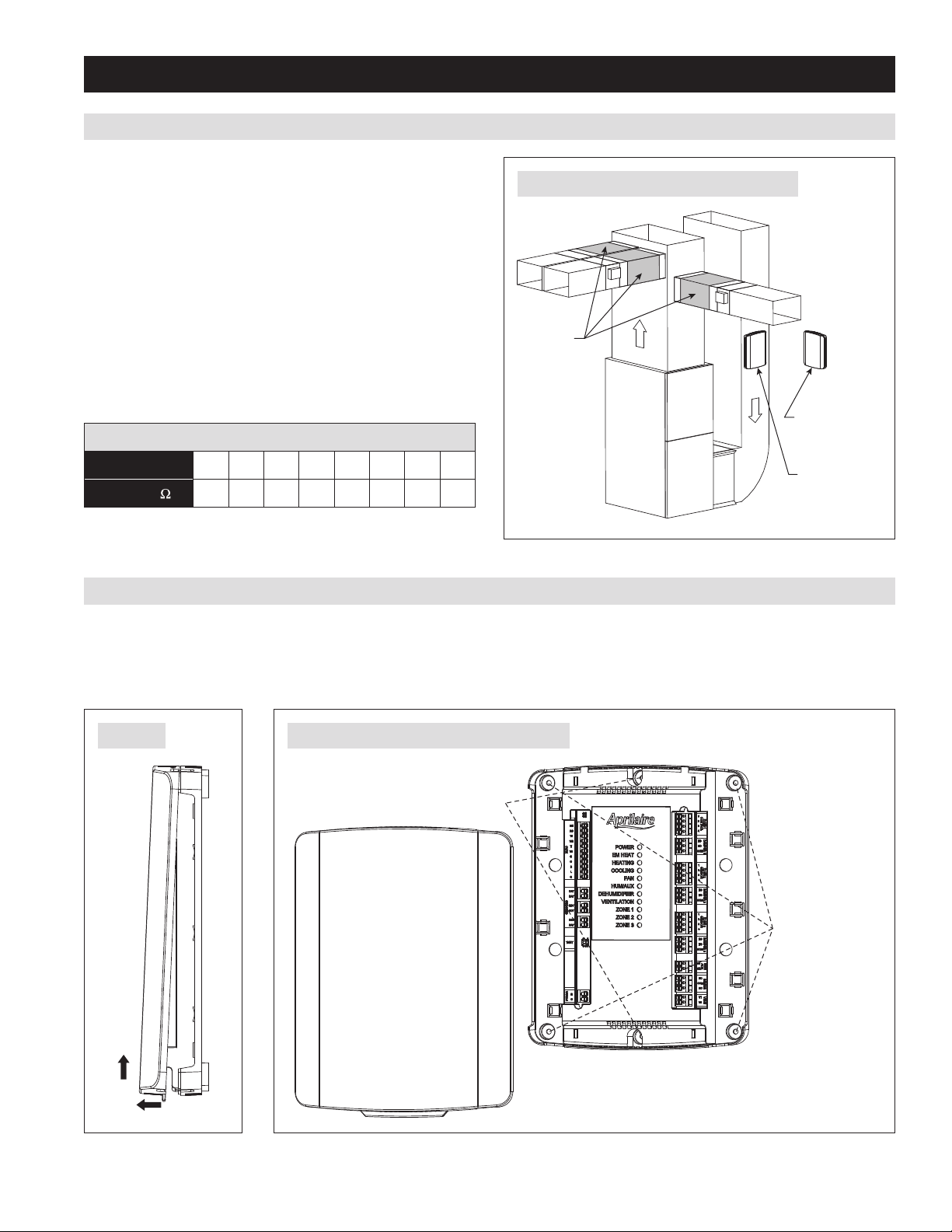

6000 SERIES HUB INSTALLATION

LOCATION

1. Mount the 6000 Series Hub near the HVAC equipment, on an

interior wall, stud or return duct. See FIGURE 2.

2. Locate the Discharge Air Temperature (DAT) in the supply trunk,

downstream of the heat exchanger and cooling coils, and before

the zone dampers (refer to the shaded areas of FIGURE 2).

Note: Do not mount the sensor in direct line-of-sight of the heat

exchanger, cooling coils or UV lights as this may cause the sensor

to report false temperature readings. Do not route wires along

120VAC lines.

3. Before wiring the sensor to the 6000 Series Hub, measure

the resistance across the sensor. The resistance corresponds

(approximately) to the sensed temperature according to TABLE 1.

TABLE 1 – DAT SENSOR RESISTANCE

Temperature (°F) 30 40 50 60 70 80 90 100

Resistance (k )34.6 26.1 19.9 15.3 11.9 9.4 7.4 5.9

MOUNTING

1. Separate the 6000 Series Hub cover from the base. See FIGURE 3.

2. Use the base as a template to drill mounting holes. See FIGURE 4 for mounting hole locations.

3. Attach the base to an interior wall, stud or return duct.

LOCATE DAT

SENSOR IN

SHADED AREA

(SUPPLY DUCT)

HUB MOUNTED ON

WALL OR STUD

HUB MOUNTED ON

RETURN DUCT

USE TWO SCREWS WHEN

ATTACHING TO A WALL STUD

USE FOUR SCREWS

WHEN ATTACHING TO

DRYWALL/PLASTER

FIGURE 2 – 6000 SERIES HUB MOUNTING LOCATION

FIGURE 4 – 6000 SERIES HUB MOUNTING LOCATIONFIGURE 3

90-2407

90-240990-2408

6000 SERIES HUB WIRING

WARNING

120 volts may cause serious injury from electrical shock. Sudden

operation may cause serious injury from moving parts. Leave

power disconnected until installation is complete.

Follow these steps for all system connections. Wiring will vary

depending on equipment. Wiring of the system must comply with

applicable codes, ordinances and regulations.

• Use only 18 or 20 gauge solid (non-stranded) wire.

• Strip off 7/16" of insulation from the wire.

• Push wire into the terminal of the 6000 Series Hub.

• To release the wire, press down on the top of the terminal and pull

the wire out.

• The 6000 Series Hub supports multiple options to route and anchor

wires to the housing. See FIGURE 5.

WIRE TIE MOUNTS

FIGURE 5 – WIRE TIE MOUNTS

90-2073

TRANSFORMER

Note: The HVAC equipment transformer cannot be used for power. A

separate transformer should be used to power the system.

1. Wire 24VAC from transformer to the POWER, R and C terminals (see

FIGURE 6).

2. Sizing of transformer to accommodate the number of dampers:

a. Select your damper type.

OPTION 1: Normally Open/Power Close Dampers (2-Wire)

i. Add up all the zone dampers that are in the system.

ii. Subtract the number of dampers in the zone with the least number of dampers. This is the greatest number of dampers that could be

energized at one time.

iii. Multiply this number by 10 to determine the damper VA requirement. Add an additional 10VA for the 6000 Series System.

Example: If you have a 3-zone system, and there are two dampers per zone, then the total number of dampers that could be energized at

one time is,

6 dampers – 2 dampers = 4 dampers

4 dampers x 10VA per damper + 10VA for 6000 Series System = 50VA required

OPTION 2: Power Open/Power Close Dampers (3-Wire)

i. Add up all the zone dampers that are in the system.

ii. Multiply this number by 2.5 to determine the transformer size. Add an additional 10VA for the 6000 Series System.

Example: If you have a 3-zone system, and there are two dampers per zone, then the total number of dampers that could be energized at

one time is,

6 dampers x 2.5VA per damper + 10VA for 6000 Series System = 25VA required

b. Select a transformer that meets or exceeds the value calculated.

TRANSFORMER

24 VAC

120 VAC

FIGURE 6 – TRANSFORMER

90-2412

DAMPER

• Run 2-conductor thermostat wire for spring

return dampers (normally open or normally

closed).

• Run 3-conductor thermostat wire for power

open/power close dampers.

• Multiple dampers for the same zone can be

wired in parallel as shown in FIGURES 7 & 8.

• Wire the dampers to the 6000 Series Hub:

NC – This terminal is used to power open

a normally closed damper. For power open

and power close dampers this terminal is

used to power open the damper.

NO – This terminal is used to power close a

normally open damper. For power open and

power close dampers this terminal is used to

power close the damper.

COM – This terminal provides a common

connection for the NC and NO terminals.

• If multiple transformers will be required,

wire them in parallel as shown. Before

wiring the transformers together, ensure

that they are connected in phase by

observing polarity marks or terminal

orientation on each transformer. See

FIGURE 9.OPEN

COMMON

OPEN

COMMON

IMPORTANT: CHECK PHASE OF TRANSFORMERS BEFORE WIRING TOGETHER

90-2415

FIGURE 7 – NORMALLY OPEN / POWER CLOSE DAMPERS

FIGURE 8 – POWER OPEN / POWER CLOSE DAMPERS

FIGURE 9 – MULTIPLE TRANSFORMERS

90-2413

90-2414

OUTDOOR TEMPERATURE SENSOR (INCLUDED)

• Wire the outdoor temperature sensor Model

8052 to the “ODT” terminals as shown. See

FIGURE 10.

• Maximum distance of the ODT sensor from

the 6000 Series is 300 feet.

• Do not wire along 120VAC lines.

• Outdoor temperature sensor should be

mounted:

– On side of building out of direct sunlight.

– Above snow line.

– At least 3 feet away from exhaust vents

and condensing lines.

MODEL 8052 TEMP SENSOR

MODEL 8057 TEMP SENSOR

90-2088

90-2427

FIGURE 10 – OUTDOOR TEMPERATURE SENSOR

FIGURE 11 – DISCHARGE AIR TEMPERATURE SENSOR

MODEL 8052 TEMP SENSOR

90-2416

FIGURE 12 – RETURN AIR TEMPERATURE SENSOR

DISCHARGE AIR TEMPERATURE SENSOR (INCLUDED)

• Wire the discharge air temperature sensor

Model 8057 to the “DAT” terminals as

shown. See FIGURE 11.

• Maximum distance of the DAT sensor from

the 6000 Series Hub is 300 feet.

• Do not wire along 120VAC lines.

• Refer to FIGURE 2 on page 7 for the proper

mounting location of the discharge air

temperature sensor.

RETURN AIR TEMPERATURE SENSOR (OPTIONAL)

• Wire the return air temperature sensor

Model 8052 to the “RAT” terminals as

shown. See FIGURE 12.

• Maximum distance of the RAT sensor from

the 6000 Series Hub is 300 feet.

• Do not wire along 120VAC lines.

• Mount the sensor according to the

installation instructions provided with the

sensor.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Aprilaire Système de contrôle

Aprilaire

Aprilaire 63 Manuel utilisateur

Manuels Système de contrôle populaires d'autres marques

Pentair Pool Products

Pentair Pool Products Compool Manuel utilisateur

ComfortNET

ComfortNET CTK04 Manuel utilisateur

Fireye

Fireye InSight II 95DSS3 Manuel utilisateur

CAME

CAME G3000 Manuel utilisateur

Idemia

Idemia MorphoAccess VP MD Manuel utilisateur

Axis

Axis P1445-LE-3 Manuel utilisateur

HEIDENHAIN

HEIDENHAIN TNC 150 B Manuel utilisateur

CNC-Step

CNC-Step High-Z T-Series Manuel utilisateur

Doosan

Doosan DVF Series Manuel utilisateur

Honeywell

Honeywell KAP 140 Manuel utilisateur

Honeywell

Honeywell vk41 series Manuel utilisateur

AirBench

AirBench FPW Guide d'installation

Cypress

Cypress HHR-3160 Manuel utilisateur

CAME

CAME GLT40AOS Manuel utilisateur

Zonex

Zonex GEN II -VVT Guide de l'utilisateur

Altronics

Altronics K 9650 Manuel utilisateur

micro-trak

micro-trak RoadMaster Manuel utilisateur

micro-trak

micro-trak Calc-An-Acre II Manuel utilisateur
