Overview

Introduction

Thank you for purchasing ONE. This User’s Guide describes how to set up ONE with your Mac and iPad,

connect headphones to play back music and record your own creations with the built-in mic, an external

mic or an electric instrument.

ONE for iPad/Mac

The ﬁrst studio-quality audio interface and microphone for iPad, iPhone and Mac

The Apogee ONE is the ﬁrst studio quality microphone and USB audio interface for iPad, iPhone and Mac. ONE is

designed for easily creating professional and amazing sounding recordings on your iPod touch, iPhone, iPad or Mac.

Using Apogee’s premium AD/DA conversion, ONE produces pristine music, podcast, and voice-over recordings while

also delivering audiophile quality sound to your headphones.

Legendary Sound Quality

Why Apogee ONE is the best choice for your studio

Apogee is an award-winning industry leader in digital recording technology with over 25 years of experience. Preferred

by recording pros around the world, Apogee products like Duet, Ensemble and Symphony I/O have been instrumental in

creating countless GRAMMY® and OSCAR® winning recordings and have set the industry standard in professional

recording for over two decades. ONE is built solidly on this reputation.

Overview - Apogee ONE User’s Guide

Package contents

The following items are included in the ONE box:

•ONE

•Breakout cable with:

•1 XLR Mic input

•1 1/4” Instrument input

•Microphone stand clip

•USB cable

•30-pin iOS cable

•Universal power supply with NA, EU, UK, AU, JP adaptors

•QuickStart guide

Software, ﬁrmware and the ONE User’s Guide are available online only.

Please register your product and download the latest installer here:

http://www.apogeedigital.com/downloads

Overview - Apogee ONE User’s Guide

ONE panel tour

Built-in Microphone

ONE’s built-in microphone capsule is located at the top

of the front panel. When using the built-in microphone,

orient the capsule towards the sound source

being recorded.

Input/Output Selection Indicator

These indicators show the input or output selected

for level adjustment using the multi-function

Controller Knob.

Input/Output Level Meters

These meters display the input level when any input is

selected or the output level when the output is selected

for level adjustment using the Controller Knob.

Multi-function Controller Knob

ONE’s multi-function controller knob allows you to easily

switch between Inputs and Outputs as well as adjust

their levels.

1/8” Stereo Headphone/Speaker Output

ONE’s 1/8” stereo output may be connected to

headphones or powered speakers. To connect to

powered speakers, use an adaptor cable with a stereo

1/8” connector on one end and the appropriate mating

connector for the powered speakers on the other end.

Mic/Instrument Input

This port is for connecting ONE’s breakout cable, which

includes one female XLR connector and one female

1/4” connector.

USB

ONE utilizes a single USB connector to interface with

Mac and iOS devices. To connect to Mac, use the

provided cable that terminates in a USB “A” type

connector; to connect to an iOS device, use the provided

cable that terminates in a 30-pin connector. To connect

to iOS devices with Apple’s Lightning connector, Apple’s

Lightning to 30-pin adapter (sold separately) is required.

Overview - Apogee ONE User’s Guide

DC Power

When connecting to a Mac, ONE is easily powered by

any available USB port; there’s no need to connect the

included DC power supply.

When connected to iPad, iPod Touch, or iPhone, there

are two options for DC power:

1. Connect ONE’s power supply to power ONE and

charge the iOS device.

2. Install two AA batteries (not included) in ONE’s

battery compartment as shown to the right. The

iOS device runs from its internal battery while ONE

runs from the AA batteries. This allows the entire

system to be completely mobile.

To install 2 AA batteries, use a coin or screwdriver to

remove ONE’s battery compartment door. Orient the 2

batteries as shown below so that the batteries’ minus (-)

terminals are installed against the compartment’s

springs. Once batteries are installed, replace the

compartment door.

When powering ONE from two AA batteries, it is highly

recommended to use NiMH rechargeable batteries for

the best battery life when recording and playing back

audio. Approximate battery life is shown below for

minimal and maximum load conditions when using

standard and rechargeable NiMH batteries.

Standard AA

Rechargeable NiMH AA

Playback from iTunes

(minimal load)

2 hours, 40 minutes (See Note Below)

3 hours, 40 minutes

Recording - max load

30 minutes

2 hours, 10 minutes

About 5-10 minutes before ONE shuts down, the level meters’ red LEDs will ﬂash to warn of the approaching loss of

power under most conditions. (see Note 1 below).

After changing batteries, it is necessary to power cycle ONE by removing and then re-inserting the USB connector.

Note - !Max load condition is as follows: Input 1 set to Ext 48v Mic with a 10mA phantom power load, Input 2

accepts a 1kHz tone at -1 dBfs, output set to maximum. Unit is set to 96kHz sample rate.

Overview - Apogee ONE User’s Guide

Getting Started

Connecting to your Mac

System Requirements

•Computer: Intel Mac 1.5GHz or faster

•Memory: 2 GB RAM minimum, 4 GB recommended

•OS: 10.6.8 or greater

•Connection and power: Any available USB port on a Mac

•USB bus powered; DC power optional (DC power supply included)

Install ONE Software

3. Connect ONE’s USB port to a USB port on your Mac using the supplied USB 2 cable.

4. Go to http://www.apogeedigital.com/downloads.php.

5. Download the latest ONE for iPad and Mac software installer.

6. Once you have downloaded the package, double-click the Apogee icon to run the ﬁrmware updater.

7. After the ﬁrmware update has completed, double-click the open-box icon to run the software installer.

8. You will be required to restart your computer after the install is complete.

Choosing ONE for Mac Sound I/O

After connecting ONE, installing the software and restarting your Mac, a dialog box will prompt you to choose ONE for

Mac sound input and output. Click Yes.

Connect to Headphones or Speakers

Connect headphones to the 1/8” output jack on ONE’s front panel.

Alternatively, you can connect ONE’s output to speakers by using an adapter cable. The cable should go from a stereo

1/8” connection (from ONE) to two separate connectors suitable for your speakers (1/4”, RCA, etc.).

Getting Started - Apogee ONE User’s Guide

Conﬁguring ONE’s Inputs on Mac

ONE’s two inputs may be conﬁgured in the following manner:

•Internal (built-in) microphone + 1/4” instrument

•External (XLR) microphone + 1/4” instrument

•External 48V (XLR) microphone + 1/4” instrument

When using an XLR microphone or 1/4” instrument, connect to ONE’s breakout cable.

Open Apogee Maestro software (found in your Mac’s Applications folder),

and select the Input tab.

Select the Analog Level setting that corresponds to the microphone source you’d like

to record. For example, if you have a microphone connected to the XLR connection on

the breakout cable, select Ext Mic from the Analog Level menu on channel 1. If you

would like to utilize ONE’s built-in microphone, select Int Mic. Channel 2’s source is

always the 1/4” Instrument input.

Note: If you are using a condenser

microphone that requires phantom power,

select Ext Mic 48V. Phantom power is

indicated on ONE’s display by

a red dot above the microphone icon.

Getting Started - Apogee ONE User’s Guide

Connecting to your iPad

System Requirements

•iPhone 4, iPhone 4S, iPad, iPad 2, iPad (3rd gen.)

•Connection: 30-pin dock connector

•iPod Touch (5th gen.), iPhone 5, iPad (4th gen.), iPad Mini

•Connection: Apple’s Lighting to 30-pin adapter (sold separately)

•iOS version: 5.1.1 or greater

•Power supply or two AA batteries required

Install Maestro from App Store

1. Connect the provided external power supply to ONE or insert 2 AA batteries.

Note: The iPad will not charge when using ONE’s battery power.

2. Connect ONE to your iPad/iPhone using the provided 30-pin iOS cable.

3. On the iPad/iPhone, open Settings and choose General > About > ONE, then choose "Find App for Accessory".

The App Store will open and navigate automatically to the Apogee Maestro app.

4. Once you've signed in to the App Store, click INSTALL to download Apogee Maestro.

Note: it's possible to record through the built-in microphone and play back audio without installing Maestro.

Getting Started - Apogee ONE User’s Guide

Connect to Headphones or Speakers

Connect headphones to the 1/8” output jack on ONE’s front panel.

Alternatively, you can connect ONE’s output to speakers by using an adapter cable. The cable should go from a stereo

1/8” connection (from ONE) to two separate connectors suitable for your speakers (1/4”, RCA, etc.).

Conﬁguring ONE’s Inputs on iPad

ONE’s inputs may be conﬁgured in the following manner:

•Internal (built-in) microphone + 1/4” instrument

•External (XLR) microphone + 1/4” instrument

•External 48V (XLR) microphone + 1/4” instrument

When using an XLR microphone or 1/4” instrument, connect to ONE’s breakout cable.

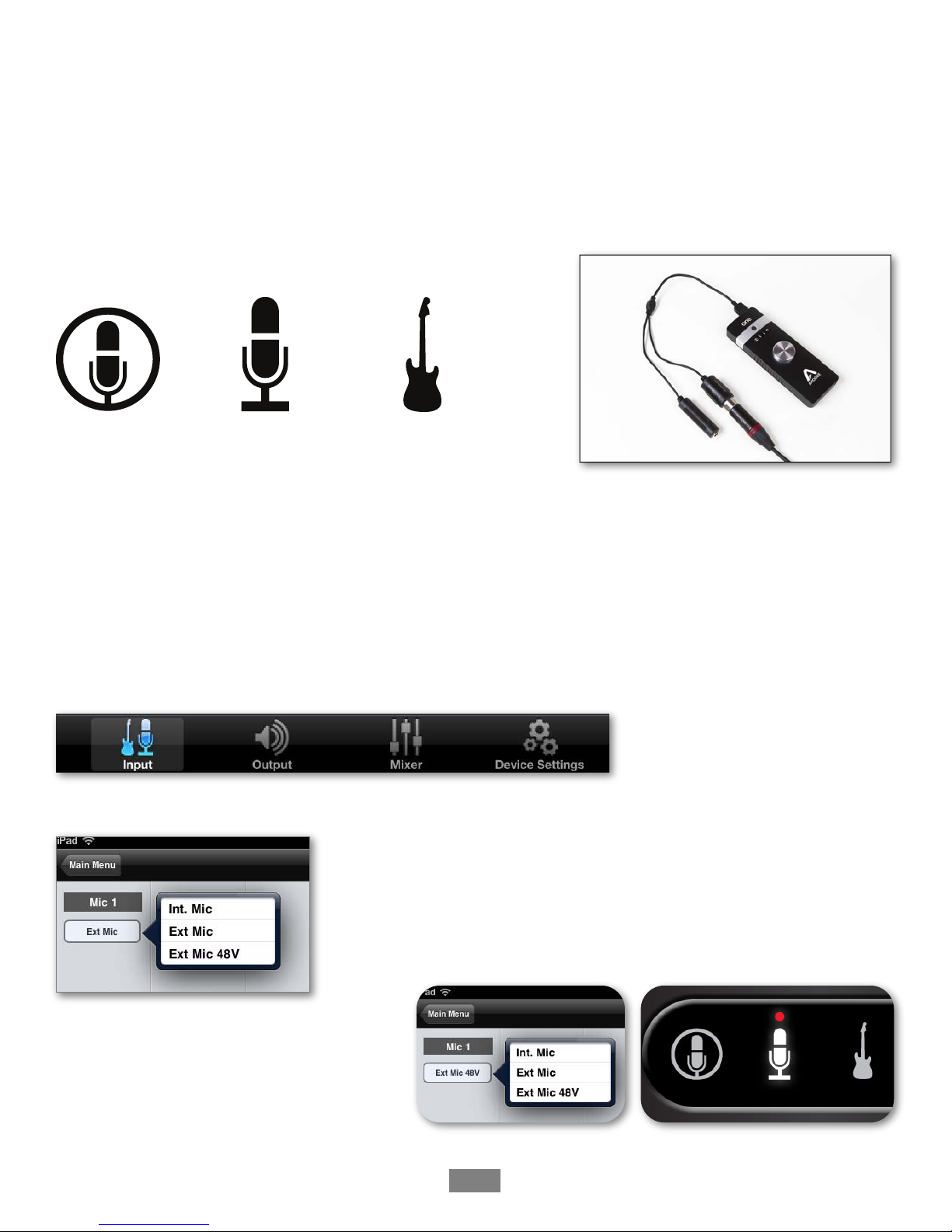

Open Apogee Maestro app, choose ONE from the main menu and select the Input tab.

Select the Analog Level setting that corresponds to the input source you’d like to

record. For example, if you have a microphone connected to the XLR connection

on the breakout cable, select Ext Mic from the Analog Level menu on channel 1.

If you would like to utilize ONE’s built-in microphone, select Int Mic. By default,

the 1/4” instrument input is the selected source for Channel 2.

Note: If you are using a condenser microphone

that requires phantom power, select Ext Mic

48V. Phantom power is indicated on ONE’s

display by a red dot above the microphone icon.

Getting Started - Apogee ONE User’s Guide

Autres manuels pour ONE

Table des matières

Autres manuels Apogee Accessoires

Apogee

Apogee SQ-640 Manuel utilisateur

Apogee

Apogee symphony i/o mk II Manuel utilisateur

Apogee

Apogee Quartet Manuel utilisateur

Apogee

Apogee ONE Manuel utilisateur

Apogee

Apogee Apogee Duet Manuel utilisateur

Apogee

Apogee SQX Series Manuel utilisateur

Apogee

Apogee SQ-618 Manuel utilisateur

Apogee

Apogee SU-202 Manuel utilisateur

Apogee

Apogee SQ-617 Manuel utilisateur

Apogee

Apogee ONE Manuel utilisateur

Apogee

Apogee ensemble Manuel utilisateur

Apogee

Apogee SU-221 Manuel utilisateur

Apogee

Apogee Apogee Duet Manuel utilisateur

Apogee

Apogee ensemble Manuel utilisateur

Apogee

Apogee SQ-514 Manuel utilisateur

Apogee

Apogee Symphony Mobile Manuel utilisateur

Apogee

Apogee SQX Series Manuel utilisateur

Apogee

Apogee SQ-100 Series Manuel utilisateur

Apogee

Apogee SP-522 Manuel utilisateur

Apogee

Apogee TS-100 Manuel utilisateur

Apogee

Apogee SQ-512 Manuel utilisateur

Apogee

Apogee Element 24 Manuel utilisateur

Apogee

Apogee Apogee Duet Manuel utilisateur

Apogee

Apogee ONE Manuel utilisateur

Manuels Accessoires populaires d'autres marques

Hillco

Hillco 2810 Manuel utilisateur

Siemens

Siemens QSA2700D Manuel de l'opérateur

Contours

Contours ZY024 Manuel utilisateur

Saivod

Saivod VS621 Manuel utilisateur

Virtuox

Virtuox VirtuCLEAN 2.0 Manuel utilisateur

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuel utilisateur

Z-Wave

Z-Wave HSD-200Z Manuel utilisateur

turck

turck FMX-IM-2UPLI63FX Manuel utilisateur

Decagon Devices

Decagon Devices 10HS Manuel utilisateur

UPPAbaby

UPPAbaby Cup Holder Manuel utilisateur

Elko

Elko SmartSensor Leakage Wireless Manuel utilisateur

Grizzly

Grizzly H8371 Manuel utilisateur

Panasonic

Panasonic HG-T Series Manuel utilisateur

IFM Electronic

IFM Electronic Efector 250 Series Guide de référence

DigiDesign

DigiDesign 888/24 I/O Manuel utilisateur

PROZIS

PROZIS QUAY Manuel utilisateur

patagonia

patagonia PSI Vest Manuel utilisateur

SFC Energy

SFC Energy EFOY GO! Manuel utilisateur
