Apogee ONE Manuel utilisateur
Apogee ONE
QuickStart Guide
V3, March, 2013
Contents
.........................................................................................................Overview!5
Introduction!5
Package contents!6
ONE Panel Tour!8
Optional Battery Power!9
..............................................................................Connecting to your Mac!10
System Requirements!10
Install ONE Software !10
Connect to Headphones or Speakers!11
Configuring the Input!12
..............................................................................Connecting to your iPad!14
System Requirements!14
Install Maestro from App Store !14
Connect to Headphones or Speakers!17
Configuring the Input!18
................................................................Adjusting Input & Output Levels!20
.............................................................................................Software Setup!22
Using ONE with iOS Apps!29
.......................................................................................Additional Support!30
Overview
Introduction
Thank you for purchasing ONE. This QuickStart guide describes how to set up ONE with your Mac and iPad,
connect headphones to play back music and record your own creations with the built-in mic, an external mic or an
electric instrument.
ONE
The first studio-quality audio interface and microphone for iPad, iPhone and Mac
The Apogee ONE is the first studio quality microphone and USB audio interface for iPad, iPhone and Mac. ONE is
designed for easily creating professional and amazing sounding recordings on your iPod touch, iPhone, iPad or Mac.
Using Apogee’s premium AD/DA conversion, ONE produces pristine music, podcast, and voice-over recordings
while also delivering audiophile quality sound to your headphones.
Overview - Apogee ONE QuickStart Guide
5
Package contents
The following items are included in the ONE box:
•ONE
•Breakout cable with:
•1 XLR Mic input
•1 1/4” Instrument input
•Microphone stand clip
•USB cable
•30-pin iOS cable
•Universal power supply with NA, EU, UK, AU, JP
•QuickStart guide
Software, firmware and the ONE User’s Guide are available online only.
Please register your product and download the latest installer here:
http://www.apogeedigital.com/downloads
Overview - Apogee ONE QuickStart Guide
6
Overview - Apogee ONE QuickStart Guide
7
ONE Panel Tour
Built-in microphone
Input/output indicator Stereo headphone out
Speaker out
Mic/instrument input
Breakout cable included
DC power
Power supply included
USB connection to
iOS device or Mac
Input/output
level meters
Controller knob
- Select function
- Set input level
- Set output level
Overview - Apogee ONE QuickStart Guide
8

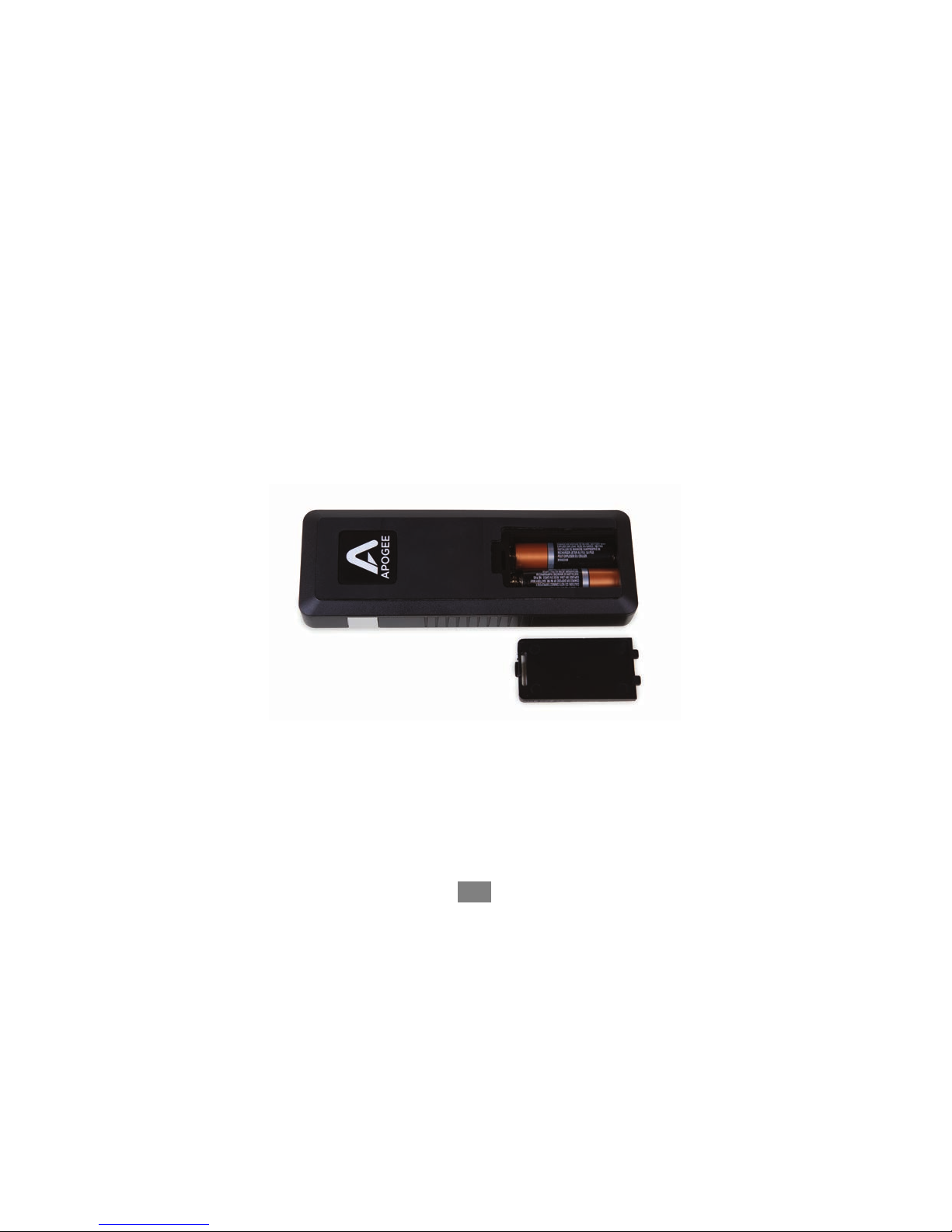

Optional Battery Power
When connecting to iPad, iPhone or iPod touch, ONE’s optional battery power provides complete portability. Simply
remove the lid from the battery compartment on the back of ONE and insert 2 AA batteries (not included).
Apogee highly recommends NiMH rechargeable batteries for the maximum amount of uninterrupted recording time.
Alternatively, you can connect ONE’s included power supply to charge your iOS device and continuously power ONE
without any batteries.
Overview - Apogee ONE QuickStart Guide
9
Connecting to your Mac
System Requirements
•Computer: Intel Mac 1.5GHz or faster
•Memory: 2 GB RAM minimum, 4 GB recommended
•OS: 10.6.8 or greater
•Connection and power: Any available USB port on a Mac
•USB bus powered; DC power optional (DC power supply included)
Install ONE Software
1. Connect ONE’s USB port to a USB port on your Mac using the supplied USB 2 cable.
2. Go to http://www.apogeedigital.com/downloads.php.
3. Download the latest ONE software installer.
4. Once you have downloaded the package, double-click the Apogee icon to run the firmware updater.
5. After the firmware update has completed, double-click the open-box icon to run the software installer.
6. You will be required to restart your computer after the install is complete.
Connecting to your Mac - Apogee ONE QuickStart Guide
10
