USER MANUAL
UBDDGS60ABK, UBDDGS90ABK Version 00
DOWN-DRAFT HOOD
Cooker hood
[01] x 1
[09] x 1
VENT PACK 150mm
GB IE
Let's
get started...
Getting started... 03
Before you start
04
Safety
08
In more detail... 10
Product functions
Switching on/off
Care and maintenance
Troubleshooting
Recycling and disposal
Technical and legal information
10
10
11
13
14
15
Appendix
20
Installation
Information for EU66 17
21
3
These instructions are for your safety. Please read through them
thoroughly before use and retain them for future reference.
4
GB IE
Safety
Getting started...
•All installation work must be carried
out by a competent person or qualified
electrician.
•This appliance must be installed correctly
by a suitably qualified person, strictly
following the manufacturer’s instructions.
This appliance complies with all current European
safety legislation, however, the Manufacturer must
emphasise that this compliance does not prevent
the surfaces of the appliance from heating up
during use and remaining hot during its operation.
Accessible parts may become hot during use.
Young children should be kept away. Care should
be taken to avoid touching the appliance.
The Manufacturer highly recommends that this
appliance be kept out of the reach of babies and
small children.
This appliance can be used by children aged from
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack
of experience and knowledge if they have been
given supervision or instruction concerning use of
Warning : For use with Gas Hobs and for the user
not to touch the front panel due to heat
These instructions are for your safety. Please
read through them thoroughly prior to
installation and retain them for future reference.
GB IE
5
Safety
Getting started...
8 and supervised.
Keep the appliance and its cord out of reach of
children less than 8 years.
Means for disconnection must be incorporated in
the fixed wiring in accordance with the wiring rules.
An all-pole disconnection switch having a contact
separation of at least 3mm in all poles should be
connected in fixed wiring.
Regularly check the power plug and power cord
for damage. If the supply cord is damaged, it must
be replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a
danger or injury.
Do not allow the electric cables to touch the hot
parts of the appliance.
Make sure that the power cord is not caught under
or in the appliance and avoid damage to the power
cable.
Warning: Failure to install the screws or fixing
device in accordance with these instructions
may result in electrical hazards.
Do not install the appliance outdoors in a damp
place or in an area which may be prone to water
leaks such as under or near a sink unit. In the
event of a water leak allow the machine to dry
naturally.
the appliance in a safe way and understand the
hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall
not be made by children unless they are older than
6
GB IE
Safety
Getting started...
Warning: When the range hood and appliances
supplied with energy other than electricity are
simultaneously in operarion,the negative pressure
in the room must not exceed 4 Pa (4x10-5 bar).
Please dispose of the packing material carefully.
Do not use flammable sprays in close vicinity to
the appliance.
We also recommend that great care be taken
during use and cleaning. Read the cleaning and
maintenance sections for this appliance carefully.
A steam cleaner is not to be used.
The appliance is not intended to be operated by
means of external timer or separated
remote-control system.
The appliance is for domestic use only.
Warning: Before connecting the hood: switch off
the electricity supply and check that the supplied
Warning: Consult local regulations regarding
fumes outlets. Do not connect the hood to a fume,
ventilation or hot air duct. Confirm that room
ventilation is appropriate with the local authorities.
Make sure the maximum air extraction flow rate for
the appliances in the room does not exceed 4 Pa
(0.04 mbar). The room must have adequate
ventilation if an extractor hood is used
simultaneously with appliances that run on gas or
other fuels. The air must not be discharged into a
flue that is used for exhausting fumes from
appliances burning gas or other fuels. Regulations
regarding air extraction must be complied with.
GB IE
7
Safety
Getting started...
To avoid the risk of fire, clean the metal filter
regularly and closely watch and regulate pans
containing hot oil.
Do not use the hood if it shows signs of damage
or imperfection. Contact customer services.
Flambe cooking must not be carried out
in front of this appliance.
The Manufacturer declines all liability for personal
or material damage as a result of misuse or
incorrect installation of this appliance.
Regarding the information pertaining to installation,
thanks to refer to the below paragraph of the manual.
Regarding the information for replacing the bulb,
please see section "Care and maintenance".
involves no risk of damage. Switch off the
electricity supply to the hood and reconnect after
one minute.
Warning
There is a risk of electric shock and fire if
cleaning is not carried out in accordance with
the instructions.
Regarding the instructions for the lamp
replacement, thanks to refer to the section “
LAMP REPLACEMENT”.
ILCOS D code for this lamp is: DBS-1-S.
voltage and frequency coincide with that indicated
on the appliance nameplate.
Warning: The hood may stop working during an
electrostatic discharge (e.g. lightning). This
8
GB IE
Before you start
Getting started...
Things to check before you start
To avoid the risks that are always present when you use an electrical
appliance it is important that this cooker hood is installed correctly and that
you read the safety instructions carefully to avoid misuse and hazards.
We recommend that you keep this instruction booklet for future reference
and pass it on to any future owners. After unpacking the cooker hood
please check that it is not damaged. If in doubt, do not use the appliance
but contact Customer Services on 0344 800 1128 (UK) and 01 4475261
(Ireland).
Check the package and make sure you have all of the parts listed.
Decide on the appropriate location for your product.
If this product contains glass please take care with fitting or handing to
prevent personal injury or damage to the product.
This specifications plate is available on this appliance. This plate displays
all the necessary identification information for ordering replacement parts.
If you sell the appliance, give it away, or leave it behind when you move
house, make sure you also pass on this manual so that the new owner can
become familiar with the appliance and its safety warnings.
You will need
Before you start
Accessories not supplied
GB IE
9
Getting started...
Recirculation
ATFILT3 for 60cm product;
ATFILT4 for 90cm product.
CARBON FILTER ORDERING
HOTLINE
0344 800 1128 (UK)
014475261 (IE)
Steel fixed wire
Operation
10
GB IE
In more detail...

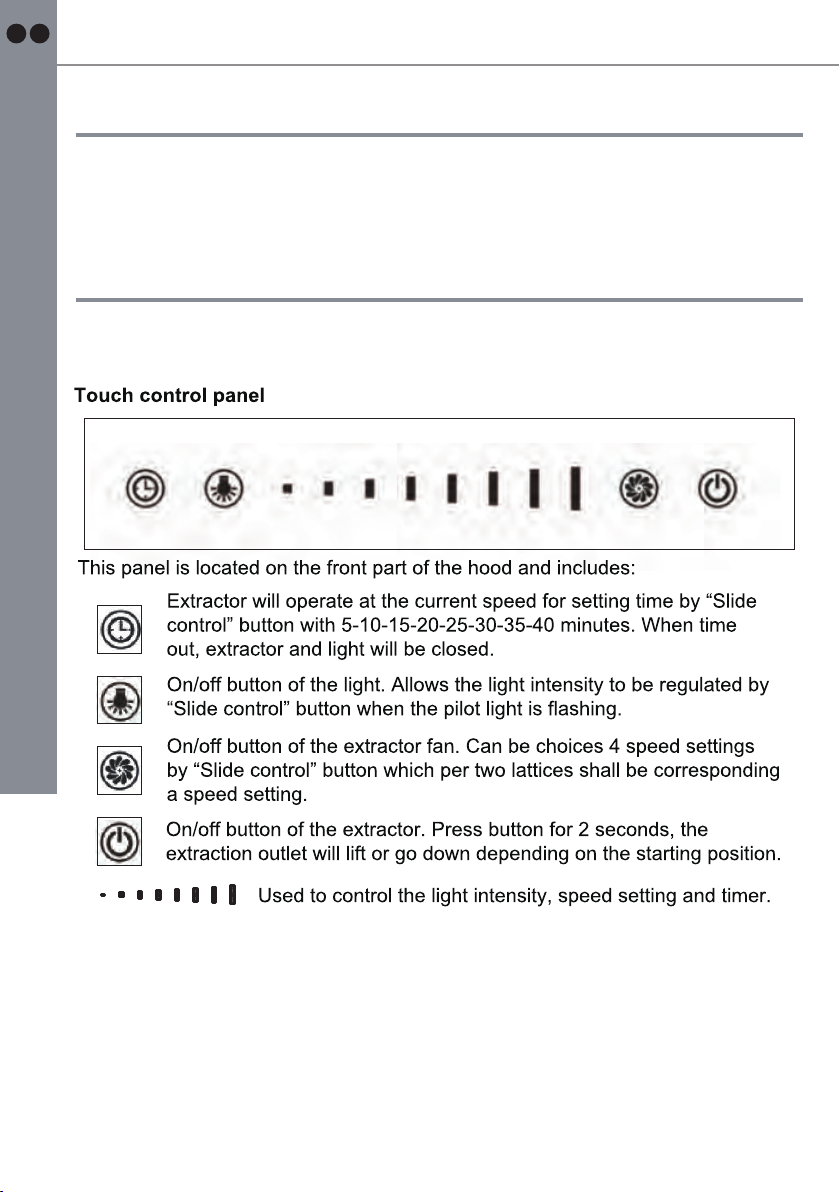

Product functions
•This appliance extracts the air of the kitchen to remove the odours and keep
an optimum level of air quality inside the room, it also allows you to illuminate
the cooking area.
•Switch on the appliance at the switched fused connection unit. The appliance
is ready for use.
Switching on/off
To obtain the best results from your cooker hood it is recommended that you
leave it switched on for 15 minutes after you have finished cooking.
